GB/T 22719.2-2008: Interturn insulation of random-wound winding for AC low-voltage electrical machines -- Part 2: Test limits

This Part of GB/T 22719 specifies the interturn insulation test of random-wound winding for AC electrical machines - test parameters, test limits and the allowable value of the test waveforms difference quantity when doing the automatic test discrimination. This Part applies to random-wound winding interturn insulation test for the 3-phase or singlephase AC electrical machines of which the nominal voltage is no more than 1140V.

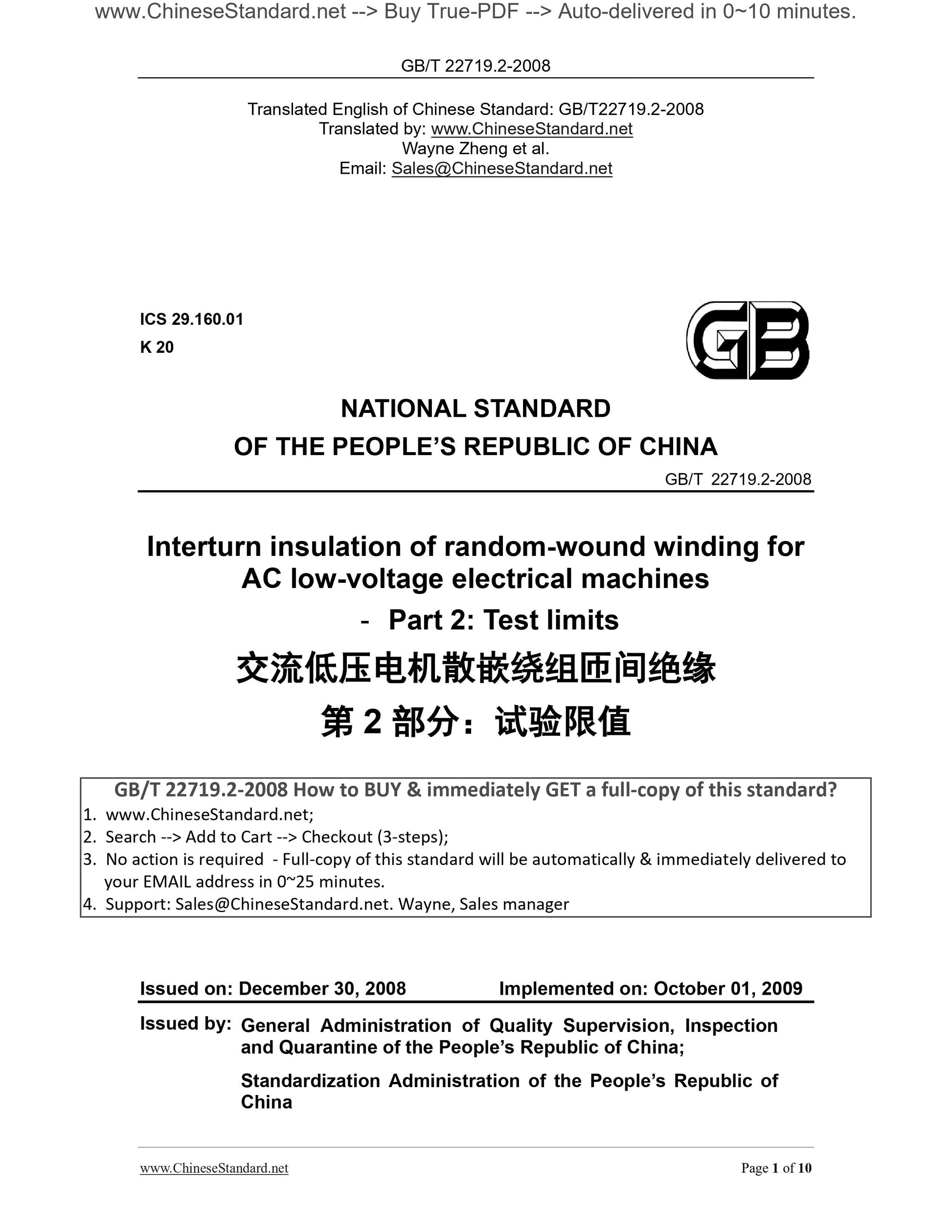

GB/T 22719.2-2008
ICS 29.160.01
K 20
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Interturn insulation of random-wound winding for
AC low-voltage electrical machines
- Part 2. Test limits
ISSUED ON. DECEMBER 30, 2008
IMPLEMENTED ON. OCTOBER 01, 2009
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China

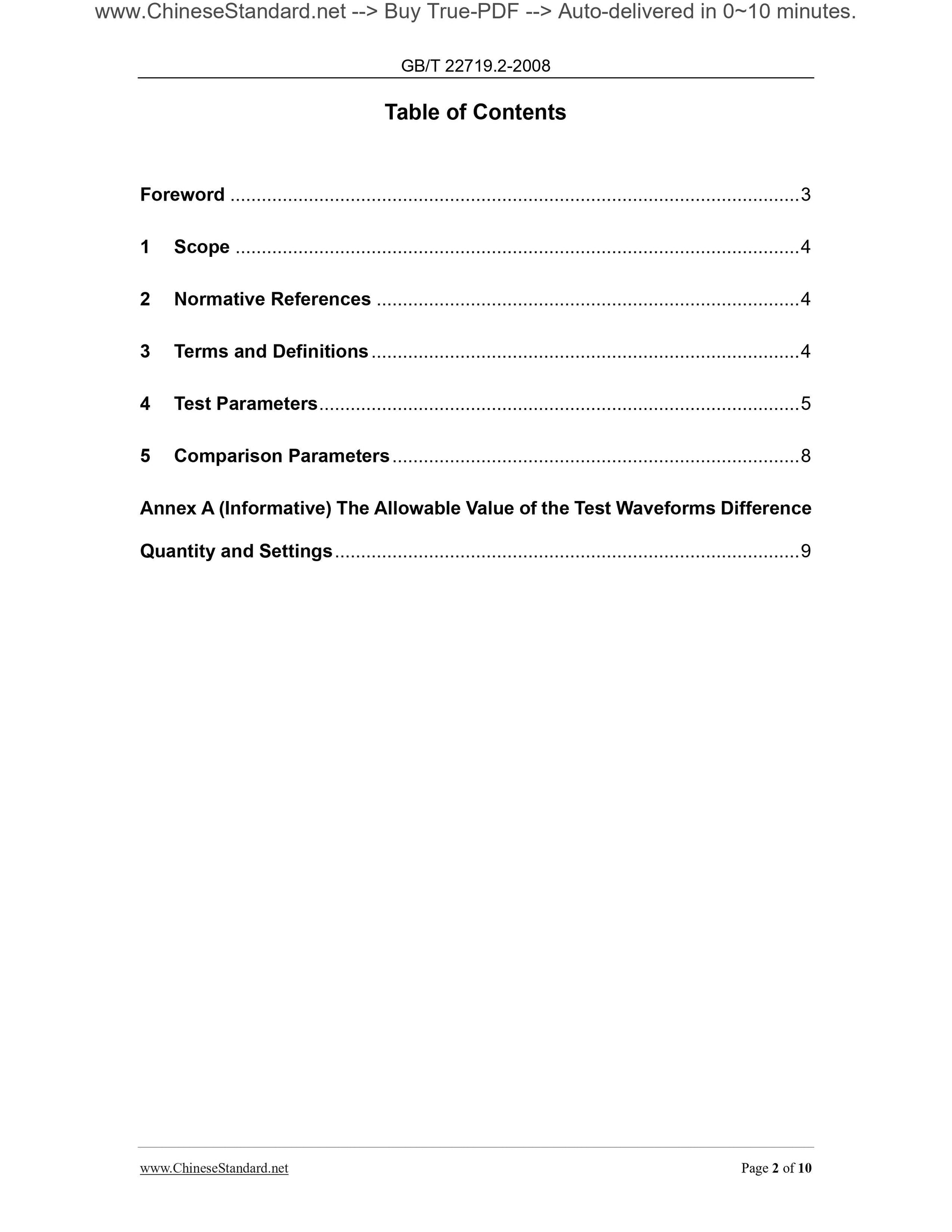

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Test Parameters ... 5
5 Comparison Parameters ... 8
Annex A (Informative) The Allowable Value of the Test Waveforms Difference Quantity and Settings ... 9

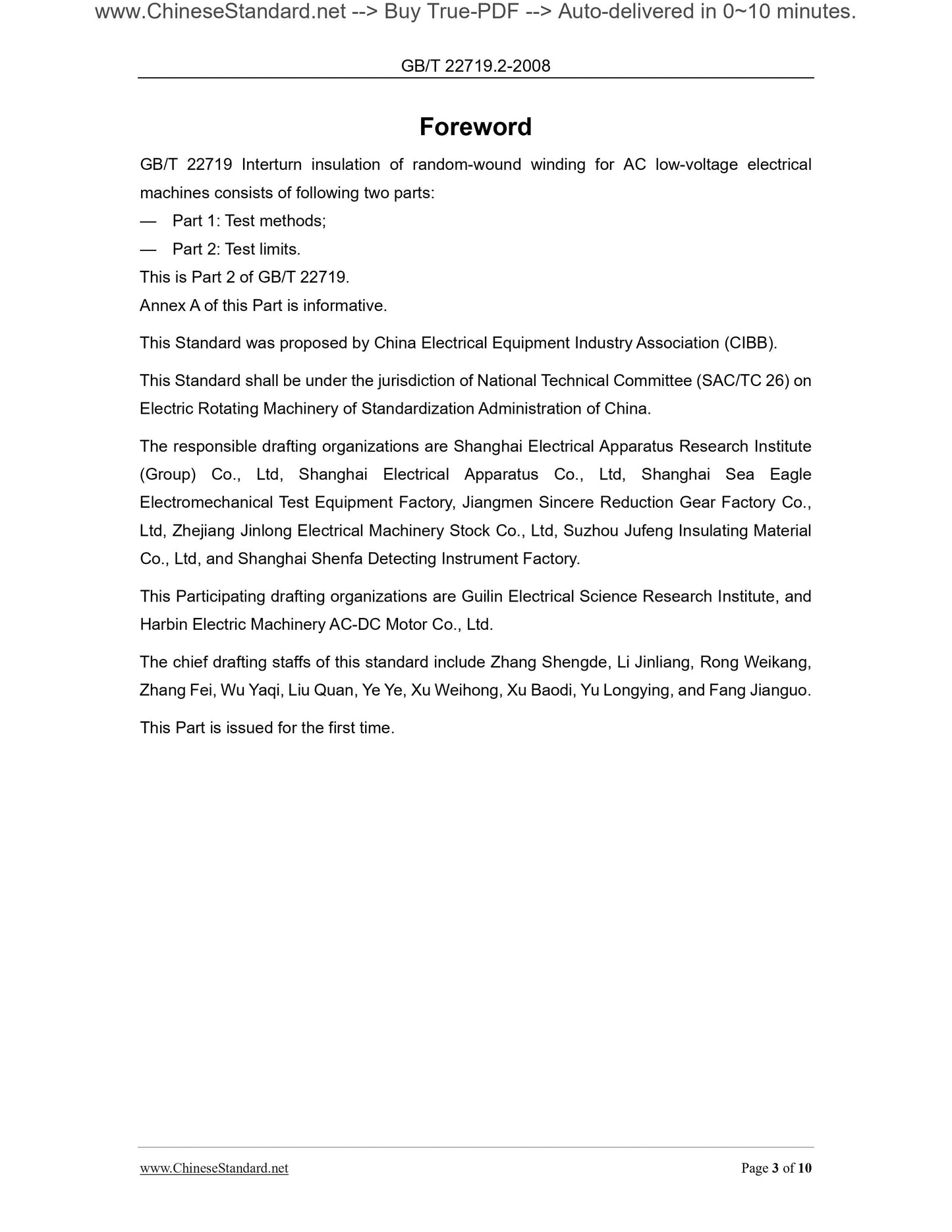

Foreword
GB/T 22719 Interturn insulation of random-wound winding for AC low-voltage electrical machines consists of following two parts.
?€? Part 1. Test methods;
?€? Part 2. Test limits.
This is Part 2 of GB/T 22719.
Annex A of this Part is informative.
This Standard was proposed by China Electrical Equipment Industry Association (CIBB). This Standard shall be under the jurisdiction of National Technical Committee (SAC/TC 26) on Electric Rotating Machinery of Standardization Administration of China. The responsible drafting organizations are Shanghai Electrical Apparatus Research Institute (Group) Co., Ltd, Shanghai Electrical Apparatus Co., Ltd, Shanghai Sea Eagle Electromechanical Test Equipment Factory, Jiangmen Sincere Reduction Gear Factory Co., Ltd, Zhejiang Jinlong Electrical Machinery Stock Co., Ltd, Suzhou Jufeng Insulating Material Co., Ltd, and Shanghai Shenfa Detecting Instrument Factory.
This Participating drafting organizations are Guilin Electrical Science Research Institute, and Harbin Electric Machinery AC-DC Motor Co., Ltd.
The chief drafting staffs of this standard include Zhang Shengde, Li Jinliang, Rong Weikang, Zhang Fei, Wu Yaqi, Liu Quan, Ye Ye, Xu Weihong, Xu Baodi, Yu Longying, and Fang Jianguo. This Part is issued for the first time.
GB/T 22719.2--2008

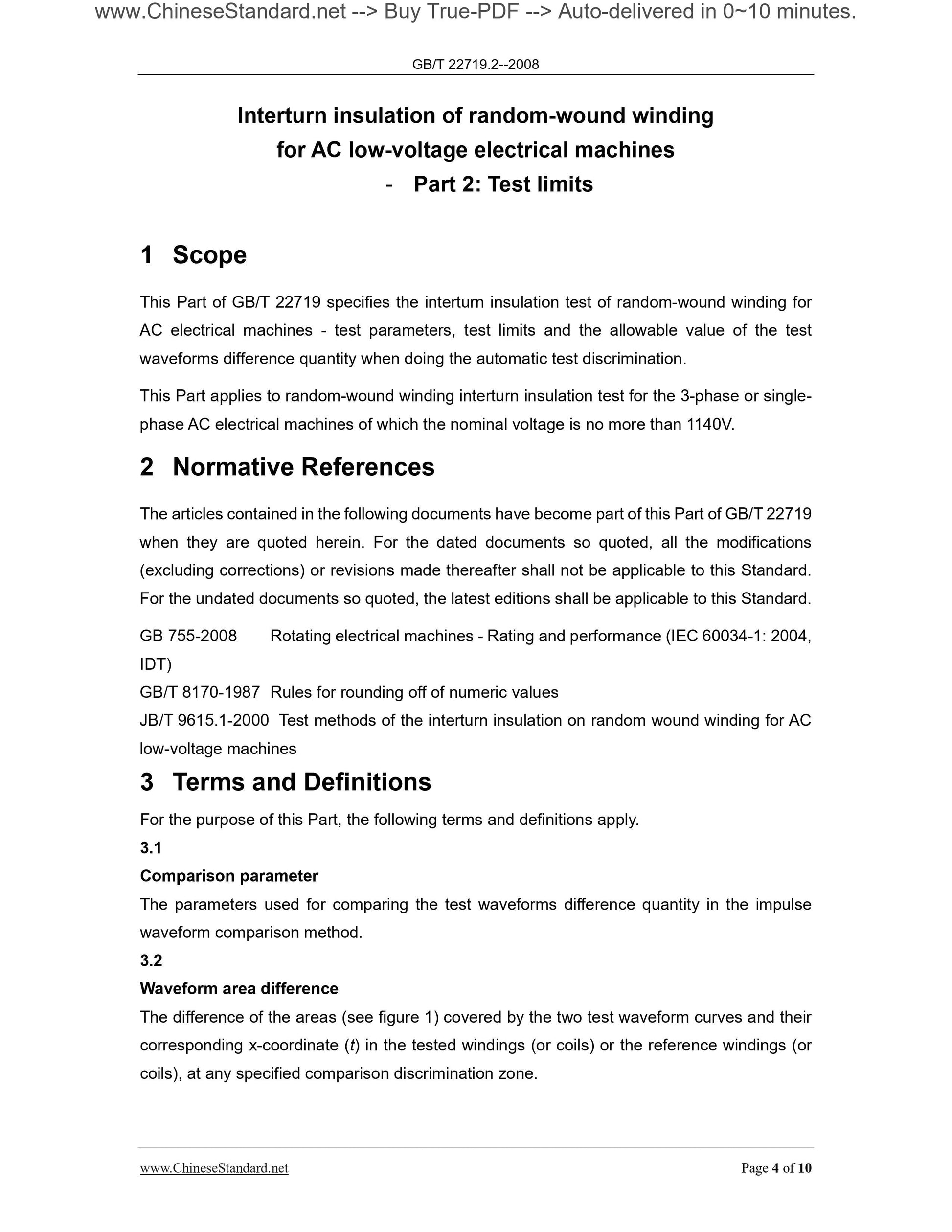

Interturn insulation of random-wound winding
for AC low-voltage electrical machines
- Part 2. Test limits
1 Scope
This Part of GB/T 22719 specifies the interturn insulation test of random-wound winding for AC electrical machines - test parameters, test limits and the allowable value of the test waveforms difference quantity when doing the automatic test discrimination. This Part applies to random-wound winding interturn insulation test for the 3-phase or single- phase AC electrical machines of which the nominal voltage is no more than 1140V. 2 Normative References
The articles contained in the following documents have become part of this Part of GB/T 22719 when they are quoted herein. For the dated documents so quoted, all the modifications (excluding corrections) or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard. GB 755-2008 Rotating electrical machines - Rating and performance (IEC 60034-1. 2004, IDT)
GB/T 8170-1987 Rules for rounding off of numeric values
JB/T 9615.1-2000 Test methods of the interturn insulation on random wound winding for AC low-voltage machines
3 Terms and Definitions
For the purpose of this Part, the following terms and definitions apply. 3.1
Comparison parameter
The parameters used for comparing the test waveforms difference quantity in the impulse waveform comparison method.
3.2
Waveform area difference
The difference of the areas (see figure 1) covered by the two test waveform curves and their corresponding x-coordinate (t) in the tested windings (or coils) or the reference windings (or coils), at any specified comparison discrimination zone.
GB/T 22719.2--2008

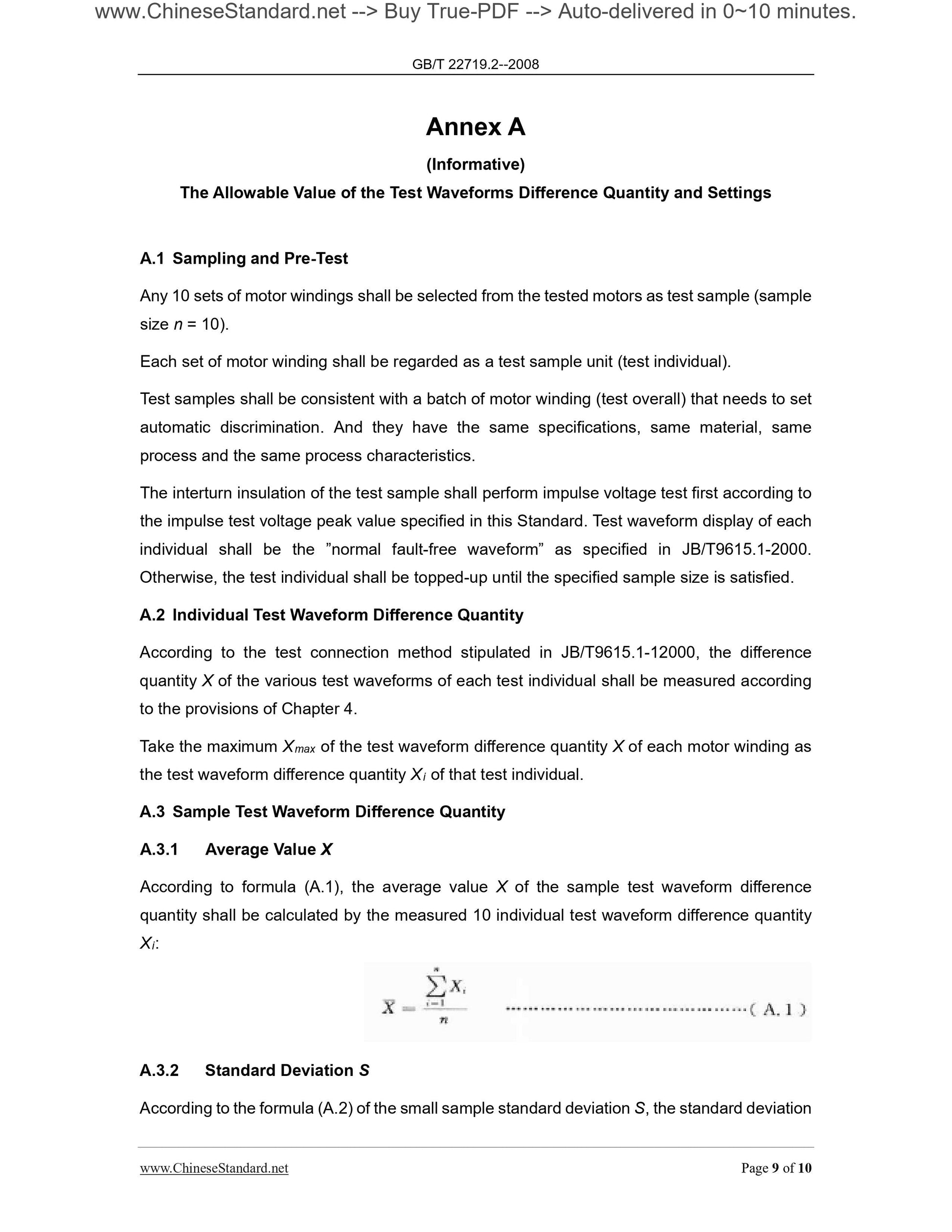

Annex A
(Informative)
The Allowable Value of the Test Waveforms Difference Quantity and Settings A.1 Sampling and Pre-Test
Any 10 sets of motor windings shall be selected from the tested motors as test sample (sample size n = 10).
Each set of motor winding shall be regarded as a test sample unit (test individual). Test samples shall be consistent with a batch of motor winding (test overall) that needs to set automatic discrimination. And they have the same specifications, same material, same process and the same process characteristics.
The interturn insulation of the test sample shall perform impulse voltage test first according to the impulse test voltage peak value specified in this Standard. Test waveform display of each individual shall be the ?€?normal fault-free waveform?€? as specified in JB/T9615.1-2000. Otherwise, the test individual shall be topped-up until the specified sample size is satisfied. A.2 Individual Test Waveform Difference Quantity
According to the test connection method stipulated in JB/T9615.1-12000, the difference quantity X of the various test waveforms of each test individual shall be measured according to the provisions of Chapter 4.
Take the maximum Xmax of the test waveform difference quantity X of each motor winding as the test waveform difference quantity Xi of that test individual.
A.3 Sample Test Waveform Difference Quantity
A.3.1 Average Value X
According to formula (A.1), the average value X of the sample test waveform difference quantity shall be calculated by the measured 10 individual test waveform difference quantity Xi.
A.3.2 Standard Deviation S
According to the formula (A.2) of the small sample standard deviation S, the standard deviation GB/T 22719.2--2008

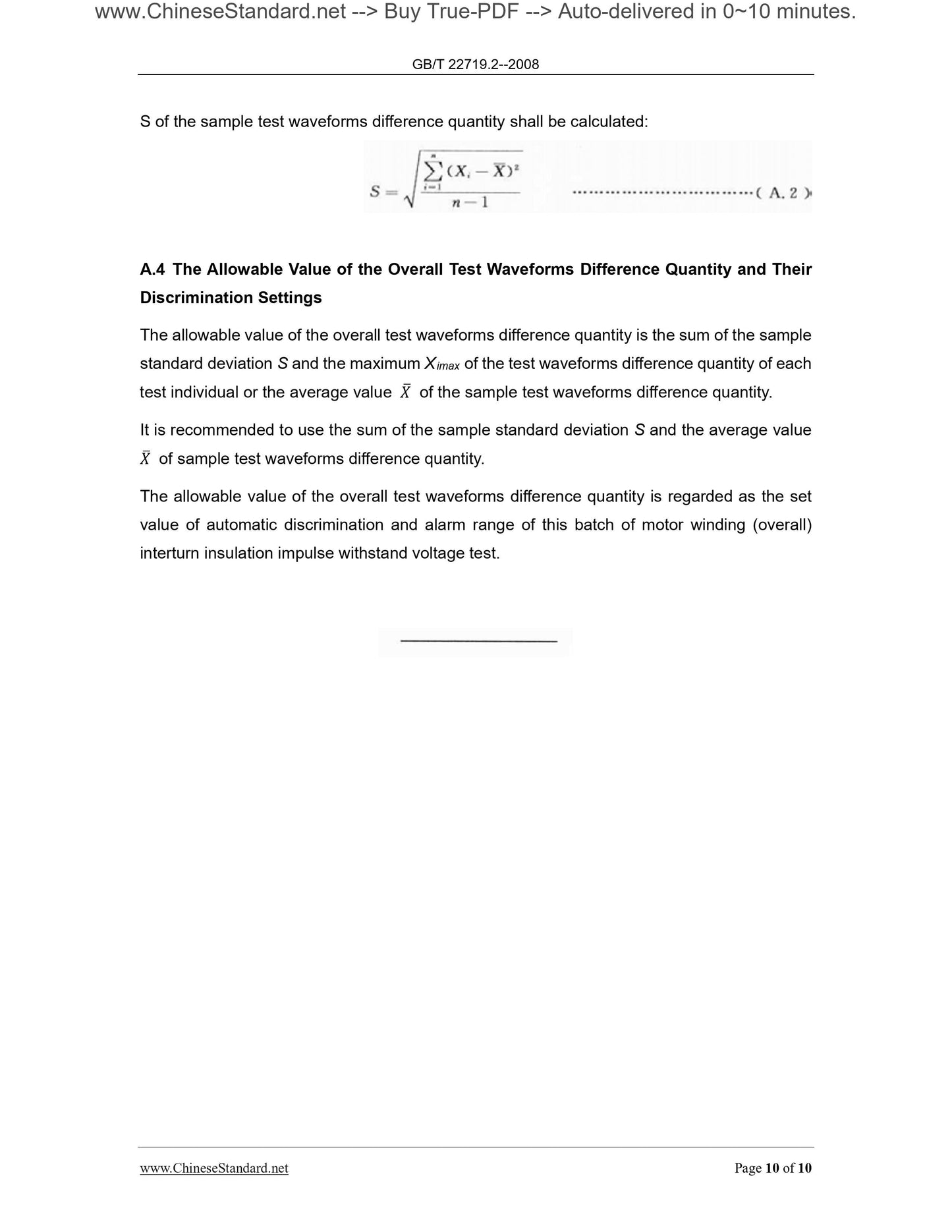

S of the sample test waveforms difference quantity shall be calculated. A.4 The Allowable Value of the Overall Test Waveforms Difference Quantity and Their Discrimination Settings
The allowable value of the overall test waveforms difference quantity is the sum of the sample standard deviation S and the maximum Ximax of the test waveforms difference quantity of each test individual or the average value ??????????? of the sample test waveforms difference quantity. It is recommended to use the sum of the sample standard deviation S and the average value ??????????? of sample test waveforms difference quantity.
The allowable value of the overall test waveforms difference quantity is regarded as the set value of automatic discrimination and alarm range of this batch of motor winding (overall) interturn insulation impulse withstand voltage test.
