GB/T 22641-2020: Wrought aluminium alloy sheets and plates for ships

This Standard specifies the requirements, test methods, inspection rules and signs, packaging, transportation, storage, quality certificate and order form (or contract) contents of wrought aluminium alloy sheets and plates for ships. This Standard applies to wrought aluminium alloy sheets and plates for ships.

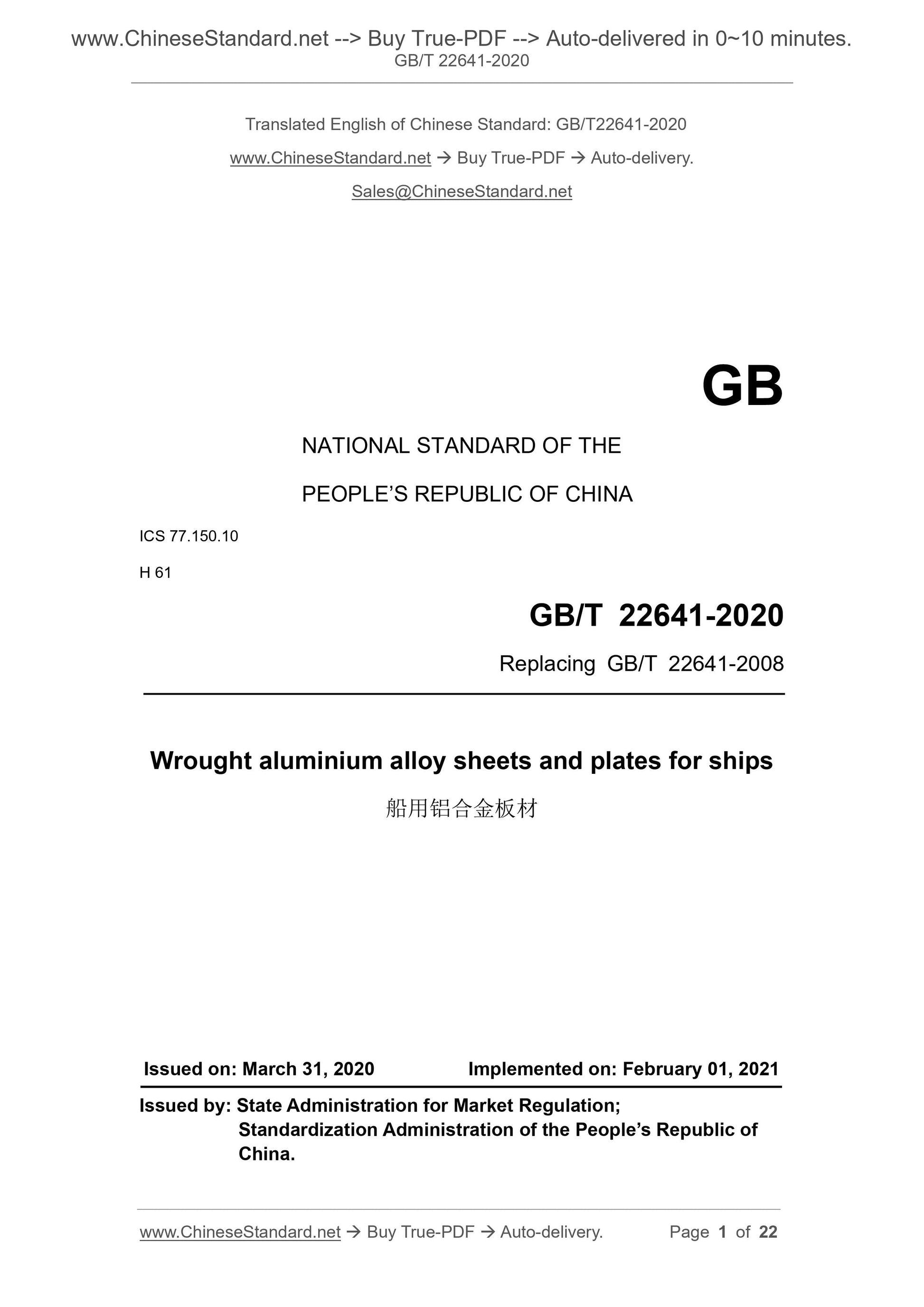

GB/T 22641-2020
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.150.10
H 61
Replacing GB/T 22641-2008
Wrought aluminium alloy sheets and plates for ships
ISSUED ON: MARCH 31, 2020
IMPLEMENTED ON: FEBRUARY 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of
China.

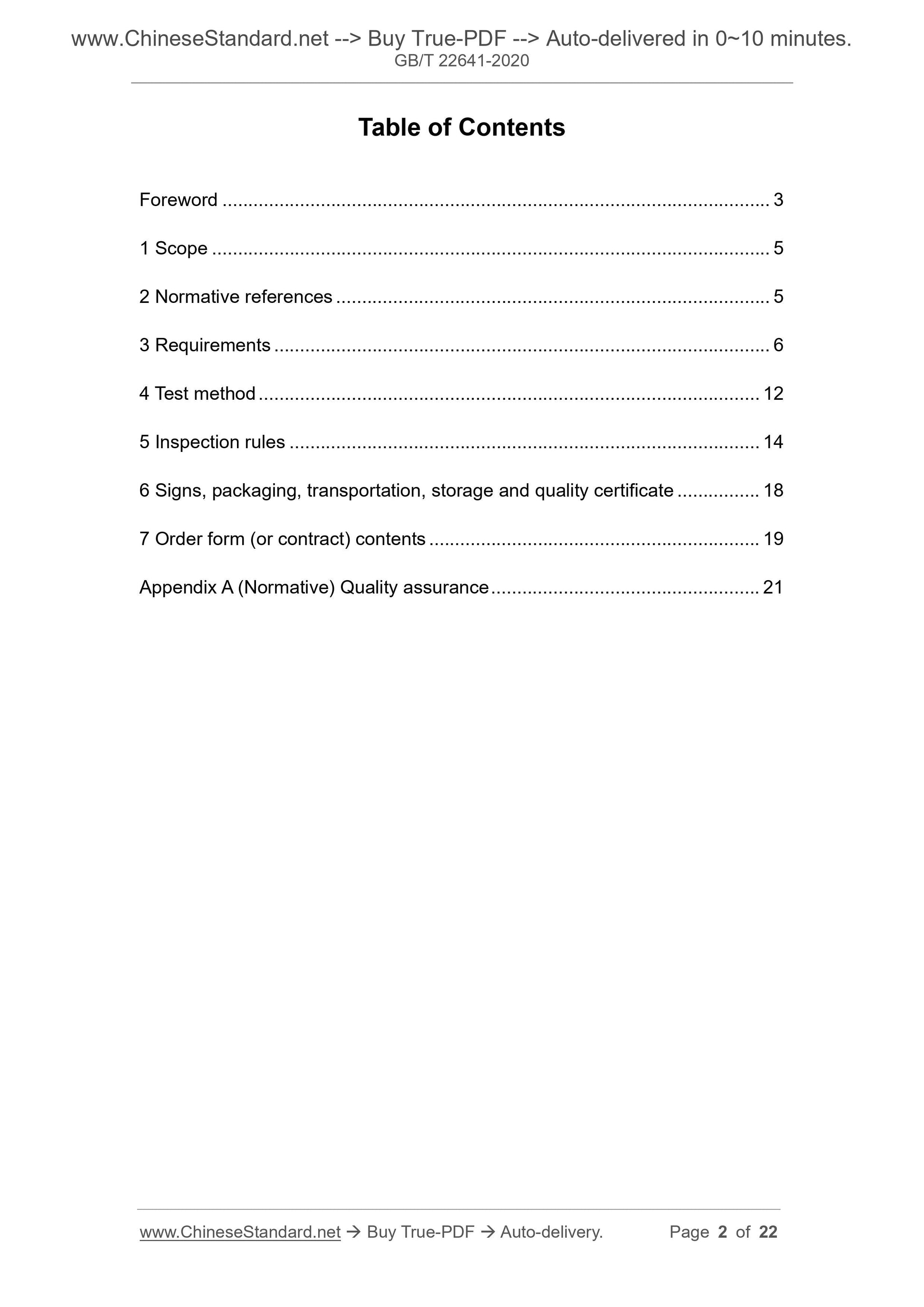

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Requirements ... 6
4 Test method ... 12
5 Inspection rules ... 14
6 Signs, packaging, transportation, storage and quality certificate ... 18 7 Order form (or contract) contents ... 19
Appendix A (Normative) Quality assurance ... 21
Wrought aluminium alloy sheets and plates for ships

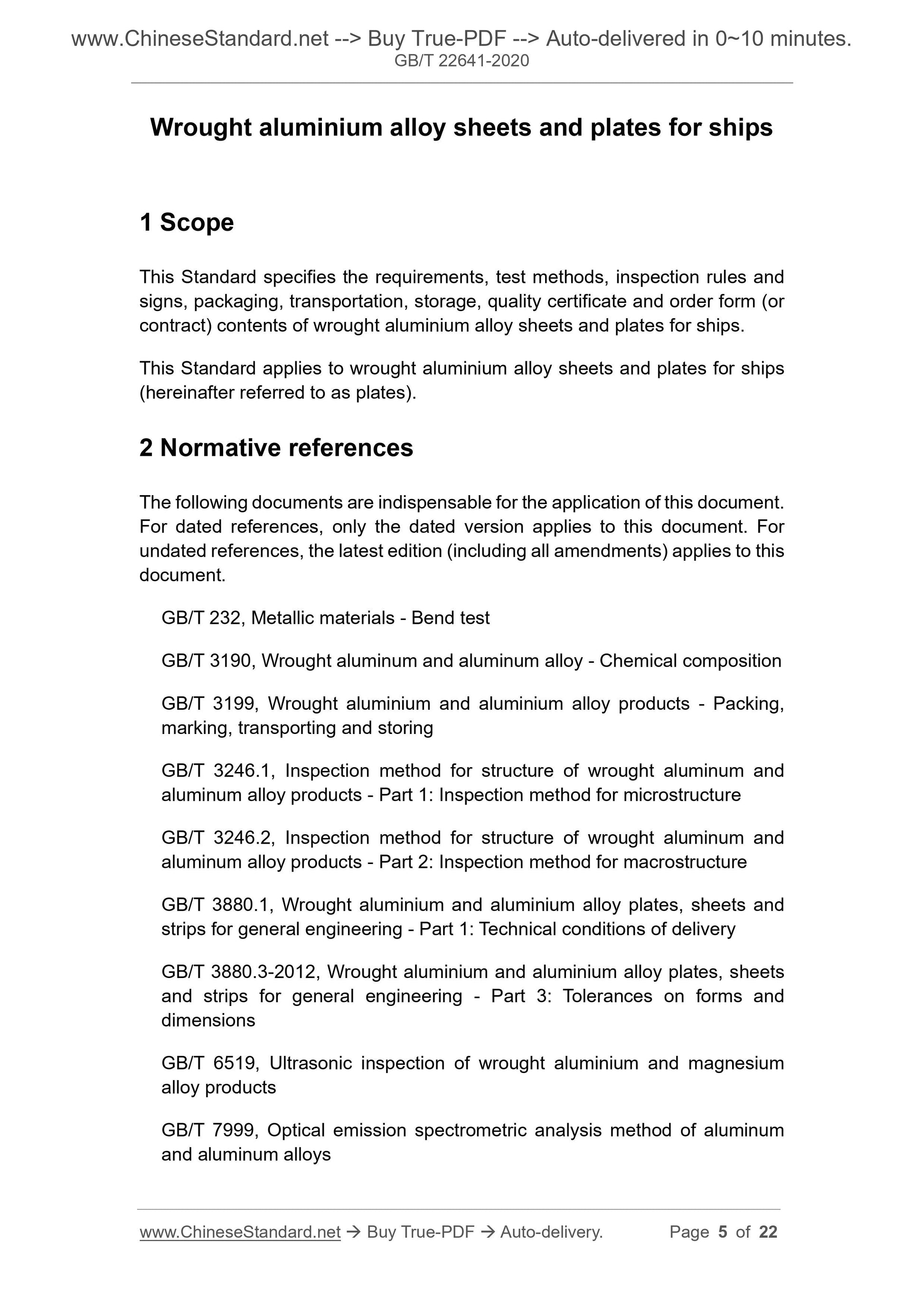

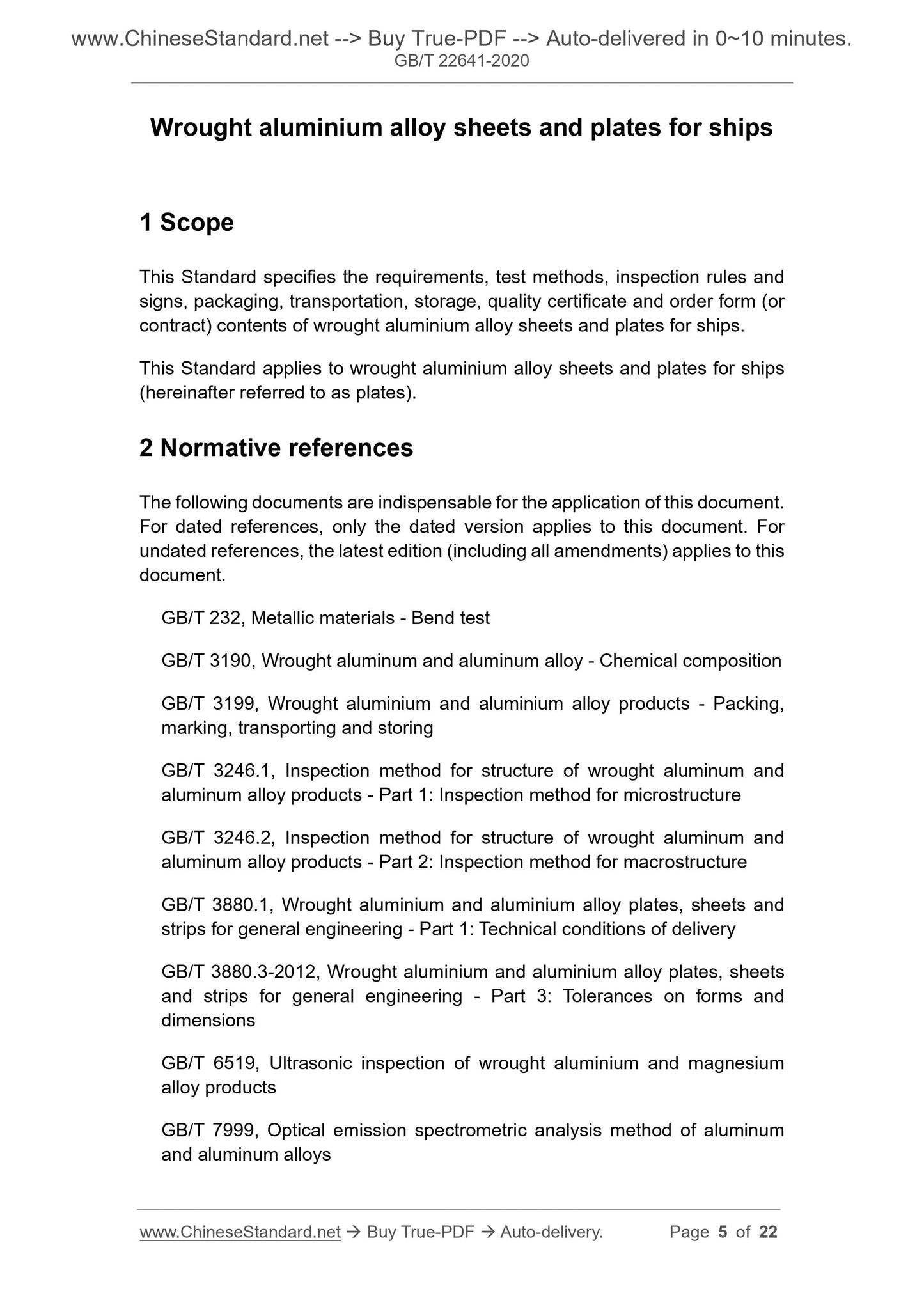

1 Scope
This Standard specifies the requirements, test methods, inspection rules and signs, packaging, transportation, storage, quality certificate and order form (or contract) contents of wrought aluminium alloy sheets and plates for ships. This Standard applies to wrought aluminium alloy sheets and plates for ships (hereinafter referred to as plates).
2 Normative references
The following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document.
GB/T 232, Metallic materials - Bend test
GB/T 3190, Wrought aluminum and aluminum alloy - Chemical composition
GB/T 3199, Wrought aluminium and aluminium alloy products - Packing,
marking, transporting and storing
GB/T 3246.1, Inspection method for structure of wrought aluminum and
aluminum alloy products - Part 1: Inspection method for microstructure
GB/T 3246.2, Inspection method for structure of wrought aluminum and
aluminum alloy products - Part 2: Inspection method for macrostructure
GB/T 3880.1, Wrought aluminium and aluminium alloy plates, sheets and
strips for general engineering - Part 1: Technical conditions of delivery GB/T 3880.3-2012, Wrought aluminium and aluminium alloy plates, sheets
and strips for general engineering - Part 3: Tolerances on forms and
dimensions
GB/T 6519, Ultrasonic inspection of wrought aluminium and magnesium
alloy products
GB/T 7999, Optical emission spectrometric analysis method of aluminum
and aluminum alloys

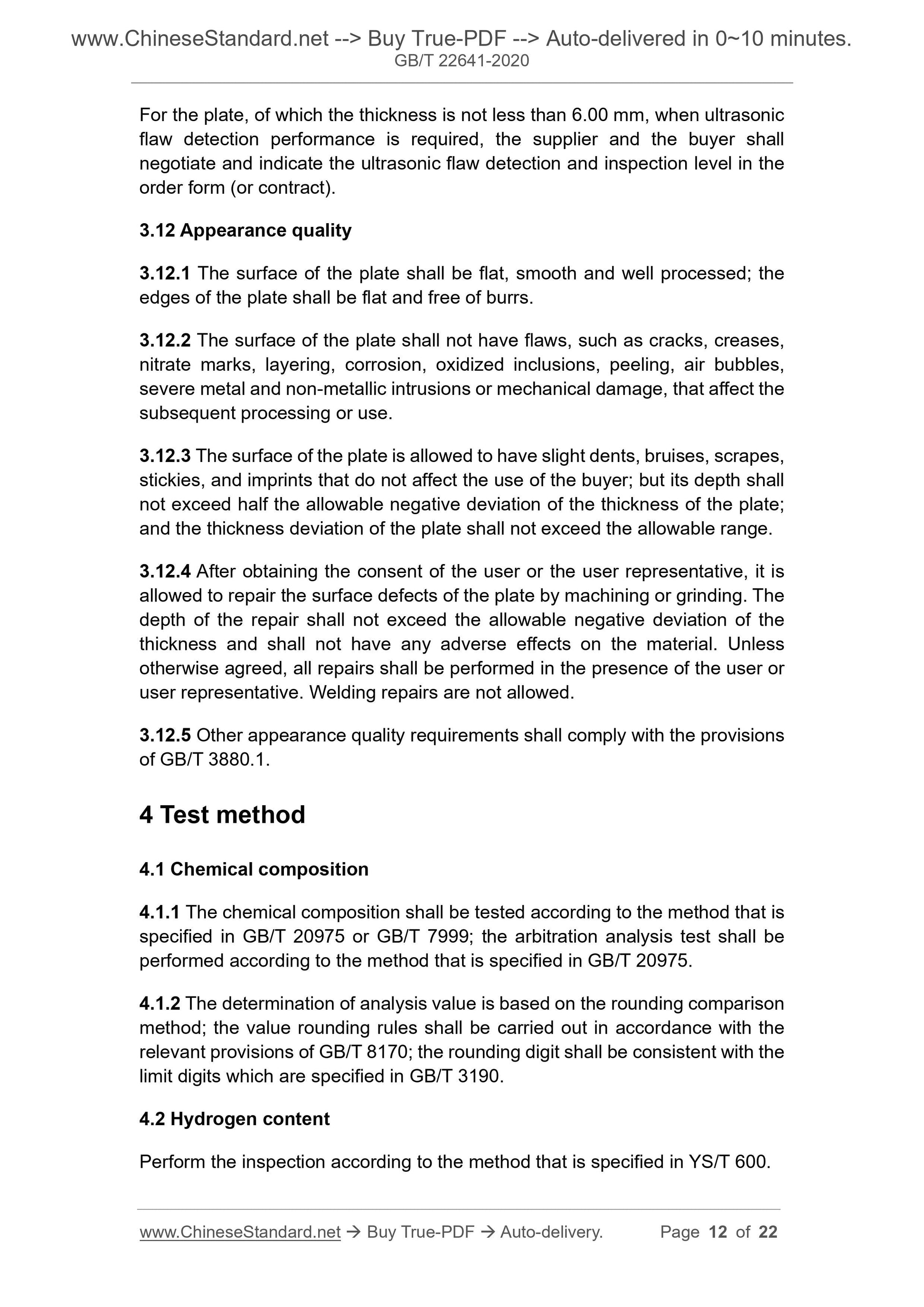

For the plate, of which the thickness is not less than 6.00 mm, when ultrasonic flaw detection performance is required, the supplier and the buyer shall negotiate and indicate the ultrasonic flaw detection and inspection level in the order form (or contract).
3.12 Appearance quality
3.12.1 The surface of the plate shall be flat, smooth and well processed; the edges of the plate shall be flat and free of burrs.
3.12.2 The surface of the plate shall not have flaws, such as cracks, creases, nitrate marks, layering, corrosion, oxidized inclusions, peeling, air bubbles, severe metal and non-metallic intrusions or mechanical damage, that affect the subsequent processing or use.
3.12.3 The surface of the plate is allowed to have slight dents, bruises, scrapes, stickies, and imprints that do not affect the use of the buyer; but its depth shall not exceed half the allowable negative deviation of the thickness of the plate; and the thickness deviation of the plate shall not exceed the allowable range. 3.12.4 After obtaining the consent of the user or the user representative, it is allowed to repair the surface defects of the plate by machining or grinding. The depth of the repair shall not exceed the allowable negative deviation of the thickness and shall not have any adverse effects on the material. Unless otherwise agreed, all repairs shall be performed in the presence of the user or user representative. Welding repairs are not allowed.
3.12.5 Other appearance quality requirements shall comply with the provisions of GB/T 3880.1.
4 Test method
4.1 Chemical composition
4.1.1 The chemical composition shall be tested according to the method that is specified in GB/T 20975 or GB/T 7999; the arbitration analysis test shall be performed according to the method that is specified in GB/T 20975.
4.1.2 The determination of analysis value is based on the rounding comparison method; the value rounding rules shall be carried out in accordance with the relevant provisions of GB/T 8170; the rounding digit shall be consistent with the limit digits which are specified in GB/T 3190.
4.2 Hydrogen content
Perform the inspection according to the method that is specified in YS/T 600. 4.12 Appearance quality

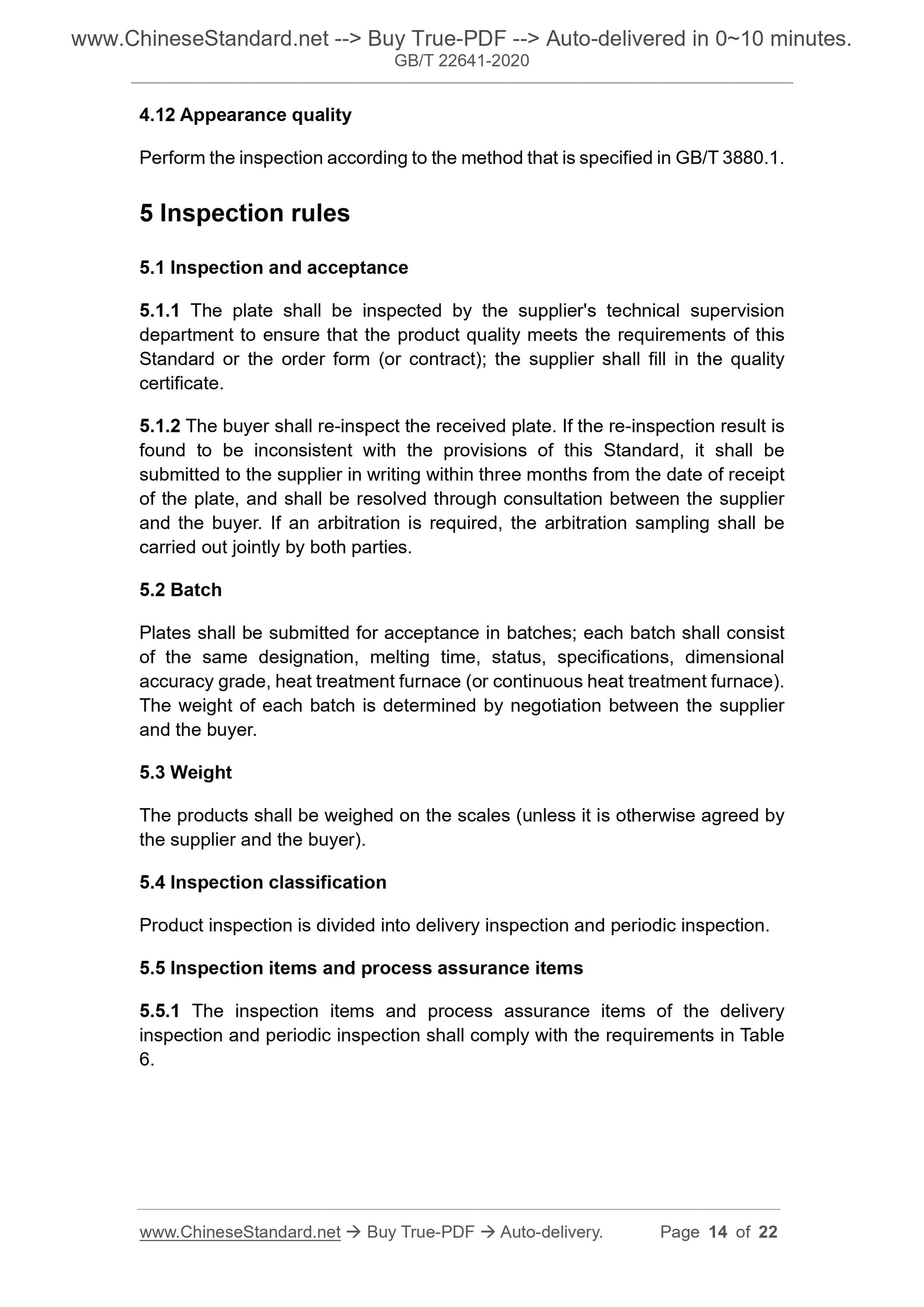

Perform the inspection according to the method that is specified in GB/T 3880.1. 5 Inspection rules
5.1 Inspection and acceptance
5.1.1 The plate shall be inspected by the supplier's technical supervision department to ensure that the product quality meets the requirements of this Standard or the order form (or contract); the supplier shall fill in the quality certificate.
5.1.2 The buyer shall re-inspect the received plate. If the re-inspection result is found to be inconsistent with the provisions of this Standard, it shall be submitted to the supplier in writing within three months from the date of receipt of the plate, and shall be resolved through consultation between the supplier and the buyer. If an arbitration is required, the arbitration sampling shall be carried out jointly by both parties.
5.2 Batch
Plates shall be submitted for acceptance in batches; each batch shall consist of the same designation, melting time, status, specifications, dimensional accuracy grade, heat treatment furnace (or continuous heat treatment furnace). The weight of each batch is determined by negotiation between the supplier and the buyer.
5.3 Weight
The products shall be weighed on the scales (unless it is otherwise agreed by the supplier and the buyer).
5.4 Inspection classification
Product inspection is divided into delivery inspection and periodic inspection. 5.5 Inspection items and process assurance items
5.5.1 The inspection items and process assurance items of the delivery
inspection and periodic inspection shall comply with the requirements in Table 6.

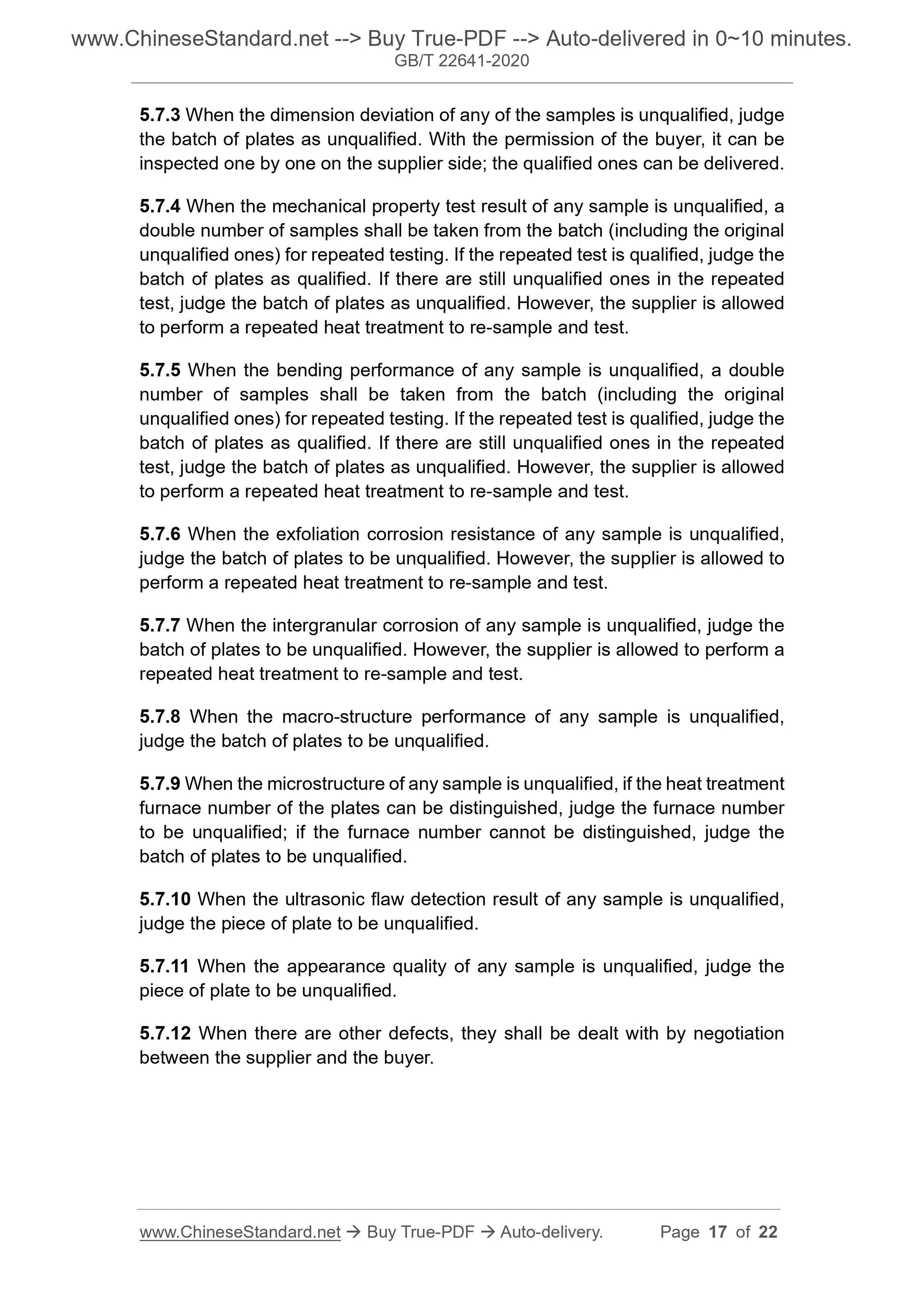

5.7.3 When the dimension deviation of any of the samples is unqualified, judge the batch of plates as unqualified. With the permission of the buyer, it can be inspected one by one on the supplier side; the qualified ones can be delivered. 5.7.4 When the mechanical property test result of any sample is unqualified, a double number of samples shall be taken from the batch (including the original unqualified ones) for repeated testing. If the repeated test is qualified, judge the batch of plates as qualified. If there are still unqualified ones in the repeated test, judge the batch of plates as unqualified. However, the supplier is allowed to perform a repeated heat treatment to re-sample and test.
5.7.5 When the bending performance of any sample is unqualified, a double number of samples shall be taken from the batch (including the original unqualified ones) for repeated testing. If the repeated test is qualified, judge the batch of plates as qualified. If there are still unqualified ones in the repeated test, judge the batch of plates as unqualified. However, the supplier is allowed to perform a repeated heat treatment to re-sample and test.
5.7.6 When the exfoliation corrosion resistance of any sample is unqualified, judge the batch of plates to be unqualified. However, the supplier is allowed to perform a repeated heat treatment to re-sample and test.
5.7.7 When the intergranular corrosion of any sample is unqualified, judge the batch of plates to be unqualified. However, the supplier is allowed to perform a repeated heat treatment to re-sample and test.
5.7.8 When the macro-structure performance of any sample is unqualified, judge the batch of plates to be unqualified.
5.7.9 When the microstructure of any sample is unqualified, if the heat treatment furnace number of the plates can be distinguished, judge the furnace number to be unqualified; if the furnace number cannot be distinguished, judge the batch of plates to be unqualified.
5.7.10 When the ultrasonic flaw detection result of any sample is unqualified, judge the piece of plate to be unqualified.
5.7.11 When the appearance quality of any sample is unqualified, judge the piece of plate to be unqualified.
5.7.12 When there are other defects, they shall be dealt with by negotiation between the supplier and the buyer.

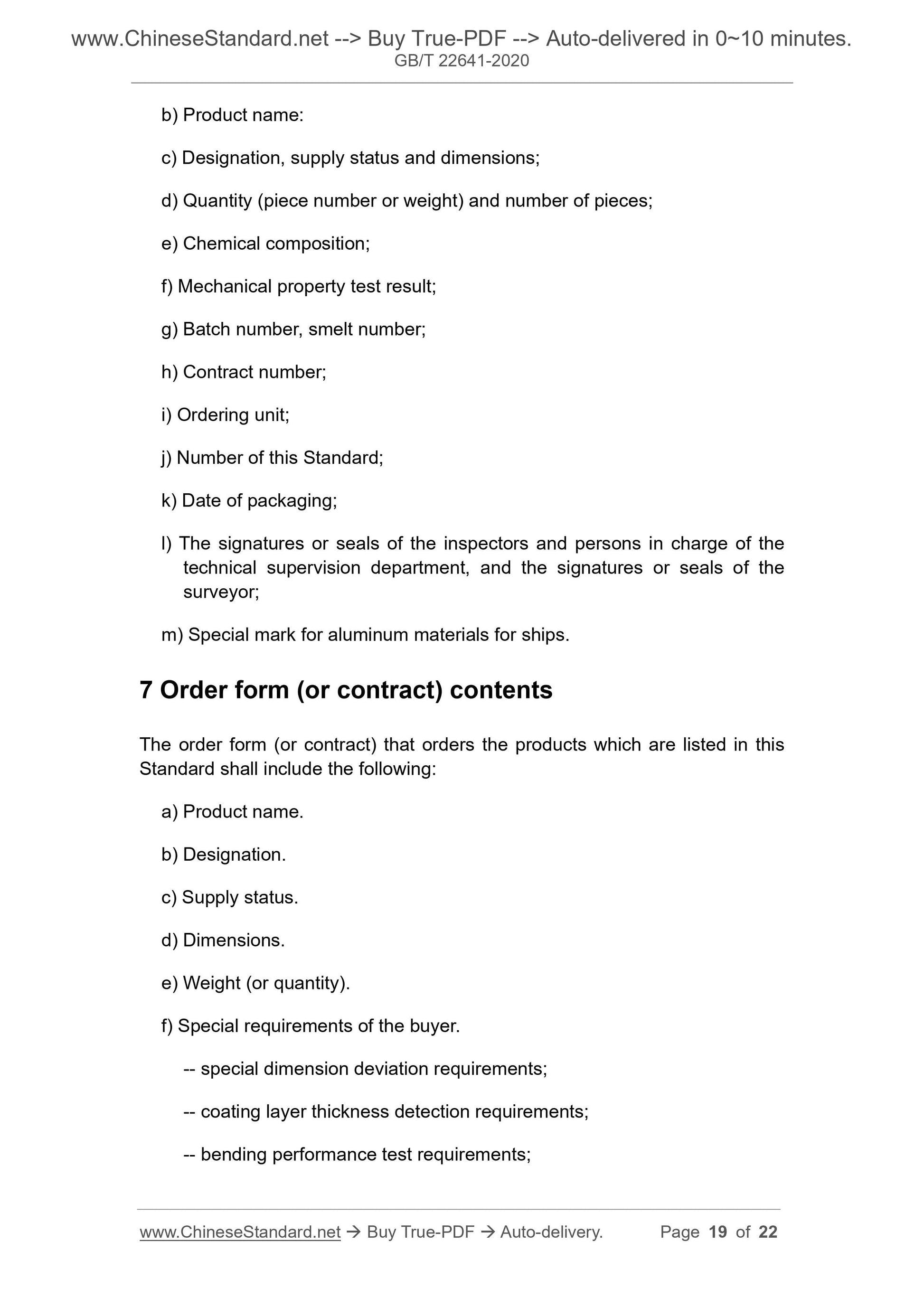

b) Product name:
c) Designation, supply status and dimensions;
d) Quantity (piece number or weight) and number of pieces;
e) Chemical composition;
f) Mechanical property test result;
g) Batch number, smelt number;
h) Contract number;
i) Ordering unit;
j) Number of this Standard;
k) Date of packaging;
l) The signatures or seals of the inspectors and persons in charge of the technical supervision department, and the signatures or seals of the
surveyor;
m) Special mark for aluminum materials for ships.
7 Order form (or contract) contents
The order form (or contract) that orders the products which are listed in this Standard shall include the following:
a) Product name.
b) Designation.
c) Supply status.
d) Dimensions.
e) Weight (or quantity).
f) Special requirements of the buyer.
-- special dimension deviation requirements;
-- coating layer thickness detection requirements;
-- bending performance test requirements;
