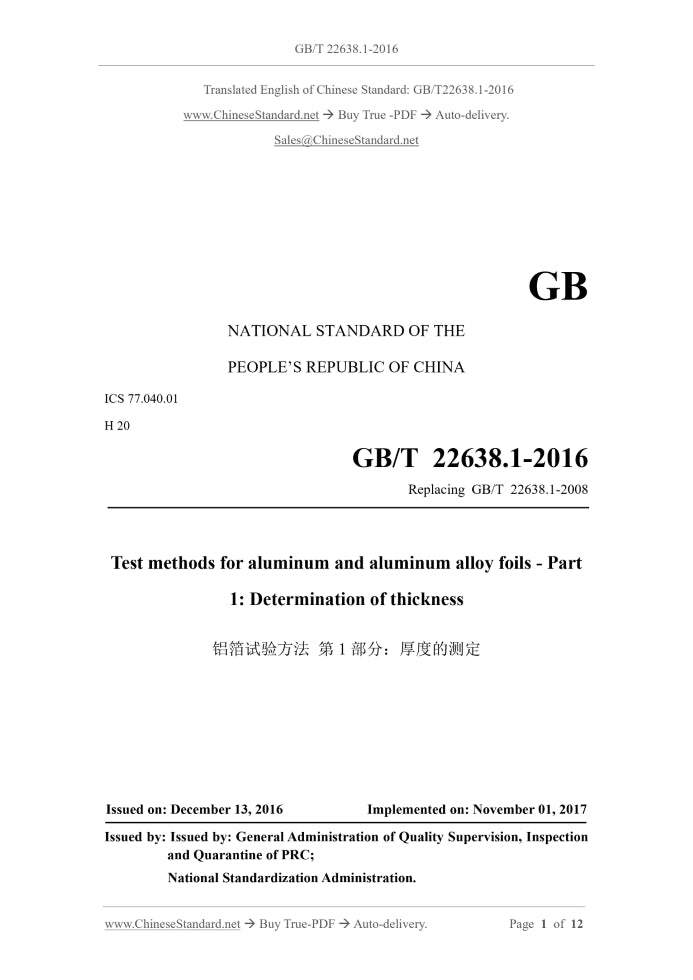

GB/T 22638.1-2016: Test methods for aluminium and aluminium alloy foils -- Part 1: Determination of thickness

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 22638.1-2016 (Self-service in 1-minute)
Newer / historical versions: GB/T 22638.1-2016

Preview True-PDF

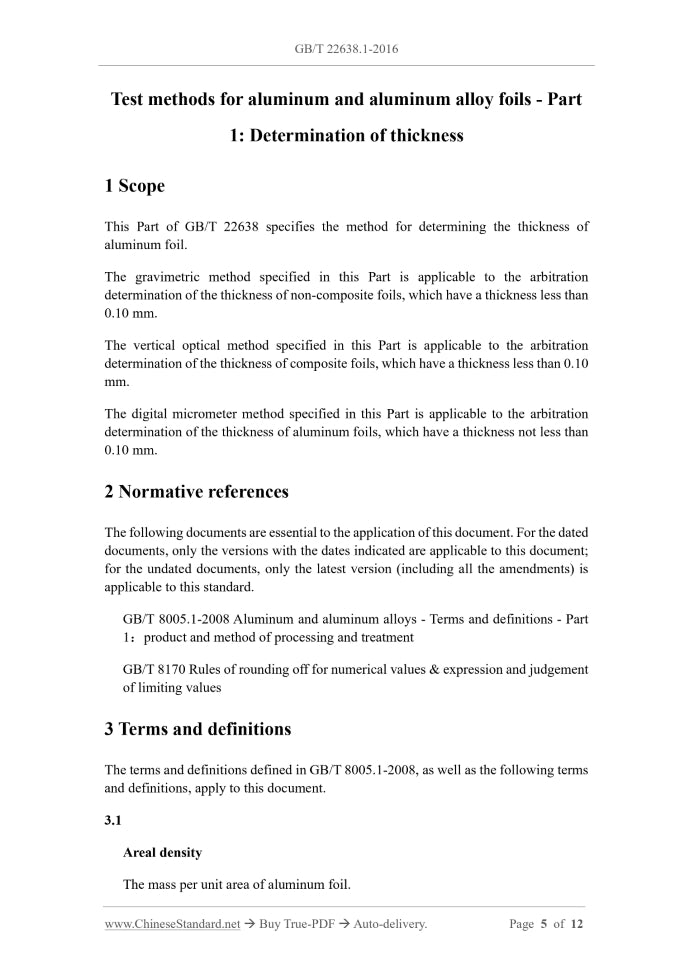

Scope

This Part of GB/T 22638 specifies the method for determining the thickness of
aluminum foil.

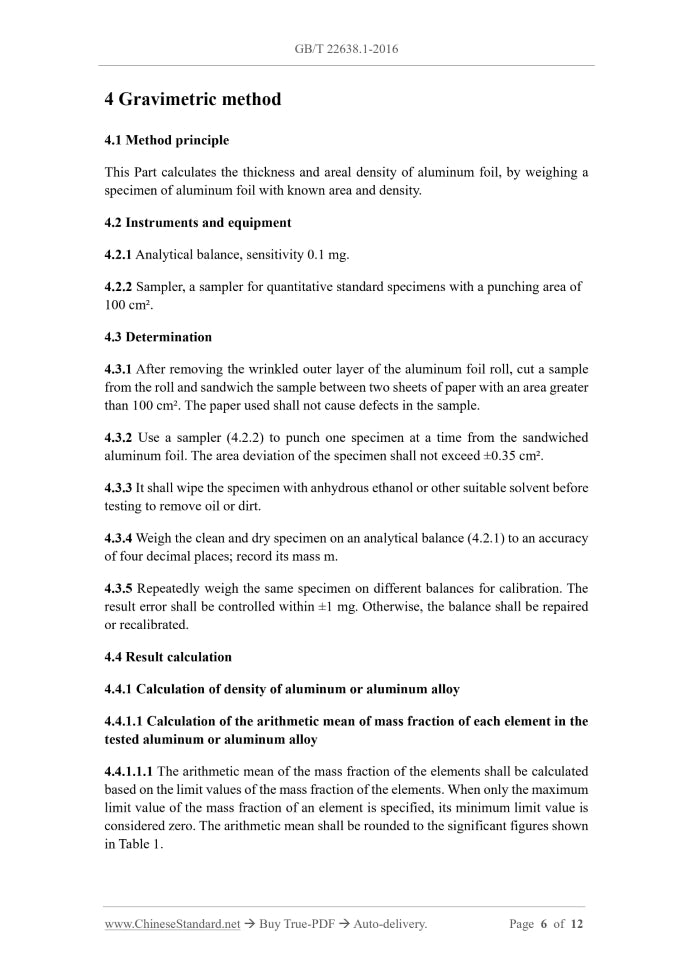

The gravimetric method specified in this Part is applicable to the arbitration
determination of the thickness of non-composite foils, which have a thickness less than
0.10 mm.
The vertical optical method specified in this Part is applicable to the arbitration
determination of the thickness of composite foils, which have a thickness less than 0.10
mm.
The digital micrometer method specified in this Part is applicable to the arbitration
determination of the thickness of aluminum foils, which have a thickness not less than
0.10 mm.

Basic Data

Standard ID	GB/T 22638.1-2016 (GB/T22638.1-2016)
Description (Translated English)	Test methods for aluminium and aluminium alloy foils -- Part 1: Determination of thickness
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	H20
Classification of International Standard	77.040.01
Word Count Estimation	10,136
Date of Issue	2016-12-13
Date of Implementation	2017-11-01
Older Standard (superseded by this standard)	GB/T 22638.1-2008
Regulation (derived from)	National Standard Notice No.109 of 2016
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
