GB/T 223.60-1997: Methods for chemical analysis of iron, steel and alloy - The perchloric acid dehydration gravimetric method for the determination of silicon content

This Standard specifies the perchloric acid dehydration gravimetric method for the determination of silicon content in iron, steel, high temperature alloy and precious alloy.

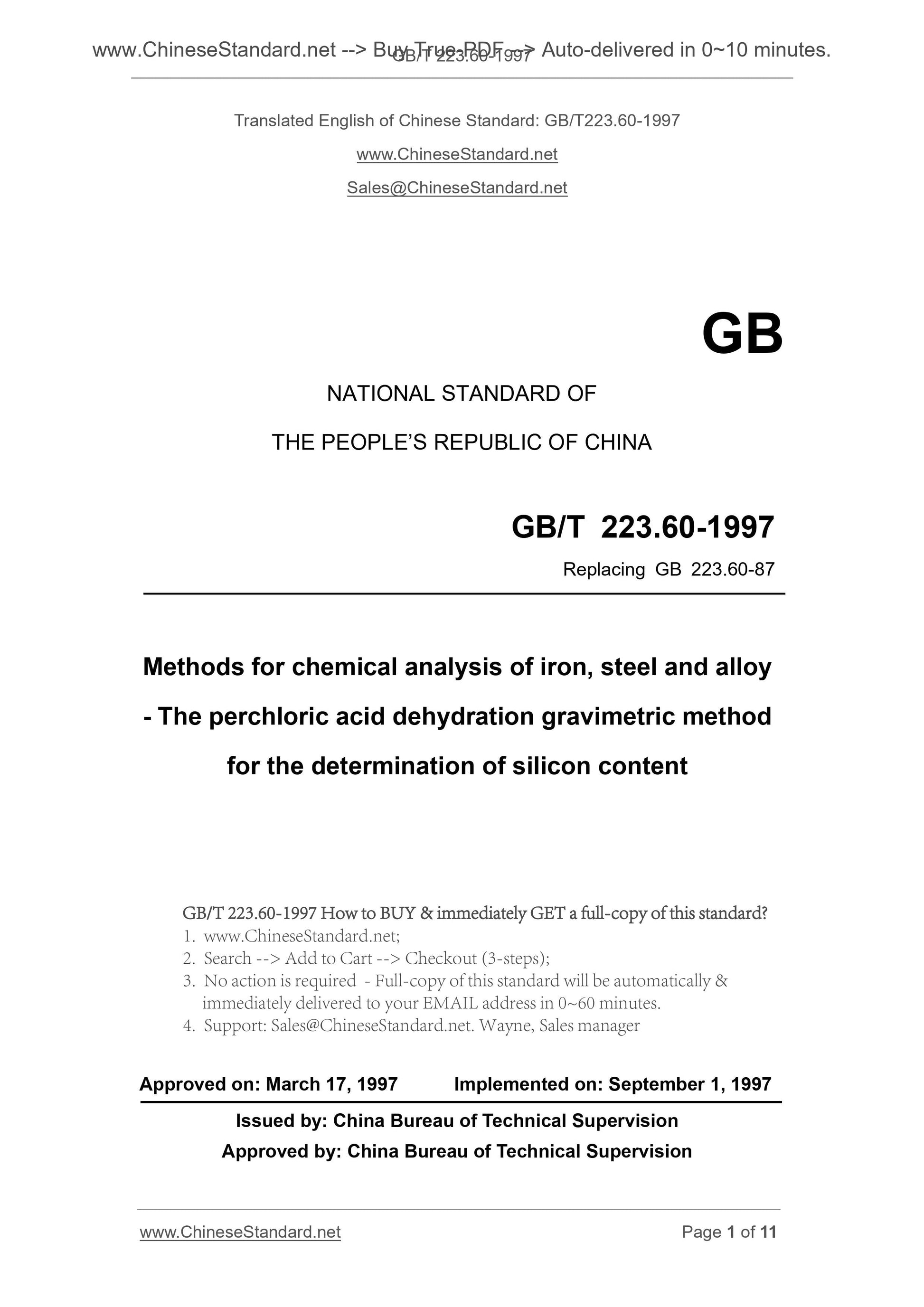

GB/T 223.60-1997
GB
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
Replacing GB 223.60-87
Methods for chemical analysis of iron, steel and alloy
- The perchloric acid dehydration gravimetric method
for the determination of silicon content
APPROVED ON. MARCH 17, 1997
IMPLEMENTED ON. SEPTEMBER 1, 1997
Issued by. China Bureau of Technical Supervision
Approved by. China Bureau of Technical Supervision

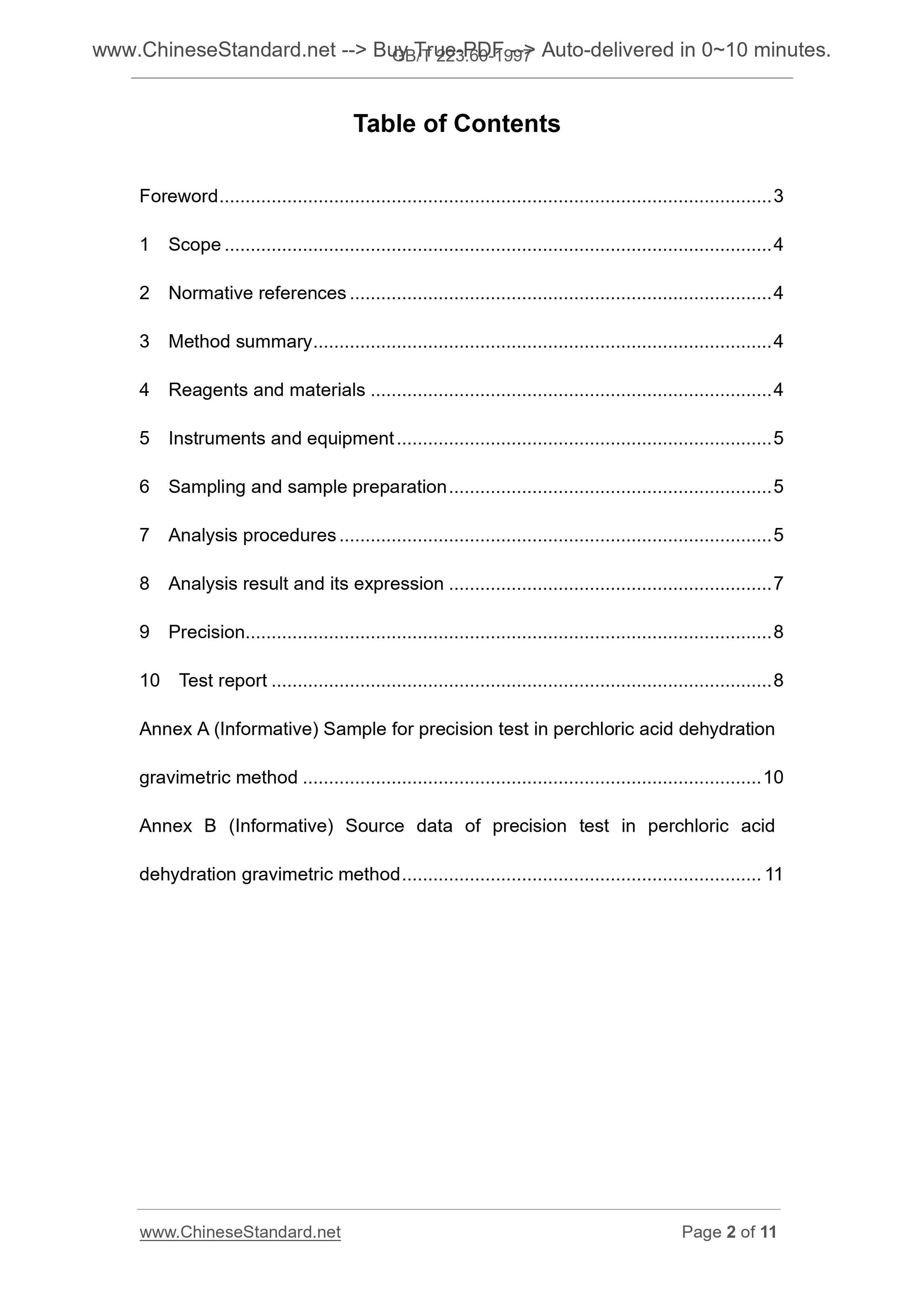

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Method summary ... 4
4 Reagents and materials ... 4
5 Instruments and equipment ... 5
6 Sampling and sample preparation ... 5
7 Analysis procedures ... 5
8 Analysis result and its expression ... 7
9 Precision... 8
10 Test report ... 8
Annex A (Informative) Sample for precision test in perchloric acid dehydration gravimetric method ... 10
Annex B (Informative) Source data of precision test in perchloric acid
dehydration gravimetric method ... 11

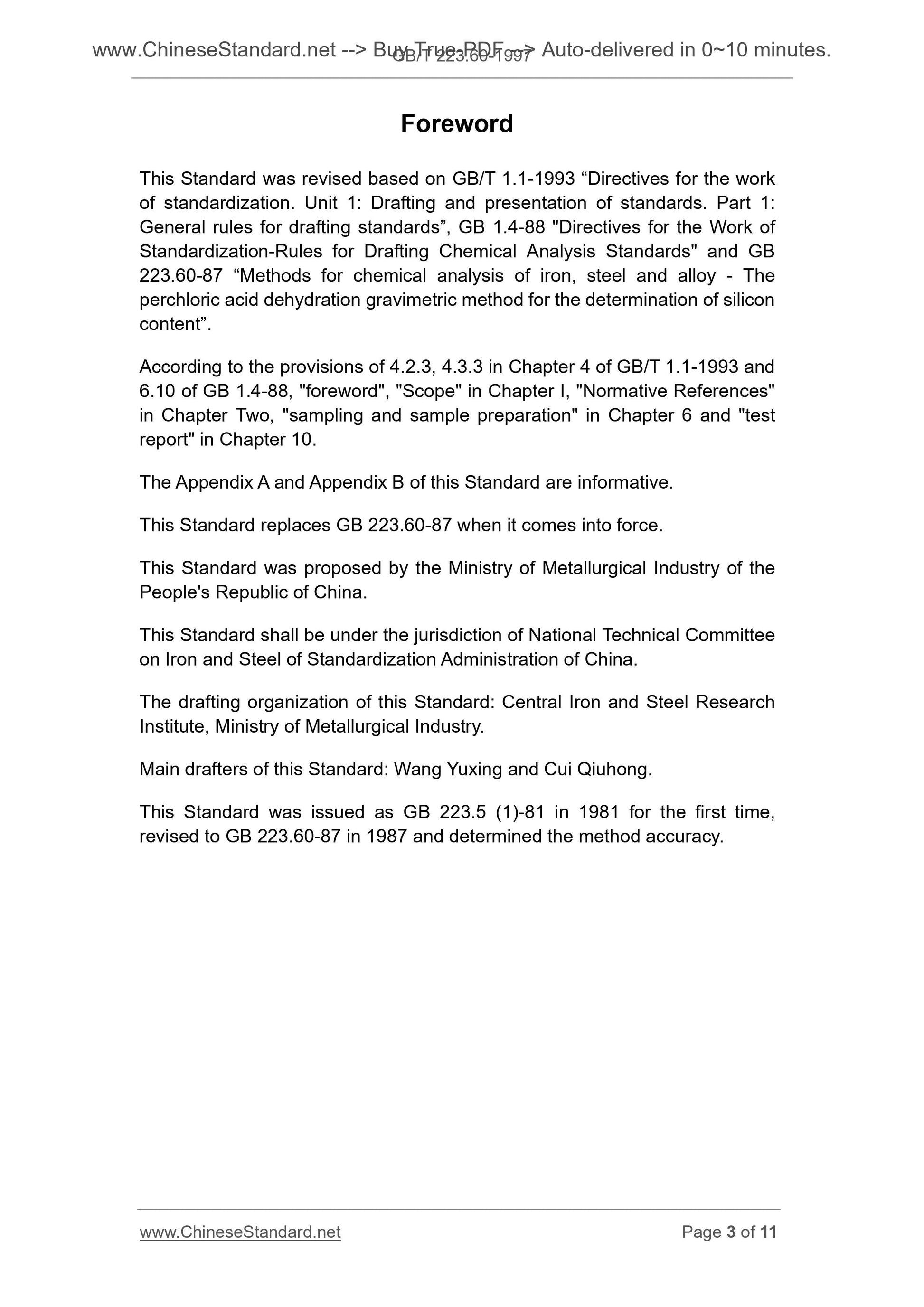

Foreword
This Standard was revised based on GB/T 1.1-1993 ?€?Directives for the work of standardization. Unit 1. Drafting and presentation of standards. Part 1. General rules for drafting standards?€?, GB 1.4-88 "Directives for the Work of Standardization-Rules for Drafting Chemical Analysis Standards" and GB
223.60-87 ?€?Methods for chemical analysis of iron, steel and alloy - The perchloric acid dehydration gravimetric method for the determination of silicon content?€?.
According to the provisions of 4.2.3, 4.3.3 in Chapter 4 of GB/T 1.1-1993 and 6.10 of GB 1.4-88, "foreword", "Scope" in Chapter I, "Normative References" in Chapter Two, "sampling and sample preparation" in Chapter 6 and "test report" in Chapter 10.
The Appendix A and Appendix B of this Standard are informative.
This Standard replaces GB 223.60-87 when it comes into force.
This Standard was proposed by the Ministry of Metallurgical Industry of the People's Republic of China.
This Standard shall be under the jurisdiction of National Technical Committee on Iron and Steel of Standardization Administration of China.
The drafting organization of this Standard. Central Iron and Steel Research Institute, Ministry of Metallurgical Industry.
Main drafters of this Standard. Wang Yuxing and Cui Qiuhong.
This Standard was issued as GB 223.5 (1)-81 in 1981 for the first time, revised to GB 223.60-87 in 1987 and determined the method accuracy.

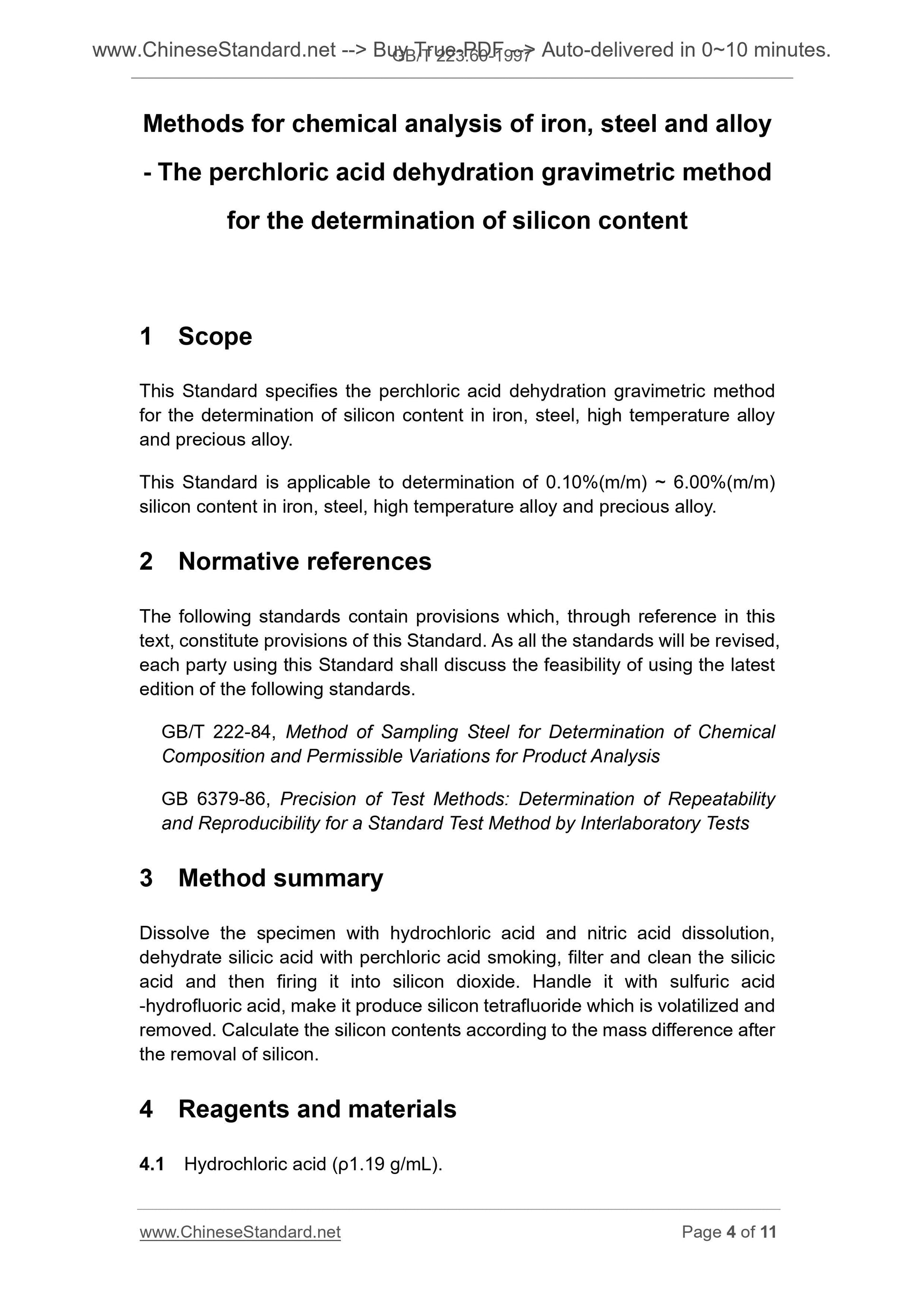

Methods for chemical analysis of iron, steel and alloy
- The perchloric acid dehydration gravimetric method
for the determination of silicon content
1 Scope
This Standard specifies the perchloric acid dehydration gravimetric method for the determination of silicon content in iron, steel, high temperature alloy and precious alloy.
This Standard is applicable to determination of 0.10%(m/m) ~ 6.00%(m/m) silicon content in iron, steel, high temperature alloy and precious alloy. 2 Normative references
The following standards contain provisions which, through reference in this text, constitute provisions of this Standard. As all the standards will be revised, each party using this Standard shall discuss the feasibility of using the latest edition of the following standards.
GB/T 222-84, Method of Sampling Steel for Determination of Chemical
Composition and Permissible Variations for Product Analysis
GB 6379-86, Precision of Test Methods. Determination of Repeatability
and Reproducibility for a Standard Test Method by Interlaboratory Tests 3 Method summary
Dissolve the specimen with hydrochloric acid and nitric acid dissolution, dehydrate silicic acid with perchloric acid smoking, filter and clean the silicic acid and then firing it into silicon dioxide. Handle it with sulfuric acid -hydrofluoric acid, make it produce silicon tetrafluoride which is volatilized and removed. Calculate the silicon contents according to the mass difference after the removal of silicon.
4 Reagents and materials
4.1 Hydrochloric acid (??1.19 g/mL).
4.2 Hydrochloric acid (5+95), dilute it with hydrochloric acid (4.1).
4.3 Nitric acid (??1.42 g/mL).
4.4 Perchloric acid (??1.67 g/mL).
4.5 Hydrofluoric acid (??1.15 g/mL) .
4.6 Methanol.
4.7 Sulfuric acid (1+1) dilutes it with sulfuric acid (??1.84 g/mL).
4.8 Ammonium thiocyanate solution (50 g/L).
5 Instruments and equipment
In analysis, only use ordinary laboratory appliance and equipment except the following specifications.
5.1 Platinum crucible with volume of 30 mL.
5.2 Muffle furnace with the adjustable temperature range of 500??C ~
1100??C.
6 Sampling and sample preparation
Sampling and sample preparation is according to GB 222 or corresponding national standard about iron.
7 Analysis procedures
Safety instruction. perchloric acid smoke may cause explosion if the ammonia oxide and nitrogen oxide or organic matter are available.
Hydrofluoric acid can burn human body severely, so medical gloves shall be worn when using it and immediately wash your hands after using it.
7.1 Quantity of sample material
Weigh sample according to Table1.
Table 1 -- Sample material quantity
Silicon content,%(m/m) Test portion, g
0.10~0.50 4.0??0.1, accuracy of 10 mg
>0.50~1.00 3.0??0.1, accurate to 5 mg
>1.00~2.00 2.00??0.01, accuracy of 1 mg
>2.00~4.00 1.00??0.01, accuracy of 0.1 mg
>4.00~6.00 0.50??0.01, accuracy of 0.1 mg
7.2 Blank test
Parallel to the determination of the specimen and make the blank test shall be carried out in the identical operation method. All reagents and the dose are completely identical with those of the specimen determination.
7.3 Determination
7.3.1 Material dissolution
Place the specimen (7.1) into a 400-mL beaker, add 30 mL ~ 60 mL of mixed acid of hydrochloric acid (4.1) and nitric acid (4.3) . Put on the watch glass, and heat it slowly until the specimen is dissolved completely (if the boron content in boron steel is larger than 1% or the boron content is larger than 0.01% and silicon content is larger than 1%, the boron shall be removed. After the specimen is dissolved, heat and concentrate the test solution until its volume reaches about 10 mL, add 40mL of methanol (4.6), move the watch
glass to let out a little interspace, volatilize the solution slowly at low temperature until it volume is less than 10 mL). Add 5 mL of nitric acid (4.3). Take it out and cool it down for a while, and then wash the watch glass and wall of glass with small amount of water.
Add perchloric acid (4.4) according to those specified in Table 2 and
heat/evaporate it until the fume appears, cover the watch glass and continue to heat it and make perchloric acid flow back for 15min ~ 25min.
Table 2 -- Perchloric acid amount
Test portion (7.1), g Perchloric acid (4.4) volume added, mL
4.0??0.1 55
3.0??0.1 45
2.00??0.01 35
1.00??0.01 25
0.50??0.01 20
Note.
1 Proportion of hydrochloric acid (4.1)-nitric acid (4.3) mixed acid is determined according to sample. As for the samples which contain high chromium and indissoluble mixed acid, dissolve them with hydrochloric acid (4.1), then oxidize with nitric acid (4.3). 2 As for the samples containing high wolfram and molybdenum, shake them more in the process of dissolution, especially near syrup state, and then oxidize them with nitric acid (4.3).

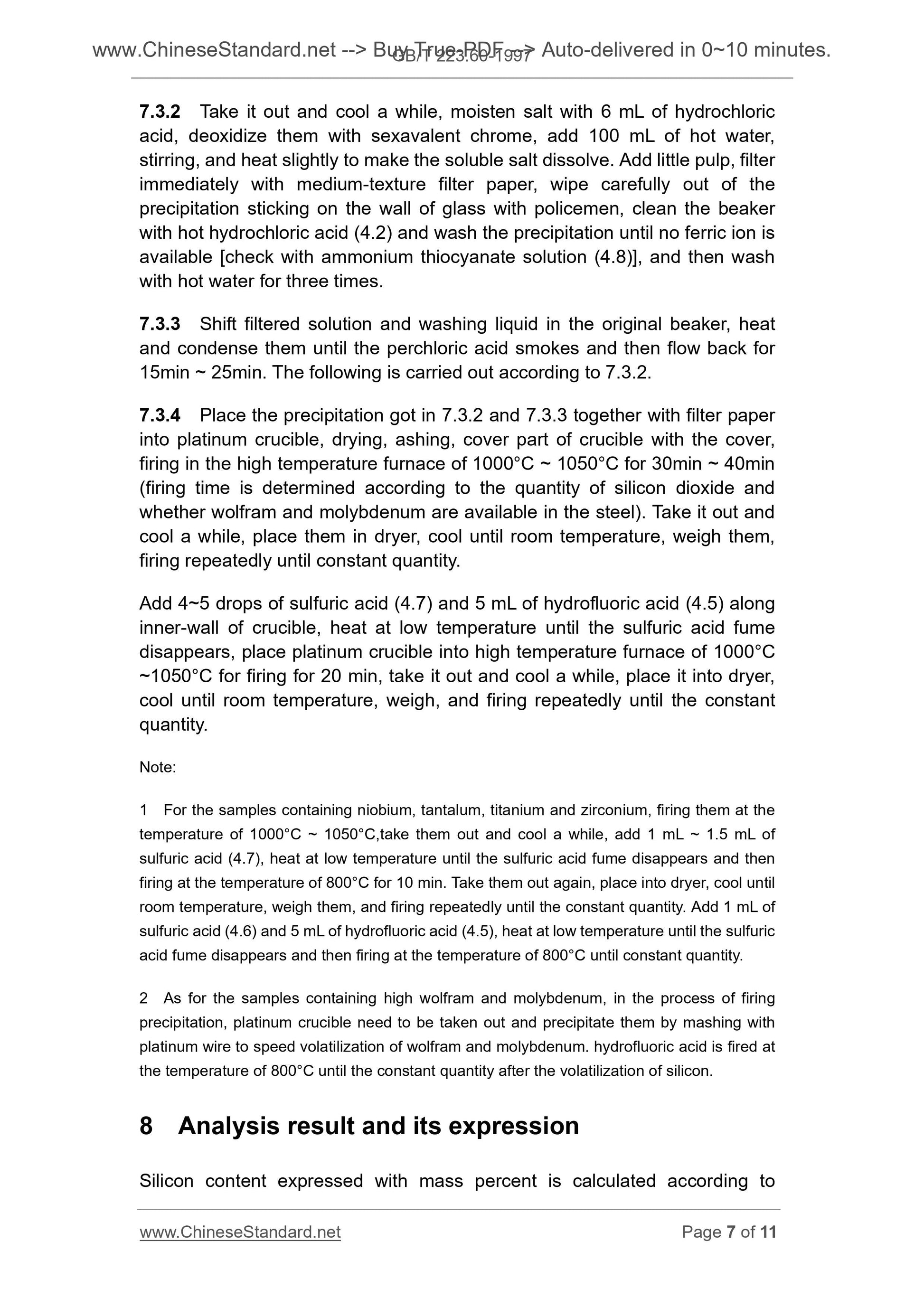

7.3.2 Take it out and cool a while, moisten salt with 6 mL of hydrochloric acid, deoxidize them with sexavalent chrome, add 100 mL of hot water,
stirring, and heat slightly to make the soluble salt dissolve. Add little pulp, filter immediately with medium-texture filter paper, wipe carefully out of the precipitation sticking on the wall of glass with policemen, clean the beaker with hot hydrochloric acid (4.2) and wash the precipitation until no ferric ion is available [check with ammonium thiocyanate solution (4.8)], and then wash with hot water for three times.
7.3.3 Shift filtered solution and washing liquid in the original beaker, heat and condense them until the perchloric acid smokes and then flow back for 15min ~ 25min. The following is carried out according to 7.3.2.
7.3.4 Place the precipitation got in 7.3.2 and 7.3.3 together with filter paper into platinum crucible, drying, ashing, cover part of crucible with the cover, firing in the high temperature furnace of 1000??C ~ 1050??C for 30min ~ 40min (firing time is determined according to the quantity of silicon dioxide and whether wolfram and molybdenum are available in the steel). Take it out and cool a while, place them in dryer, cool until room temperature, weigh them, firing repeatedly until constant quantity.
Add 4~5 drops of sulfuric acid (4.7) and 5 mL of hydrofluoric acid (4.5) along inner-wall of crucible, heat at low temperature until the sulfuric acid fume disappears, place platinum cruc...
