GB/T 21655.2-2009 English PDF (GBT21655.2-2009)

GB/T 21655.2-2009 English PDF (GBT21655.2-2009)

Regular price $170.00 USD
Regular price Sale price $170.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click GB/T 21655.2-2009
See Chinese contents: GB/T 21655.2-2009

GB/T 21655.2-2009: Textiles -- Evaluation of absorption and quick-drying -- Part 2: Method for moisture management tests

This Part of GB/T 21655 specifies the tests and evaluation methods for moisture management performance of absorption and quick-drying of textiles. This Part is applicable to all kinds of textiles and their products. Other products may refer to use.

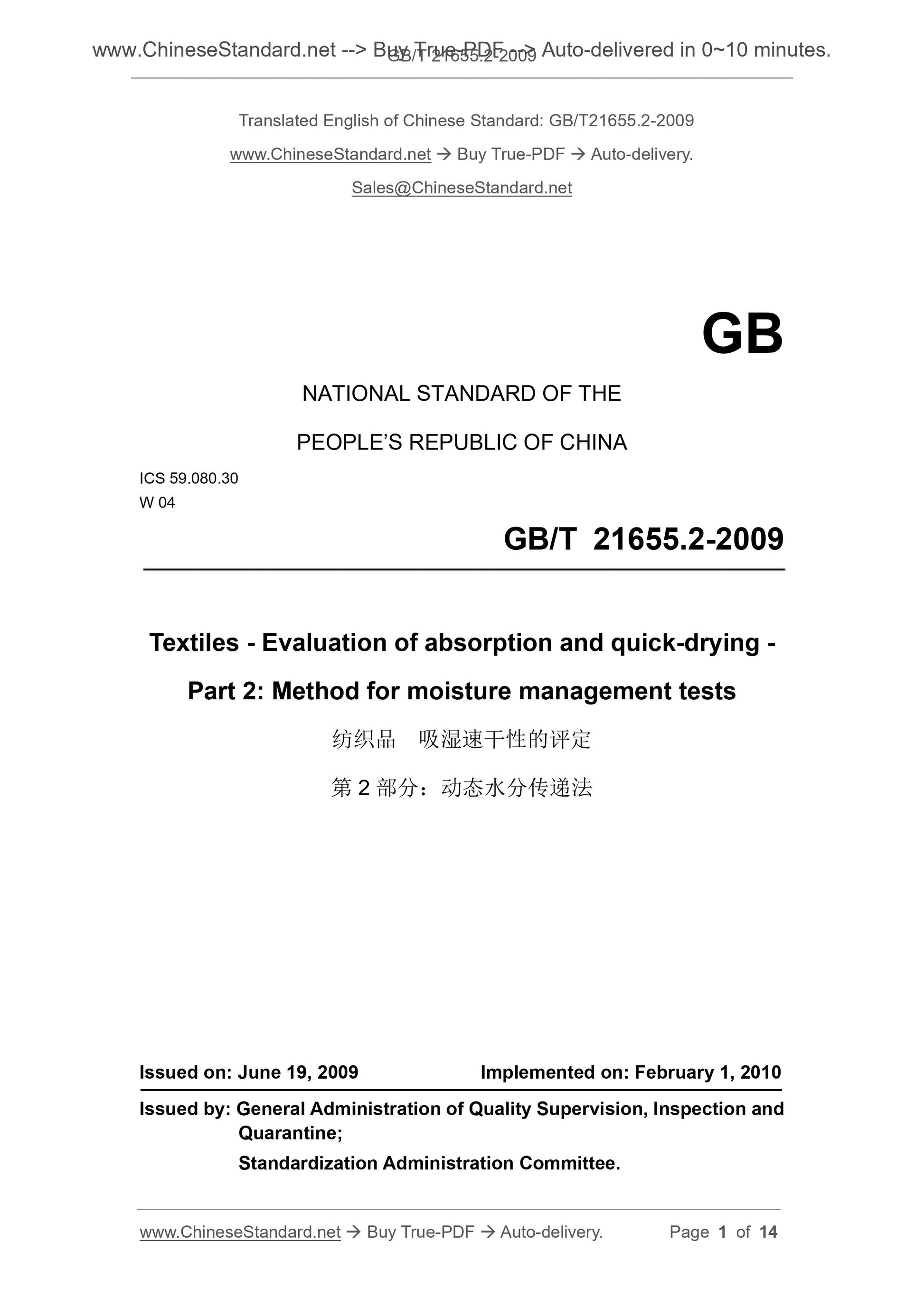

GB/T 21655.2-2009
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 59.080.30
W 04
Textiles - Evaluation of absorption and quick-drying -
Part 2. Method for moisture management tests
ISSUED ON. JUNE 19, 2009
IMPLEMENTED ON. FEBRUARY 1, 2010
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

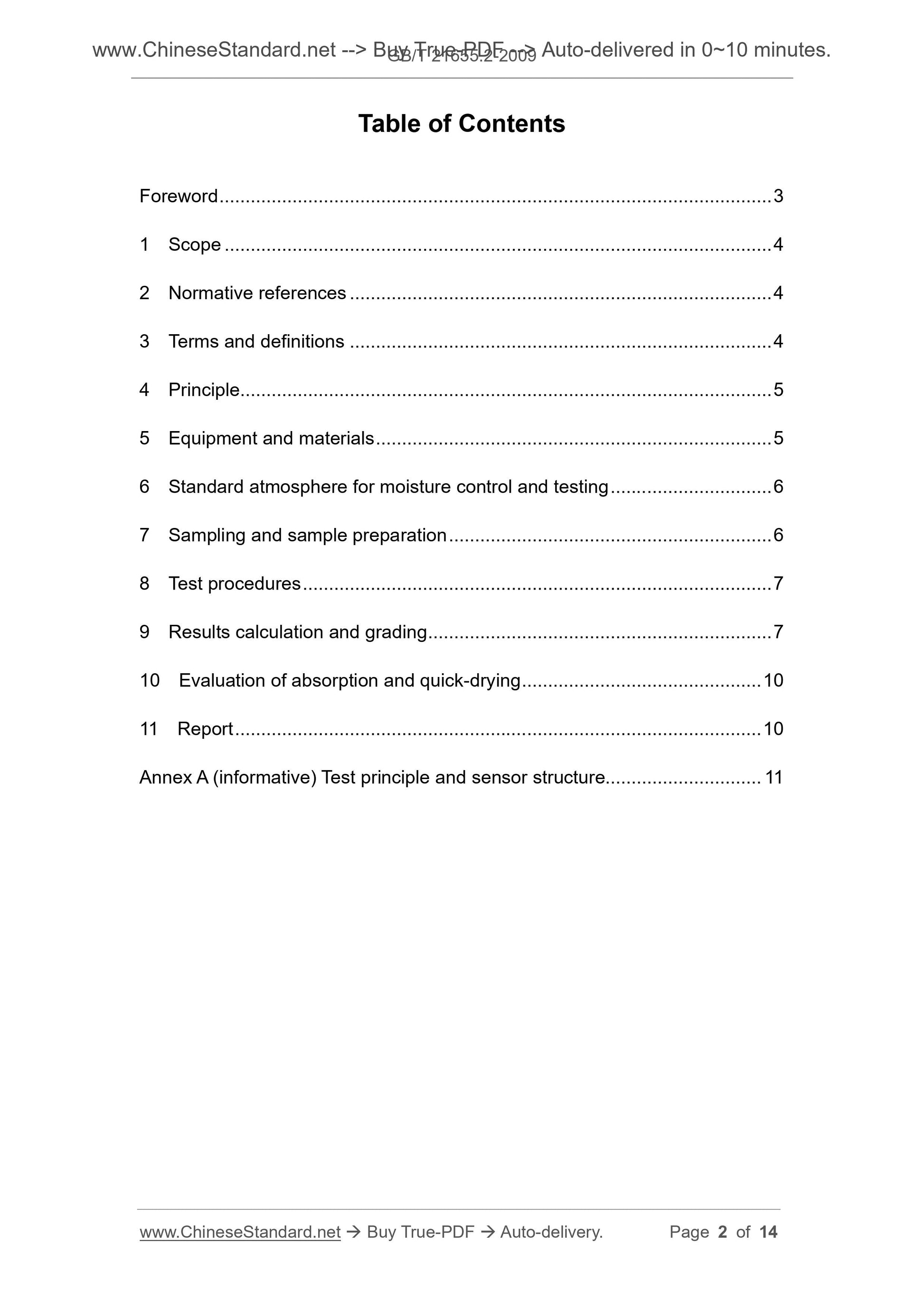

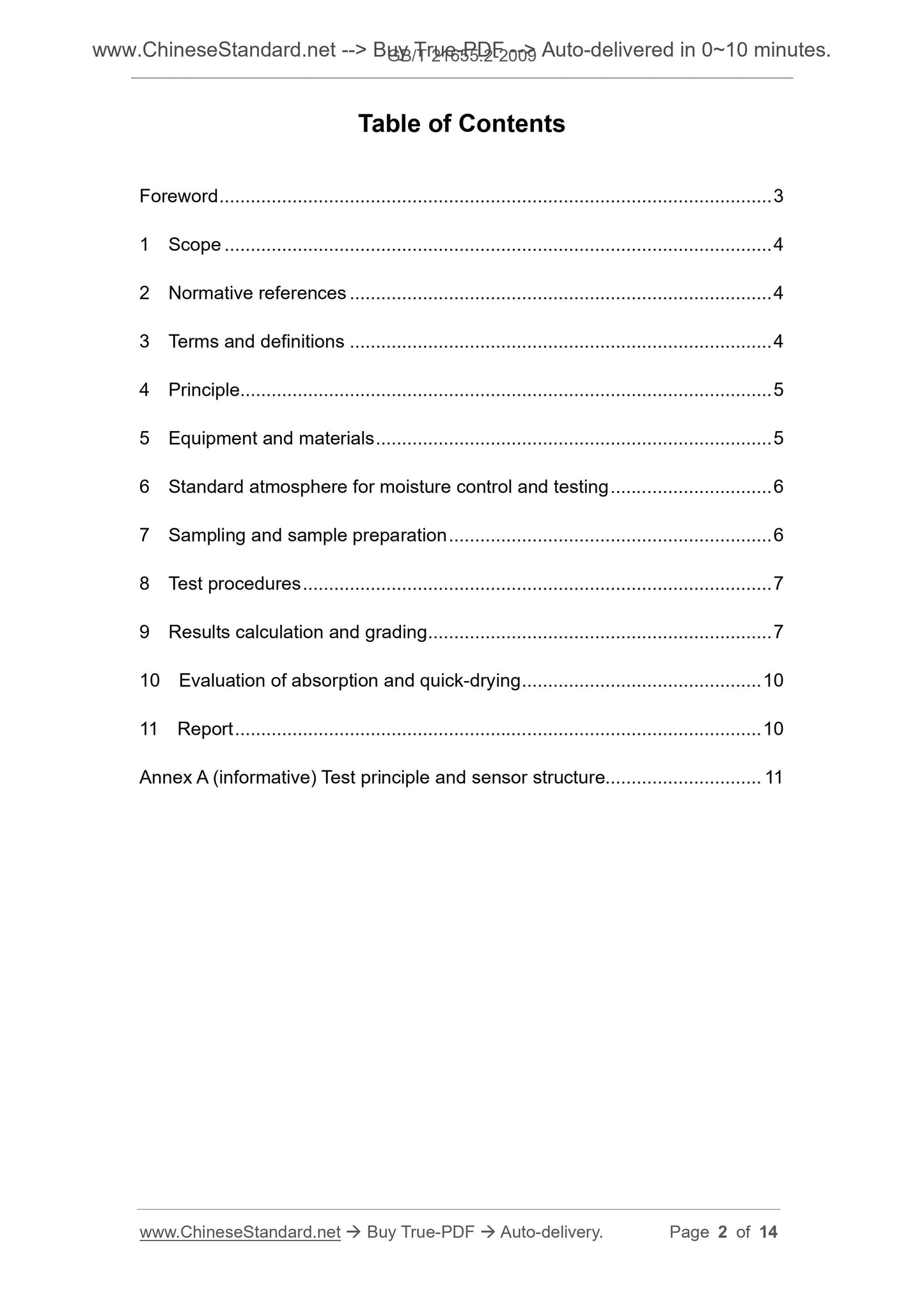

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Principle... 5
5 Equipment and materials ... 5
6 Standard atmosphere for moisture control and testing ... 6
7 Sampling and sample preparation ... 6
8 Test procedures ... 7
9 Results calculation and grading ... 7
10 Evaluation of absorption and quick-drying ... 10
11 Report ... 10
Annex A (informative) Test principle and sensor structure... 11

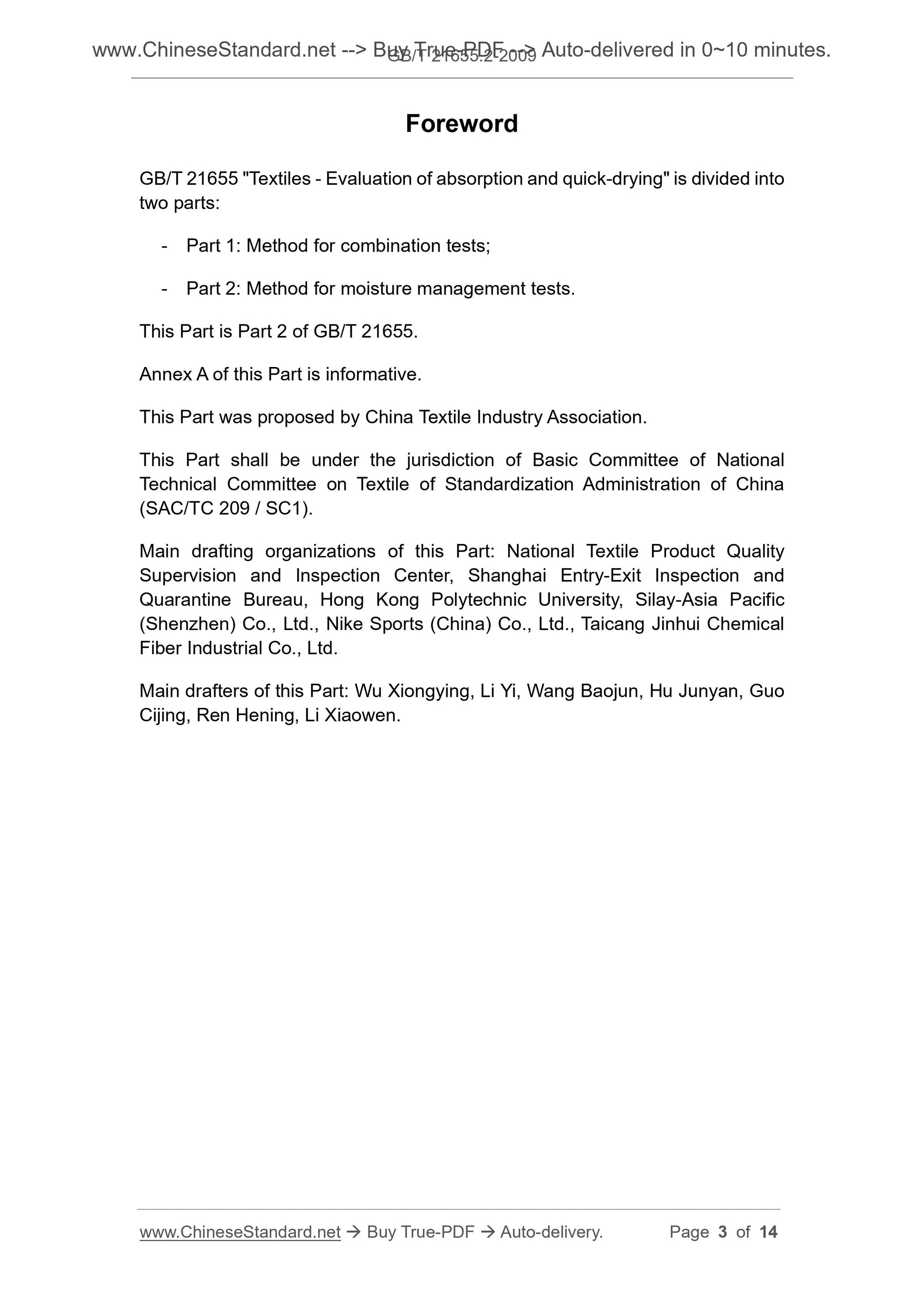

Foreword
GB/T 21655 "Textiles - Evaluation of absorption and quick-drying" is divided into two parts.
- Part 1. Method for combination tests;
- Part 2. Method for moisture management tests.
This Part is Part 2 of GB/T 21655.
Annex A of this Part is informative.
This Part was proposed by China Textile Industry Association.
This Part shall be under the jurisdiction of Basic Committee of National Technical Committee on Textile of Standardization Administration of China (SAC/TC 209/SC1).
Main drafting organizations of this Part. National Textile Product Quality Supervision and Inspection Center, Shanghai Entry-Exit Inspection and
Quarantine Bureau, Hong Kong Polytechnic University, Silay-Asia Pacific (Shenzhen) Co., Ltd., Nike Sports (China) Co., Ltd., Taicang Jinhui Chemical Fiber Industrial Co., Ltd.
Main drafters of this Part. Wu Xiongying, Li Yi, Wang Baojun, Hu Junyan, Guo Cijing, Ren Hening, Li Xiaowen.

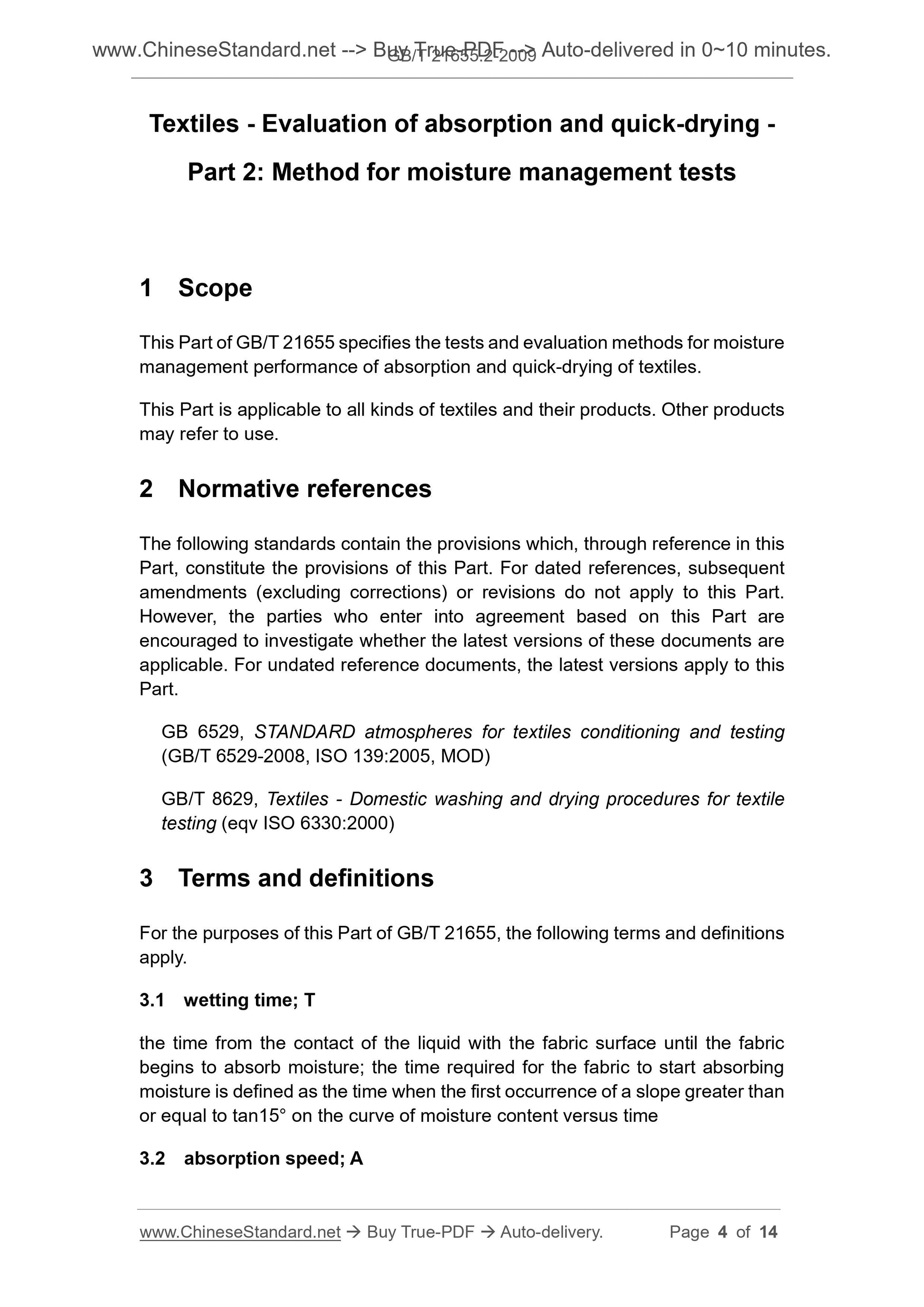

Textiles - Evaluation of absorption and quick-drying -
Part 2. Method for moisture management tests
1 Scope
This Part of GB/T 21655 specifies the tests and evaluation methods for moisture management performance of absorption and quick-drying of textiles.
This Part is applicable to all kinds of textiles and their products. Other products may refer to use.
2 Normative references
The following standards contain the provisions which, through reference in this Part, constitute the provisions of this Part. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Part. However, the parties who enter into agreement based on this Part are
encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest versions apply to this Part.
GB 6529, STANDARD atmospheres for textiles conditioning and testing
(GB/T 6529-2008, ISO 139.2005, MOD)
GB/T 8629, Textiles - Domestic washing and drying procedures for textile testing (eqv ISO 6330.2000)
3 Terms and definitions
For the purposes of this Part of GB/T 21655, the following terms and definitions apply.
3.1 wetting time; T
the time from the contact of the liquid with the fabric surface until the fabric begins to absorb moisture; the time required for the fabric to start absorbing moisture is defined as the time when the first occurrence of a slope greater than or equal to tan15?? on the curve of moisture content versus time
3.2 absorption speed; A

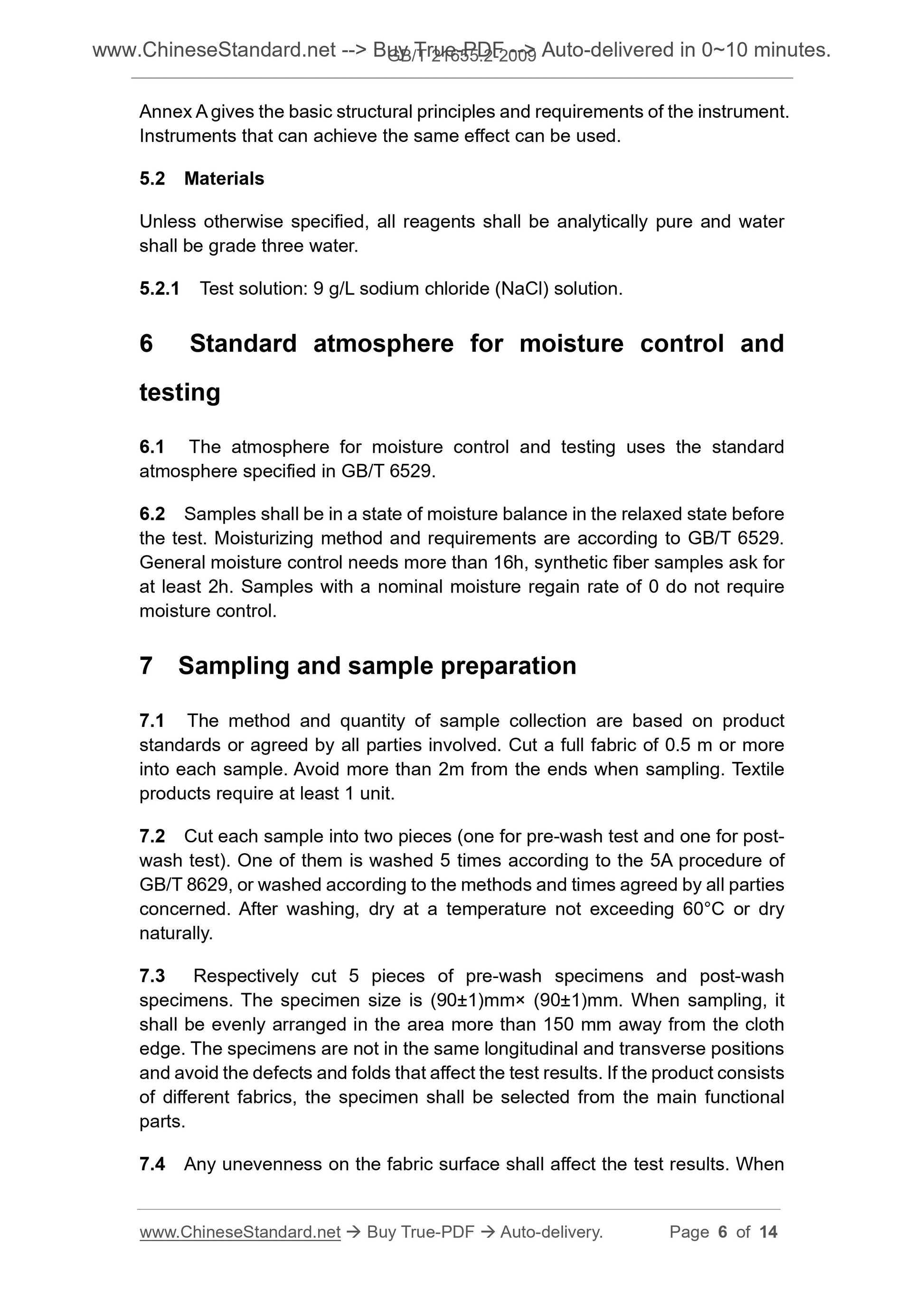

Annex A gives the basic structural principles and requirements of the instrument. Instruments that can achieve the same effect can be used.
5.2 Materials
Unless otherwise specified, all reagents shall be analytically pure and water shall be grade three water.
5.2.1 Test solution. 9 g/L sodium chloride (NaCl) solution.
6 Standard atmosphere for moisture control and
testing
6.1 The atmosphere for moisture control and testing uses the standard
atmosphere specified in GB/T 6529.
6.2 Samples shall be in a state of moisture balance in the relaxed state before the test. Moisturizing method and requirements are according to GB/T 6529. General moisture control needs more than 16h, synthetic fiber samples ask for at least 2h. Samples with a nominal moisture regain rate of 0 do not require moisture control.
7 Sampling and sample preparation
7.1 The method and quantity of sample collection are based on product
standards or agreed by all parties involved. Cut a full fabric of 0.5 m or more into each sample. Avoid more than 2m from the ends when sampling. Textile products require at least 1 unit.
7.2 Cut each sample into two pieces (one for pre-wash test and one for post- wash test). One of them is washed 5 times according to the 5A procedure of GB/T 8629, or washed according to the methods and times agreed by all parties concerned. After washing, dry at a temperature not exceeding 60??C or dry naturally.
7.3 Respectively cut 5 pieces of pre-wash specimens and post-wash
specimens. The specimen size is (90??1)mm?? (90??1)mm. When sampling, it
shall be evenly arranged in the area more than 150 mm away from the cloth edge. The specimens are not in the same longitudinal and transverse positions and avoid the defects and folds that affect the test results. If the product consists of different fabrics, the specimen shall be selected from the main functional parts.

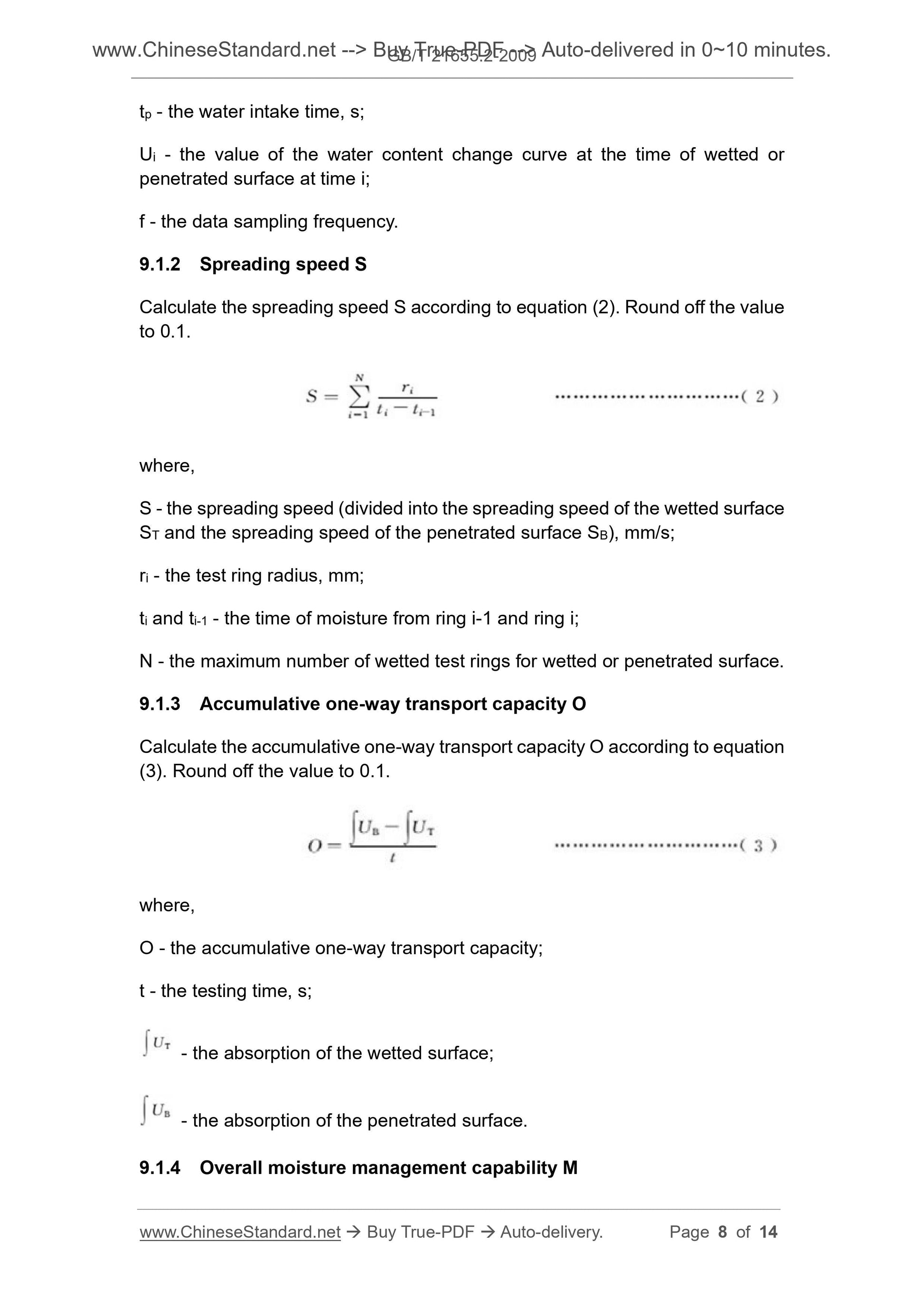

7.4 Any unevenness on the fabric surface shall affect the test results. When tp - the water intake time, s;
Ui - the value of the water content change curve at the time of wetted or penetrated surface at time i;
f - the data sampling frequency.
9.1.2 Spreading speed S
Calculate the spreading speed S according to equation (2). Round off the value to 0.1.
where,
S - the spreading speed (divided into the spreading speed of the wetted surface ST and the spreading speed of the penetrated surface SB), mm/s;
ri - the test ring radius, mm;
ti and ti-1 - the time of moisture from ring i-1 and ring i;
N - the maximum number of wetted test rings for wetted or penetrated surface. 9.1.3 Accumulative one-way transport capacity O
Calculate the accumulative one-way transport capacity O according to equation (3). Round off the value to 0.1.
where,
O - the accumulative one-way transport capacity;
t - the testing time, s;
- the absorption of the wetted surface;
- the absorption of the penetrated surface.
9.1.4 Overall moisture management capability M
