GB/T 21396-2008: Footwear -- Test methods for whole shoe -- Upper sole adhesion

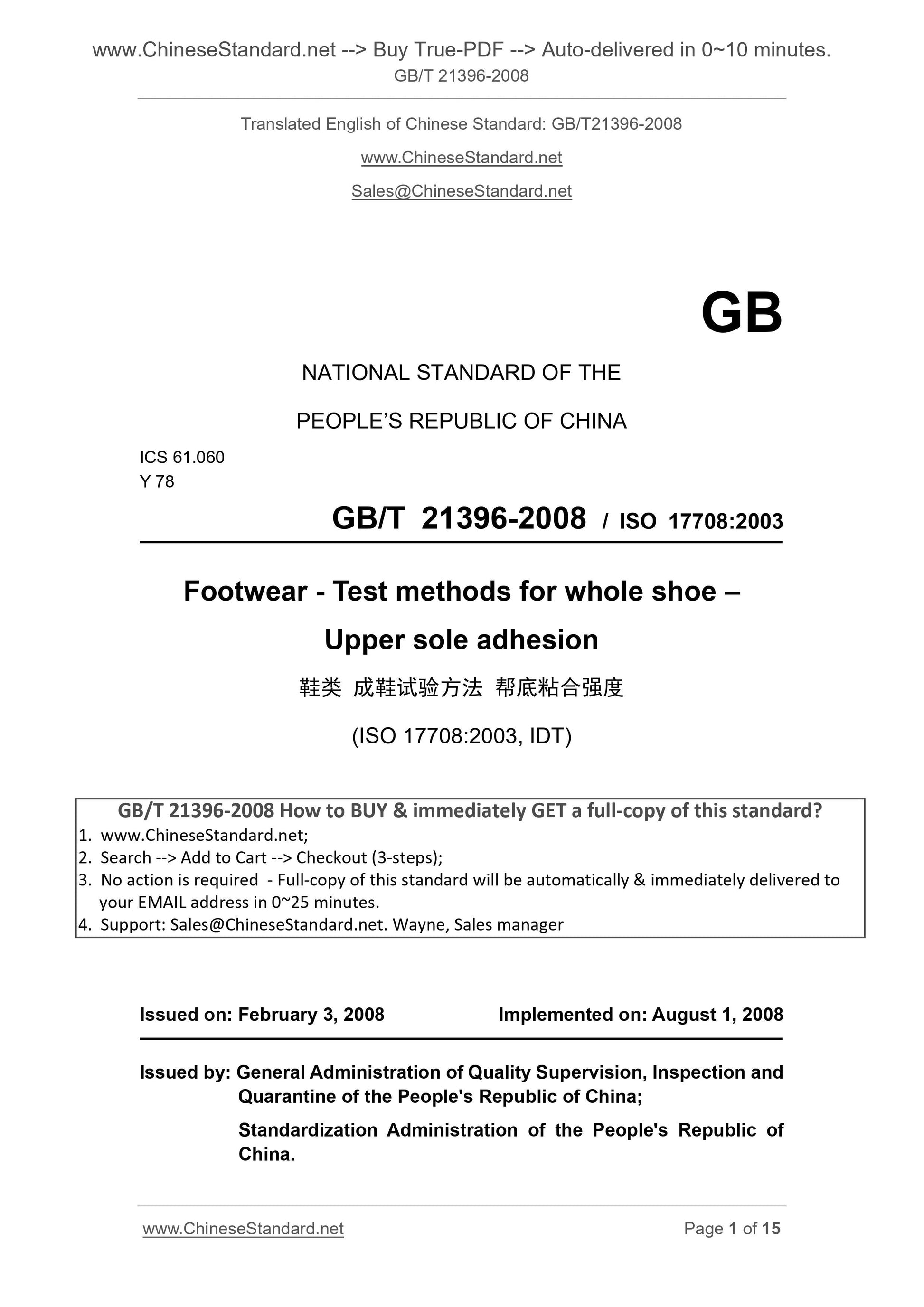

GB/T 21396-2008
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 61.060
Y 78
GB/T 21396-2008 / ISO 17708.2003
Footwear - Test methods for whole shoe –
Upper sole adhesion
(ISO 17708.2003, IDT)
ISSUED ON. FEBRUARY 3, 2008
IMPLEMENTED ON. AUGUST 1, 2008
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

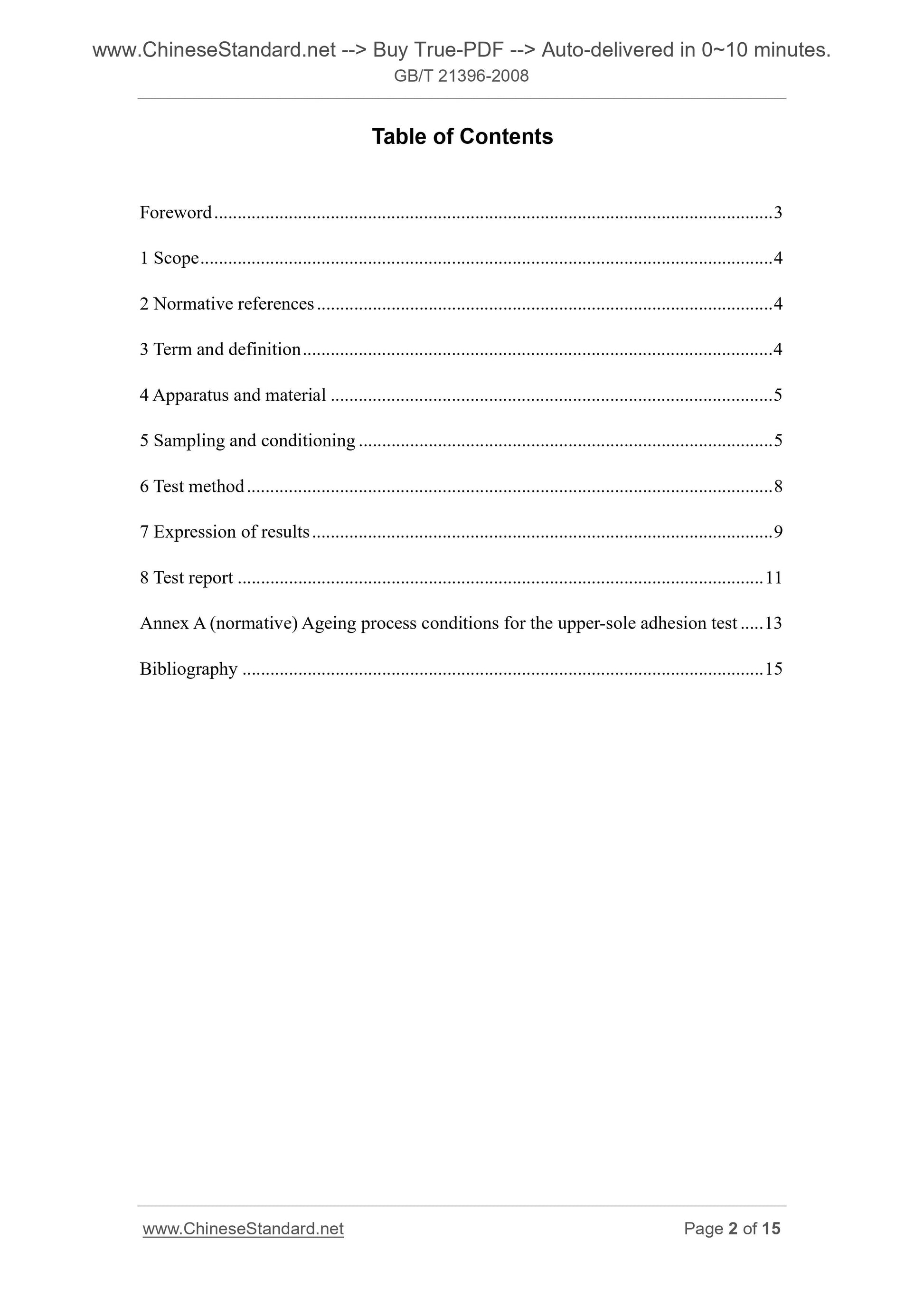

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Term and definition ... 4
4 Apparatus and material ... 5
5 Sampling and conditioning ... 5
6 Test method ... 8
7 Expression of results ... 9
8 Test report ... 11
Annex A (normative) Ageing process conditions for the upper-sole adhesion test ... 13
Bibliography ... 15

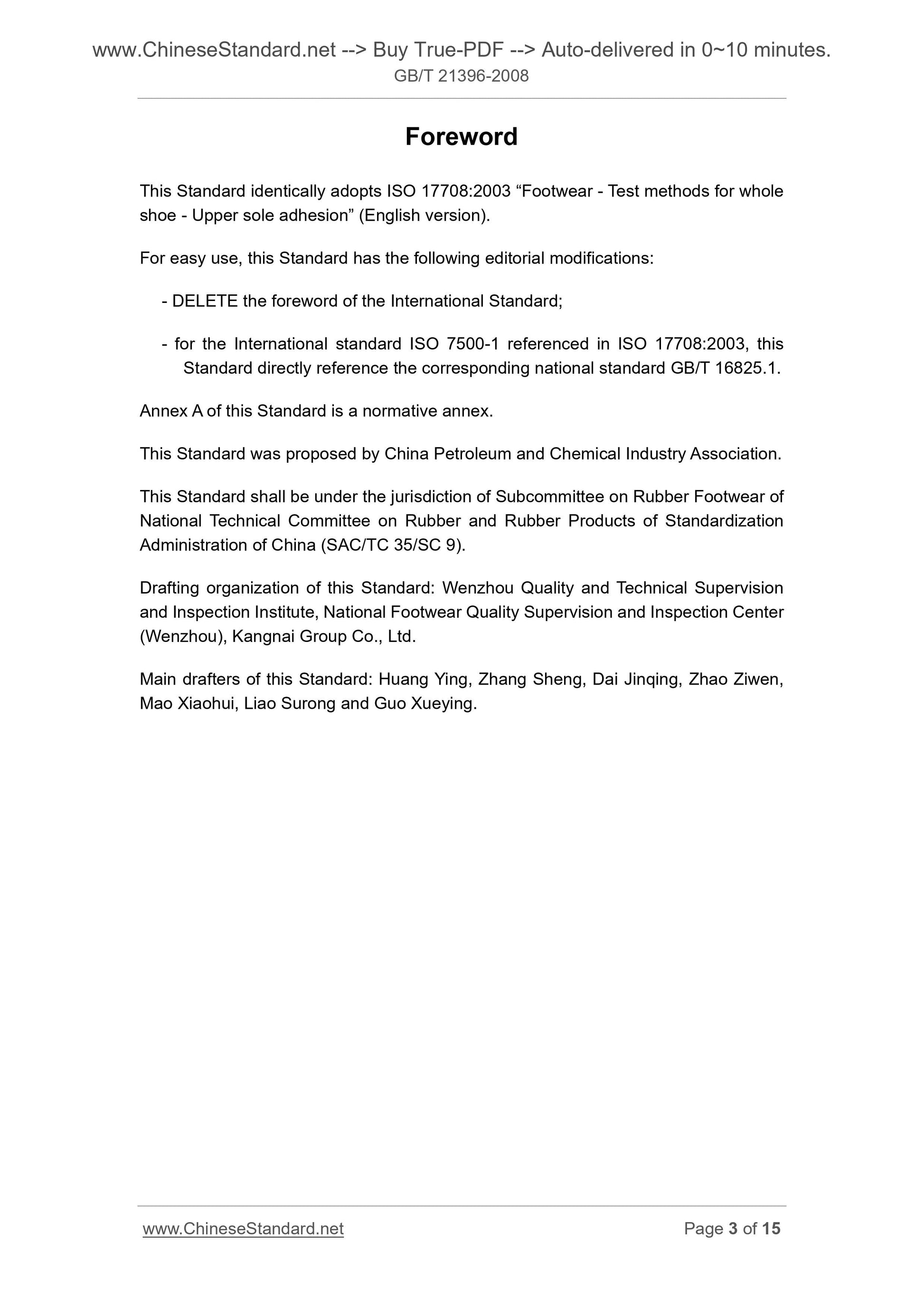

Foreword
This Standard identically adopts ISO 17708.2003 “Footwear - Test methods for whole
shoe - Upper sole adhesion” (English version).
For easy use, this Standard has the following editorial modifications.
- DELETE the foreword of the International Standard;
- for the International standard ISO 7500-1 referenced in ISO 17708.2003, this
Standard directly reference the corresponding national standard GB/T 16825.1.
Annex A of this Standard is a normative annex.
This Standard was proposed by China Petroleum and Chemical Industry Association.
This Standard shall be under the jurisdiction of Subcommittee on Rubber Footwear of
National Technical Committee on Rubber and Rubber Products of Standardization
Administration of China (SAC/TC 35/SC 9).
Drafting organization of this Standard. Wenzhou Quality and Technical Supervision
and Inspection Institute, National Footwear Quality Supervision and Inspection Center
(Wenzhou), Kangnai Group Co., Ltd.
Main drafters of this Standard. Huang Ying, Zhang Sheng, Dai Jinqing, Zhao Ziwen,
Mao Xiaohui, Liao Surong and Guo Xueying.

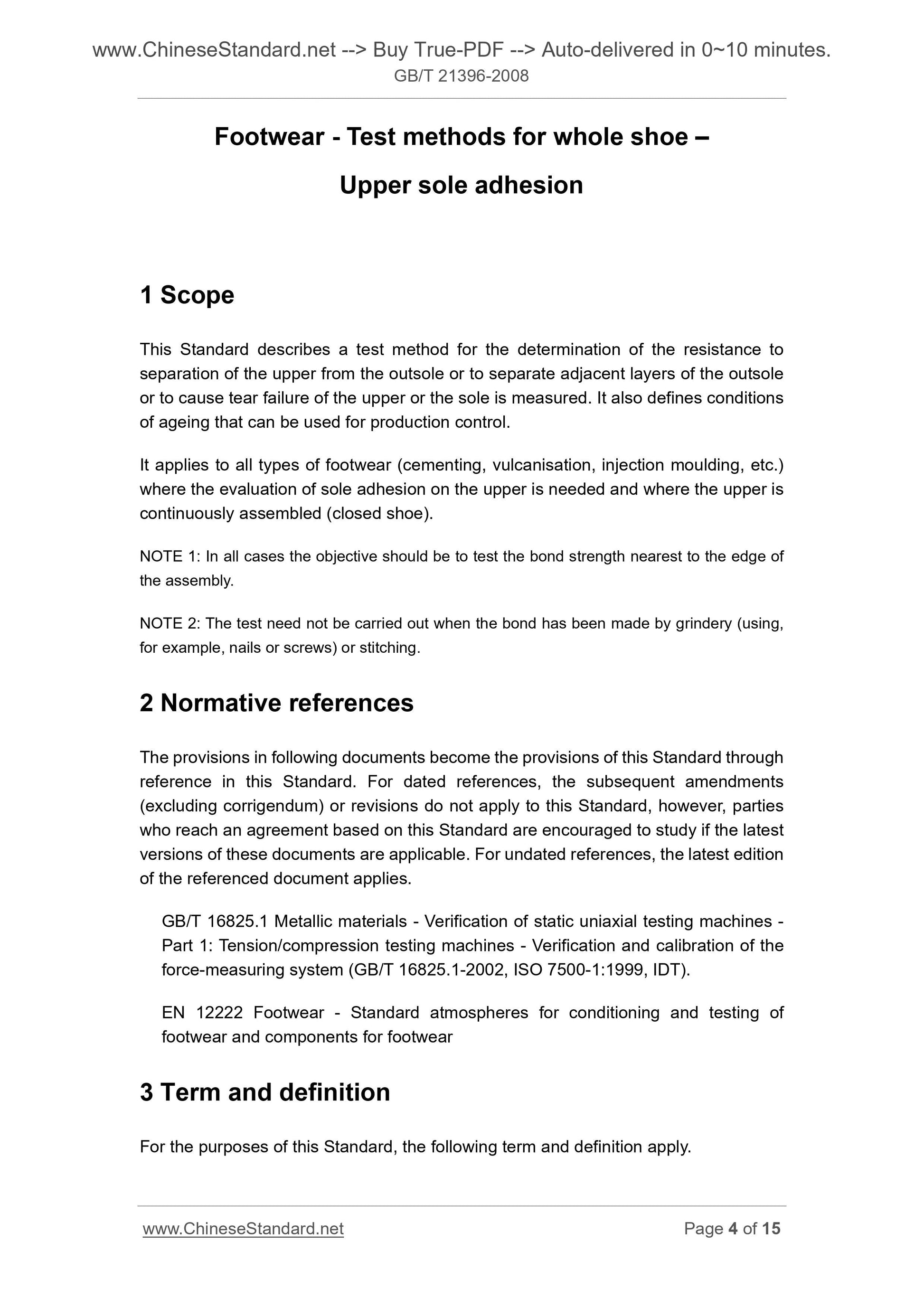

Footwear - Test methods for whole shoe –
Upper sole adhesion
1 Scope
This Standard describes a test method for the determination of the resistance to
separation of the upper from the outsole or to separate adjacent layers of the outsole
or to cause tear failure of the upper or the sole is measured. It also defines conditions
of ageing that can be used for production control.
It applies to all types of footwear (cementing, vulcanisation, injection moulding, etc.)
where the evaluation of sole adhesion on the upper is needed and where the upper is
continuously assembled (closed shoe).
NOTE 1. In all cases the objective should be to test the bond strength nearest to the edge of
the assembly.
NOTE 2. The test need not be carried out when the bond has been made by grindery (using,
for example, nails or screws) or stitching.
2 Normative references
The provisions in following documents become the provisions of this Standard through
reference in this Standard. For dated references, the subsequent amendments
(excluding corrigendum) or revisions do not apply to this Standard, however, parties
who reach an agreement based on this Standard are encouraged to study if the latest
versions of these documents are applicable. For undated references, the latest edition
of the referenced document applies.
GB/T 16825.1 Metallic materials - Verification of static uniaxial testing machines -
Part 1. Tension/compression testing machines - Verification and calibration of the
force-measuring system (GB/T 16825.1-2002, ISO 7500-1.1999, IDT).
EN 12222 Footwear - Standard atmospheres for conditioning and testing of
footwear and components for footwear
3 Term and definition
For the purposes of this Standard, the following term and definition apply.
