GB/T 21183-2017: Zirconium and zirconium alloy sheet, strip and foil

This Standard stipulates the requirements, test methods, inspection rules, marking, packaging, transportation, storage, quality certificate and contract (or order sheet) content of zirconium and zirconium alloy sheet, strip and foil. This Standard is applicable to zirconium and zirconium alloy sheet, strip and foil for the purposes of general industry and nuclear industry.

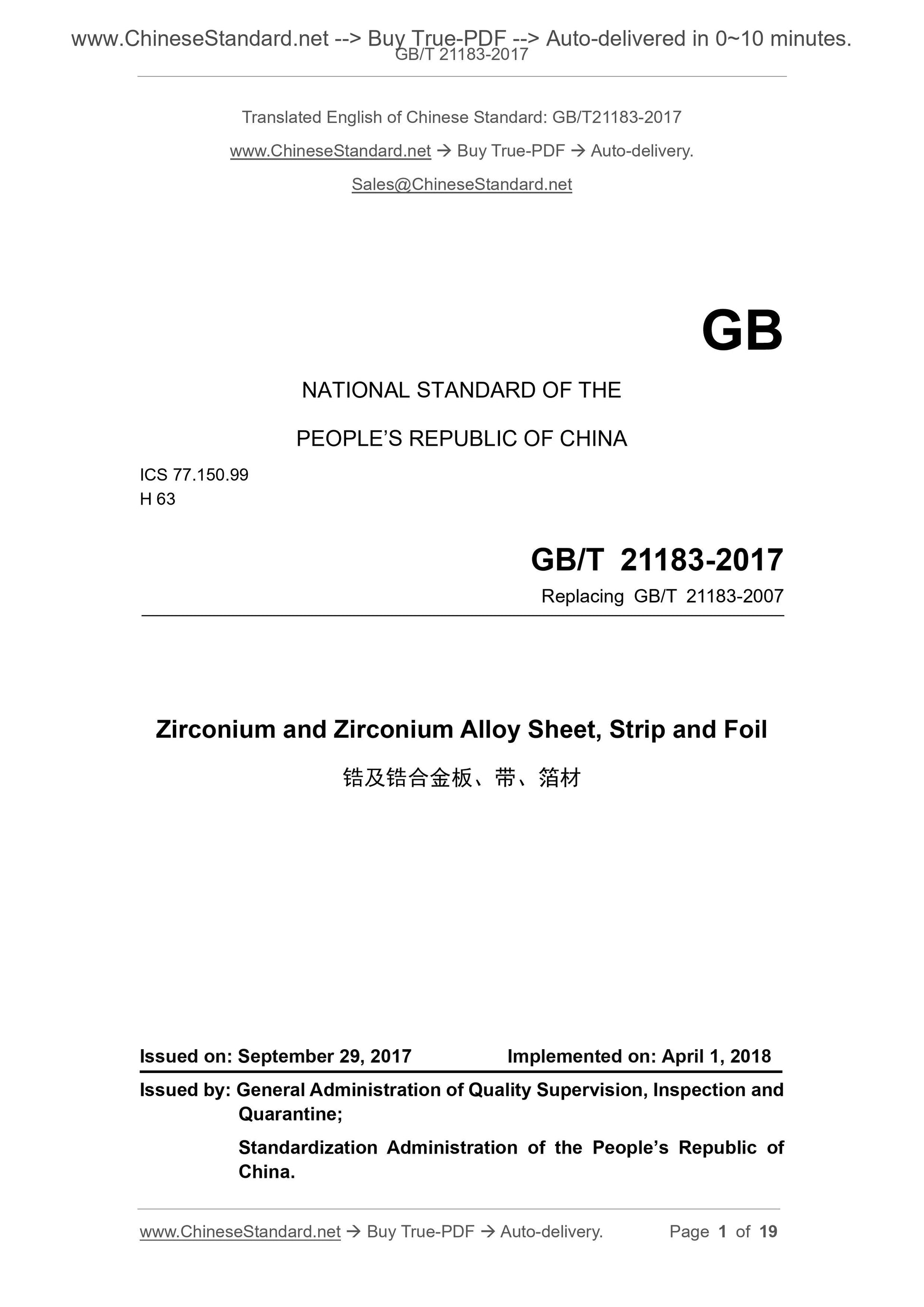

GB/T 21183-2017
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.150.99
H 63
Replacing GB/T 21183-2007
Zirconium and Zirconium Alloy Sheet, Strip and Foil
ISSUED ON: SEPTEMBER 29, 2017
IMPLEMENTED ON: APRIL 1, 2018
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the PEOPLE Republic of
China.

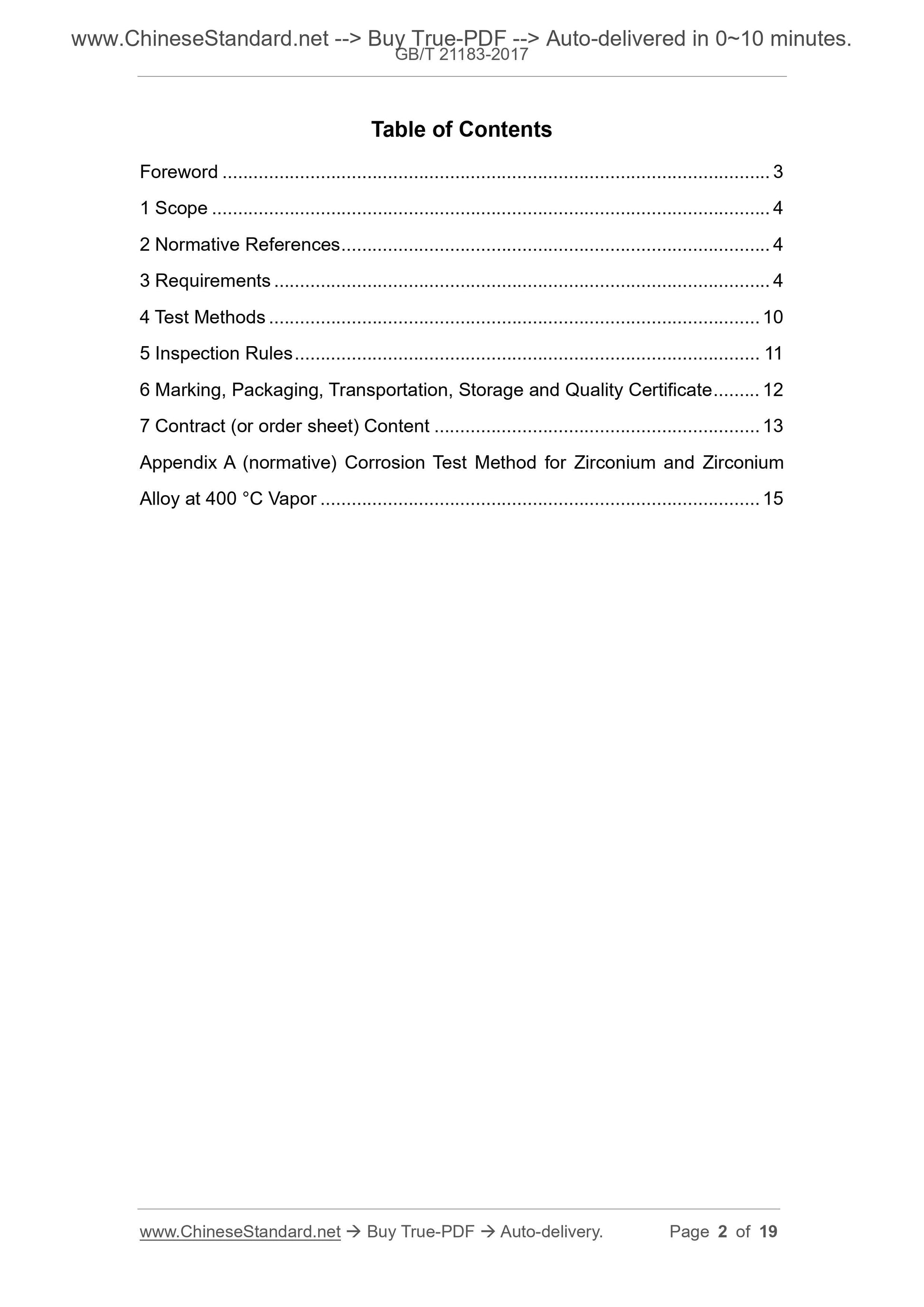

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Requirements ... 4
4 Test Methods ... 10
5 Inspection Rules ... 11
6 Marking, Packaging, Transportation, Storage and Quality Certificate ... 12 7 Contract (or order sheet) Content ... 13
Appendix A (normative) Corrosion Test Method for Zirconium and Zirconium Alloy at 400 ??C Vapor ... 15
Foreword
This Standard was drafted in accordance with the rules in GB/T 1.1-2009. This Standard serves as a replacement of GB/T 21183-2007 Zirconium and Zirconium Alloy Sheet, Strip and Foil.
In comparison with GB/T 21183-2007, there are several main technical changes as follows:
---Product specification is refined;
---Table of chemical composition is deleted; requirements in GB/T 26314 are implemented;
---In dimensions and allowable deviations, the allowable deviations for thickness and width are refined; requirements towards unevenness are added;
---Mechanical properties are adjusted;
---Requirements towards ultrasonic inspection are added;
---Requirements towards surface roughness are added;
---Pickling process of sample preparation in Appendix A is adjusted.
This Standard was proposed by China Nonferrous Metals Industry Association. This Standard shall be under the jurisdiction of National Technical Committee 243 on Nonferrous Metals of Standardization Administration of China (SAC/TC 243). The drafting organizations of this Standard: Western Energy Material Technologies Co., Ltd., Northwest Institute for Non-ferrous Metal Research, Western Titanium Technologies Co., Ltd., State Nuclear BAO TI Zirconium Industry Company, Guangdong Orient Zirconic Industry Sci and Tech Co., Ltd., Baoji Titanium Industry Co., Ltd., China Nonferrous Metals Techno-Economic Research Institute.
The main drafters of this Standard: Jiao Yonggang, Li Zhongkui, Lijia, Zhang Jianjun, Li Laiping, Guo Linjiang, Wuhua, Gaobo, Xu Xiaojun, Ma Zhongxian, Wu Yanhua. The issuance of the previous versions of the standard being replaced by this Standard is as follows:
---GB/T 21183-2007.

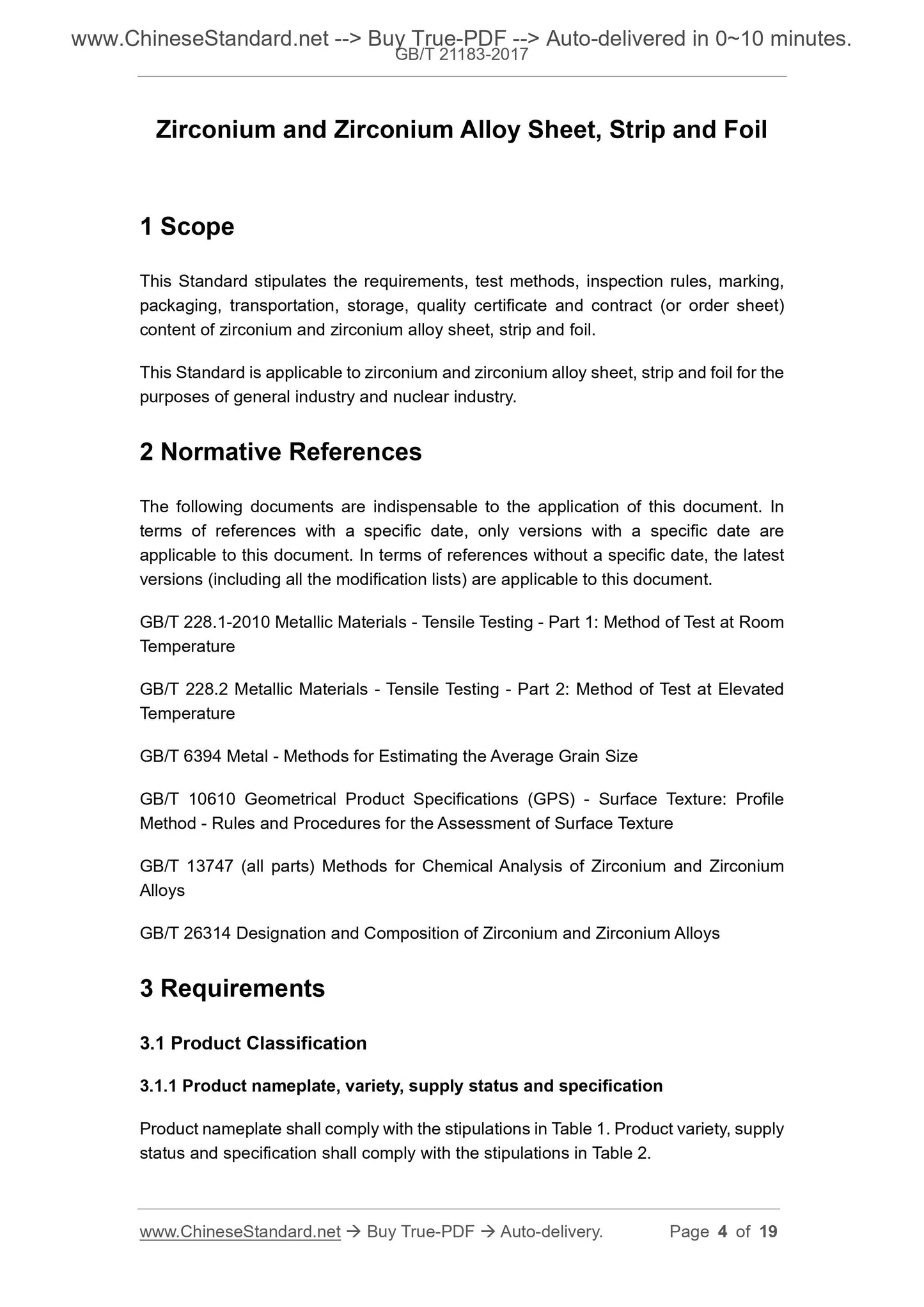

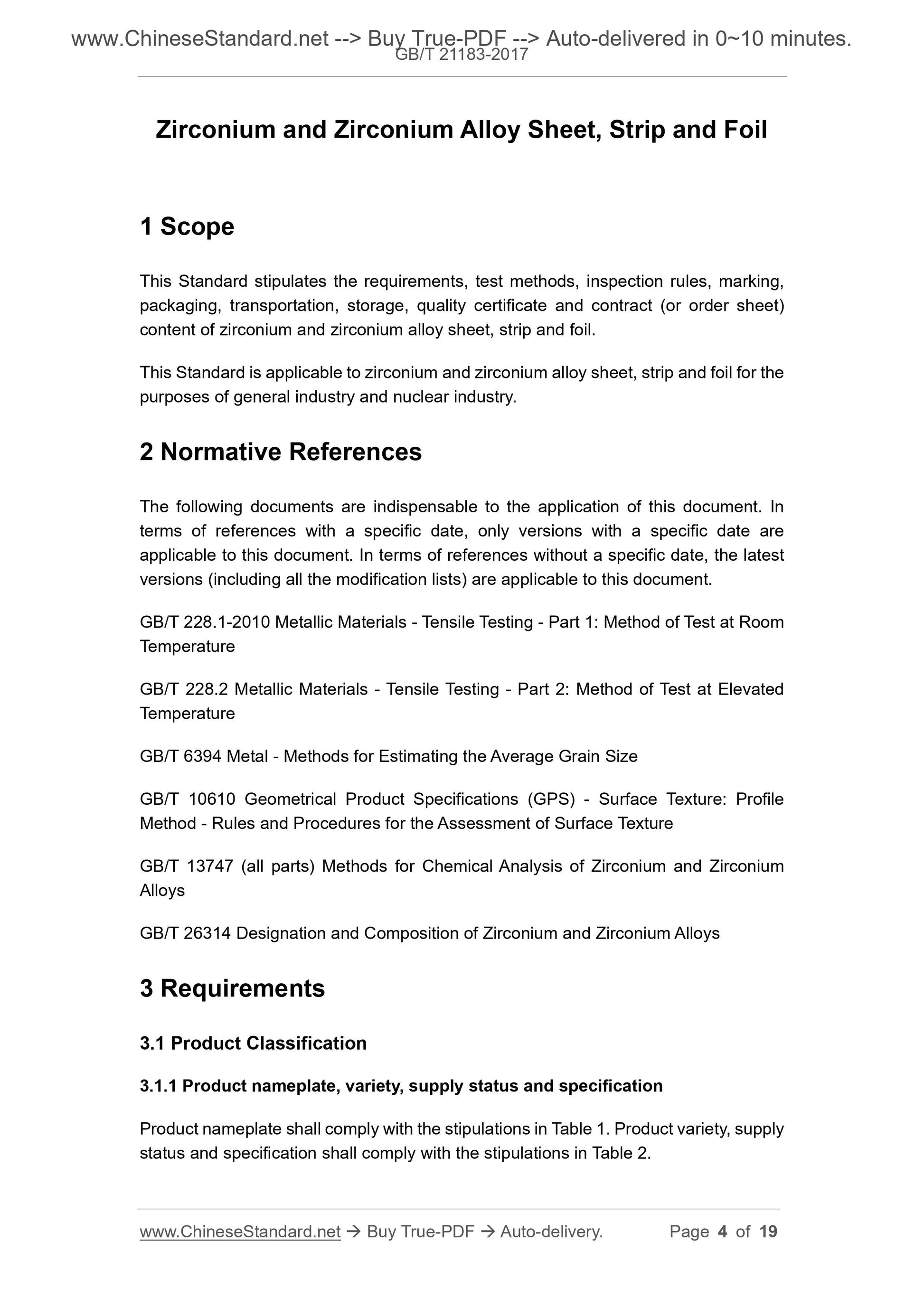

Zirconium and Zirconium Alloy Sheet, Strip and Foil
1 Scope
This Standard stipulates the requirements, test methods, inspection rules, marking, packaging, transportation, storage, quality certificate and contract (or order sheet) content of zirconium and zirconium alloy sheet, strip and foil.
This Standard is applicable to zirconium and zirconium alloy sheet, strip and foil for the purposes of general industry and nuclear industry.
2 Normative References
The following documents are indispensable to the application of this document. In terms of references with a specific date, only versions with a specific date are applicable to this document. In terms of references without a specific date, the latest versions (including all the modification lists) are applicable to this document. GB/T 228.1-2010 Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature
GB/T 228.2 Metallic Materials - Tensile Testing - Part 2: Method of Test at Elevated Temperature
GB/T 6394 Metal - Methods for Estimating the Average Grain Size
GB/T 10610 Geometrical Product Specifications (GPS) - Surface Texture: Profile Method - Rules and Procedures for the Assessment of Surface Texture
GB/T 13747 (all parts) Methods for Chemical Analysis of Zirconium and Zirconium Alloys
GB/T 26314 Designation and Composition of Zirconium and Zirconium Alloys 3 Requirements
3.1 Product Classification
3.1.1 Product nameplate, variety, supply status and specification
Product nameplate shall comply with the stipulations in Table 1. Product variety, supply status and specification shall comply with the stipulations in Table 2. Table 1 -- Product Nameplate
Table 2 -- Product Variety, Supply Status and Specification Unit: millimeter Table 2 (continued from previous page) Unit: millimeter
3.1.2 Product designation
Product designation shall be expressed in accordance with the sequence: product name, standard serial No., nameplate, supply status and specification. Please see designation examples as follows:
Example 1: Zr-0 manufactured, cold processing status of foil, thickness: 0.05 mm, width: 100 mm and length: L mm, shall be marked as: foil GB/T 21183-2017 Zr-0 Y 0.05 ??? 100 ??? L.
Example 2: Zr-2 manufactured, annealing status of strip, thickness: 1.0 mm, width: 100 mm and length: L mm, shall be marked as: strip GB/T 21183-2017 Zr-2 M 1.0 ??? 100 ??? L.
Classification
Nameplate
General Industry Nuclear Industry
Variety
Foil
Strip
Sheet
Variety
Supply Status
Supply Status
Thickness ??? Width ??? Length
Thickness ??? Width ??? Length
Cold Processing
Status (Y)
Annealing Status
(M)
Cold Processing
Status (Y)
Annealing Status
(M)
Cold Processing
Status (Y)
Annealing Status
(M)
Thermal Processing
Status (R)
Annealing Status
(M)
NOTE: when the demand-side indicates in the contract (or order sheet), stress-relieving annealing status (m) of products may be provided.
Example 3: Zr-4 manufactured, thermal processing status of sheet, thickness: 10 mm, width: 600 mm and length: L mm, shall be marked as: sheet GB/T 21183-
2017 Zr-4 R 10.0 ??? 600 ??? L.
3.2 Chemical Composition
Product?€?s chemical composition shall comply with the requirements in GB/T 26314. 3.3 Dimensions and Allowable Deviation
3.3.1 Dimensions and allowable deviation for sheet, strip and foil are shown in Table 3, Table 4 and Table 5, or, they shall be negotiated and determined by the demand- side and the supply-side.
Table 3 -- Thickness Dimension and Allowable Deviation Unit: millimeter Thickness
Thickness Allowable Deviation within the Width Range
Width ??? 300 Width > 300 ~ 600 Width > 600 ~ 1,000 Width > 1,000 ~ 3,000 Table 3 (continued from previous page) Unit: millimeter
Table 4 -- Width Dimension and Allowable Deviation Unit: millimeter
Table 5 -- Length Dimension and Allowable Deviation Unit: millimeter
3.3.2 Sheet and strip products shall be flat and straight. After the shearing, finished products?€? side curvature shall be not more than 3 mm/m. Foil products which are under annealing status allow to have slight waves.
Thickness
Thickness Allowable Deviation within the Width Range
Width ??? 300 Width > 300 ~ 600 Width > 600 ~ 1,000 Width > 1,000 ~ 3,000 Width
Width Allowable Deviation
NOTE: width allowable deviation refers to product?€?s dimensional deviation after the shearing. Length
Length Allowable Deviation
NOTE 1: length allowable deviation refers to product?€?s dimensional deviation after the shearing. NOTE 2: length allowable deviation is merely applicable to sheet, strip and foil products which are delivered in slices. Strip and foil products which are delivered in coils shall implement requirements in the contract (or order sheet).
3.3.3 Unevenness of products delivered in slices shall comply with the stipulations in Table 6.
Table 6 -- Product Unevenness
Table 6 (continued from previous page)
3.3.4 Through shearing, the edges of sheet, strip and foil products shall be evenly trimmed. There shall be no cracks, edge curls or stratification. It is allowed to have slight burrs. Foil products may be delivered in the untrimmed status. All angles of sheet products shall be sheared into right angle.
3.4 Mechanical Properties
Mechanical properties of sheet and strip products shall comply with the stipulations in Table 7. The requirements of mechanical properties for foil products; sheet products whose thickness is more than 10 mm; products in other delivery status shall be negotiated and determined by the demand-side and the supply-side.
Thickness/mm
Unevenness of Stipulated Width/(mm/m)
Thickness/mm
Unevenness of Stipulated Width/(mm/m)
Table 7 -- Mechanical Properties of Sheet and Strip Products
3.5 Corrosion Performance
Sheet and strip products for the purposes of nuclear industry shall receive corrosion performance test. Place sample at (400 ??? 3) ??C, (10.3 ??? 0.7) MPa water vapor; conduct 72-h or 336-h of corrosion. After the corrosion test, the surface of the sample shall have a black and compact oxide film with uniform gloss. After 72-h of corrosion, the weight gain of the sample shall be not more than 22 mg/dm2. When the 72-h test result is unqualified, a corrosion test with 336-h of accumulative time (or re-take a double size of the sample) may be continued; the weight gain of the sample shall be not more than 38 mg/dm2.
3.6 Ultrasonic Examination
Sheet products for the purposes of nuclear industry shall receive ultrasonic examination. Requirements of the acceptance check shall be negotiated and determined by the demand-side and the supply-side.
3.7 Grain Size
In terms of recrystallized and annealed status of sheet and strip products for the purposes of nuclear industry, thickness not more than 4.8 mm, the average grain size shall be not lower than Level-7, which is stipulated in GB/T 6394. The grain size of other products shall be negotiated by the demand-side and the supply-side, and indicated in the contract.
Nameplate Status Sample Direction
Test
Temperature
t/??C
Elongation after Break
A50mm/%
Tensile
Strength
Rm/MPa
Stipulated Plastic
Elongation Strength
Rp0.2/MPa
Vertical
Horizontal
Horizontal
Horizontal
Vertical
Vertical
Vertical
Vertical
Vertical
Room
Temperature
Room
Temperature
Room
Temperature
Room
Temperature
Room
Temperature
Room
Temperature
Room
Temperature

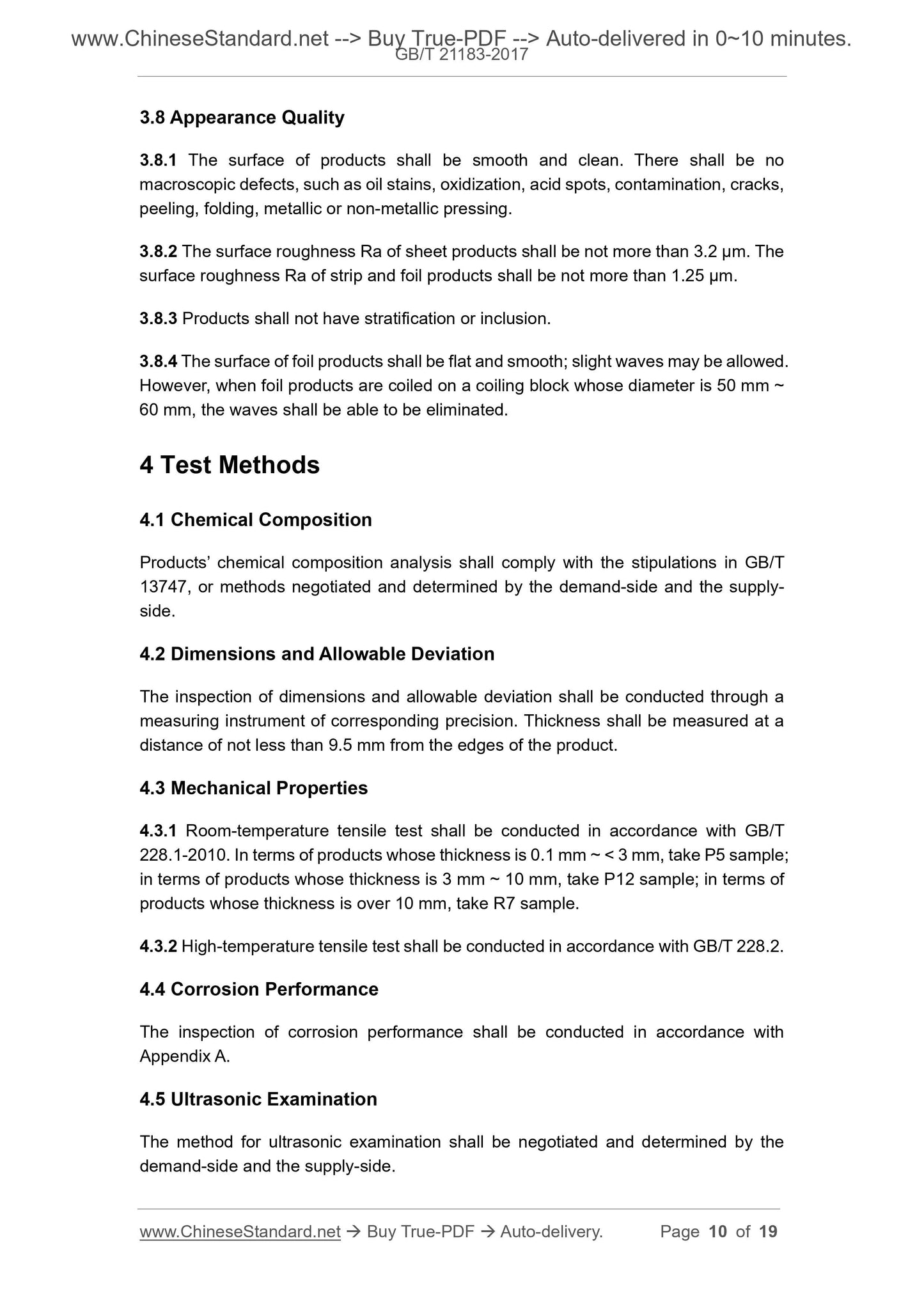

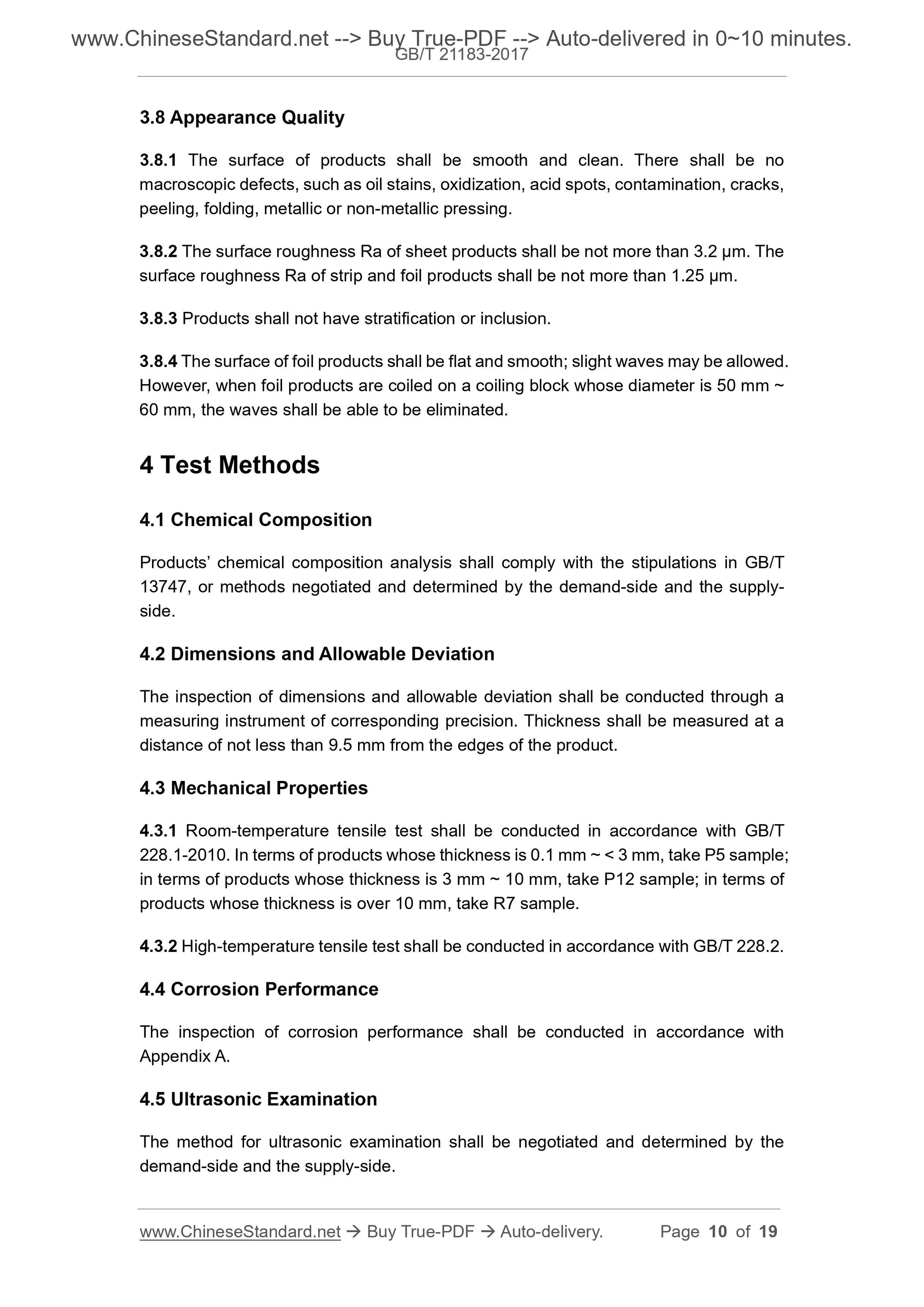

3.8 Appearance Quality
3.8.1 The surface of products shall be smooth and clean. There shall be no macroscopic defects, such as oil stains, oxidization, acid spots, contamination, cracks, peeling, folding, metallic or non-metallic pressing.
3.8.2 The surface roughness Ra of sheet products shall be not more than 3.2 ??m. The surface roughness Ra of strip and foil products shall be not more than 1.25 ??m. 3.8.3 Products shall not have stratification or inclusion.
3.8.4 The surface of foil products shall be flat and smooth; slight waves may be allowed. However, when foil products are coiled on a coiling block whose diameter is 50 mm ~ 60 mm, the waves shall be able to be eliminated.
4 Test Methods
4.1 Chemical Composition
Products?€? chemical composition analysis shall comply with the stipulations in GB/T 13747, or methods negotiated and determined by the demand-side and the supply- side.
4.2 Dimensions and Allowable Deviation
The inspection of dimensions and allowable deviation shall be conducted through a measuring instrument of corresponding precision. Thickness shall be measured at a distance of not less than 9.5 mm from the edges of the product.
4.3 Mechanical Properties
4.3.1 Room-temperature tensile test shall be conducted in accordance with GB/T 228.1-2010. In terms of products whose thickness is 0.1 mm ~ < 3 mm, take P5 sample; in terms of products whose thickness is 3 mm ~ 10 mm, take P12 sample; in terms of products whose thickness is over 10 mm, take R7 sample.
4.3.2 High-temperature tensile test shall be conducted in accordance with GB/T 228.2. 4.4 Corrosion Performance
The inspection of corrosion performance shall be conducted in accordance with Appendix A.
4.5 Ultrasonic Examination
The method for ultrasonic examination shall be negotiated and determined by the demand-side and the supply-side.

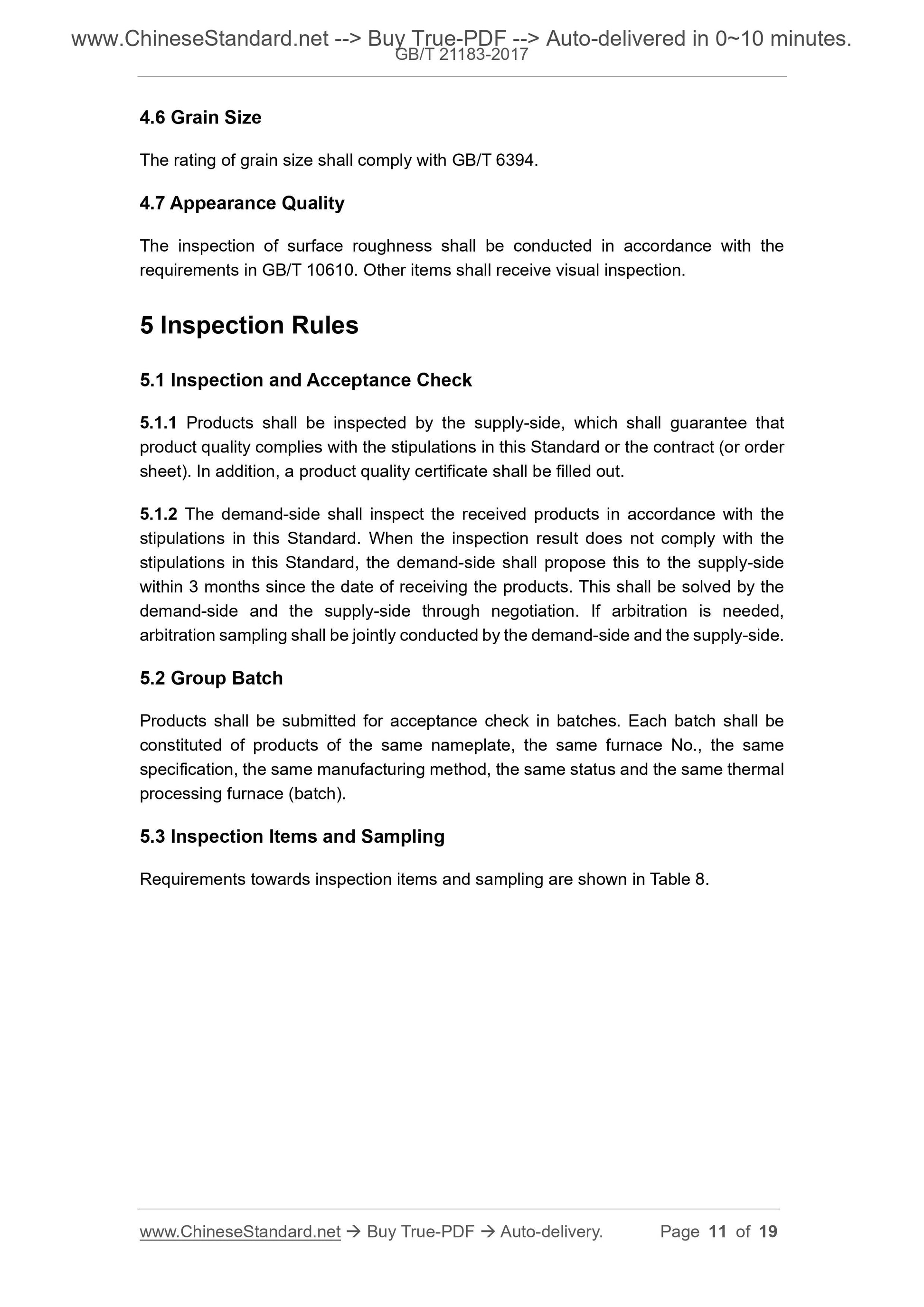

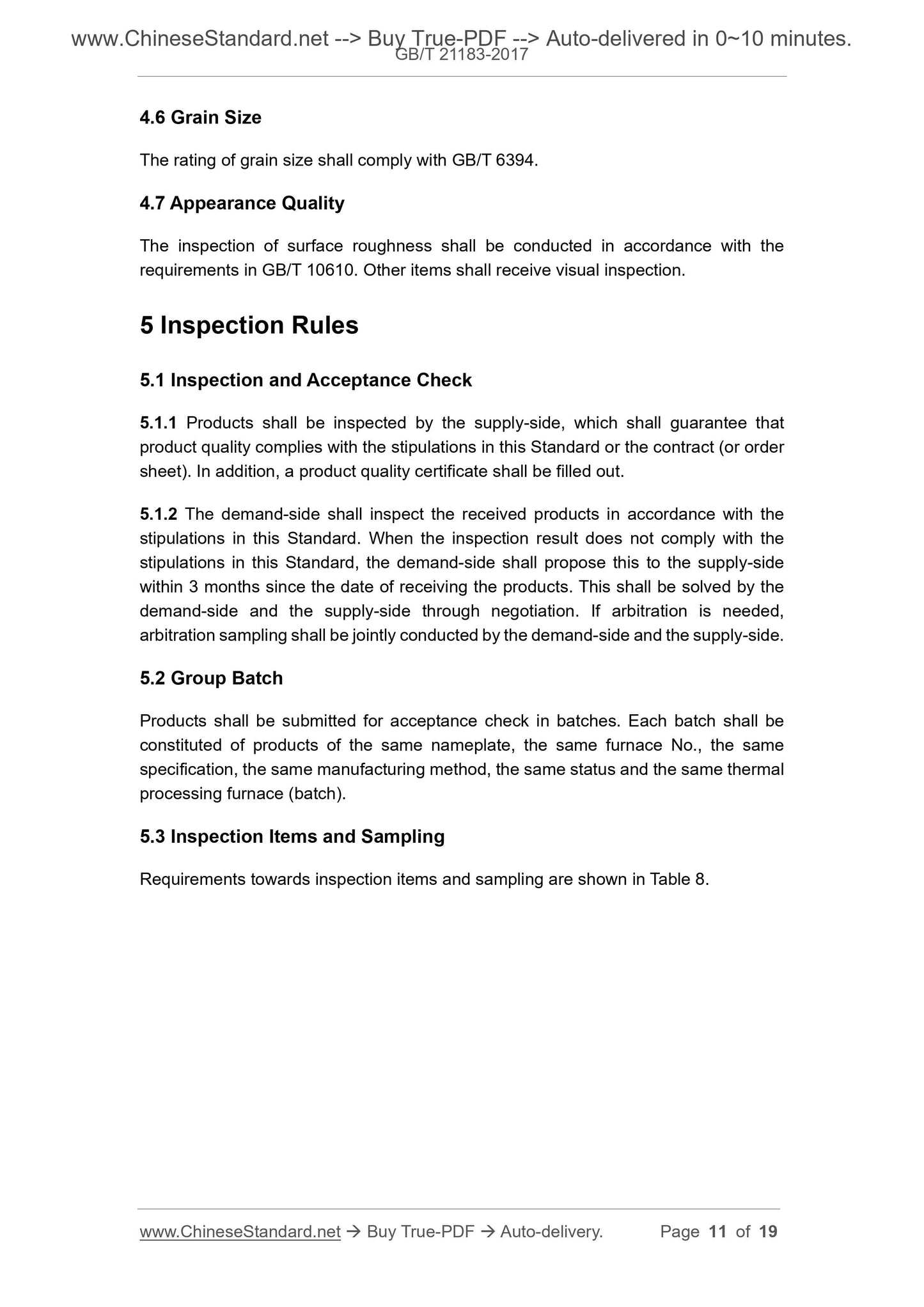

4.6 Grain Size
The rating of grain size shall comply with GB/T 6394.
4.7 Appearance Quality
The inspection of surface roughness shall be conducted in accordance with the requirements in GB/T 10610. Other items shall receive visual inspection. 5 Inspection Rules
5.1 Inspection and Acceptance Check
5.1.1 Products shall be inspected by the supply-side, which shall guarantee that product quality complies with the stipulations in this Standard or the contract (or order sheet). In addition, a product quality certificate shall be filled out. 5.1.2 The demand-side shall inspect the received products in accordance with the stipulations in this Standard. When the inspection result does not comply with the stipulations in this Standard, the demand-side shall propose this to the supply-side within 3 months since the date of receiving the products. This shall be solved by the demand-side and the supply-side through negotiation. If arbitration is needed, arbitration sampling shall be jointly conducted by the demand-side and the supply-side. 5.2 Group Batch
Products shall be submitted for acceptance check in batches. Each batch shall be constituted of products of the same nameplate, the same furnace No., the same specification, the same manufacturing method, the same status and the same thermal processing furnace (batch).
5.3 Inspection Items and Sampling
Requirements towards inspection items and sampling are shown in Table 8. Table 8 -- Inspection Items and Sampling Rules
5.4 Determination of Inspection Result
5.4.1 When chemical composition is unqualified, re-take a double size of sample from this batch of products for a re-inspection. If the re-inspection result still shows that some elements are unqualified, then, this batch of products shall be determined as unqualified.
5.4.2 When dimensions and allowable deviation, or appearance quality are unqualified, then, the individual PCS (coil) shall be determined as unqualified.
5.4.3 In mechanical properties, corrosion performance and grain size test, if the inspection result is unqualified, then, re-take a double size of sample from this batch of products (including the previous products being inspected) for a re-inspection of the unqualified items. If the re-inspection result is still unqualified, then, this batch of products shall be determined as unqualified.
5.4.4 When the ultrasonic examination result is unqualified, then, the individual PCS of product shall be determined as unqualified.
6 Marking, Packaging, Transportation, Storage and
Quality Certificate
6.1 Product Marking
Sampling Inspection Items
Chapter No.
of
Requirements
Chapter No. of
Test Methods
Chemical
Composition
Dimensions and
Allowable Deviation
Mechanical
Properties
Corrosion
Performance
Ultrasonic
Examination
Grain Size
Appearance Quality
Per PCS (coil)
Respectively take 2 samples from each batch in the
longitudinal and horizontal direction
Take 3 samples from each batch
Respectively take 1 sample from each batch in the
longitudinal and horizontal direction
Per PCS (coil)
Per PCS
In terms of nitrogen, hydrogen and oxygen content, take 1
sample from finished products. In terms of other elements, the
supply-side may submit in the original ingot analysis result. The
demand-side shall take samples from finished products.

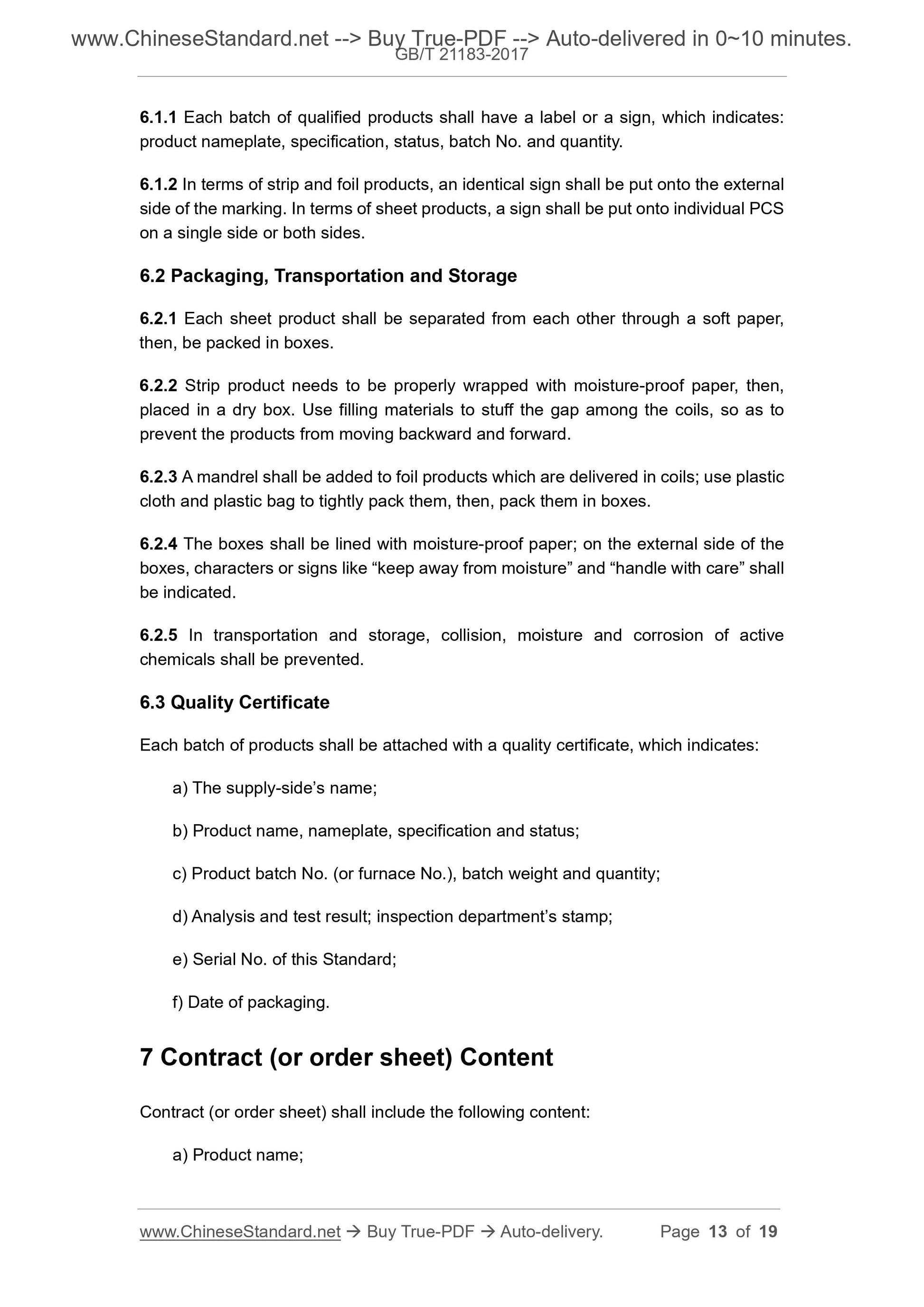

6.1.1 Each batch of qualified products shall have a label or a sign, which indicates: product nameplate, specification, status, batch No. and quantity.
6.1.2 In terms of strip and foil products, an identical sign shall be put onto the external side of the marking. In terms of sheet products, a sign shall be put onto individual PCS on a single side or both sides.
6.2 Packaging, Transportation and Storage
6.2.1 Each sheet product shall be separated from each other through a soft paper, then, be packed in boxes.
6.2.2 Strip product needs to be properly wrapped with moisture-proof paper, then, placed in a dry box. Use filling materials to stuff the gap among the coils, so as to prevent the products from moving backward and forward.
6.2.3 A mandrel shall be added to foil products which are delivered in coils; use plastic cloth and plastic bag to tightly pack them, then, pack them in boxes.
6.2.4 The boxes shall be lined with moisture-proof paper; on the external side of the boxes, characters or signs like ?€?keep away from moisture?€? and ?€?handle with care?€? shall be indicated.
6.2.5 In transportation and storage, collision, moisture and corrosion of active chemicals shall be prevented.
6.3 Quality Certificate
Each batch of products shall be attached with a quality certificate, which indicates: a) The supply-side?€?s name;
b) Product name, nameplate, specification and status;
c) Product batch No. (or furnace No.), batch weight and quantity;
d) Analysis and test result; inspection department?€?s stamp;
e) Serial No. of this Standard;
f) Date of packaging.
7 Contract (or order sheet) Content
Contract (or order sheet) shall include the following content:
a) Product name;
b) Nameplate and status;
c) Product specification;
d) Quantity;
e) Serial No. of this Standard;
f) Others.

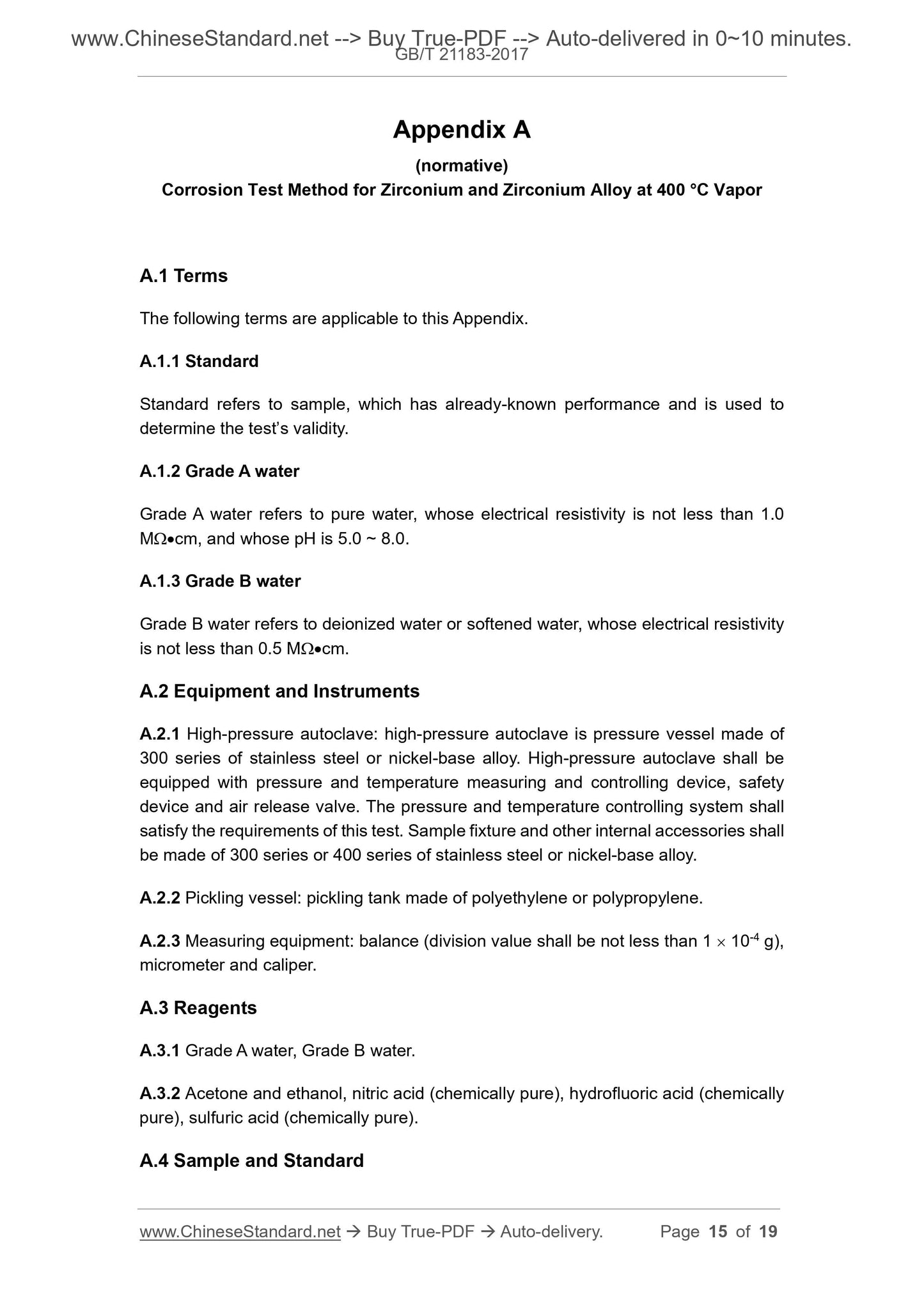

Appendix A
(normative)
Corrosion Test Method for Zirconium and Zirconium Alloy at 400 ??C Vapor A.1 Terms
The following terms are applicable to this Appendix.
A.1.1 Standard
Standard refers to sample, which has already-known performance and is used to determine the test?€?s validity.
A.1.2 Grade A water
Grade A water refers to pure water, whose electrical resistivity is not less than 1.0 M??????cm, and whose pH is 5.0 ~ 8.0.
A.1.3 Grade B water
Grade B water refers to deionized water or softened water, whose electrical resistivity is not less than 0.5 M??????cm.
A.2 Equipment and Instruments
A.2.1 High-pressure autoclave: high-pressure autoclave is pressure vessel made of 300 series of stainless steel or nickel-base alloy. High-pressure autoclave shall be equipped with pressure and temperature measuring and controlling device, safety device and air release valve. The pressure and temperature controlling system shall satisfy the requirements of this test. Sample fixture and other internal accessories shall be made of 300 series or 400 series of stainless steel or nickel-base alloy. A.2.2 Pickling vessel: pickling tank made of polyethylene or polypropylene. A.2.3 Measuring equipment: balance (division value shall be not less than 1 ??? 10-4 g), micrometer and caliper.
A.3 Reagents
A.3.1 Grade A water, Grade B water.
A.3.2 Acetone and ethanol, nitric acid (chemically pure), hydrofluoric acid (chemically pure), sulfuric acid (chemically pure).
A.4 Sample and Standard
A.4.1 Generally speaking, sample?€?s length ??? width shall be 30 mm ??? 20 mm. The surface shall be rinsed with water or be acid pickled.
A.4.2 Each batch of samples and standards shall be respectively marked. A.5 Test Requirements
A.5.1 Water quality: water used in the corrosion test shall be Grade A water. A.5.2 Quantity of samples: the total area of samples being placed into the high- pressure autoclave each time shall not exceed 0.1 m2/L.
A.5.3 Please see the test conditions as follows:
---Temperature: (400 ??? 3) ??C.
---Pressure: (10.3 ??? 0.7) MPa.
---Time: under the stipulated temperature and pressure, the total corrosion time may prolong 8 h at the most, in comparison...
