GB/T 20933-2014: Hot rolled sheet pile

This Standard specifies the ordering content, classification, code, dimension, shape, weight and permissible deviation, technical requirements, test methods, inspection rules, package, mark and quality certificate of the hot rolled sheet pile.

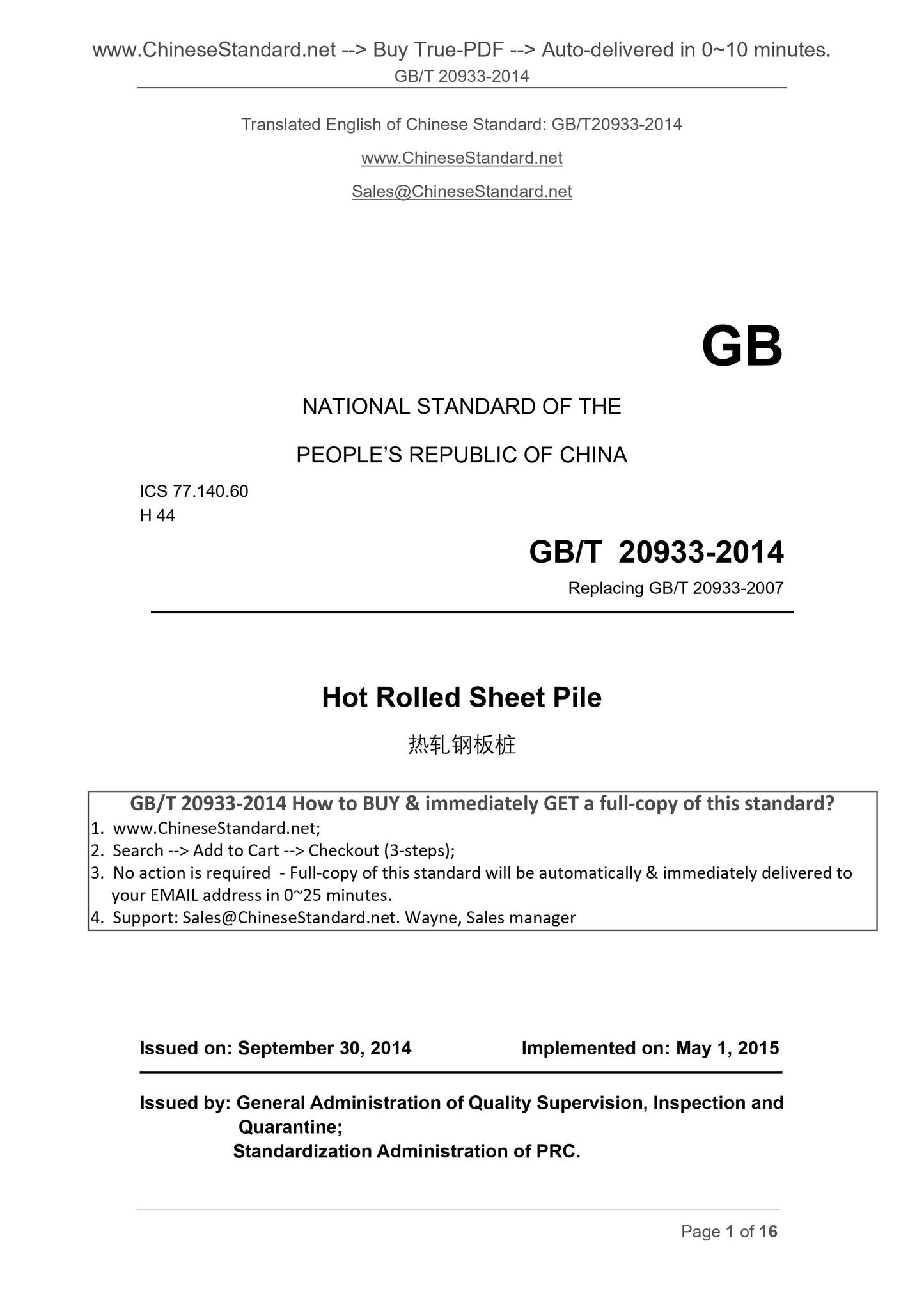

GB/T 20933-2014
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.60
H 44
Replacing GB/T 20933-2007
Hot Rolled Sheet Pile
ISSUED ON. SEPTEMBER 30, 2014
IMPLEMENTED ON. MAY 1, 2015
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

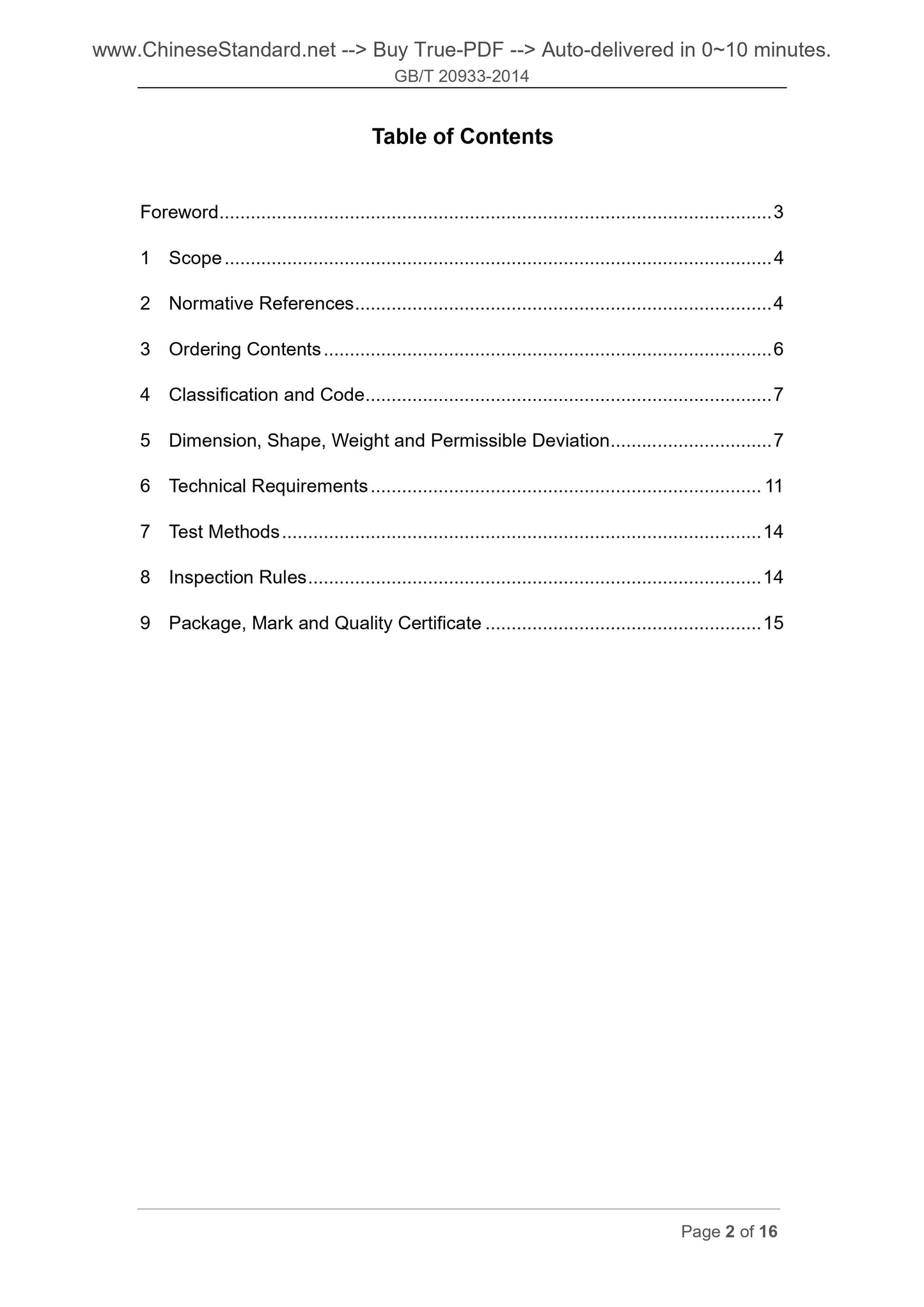

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Ordering Contents ... 6
4 Classification and Code ... 7
5 Dimension, Shape, Weight and Permissible Deviation ... 7
6 Technical Requirements ... 11
7 Test Methods ... 14
8 Inspection Rules ... 14
9 Package, Mark and Quality Certificate ... 15

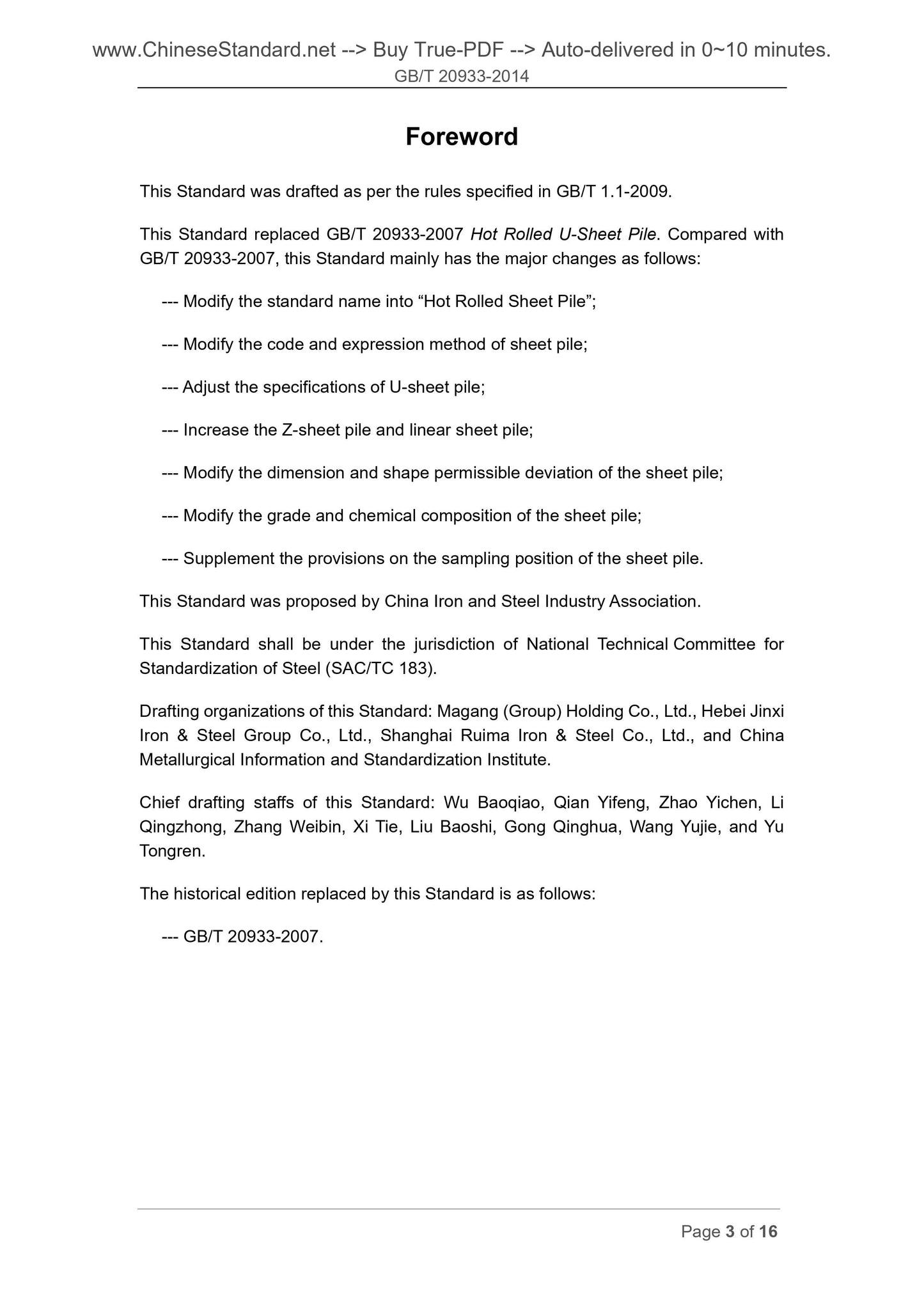

Foreword
This Standard was drafted as per the rules specified in GB/T 1.1-2009.
This Standard replaced GB/T 20933-2007 Hot Rolled U-Sheet Pile. Compared with GB/T 20933-2007, this Standard mainly has the major changes as follows. --- Modify the standard name into ?€?Hot Rolled Sheet Pile?€?;
--- Modify the code and expression method of sheet pile;
--- Adjust the specifications of U-sheet pile;
--- Increase the Z-sheet pile and linear sheet pile;
--- Modify the dimension and shape permissible deviation of the sheet pile; --- Modify the grade and chemical composition of the sheet pile;
--- Supplement the provisions on the sampling position of the sheet pile. This Standard was proposed by China Iron and Steel Industry Association. This Standard shall be under the jurisdiction of National Technical Committee for Standardization of Steel (SAC/TC 183).
Drafting organizations of this Standard. Magang (Group) Holding Co., Ltd., Hebei Jinxi Iron and Steel Group Co., Ltd., Shanghai Ruima Iron and Steel Co., Ltd., and China Metallurgical Information and Standardization Institute.
Chief drafting staffs of this Standard. Wu Baoqiao, Qian Yifeng, Zhao Yichen, Li Qingzhong, Zhang Weibin, Xi Tie, Liu Baoshi, Gong Qinghua, Wang Yujie, and Yu Tongren.
The historical edition replaced by this Standard is as follows.
--- GB/T 20933-2007.
Hot Rolled Sheet Pile

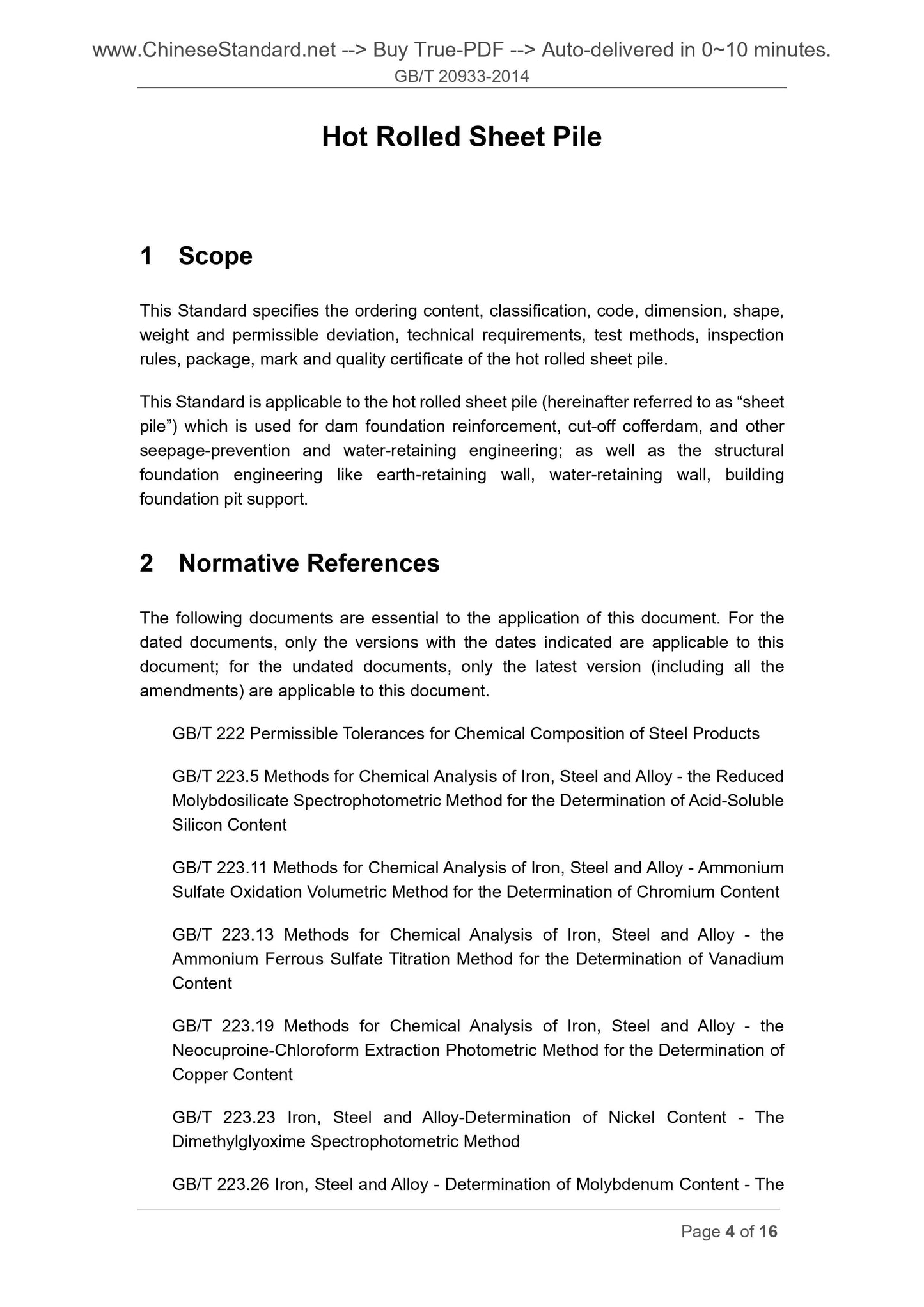

1 Scope
This Standard specifies the ordering content, classification, code, dimension, shape, weight and permissible deviation, technical requirements, test methods, inspection rules, package, mark and quality certificate of the hot rolled sheet pile. This Standard is applicable to the hot rolled sheet pile (hereinafter referred to as ?€?sheet pile?€?) which is used for dam foundation reinforcement, cut-off cofferdam, and other seepage-prevention and water-retaining engineering; as well as the structural foundation engineering like earth-retaining wall, water-retaining wall, building foundation pit support.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.

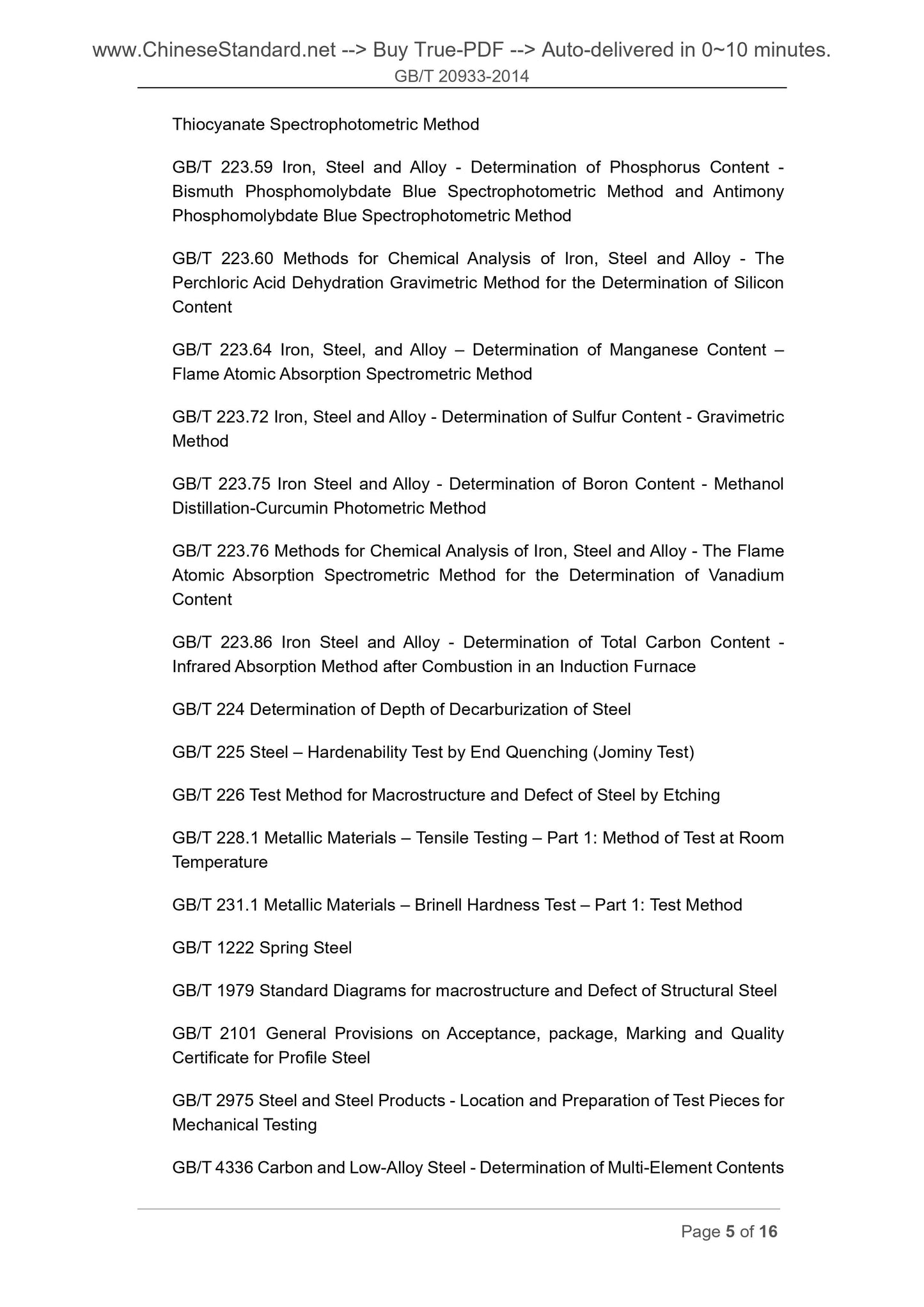

GB/T 222 Permissible Tolerances for Chemical Composition of Steel Products GB/T 223.5 Methods for Chemical Analysis of Iron, Steel and Alloy - the Reduced Molybdosilicate Spectrophotometric Method for the Determination of Acid-Soluble Silicon Content
GB/T 223.11 Methods for Chemical Analysis of Iron, Steel and Alloy - Ammonium Sulfate Oxidation Volumetric Method for the Determination of Chromium Content GB/T 223.13 Methods for Chemical Analysis of Iron, Steel and Alloy - the Ammonium Ferrous Sulfate Titration Method for the Determination of Vanadium Content
GB/T 223.19 Methods for Chemical Analysis of Iron, Steel and Alloy - the Neocuproine-Chloroform Extraction Photometric Method for the Determination of Copper Content
GB/T 223.23 Iron, Steel and Alloy-Determination of Nickel Content - The Dimethylglyoxime Spectrophotometric Method
GB/T 223.26 Iron, Steel and Alloy - Determination of Molybdenum Content - The Thiocyanate Spectrophotometric Method
GB/T 223.59 Iron, Steel and Alloy - Determination of Phosphorus Content - Bismuth Phosphomolybdate Blue Spectrophotometric Method and Antimony
Phosphomolybdate Blue Spectrophotometric Method
GB/T 223.60 Methods for Chemical Analysis of Iron, Steel and Alloy - The Perchloric Acid Dehydration Gravimetric Method for the Determination of Silicon Content
GB/T 223.64 Iron, Steel, and Alloy ?€? Determination of Manganese Content ?€? Flame Atomic Absorption Spectrometric Method
GB/T 223.72 Iron, Steel and Alloy - Determination of Sulfur Content - Gravimetric Method
GB/T 223.75 Iron Steel and Alloy - Determination of Boron Content - Methanol Distillation-Curcumin Photometric Method
GB/T 223.76 Methods for Chemical Analysis of Iron, Steel and Alloy - The Flame Atomic Absorption Spectrometric Method for the Determination of Vanadium Content
GB/T 223.86 Iron Steel and Alloy - Determination of Total Carbon Content - Infrared Absorption Method after Combustion in an Induction Furnace
GB/T 224 Determination of Depth of Decarburization of Steel
GB/T 225 Steel ?€? Hardenability Test by End Quenching (Jominy Test)
GB/T 226 Test Method for Macrostructure and Defect of Steel by Etching
GB/T 228.1 Metallic Materials ?€? Tensile Testing ?€? Part 1. Method of Test at Room Temperature
GB/T 231.1 Metallic Materials ?€? Brinell Hardness Test ?€? Part 1. Test Method GB/T 1222 Spring Steel
GB/T 1979 Standard Diagrams for macrostructure and Defect of Structural Steel GB/T 2101 General Provisions on Acceptance, package, Marking and Quality Certificate for Profile Steel
GB/T 2975 Steel and Steel Products - Location and Preparation of Test Pieces for Mechanical Testing
GB/T 4336 Carbon and Low-Alloy Steel - Determination of Multi-Element Contents Table 6 (Continued)

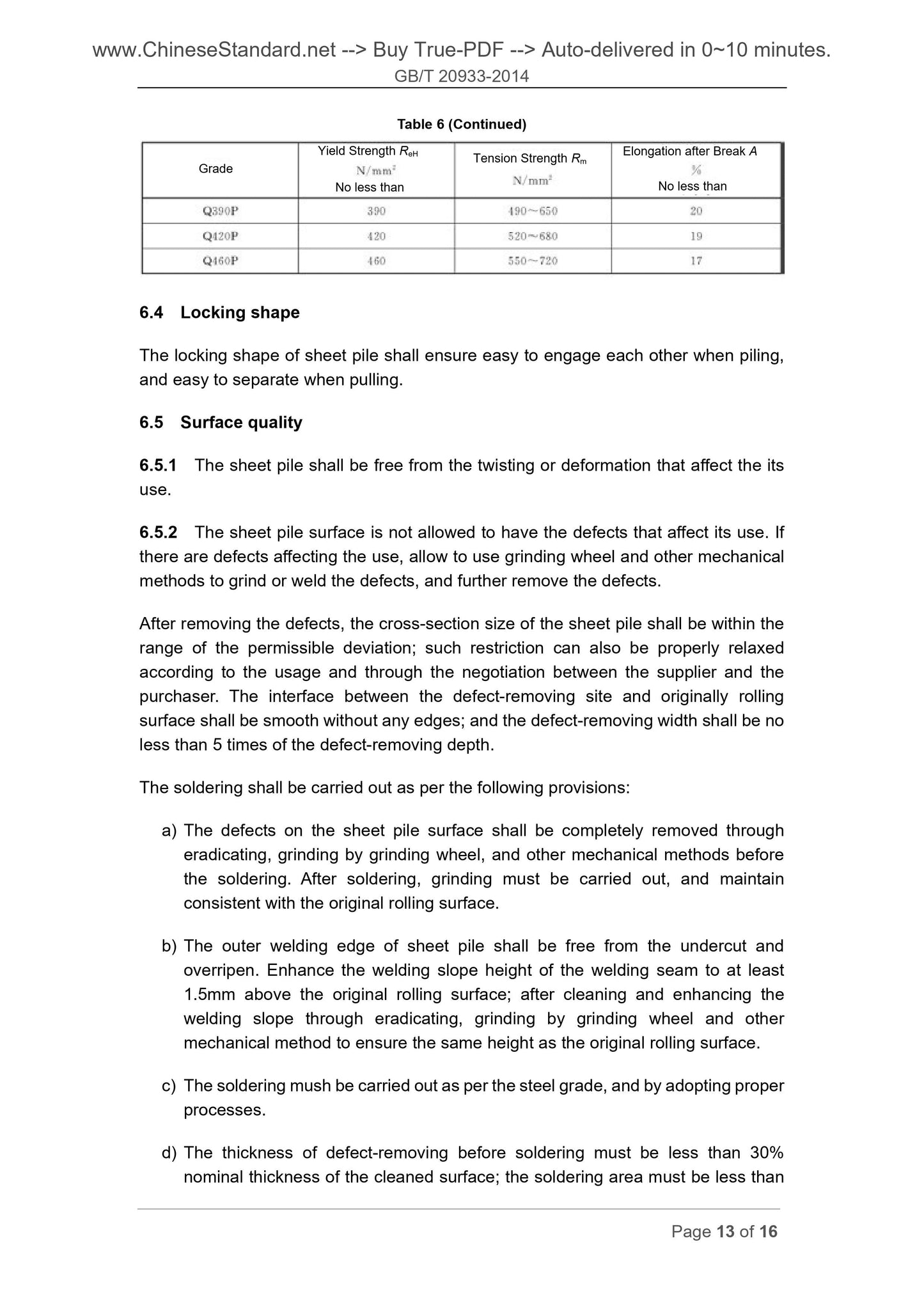

6.4 Locking shape
The locking shape of sheet pile shall ensure easy to engage each other when piling, and easy to separate when pulling.
6.5 Surface quality
6.5.1 The sheet pile shall be free from the twisting or deformation that affect the its use.
6.5.2 The sheet pile surface is not allowed to have the defects that affect its use. If there are defects affecting the use, allow to use grinding wheel and other mechanical methods to grind or weld the defects, and further remove the defects.
After removing the defects, the cross-section size of the sheet pile shall be within the range of the permissible deviation; such restriction can also be properly relaxed according to the usage and through the negotiation between the supplier and the purchaser. The interface between the defect-removing site and originally rolling surface shall be smooth without any edges; and the defect-removing width shall be no less than 5 times of the defect-removing depth.
The soldering shall be carried out as per the following provisions.
a) The defects on the sheet pile surface shall be completely removed through eradicating, grinding by grinding wheel, and other mechanical methods before the soldering. After soldering, grinding must be carried out, and maintain consistent with the original rolling surface.
b) The outer welding edge of sheet pile shall be free from the undercut and overripen. Enhance the welding slope height of the welding seam to at least 1.5mm above the original rolling surface; after cleaning and enhancing the welding slope through eradicating, grinding by grinding wheel and other mechanical method to ensure the same height as the original rolling surface. c) The soldering mush be carried out as per the steel grade, and by adopting proper processes.
d) The thickness of defect-removing before soldering must be less than 30% nominal thickness of the cleaned surface; the soldering area must be less than Grade
Yield Strength ReH
No less than
Tension Strength Rm Elongation after Break A
No less than
