GB/T 20887.5-2022: Continuously hot rolled high strength steel sheet and strip for automobile -- Part 5: Martensitic steel

This document specifies the terms and definitions, classification and designation representation method, order content, dimension, shape, weight, technical requirements, test methods, inspection rules, package, mark and certification of hot rolled high strength martensitic steel sheet and strip for automobile. This document applies to continuously hot rolled martensitic steel strips with a thickness of not more than 6.0 mm, steel sheets cross-cut from them, and longitudinally-cut steel strips.

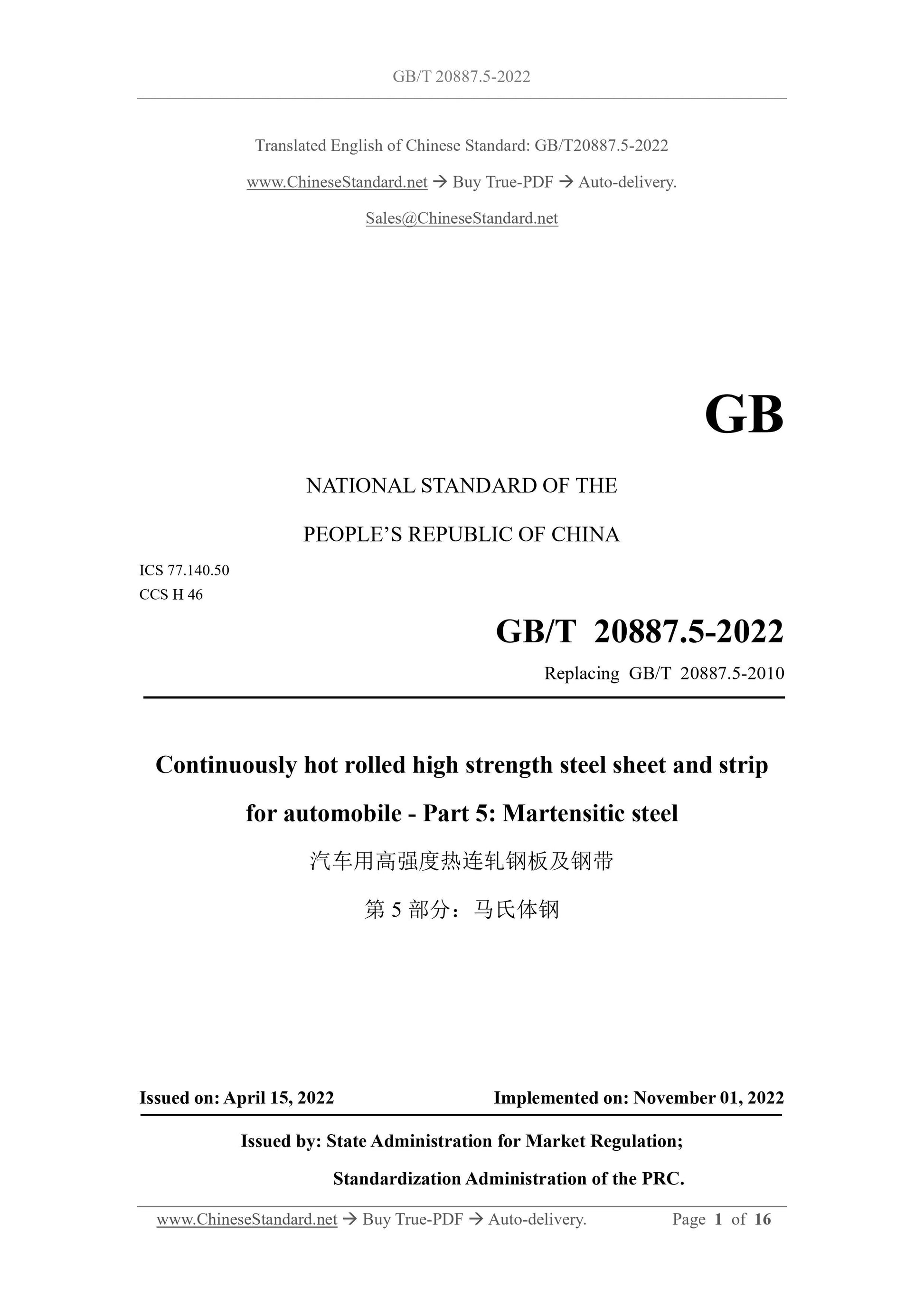

GB/T 20887.5-2022
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.50
CCS H 46
Replacing GB/T 20887.5-2010
Continuously hot rolled high strength steel sheet and strip
for automobile - Part 5: Martensitic steel
ISSUED ON: APRIL 15, 2022
IMPLEMENTED ON: NOVEMBER 01, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the PRC.

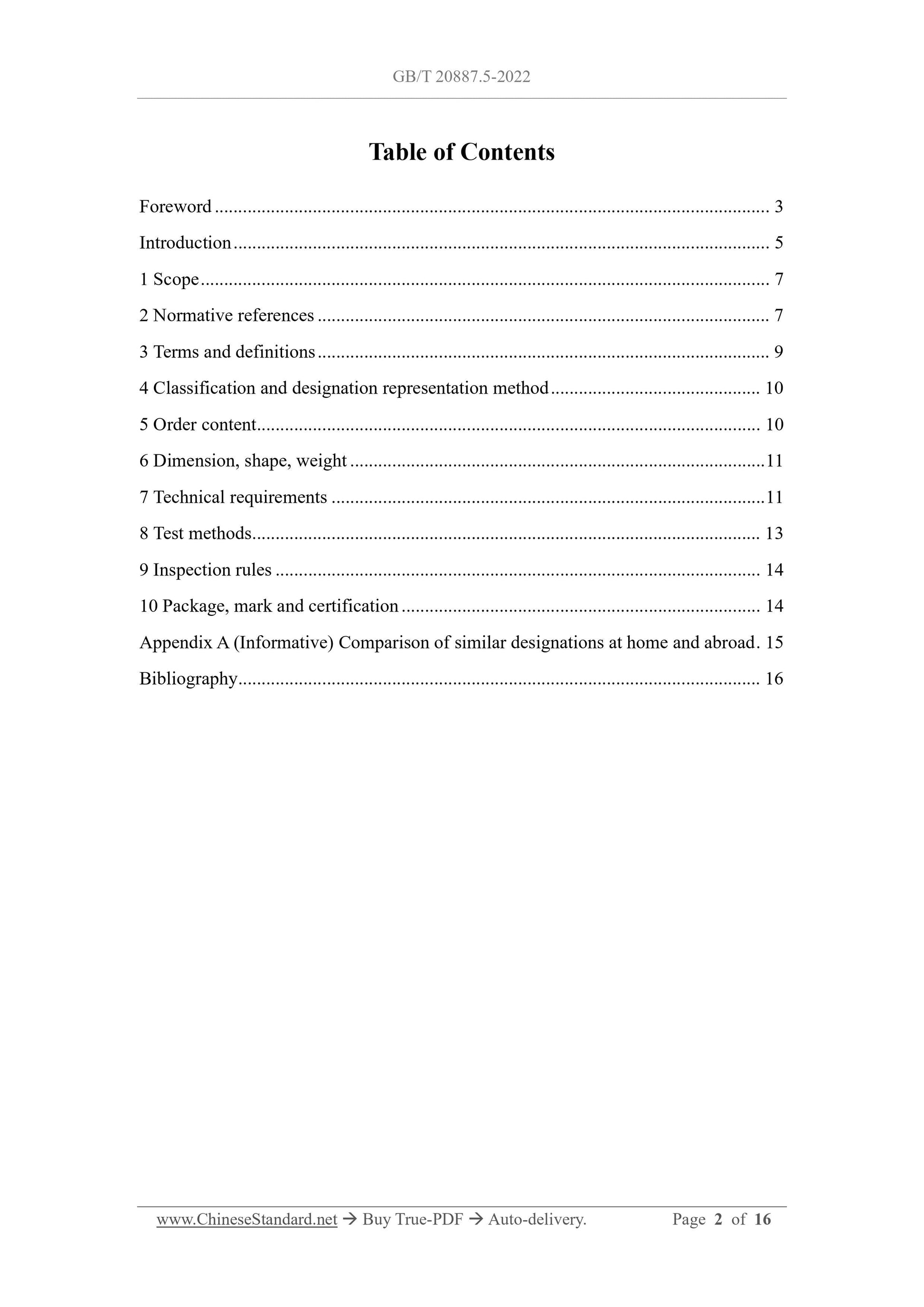

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 7
2 Normative references ... 7
3 Terms and definitions ... 9
4 Classification and designation representation method ... 10
5 Order content ... 10
6 Dimension, shape, weight ... 11
7 Technical requirements ... 11
8 Test methods ... 13
9 Inspection rules ... 14
10 Package, mark and certification ... 14
Appendix A (Informative) Comparison of similar designations at home and abroad . 15 Bibliography ... 16

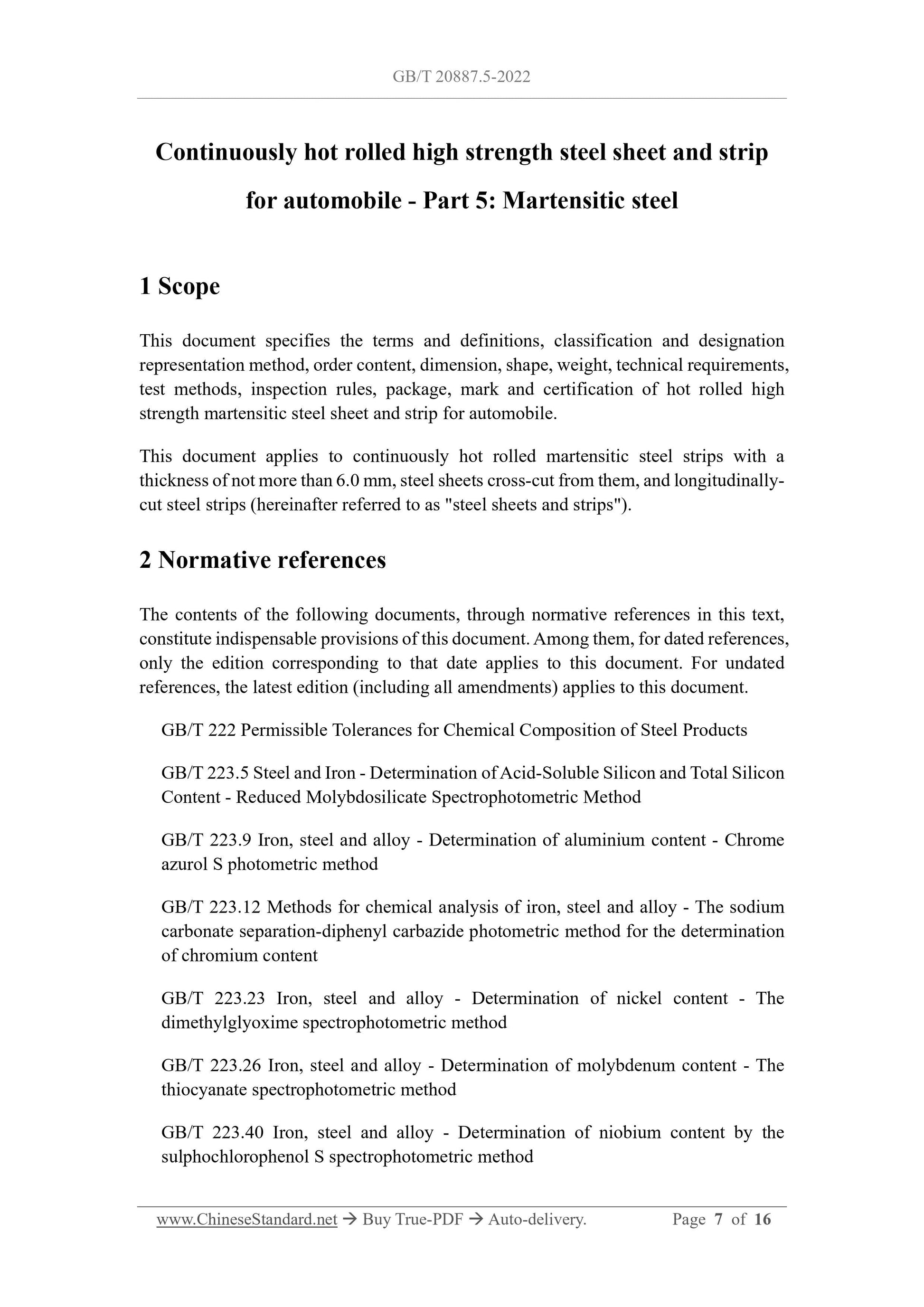

Continuously hot rolled high strength steel sheet and strip
for automobile - Part 5: Martensitic steel
1 Scope
This document specifies the terms and definitions, classification and designation representation method, order content, dimension, shape, weight, technical requirements, test methods, inspection rules, package, mark and certification of hot rolled high strength martensitic steel sheet and strip for automobile.
This document applies to continuously hot rolled martensitic steel strips with a thickness of not more than 6.0 mm, steel sheets cross-cut from them, and longitudinally- cut steel strips (hereinafter referred to as "steel sheets and strips"). 2 Normative references
The contents of the following documents, through normative references in this text, constitute indispensable provisions of this document. Among them, for dated references, only the edition corresponding to that date applies to this document. For undated references, the latest edition (including all amendments) applies to this document. GB/T 222 Permissible Tolerances for Chemical Composition of Steel Products GB/T 223.5 Steel and Iron - Determination of Acid-Soluble Silicon and Total Silicon Content - Reduced Molybdosilicate Spectrophotometric Method
GB/T 223.9 Iron, steel and alloy - Determination of aluminium content - Chrome azurol S photometric method
GB/T 223.12 Methods for chemical analysis of iron, steel and alloy - The sodium carbonate separation-diphenyl carbazide photometric method for the determination of chromium content
GB/T 223.23 Iron, steel and alloy - Determination of nickel content - The dimethylglyoxime spectrophotometric method
GB/T 223.26 Iron, steel and alloy - Determination of molybdenum content - The thiocyanate spectrophotometric method
GB/T 223.40 Iron, steel and alloy - Determination of niobium content by the sulphochlorophenol S spectrophotometric method

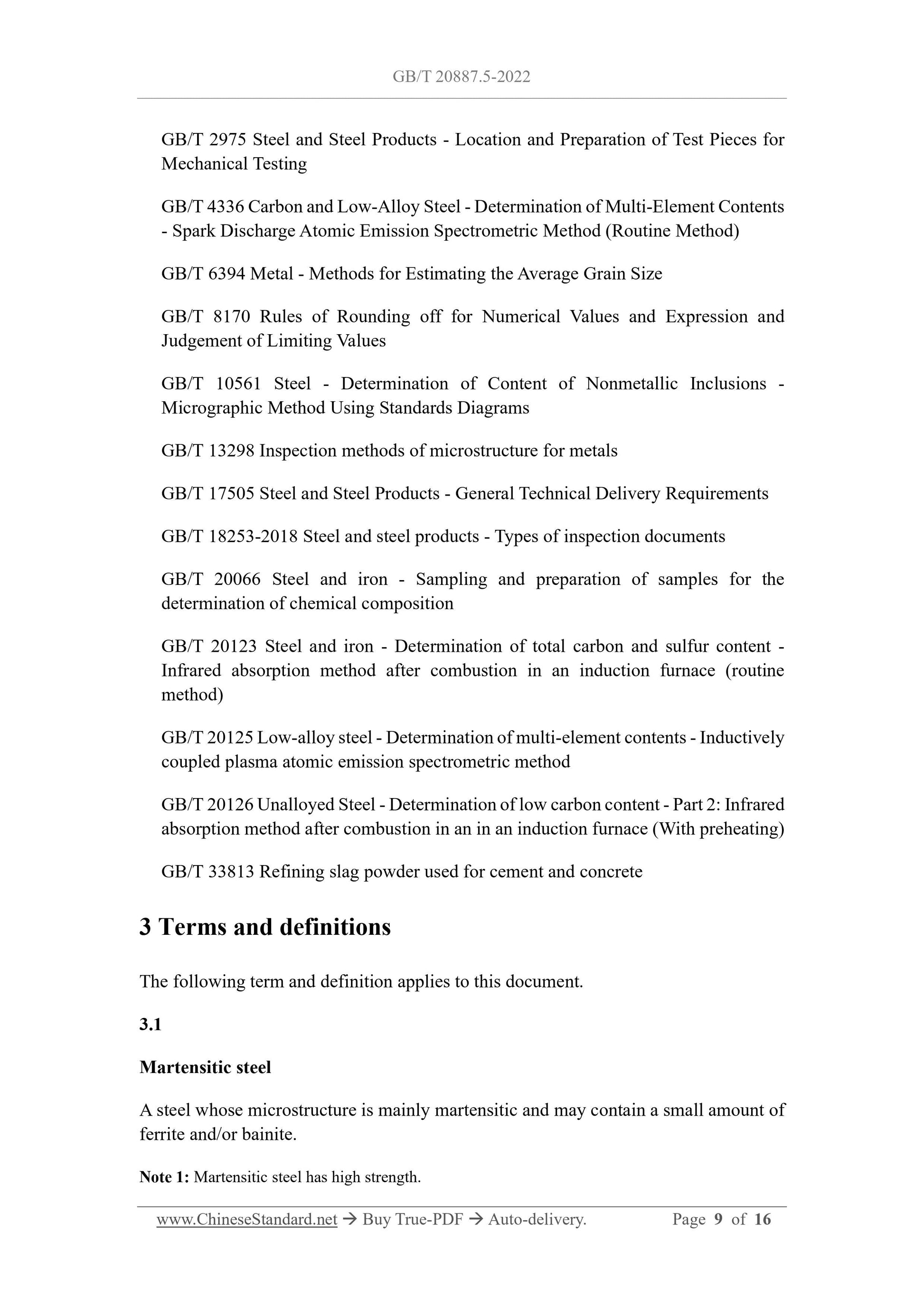

GB/T 2975 Steel and Steel Products - Location and Preparation of Test Pieces for Mechanical Testing
GB/T 4336 Carbon and Low-Alloy Steel - Determination of Multi-Element Contents - Spark Discharge Atomic Emission Spectrometric Method (Routine Method) GB/T 6394 Metal - Methods for Estimating the Average Grain Size
GB/T 8170 Rules of Rounding off for Numerical Values and Expression and Judgement of Limiting Values
GB/T 10561 Steel - Determination of Content of Nonmetallic Inclusions - Micrographic Method Using Standards Diagrams
GB/T 13298 Inspection methods of microstructure for metals
GB/T 17505 Steel and Steel Products - General Technical Delivery Requirements GB/T 18253-2018 Steel and steel products - Types of inspection documents GB/T 20066 Steel and iron - Sampling and preparation of samples for the determination of chemical composition
GB/T 20123 Steel and iron - Determination of total carbon and sulfur content - Infrared absorption method after combustion in an induction furnace (routine method)
GB/T 20125 Low-alloy steel - Determination of multi-element contents - Inductively coupled plasma atomic emission spectrometric method
GB/T 20126 Unalloyed Steel - Determination of low carbon content - Part 2: Infrared absorption method after combustion in an in an induction furnace (With preheating) GB/T 33813 Refining slag powder used for cement and concrete
3 Terms and definitions
The following term and definition applies to this document.
3.1
Martensitic steel
A steel whose microstructure is mainly martensitic and may contain a small amount of ferrite and/or bainite.
Note 1: Martensitic steel has high strength.

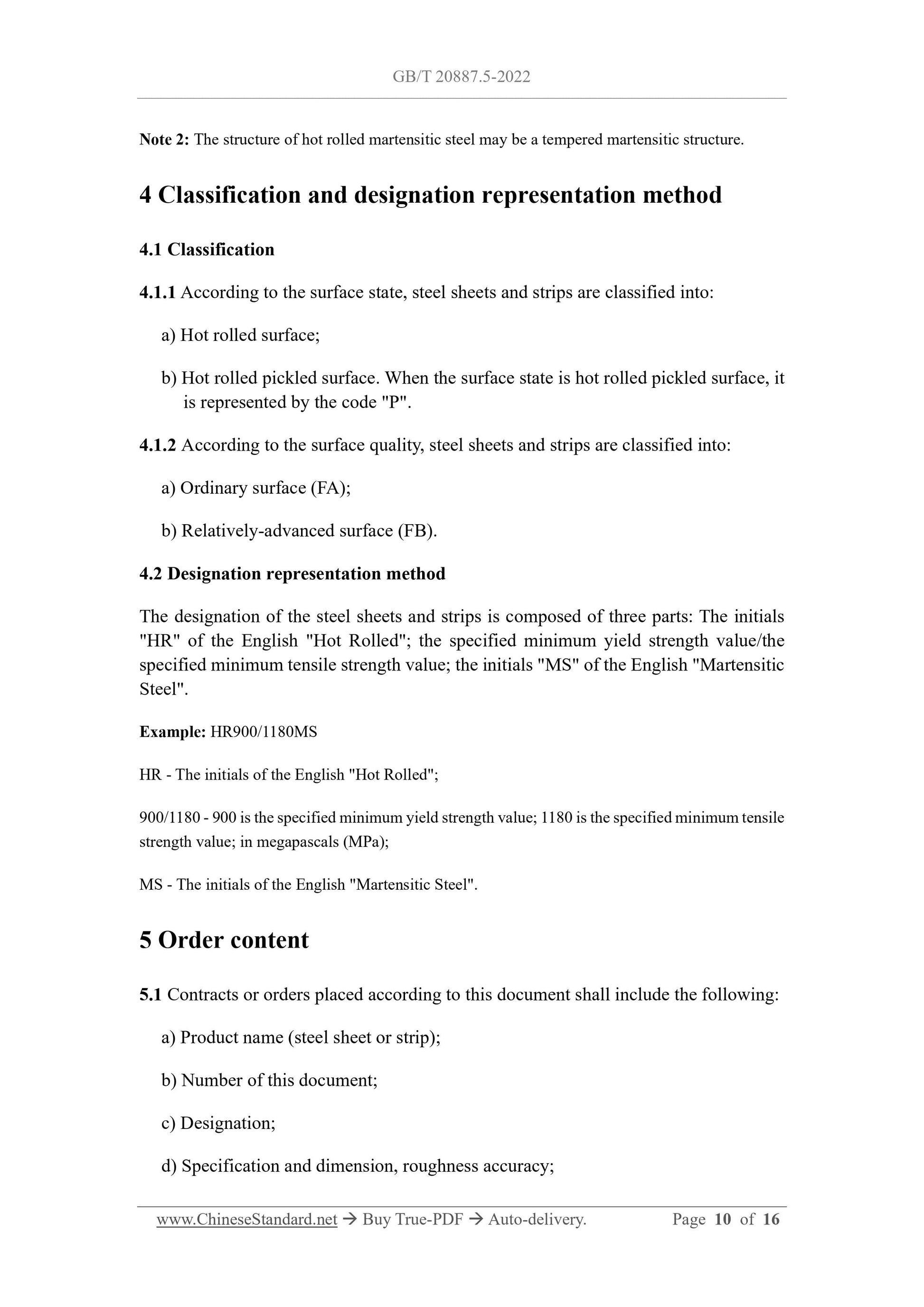

Note 2: The structure of hot rolled martensitic steel may be a tempered martensitic structure. 4 Classification and designation representation method
4.1 Classification
4.1.1 According to the surface state, steel sheets and strips are classified into: a) Hot rolled surface;
b) Hot rolled pickled surface. When the surface state is hot rolled pickled surface, it is represented by the code "P".
4.1.2 According to the surface quality, steel sheets and strips are classified into: a) Ordinary surface (FA);
b) Relatively-advanced surface (FB).
4.2 Designation representation method
The designation of the steel sheets and strips is composed of three parts: The initials "HR" of the English "Hot Rolled"; the specified minimum yield strength value/the specified minimum tensile strength value; the initials "MS" of the English "Martensitic Steel".
Example: HR900/1180MS
HR - The initials of the English "Hot Rolled";
900/1180 - 900 is the specified minimum yield strength value; 1180 is the specified minimum tensile strength value; in megapascals (MPa);
MS - The initials of the English "Martensitic Steel".
5 Order content
5.1 Contracts or orders placed according to this document shall include the following: a) Product name (steel sheet or strip);
b) Number of this document;
c) Designation;
d) Specification and dimension, roughness accuracy;

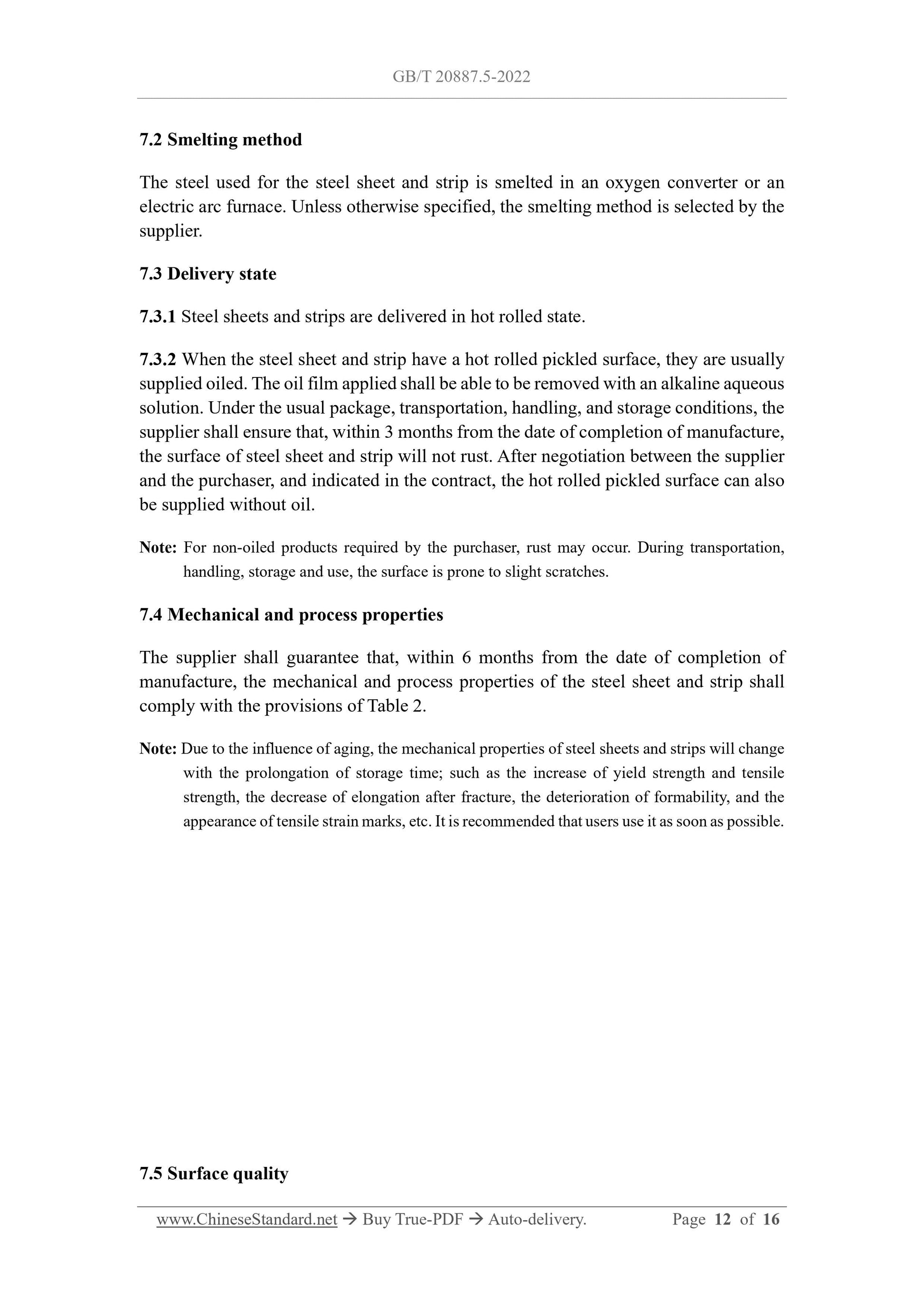

7.2 Smelting method
The steel used for the steel sheet and strip is smelted in an oxygen converter or an electric arc furnace. Unless otherwise specified, the smelting method is selected by the supplier.
7.3 Delivery state
7.3.1 Steel sheets and strips are delivered in hot rolled state.
7.3.2 When the steel sheet and strip have a hot rolled pickled surface, they are usually supplied oiled. The oil film applied shall be able to be removed with an alkaline aqueous solution. Under the usual package, transportation, handling, and storage conditions, the supplier shall ensure that, within 3 months from the date of completion of manufacture, the surface of steel sheet and strip will not rust. After negotiation between the supplier and the purchaser, and indicated in the contract, the hot rolled pickled surface can also be supplied without oil.
Note: For non-oiled products required by the purchaser, rust may occur. During transportation, handling, storage and use, the surface is prone to slight scratches.
7.4 Mechanical and process properties
The supplier shall guarantee that, within 6 months from the date of completion of manufacture, the mechanical and process properties of the steel sheet and strip shall comply with the provisions of Table 2.
Note: Due to the influence of aging, the mechanical properties of steel sheets and strips will change with the prolongation of storage time; such as the increase of yield strength and tensile strength, the decrease of elongation after fracture, the deterioration of formability, and the appearance of tensile strain marks, etc. It is recommended that users use it as soon as possible. 7.5 Surface quality
