GB/T 20863.5-2007: Cranes -- Classification -- Part 5: Overhead travelling and portal bridge cranes

GB/T 20863.5-2007

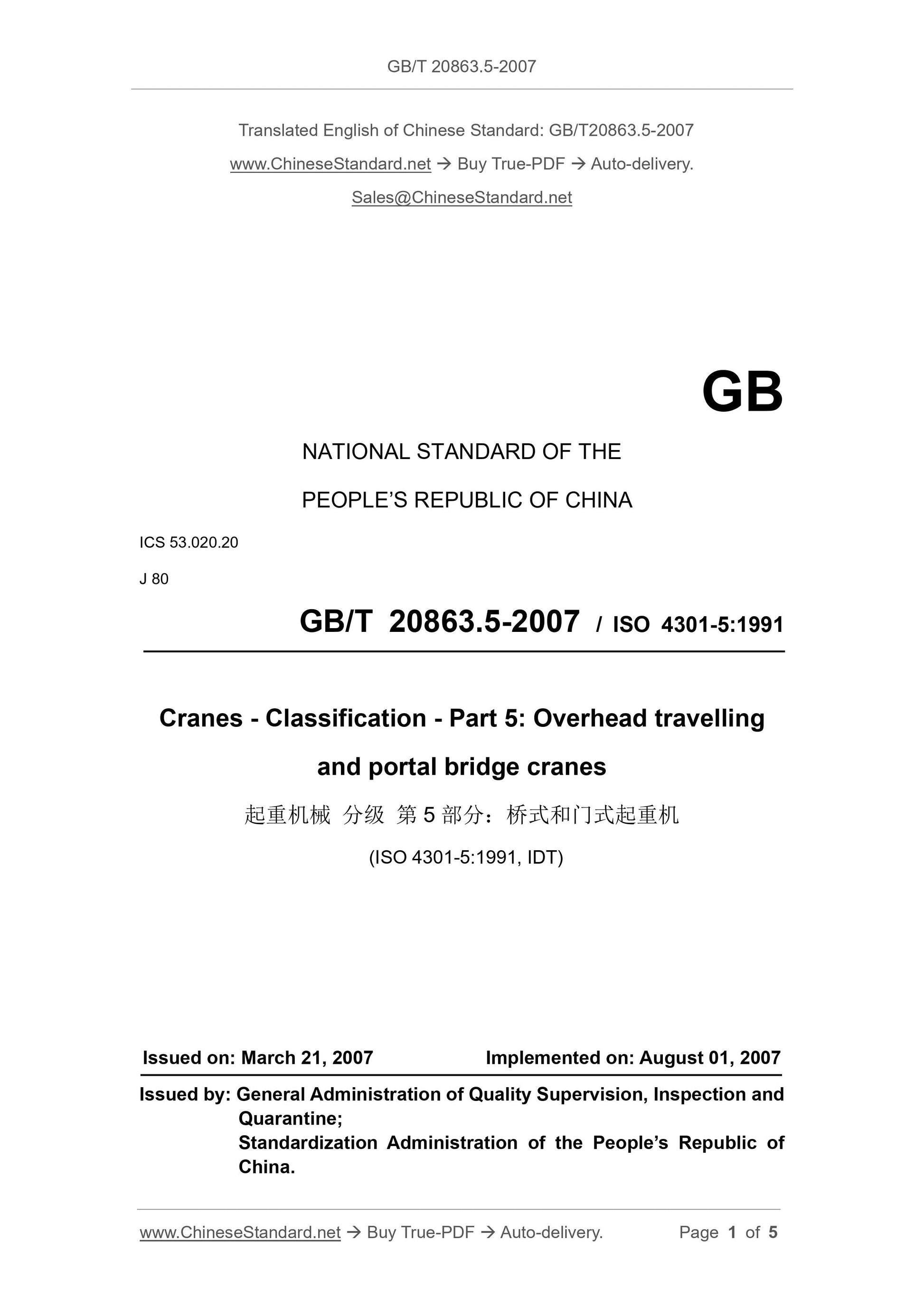

GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 53.020.20
J 80
GB/T 20863.5-2007 / ISO 4301-5:1991
Cranes - Classification - Part 5: Overhead travelling
and portal bridge cranes
(ISO 4301-5:1991, IDT)
ISSUED ON: MARCH 21, 2007
IMPLEMENTED ON: AUGUST 01, 2007
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People’s Republic of
China.

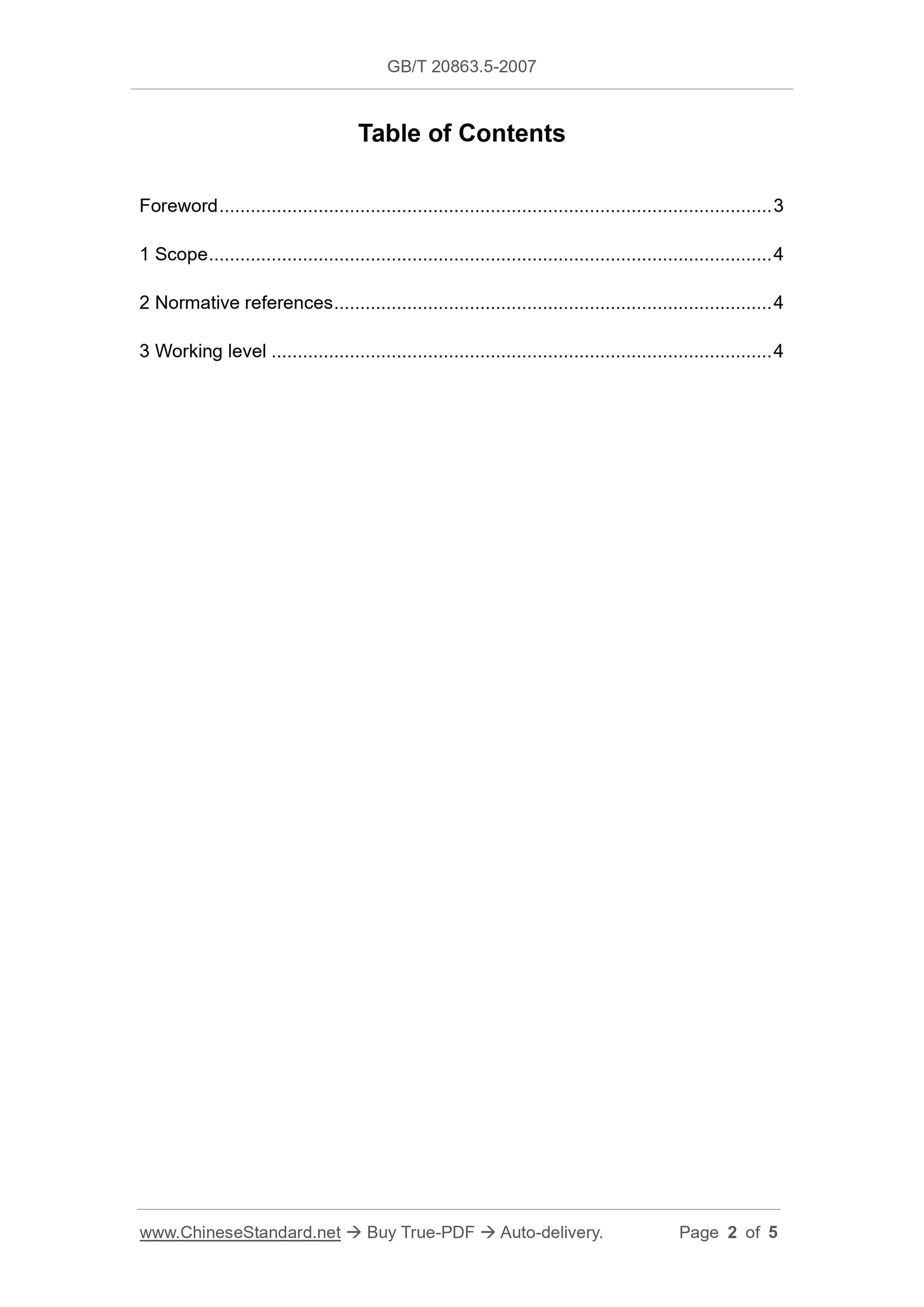

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Working level ... 4

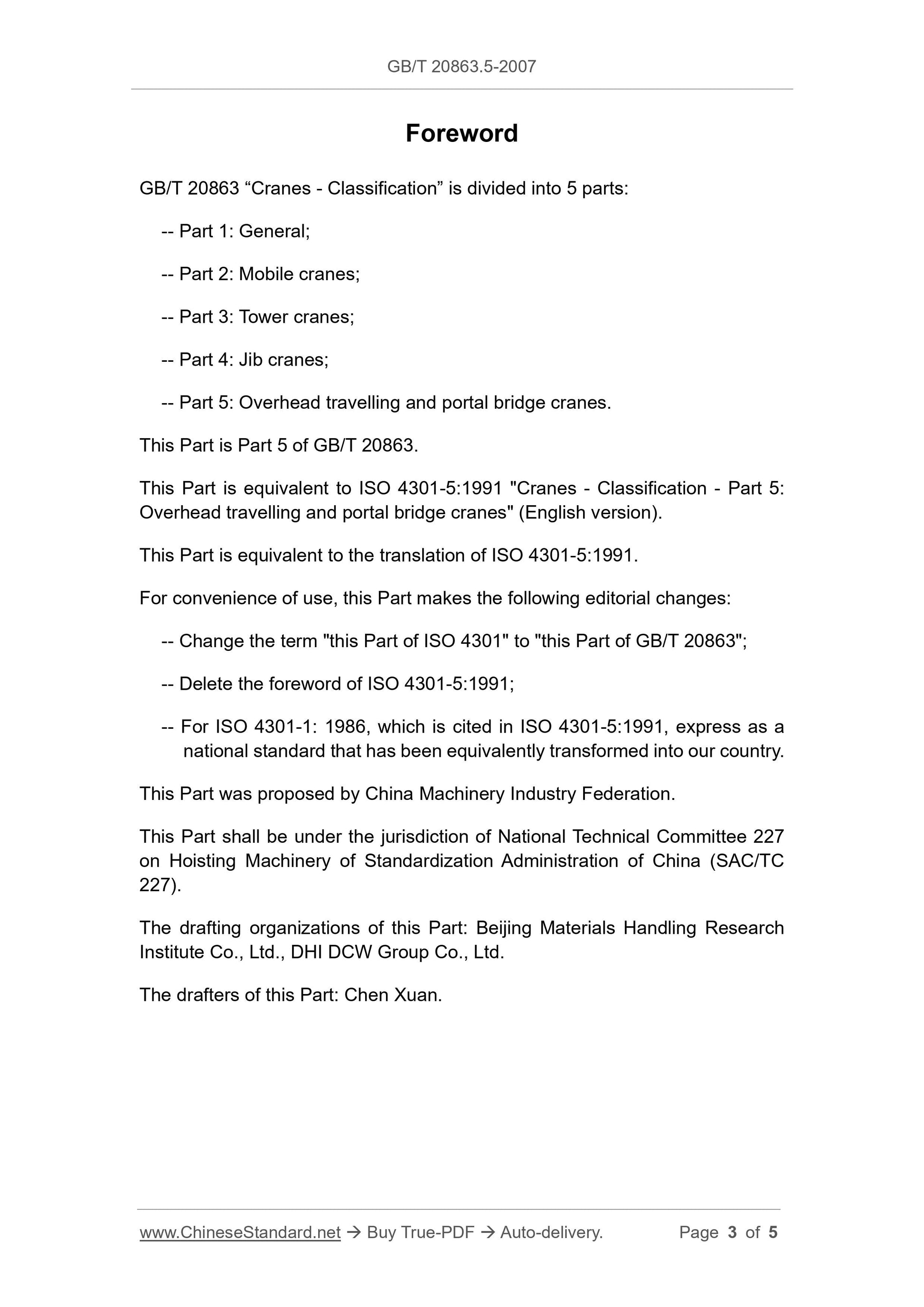

Foreword
GB/T 20863 “Cranes - Classification” is divided into 5 parts:
-- Part 1: General;
-- Part 2: Mobile cranes;
-- Part 3: Tower cranes;
-- Part 4: Jib cranes;
-- Part 5: Overhead travelling and portal bridge cranes.
This Part is Part 5 of GB/T 20863.
This Part is equivalent to ISO 4301-5:1991 "Cranes - Classification - Part 5: Overhead travelling and portal bridge cranes" (English version).
This Part is equivalent to the translation of ISO 4301-5:1991.
For convenience of use, this Part makes the following editorial changes: -- Change the term "this Part of ISO 4301" to "this Part of GB/T 20863"; -- Delete the foreword of ISO 4301-5:1991;
-- For ISO 4301-1: 1986, which is cited in ISO 4301-5:1991, express as a national standard that has been equivalently transformed into our country. This Part was proposed by China Machinery Industry Federation.
This Part shall be under the jurisdiction of National Technical Committee 227 on Hoisting Machinery of Standardization Administration of China (SAC/TC 227).
The drafting organizations of this Part: Beijing Materials Handling Research Institute Co., Ltd., DHI DCW Group Co., Ltd.
The drafters of this Part: Chen Xuan.

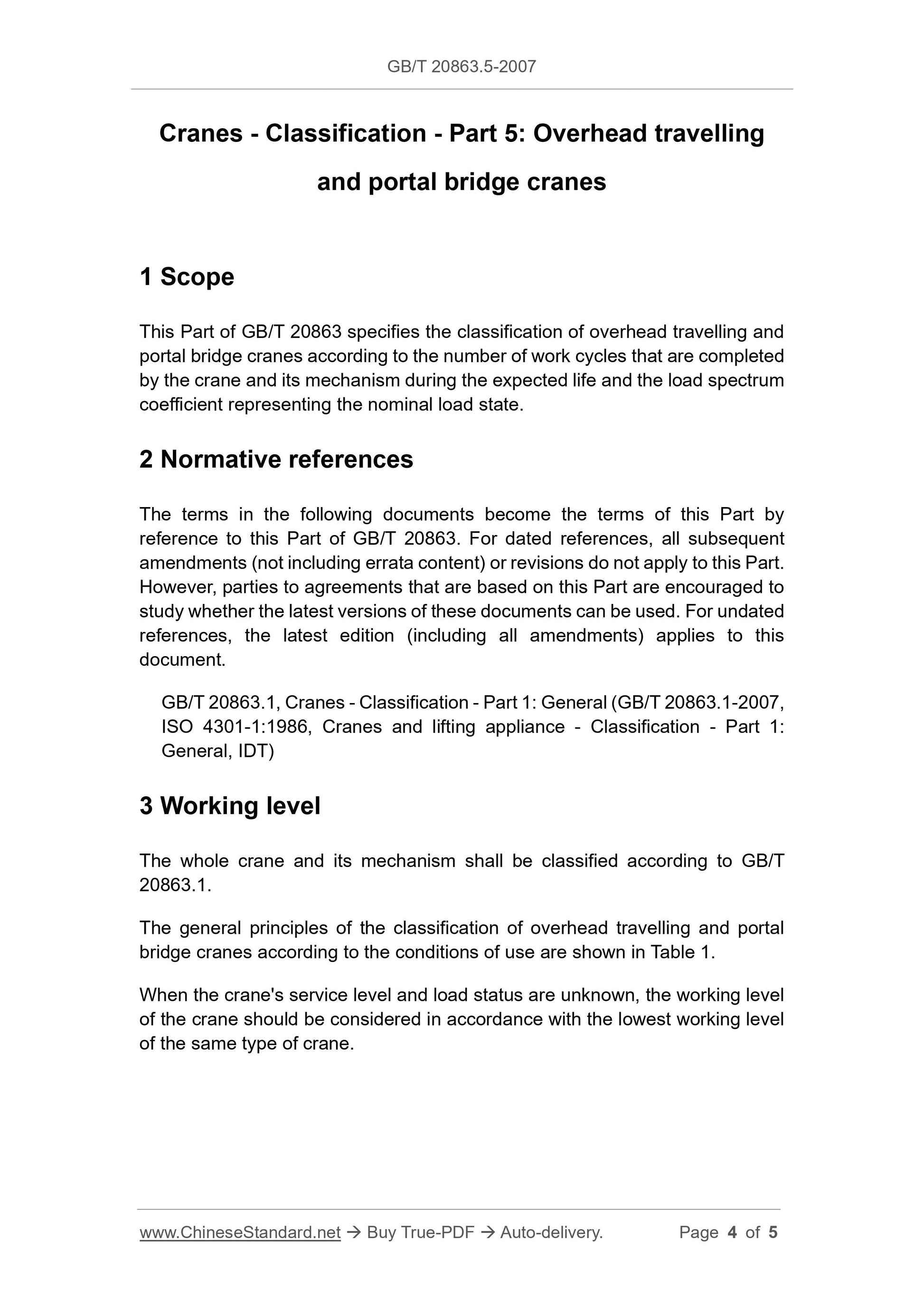

Cranes - Classification - Part 5: Overhead travelling
and portal bridge cranes
1 Scope
This Part of GB/T 20863 specifies the classification of overhead travelling and portal bridge cranes according to the number of work cycles that are completed by the crane and its mechanism during the expected life and the load spectrum coefficient representing the nominal load state.
2 Normative references
The terms in the following documents become the terms of this Part by
reference to this Part of GB/T 20863. For dated references, all subsequent amendments (not including errata content) or revisions do not apply to this Part. However, parties to agreements that are based on this Part are encouraged to study whether the latest versions of these documents can be used. For undated references, the latest edition (including all amendments) applies to this document.
GB/T 20863.1, Cranes - Classification - Part 1: General (GB/T 20863.1-2007, ISO 4301-1:1986, Cranes and lifting appliance - Classification - Part 1: General, IDT)
3 Working level
The whole crane and its mechanism shall be classified according to GB/T 20863.1.
The general principles of the classification of overhead travelling and portal bridge cranes according to the conditions of use are shown in Table 1.
When the crane's service level and load status are unknown, the working level of the crane should be considered in accordance with the lowest working level of the same type of crane.
