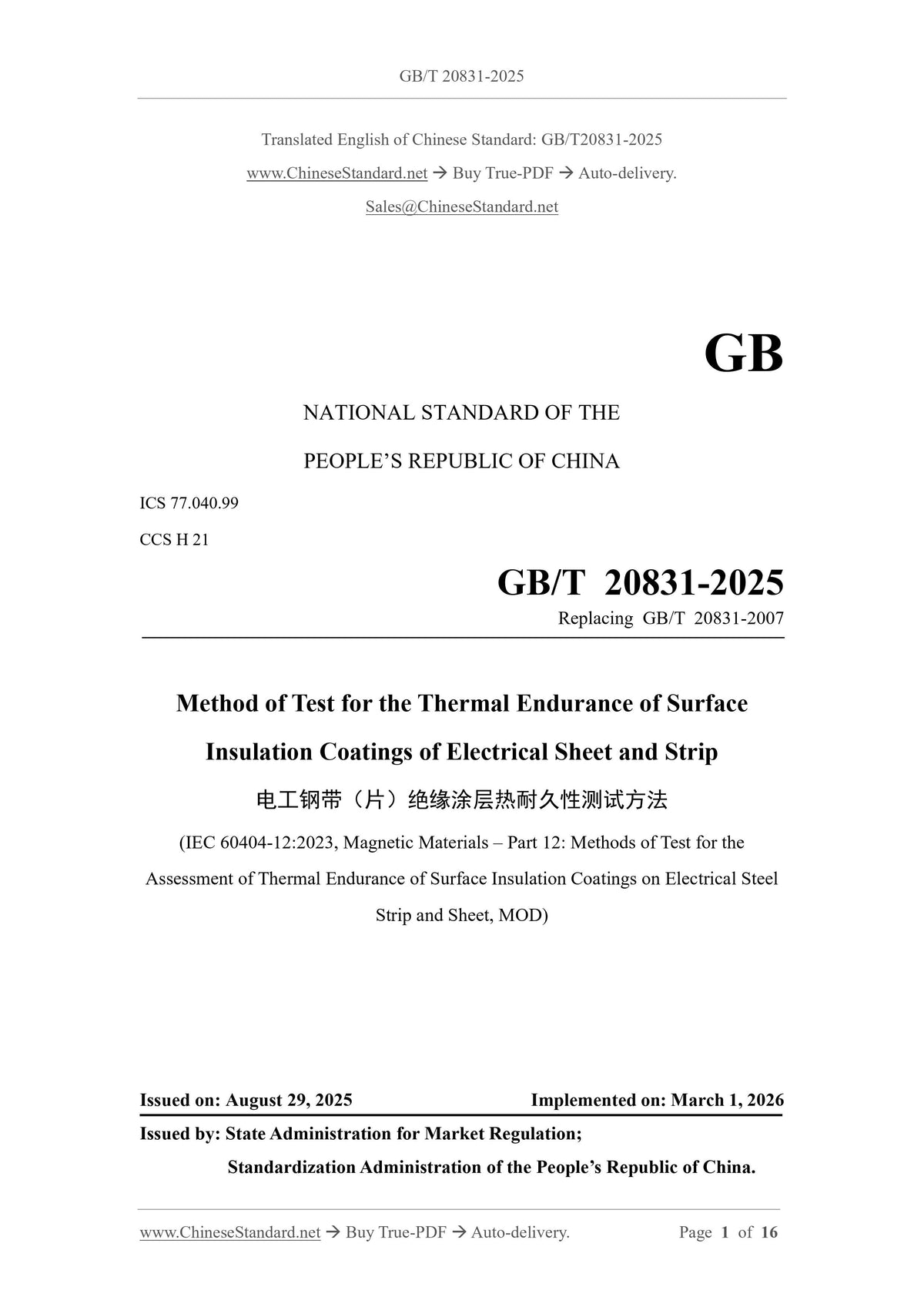

GB/T 20831-2025: Method of test for the thermal endurance of surface insulation coatings of electrical sheet and strip

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 20831-2025 (Self-service in 1-minute)
Newer / historical versions: GB/T 20831-2025

Preview True-PDF

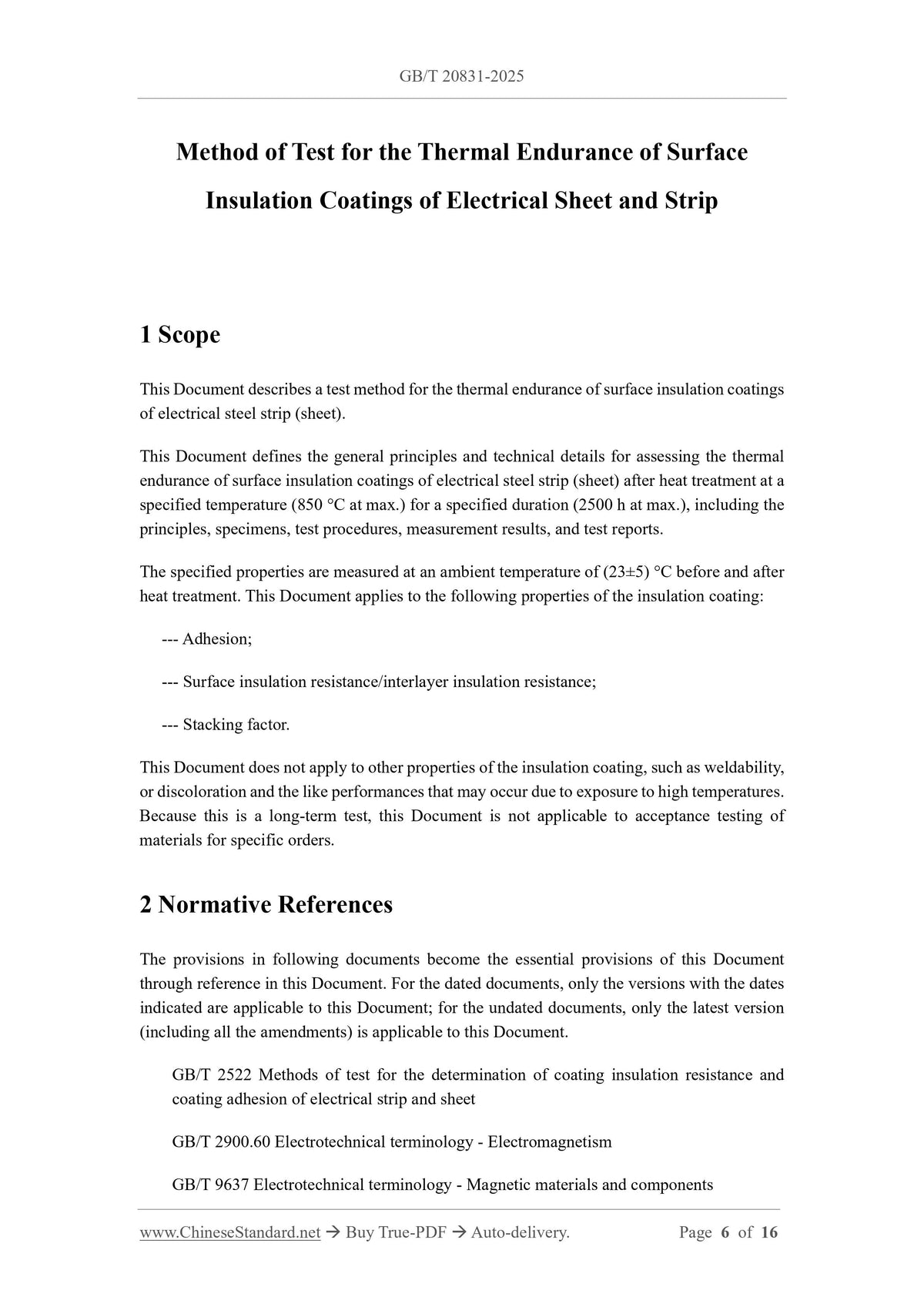

Scope

This Document describes a test method for the thermal endurance of surface insulation coatings
of electrical steel strip (sheet).
This Document defines the general principles and technical details for assessing the thermal
endurance of surface insulation coatings of electrical steel strip (sheet) after heat treatment at a
specified temperature (850 °C at max.) for a specified duration (2500 h at max.), including the
principles, specimens, test procedures, measurement results, and test reports.
The specified properties are measured at an ambient temperature of (23±5) °C before and after
heat treatment. This Document applies to the following properties of the insulation coating.
--- Adhesion;
--- Surface insulation resistance/interlayer insulation resistance;
--- Stacking factor.
This Document does not apply to other properties of the insulation coating, such as weldability,
or discoloration and the like performances that may occur due to exposure to high temperatures.
Because this is a long-term test, this Document is not applicable to acceptance testing of
materials for specific orders.

Basic Data

Standard ID	GB/T 20831-2025 (GB/T20831-2025)
Description (Translated English)	Method of test for the thermal endurance of surface insulation coatings of electrical sheet and strip
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	H21
Classification of International Standard	77.040.99
Word Count Estimation	14,155
Date of Issue	2025-08-29
Date of Implementation	2026-03-01
Older Standard (superseded by this standard)	GB/T 20831-2007
Issuing agency(ies)	State Administration for Market Regulation; Standardization Administration of China
