GB/T 20564.4-2022 English PDF (GBT20564.4-2022)

GB/T 20564.4-2022 English PDF (GBT20564.4-2022)

Regular price $185.00 USD
Regular price Sale price $185.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 20564.4-2022 to get it for Purchase Approval, Bank TT...

GB/T 20564.4-2022: Continuously cold rolled high strength steel sheet and strip for automobile - Part 4???High strength low alloy steel

This document specifies the classification and designation expression method, order contents, dimensions, shapes, weights, technical requirements, test methods, inspection rules, packaging, marking and quality certificate of continuously cold rolled high strength low alloy steel sheet and strip for automobile. This document is applicable to continuously cold rolled high strength low alloy steel sheet and strip (with a thickness not greater than 3.0 mm) mainly used to fabricate structural parts and reinforcements of automobile.

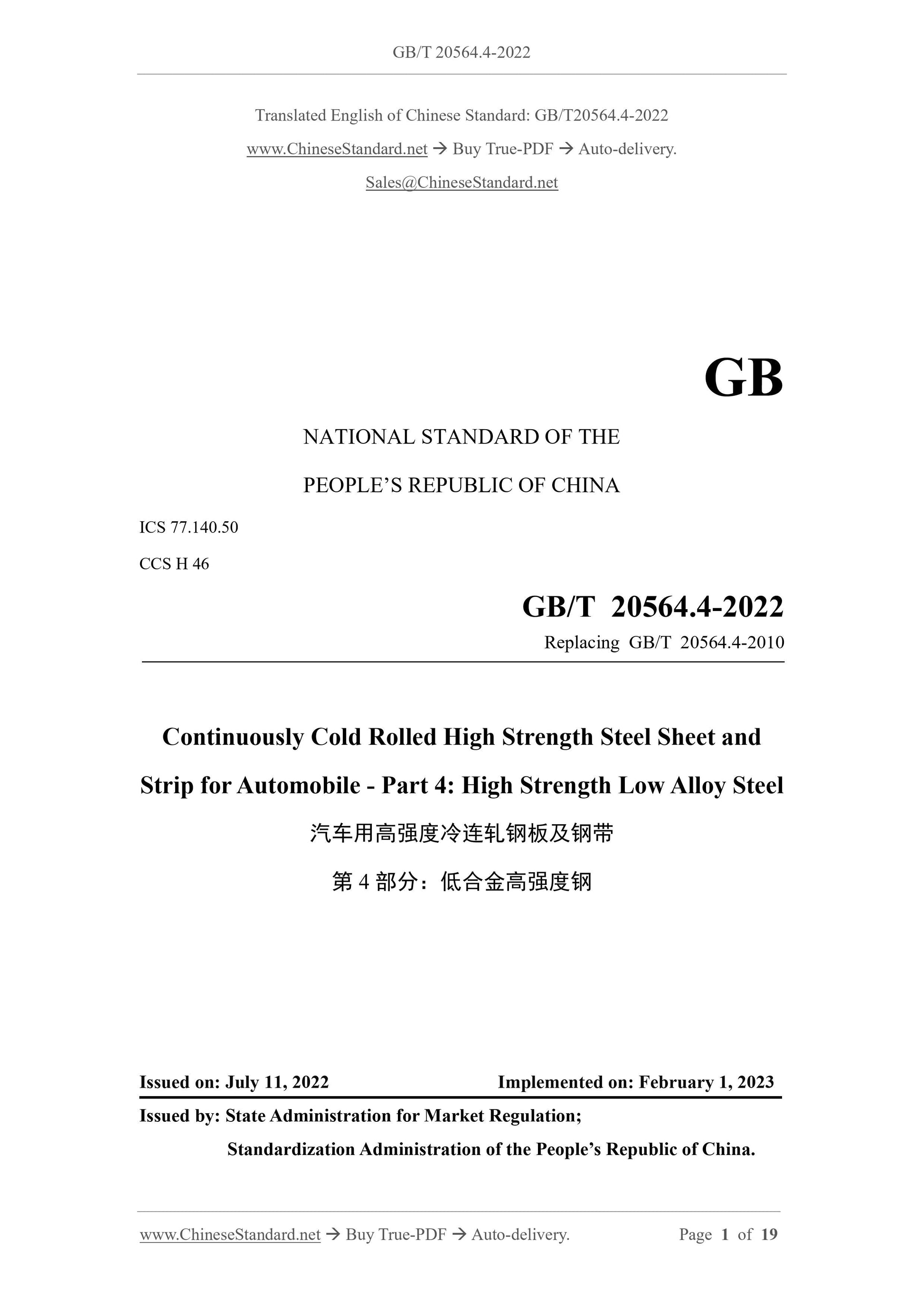

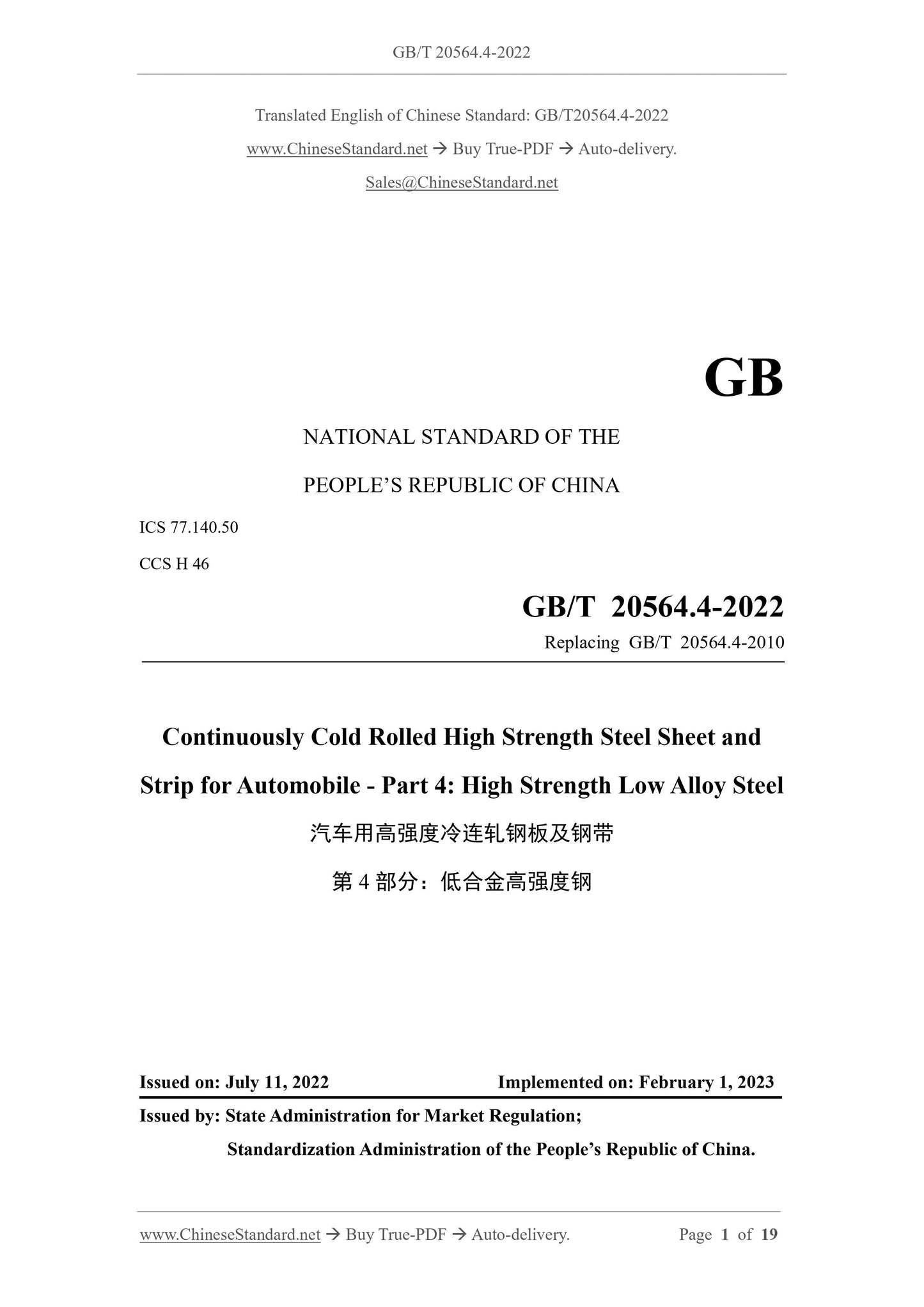

GB/T 20564.4-2022
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.50
CCS H 46
Replacing GB/T 20564.4-2010
Continuously Cold Rolled High Strength Steel Sheet and
Strip for Automobile - Part 4.High Strength Low Alloy Steel
ISSUED ON. JULY 11, 2022
IMPLEMENTED ON. FEBRUARY 1, 2023
Issued by. State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of China.

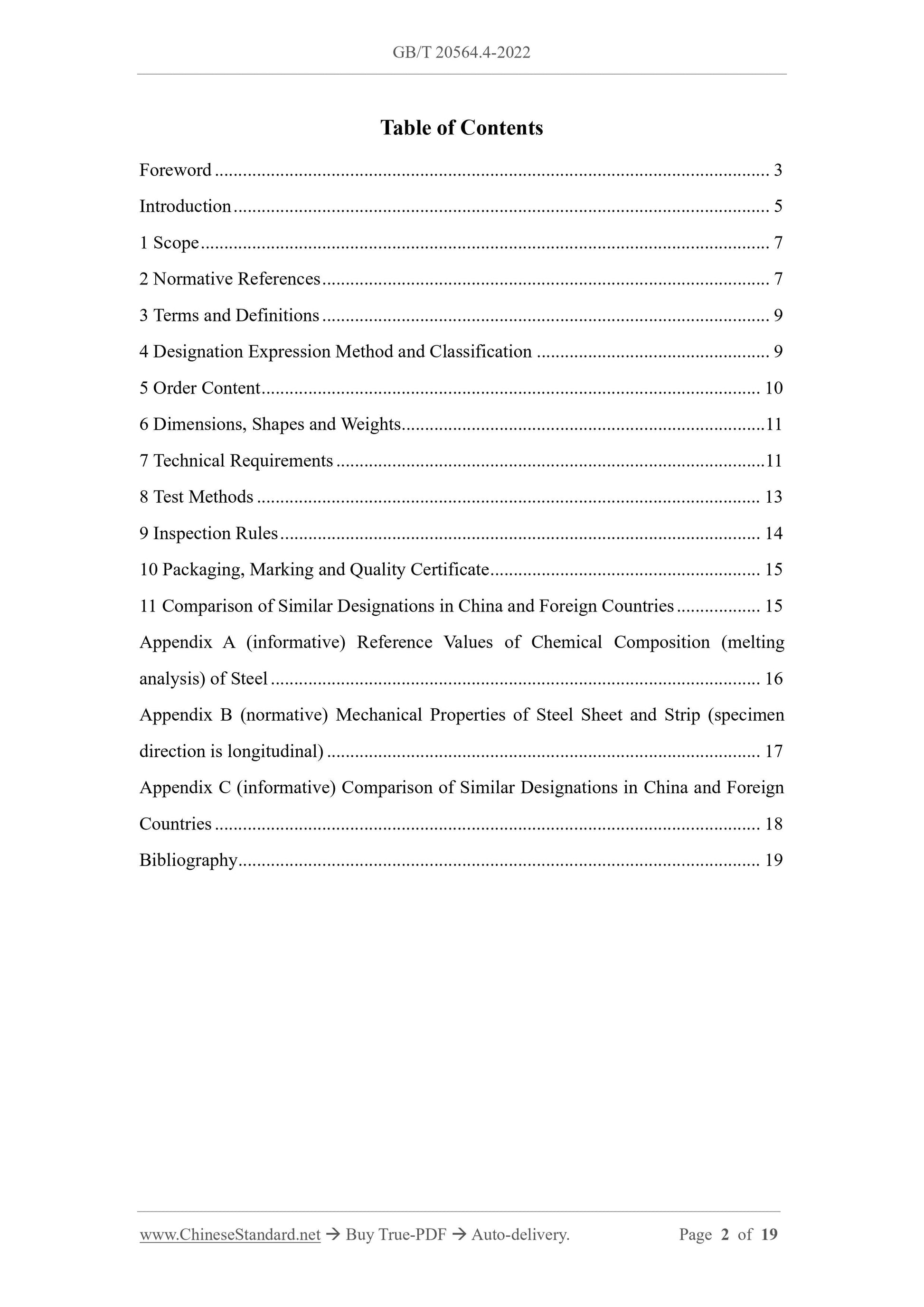

Table of Contents
Foreword... 3
Introduction... 5
1 Scope... 7
2 Normative References... 7
3 Terms and Definitions... 9
4 Designation Expression Method and Classification... 9
5 Order Content... 10
6 Dimensions, Shapes and Weights... 11
7 Technical Requirements... 11
8 Test Methods... 13
9 Inspection Rules... 14
10 Packaging, Marking and Quality Certificate... 15
11 Comparison of Similar Designations in China and Foreign Countries... 15 Appendix A (informative) Reference Values of Chemical Composition (melting analysis) of Steel... 16
Appendix B (normative) Mechanical Properties of Steel Sheet and Strip (specimen direction is longitudinal)... 17
Appendix C (informative) Comparison of Similar Designations in China and Foreign Countries... 18
Bibliography... 19

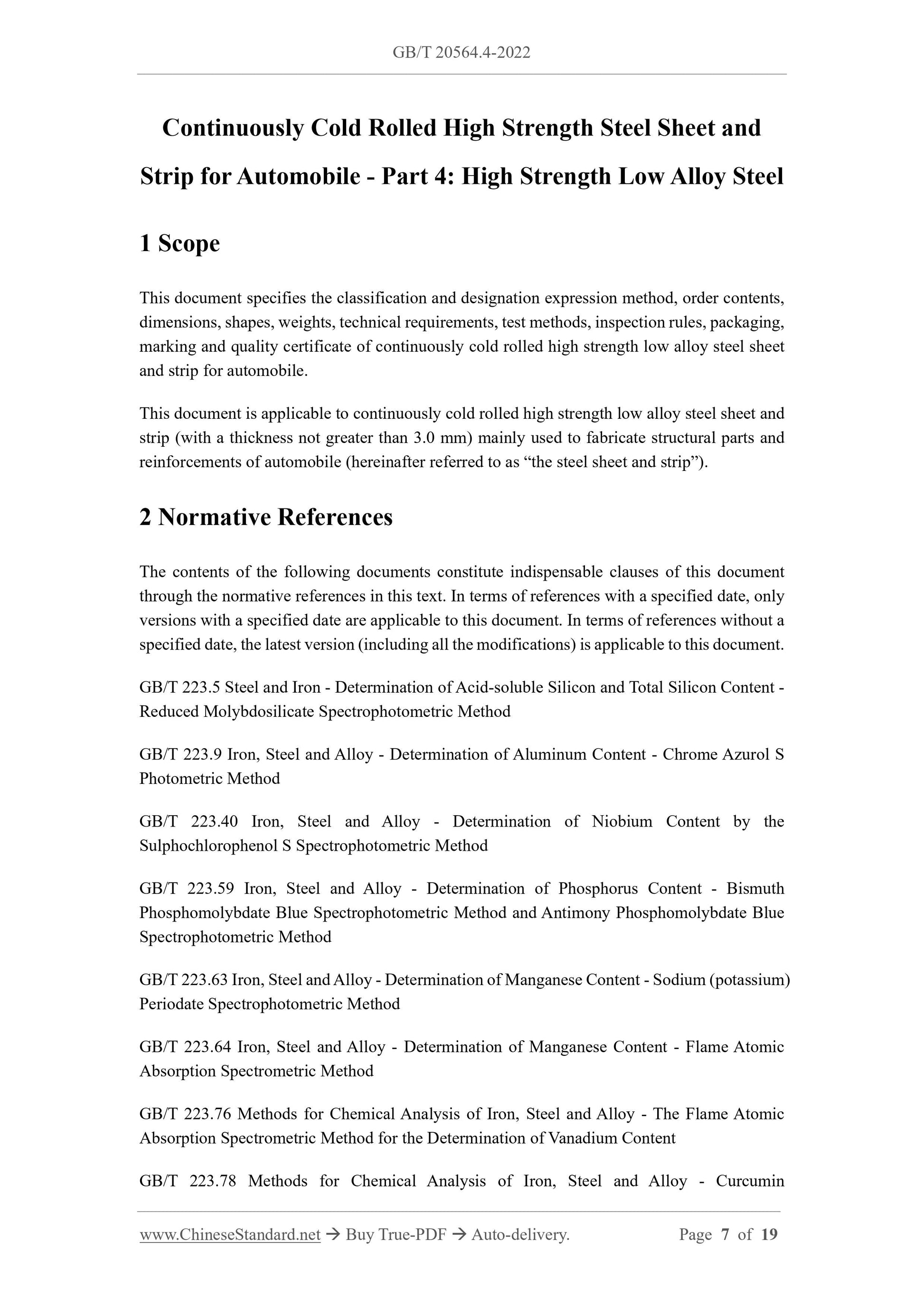

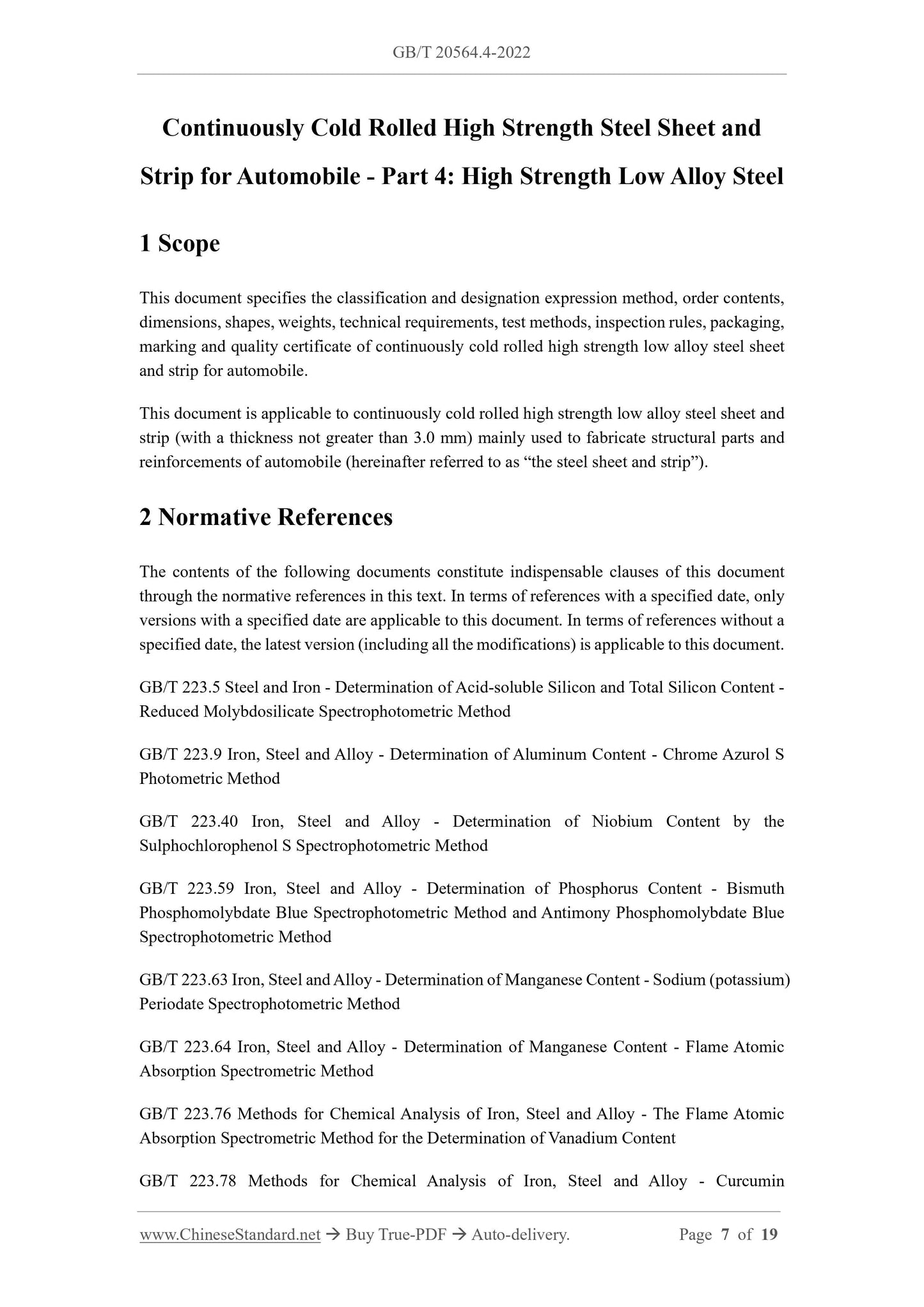

Continuously Cold Rolled High Strength Steel Sheet and
Strip for Automobile - Part 4.High Strength Low Alloy Steel
1 Scope
This document specifies the classification and designation expression method, order contents, dimensions, shapes, weights, technical requirements, test methods, inspection rules, packaging, marking and quality certificate of continuously cold rolled high strength low alloy steel sheet and strip for automobile.
This document is applicable to continuously cold rolled high strength low alloy steel sheet and strip (with a thickness not greater than 3.0 mm) mainly used to fabricate structural parts and reinforcements of automobile (hereinafter referred to as ?€?the steel sheet and strip?€?). 2 Normative References
The contents of the following documents constitute indispensable clauses of this document through the normative references in this text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 223.5 Steel and Iron - Determination of Acid-soluble Silicon and Total Silicon Content - Reduced Molybdosilicate Spectrophotometric Method
GB/T 223.9 Iron, Steel and Alloy - Determination of Aluminum Content - Chrome Azurol S Photometric Method
GB/T 223.40 Iron, Steel and Alloy - Determination of Niobium Content by the Sulphochlorophenol S Spectrophotometric Method
GB/T 223.59 Iron, Steel and Alloy - Determination of Phosphorus Content - Bismuth Phosphomolybdate Blue Spectrophotometric Method and Antimony Phosphomolybdate Blue Spectrophotometric Method
GB/T 223.63 Iron, Steel and Alloy - Determination of Manganese Content - Sodium (potassium) Periodate Spectrophotometric Method
GB/T 223.64 Iron, Steel and Alloy - Determination of Manganese Content - Flame Atomic Absorption Spectrometric Method

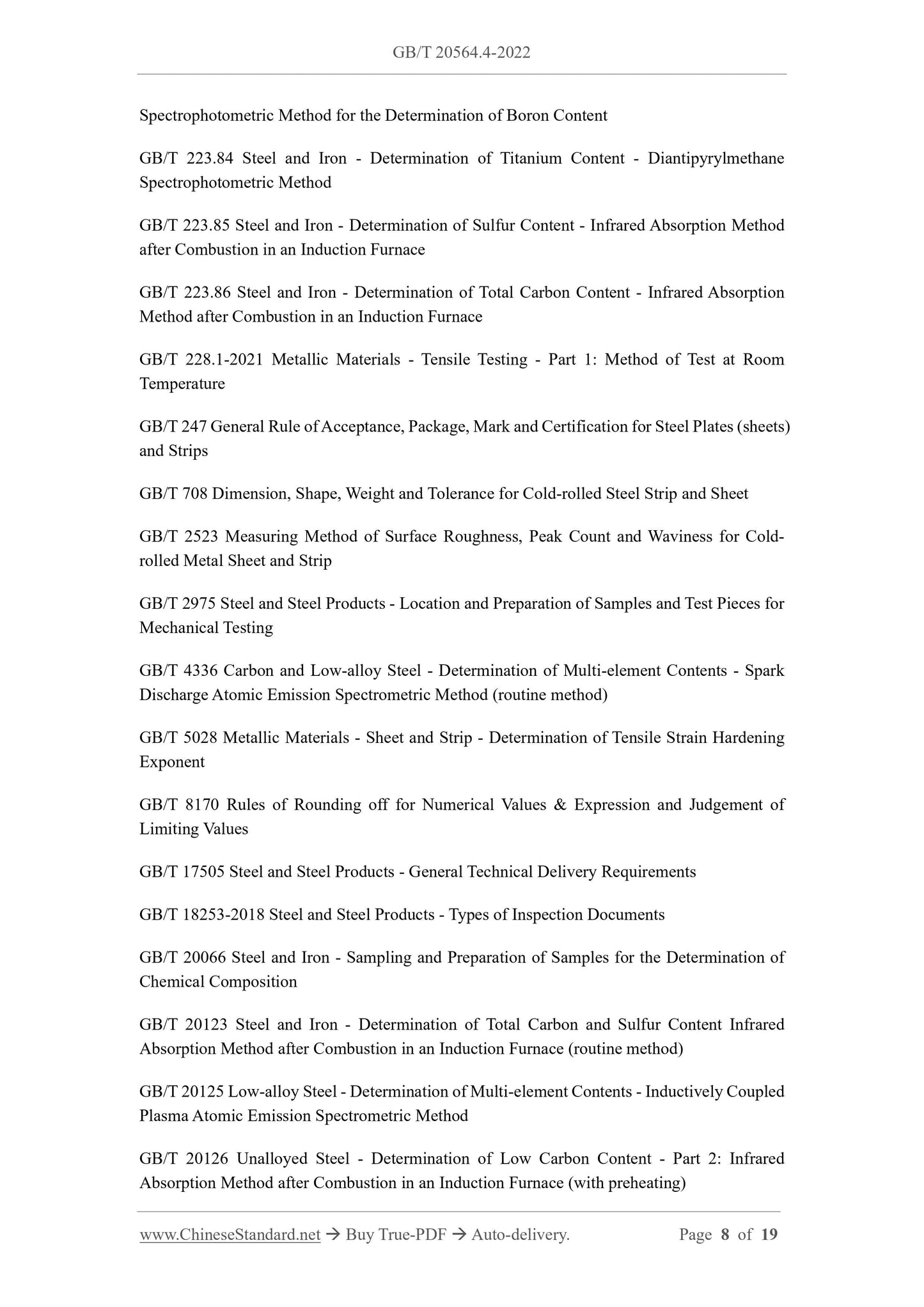

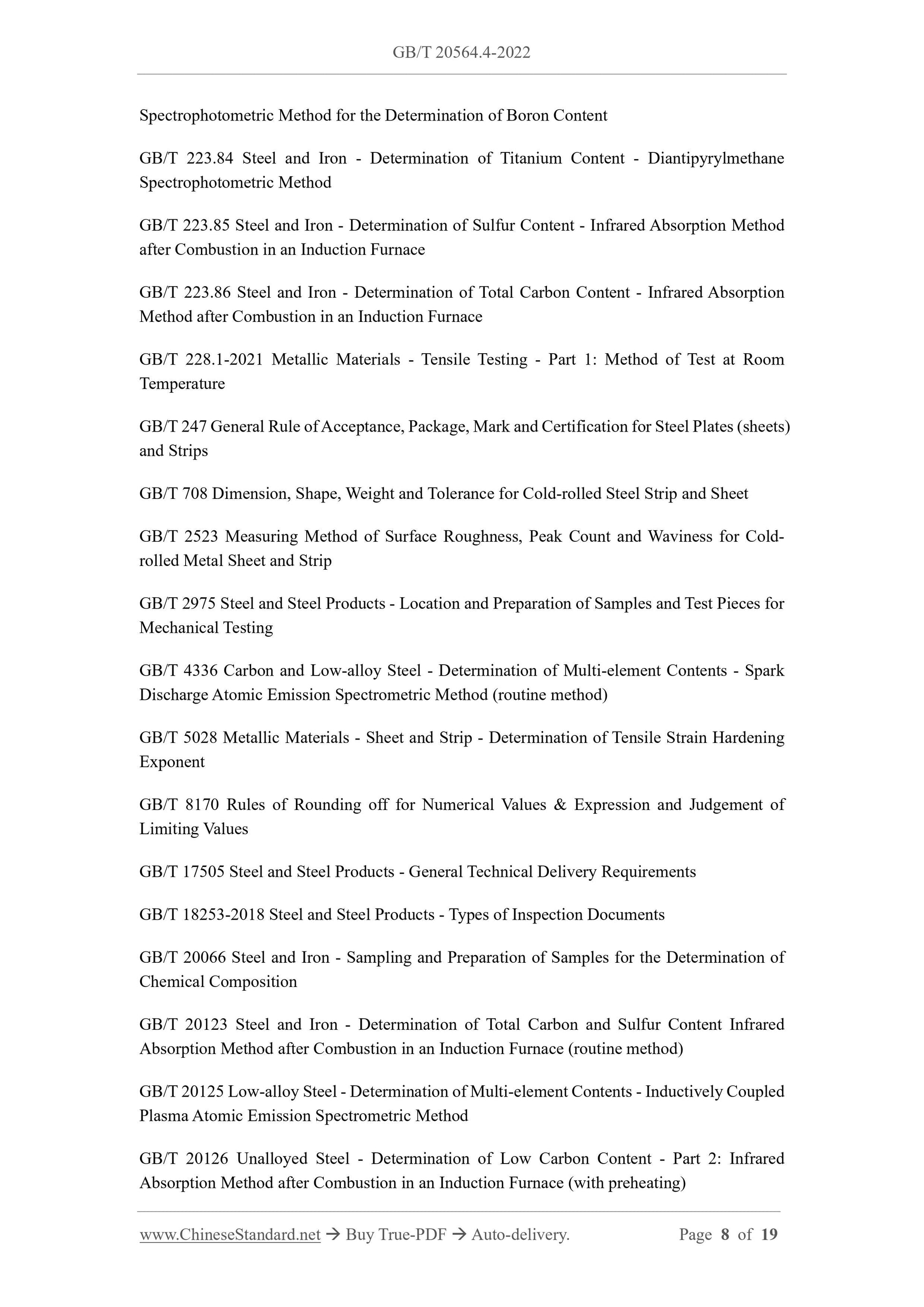

GB/T 223.76 Methods for Chemical Analysis of Iron, Steel and Alloy - The Flame Atomic Absorption Spectrometric Method for the Determination of Vanadium Content GB/T 223.78 Methods for Chemical Analysis of Iron, Steel and Alloy - Curcumin Spectrophotometric Method for the Determination of Boron Content
GB/T 223.84 Steel and Iron - Determination of Titanium Content - Diantipyrylmethane Spectrophotometric Method
GB/T 223.85 Steel and Iron - Determination of Sulfur Content - Infrared Absorption Method after Combustion in an Induction Furnace
GB/T 223.86 Steel and Iron - Determination of Total Carbon Content - Infrared Absorption Method after Combustion in an Induction Furnace
GB/T 228.1-2021 Metallic Materials - Tensile Testing - Part 1.Method of Test at Room Temperature
GB/T 247 General Rule of Acceptance, Package, Mark and Certification for Steel Plates (sheets) and Strips
GB/T 708 Dimension, Shape, Weight and Tolerance for Cold-rolled Steel Strip and Sheet GB/T 2523 Measuring Method of Surface Roughness, Peak Count and Waviness for Cold- rolled Metal Sheet and Strip
GB/T 2975 Steel and Steel Products - Location and Preparation of Samples and Test Pieces for Mechanical Testing
GB/T 4336 Carbon and Low-alloy Steel - Determination of Multi-element Contents - Spark Discharge Atomic Emission Spectrometric Method (routine method)
GB/T 5028 Metallic Materials - Sheet and Strip - Determination of Tensile Strain Hardening Exponent
GB/T 8170 Rules of Rounding off for Numerical Values and Expression and Judgement of Limiting Values
GB/T 17505 Steel and Steel Products - General Technical Delivery Requirements GB/T 18253-2018 Steel and Steel Products - Types of Inspection Documents GB/T 20066 Steel and Iron - Sampling and Preparation of Samples for the Determination of Chemical Composition
GB/T 20123 Steel and Iron - Determination of Total Carbon and Sulfur Content Infrared Absorption Method after Combustion in an Induction Furnace (routine method) GB/T 20125 Low-alloy Steel - Determination of Multi-element Contents - Inductively Coupled Plasma Atomic Emission Spectrometric Method

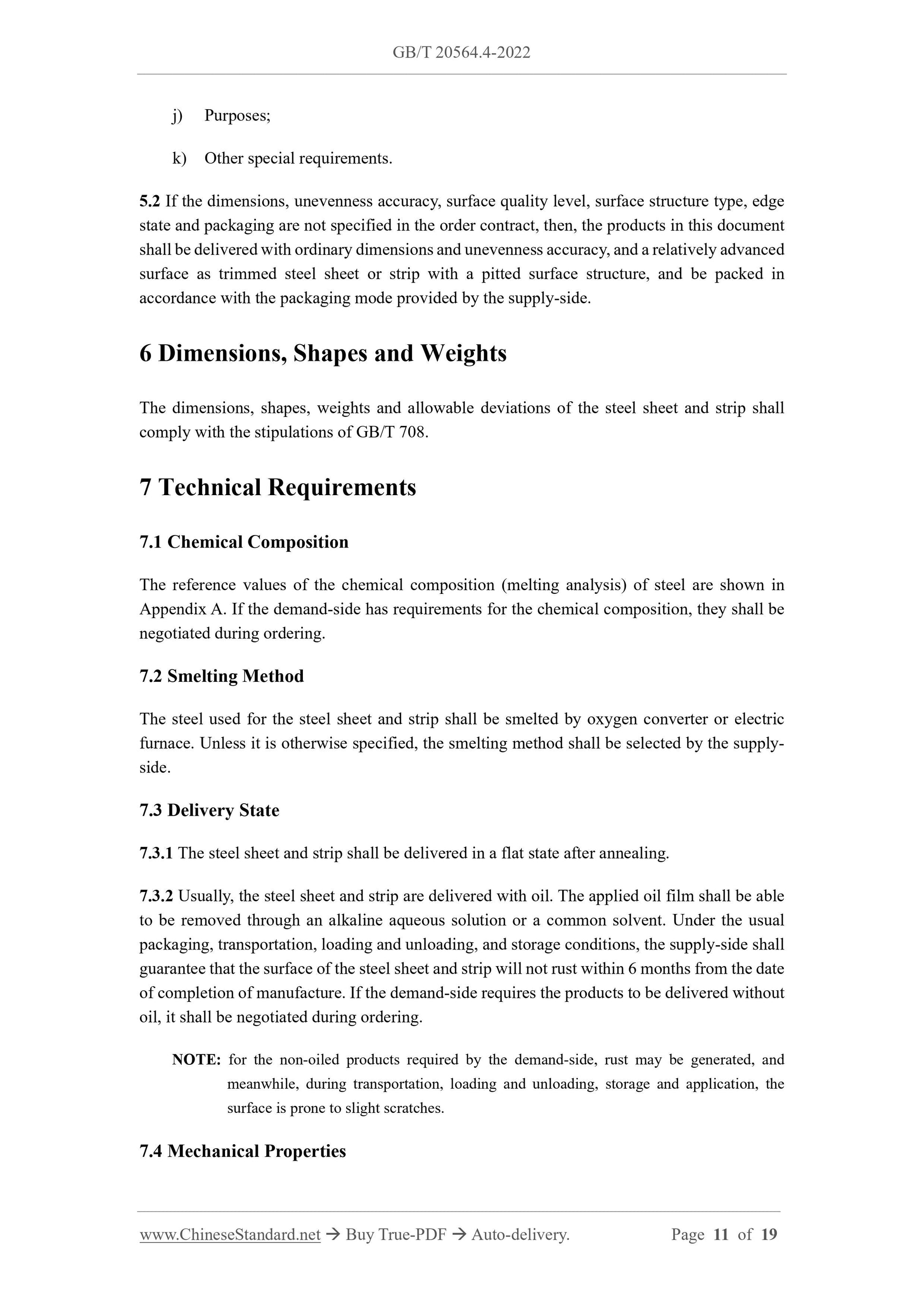

GB/T 20126 Unalloyed Steel - Determination of Low Carbon Content - Part 2.Infrared Absorption Method after Combustion in an Induction Furnace (with preheating) j) Purposes;
k) Other special requirements.
5.2 If the dimensions, unevenness accuracy, surface quality level, surface structure type, edge state and packaging are not specified in the order contract, then, the products in this document shall be delivered with ordinary dimensions and unevenness accuracy, and a relatively advanced surface as trimmed steel sheet or strip with a pitted surface structure, and be packed in accordance with the packaging mode provided by the supply-side.
6 Dimensions, Shapes and Weights
The dimensions, shapes, weights and allowable deviations of the steel sheet and strip shall comply with the stipulations of GB/T 708.
7 Technical Requirements
7.1 Chemical Composition
The reference values of the chemical composition (melting analysis) of steel are shown in Appendix A. If the demand-side has requirements for the chemical composition, they shall be negotiated during ordering.
7.2 Smelting Method
The steel used for the steel sheet and strip shall be smelted by oxygen converter or electric furnace. Unless it is otherwise specified, the smelting method shall be selected by the supply- side.
7.3 Delivery State
7.3.1 The steel sheet and strip shall be delivered in a flat state after annealing. 7.3.2 Usually, the steel sheet and strip are delivered with oil. The applied oil film shall be able to be removed through an alkaline aqueous solution or a common solvent. Under the usual packaging, transportation, loading and unloading, and storage conditions, the supply-side shall guarantee that the surface of the steel sheet and strip will not rust within 6 months from the date of completion of manufacture. If the demand-side requires the products to be delivered without oil, it shall be negotiated during ordering.
NOTE. for the non-oiled products required by the demand-side, rust may be generated, and meanwhile, during transportation, loading and unloading, storage and application, the surface is prone to slight scratches.
7.4 Mechanical Properties
