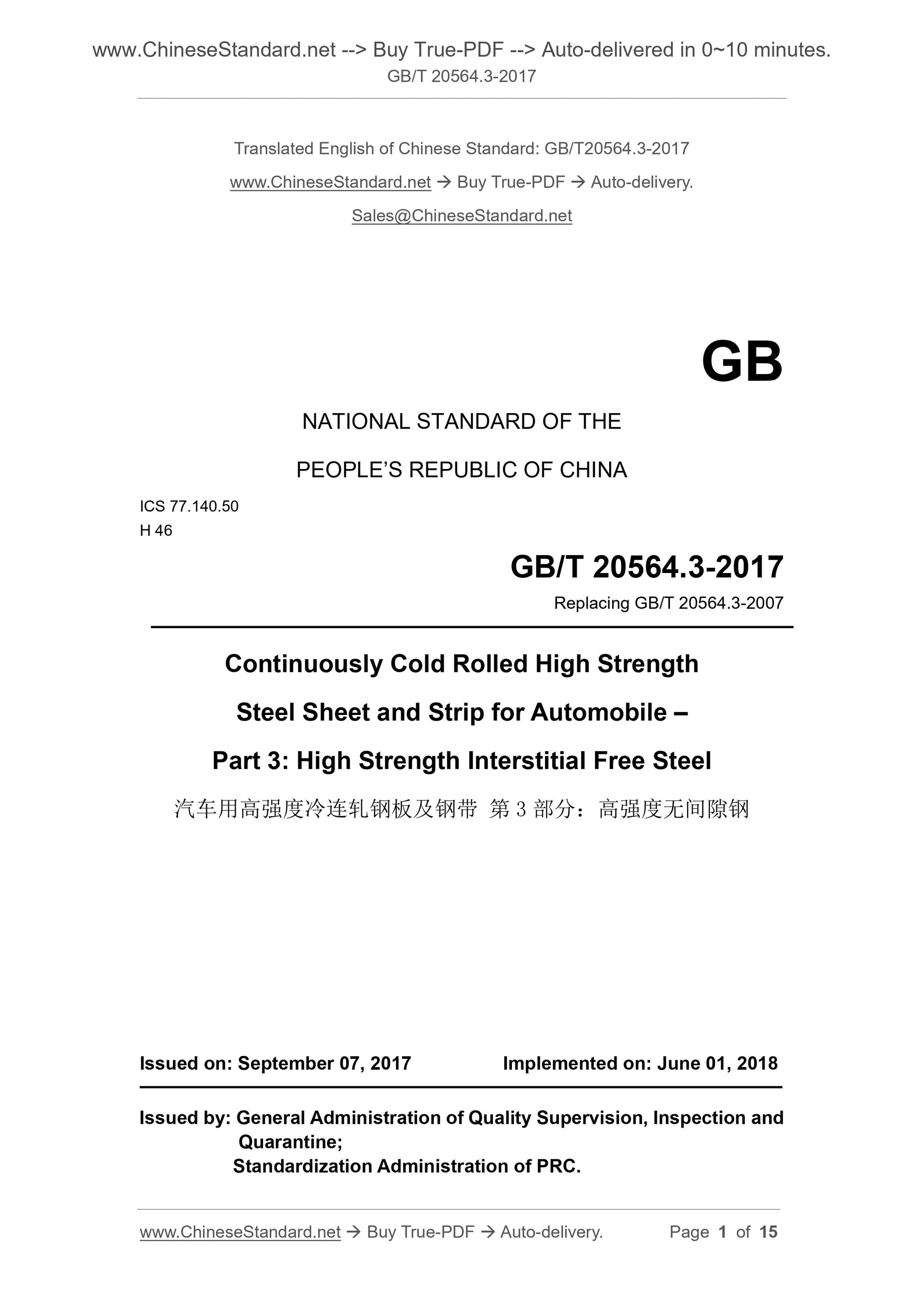

GB/T 20564.3-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.140.50
H 46
Replacing GB/T 20564.3-2007
Continuously Cold Rolled High Strength
Steel Sheet and Strip for Automobile –
Part 3. High Strength Interstitial Free Steel
ISSUED ON. SEPTEMBER 07, 2017
IMPLEMENTED ON. JUNE 01, 2018
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of PRC.

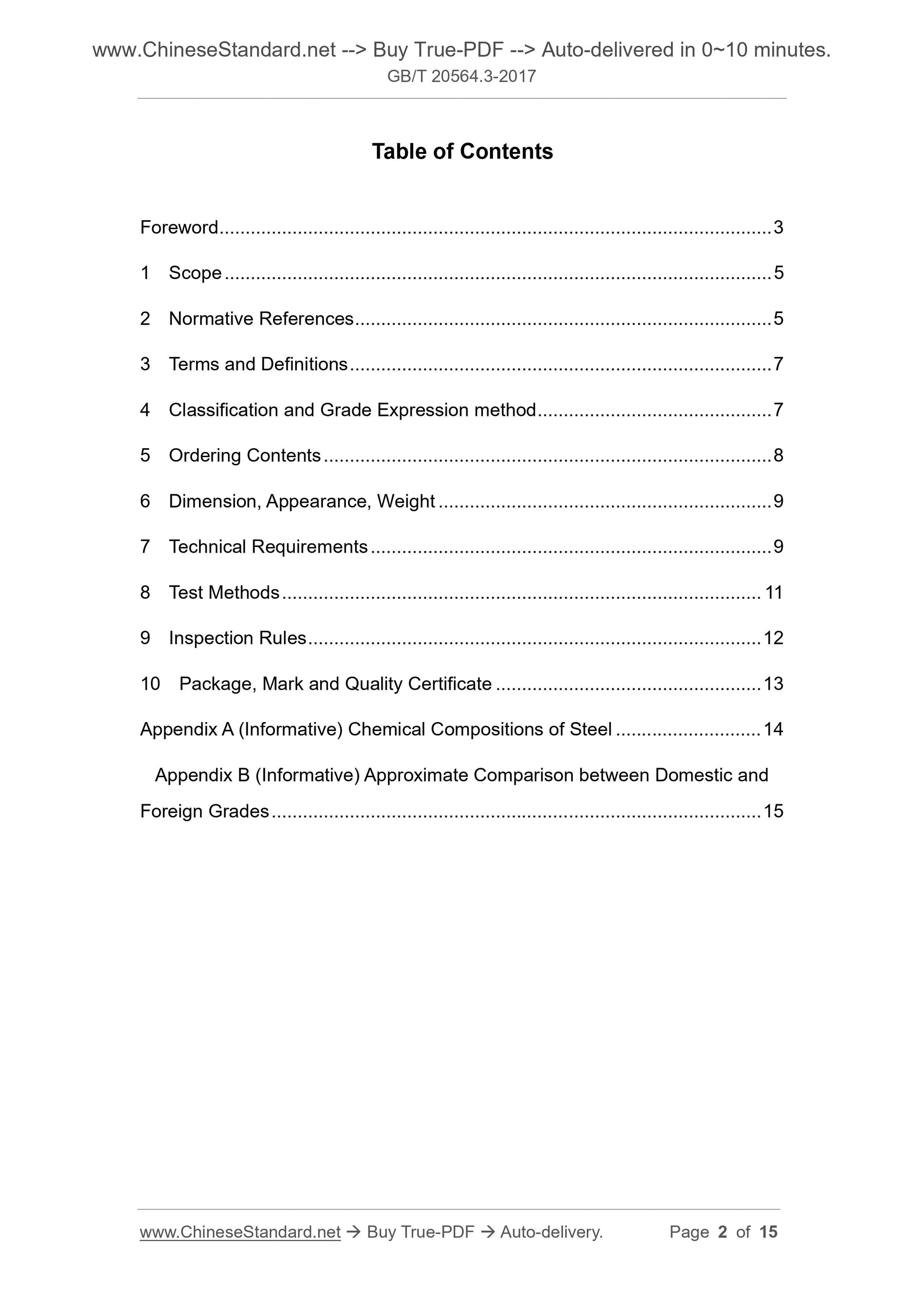

Table of Contents
Foreword . 3
1 Scope .. 5
2 Normative References . 5
3 Terms and Definitions . 7
4 Classification and Grade Expression method .. 7
5 Ordering Contents . 8
6 Dimension, Appearance, Weight . 9
7 Technical Requirements .. 9
8 Test Methods . 11
9 Inspection Rules . 12
10 Package, Mark and Quality Certificate .. 13
Appendix A (Informative) Chemical Compositions of Steel .. 14
Appendix B (Informative) Approximate Comparison between Domestic and
Foreign Grades .. 15

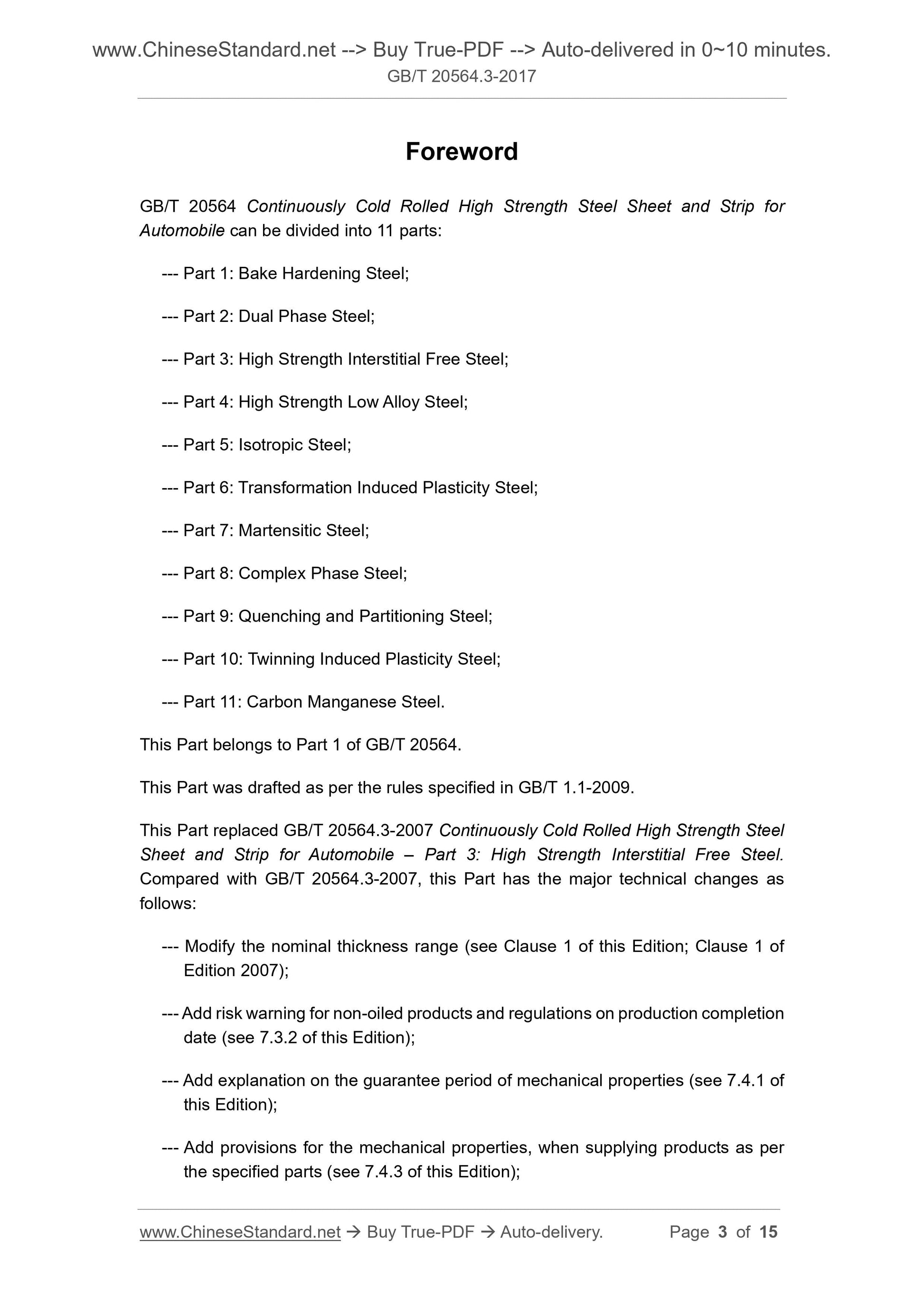

Foreword
GB/T 20564 Continuously Cold Rolled High Strength Steel Sheet and Strip for
Automobile can be divided into 11 parts.
--- Part 1. Bake Hardening Steel;
--- Part 2. Dual Phase Steel;
--- Part 3. High Strength Interstitial Free Steel;
--- Part 4. High Strength Low Alloy Steel;
--- Part 5. Isotropic Steel;
--- Part 6. Transformation Induced Plasticity Steel;
--- Part 7. Martensitic Steel;
--- Part 8. Complex Phase Steel;
--- Part 9. Quenching and Partitioning Steel;
--- Part 10. Twinning Induced Plasticity Steel;
--- Part 11. Carbon Manganese Steel.
This Part belongs to Part 1 of GB/T 20564.
This Part was drafted as per the rules specified in GB/T 1.1-2009.
This Part replaced GB/T 20564.3-2007 Continuously Cold Rolled High Strength Steel
Sheet and Strip for Automobile – Part 3. High Strength Interstitial Free Steel.
Compared with GB/T 20564.3-2007, this Part has the major technical changes as
follows.
--- Modify the nominal thickness range (see Clause 1 of this Edition; Clause 1 of
Edition 2007);
--- Add risk warning for non-oiled products and regulations on production completion
date (see 7.3.2 of this Edition);
--- Add explanation on the guarantee period of mechanical properties (see 7.4.1 of
this Edition);
--- Add provisions for the mechanical properties, when supplying products as per
the specified parts (see 7.4.3 of this Edition);
Continuously Cold Rolled High Strength
Steel Sheet and Strip for Automobile –
Part 3. High Strength Interstitial Free Steel

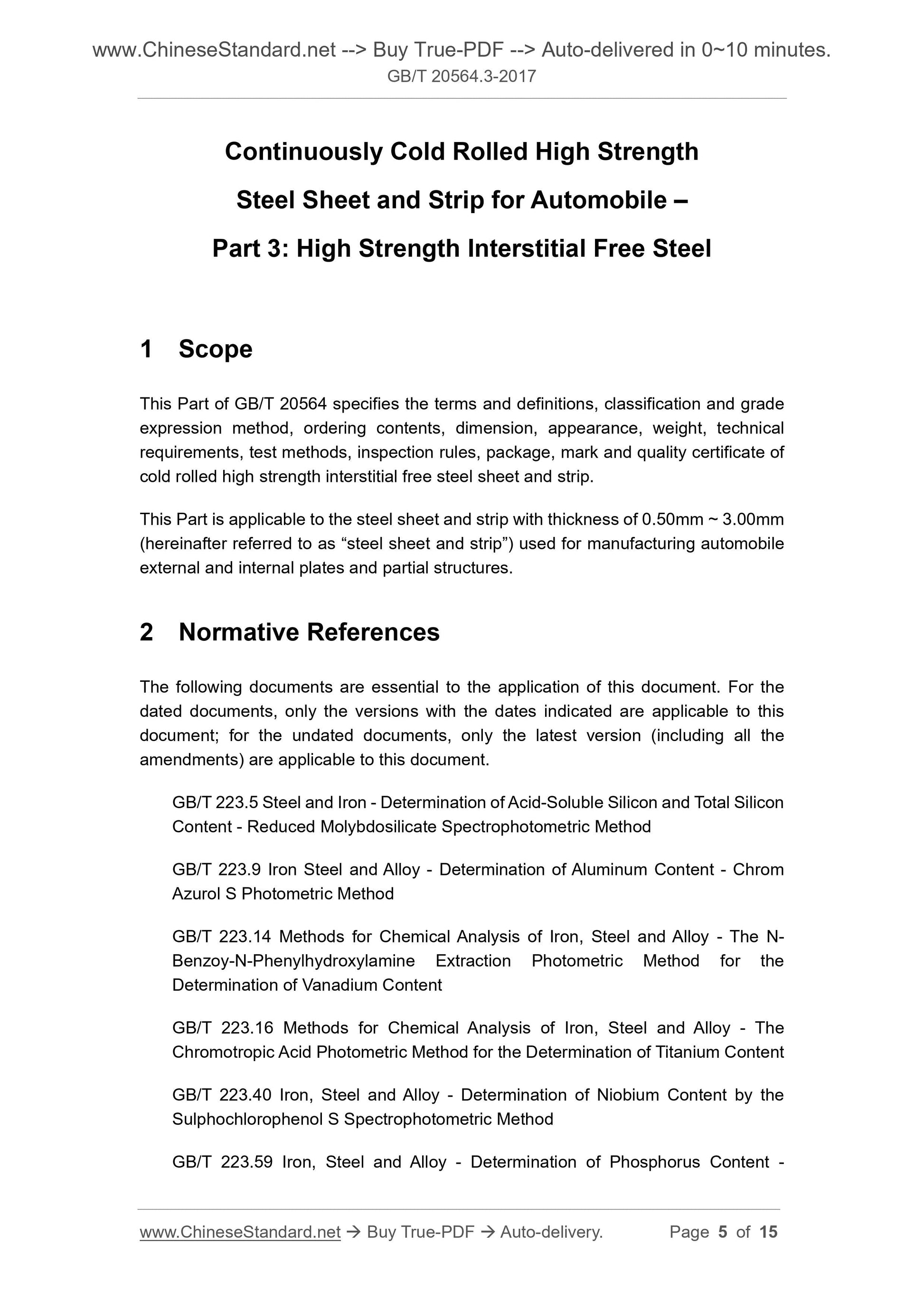

1 Scope
This Part of GB/T 20564 specifies the terms and definitions, classification and grade
expression method, ordering contents, dimension, appearance, weight, technical
requirements, test methods, inspection rules, package, mark and quality certificate of
cold rolled high strength interstitial free steel sheet and strip.
This Part is applicable to the steel sheet and strip with thickness of 0.50mm ~ 3.00mm
(hereinafter referred to as “steel sheet and strip”) used for manufacturing automobile
external and internal plates and partial structures.
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 223.5 Steel and Iron - Determination of Acid-Soluble Silicon and Total Silicon
Content - Reduced Molybdosilicate Spectrophotometric Method
GB/T 223.9 Iron Steel and Alloy - Determination of Aluminum Content - Chrom
Azurol S Photometric Method
GB/T 223.14 Methods for Chemical Analysis of Iron, Steel and Alloy - The N-
Benzoy-N-Phenylhydroxylamine Extraction Photometric Method for the
Determination of Vanadium Content
GB/T 223.16 Methods for Chemical Analysis of Iron, Steel and Alloy - The
Chromotropic Acid Photometric Method for the Determination of Titanium Content
GB/T 223.40 Iron, Steel and Alloy - Determination of Niobium Content by the
Sulphochlorophenol S Spectrophotometric Method
GB/T 223.59 Iron, Steel and Alloy - Determination of Phosphorus Content -

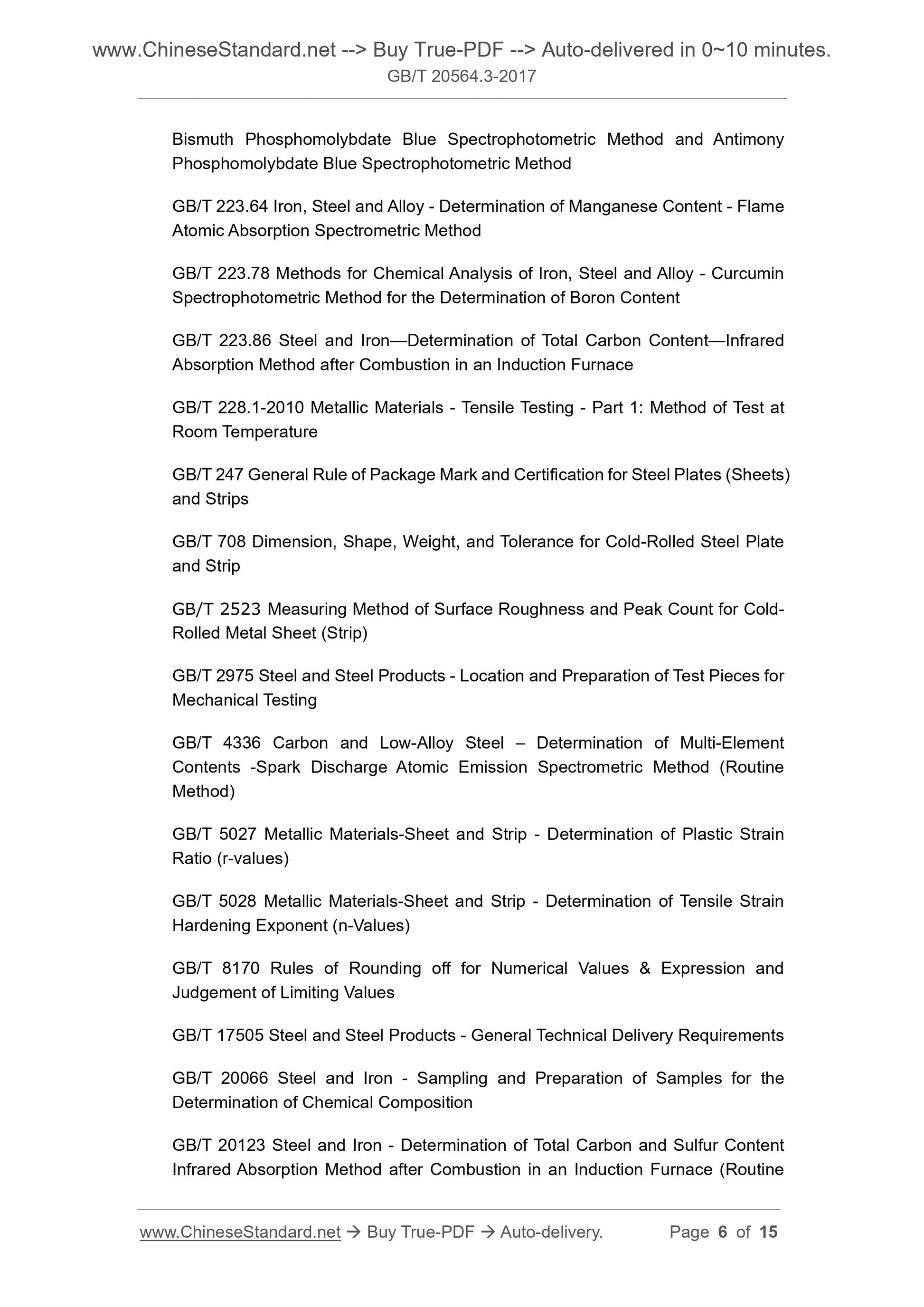

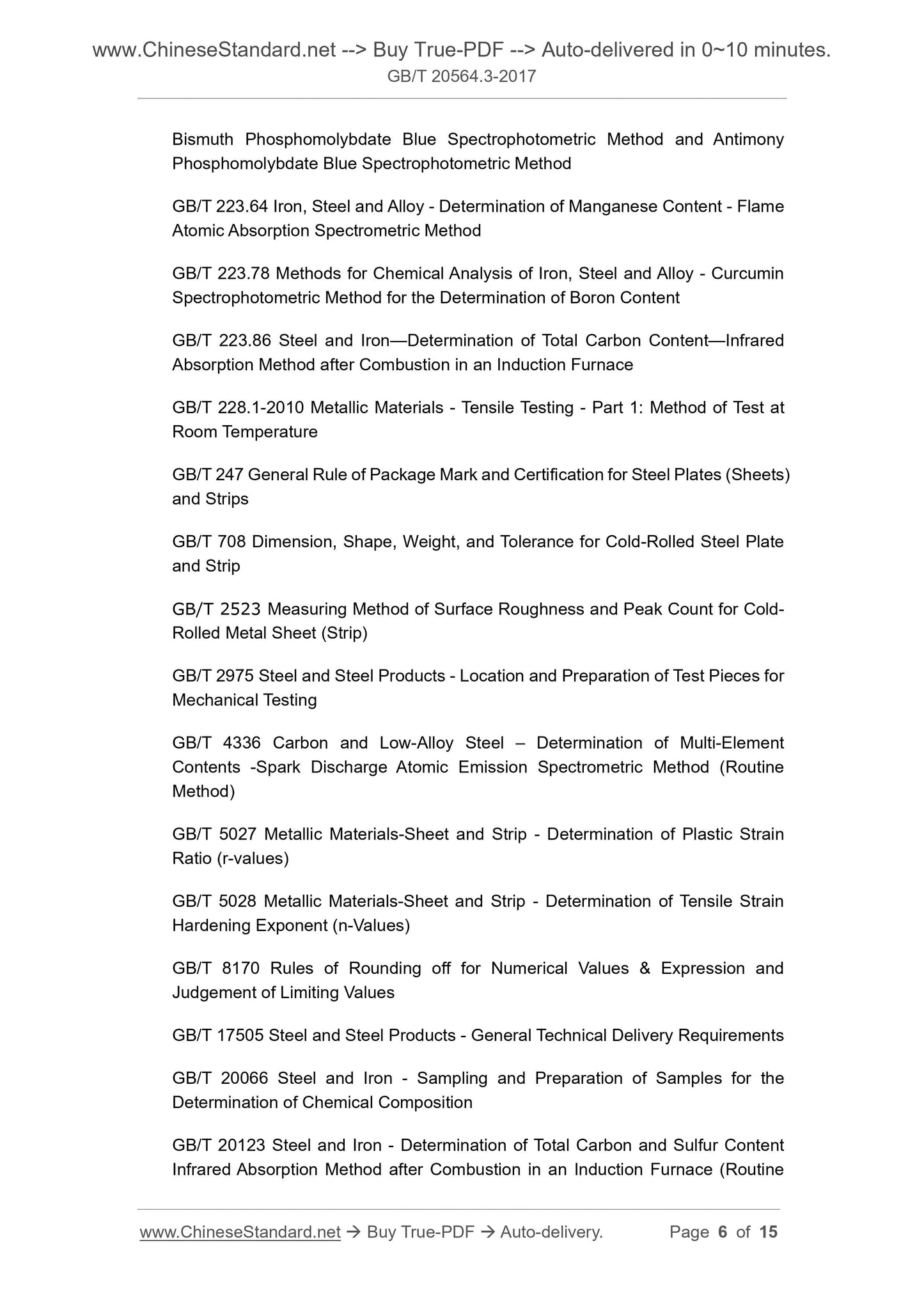

Bismuth Phosphomolybdate Blue Spectrophotometric Method and Antimony
Phosphomolybdate Blue Spectrophotometric Method
GB/T 223.64 Iron, Steel and Alloy - Determination of Manganese Content - Flame
Atomic Absorption Spectrometric Method
GB/T 223.78 Methods for Chemical Analysis of Iron, Steel and Alloy - Curcumin
Spectrophotometric Method for the Determination of Boron Content
GB/T 223.86 Steel and Iron—Determination of Total Carbon Content—Infrared
Absorption Method after Combustion in an Induction Furnace
GB/T 228.1-2010 Metallic Materials - Tensile Testing - Part 1. Method of Test at
Room Temperature
GB/T 247 General Rule of Package Mark and Certification for Steel Plates (Sheets)
and Strips
GB/T 708 Dimension, Shape, Weight, and Tolerance for Cold-Rolled Steel Plate
and Strip
GB/T 2523 Measuring Method of Surface Roughness and Peak Count for Cold-
Rolled Metal Sheet (Strip)
GB/T 2975 Steel and Steel Products - Location and Preparation of Test Pieces for
Mechanical Testing
GB/T 4336 Carbon and Low-Alloy Steel – Determination of Multi-Element
Contents -Spark Discharge Atomic Emission Spectrometric Method (Routine
Method)
GB/T 5027 Metallic Materials-Sheet and Strip - Determination of Plastic Strain
Ratio (r-values)
GB/T 5028 Metallic Materials-Sheet and Strip - Determination of Tensile Strain
Hardening Exponent (n-Values)
GB/T 8170 Rules of Rounding off for Numerical Values and Expression and
Judgement of Limiting Values
GB/T 17505 Steel and Steel Products - General Technical Delivery Requirements
GB/T 20066 Steel and Iron - Sampling and Preparation of Samples for the
Determination of Chemical Composition
GB/T 20123 Steel and Iron - Determination of Total Carbon and Sulfur Content
Infrared Absorption Method after Combustion in an Induction Furnace (Routine
products in this Part shall be delivered as per the ordinary dimension and roughness
accuracy, relative-high surface, pitting surface structure, cutting edge state; and the
packaging mode shall abide by the packaging mode provided by the supplier.

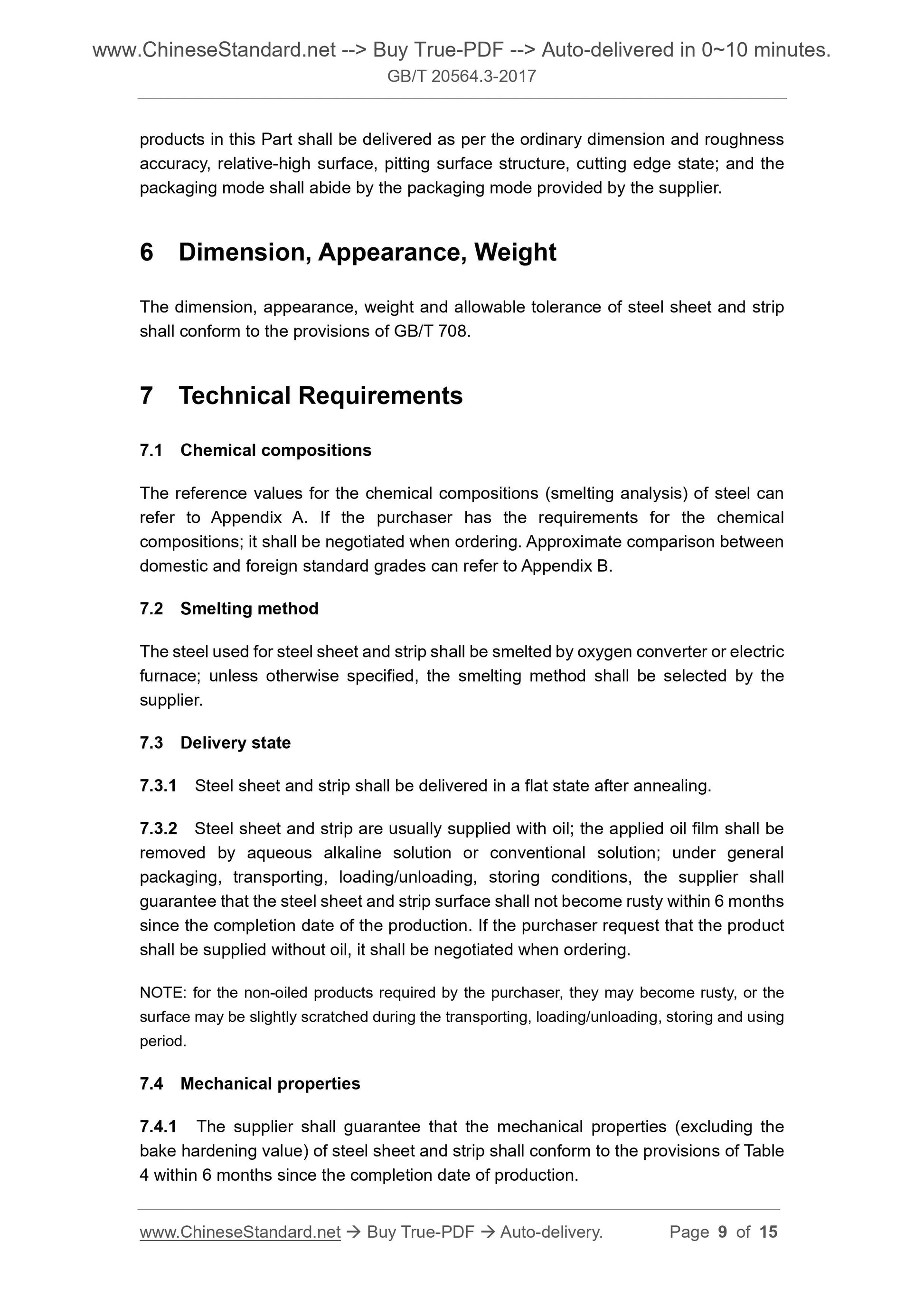

6 Dimension, Appearance, Weight
The dimension, appearance, weight and allowable tolerance of steel sheet and strip
shall conform to the provisions of GB/T 708.
7 Technical Requirements
7.1 Chemical compositions
The reference values for the chemical compositions (smelting analysis) of steel can
refer to Appendix A. If the purchaser has the requirements for the chemical
compositions; it shall be negotiated when ordering. Approximate comparison between
domestic and foreign standard grades can refer to Appendix B.
7.2 Smelting method
The steel used for steel sheet and strip shall be smelted by oxygen converter or electric
furnace; unless otherwise specified, the smelting method shall be selected by the
supplier.
7.3 Delivery state
7.3.1 Steel sheet and strip shall be delivered in a flat state after annealing.
7.3.2 Steel sheet and strip are usually supplied with oil; the applied oil film shall be
removed by aqueous alkaline solution or conventional solution; under general
packaging, transporting, loading/unloading, storing conditions, the supplier shall
guarantee that the steel sheet and strip surface shall not become rusty within 6 months
since the completion date of the production. If the purchaser request that the product
shall be supplied without oil, it shall be negotiated when ordering.
NOTE. for the non-oiled products required by the purchaser, they may become rusty, or the
surface may be slightly scratched during the transporting, loading/unloading, storing and using
period.
7.4 Mechanical properties
7.4.1 The supplier shall guarantee that the mechanical properties (excluding the
bake hardening value) of steel sheet and strip shall conform to the provisions of Table
4 within 6 months since the completion date of production.
