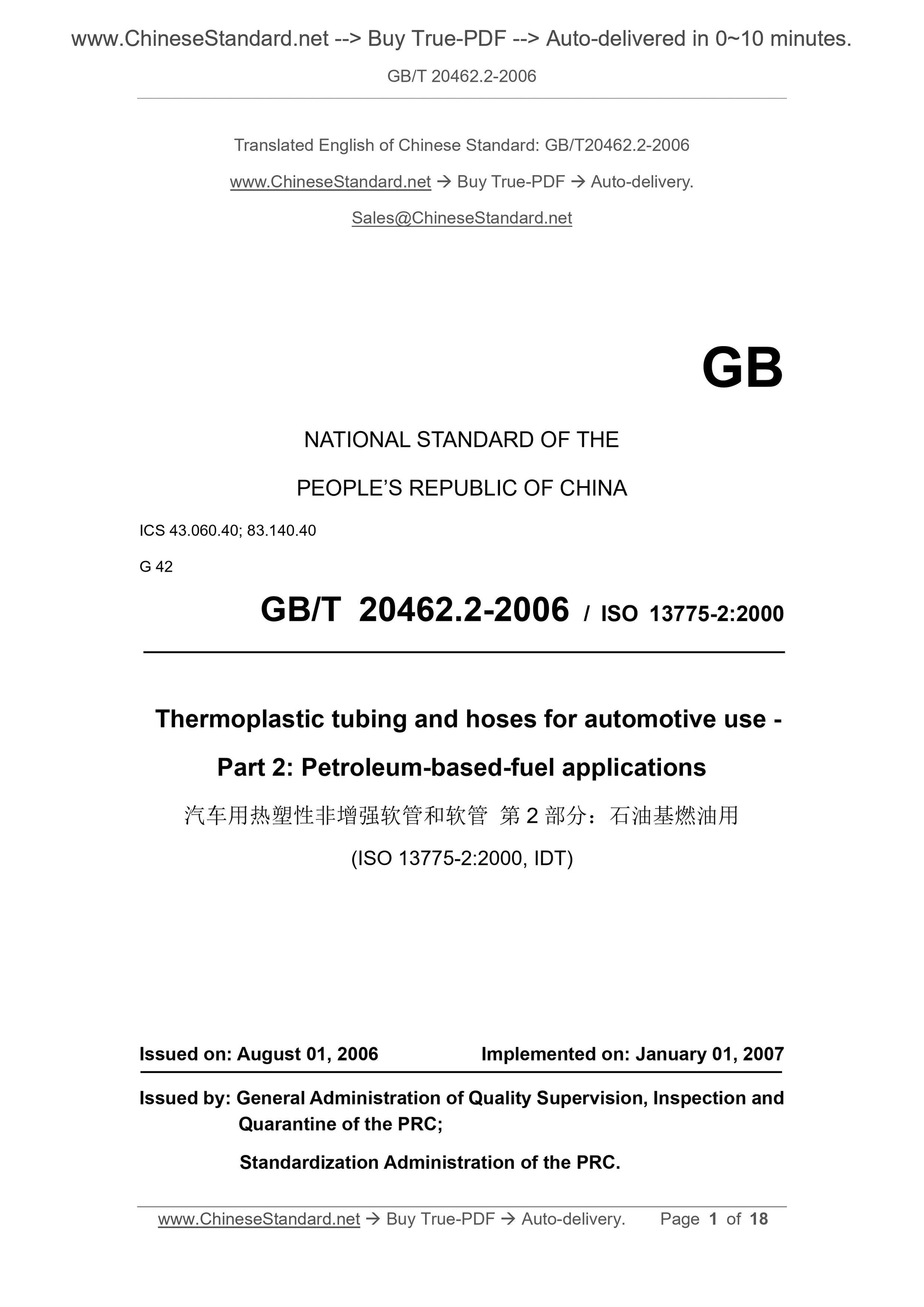

GB/T 20462.2-2006
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.060.40; 83.140.40
G 42
GB/T 20462.2-2006 / ISO 13775-2:2000
Thermoplastic tubing and hoses for automotive use -
Part 2: Petroleum-based-fuel applications
(ISO 13775-2:2000, IDT)
ISSUED ON: AUGUST 01, 2006
IMPLEMENTED ON: JANUARY 01, 2007
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine of the PRC;
Standardization Administration of the PRC.

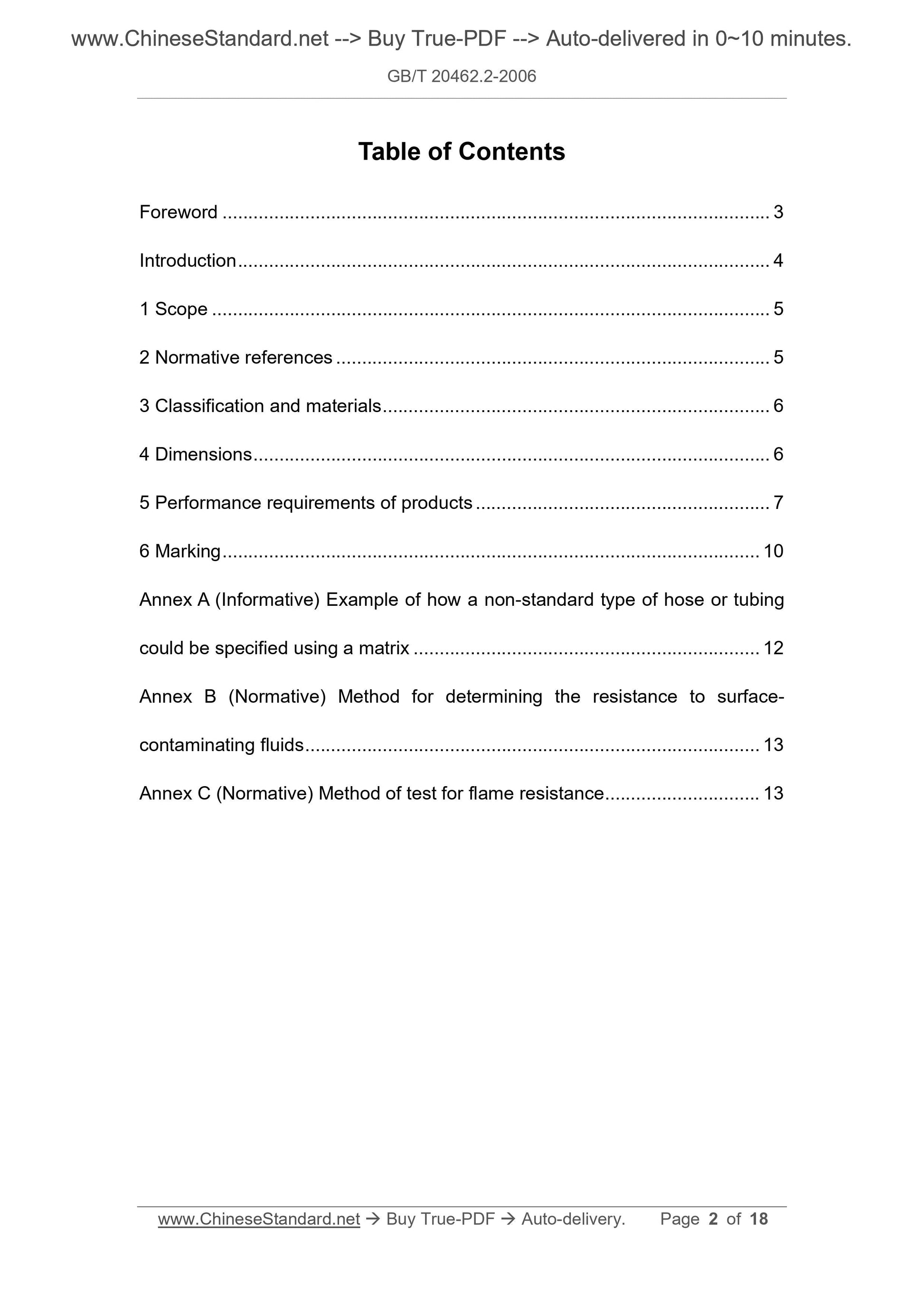

Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 5
2 Normative references ... 5
3 Classification and materials ... 6
4 Dimensions ... 6
5 Performance requirements of products ... 7
6 Marking ... 10
Annex A (Informative) Example of how a non-standard type of hose or tubing
could be specified using a matrix ... 12
Annex B (Normative) Method for determining the resistance to surface-
contaminating fluids ... 13
Annex C (Normative) Method of test for flame resistance ... 13

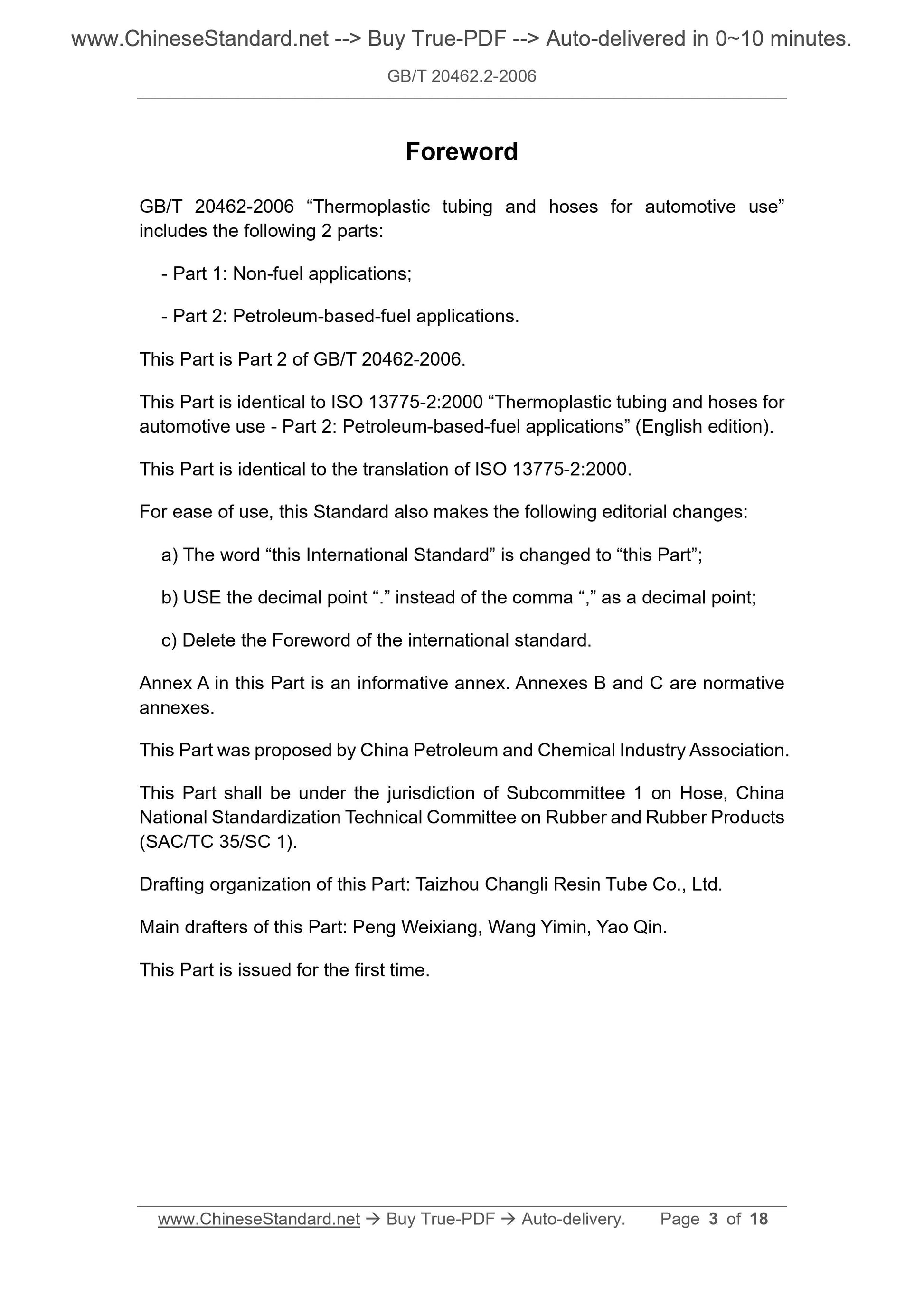

Foreword
GB/T 20462-2006 “Thermoplastic tubing and hoses for automotive use”
includes the following 2 parts:
- Part 1: Non-fuel applications;
- Part 2: Petroleum-based-fuel applications.
This Part is Part 2 of GB/T 20462-2006.
This Part is identical to ISO 13775-2:2000 “Thermoplastic tubing and hoses for
automotive use - Part 2: Petroleum-based-fuel applications” (English edition).
This Part is identical to the translation of ISO 13775-2:2000.
For ease of use, this Standard also makes the following editorial changes:
a) The word “this International Standard” is changed to “this Part”;
b) USE the decimal point “.” instead of the comma “,” as a decimal point;
c) Delete the Foreword of the international standard.
Annex A in this Part is an informative annex. Annexes B and C are normative
annexes.
This Part was proposed by China Petroleum and Chemical Industry Association.
This Part shall be under the jurisdiction of Subcommittee 1 on Hose, China
National Standardization Technical Committee on Rubber and Rubber Products
(SAC/TC 35/SC 1).
Drafting organization of this Part: Taizhou Changli Resin Tube Co., Ltd.
Main drafters of this Part: Peng Weixiang, Wang Yimin, Yao Qin.
This Part is issued for the first time.

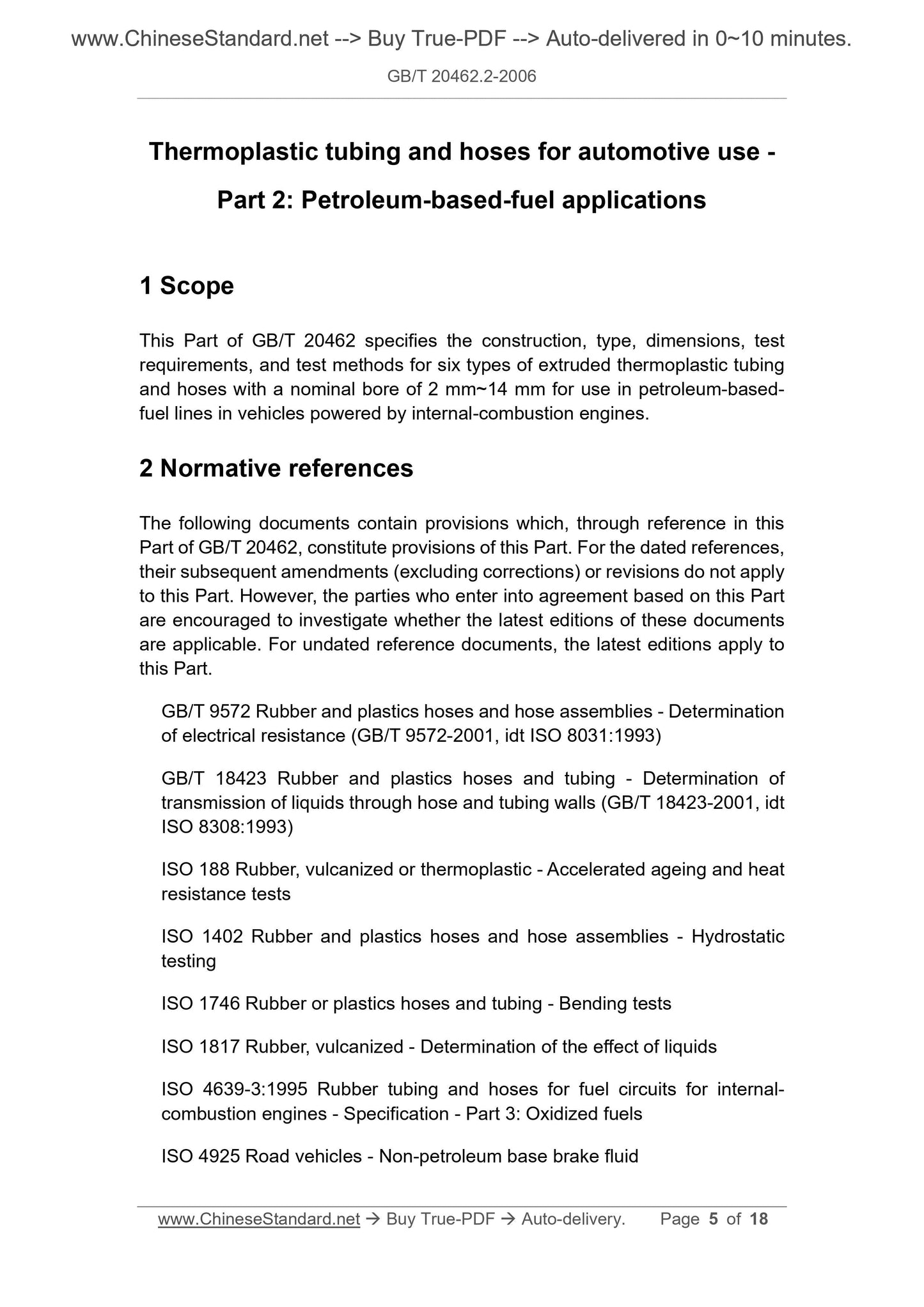

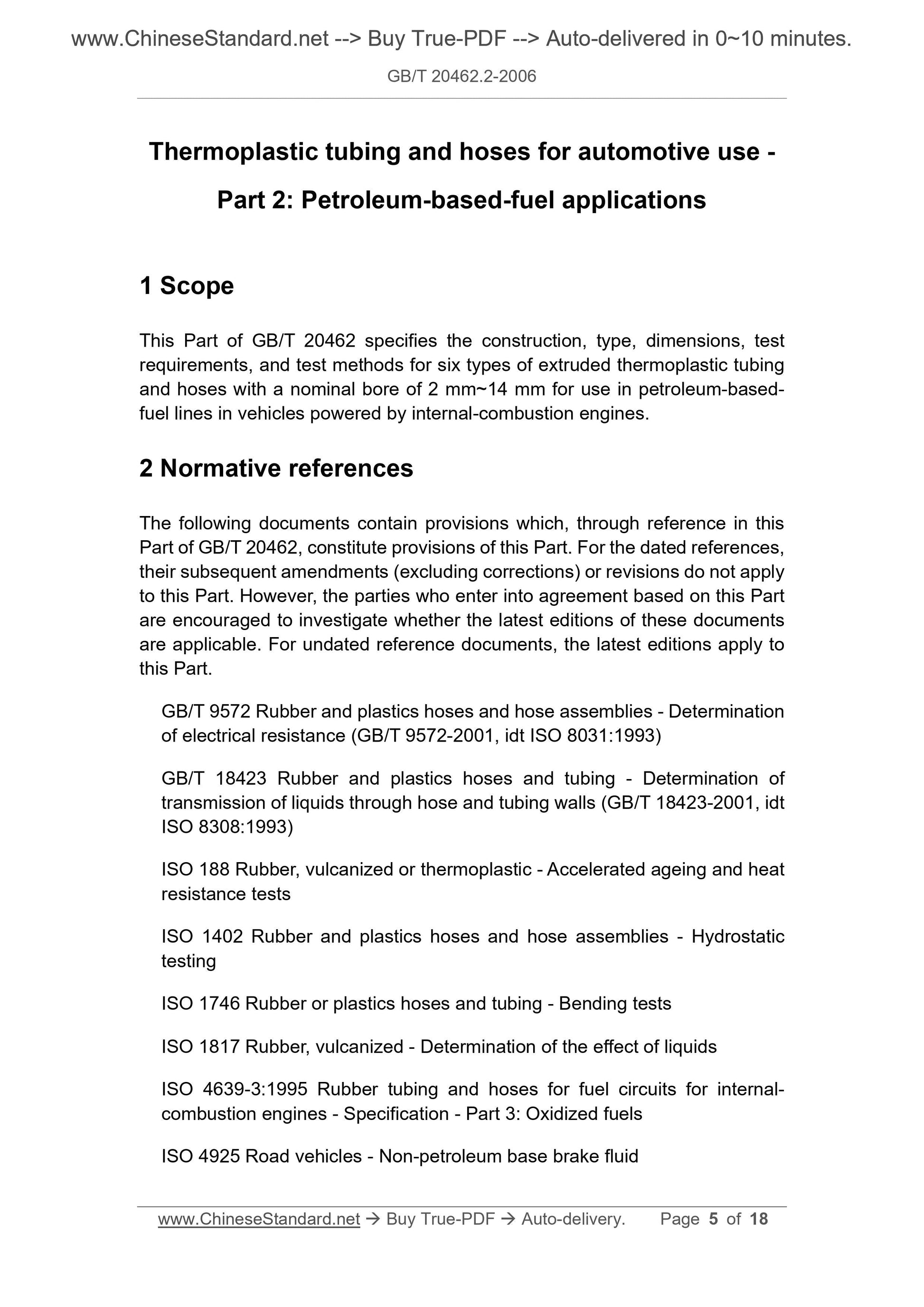

Thermoplastic tubing and hoses for automotive use -
Part 2: Petroleum-based-fuel applications
1 Scope
This Part of GB/T 20462 specifies the construction, type, dimensions, test
requirements, and test methods for six types of extruded thermoplastic tubing
and hoses with a nominal bore of 2 mm~14 mm for use in petroleum-based-
fuel lines in vehicles powered by internal-combustion engines.
2 Normative references
The following documents contain provisions which, through reference in this
Part of GB/T 20462, constitute provisions of this Part. For the dated references,
their subsequent amendments (excluding corrections) or revisions do not apply
to this Part. However, the parties who enter into agreement based on this Part
are encouraged to investigate whether the latest editions of these documents
are applicable. For undated reference documents, the latest editions apply to
this Part.
GB/T 9572 Rubber and plastics hoses and hose assemblies - Determination
of electrical resistance (GB/T 9572-2001, idt ISO 8031:1993)
GB/T 18423 Rubber and plastics hoses and tubing - Determination of
transmission of liquids through hose and tubing walls (GB/T 18423-2001, idt
ISO 8308:1993)
ISO 188 Rubber, vulcanized or thermoplastic - Accelerated ageing and heat
resistance tests
ISO 1402 Rubber and plastics hoses and hose assemblies - Hydrostatic
testing
ISO 1746 Rubber or plastics hoses and tubing - Bending tests
ISO 1817 Rubber, vulcanized - Determination of the effect of liquids
ISO 4639-3:1995 Rubber tubing and hoses for fuel circuits for internal-
combustion engines - Specification - Part 3: Oxidized fuels
ISO 4925 Road vehicles - Non-petroleum base brake fluid
