GB/T 20438.6-2017: Functional safety of electrical/electronic/programmable electronic safety-related systems -- Part 6: Guidelines on the application of GB/T 20438.2 and GB/T 20438.3

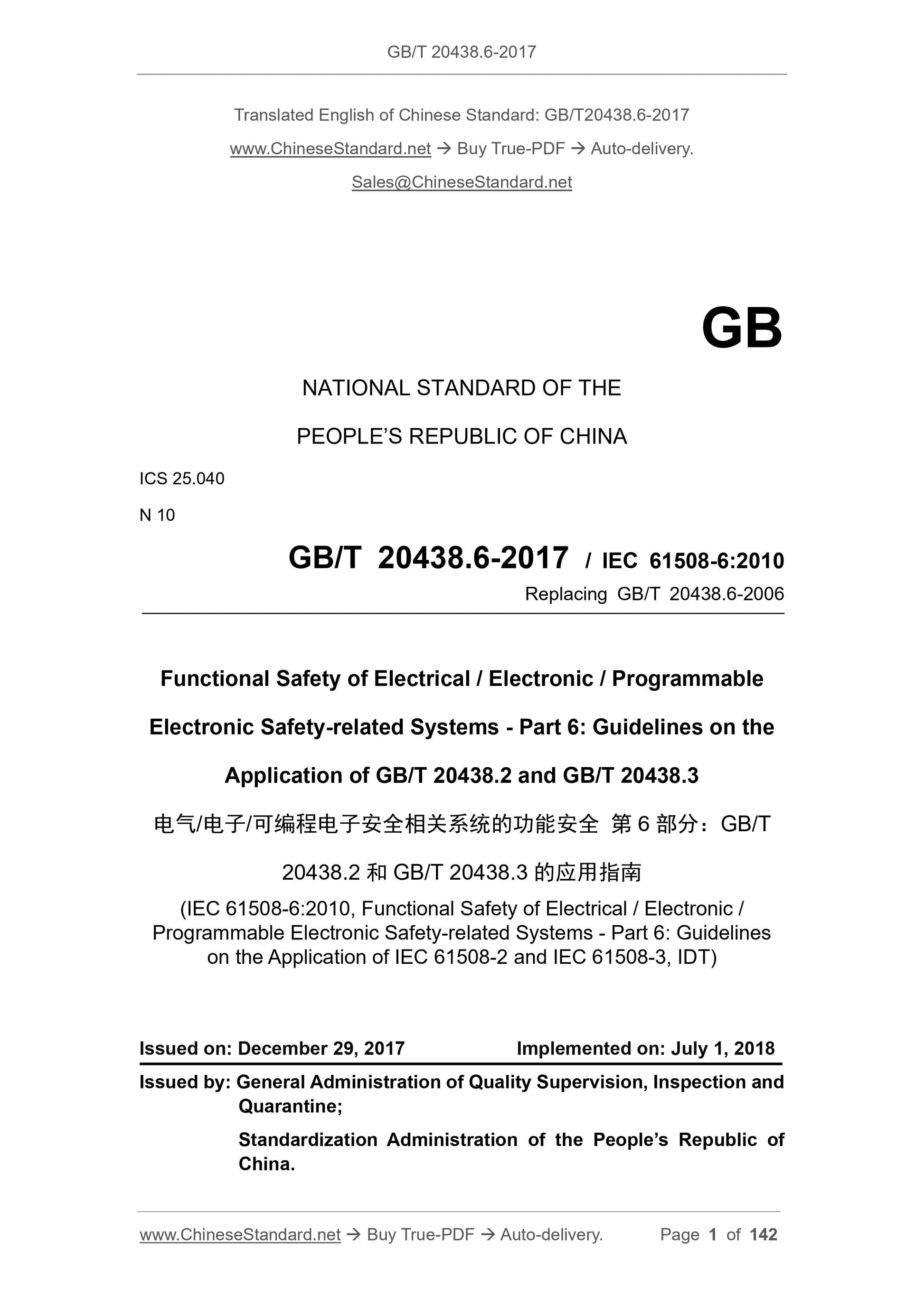

GB/T 20438.6-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 25.040
N 10
GB/T 20438.6-2017 / IEC 61508-6:2010
Replacing GB/T 20438.6-2006
Functional Safety of Electrical / Electronic / Programmable
Electronic Safety-related Systems - Part 6: Guidelines on the
Application of GB/T 20438.2 and GB/T 20438.3
(IEC 61508-6:2010, Functional Safety of Electrical / Electronic /
Programmable Electronic Safety-related Systems - Part 6: Guidelines
on the Application of IEC 61508-2 and IEC 61508-3, IDT)
ISSUED ON: DECEMBER 29, 2017
IMPLEMENTED ON: JULY 1, 2018
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People’s Republic of
China.

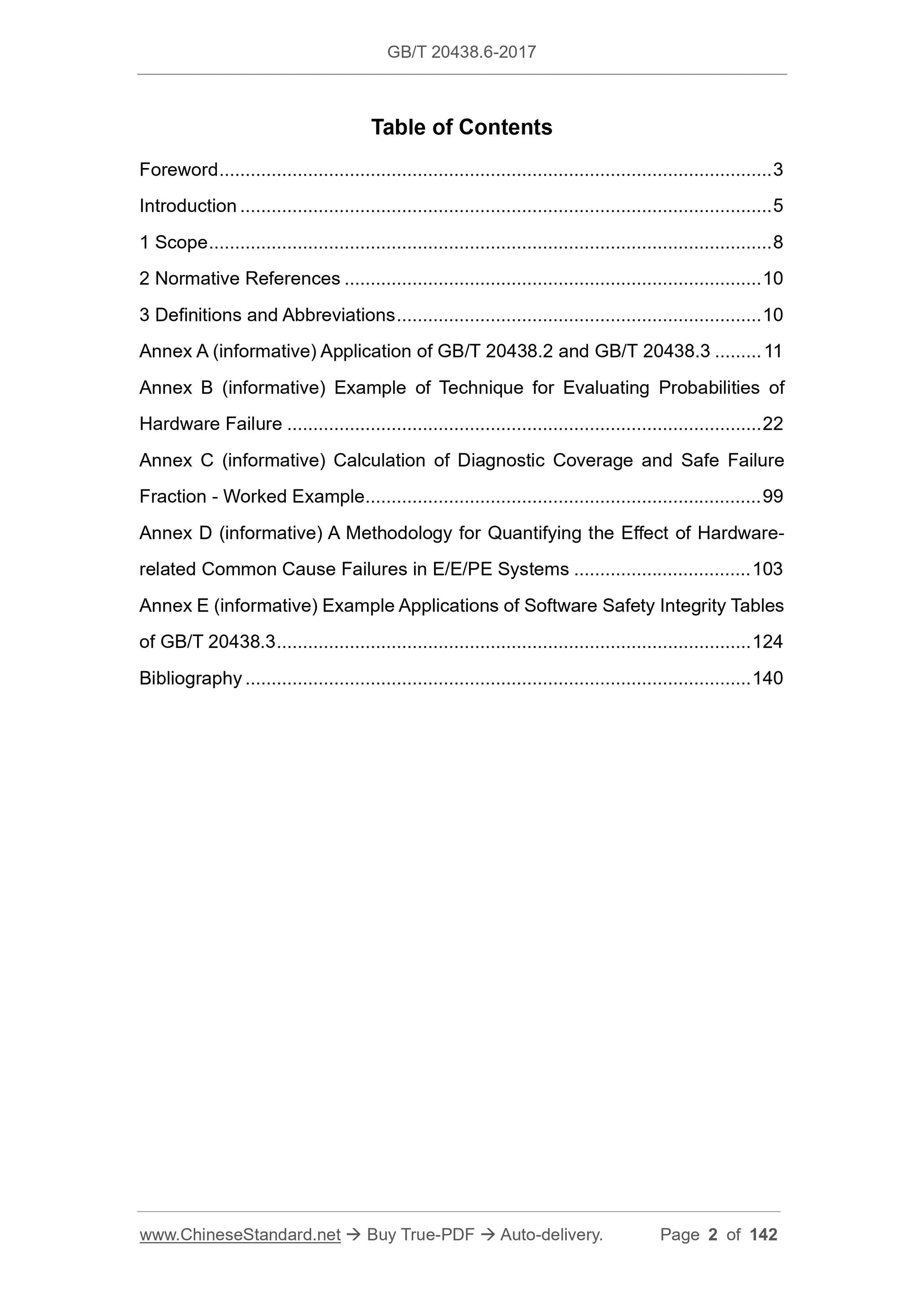

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 8
2 Normative References ... 10
3 Definitions and Abbreviations ... 10
Annex A (informative) Application of GB/T 20438.2 and GB/T 20438.3 ... 11 Annex B (informative) Example of Technique for Evaluating Probabilities of Hardware Failure ... 22
Annex C (informative) Calculation of Diagnostic Coverage and Safe Failure Fraction - Worked Example ... 99
Annex D (informative) A Methodology for Quantifying the Effect of Hardware- related Common Cause Failures in E/E/PE Systems ... 103
Annex E (informative) Example Applications of Software Safety Integrity Tables of GB/T 20438.3 ... 124
Bibliography ... 140

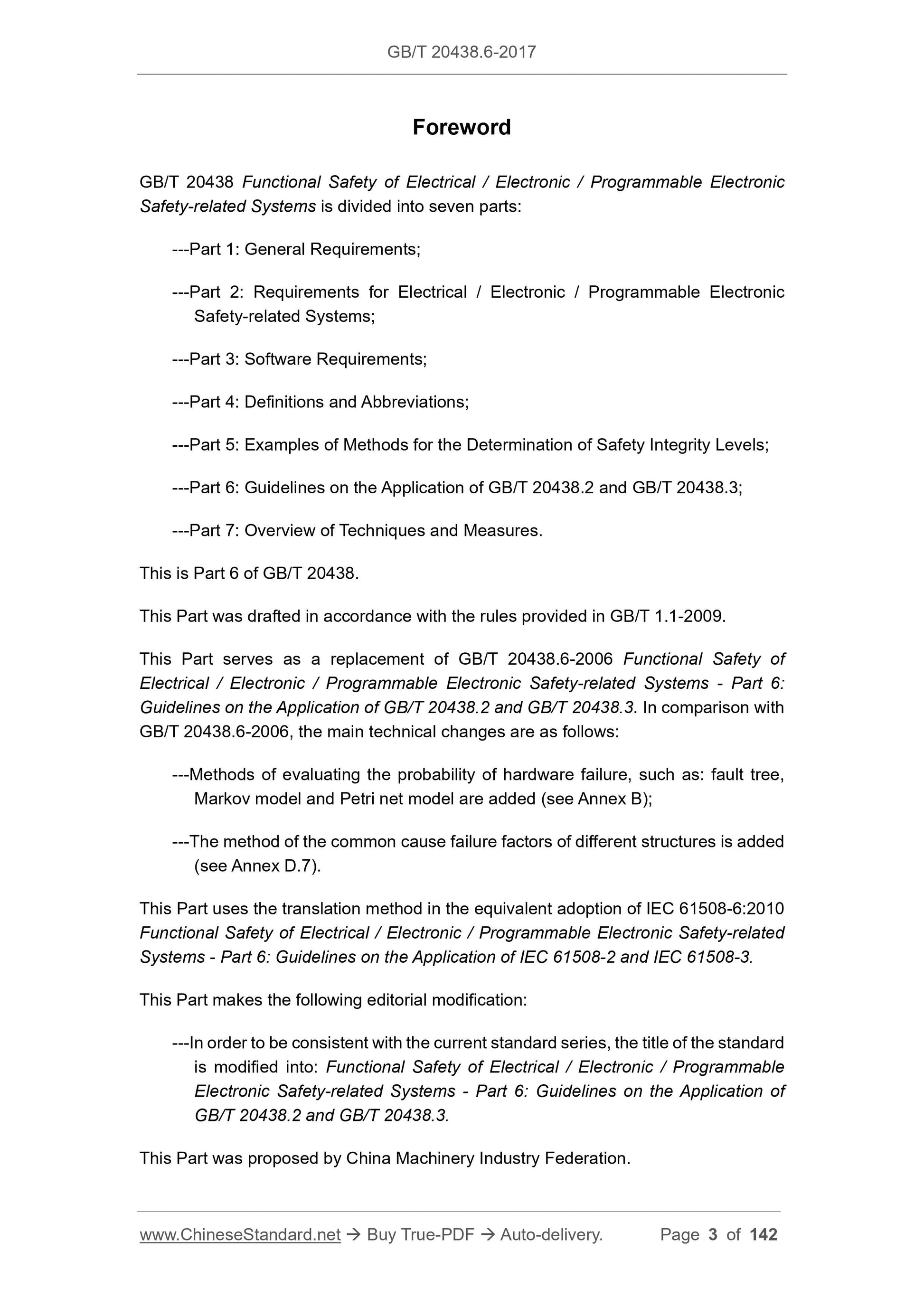

Foreword
GB/T 20438 Functional Safety of Electrical / Electronic / Programmable Electronic Safety-related Systems is divided into seven parts:
---Part 1: General Requirements;
---Part 2: Requirements for Electrical / Electronic / Programmable Electronic Safety-related Systems;
---Part 3: Software Requirements;
---Part 4: Definitions and Abbreviations;
---Part 5: Examples of Methods for the Determination of Safety Integrity Levels; ---Part 6: Guidelines on the Application of GB/T 20438.2 and GB/T 20438.3; ---Part 7: Overview of Techniques and Measures.
This is Part 6 of GB/T 20438.
This Part was drafted in accordance with the rules provided in GB/T 1.1-2009. This Part serves as a replacement of GB/T 20438.6-2006 Functional Safety of Electrical / Electronic / Programmable Electronic Safety-related Systems - Part 6: Guidelines on the Application of GB/T 20438.2 and GB/T 20438.3. In comparison with GB/T 20438.6-2006, the main technical changes are as follows:
---Methods of evaluating the probability of hardware failure, such as: fault tree, Markov model and Petri net model are added (see Annex B);
---The method of the common cause failure factors of different structures is added (see Annex D.7).
This Part uses the translation method in the equivalent adoption of IEC 61508-6:2010 Functional Safety of Electrical / Electronic / Programmable Electronic Safety-related Systems - Part 6: Guidelines on the Application of IEC 61508-2 and IEC 61508-3. This Part makes the following editorial modification:
---In order to be consistent with the current standard series, the title of the standard is modified into: Functional Safety of Electrical / Electronic / Programmable Electronic Safety-related Systems - Part 6: Guidelines on the Application of GB/T 20438.2 and GB/T 20438.3.
This Part was proposed by China Machinery Industry Federation.
Functional Safety of Electrical / Electronic /
Programmable Electronic Safety-related Systems -
Part 6: Guidelines on the Application of GB/T 20438.2
and GB/T 20438.3

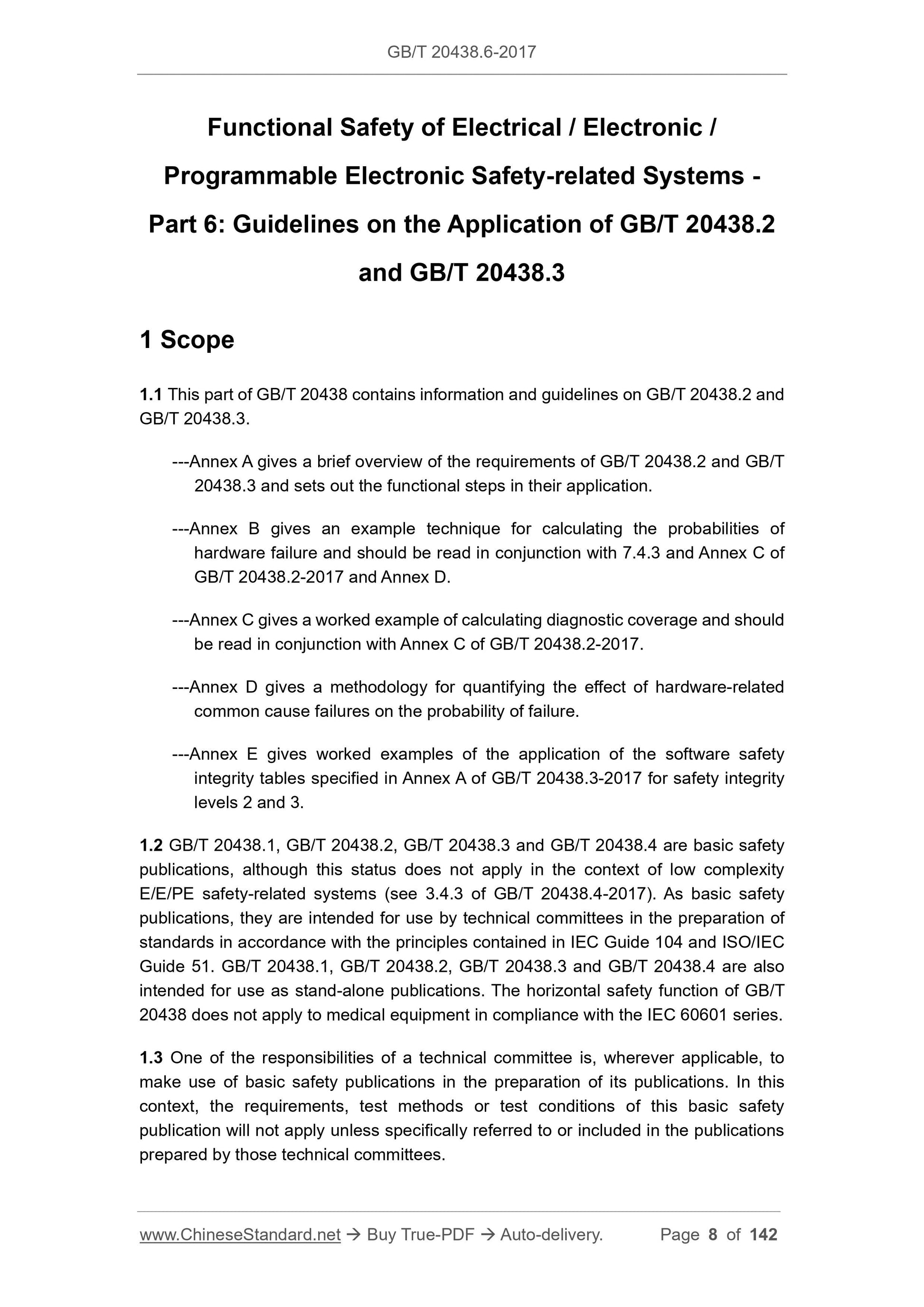

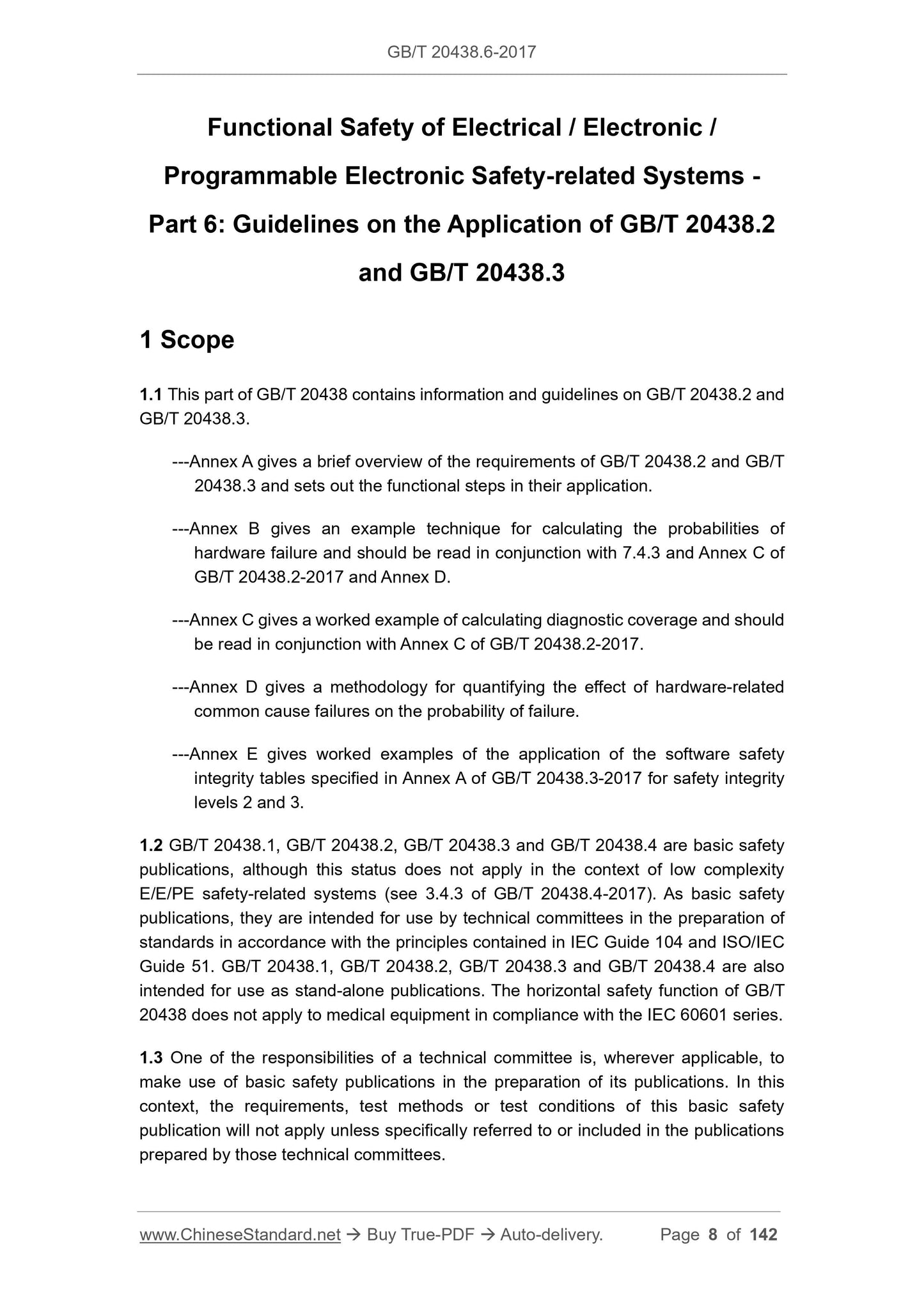

1 Scope
1.1 This part of GB/T 20438 contains information and guidelines on GB/T 20438.2 and GB/T 20438.3.
---Annex A gives a brief overview of the requirements of GB/T 20438.2 and GB/T 20438.3 and sets out the functional steps in their application.
---Annex B gives an example technique for calculating the probabilities of hardware failure and should be read in conjunction with 7.4.3 and Annex C of GB/T 20438.2-2017 and Annex D.
---Annex C gives a worked example of calculating diagnostic coverage and should be read in conjunction with Annex C of GB/T 20438.2-2017.
---Annex D gives a methodology for quantifying the effect of hardware-related common cause failures on the probability of failure.
---Annex E gives worked examples of the application of the software safety integrity tables specified in Annex A of GB/T 20438.3-2017 for safety integrity levels 2 and 3.
