GB/T 20279-2015: Information security technology -- Security technical requirements of network and terminal separation products

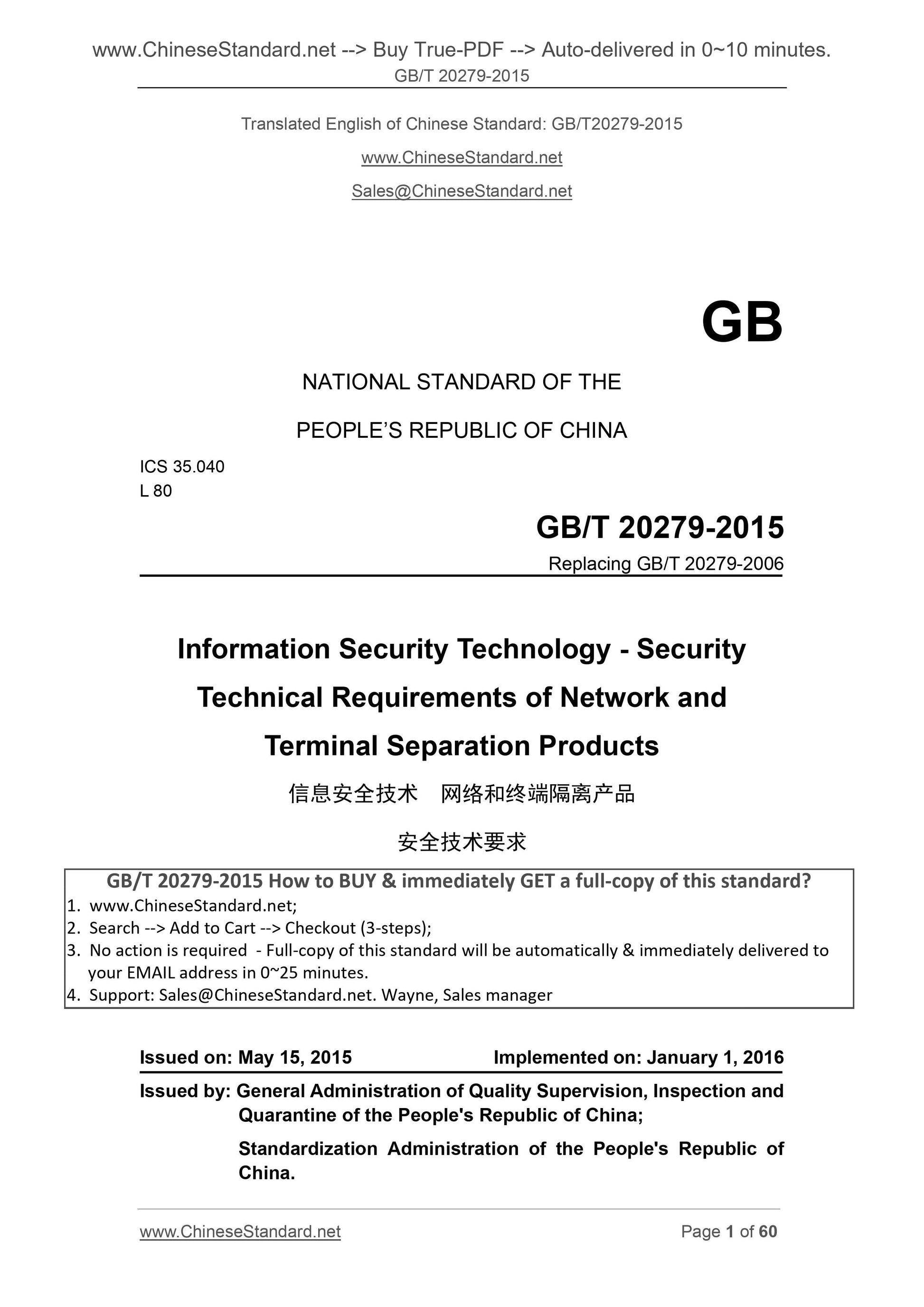

GB/T 20279-2015
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.040
L 80
Replacing GB/T 20279-2006
Information Security Technology - Security
Technical Requirements of Network and
Terminal Separation Products
ISSUED ON. MAY 15, 2015
IMPLEMENTED ON. JANUARY 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

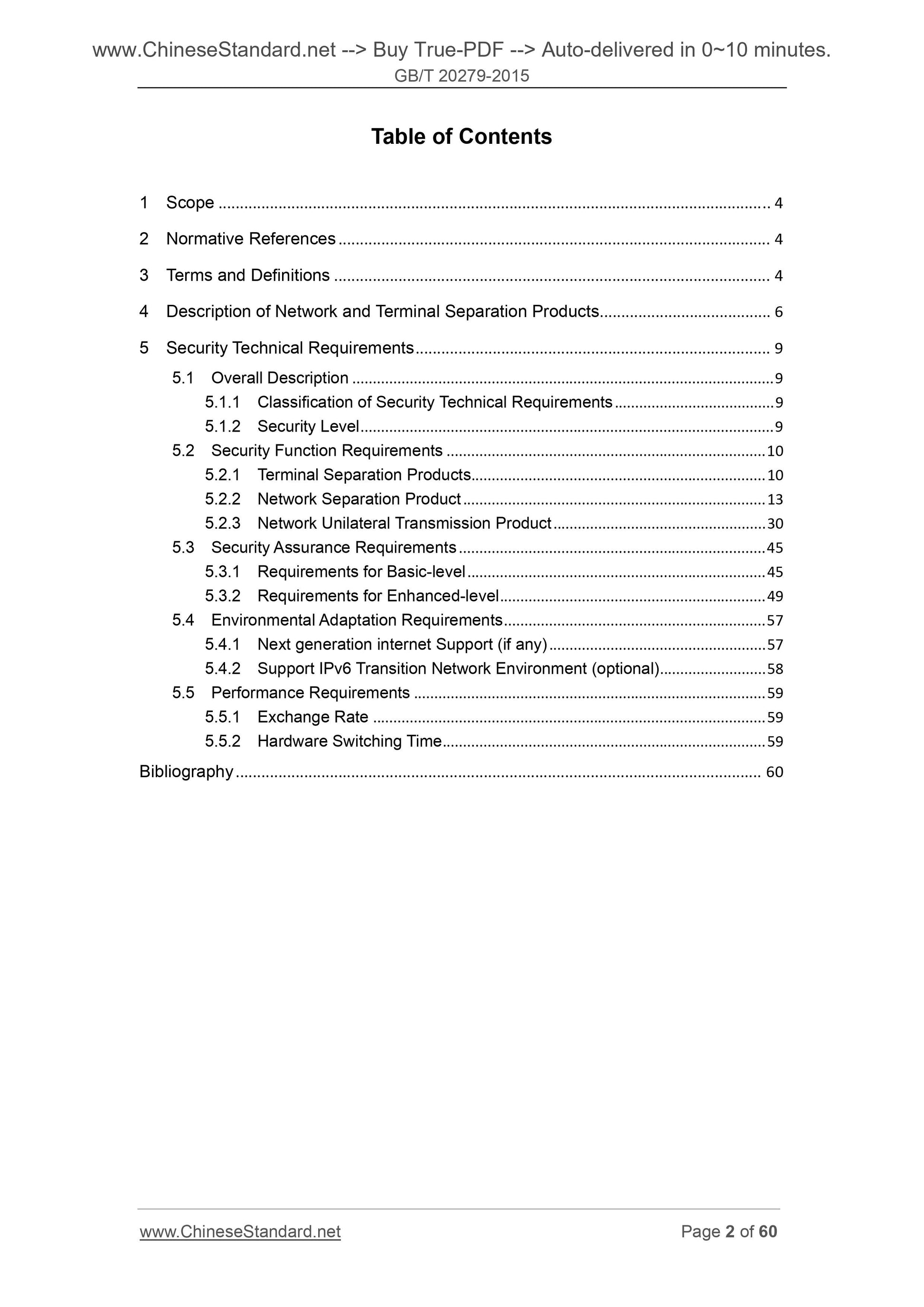

Table of Contents
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Description of Network and Terminal Separation Products ... 6
5 Security Technical Requirements ... 9
5.1 Overall Description ... 9
5.1.1 Classification of Security Technical Requirements ... 9
5.1.2 Security Level ... 9
5.2 Security Function Requirements ... 10
5.2.1 Terminal Separation Products... 10
5.2.2 Network Separation Product ... 13
5.2.3 Network Unilateral Transmission Product ... 30
5.3 Security Assurance Requirements ... 45
5.3.1 Requirements for Basic-level ... 45
5.3.2 Requirements for Enhanced-level ... 49
5.4 Environmental Adaptation Requirements ... 57
5.4.1 Next generation internet Support (if any) ... 57
5.4.2 Support IPv6 Transition Network Environment (optional) ... 58
5.5 Performance Requirements ... 59
5.5.1 Exchange Rate ... 59
5.5.2 Hardware Switching Time ... 59
Bibliography ... 60

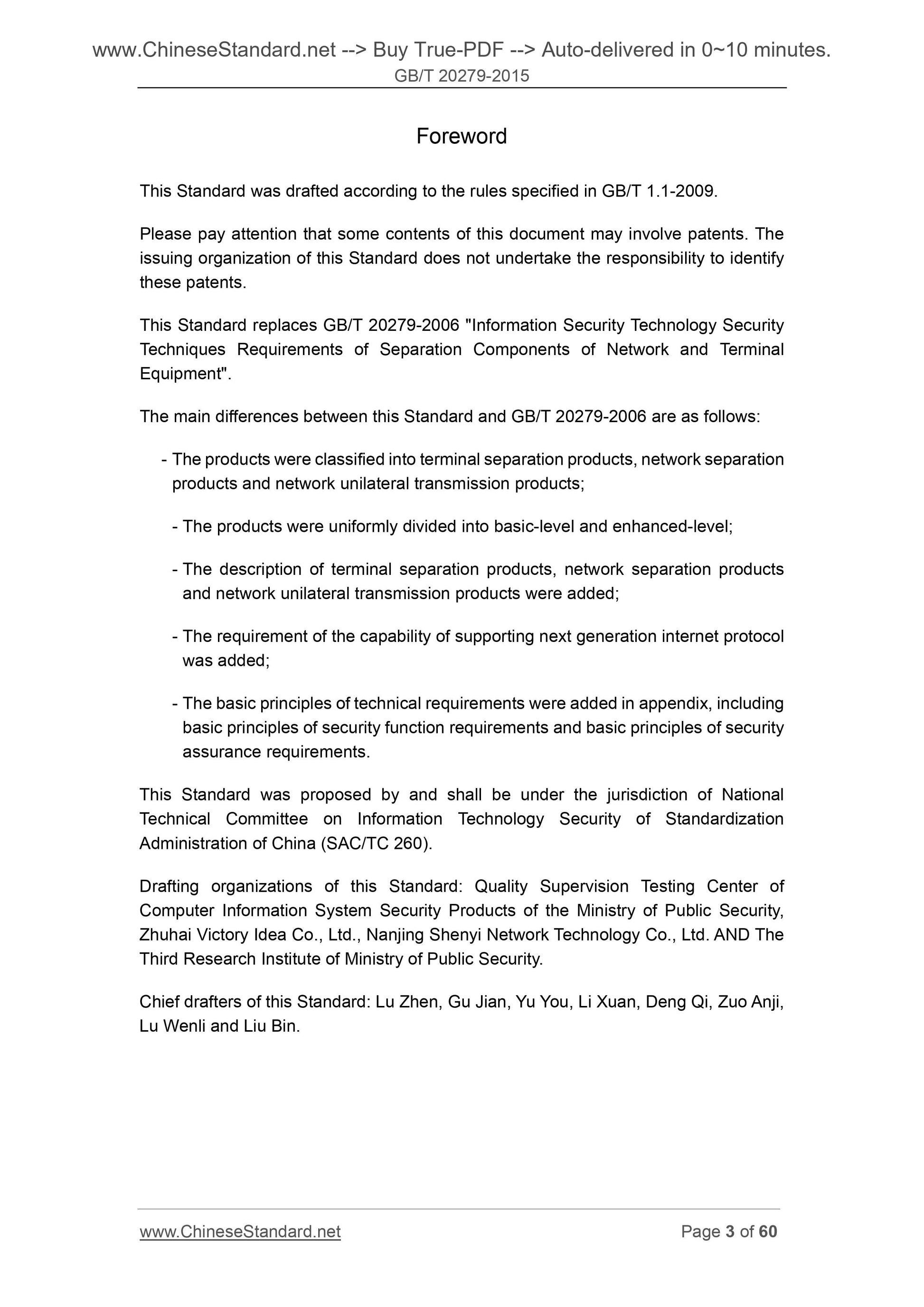

Foreword
This Standard was drafted according to the rules specified in GB/T 1.1-2009.
Please pay attention that some contents of this document may involve patents. The
issuing organization of this Standard does not undertake the responsibility to identify
these patents.
This Standard replaces GB/T 20279-2006 "Information Security Technology Security
Techniques Requirements of Separation Components of Network and Terminal
Equipment".
The main differences between this Standard and GB/T 20279-2006 are as follows.
- The products were classified into terminal separation products, network separation
products and network unilateral transmission products;
- The products were uniformly divided into basic-level and enhanced-level;
- The description of terminal separation products, network separation products
and network unilateral transmission products were added;
- The requirement of the capability of supporting next generation internet protocol
was added;
- The basic principles of technical requirements were added in appendix, including
basic principles of security function requirements and basic principles of security
assurance requirements.
This Standard was proposed by and shall be under the jurisdiction of National
Technical Committee on Information Technology Security of Standardization
Administration of China (SAC/TC 260).
Drafting organizations of this Standard. Quality Supervision Testing Center of
Computer Information System Security Products of the Ministry of Public Security,
Zhuhai Victory Idea Co., Ltd., Nanjing Shenyi Network Technology Co., Ltd. AND The
Third Research Institute of Ministry of Public Security.
Chief drafters of this Standard. Lu Zhen, Gu Jian, Yu You, Li Xuan, Deng Qi, Zuo Anji,
Lu Wenli and Liu Bin.
Information Security Technology-Security Technical
Requirements of Network and Terminal Separation
Products

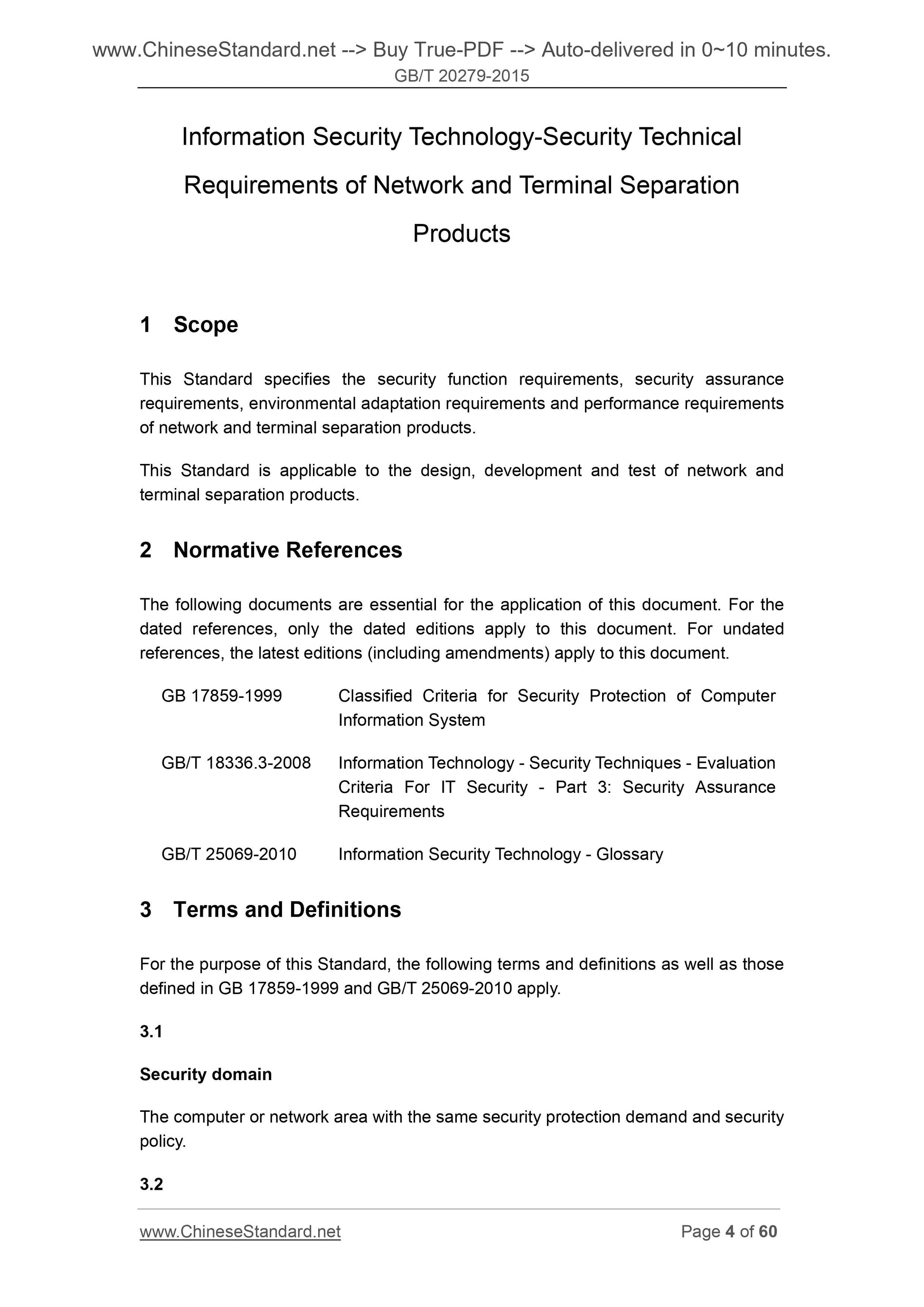

1 Scope
This Standard specifies the security function requirements, security assurance
requirements, environmental adaptation requirements and performance requirements
of network and terminal separation products.
This Standard is applicable to the design, development and test of network and
terminal separation products.
2 Normative References
The following documents are essential for the application of this document. For the
dated references, only the dated editions apply to this document. For undated
references, the latest editions (including amendments) apply to this document.
GB 17859-1999 Classified Criteria for Security Protection of Computer
Information System
GB/T 18336.3-2008 Information Technology - Security Techniques - Evaluation
Criteria For IT Security - Part 3. Security Assurance
Requirements
GB/T 25069-2010 Information Security Technology - Glossary
3 Terms and Definitions
For the purpose of this Standard, the following terms and definitions as well as those
defined in GB 17859-1999 and GB/T 25069-2010 apply.
3.1
Security domain
The computer or network area with the same security protection demand and security
policy.

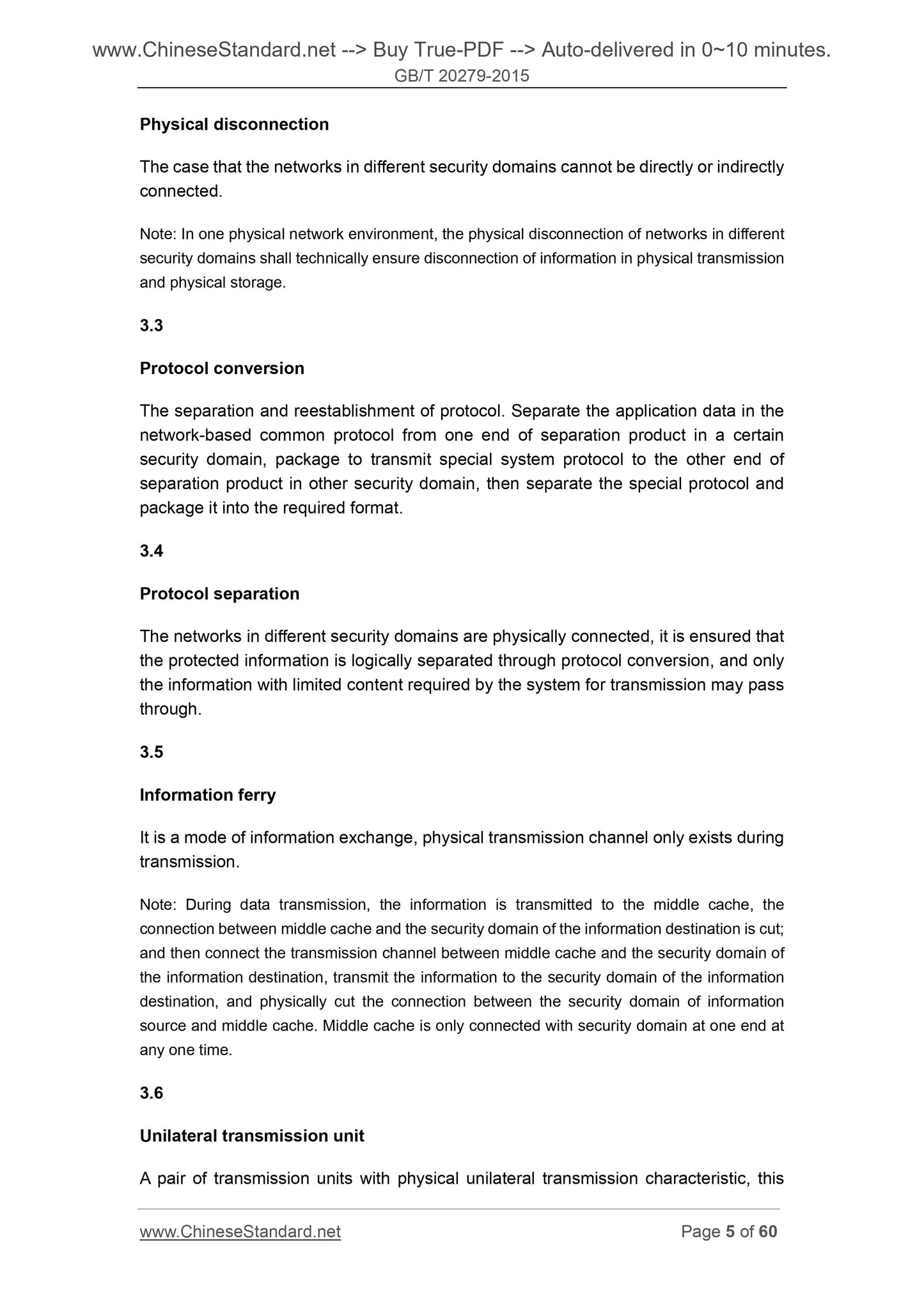

3.2

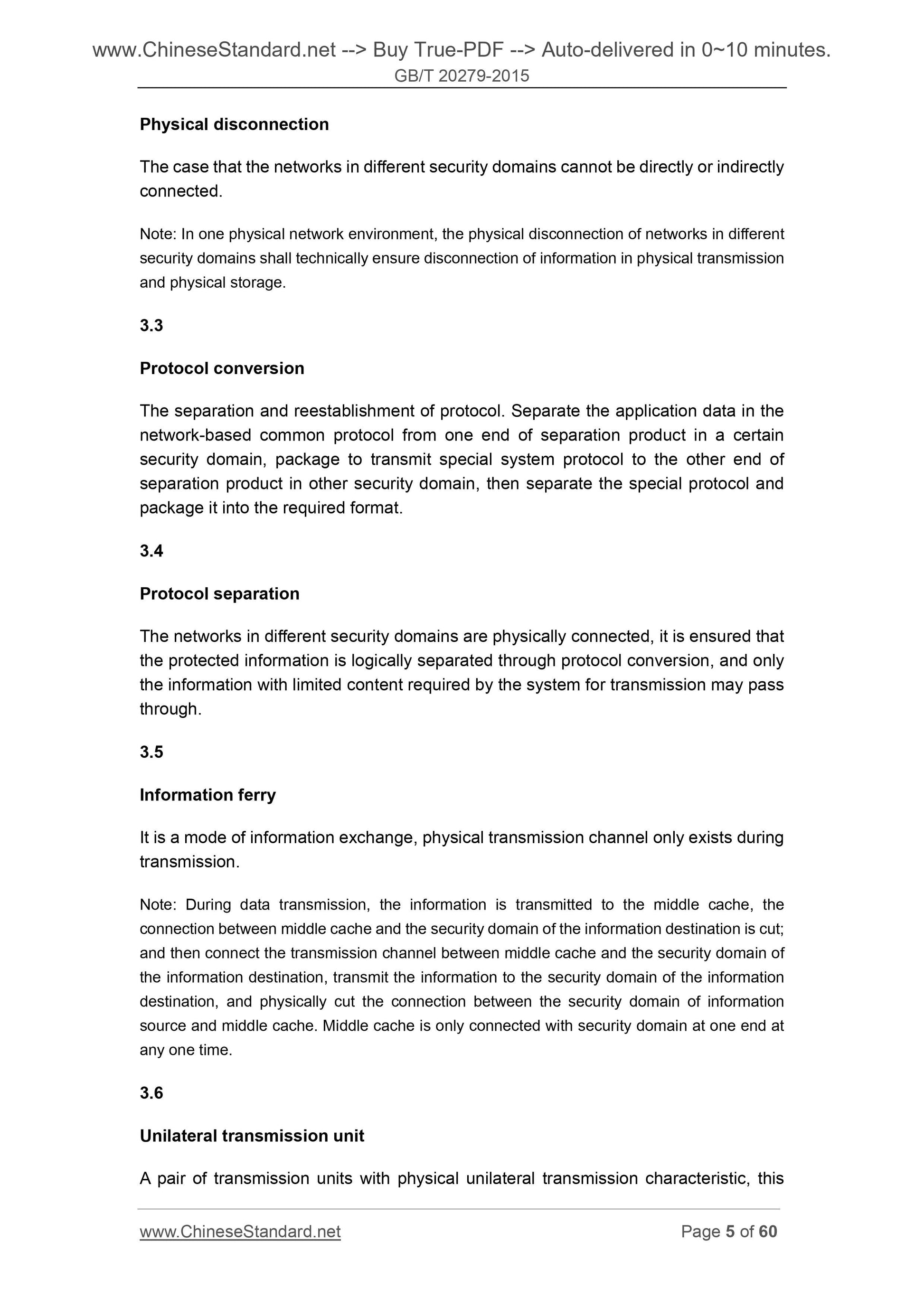

Physical disconnection
The case that the networks in different security domains cannot be directly or indirectly
connected.
Note. In one physical network environment, the physical disconnection of networks in different
security domains shall technically ensure disconnection of information in physical transmission
and physical storage.
3.3
Protocol conversion
The separation and reestablishment of protocol. Separate the application data in the
network-based common protocol from one end of separation product in a certain
security domain, package to transmit special system protocol to the other end of
separation product in other security domain, then separate the special protocol and
package it into the required format.
3.4
Protocol separation
The networks in different security domains are physically connected, it is ensured that
the protected information is logically separated through protocol conversion, and only
the information with limited content required by the system for transmission may pass
through.
3.5
Information ferry
It is a mode of information exchange, physical transmission channel only exists during
transmission.
Note. During data transmission, the information is transmitted to the middle cache, the
connection between middle cache and the security domain of the information destination is cut;
and then connect the transmission channel between middle cache and the security domain of
the information destination, transmit the information to the security domain of the information
destination, and physically cut the connection between the security domain of information
source and middle cache. Middle cache is only connected with security domain at one end at
any one time.
3.6
Unilateral transmission unit
A pair of transmission units with physical unilateral transmission characteristic, this
transmission unit consists of a pair of independent sending and receiving units, which
can only work in simplex mode, sending unit only has single sending function, and
receiving unit only has single receiving function, they form a creditable unilateral
channel, which is free from any feedback information.

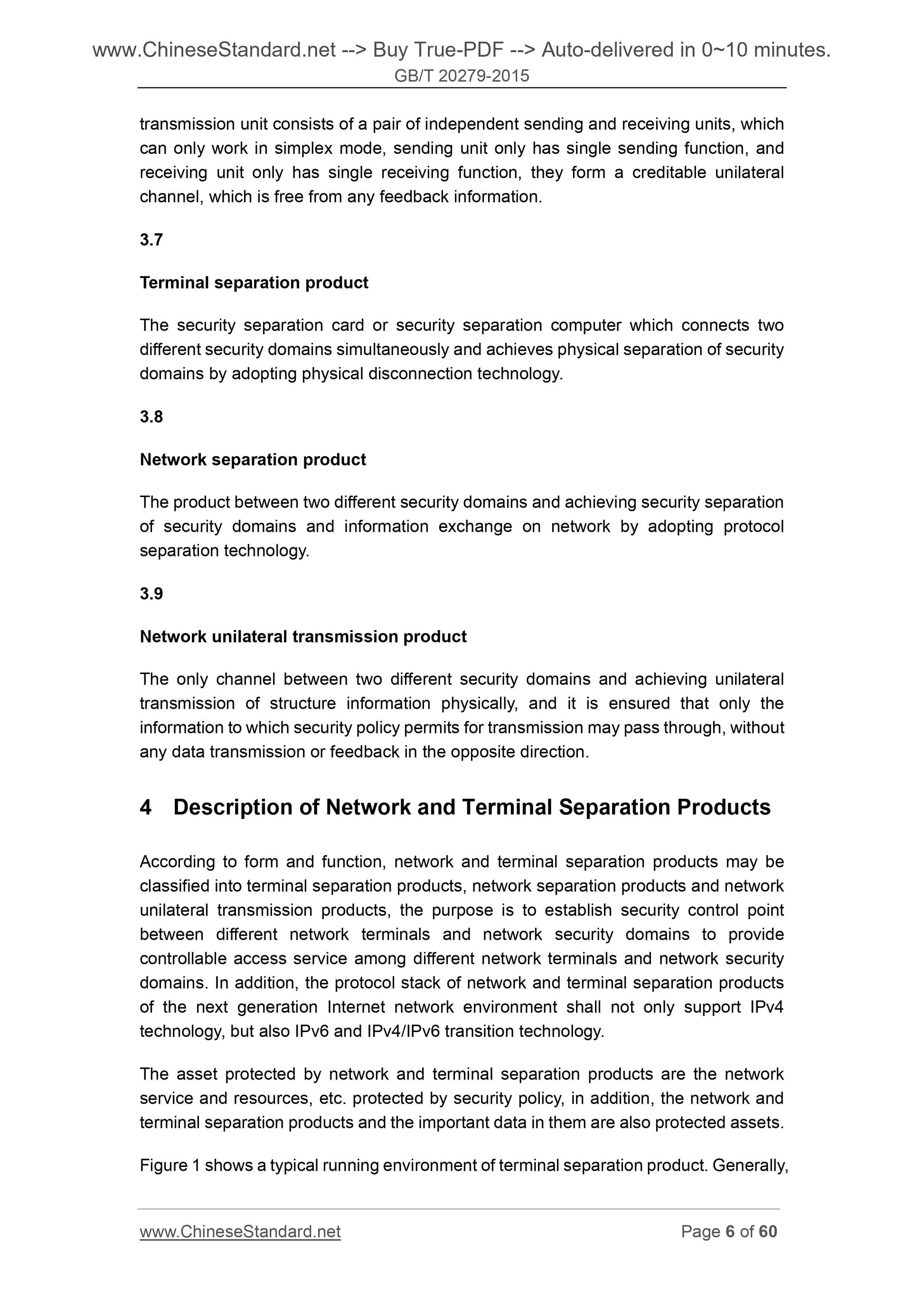

3.7
Terminal separation product
The security separation card or security separation computer which connects two
different security domains simultaneously and achieves physical separation of security
domains by adopting physical disconnection technology.
3.8
Network separation product
The product between two different security domains and achieving security separation
of security domains and information exchange on network by adopting protocol
separation technology.
3.9
Network unilateral transmission product
The only channel between two different security domains and achieving unilateral
transmission of structure information physically, and it is ensured that only the
information to which security policy permits for...
