GB/T 19951-2005: Road vehicles -- Test methods for electrical disturbances from electrostatic discharge

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 19951-2005 (Self-service in 1-minute)
Newer / historical versions: GB/T 19951-2005

Preview True-PDF

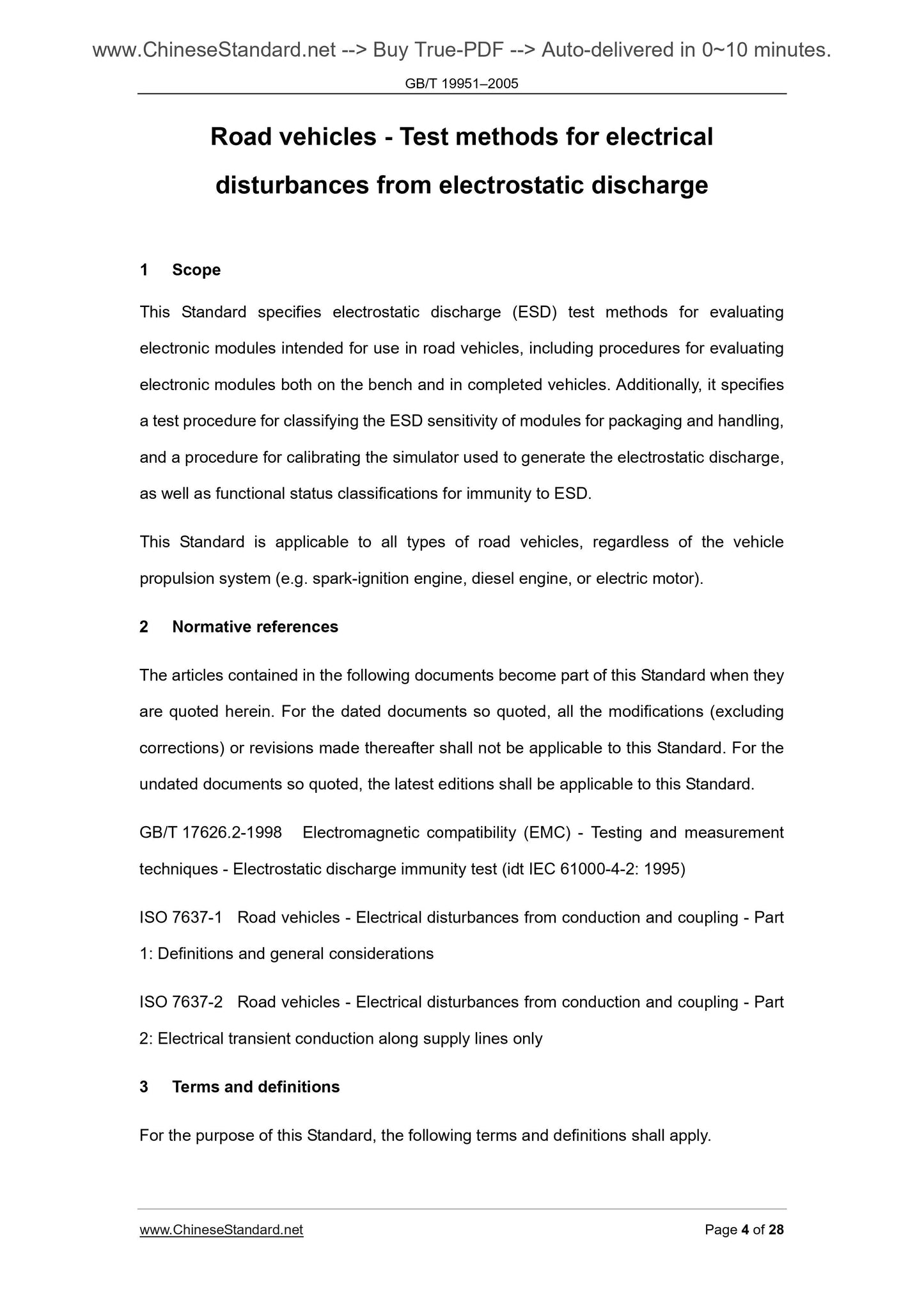

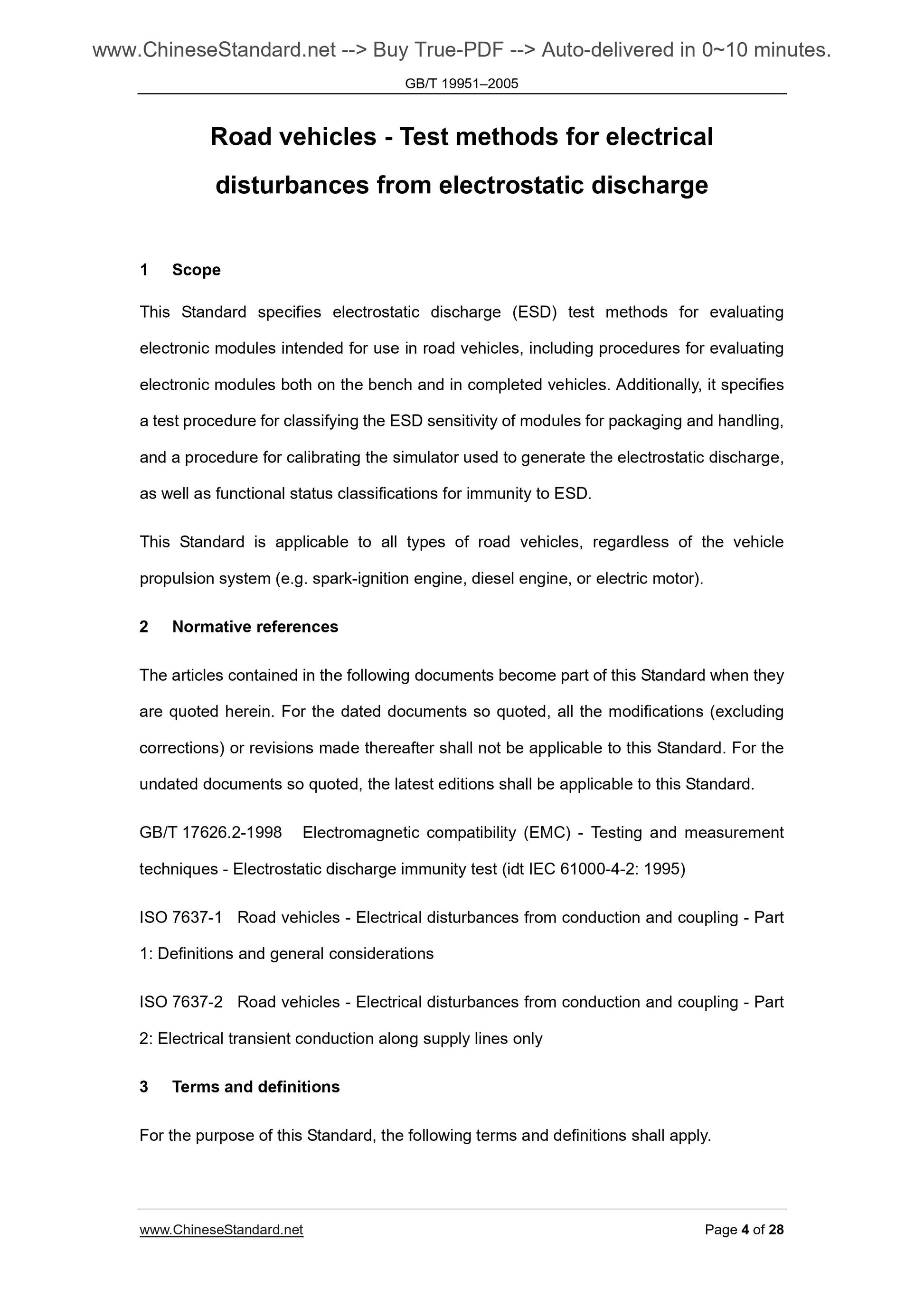

Scope

This Standard specifies electrostatic discharge (ESD) test methods for evaluating
electronic modules intended for use in road vehicles, including procedures for evaluating
electronic modules both on the bench and in completed vehicles. Additionally, it specifies
a test procedure for classifying the ESD sensitivity of modules for packaging and handling,
and a procedure for calibrating the simulator used to generate the electrostatic discharge,
as well as functional status classifications for immunity to ESD.
This Standard is applicable to all types of road vehicles, regardless of the vehicle
propulsion system (e.g. spark-ignition engine, diesel engine, or electric motor).

Basic Data

Standard ID	GB/T 19951-2005 (GB/T19951-2005)
Description (Translated English)	Road vehicles - Test methods for electrical disturbances from electrostatic discharge
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	L06
Classification of International Standard	33.100
Word Count Estimation	19,122
Date of Issue	2005-10-08
Date of Implementation	2006-04-01
Adopted Standard	ISO 10605-2001, IDT
Regulation (derived from)	Announcement of Newly Approved National Standards No. 13 of 2005 (No. 87 overall)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People Republic of China, China National Standardization Administration Committee
Summary	This standard specifies the installation in road vehicles within the electronic modules and systems, electrostatic discharge (ESD) test methods, including in the two states bench and vehicle electronic module of the program under evaluation. In addition, the standard also specifies requirements for packaging as shipped in ESD Sensitivity Classification module test procedures, test for electrostatic discharge simulator calibration procedures, and functional status classification for immunity. This standard applies to all road vehicles, no matter what it is using the drive system (eg spark ignition engines, diesel engines, electric motors).
