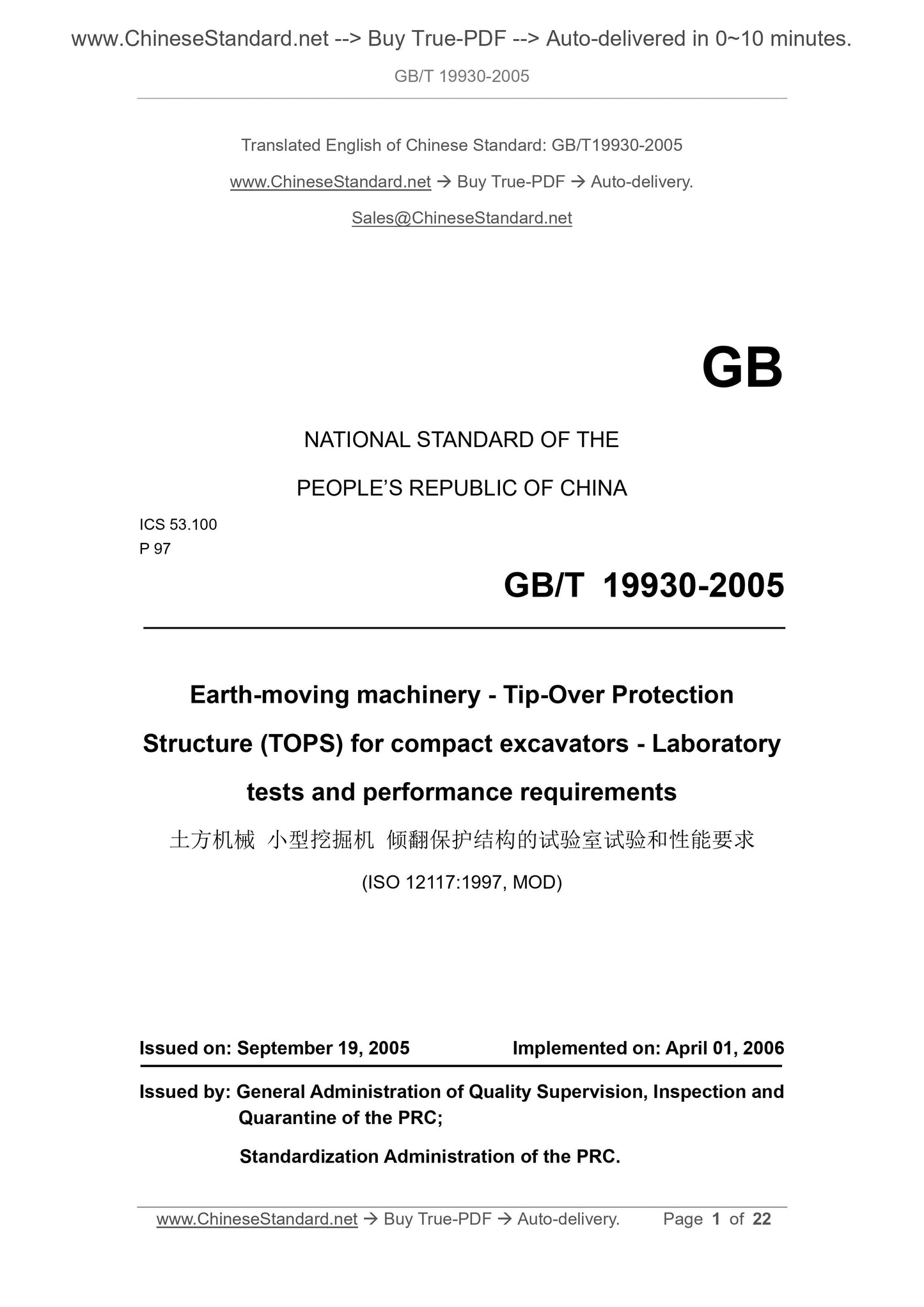

GB/T 19930-2005
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 53.100
P 97
Earth-moving machinery - Tip-Over Protection
Structure (TOPS) for compact excavators - Laboratory
tests and performance requirements
(ISO 12117.1997, MOD)
ISSUED ON. SEPTEMBER 19, 2005
IMPLEMENTED ON. APRIL 01, 2006
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the PRC;
Standardization Administration of the PRC.

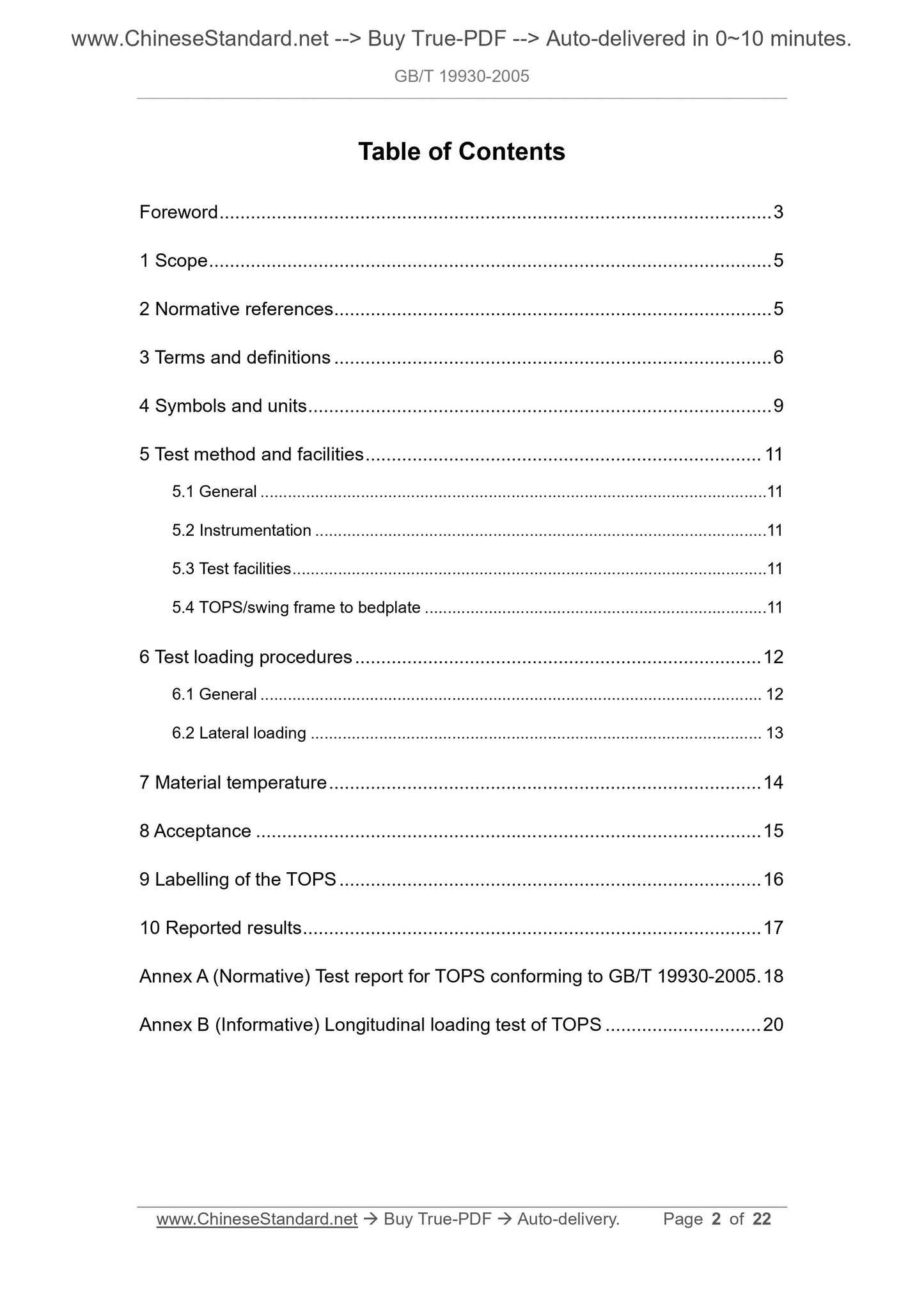

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Symbols and units ... 9
5 Test method and facilities ... 11
5.1 General ... 11
5.2 Instrumentation ... 11
5.3 Test facilities ... 11
5.4 TOPS/swing frame to bedplate ... 11
6 Test loading procedures ... 12
6.1 General ... 12
6.2 Lateral loading ... 13
7 Material temperature ... 14
8 Acceptance ... 15
9 Labelling of the TOPS ... 16
10 Reported results ... 17
Annex A (Normative) Test report for TOPS conforming to GB/T 19930-2005 . 18
Annex B (Informative) Longitudinal loading test of TOPS ... 20

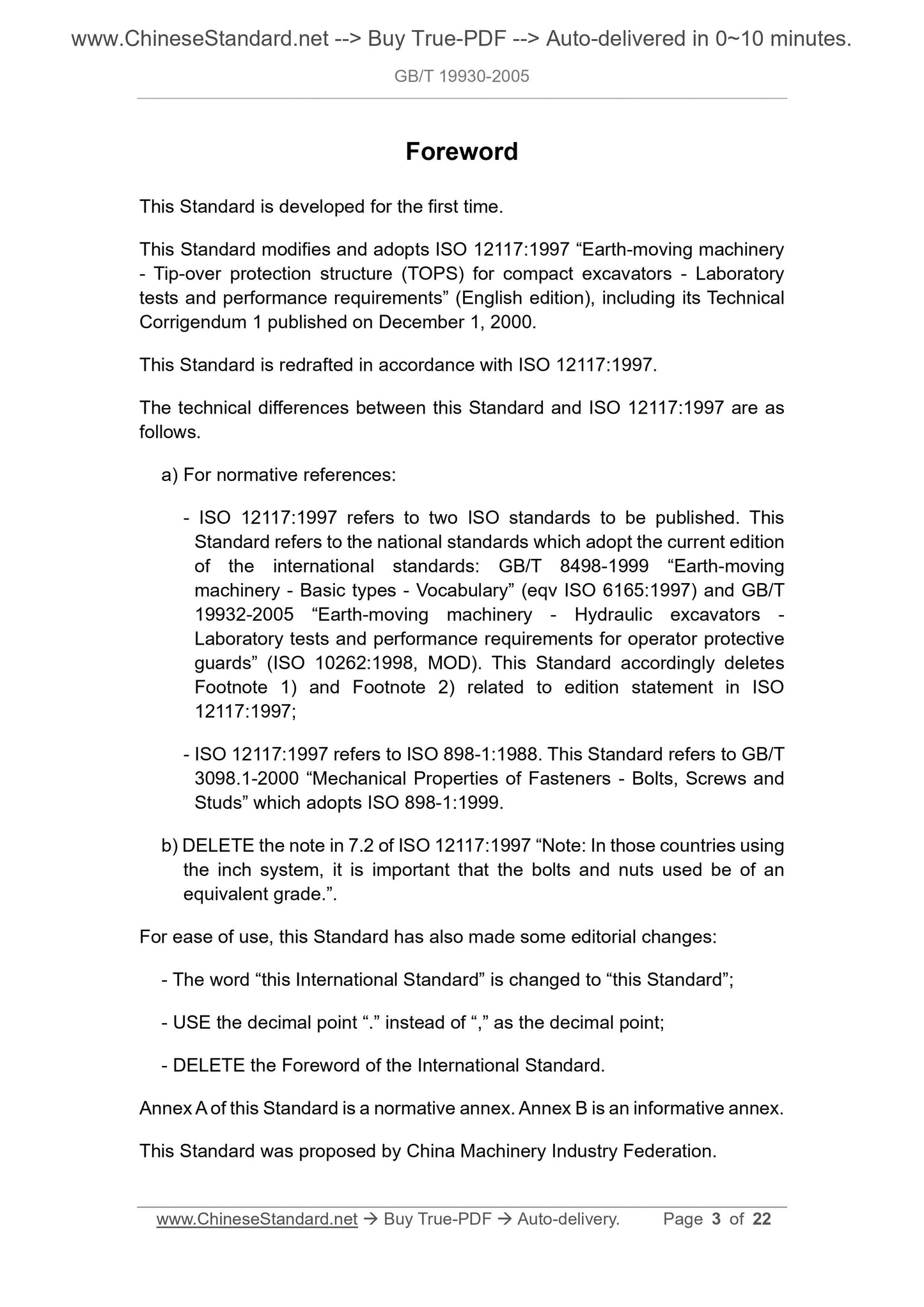

Foreword
This Standard is developed for the first time.
This Standard modifies and adopts ISO 12117.1997 “Earth-moving machinery
- Tip-over protection structure (TOPS) for compact excavators - Laboratory
tests and performance requirements” (English edition), including its Technical
Corrigendum 1 published on December 1, 2000.
This Standard is redrafted in accordance with ISO 12117.1997.
The technical differences between this Standard and ISO 12117.1997 are as
follows.
a) For normative references.
- ISO 12117.1997 refers to two ISO standards to be published. This
Standard refers to the national standards which adopt the current edition
of the international standards. GB/T 8498-1999 “Earth-moving
machinery - Basic types - Vocabulary” (eqv ISO 6165.1997) and GB/T
19932-2005 “Earth-moving machinery - Hydraulic excavators -
Laboratory tests and performance requirements for operator protective
guards” (ISO 10262.1998, MOD). This Standard accordingly deletes
Footnote 1) and Footnote 2) related to edition statement in ISO
12117.1997;
- ISO 12117.1997 refers to ISO 898-1.1988. This Standard refers to GB/T
3098.1-2000 “Mechanical Properties of Fasteners - Bolts, Screws and
Studs” which adopts ISO 898-1.1999.
b) DELETE the note in 7.2 of ISO 12117.1997 “Note. In those countries using
the inch system, it is important that the bolts and nuts used be of an
equivalent grade.”.
For ease of use, this Standard has also made some editorial changes.
- The word “this International Standard” is changed to “this Standard”;
- USE the decimal point “.” instead of “,” as the decimal point;
- DELETE the Foreword of the International Standard.
Annex A of this Standard is a normative annex. Annex B is an informative annex.
This Standard was proposed by China Machinery Industry Federation.
Earth-moving machinery - Tip-Over Protection
Structure (TOPS) for compact excavators - Laboratory
tests and performance requirements

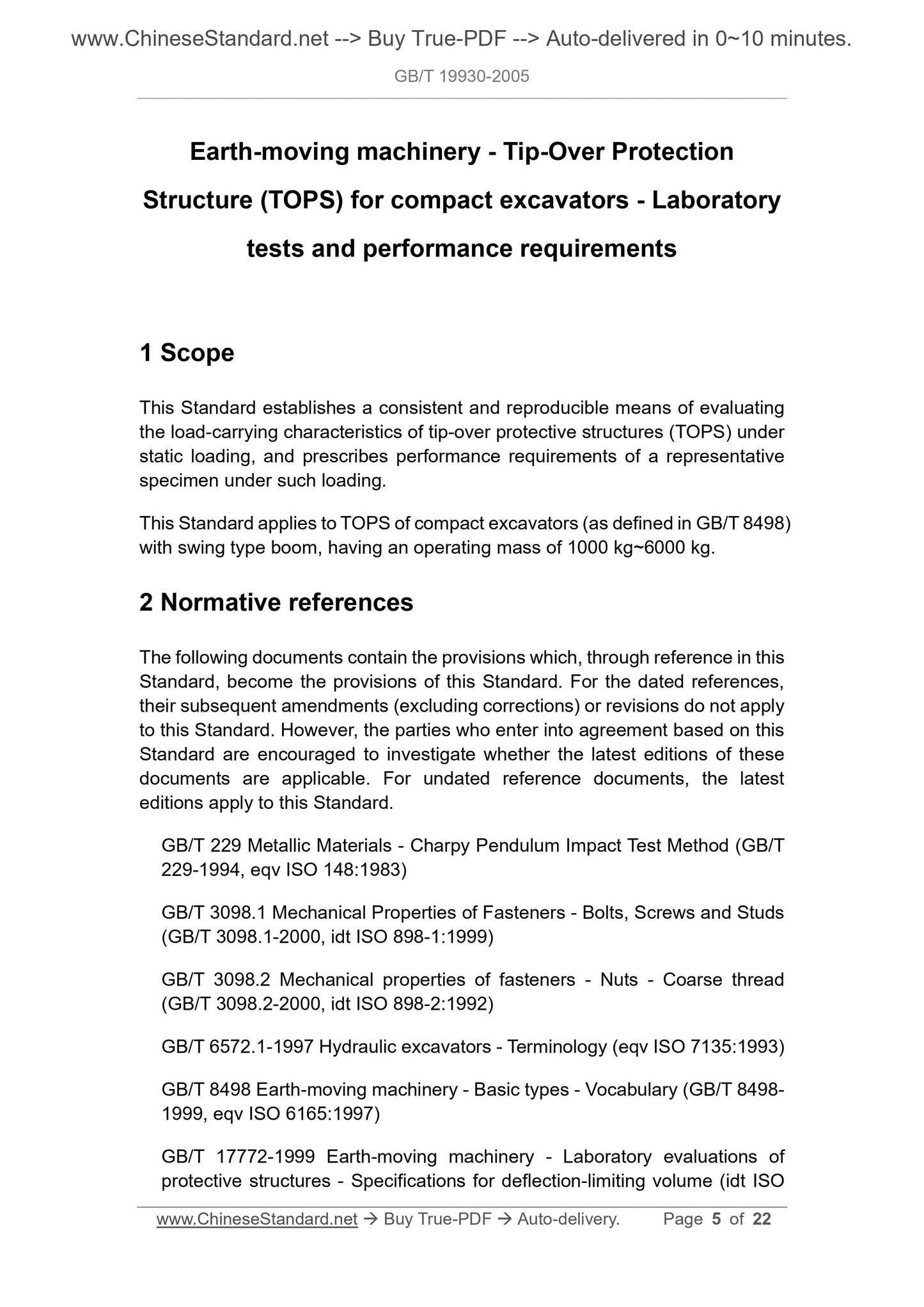

1 Scope
This Standard establishes a consistent and reproducible means of evaluating
the load-carrying characteristics of tip-over protective structures (TOPS) under
static loading, and prescribes performance requirements of a representative
specimen under such loading.
This Standard applies to TOPS of compact excavators (as defined in GB/T 8498)
with swing type boom, having an operating mass of 1000 kg~6000 kg.
2 Normative references
The following documents contain the provisions which, through reference in this
Standard, become the provisions of this Standard. For the dated references,
their subsequent amendments (excluding corrections) or revisions do not apply
to this Standard. However, the parties who enter into agreement based on this
Standard are encouraged to investigate whether the latest editions of these
documents are applicable. For undated reference documents, the latest
editions apply to this Standard.
GB/T 229 Metallic Materials - Charpy Pendulum Impact Test Method (GB/T
229-1994, eqv ISO 148.1983)
GB/T 3098.1 Mechanical Properties of Fasteners - Bolts, Screws and Studs
(GB/T 3098.1-2000, idt ISO 898-1.1999)
GB/T 3098.2 Mechanical properties of fasteners - Nuts - Coarse thread
(GB/T 3098.2-2000, idt ISO 898-2.1992)
GB/T 6572.1-1997 Hydraulic excavators - Terminology (eqv ISO 7135.1993)
GB/T 8498 Earth-moving machinery - Basic types - Vocabulary (GB/T 8498-
1999, eqv ISO 6165.1997)
GB/T 17772-1999 Earth-moving machinery - Laboratory evaluations of
protective structures - Specifications for deflection-limiting volume (idt ISO
3164.1995)
GB/T 17921-1999 Earth-moving machinery - Seat belts and seat belt
anchorages (idt ISO 6683.1981)
GB/T 19932 Earth-moving machinery - Hydraulic excavators - Laboratory
tests and performance requirements for operator protective guards (GB/T
19932-2005, ISO 10262.1998, MOD)
JB/T 7690 Engineering machinery - Unit and measurement accuracy for
dimension and performance (JB/T 7690-1995, eqv ISO 9248.1992)

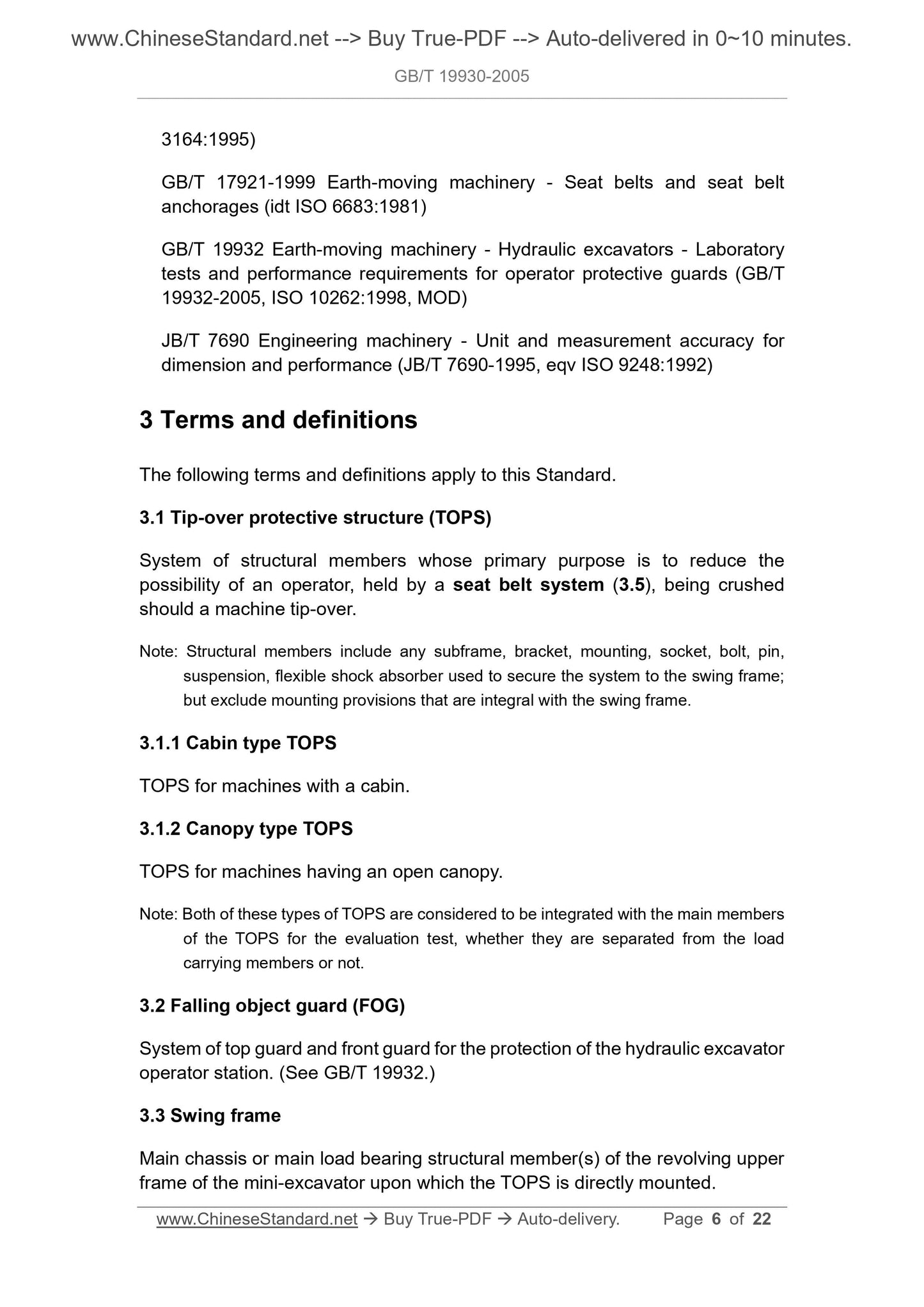

3 Terms and definitions
The following terms and definitions apply to this Standard.
3.1 Tip-over protective structure (TOPS)
System of structural members whose primary purpose is to reduce the
possibility of an operator, held by a seat belt system (3.5), being crushed
should a machine tip-over.
Note. Structural members include any subframe, bracket, mounting, socket, bolt, pin,
suspension, flexible shock absorber used to secure the system to the swing frame;
but exclude mounting provisions that are integral with the swing frame.
3.1.1 Cabin type TOPS
TOPS for machines with a cabin.
3.1.2 Canopy type TOPS
TOPS for machines having an open canopy.
Note. Both of these types of TOPS are considered to be integrated with the main members
of the TOPS for the evaluation test, whether they are separated from the load
carrying members or not.
3.2 Falling object guard (FOG)
System of top guard and front guard for the protection of the hydraulic excavator
operator station. (See GB/T 19932.)
3.3 Swing frame
Main chassis or main load bearing structural member(s) of the revolving upper
frame of the mini-excavator upon which the TOPS is directly mounted.
