GB/T 19879-2015: Steel plate for building structure

This Standard specifies the grade representation, order contents, dimension, shape, weight, tolerance, technical requirements, test methods, inspection rules, packaging, symbols and quality certificate of the steel plates for building structure.

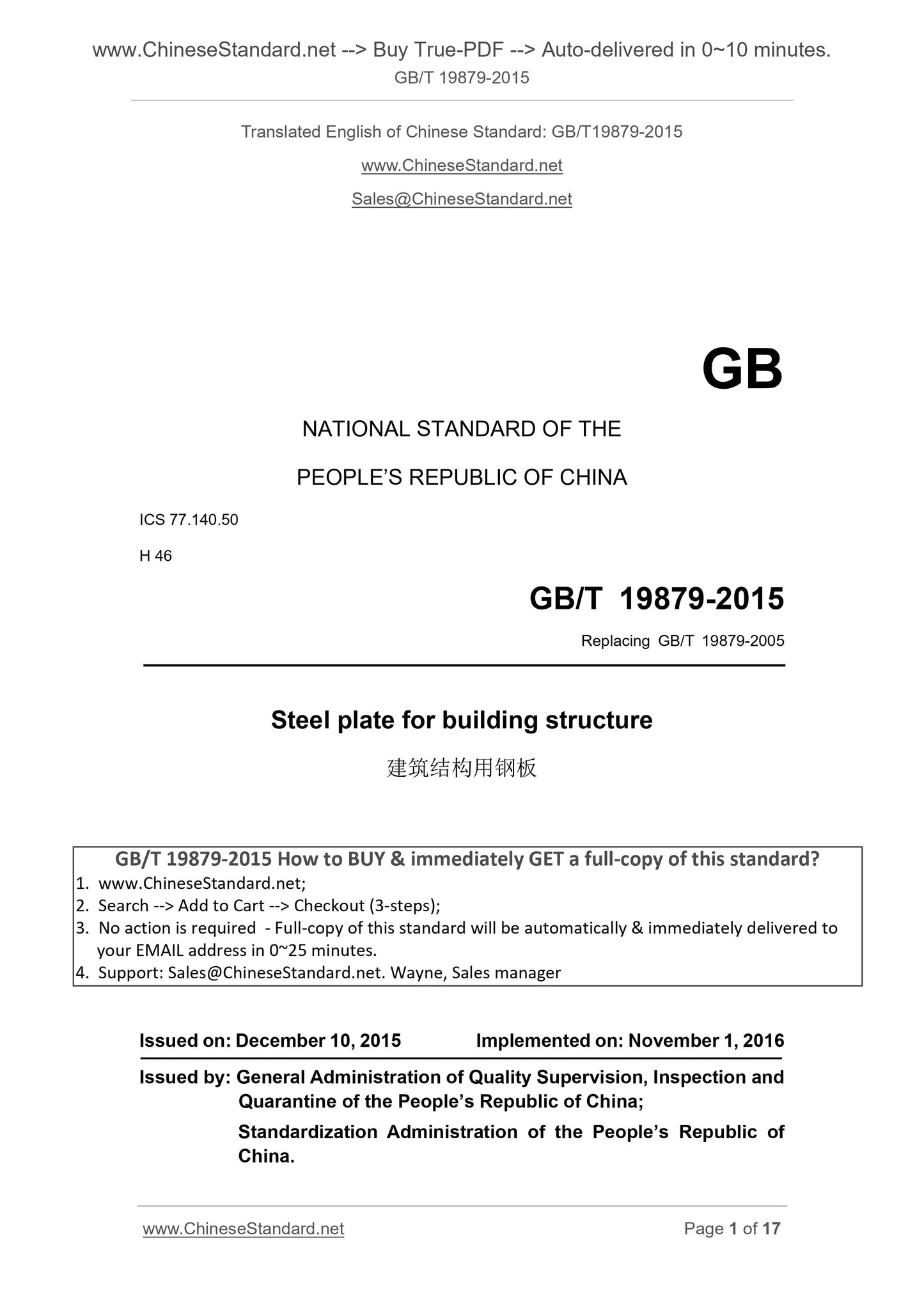

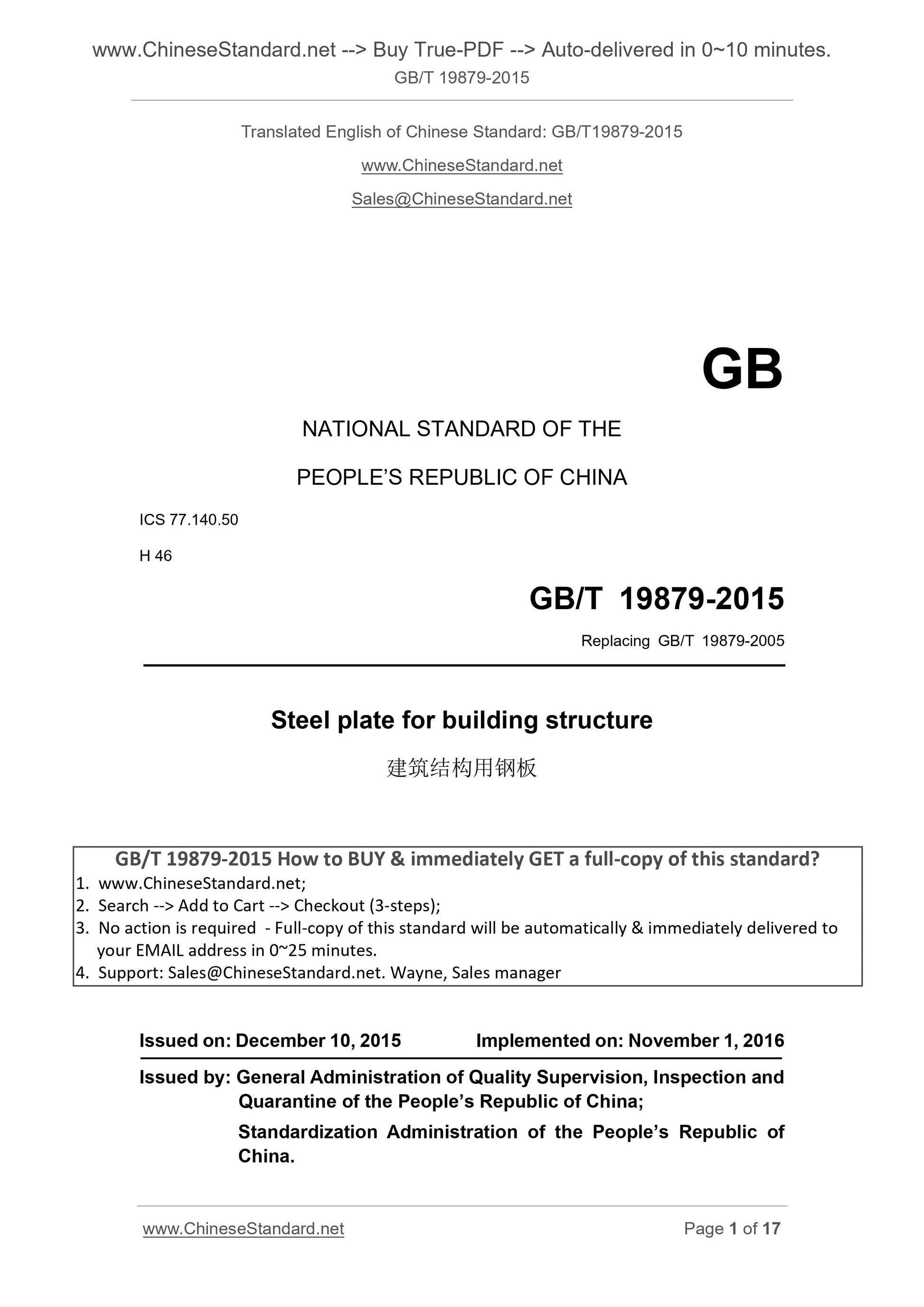

GB/T 19879-2015
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.50
H 46
Replacing GB/T 19879-2005
Steel plate for building structure
ISSUED ON. DECEMBER 10, 2015
IMPLEMENTED ON. NOVEMBER 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

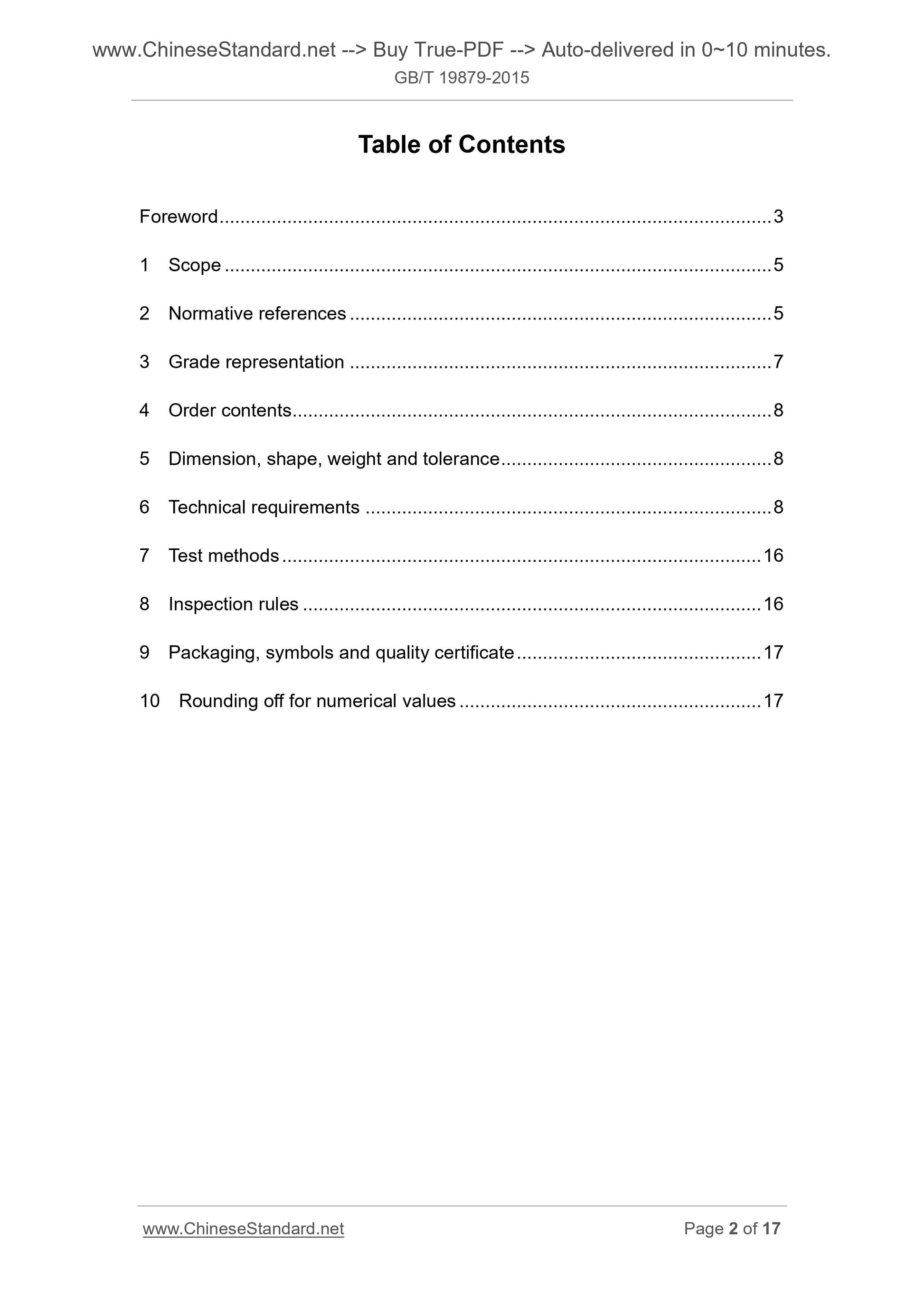

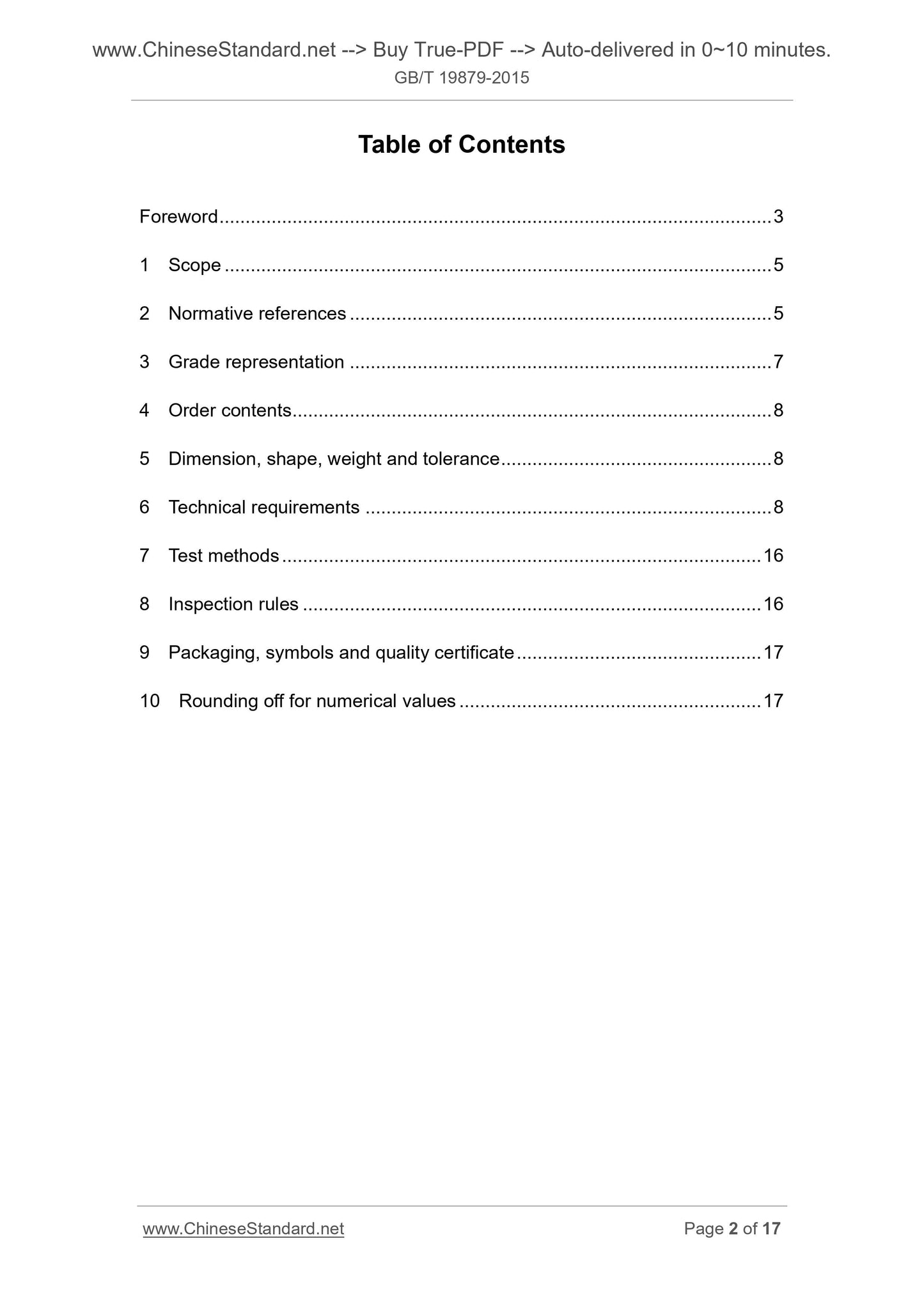

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Grade representation ... 7
4 Order contents ... 8
5 Dimension, shape, weight and tolerance ... 8
6 Technical requirements ... 8
7 Test methods ... 16
8 Inspection rules ... 16
9 Packaging, symbols and quality certificate ... 17
10 Rounding off for numerical values ... 17

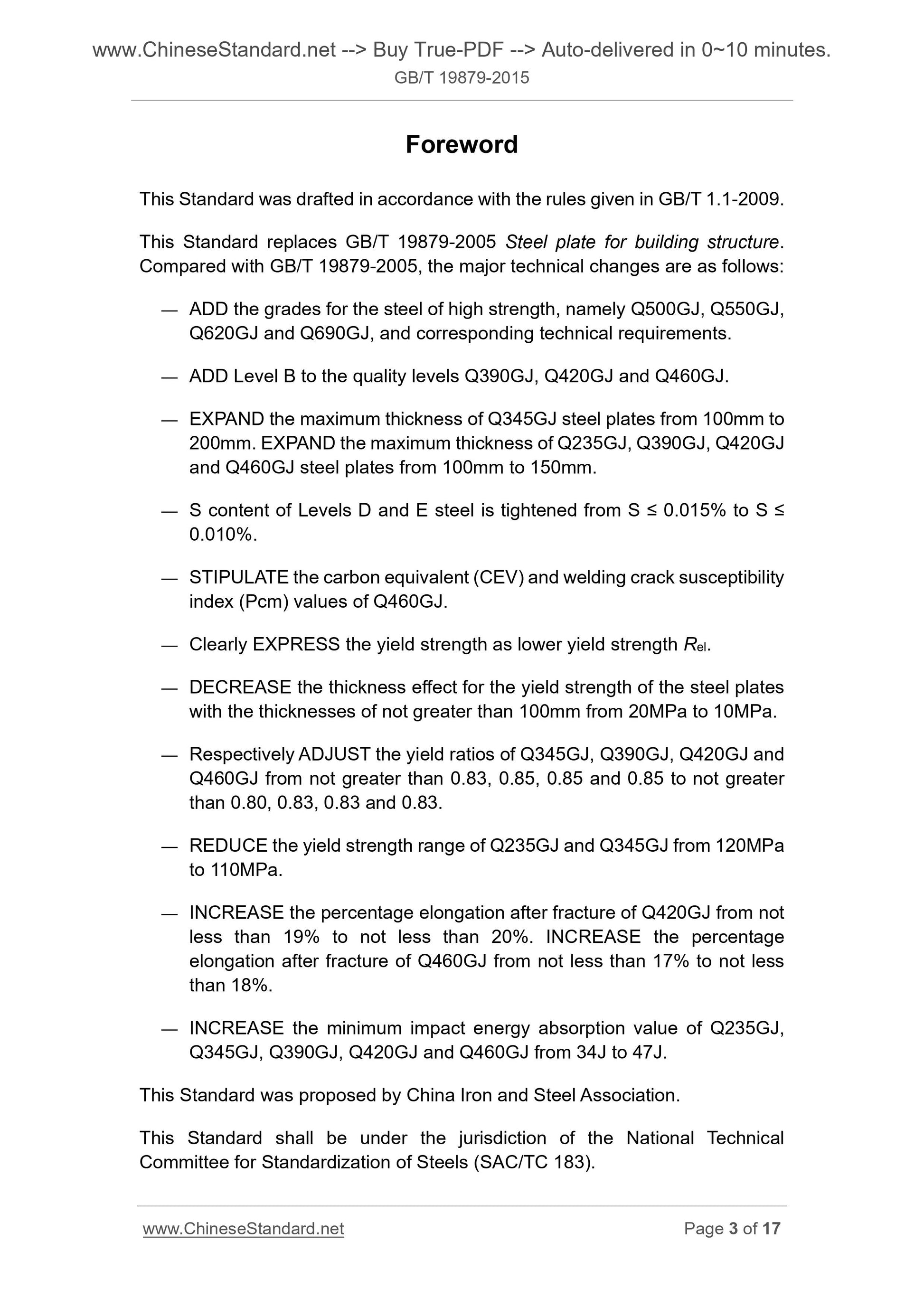

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 19879-2005 Steel plate for building structure. Compared with GB/T 19879-2005, the major technical changes are as follows. ?€? ADD the grades for the steel of high strength, namely Q500GJ, Q550GJ, Q620GJ and Q690GJ, and corresponding technical requirements.
?€? ADD Level B to the quality levels Q390GJ, Q420GJ and Q460GJ.
?€? EXPAND the maximum thickness of Q345GJ steel plates from 100mm to
200mm. EXPAND the maximum thickness of Q235GJ, Q390GJ, Q420GJ
and Q460GJ steel plates from 100mm to 150mm.
?€? S content of Levels D and E steel is tightened from S ??? 0.015% to S ??? 0.010%.
?€? STIPULATE the carbon equivalent (CEV) and welding crack susceptibility index (Pcm) values of Q460GJ.
?€? Clearly EXPRESS the yield strength as lower yield strength Rel.
?€? DECREASE the thickness effect for the yield strength of the steel plates with the thicknesses of not greater than 100mm from 20MPa to 10MPa.
?€? Respectively ADJUST the yield ratios of Q345GJ, Q390GJ, Q420GJ and
Q460GJ from not greater than 0.83, 0.85, 0.85 and 0.85 to not greater
than 0.80, 0.83, 0.83 and 0.83.
?€? REDUCE the yield strength range of Q235GJ and Q345GJ from 120MPa
to 110MPa.
?€? INCREASE the percentage elongation after fracture of Q420GJ from not
less than 19% to not less than 20%. INCREASE the percentage
elongation after fracture of Q460GJ from not less than 17% to not less
than 18%.
?€? INCREASE the minimum impact energy absorption value of Q235GJ,
Q345GJ, Q390GJ, Q420GJ and Q460GJ from 34J to 47J.
This Standard was proposed by China Iron and Steel Association.
This Standard shall be under the jurisdiction of the National Technical Committee for Standardization of Steels (SAC/TC 183).
Steel plate for building structure

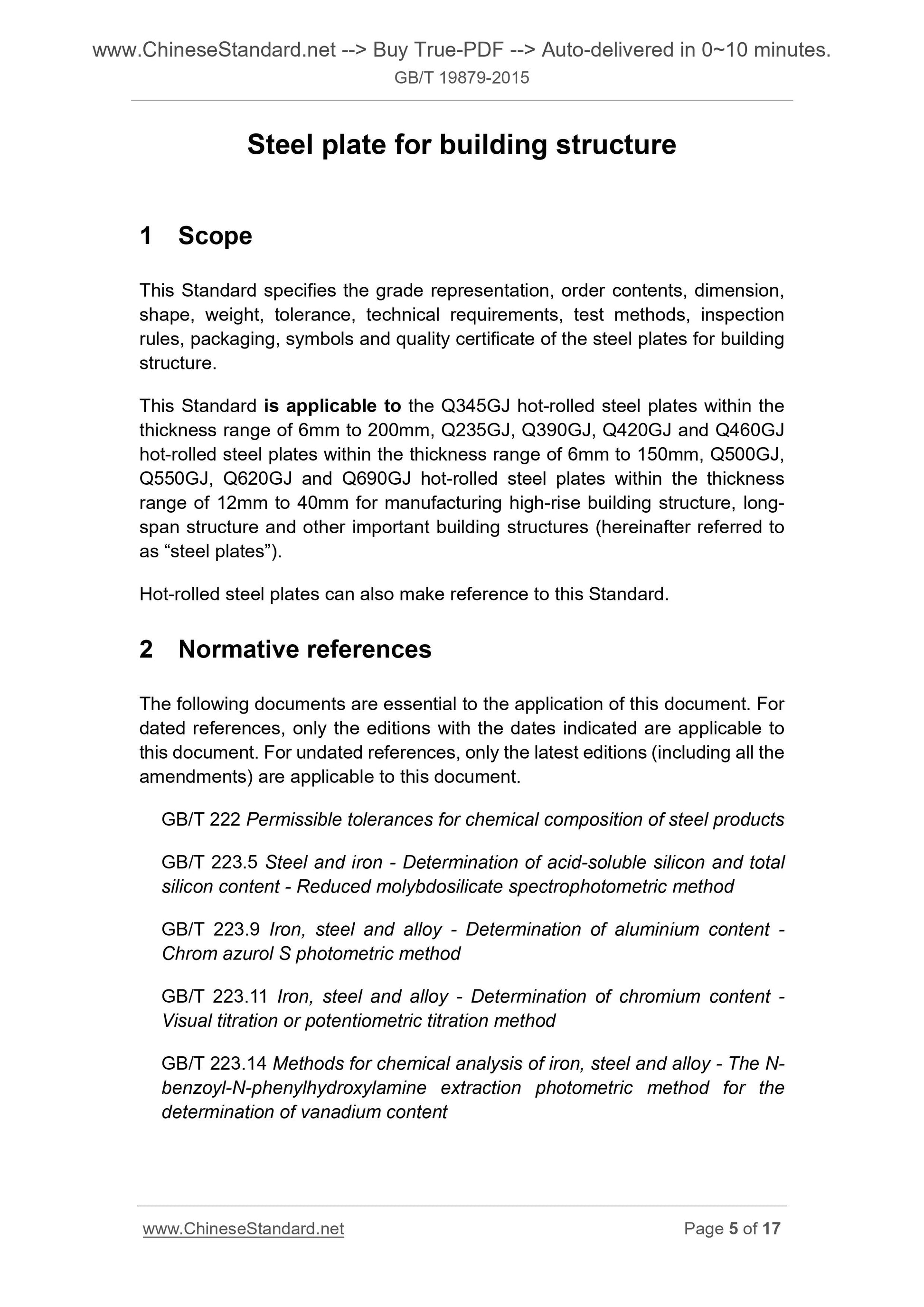

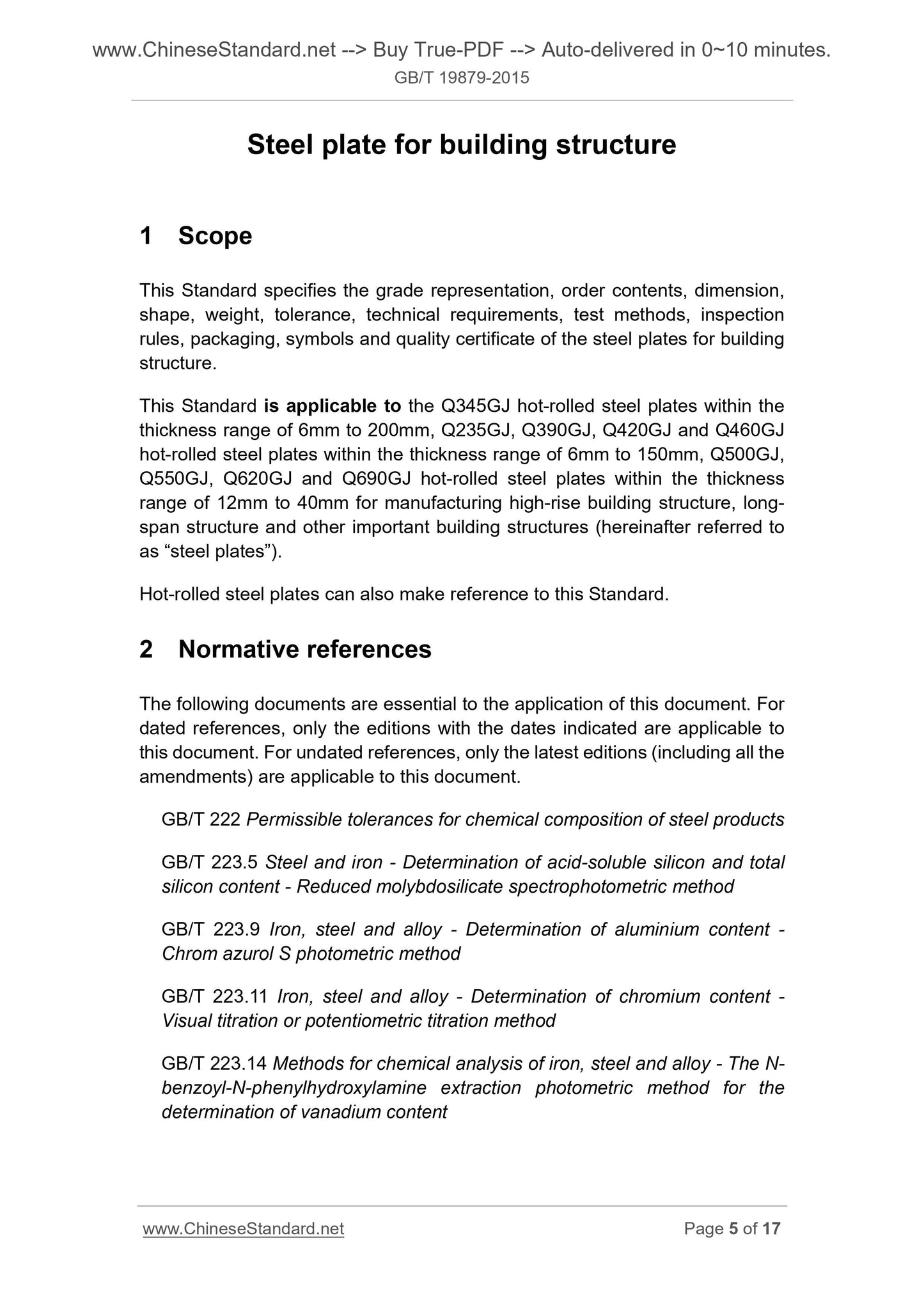

1 Scope
This Standard specifies the grade representation, order contents, dimension, shape, weight, tolerance, technical requirements, test methods, inspection rules, packaging, symbols and quality certificate of the steel plates for building structure.
This Standard is applicable to the Q345GJ hot-rolled steel plates within the thickness range of 6mm to 200mm, Q235GJ, Q390GJ, Q420GJ and Q460GJ
hot-rolled steel plates within the thickness range of 6mm to 150mm, Q500GJ, Q550GJ, Q620GJ and Q690GJ hot-rolled steel plates within the thickness
range of 12mm to 40mm for manufacturing high-rise building structure, long- span structure and other important building structures (hereinafter referred to as ?€?steel plates?€?).
Hot-rolled steel plates can also make reference to this Standard.
2 Normative references
The following documents are essential to the application of this document. For dated references, only the editions with the dates indicated are applicable to this document. For undated references, only the latest editions (including all the amendments) are applicable to this document.
GB/T 222 Permissible tolerances for chemical composition of steel products GB/T 223.5 Steel and iron - Determination of acid-soluble silicon and total silicon content - Reduced molybdosilicate spectrophotometric method
GB/T 223.9 Iron, steel and alloy - Determination of aluminium content - Chrom azurol S photometric method
GB/T 223.11 Iron, steel and alloy - Determination of chromium content - Visual titration or potentiometric titration method
GB/T 223.14 Methods for chemical analysis of iron, steel and alloy - The N- benzoyl-N-phenylhydroxylamine extraction photometric method for the
determination of vanadium content

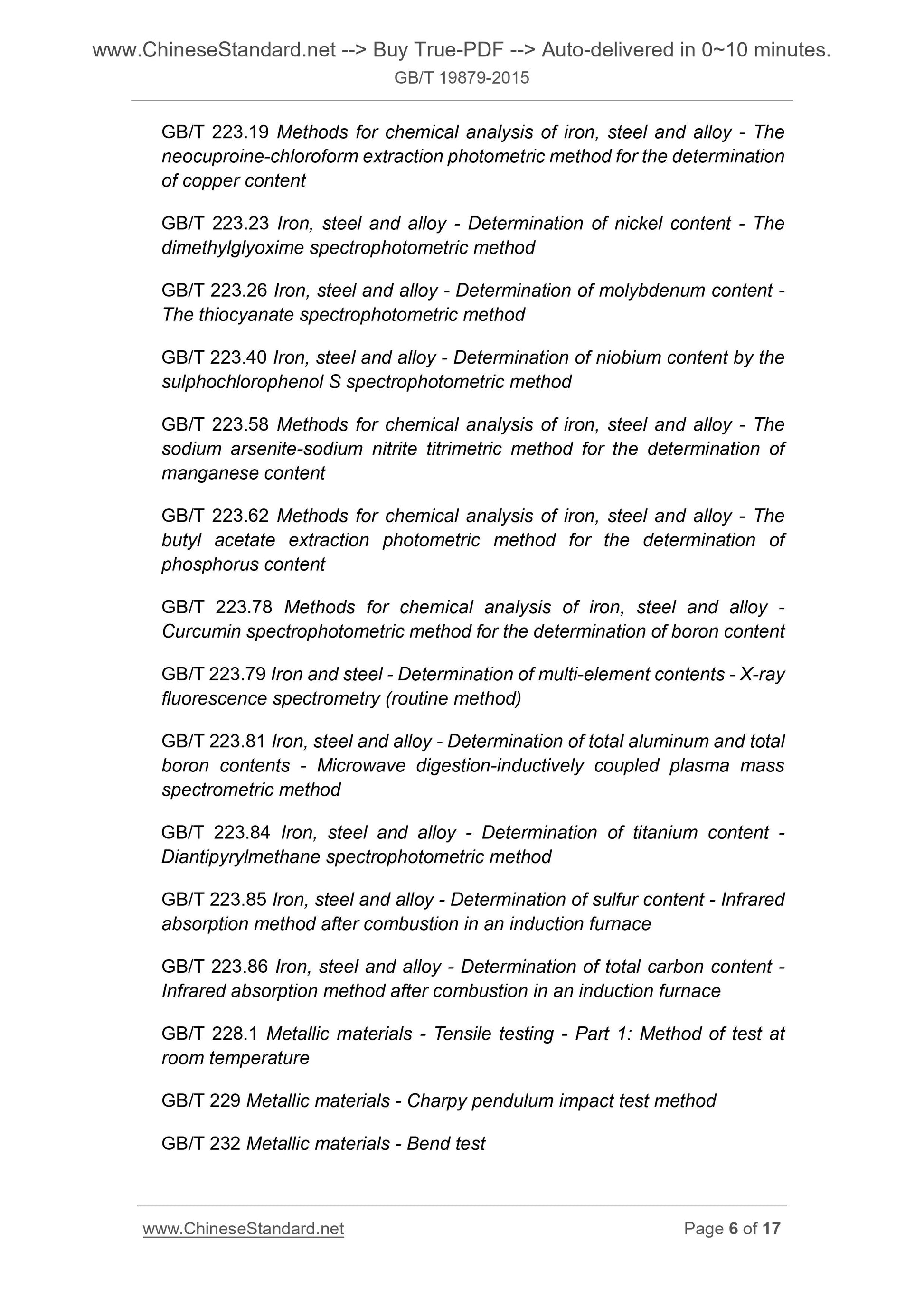

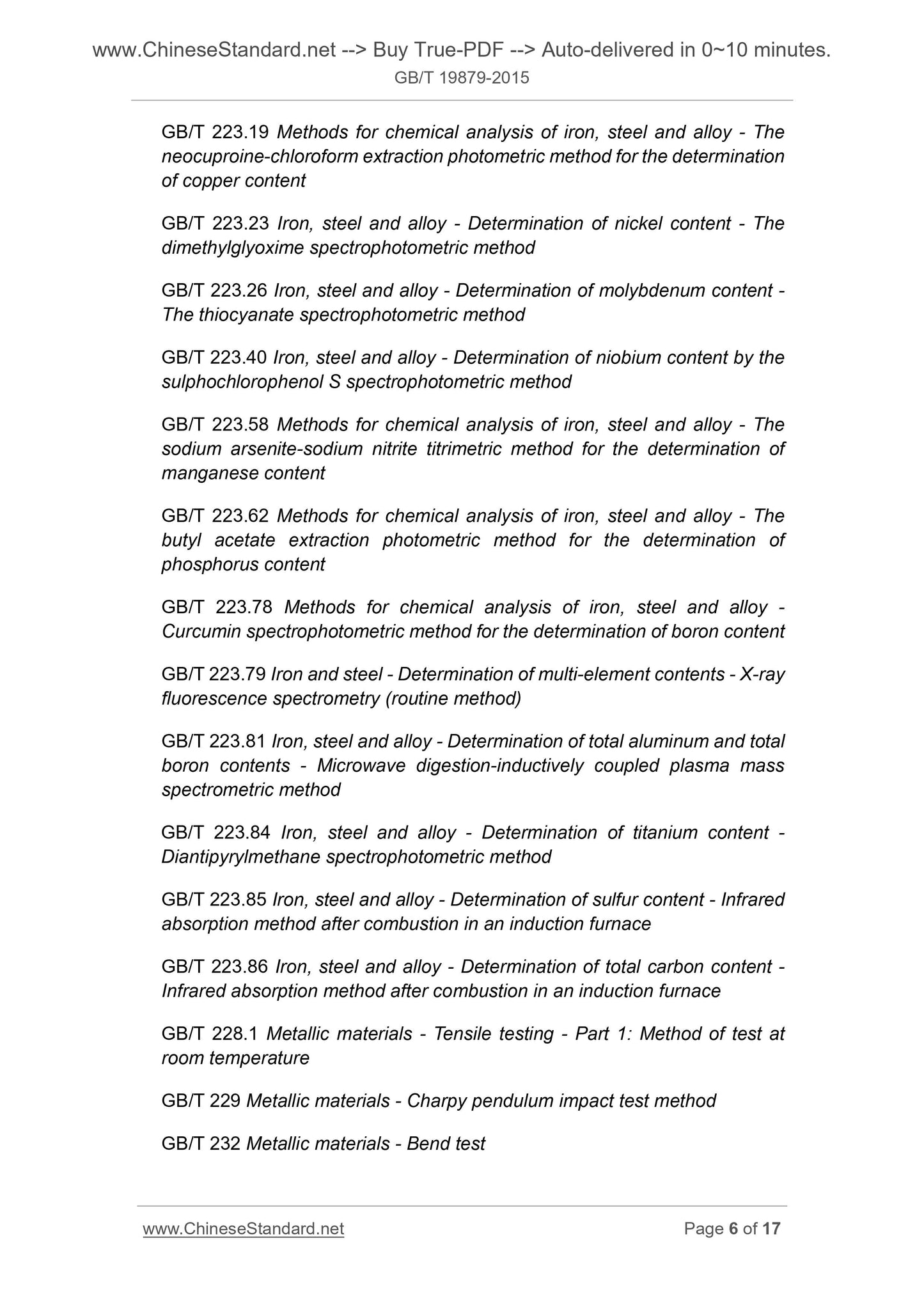

GB/T 223.19 Methods for chemical analysis of iron, steel and alloy - The neocuproine-chloroform extraction photometric method for the determination of copper content
GB/T 223.23 Iron, steel and alloy - Determination of nickel content - The dimethylglyoxime spectrophotometric method
GB/T 223.26 Iron, steel and alloy - Determination of molybdenum content - The thiocyanate spectrophotometric method
GB/T 223.40 Iron, steel and alloy - Determination of niobium content by the sulphochlorophenol S spectrophotometric method
GB/T 223.58 Methods for chemical analysis of iron, steel and alloy - The sodium arsenite-sodium nitrite titrimetric method for the determination of manganese content
GB/T 223.62 Methods for chemical analysis of iron, steel and alloy - The butyl acetate extraction photometric method for the determination of
phosphorus content
GB/T 223.78 Methods for chemical analysis of iron, steel and alloy -
Curcumin spectrophotometric method for the determination of boron content GB/T 223.79 Iron and steel - Determination of multi-element contents - X-ray fluorescence spectrometry (routine method)
GB/T 223.81 Iron, steel and alloy - Determination of total aluminum and total boron contents - Microwave digestion-inductively coupled plasma mass
spectrometric method
GB/T 223.84 Iron, steel and alloy - Determination of titanium content - Diantipyrylmethane spectrophotometric method
GB/T 223.85 Iron, steel and alloy - Determination of sulfur content - Infrared absorption method after combustion in an induction furnace
GB/T 223.86 Iron, steel and alloy - Determination of total carbon content - Infrared absorption method after combustion in an induction furnace
GB/T 228.1 Metallic materials - Tensile testing - Part 1. Method of test at room temperature
GB/T 229 Metallic materials - Charpy pendulum impact test method
GB/T 232 Metallic materials - Bend test

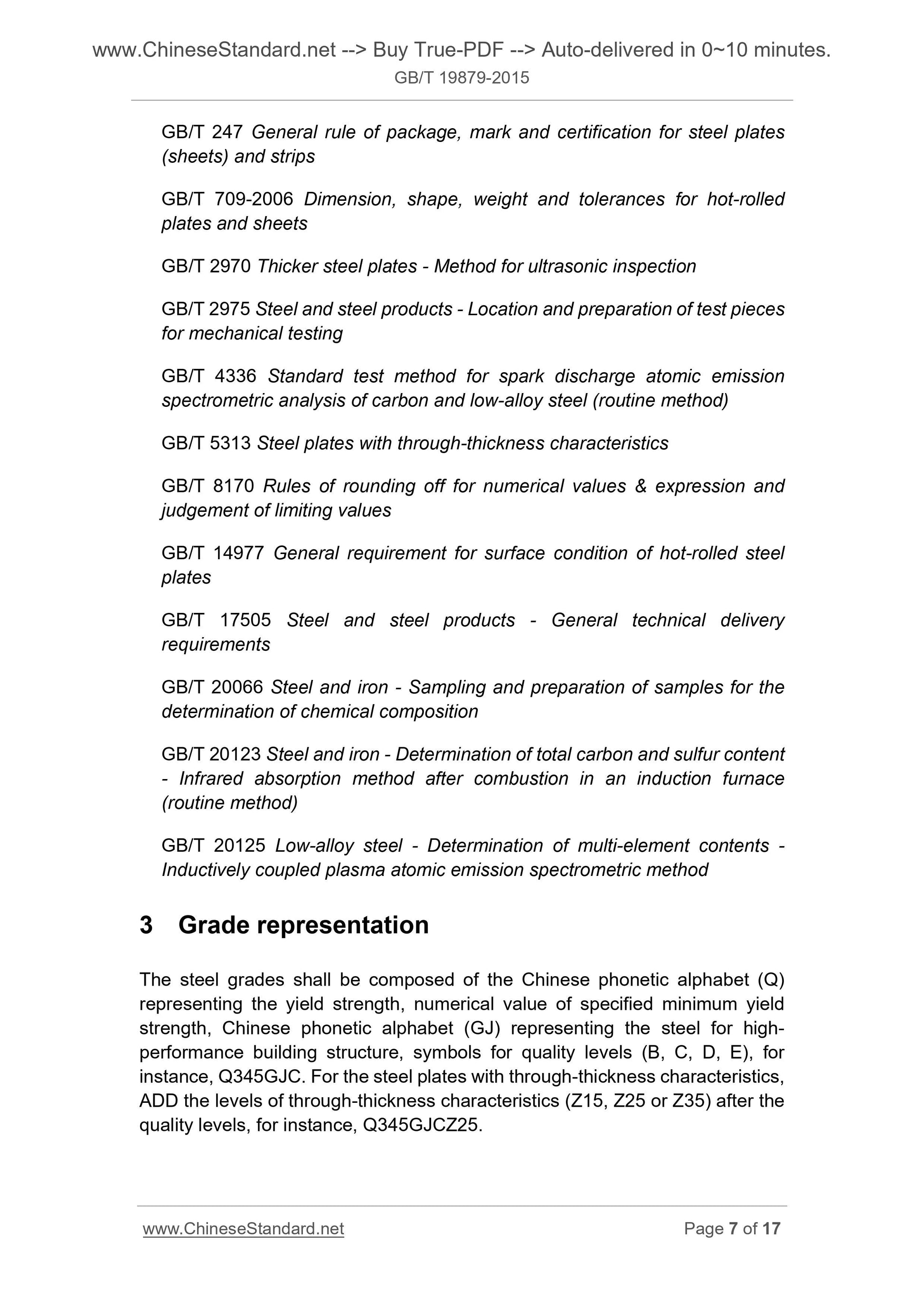

GB/T 247 General rule of package, mark and certification for steel plates (sheets) and strips
GB/T 709-2006 Dimension, shape, weight and tolerances for hot-rolled
plates and sheets
GB/T 2970 Thicker steel plates - Method for ultrasonic inspection
GB/T 2975 Steel and steel products - Location and preparation of test pieces for mechanical testing
GB/T 4336 Standard test method for spark discharge atomic emission
spectrometric analysis of carbon and low-alloy steel (routine method)
GB/T 5313 Steel plates with through-thickness characteristics
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 14977 General requirement for surface condition of hot-rolled steel plates
GB/T 17505 Steel and steel products - General technical delivery
requirements
GB/T 20066 Steel and iron - Sampling and preparation of samples for the determination of chemical composition
GB/T 20123 Steel and iron - Determination of total carbon and sulfur content - Infrared absorption method after combustion in an induction furnace
(routine method)
GB/T 20125 Low-alloy steel - Determination of multi-element contents -
Inductively coupled plasma atomic emission spectrometric method
3 Grade representation
The steel grades shall be composed of the Chinese phonetic alphabet (Q) representing the yield strength, numerical value of specified minimum yield strength, Chinese phonetic alphabet (GJ) representing the steel for high- performance building structure, symbols for quality levels (B, C, D, E), for instance, Q345GJC. For the steel plates with through-thickness characteristics, ADD the levels of through-thickness characteristics (Z15, Z25 or Z35) after the quality levels, for instance, Q345GJCZ25.

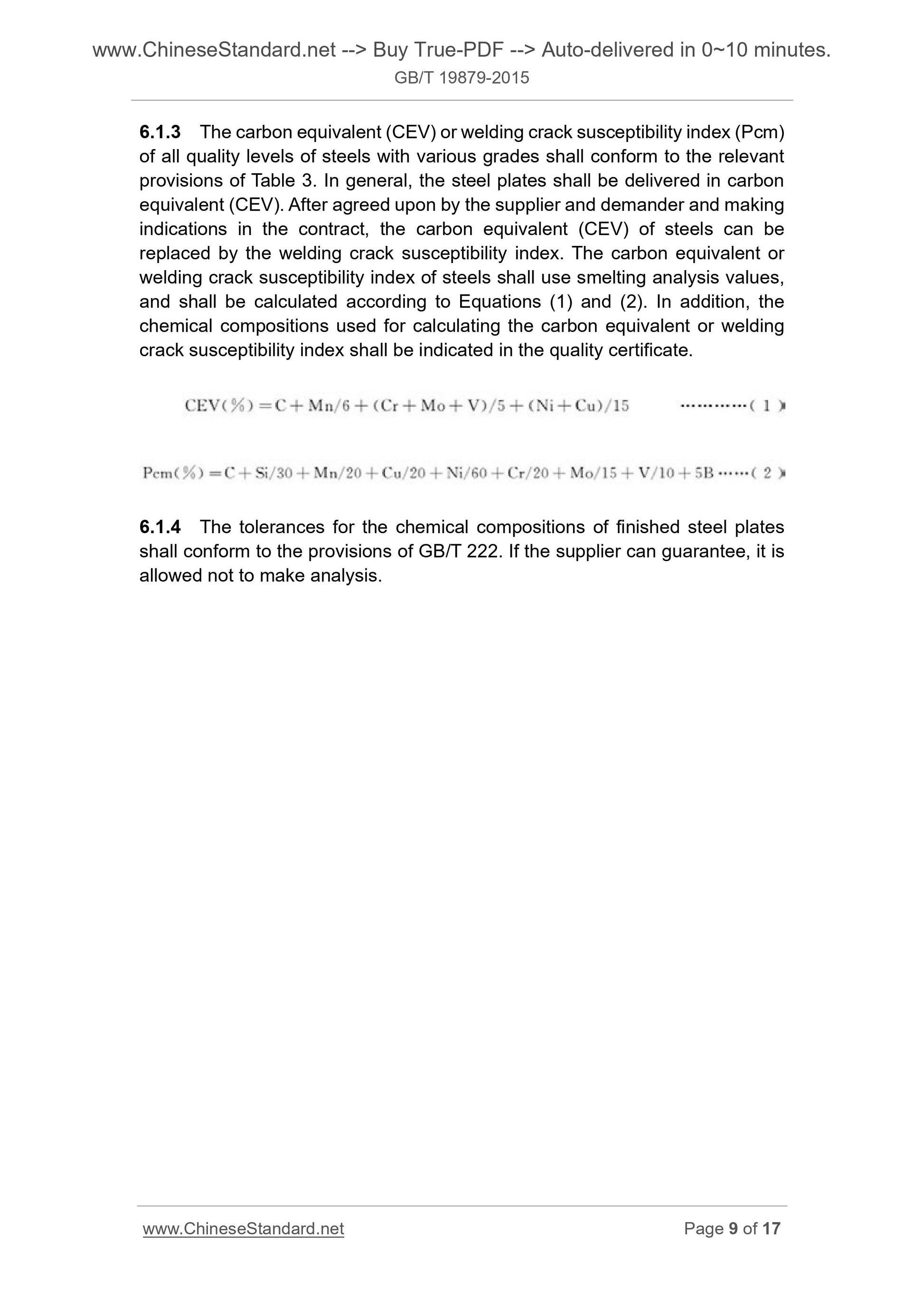

6.1.3 The carbon equivalent (CEV) or welding crack susceptibility index (Pcm) of all quality levels of steels with various grades shall conform to the relevant provisions of Table 3. In general, the steel plates shall be delivered in carbon equivalent (CEV). After agreed upon by the supplier and demander and making indications in the contract, the carbon equivalent (CEV) of steels can be replaced by the welding crack susceptibility index. The carbon equivalent or welding crack susceptibility index of steels shall use smelting analysis values, and shall be calculated according to Equations (1) and (2). In addition, the chemical compositions used for calculating the carbon equivalent or welding crack susceptibility index shall be indicated in the quality certificate. 6.1.4 The tolerances for the chemical compositions of finished steel plates shall conform to the provisions of GB/T 222. If the supplier can guarantee, it is all...
