GB/T 19866-2005: Specification and qualification of welding procedures for metallic materials -- General rules

GB/T 19866-2005
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 25.160.10
J 33
GB/T 19866-2005/ISO 15607.2003
Specification and qualification of welding
procedures for metallic materials - General rules
(ISO 15607.2003, IDT)
ISSUED ON. AUGUST 10, 2005
IMPLEMENTED ON. APRIL 01, 2006
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

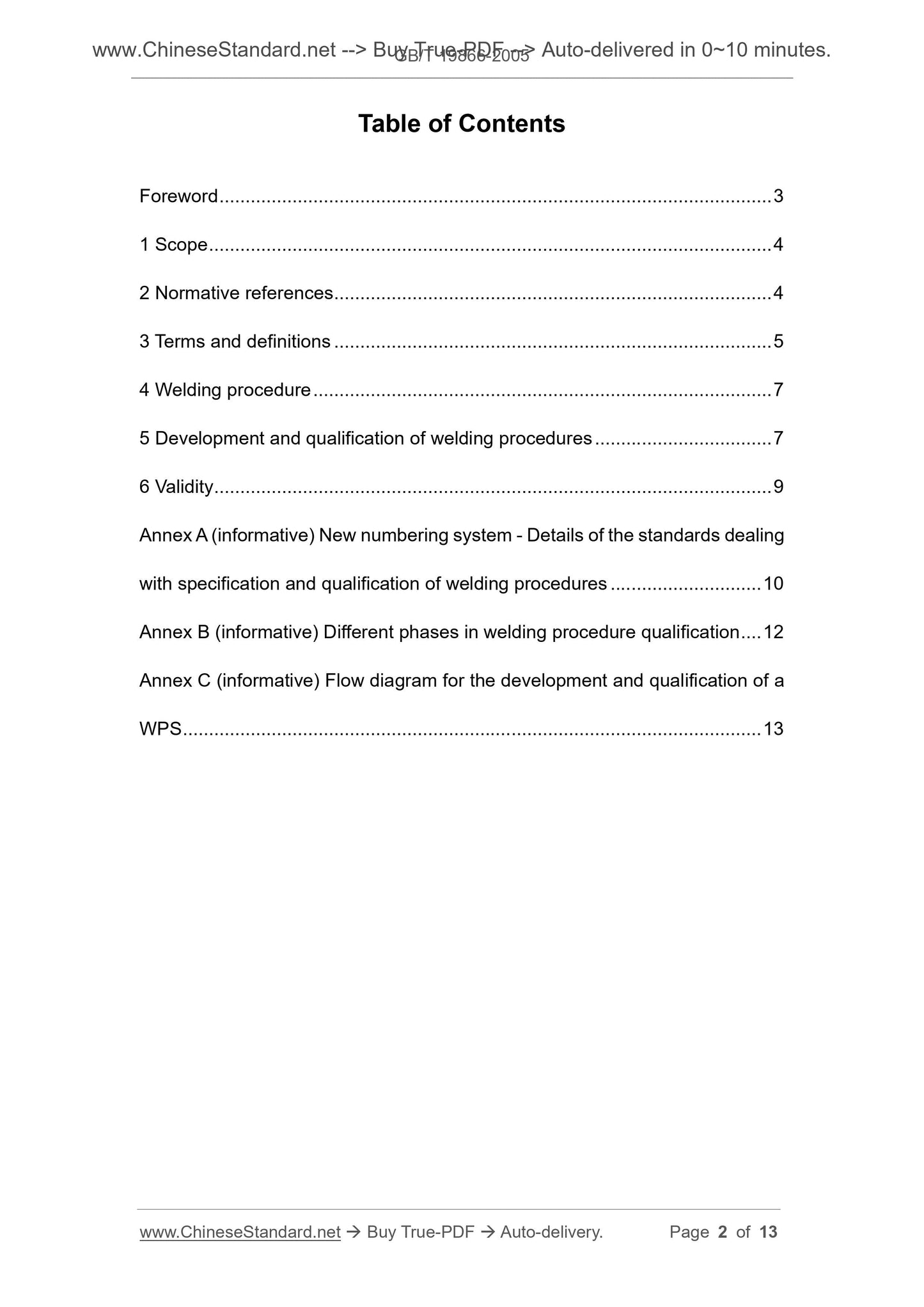

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Welding procedure ... 7
5 Development and qualification of welding procedures ... 7
6 Validity ... 9
Annex A (informative) New numbering system - Details of the standards dealing with specification and qualification of welding procedures ... 10
Annex B (informative) Different phases in welding procedure qualification ... 12 Annex C (informative) Flow diagram for the development and qualification of a WPS ... 13

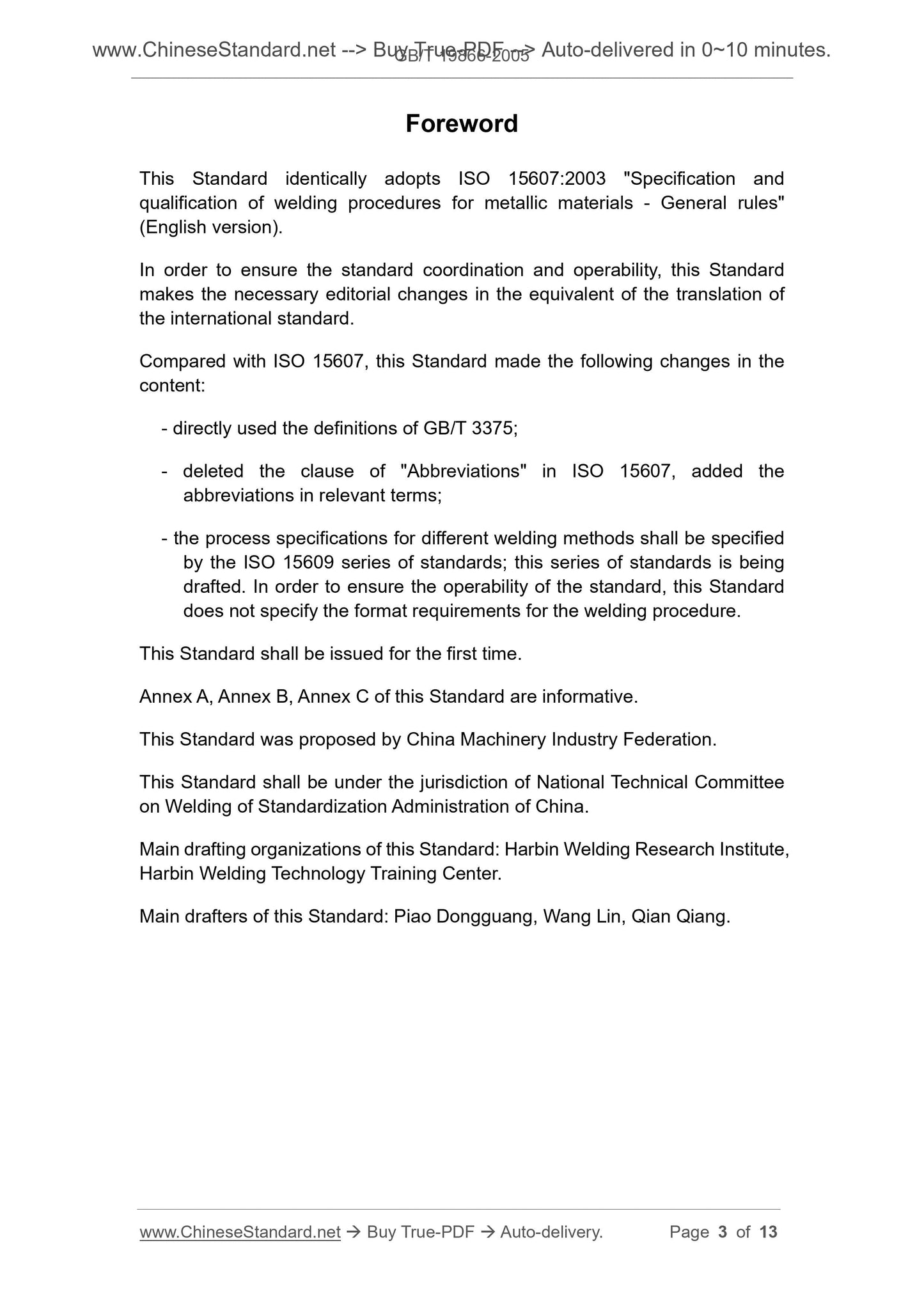

Foreword
This Standard identically adopts ISO 15607.2003 "Specification and
qualification of welding procedures for metallic materials - General rules" (English version).
In order to ensure the standard coordination and operability, this Standard makes the necessary editorial changes in the equivalent of the translation of the international standard.
Compared with ISO 15607, this Standard made the following changes in the content.
- directly used the definitions of GB/T 3375;
- deleted the clause of "Abbreviations" in ISO 15607, added the
abbreviations in relevant terms;
- the process specifications for different welding methods shall be specified by the ISO 15609 series of standards; this series of standards is being drafted. In order to ensure the operability of the standard, this Standard does not specify the format requirements for the welding procedure.
This Standard shall be issued for the first time.
Annex A, Annex B, Annex C of this Standard are informative.
This Standard was proposed by China Machinery Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee on Welding of Standardization Administration of China.
Main drafting organizations of this Standard. Harbin Welding Research Institute, Harbin Welding Technology Training Center.
Main drafters of this Standard. Piao Dongguang, Wang Lin, Qian Qiang.

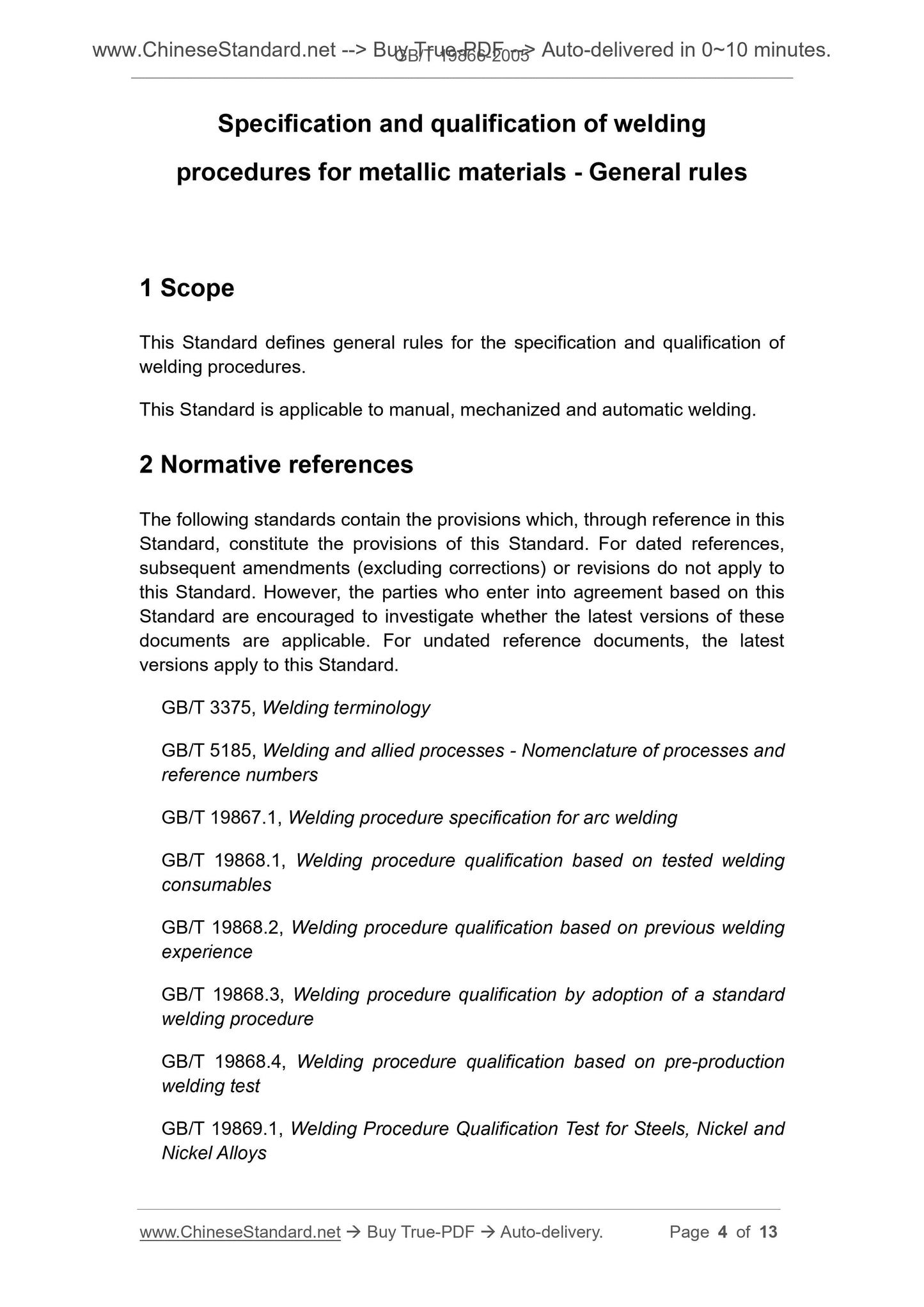

Specification and qualification of welding
procedures for metallic materials - General rules
1 Scope
This Standard defines general rules for the specification and qualification of welding procedures.
This Standard is applicable to manual, mechanized and automatic welding. 2 Normative references
The following standards contain the provisions which, through reference in this Standard, constitute the provisions of this Standard. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest
versions apply to this Standard.
GB/T 3375, Welding terminology
GB/T 5185, Welding and allied processes - Nomenclature of processes and reference numbers
GB/T 19867.1, Welding procedure specification for arc welding
GB/T 19868.1, Welding procedure qualification based on tested welding
consumables
GB/T 19868.2, Welding procedure qualification based on previous welding experience
GB/T 19868.3, Welding procedure qualification by adoption of a standard welding procedure
GB/T 19868.4, Welding procedure qualification based on pre-production
welding test
GB/T 19869.1, Welding Procedure Qualification Test for Steels, Nickel and Nickel Alloys
