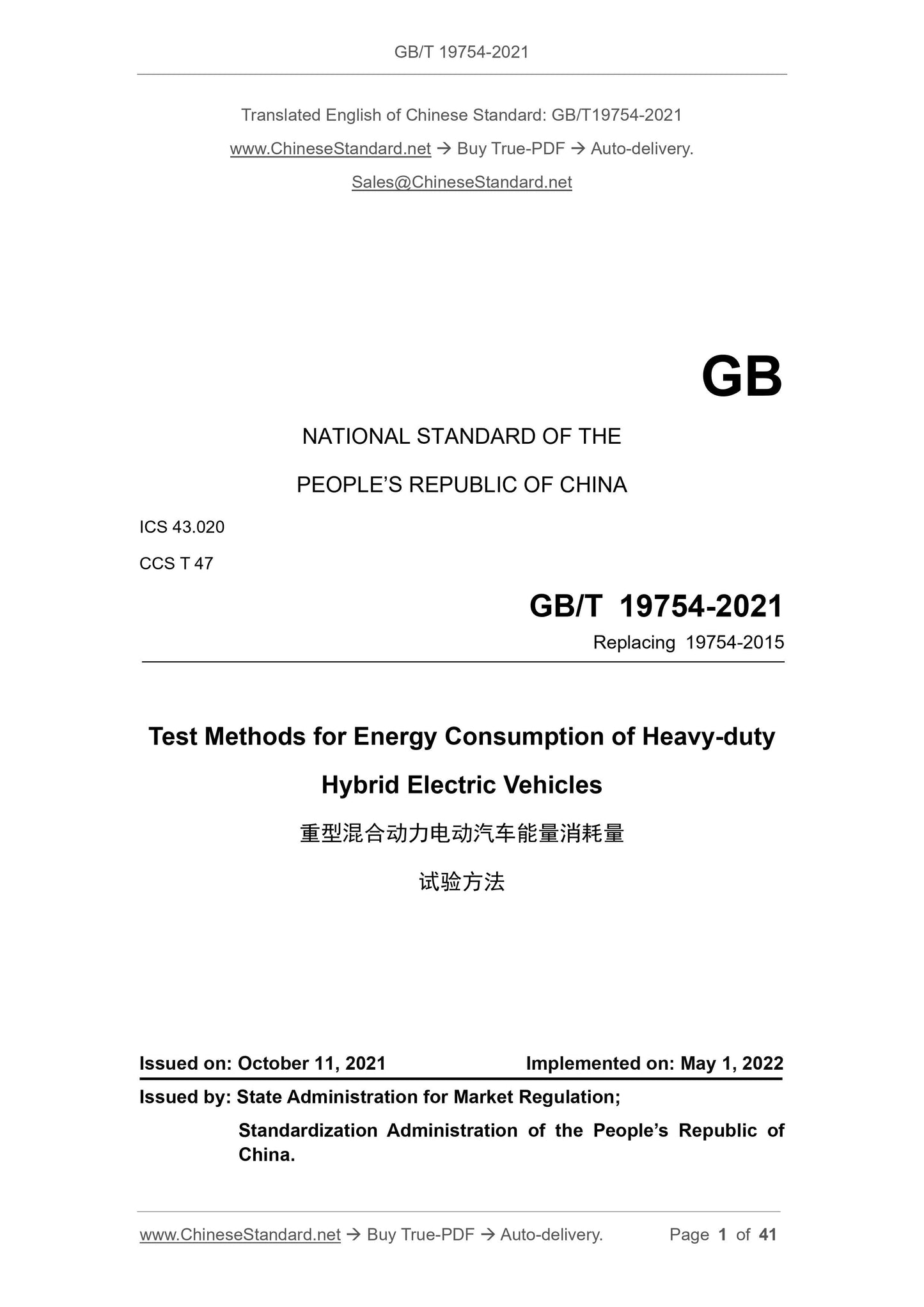

GB/T 19754-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.020
CCS T 47
Replacing 19754-2015
Test Methods for Energy Consumption of Heavy-duty
Hybrid Electric Vehicles
ISSUED ON: OCTOBER 11, 2021
IMPLEMENTED ON: MAY 1, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of
China.
Table of Contents
Foreword ... 4
1 Scope ... 7
2 Normative References ... 7
3 Terms and Definitions ... 8
4 Calculation Method for Net Energy Change (NEC) ... 8
4.1 General Requirements ... 8
4.2 Determination of NEC ... 8
4.3 Determination of Relative Change of NEC ... 9
5 Test Cycle ... 10
6 Test Preparation ... 10
6.1 Test conditions ... 10
6.2 Pre-collection of Vehicle Data ... 10
6.3 Vehicle Conditions ... 11
6.4 Failure of REESS ... 13
6.5 Measurement of Sliding Resistance and Technical Conditions of Chassis
Dynamometer ... 14
6.6 Test Equipment ... 14
7 Test Procedure ... 15
7.1 Start-up and Pre-operation of Vehicle Drive System ... 15
7.2 Test Process ... 15
7.3 Test Procedure of Non-External Rechargeable Hybrid Electric Vehicle (NOVC-
HEV) ... 17
7.4 Test Procedure of External Rechargeable Hybrid Electric Vehicle (OVC-HEV)
... 17
8 Data Records and Results ... 22
8.1 Environmental Data ... 22
8.2 Fuel Density ... 22
8.3 SOC, Power Battery Voltage and Super Capacitor Voltage ... 22

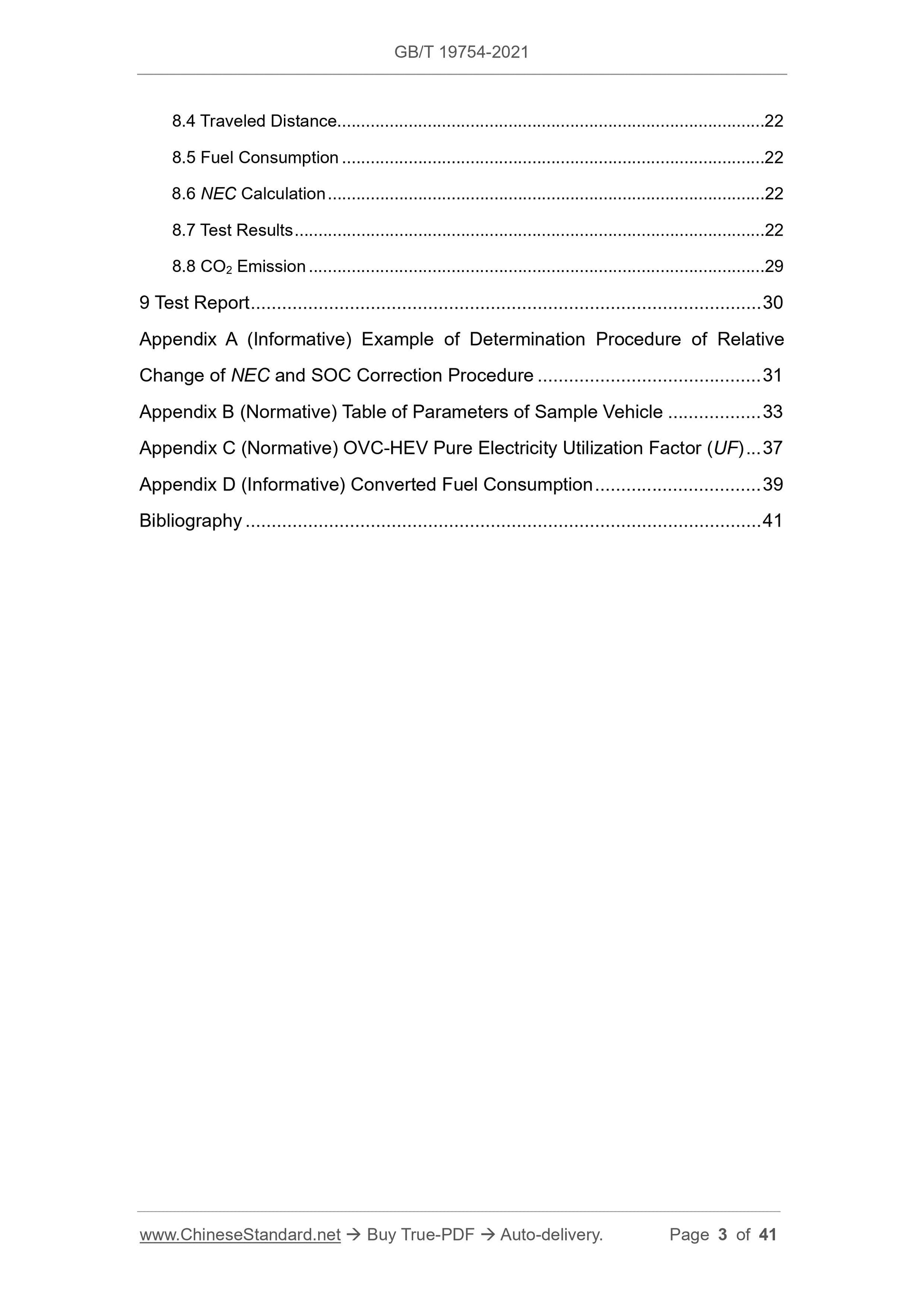

8.4 Traveled Distance... 22
8.5 Fuel Consumption ... 22
8.6 NEC Calculation ... 22
8.7 Test Results ... 22
8.8 CO2 Emission ... 29
9 Test Report ... 30
Appendix A (Informative) Example of Determination Procedure of Relative
Change of NEC and SOC Correction Procedure ... 31
Appendix B (Normative) Table of Parameters of Sample Vehicle ... 33
Appendix C (Normative) OVC-HEV Pure Electricity Utilization Factor (UF) ... 37
Appendix D (Informative) Converted Fuel Consumption ... 39
Bibliography ... 41

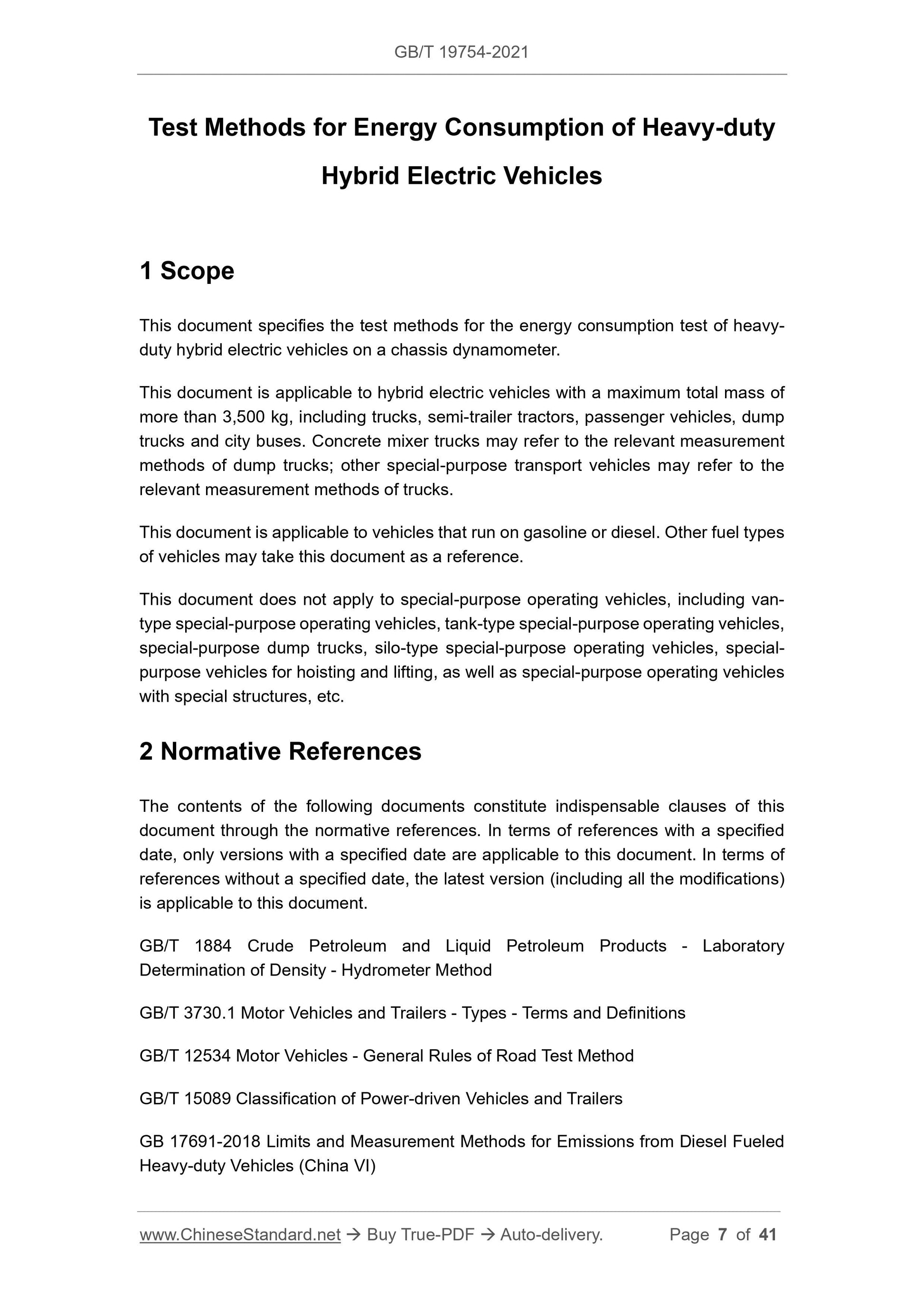

Test Methods for Energy Consumption of Heavy-duty
Hybrid Electric Vehicles
1 Scope
This document specifies the test methods for the energy consumption test of heavy-
duty hybrid electric vehicles on a chassis dynamometer.
This document is applicable to hybrid electric vehicles with a maximum total mass of
more than 3,500 kg, including trucks, semi-trailer tractors, passenger vehicles, dump
trucks and city buses. Concrete mixer trucks may refer to the relevant measurement
methods of dump trucks; other special-purpose transport vehicles may refer to the
relevant measurement methods of trucks.
This document is applicable to vehicles that run on gasoline or diesel. Other fuel types
of vehicles may take this document as a reference.
This document does not apply to special-purpose operating vehicles, including van-
type special-purpose operating vehicles, tank-type special-purpose operating vehicles,
special-purpose dump trucks, silo-type special-purpose operating vehicles, special-
purpose vehicles for hoisting and lifting, as well as special-purpose operating vehicles
with special structures, etc.
2 Normative References
The contents of the following documents constitute indispensable clauses of this
document through the normative references. In terms of references with a specified
date, only versions with a specified date are applicable to this document. In terms of
references without a specified date, the latest version (including all the modifications)
is applicable to this document.
GB/T 1884 Crude Petroleum and Liquid Petroleum Products - Laboratory
Determination of Density - Hydrometer Method
GB/T 3730.1 Motor Vehicles and Trailers - Types - Terms and Definitions
GB/T 12534 Motor Vehicles - General Rules of Road Test Method
GB/T 15089 Classification of Power-driven Vehicles and Trailers
GB 17691-2018 Limits and Measurement Methods for Emissions from Diesel Fueled
Heavy-duty Vehicles (China VI)

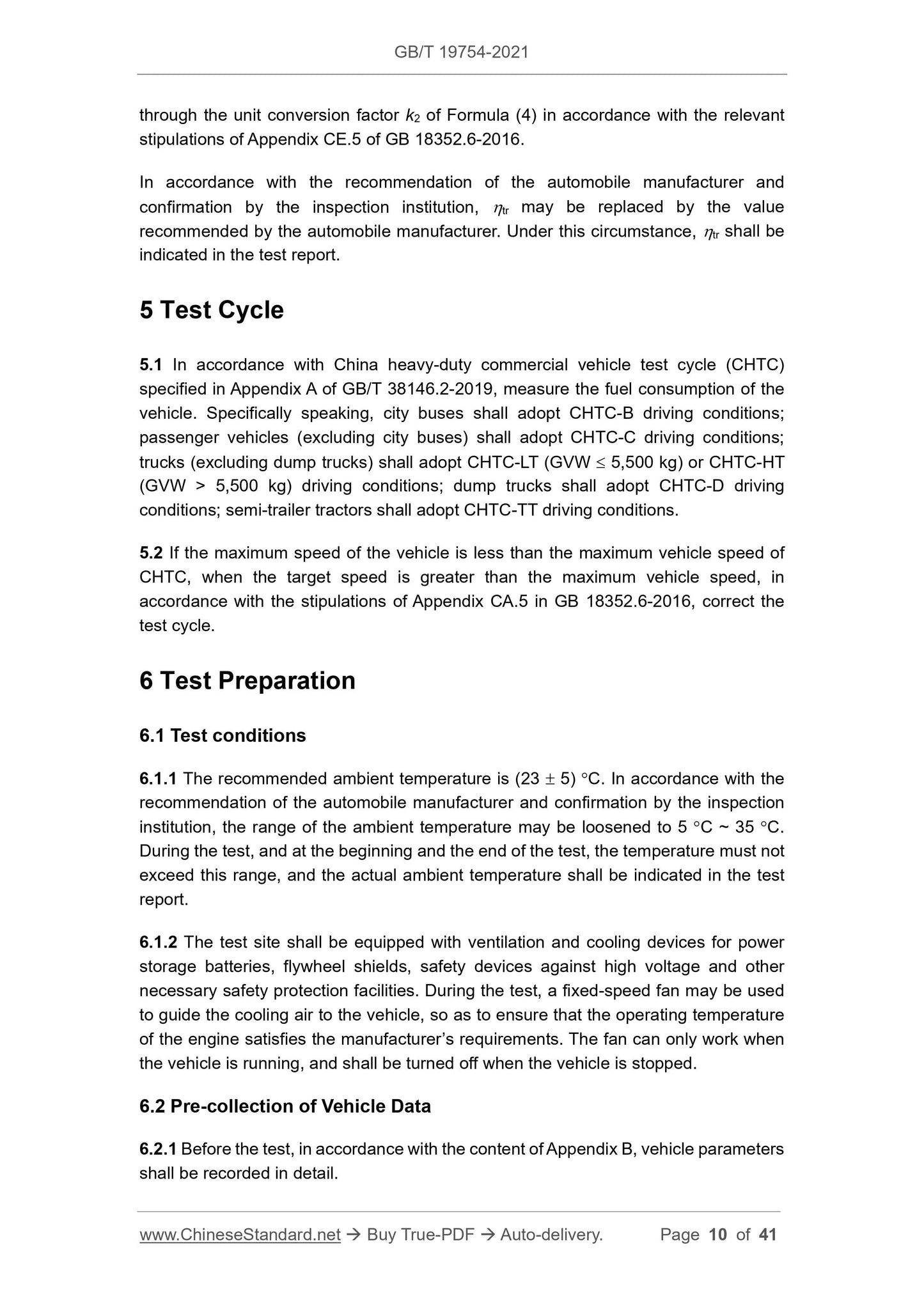

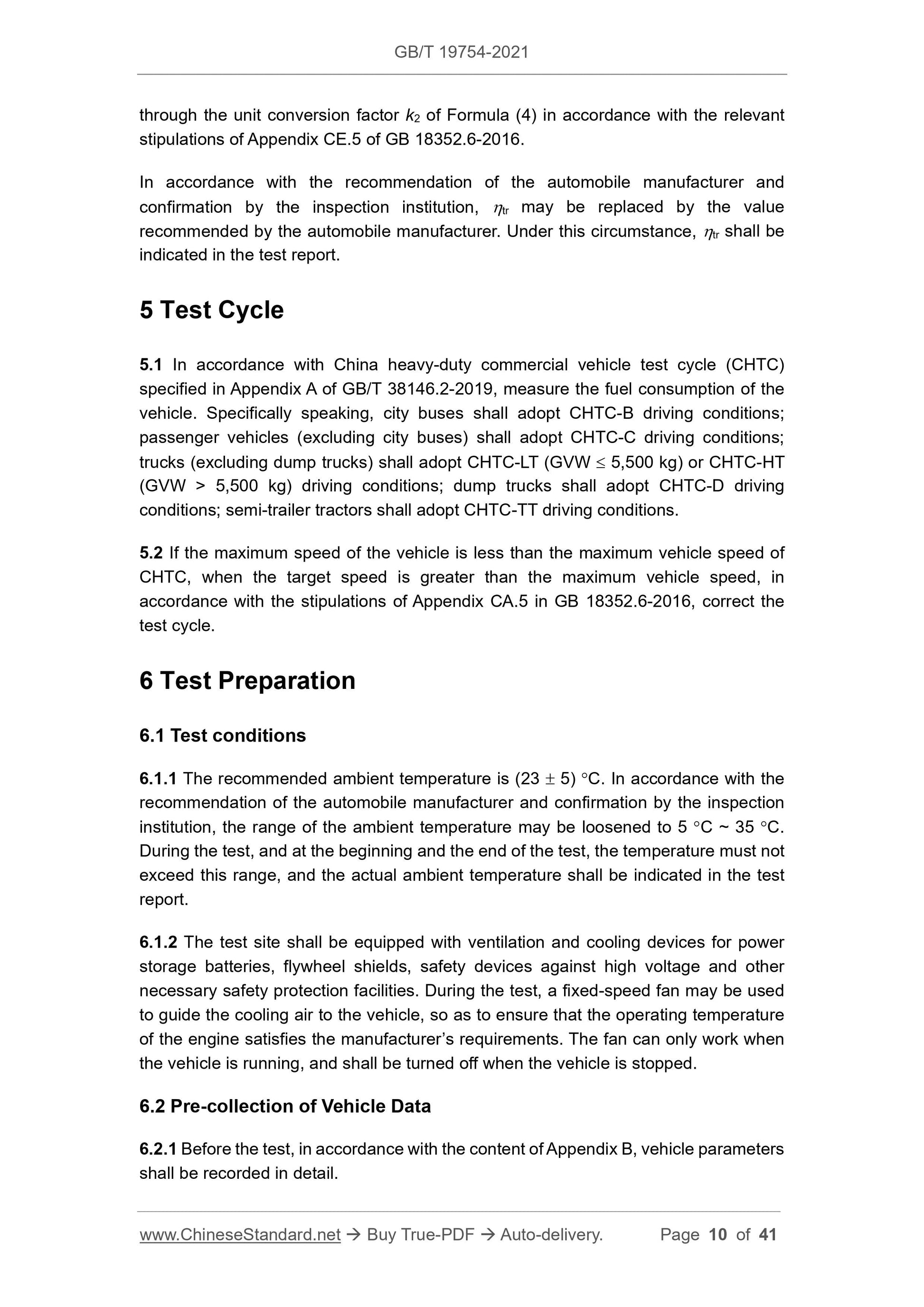

through the unit conversion factor k2 of Formula (4) in accordance with the relevant
stipulations of Appendix CE.5 of GB 18352.6-2016.
In accordance with the recommendation of the automobile manufacturer and
confirmation by the inspection institution, tr may be replaced by the value
recommended by the automobile manufacturer. Under this circumstance, tr shall be
indicated in the test report.
5 Test Cycle
5.1 In accordance with China heavy-duty commercial vehicle test cycle (CHTC)
specified in Appendix A of GB/T 38146.2-2019, measure the fuel consumption of the
vehicle. Specifically speaking, city buses shall adopt CHTC-B driving conditions;
passenger vehicles (excluding city buses) shall adopt CHTC-C driving conditions;
trucks (excluding dump trucks) shall adopt CHTC-LT (GVW  5,500 kg) or CHTC-HT
(GVW > 5,500 kg) driving conditions; dump trucks shall adopt CHTC-D driving
conditions; semi-trailer tractors shall adopt CHTC-TT driving conditions.
5.2 If the maximum speed of the vehicle is less than the maximum vehicle speed of
CHTC, when the target speed is greater than the maximum vehicle speed, in
accordance with the stipulations of Appendix CA.5 in GB 18352.6-2016, correct the
test cycle.
6 Test Preparation
6.1 Test conditions
6.1.1 The recommended ambient temperature is (23  5) C. In accordance with the
recommendation of the automobile manufacturer and confirmation by the inspection
institution, the range of the ambient temperature may be loosened to 5 C ~ 35 C.
During the test, and at the beginning and the end of the test, the temperature must not
exceed this range, and the actual ambient temperature shall be indicated in the test
report.
6.1.2 The test site shall be equipped with ventilation and cooling devices for power
storage batteries, flywheel shields, safety devices against high voltage and other
necessary safety protection facilities. During the test, a fixed-speed fan may be used
to guide the cooling air to the vehicle, so as to ensure that the operating temperature
of the engine satisfies the manufacturer’s requirements. The fan can only work when
the vehicle is running, and shall be turned off when the vehicle is stopped.
6.2 Pre-collection of Vehicle Data
6.2.1 Before the test, in accordance with the content of Appendix B, vehicle parameters
shall be recorded in detail.

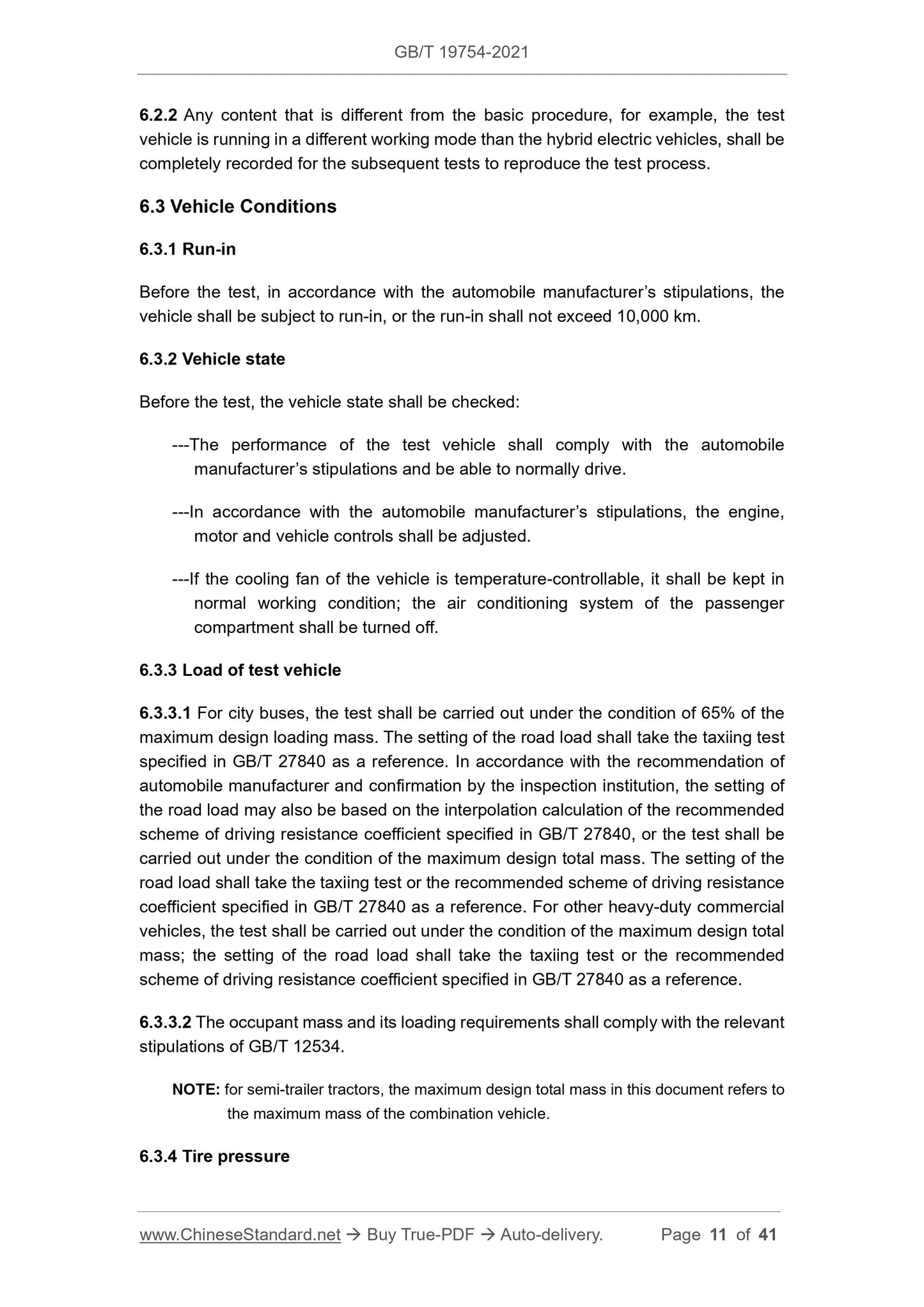

6.2.2 Any content that is different from the basic procedure, for example, the test
vehicle is running in a different working mode than the hybrid electric vehicles, shall be
completely recorded for the subsequent tests to reproduce the test process.
6.3 Vehicle Conditions
6.3.1 Run-in
Before the test, in accordance with the automobile manufacturer’s stipulations, the
vehicle shall be subject to run-in, or the run-in shall not exceed 10,000 km.
6.3.2 Vehicle state
Before the test, the vehicle state shall be checked:
---The performance of the test vehicle shall comply with the automobile
manufacturer’s stipulations and be able to normally drive.
---In accordance with the automobile manufacturer’s stipulations, the engine,
motor and vehicle controls shall be adjusted.
---If the cooling fan of the vehicle is temperature-controllable, it shall be kept in
normal working condition; the air conditioning system of the passenger
compartment shall be turned off.
6.3.3 Load of test vehicle
6.3.3.1 For city buses, the test shall be carried out under the condition of 65% of the
maximum design loading mass. The setting of the road load shall take the taxiing test
specified in GB/T 27840 as a reference. In accordance with the recommendation of
automobile manufacturer and confirmation by the inspection institution, the setting of
the road load may also be based on the interpolation calculation of the recommended
scheme of driving resistance coefficient specified in GB/T 27840, or the test shall be
carried out under the condition of the maximum design total mass. The setting of the
road load shall take the taxiing test or the recommended scheme of driving resistance
coefficient specified in GB/T 27840 as a reference. For other heavy-duty commercial
vehicles, the test shall be carried out under the condition of the maximum design total
mass; the setting of the road load shall take the taxiing test or the recommended
scheme of driving resistance coefficient specified in GB/T 27840 as a reference.
6.3.3.2 The occupant mass and its loading requirements shall comply with the relevant
stipulations of GB/T 12534.
NOTE: for semi-trailer tractors, the maximum design total mass in this document refers to
the maximum mass of the combination vehicle.
6.3.4 Tire pressure

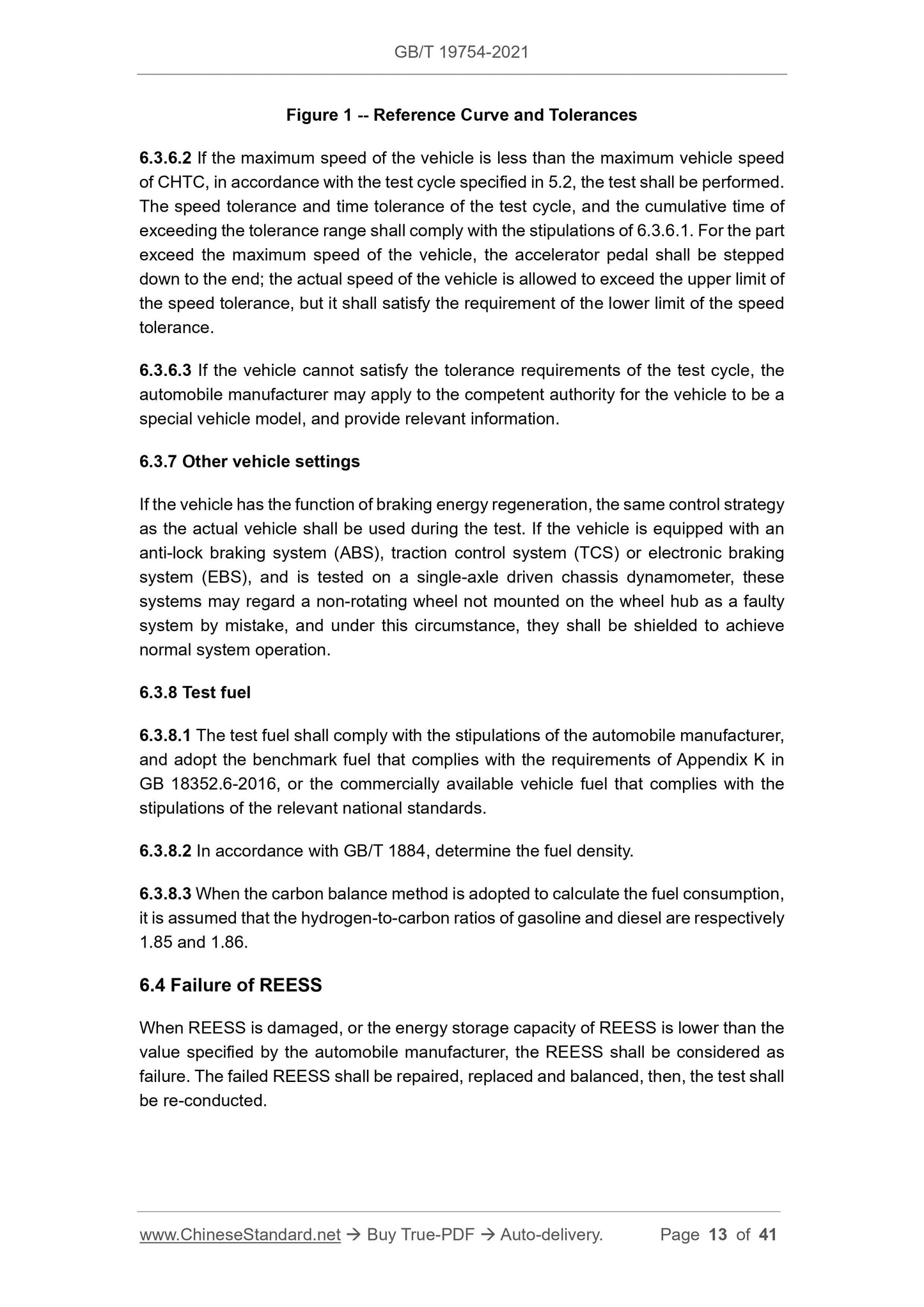

Figure 1 -- Reference Curve and Tolerances
6.3.6.2 If the maximum speed of the vehicle is less than the maximum vehicle speed
of CHTC, in accordance with the test cycle specified in 5.2, the test shall be performed.
The speed tolerance and time tolerance of the test cycle, and the cumulative time of
exceeding the tolerance range shall comply with the stipulations of 6.3.6.1. For the part
exceed the maximum speed of the vehicle, the accelerator pedal shall be stepped
down to the end; the actual speed of the vehicle is allowed to exceed the upper limit of
the speed tolerance, but it shall satisfy the requirement of the lower limit of the speed
tolerance.
6.3.6.3 If the vehicle cannot satisfy the tolerance requirements of the test cycle, the
automobile manufacturer may apply to the competent authority for the vehicle to be a
special vehicle model, and provide relevant information.
6.3.7 Other vehicle settings
If the vehicle has the function of braking energy regeneration, the same control strategy
as the actual vehicle shall be used during the test. If the vehicle is equipped with an
anti-lock braking system (ABS), traction control system (TCS) or electronic braking
system (EBS), and is tested on a single-axle driven chassis dynamometer, these
systems may regard a non-rotating wheel not mounted on the wheel hub as a faulty
system by mistake, and under this circumstance, they shall be shielded to achieve
normal system operation.
6.3.8 Test fuel
6.3.8.1 The test fuel shall comply with the stipulations of the automobile manufacturer,
and adopt the benchmark fuel that complies with the requirements of Appendix K in
GB 18352.6-2016, or the commercially available vehicle fuel that complies with the
stipulations of the relevant national standards.
6.3.8.2 In accordance with GB/T 1884, determine the fuel density.
6.3.8.3 When the carbon balance method is adopted to calculate the fuel consumption,
it is assumed that the hydrogen-to-carbon ratios of gasoline and diesel are respectively
1.85 and 1.86.
6.4 Failure of REESS
When REESS is damaged, or the energy storage capacity of REESS is lower than the
value specified by the automobile manufacturer, the REESS shall be considered as
failure. The failed REESS shall be repaired, replaced and balanced, then, the test shall
be re-conducted.

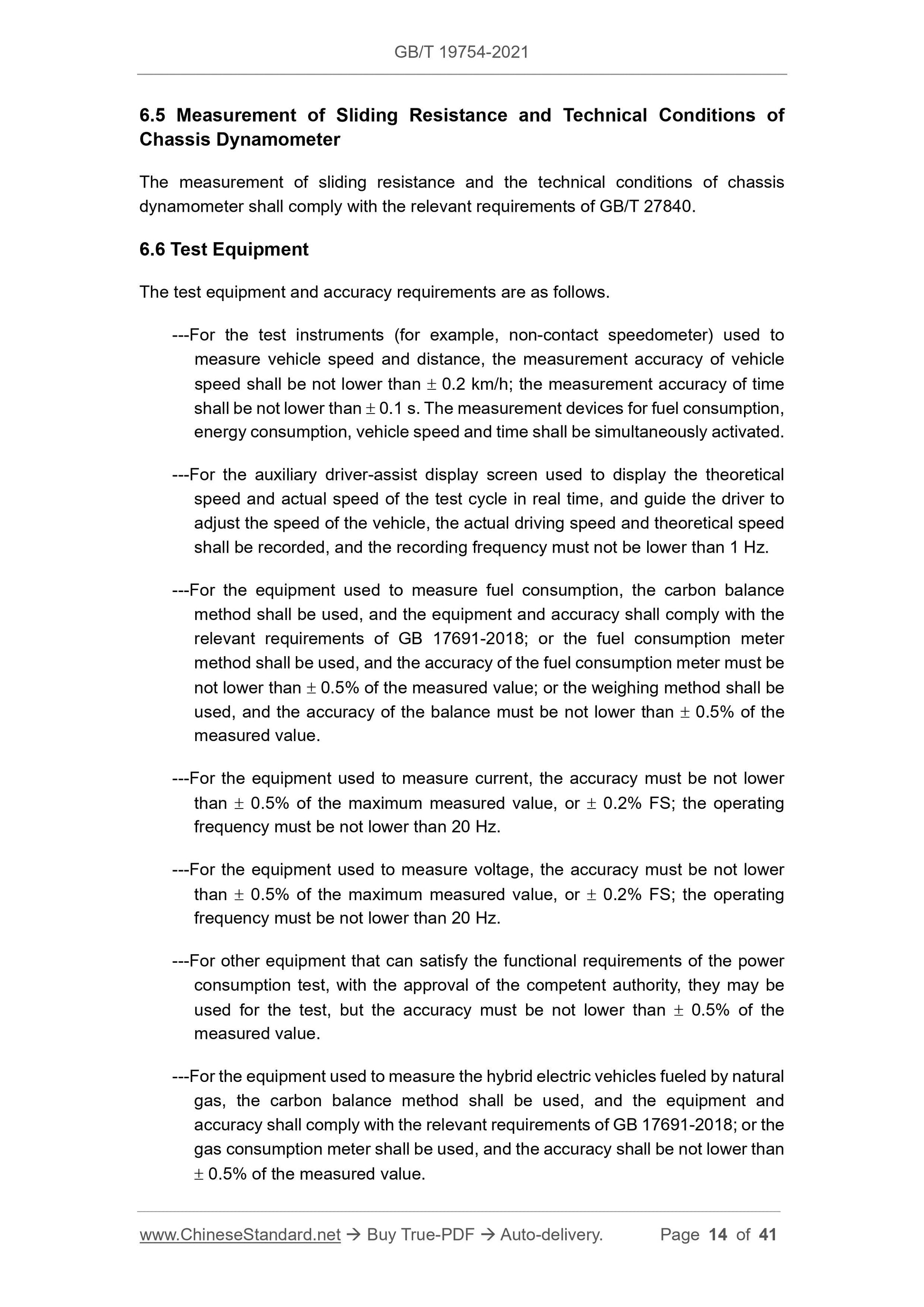

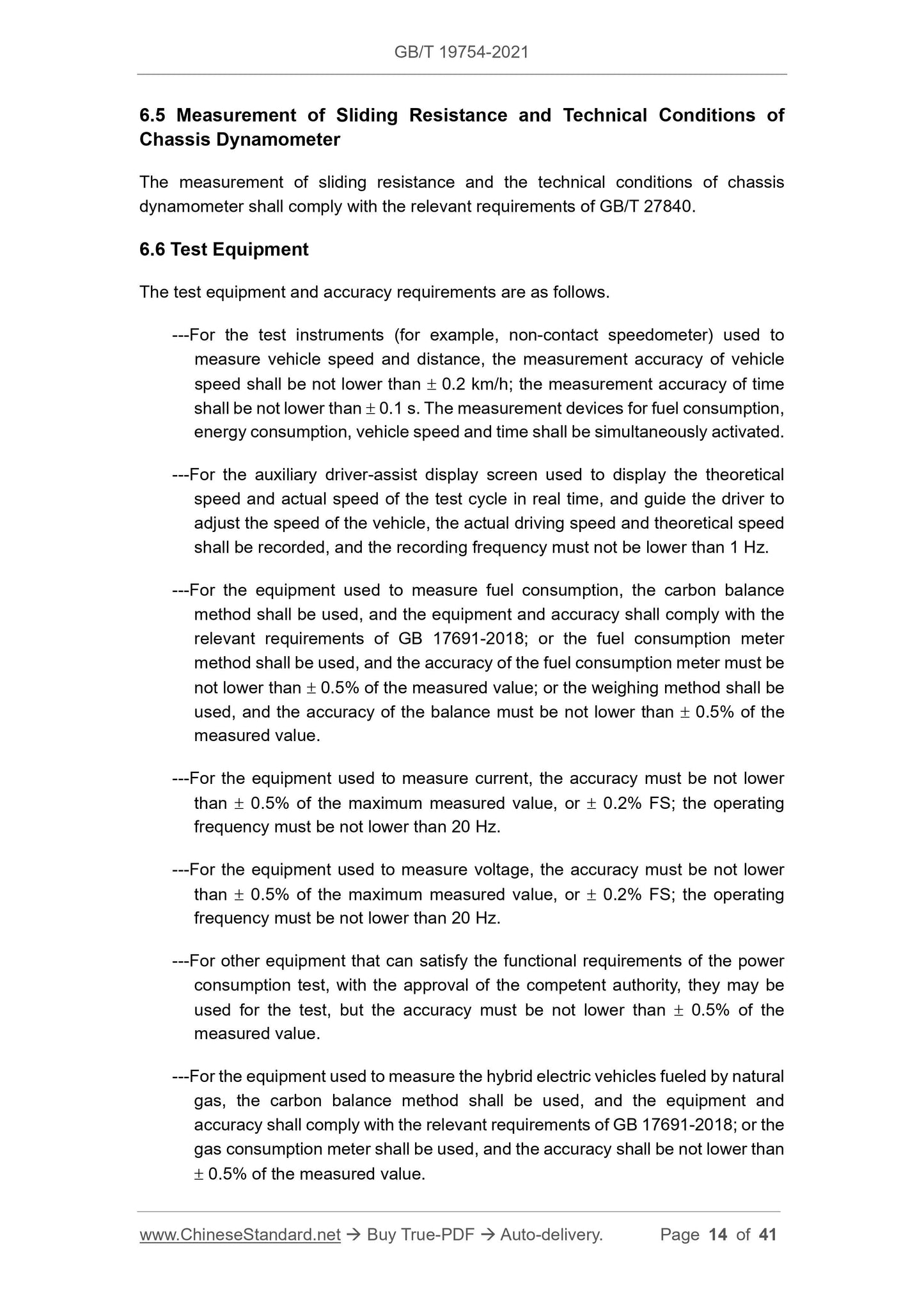

6.5 Measurement of Sliding Resistance and Technical Conditions of
Chassis Dynamometer
The measurement of sliding resistance and the technical conditions of chassis
dynamometer shall comply with the relevant requirements of GB/T 27840.
6.6 Test Equipment
The test equipment and accuracy requirements are as follows.
---For the test instruments (for example, non-contact speedometer) used to
measure vehicle speed and distance, the measurement accuracy of vehicle
speed shall be not lower than  0.2 km/h; the measurement accuracy of time
shall be not lower than  0.1 s. The measurement devices for fuel consumption,
energy consumption, vehicle speed and time shall be simultaneously activated.
---For the auxiliary driver-assist display screen used to display the theoretical
speed and actual speed of the test cycle in real time, and guide the driver to
adjust the speed of the vehicle, the actual driving speed and theoretical speed
shall be recorded, and the recording frequency must not be lower than 1 Hz.
---For the equipment used to measure fuel consumption, the carbon balance
method shall be used, and the equipment and accuracy shall comply with the
relevant requirements of GB 17691-2018; or the fuel consumption meter
method shall be used, and the accuracy of the fuel consumption meter must be
not lower than  0.5% of the measured value; or the weighing method shall be
used, and the accuracy of the balance must be not lower than  0.5% of the
measured value.
---For the equipment used to measure current, the accuracy must be not lower
than  0.5% of the maximum measured value, or  0.2% FS; the operating
frequency must be not lower than 20 Hz.
---For the equipment used to measure voltage, the accuracy must be not lower
than  0.5% of the maximum measured value, or  0.2% FS; the operating
frequency must be not lower than 20 Hz.
---For other equipment that can satisfy the functional requirements of the power
consumption test, with the approval of the competent authority, they may be
used for the test, but the accuracy must be not lower than  0.5% of the
measured value.
---For the equipment used to measure the hybrid electric vehicles fueled by natural
gas, the carbon balance method shall be used, and the equipment and
accuracy shall comply with the relevant requirements of GB 17691-2018; or the
gas consumption meter shall be used, and the accuracy shall be not lower than
 0.5% of the measured value.

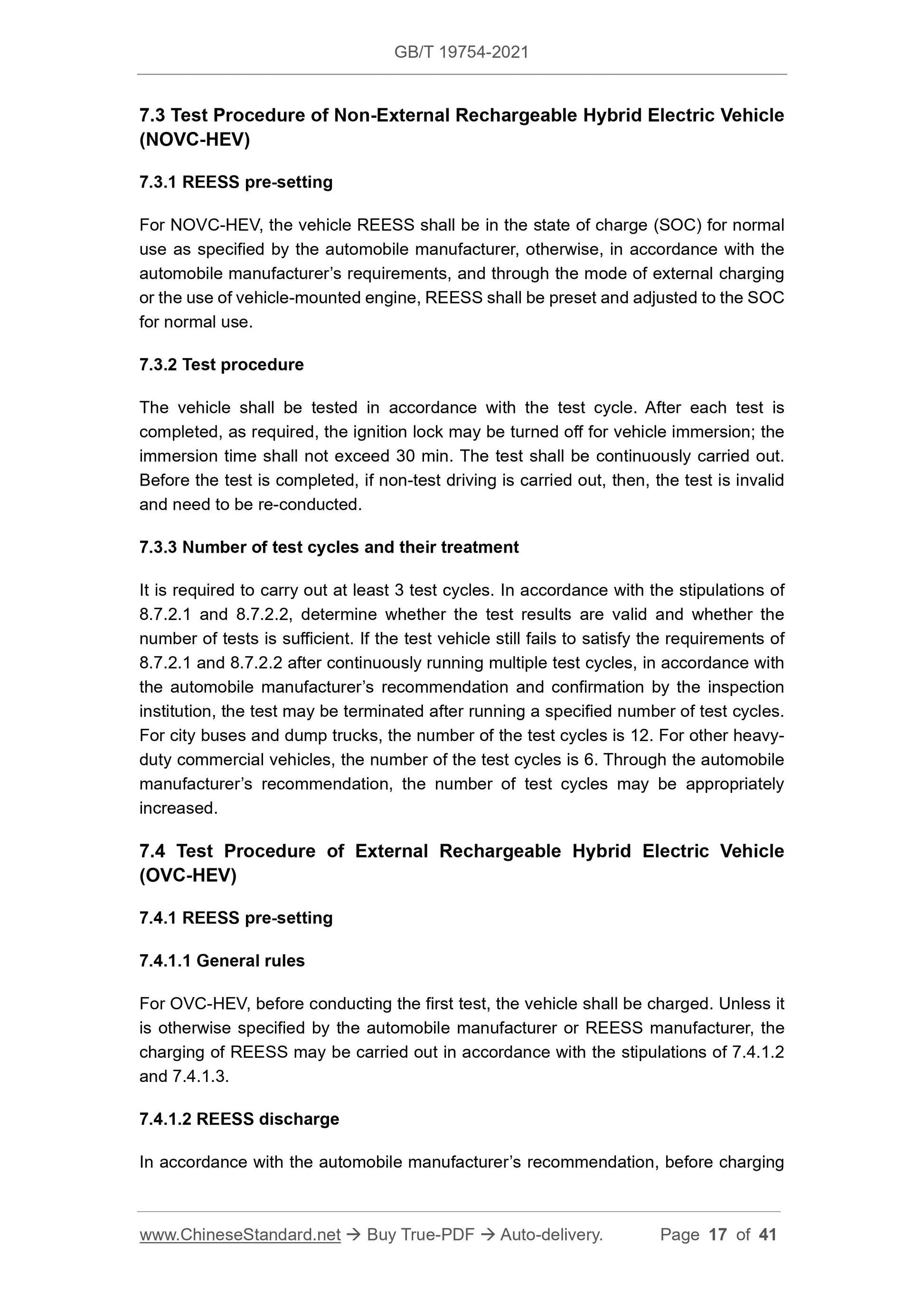

7.3 Test Procedure of Non-External Rechargeable Hybrid Electric Vehicle
(NOVC-HEV)
7.3.1 REESS pre-setting
For NOVC-HEV, the vehicle REESS shall be in the state of charge (SOC) for normal
use as specified by the automobile manufacturer, otherwise, in accordance with the
automobile manufacturer’s requirements, and through the mode of external charging
or the use of vehicle-mounted engine, REESS shall be preset and adjusted to the SOC
for normal use.
7.3.2 Test procedure
The vehicle shall be tested in accordance with the test cycle. After each test is
completed, as required, the ignition lock may be turned off for vehicle imm...
