GB/T 19750-2005: Hybrid electric vehicles -- Engineering approval evaluation program

This Standard specifies the implement conditions, test items, test methods, basis of evaluation and contents of test reports of new products design and approval evaluation test of hybrid electric vehicles.

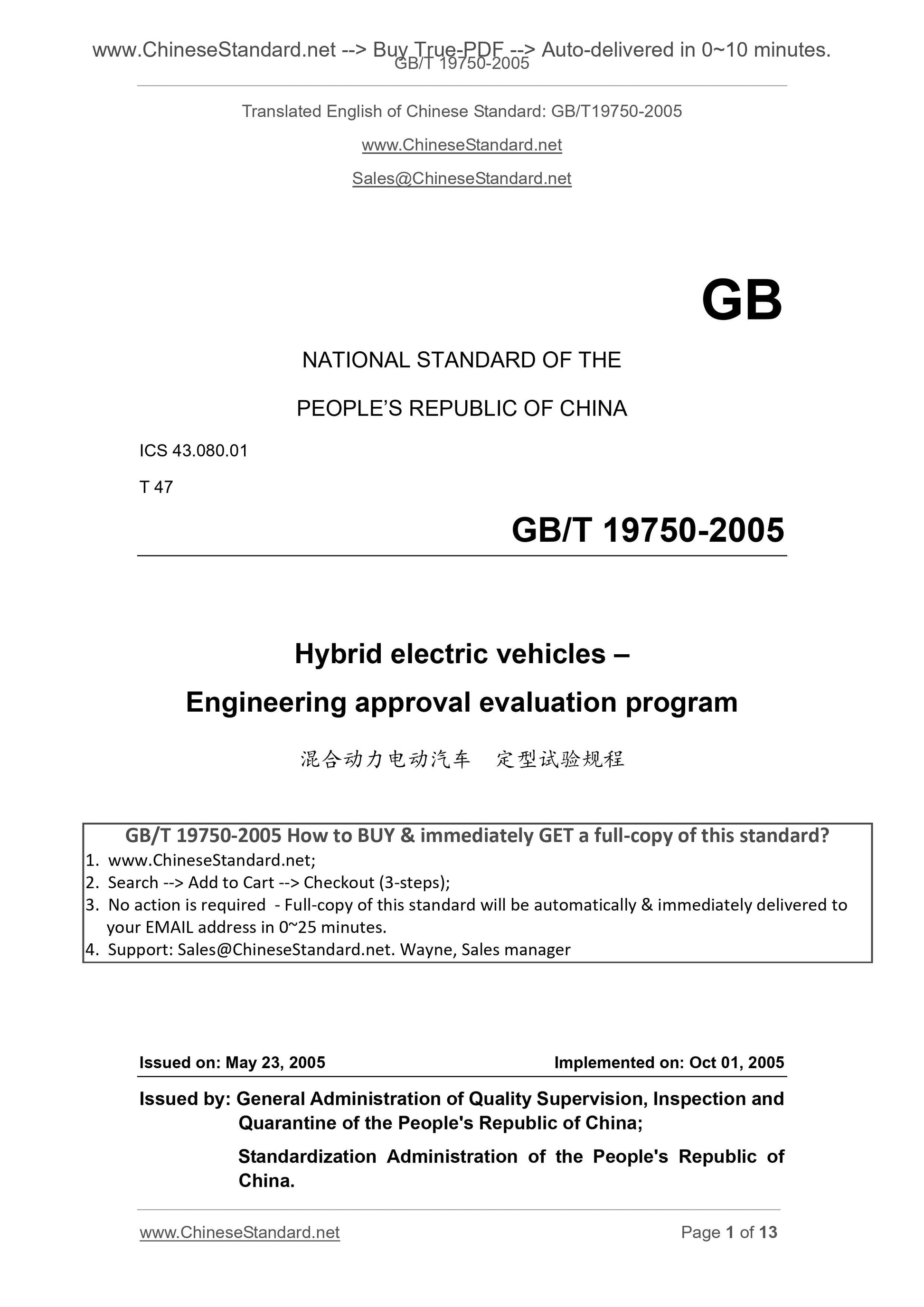

GB/T 19750-2005
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.080.01
T 47
Hybrid electric vehicles ?€?
Engineering approval evaluation program
ISSUED ON. MAY 23, 2005
IMPLEMENTED ON. OCT 01, 2005
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

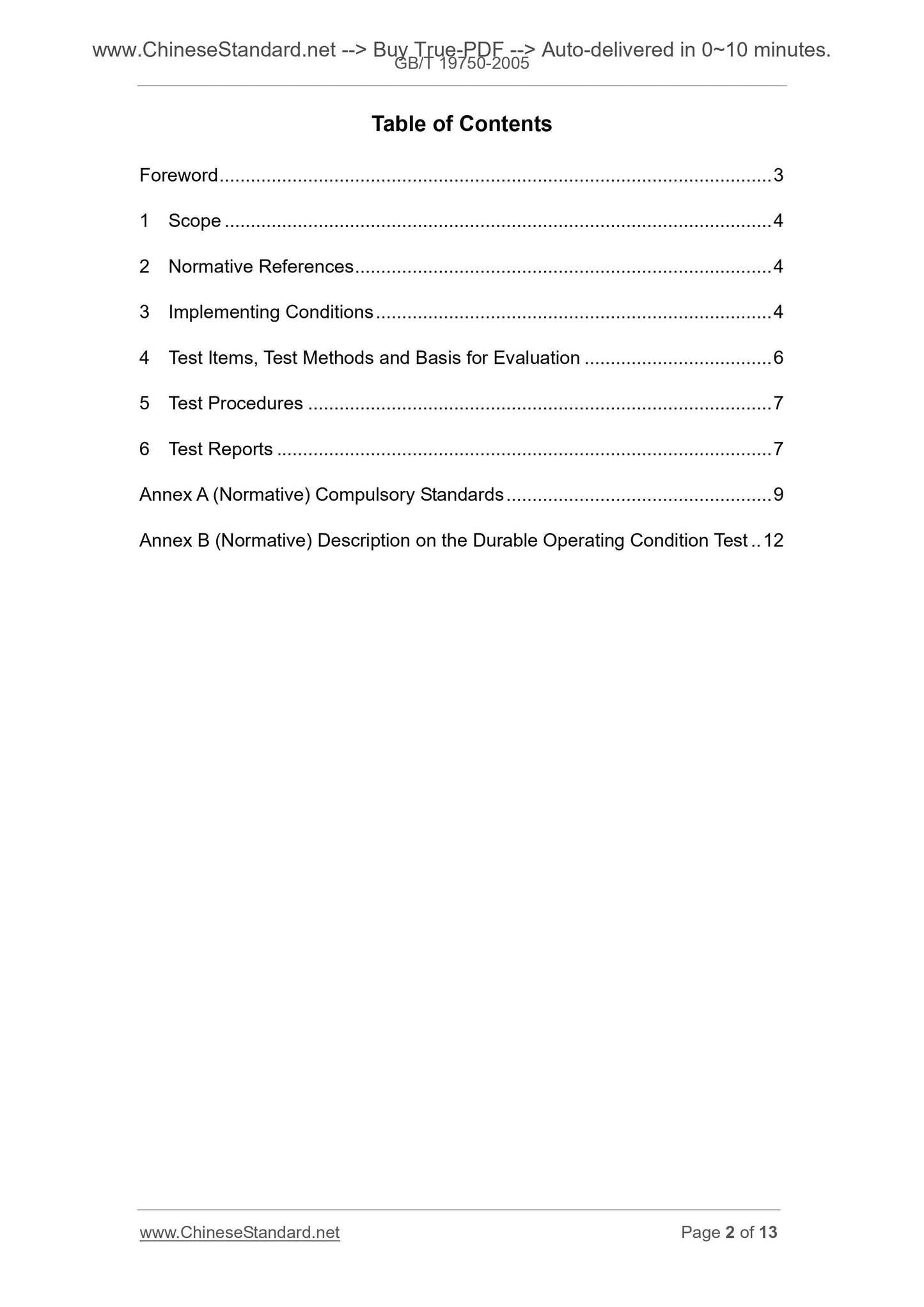

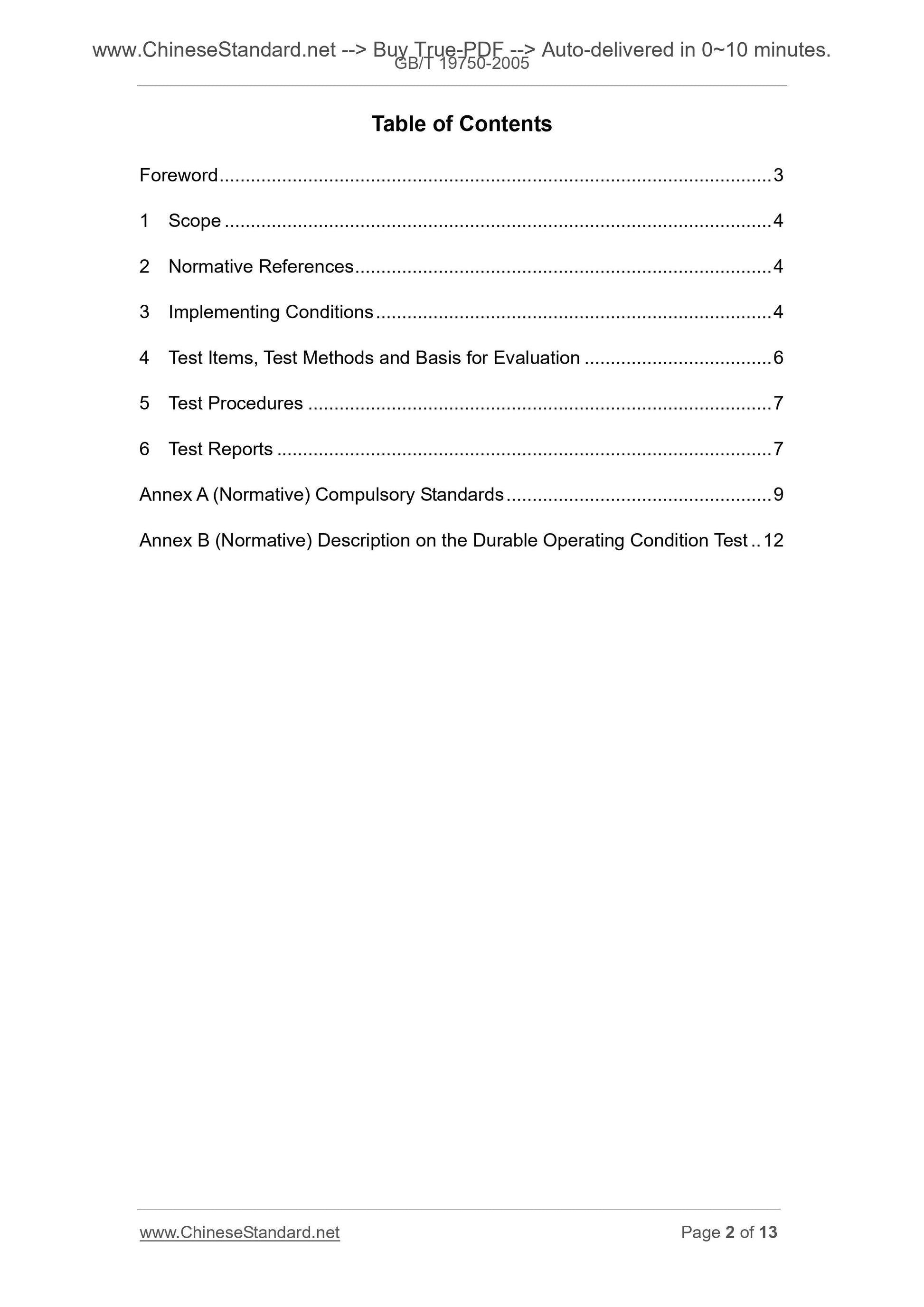

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Implementing Conditions ... 4
4 Test Items, Test Methods and Basis for Evaluation ... 6
5 Test Procedures ... 7
6 Test Reports ... 7
Annex A (Normative) Compulsory Standards ... 9
Annex B (Normative) Description on the Durable Operating Condition Test .. 12 Foreword

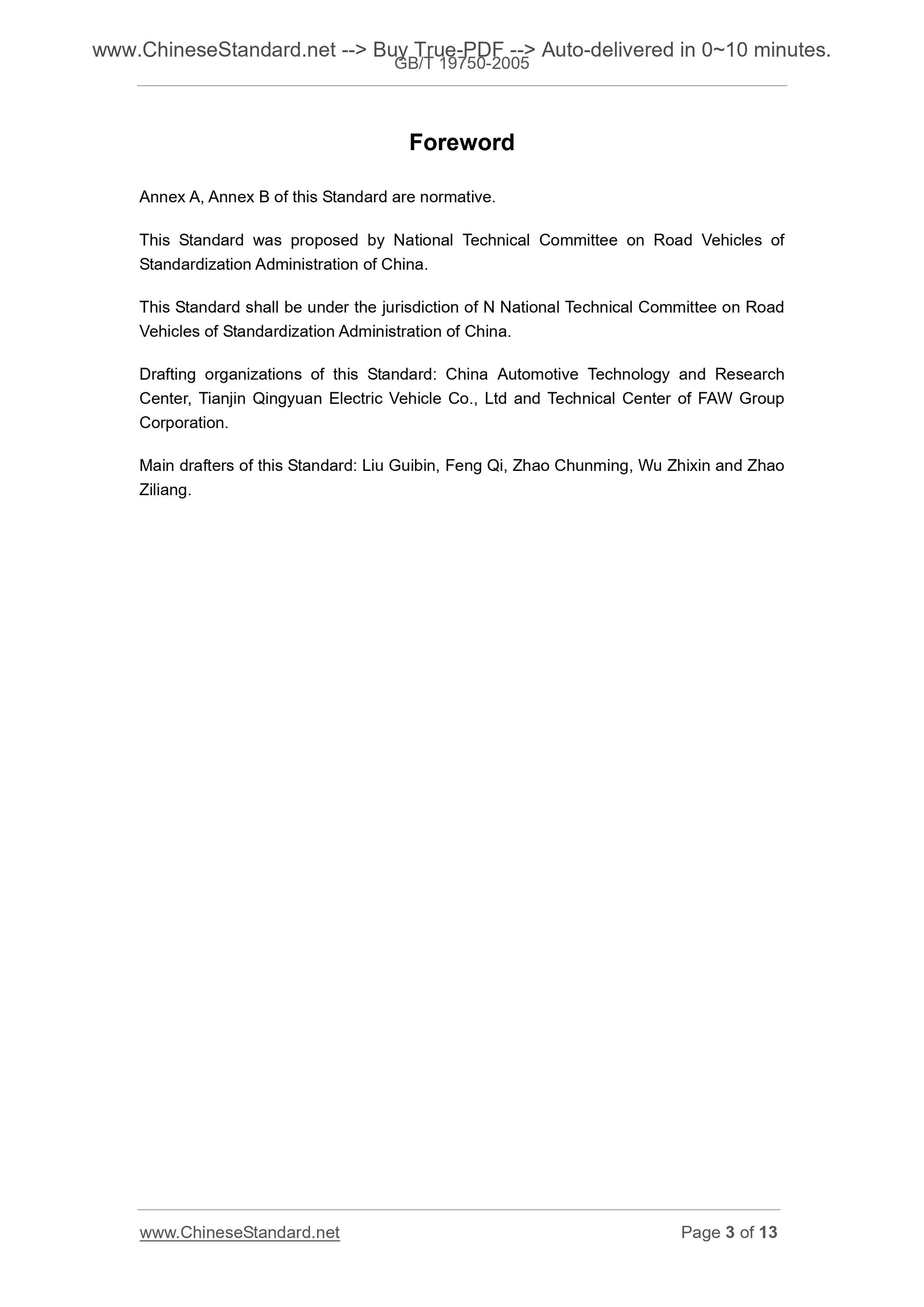

Annex A, Annex B of this Standard are normative.
This Standard was proposed by National Technical Committee on Road Vehicles of Standardization Administration of China.
This Standard shall be under the jurisdiction of N National Technical Committee on Road Vehicles of Standardization Administration of China.
Drafting organizations of this Standard. China Automotive Technology and Research Center, Tianjin Qingyuan Electric Vehicle Co., Ltd and Technical Center of FAW Group Corporation.
Main drafters of this Standard. Liu Guibin, Feng Qi, Zhao Chunming, Wu Zhixin and Zhao Ziliang.

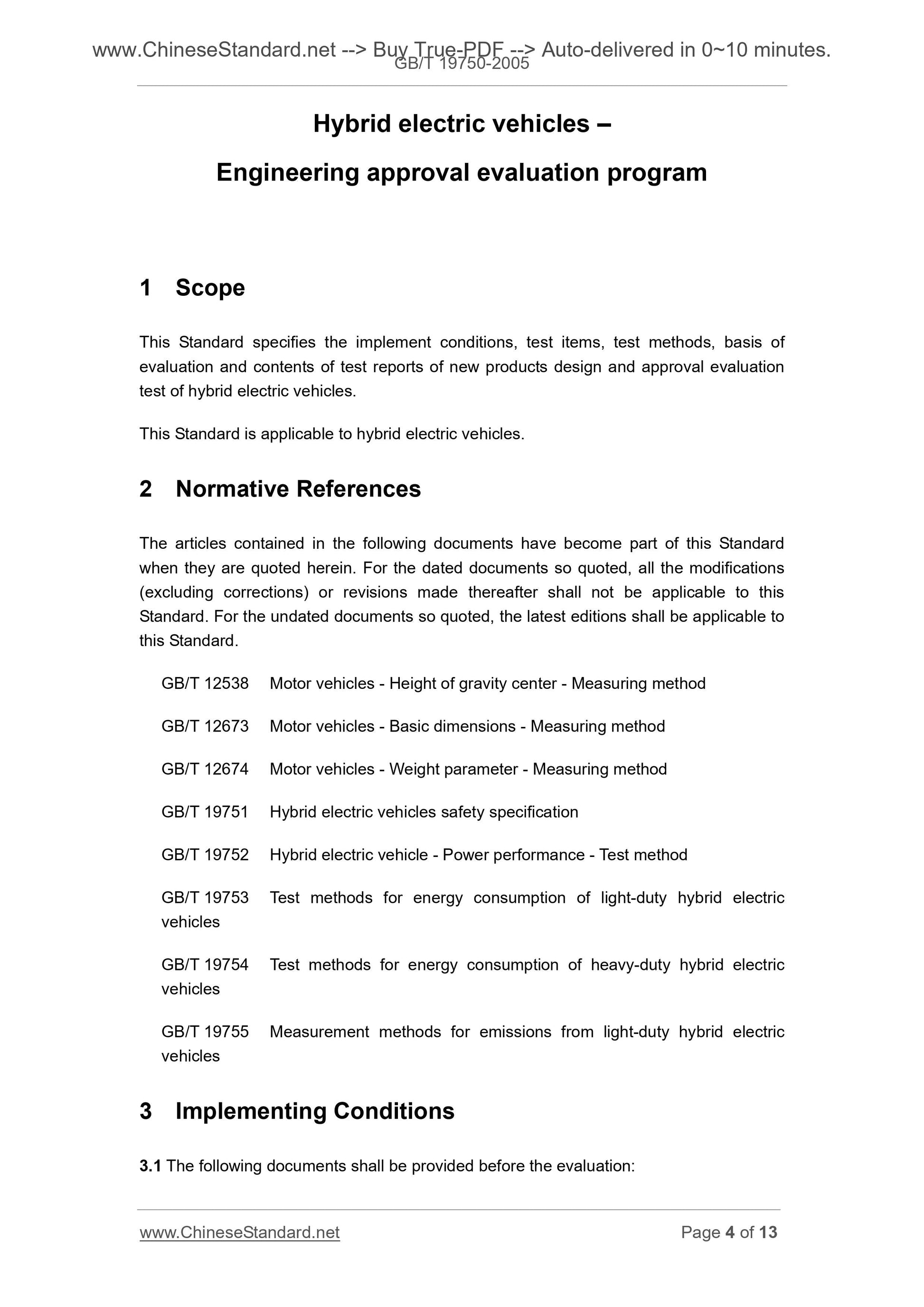

Hybrid electric vehicles ?€?
Engineering approval evaluation program
1 Scope
This Standard specifies the implement conditions, test items, test methods, basis of evaluation and contents of test reports of new products design and approval evaluation test of hybrid electric vehicles.
This Standard is applicable to hybrid electric vehicles.
2 Normative References
The articles contained in the following documents have become part of this Standard when they are quoted herein. For the dated documents so quoted, all the modifications (excluding corrections) or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard.
GB/T 12538 Motor vehicles - Height of gravity center - Measuring method GB/T 12673 Motor vehicles - Basic dimensions - Measuring method
GB/T 12674 Motor vehicles - Weight parameter - Measuring method
GB/T 19751 Hybrid electric vehicles safety specification
GB/T 19752 Hybrid electric vehicle - Power performance - Test method
GB/T 19753 Test methods for energy consumption of light-duty hybrid electric vehicles
GB/T 19754 Test methods for energy consumption of heavy-duty hybrid electric vehicles
GB/T 19755 Measurement methods for emissions from light-duty hybrid electric vehicles
3 Implementing Conditions
3.1 The following documents shall be provided before the evaluation.

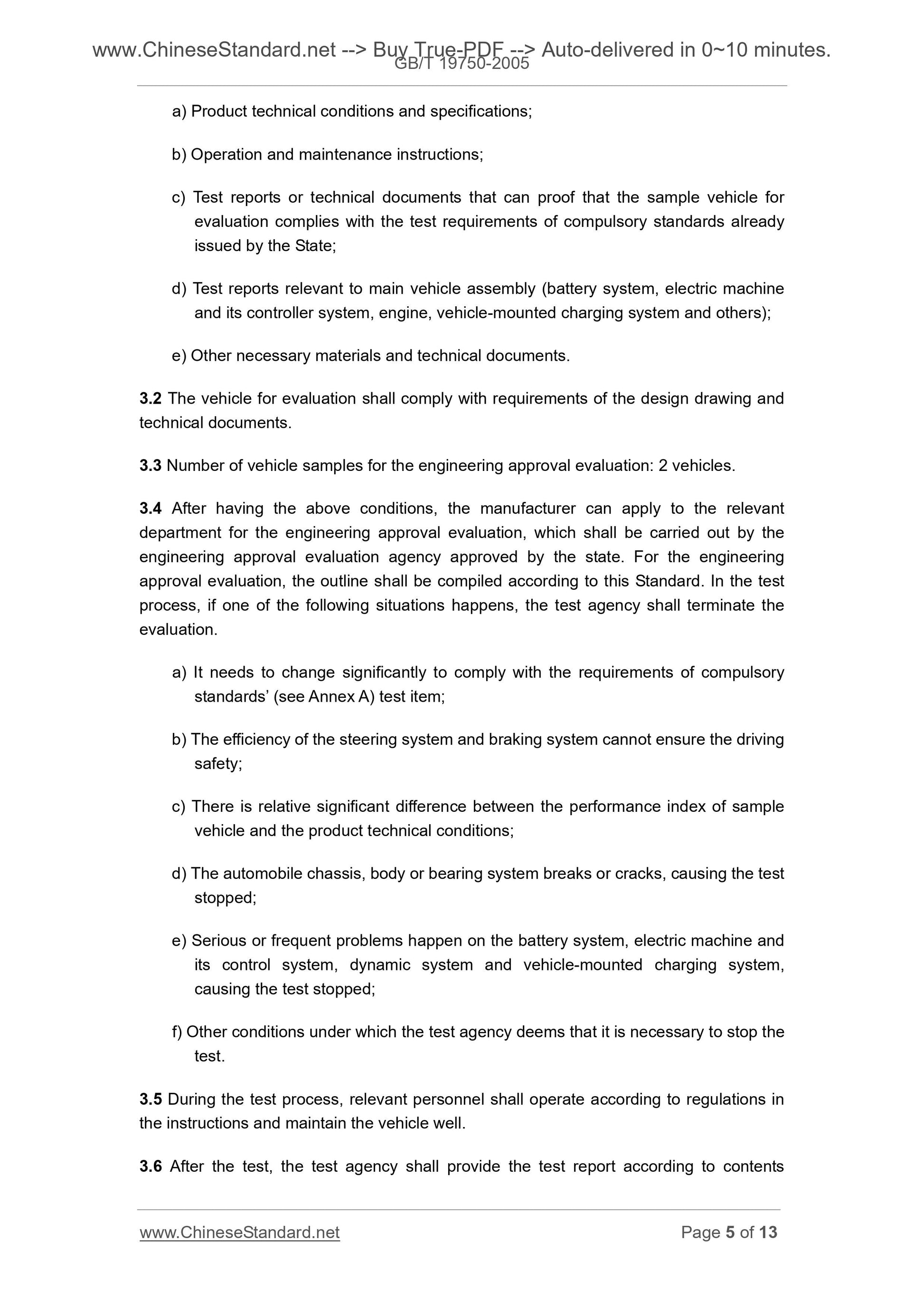

a) Product technical conditions and specifications;
b) Operation and maintenance instructions;
c) Test reports or technical documents that can proof that the sample vehicle for evaluation complies with the test requirements of compulsory standards already issued by the State;
d) Test reports relevant to main vehicle assembly (battery system, electric machine and its controller system, engine, vehicle-mounted charging system and others); e) Other necessary materials and technical documents.
3.2 The vehicle for evaluation shall comply with requirements of the design drawing and technical documents.
3.3 Number of vehicle samples for the engineering approval evaluation. 2 vehicles. 3.4 After having the above conditions, the manufacturer can apply to the relevant department for the engineering approval evaluation, which shall be carried out by the engineering approval evaluation agency approved by the state. For the engineering approval evaluation, the outline shall be compiled according to this Standard. In the test process, if one of the following situations happens, the test agency shall terminate the evaluation.
a) It needs to change significantly to comply with the requirements of compulsory standards?€? (see Annex A) test item;
b) The efficiency of the steering system and braking system cannot ensure the driving safety;
c) There is relative significant difference between the performance index of sample vehicle and the product technical conditions;
d) The automobile chassis, body or bearing system breaks or cracks, causing the test stopped;
e) Serious or frequent problems happen on the battery system, electric machine and its control system, dynamic system and vehicle-mounted charging system, causing the test stopped;
f) Other conditions under which the test agency deems that it is necessary to stop the test.
3.5 During the test process, relevant personnel shall operate according to regulations in the instructions and maintain the vehicle well.

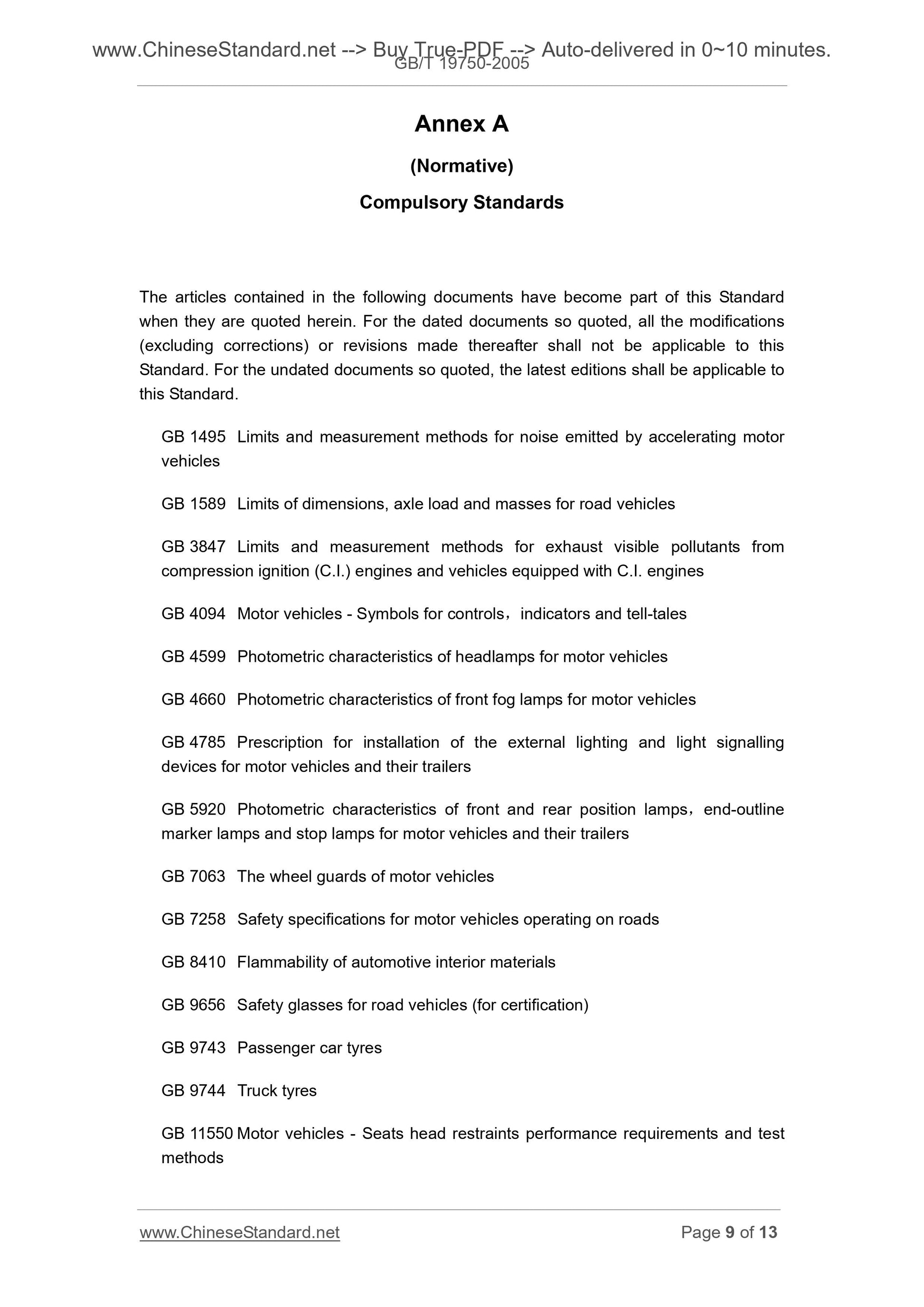

3.6 After the test, the test agency shall provide the test report according to contents Annex A
(Normative)
Compulsory Standards
The articles contained in the following documents have become part of this Standard when they are quoted herein. For the dated documents so quoted, all the modifications (excluding corrections) or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard.
GB 1495 Limits and measurement methods for noise emitted by accelerating motor vehicles
GB 1589 Limits of dimensions, axle load and masses for road vehicles
GB 3847 Limits and measurement methods for exhaust visible pollutants from compression ignition (C.I.) engines and vehicles equipped with C.I. engines GB 4094 Motor vehicles - Symbols for controls, indicators and tell-tales GB 4599 Photometric characteristics of headlamps for motor vehicles
GB 4660 Photometric characteristics of front fog lamps for motor vehicles GB 4785 Prescription for installation of the external lighting and light signalling devices for motor vehicles and their trailers
GB 5920 Photometric characteristics of front and rear position lamps, end-outline marker lamps and stop lamps for motor vehicles and their trailers
GB 7063 The wheel guards of motor vehicles
GB 7258 Safety specifications for motor vehicles operating on roads
GB 8410 Flammability of automotive interior materials
GB 9656 Safety glasses for road vehicles (for certification)
GB 9743 Passenger car tyres
GB 9744 Truck tyres
GB 11550 Motor vehicles - Seats head restraints performance requirements and test methods

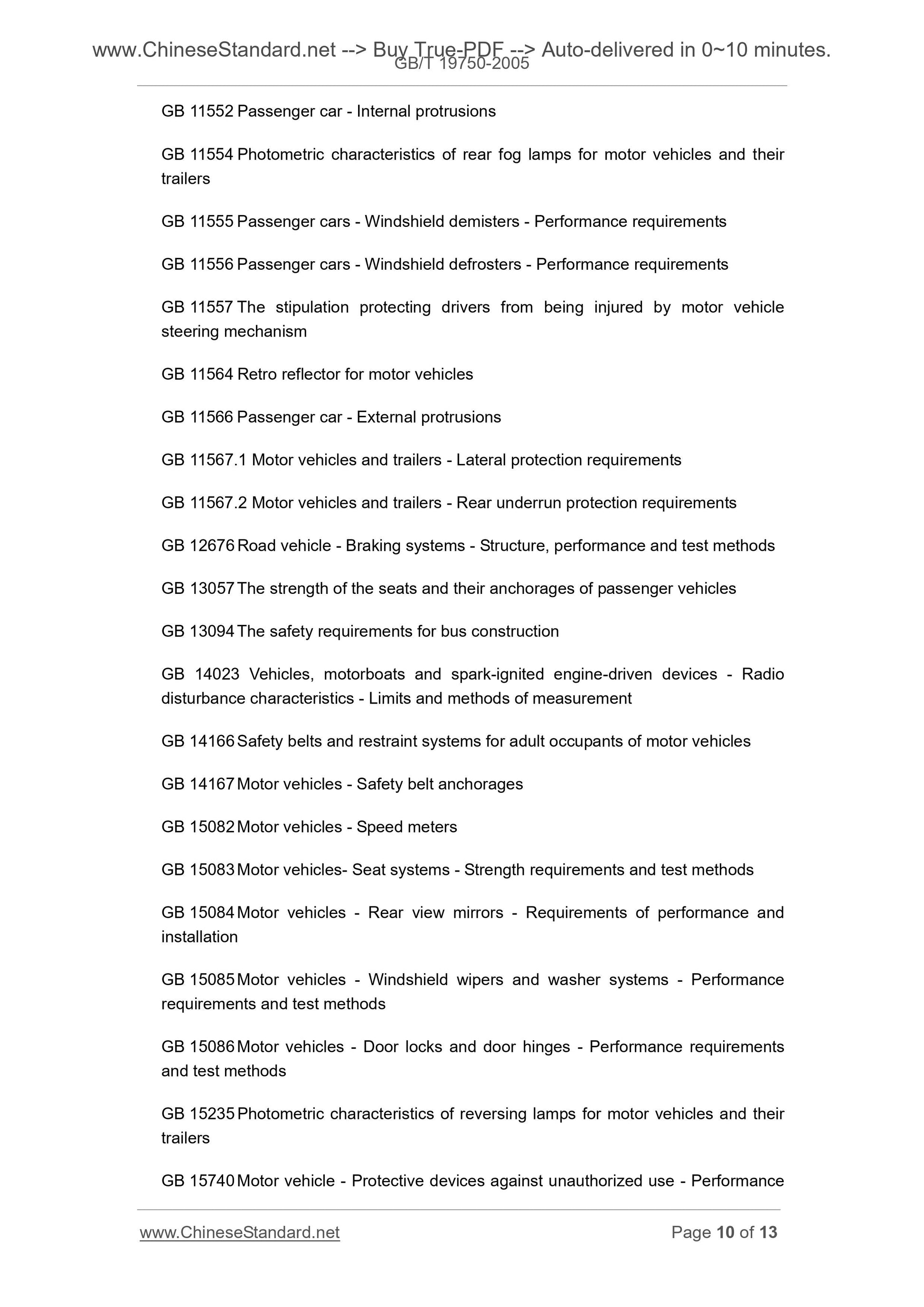

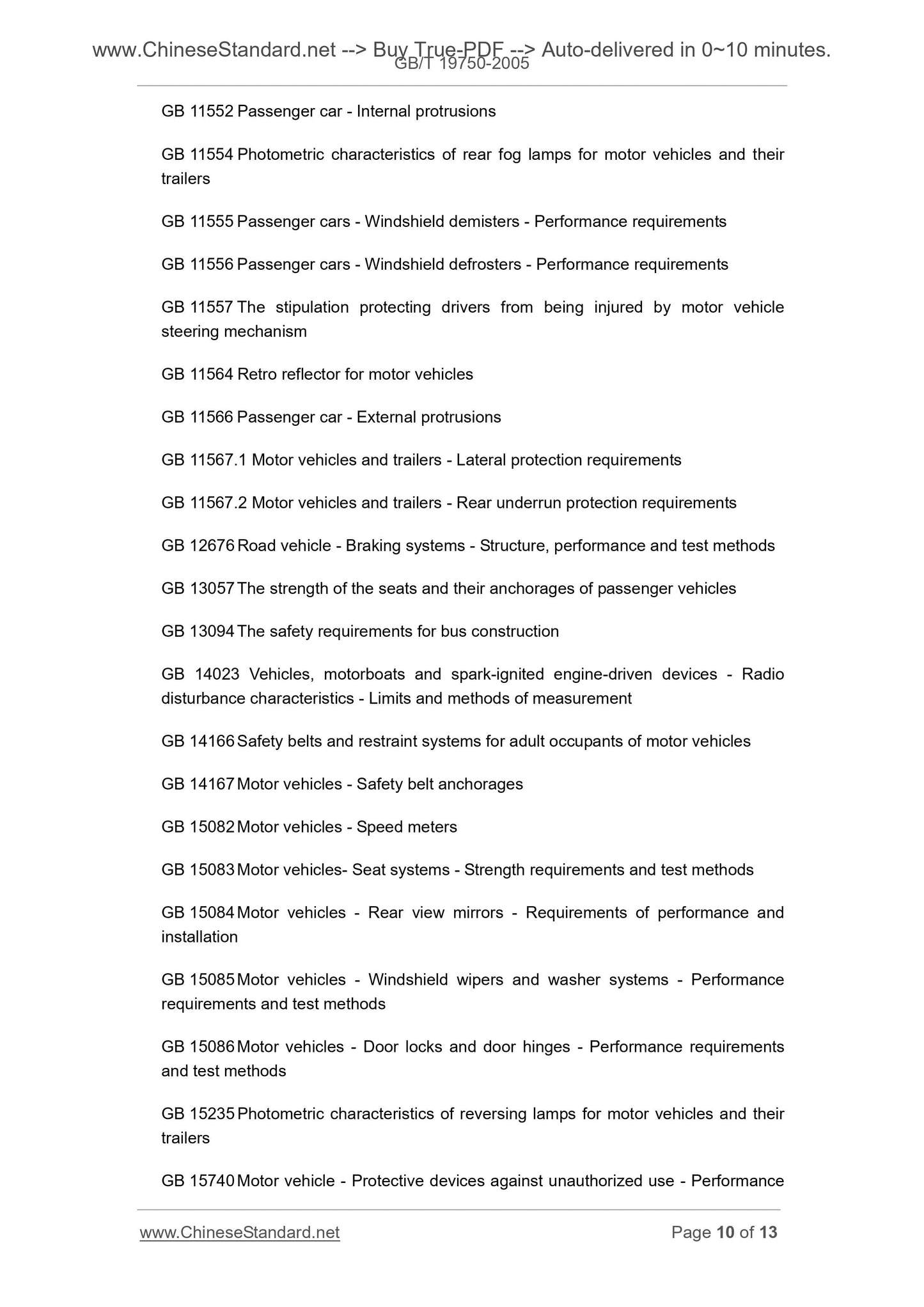

GB 11552 Passenger car - Internal protrusions
GB 11554 Photometric characteristics of rear fog lamps for motor vehicles and their trailers
GB 11555 Passenger cars - Windshield demisters - Performance requirements GB 11556 Passenger cars - Windshield defrosters - Performance requirements GB 11557 The stipulation protecting drivers from being injured by motor vehicle steering mechanism
GB 11564 Retro reflector for motor vehicles
GB 11566 Passenger car - External protrusions
GB 11567.1 Motor vehicles and trailers - Lateral protection requirements GB 11567.2 Motor vehicles and trailers - Rear underrun protection requirements GB 12676 Road vehicle - Braking systems - Structure, performance and test methods GB 13057 The strength of the seats and their anchorages of passenger vehicles GB 13094 The safety requirements for bus construction
GB 14023 Vehicles, motorboats and spark-ignited engine-driven devices - Radio disturbance characteristics - Limits and methods of measurement
GB 14166 Safety belts and restraint systems for adult occupants of motor vehicles GB 14167 Motor vehicles - Safety belt anchorages
GB 15082 Motor vehicles - Speed meters
GB 15083 Motor vehicles- Seat systems - Strength requirements and test methods GB 15084 Motor vehicles - Rear view mirrors - Requirements of performance and installation
GB 15085 Motor vehicles - Windshield wipers and washer systems - Performance requirements and test methods
GB 15086 Motor vehicles - Door locks and door hinges - Performance requirements and test methods
GB 15235 Photometric characteristics of reversing lamps for motor vehicles and their trailers
GB 15740 Motor vehicle - Protective devices against unauthorized use - Performance requirements

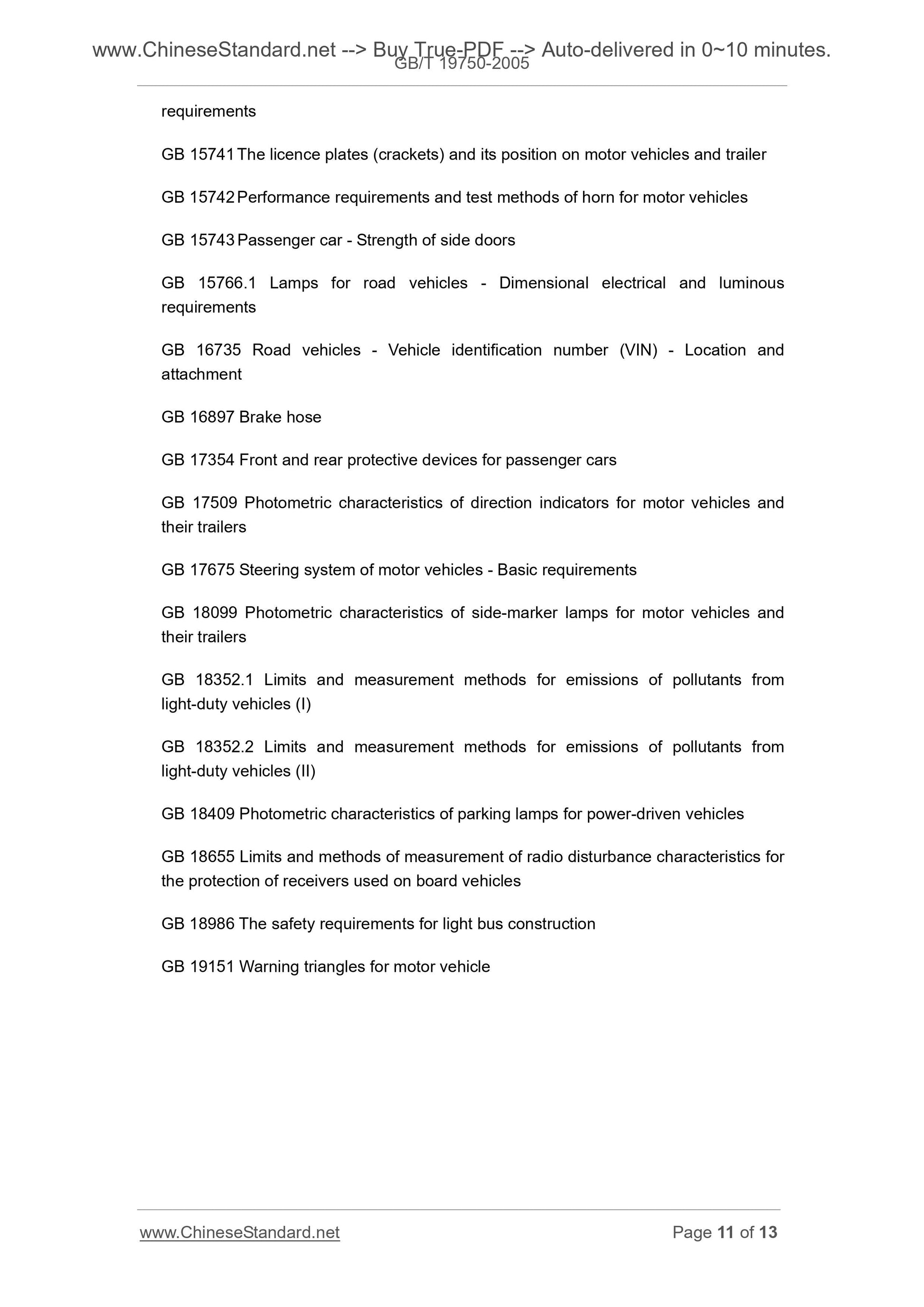

GB 15741 The licence plates (crackets) and its position on motor vehicles and trailer GB 15742 Performance requirements and test methods of horn for motor vehicles GB 15743 Passenger car - Strength of side doors
GB 15766.1 Lamps for road vehicles - Dimensional electrical and luminous requirements
GB 16735 Road vehicles - Vehicle identification number (VIN) - Location and attachment
GB 16897 Brake hose
GB 17354 Front and rear protective devices for passenger cars
GB 17509 Photometric characteristics of direction indicators for motor vehicles and their trailers
GB 17675 Steering system of motor vehicles - Basic requirements
GB 18099 Photometric characteristics of side-marker lamps for motor vehicles and their trailers
GB 18352.1 Limits and measurement methods for emissions of pollutants from light-duty vehicles (I)
GB 18352.2 Limits and measurement methods for emissions of pollutants from light-duty vehicles (II)
GB 18409 Pho...
