GB/T 19596-2004: Terminology of electric vehicles

This Standard specifies the terminologies and definitions concerned with electric vehicles. This Standard is applicable to the complete vehicle, electrical machine and controller, battery and charger of electric vehicles.

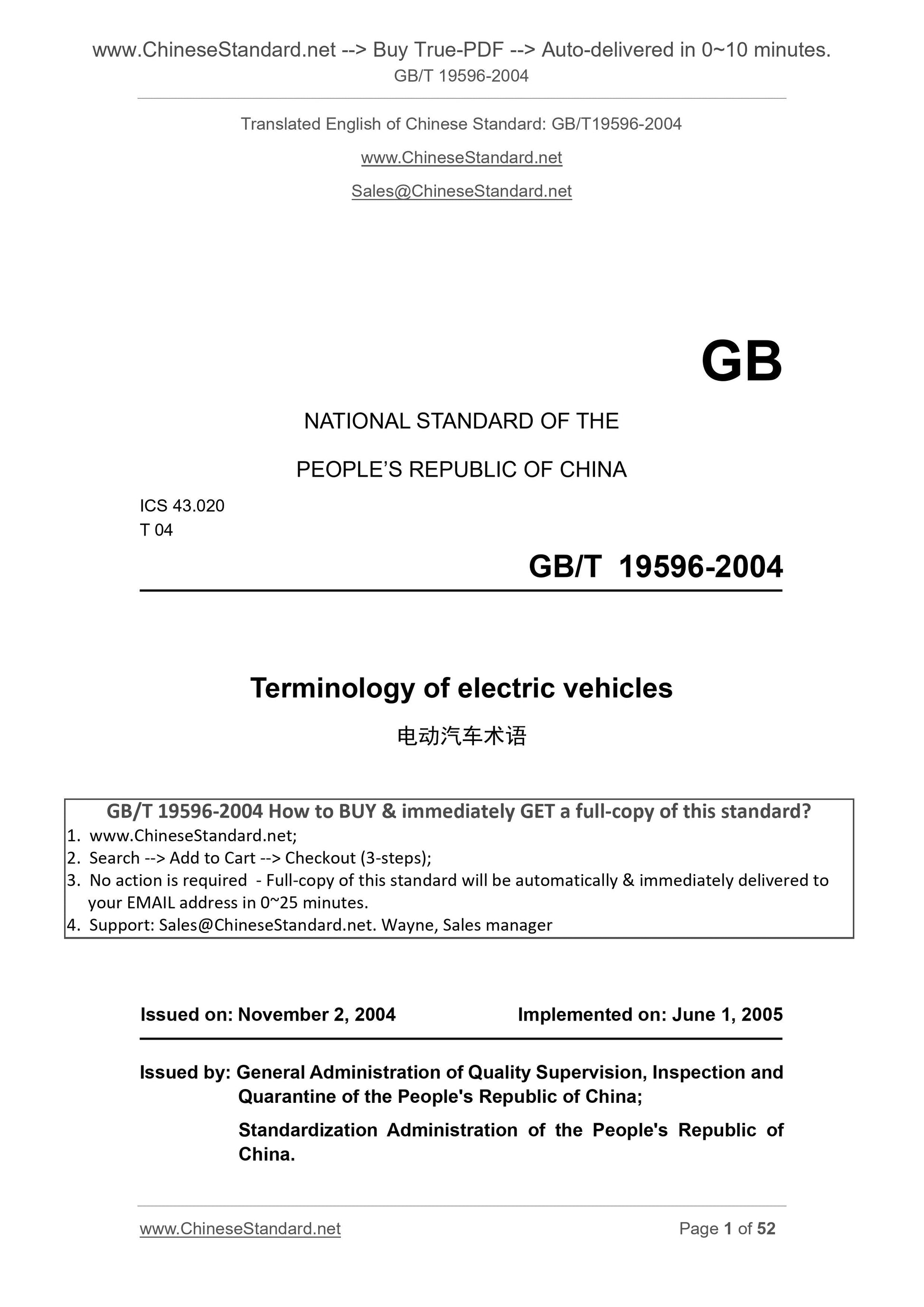

GB/T 19596-2004
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 04
Terminology of electric vehicles
ISSUED ON. NOVEMBER 2, 2004
IMPLEMENTED ON. JUNE 1, 2005
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

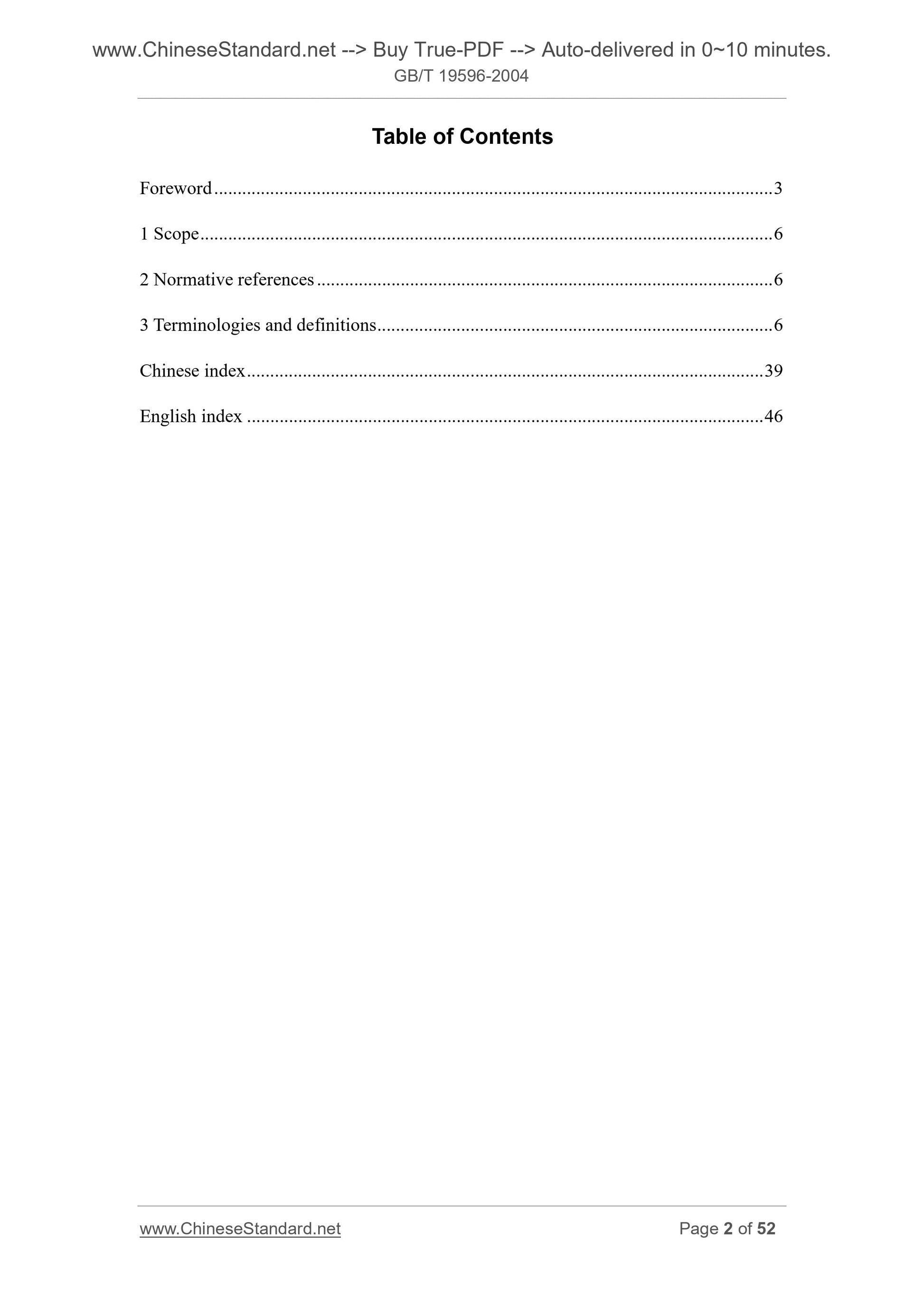

Table of Contents
Foreword ... 3
1 Scope ... 6
2 Normative references ... 6
3 Terminologies and definitions ... 6
Chinese index ... 39
English index ... 46

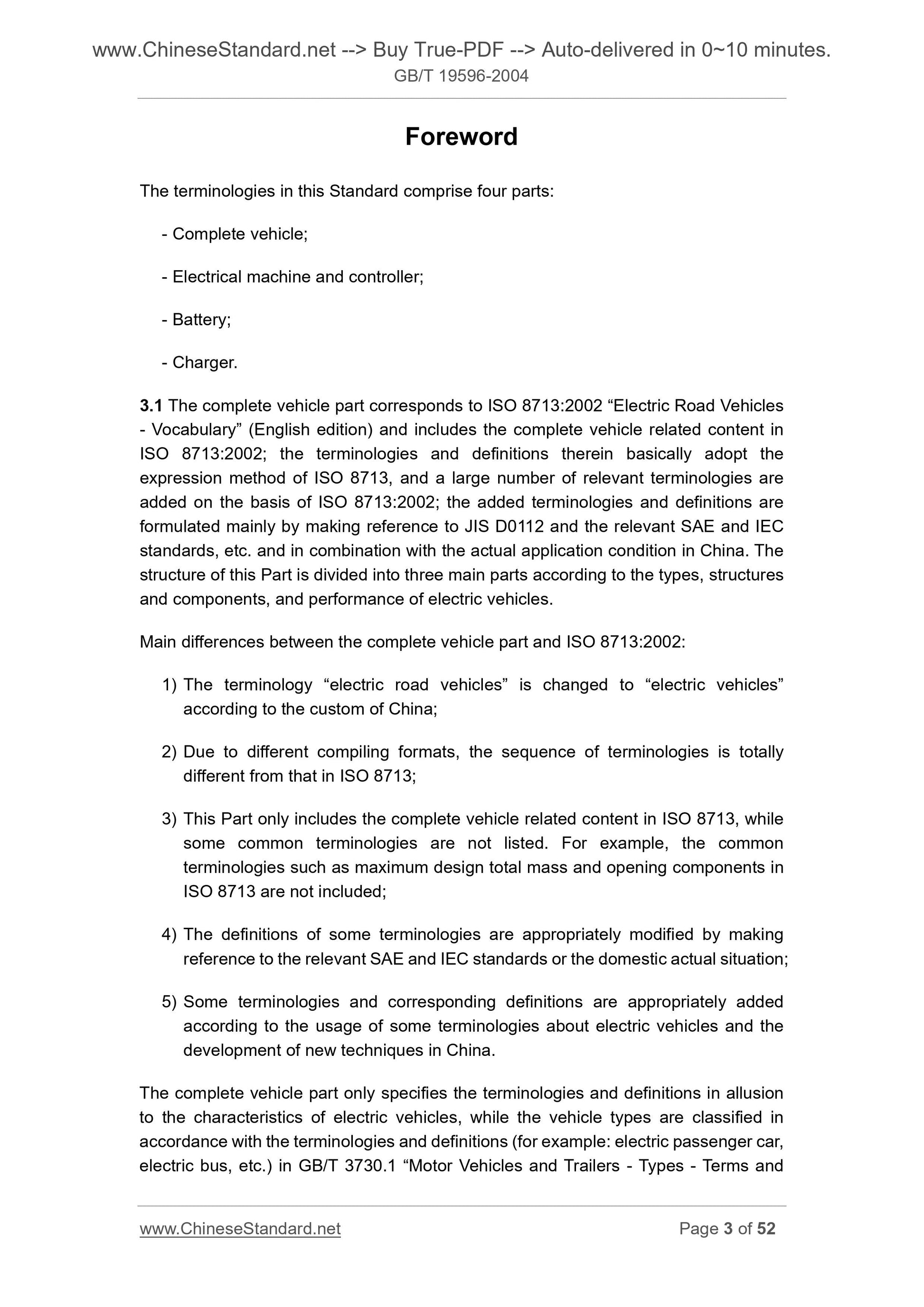

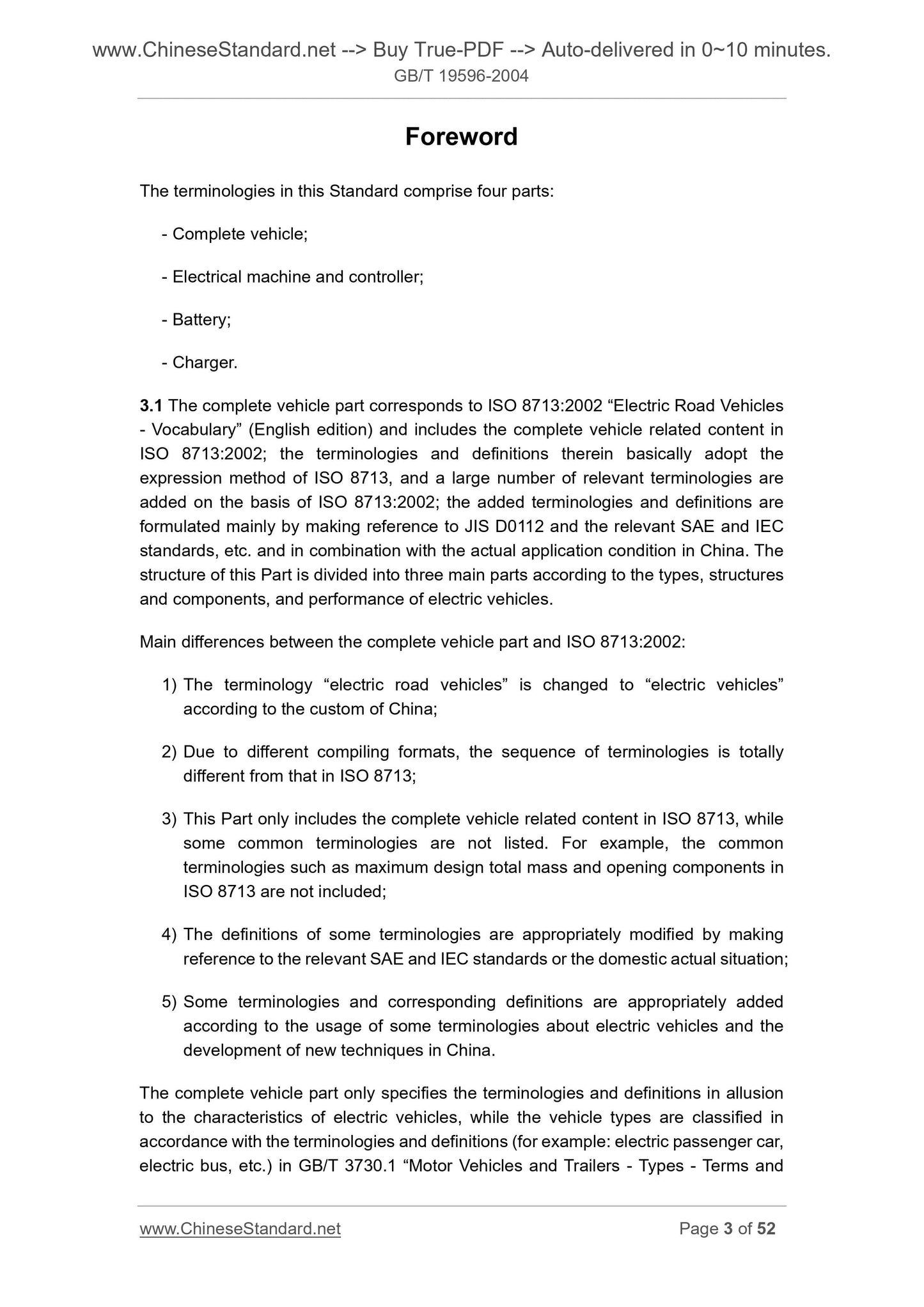

Foreword
The terminologies in this Standard comprise four parts.
- Complete vehicle;
- Electrical machine and controller;
- Battery;
- Charger.
3.1 The complete vehicle part corresponds to ISO 8713.2002 ?€?Electric Road Vehicles - Vocabulary?€? (English edition) and includes the complete vehicle related content in ISO 8713.2002; the terminologies and definitions therein basically adopt the expression method of ISO 8713, and a large number of relevant terminologies are added on the basis of ISO 8713.2002; the added terminologies and definitions are formulated mainly by making reference to JIS D0112 and the relevant SAE and IEC standards, etc. and in combination with the actual application condition in China. The structure of this Part is divided into three main parts according to the types, structures and components, and performance of electric vehicles.
Main differences between the complete vehicle part and ISO 8713.2002.
1) The terminology ?€?electric road vehicles?€? is changed to ?€?electric vehicles?€? according to the custom of China;
2) Due to different compiling formats, the sequence of terminologies is totally different from that in ISO 8713;
3) This Part only includes the complete vehicle related content in ISO 8713, while some common terminologies are not listed. For example, the common
terminologies such as maximum design total mass and opening components in ISO 8713 are not included;
4) The definitions of some terminologies are appropriately modified by making reference to the relevant SAE and IEC standards or the domestic actual situation; 5) Some terminologies and corresponding definitions are appropriately added according to the usage of some terminologies about electric vehicles and the development of new techniques in China.
The complete vehicle part only specifies the terminologies and definitions in allusion to the characteristics of electric vehicles, while the vehicle types are classified in accordance with the terminologies and definitions (for example. electric passenger car, electric bus, etc.) in GB/T 3730.1 ?€?Motor Vehicles and Trailers - Types - Terms and Definitions?€? and are no longer defined in this Part.

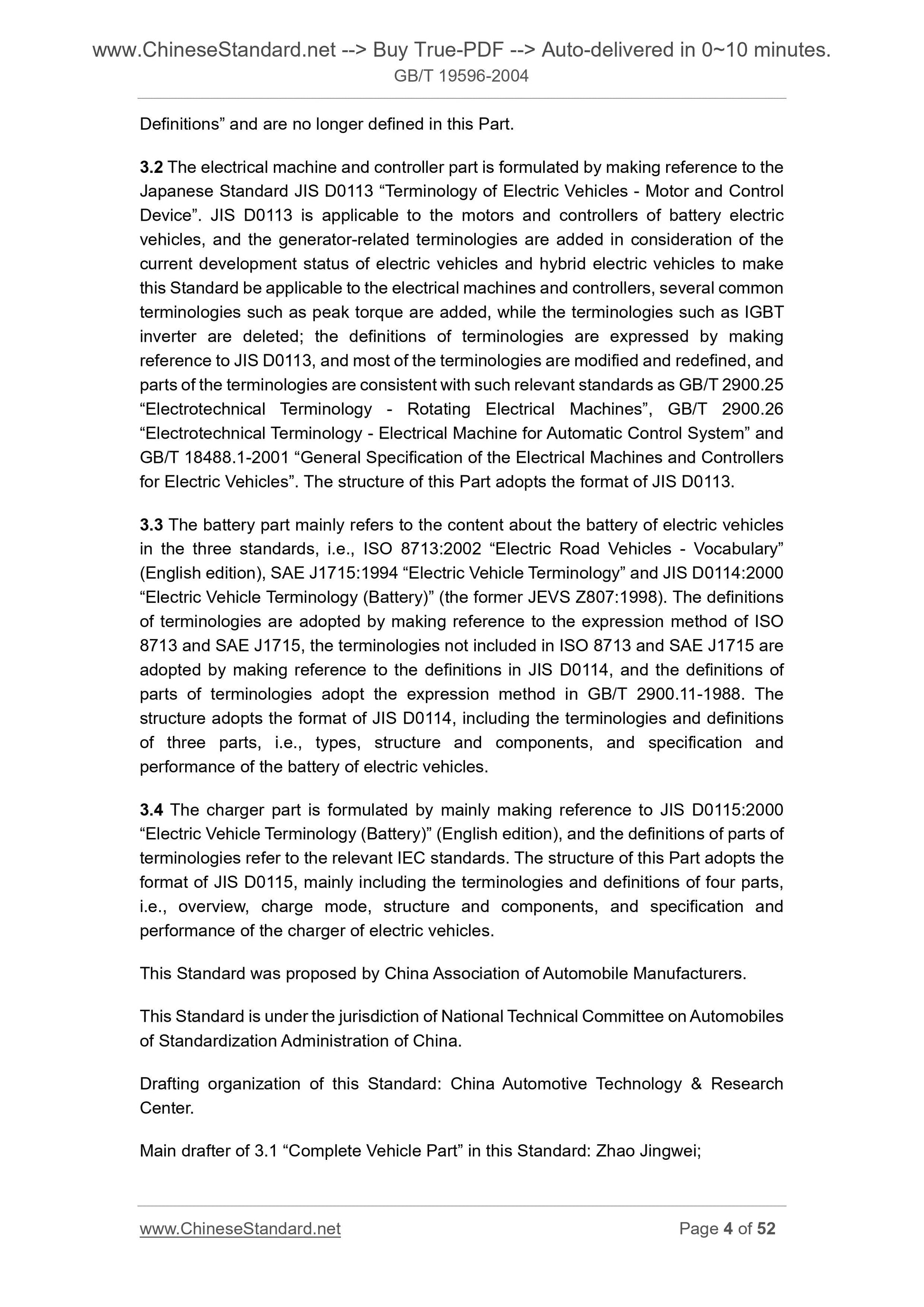

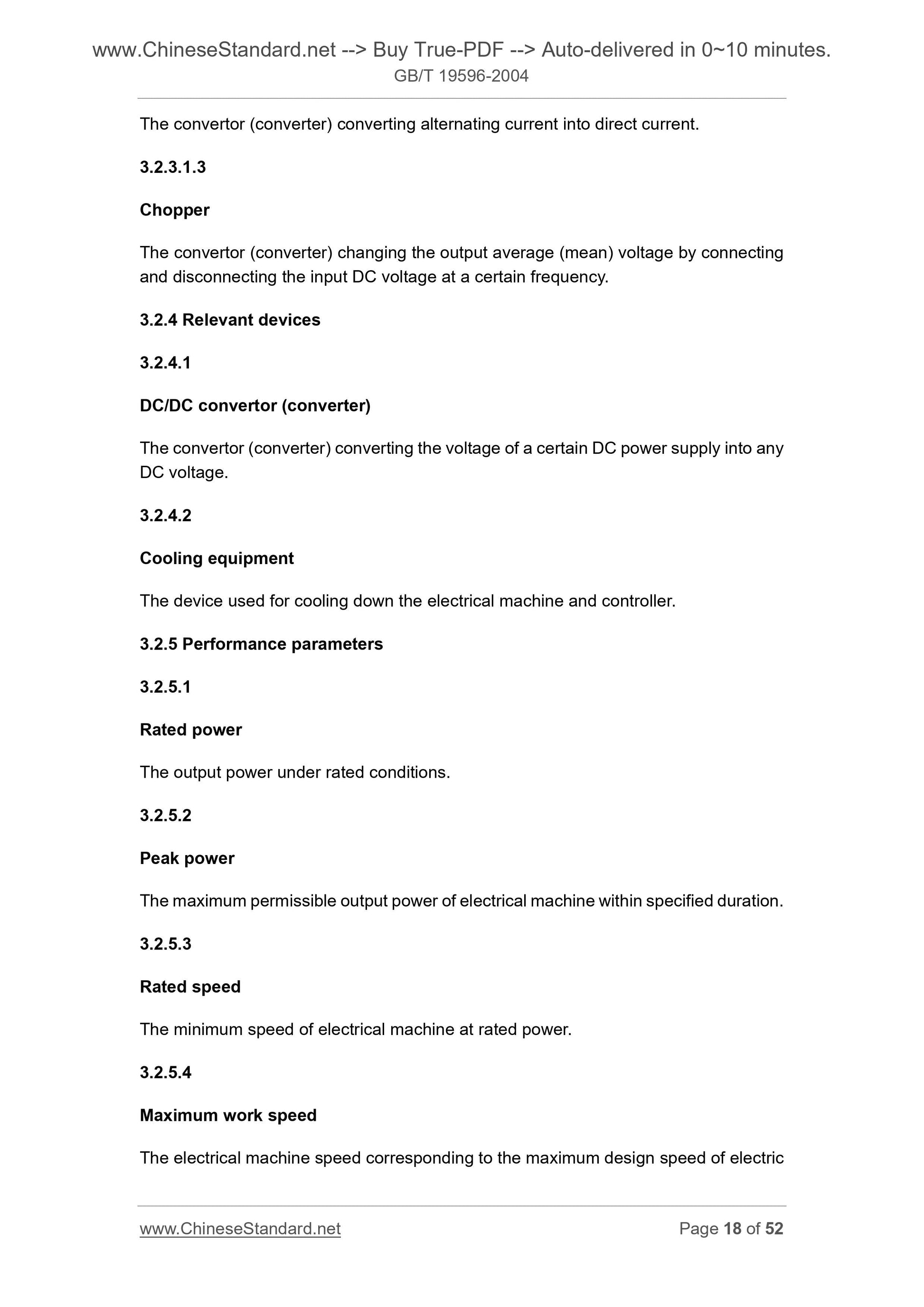

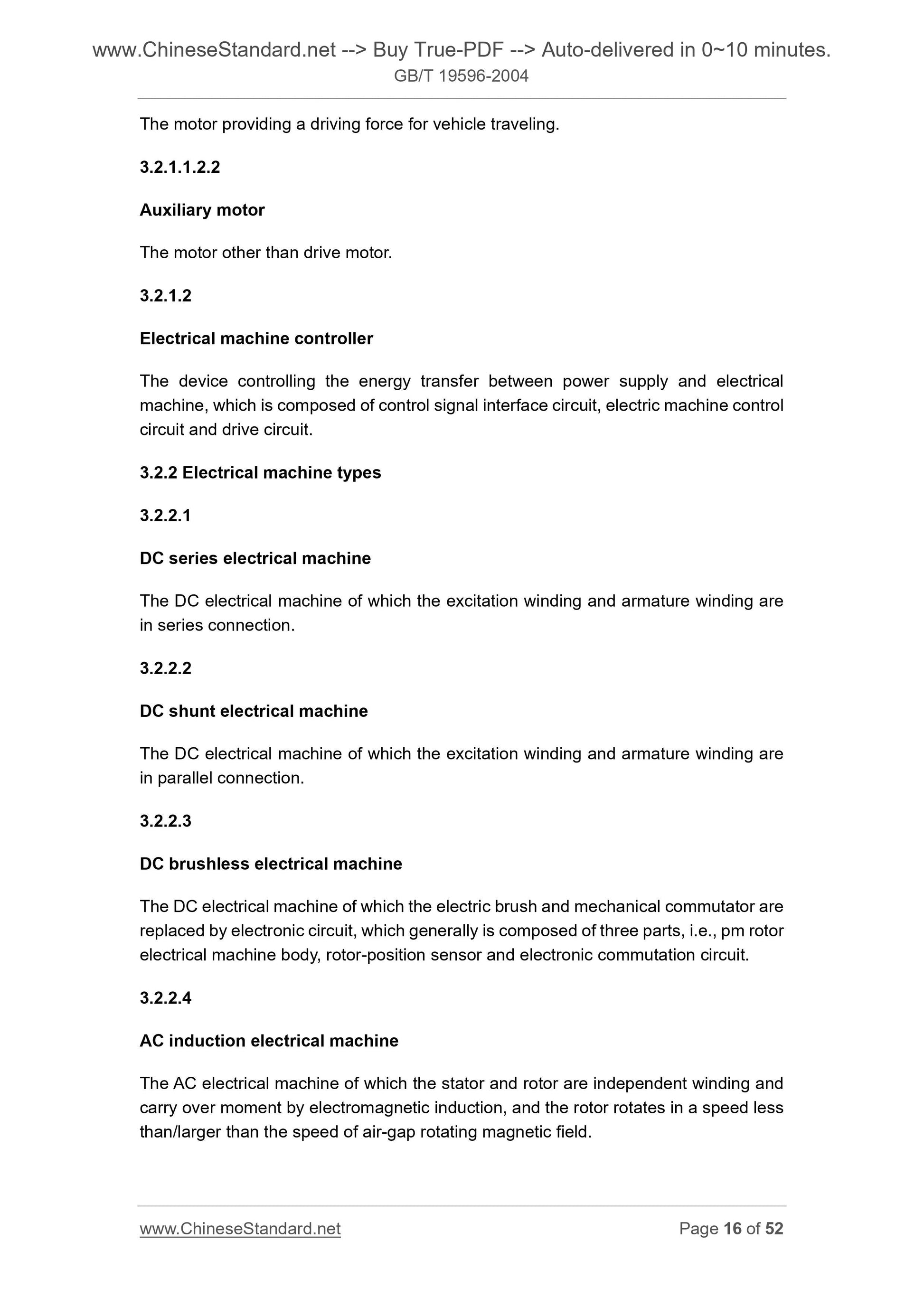

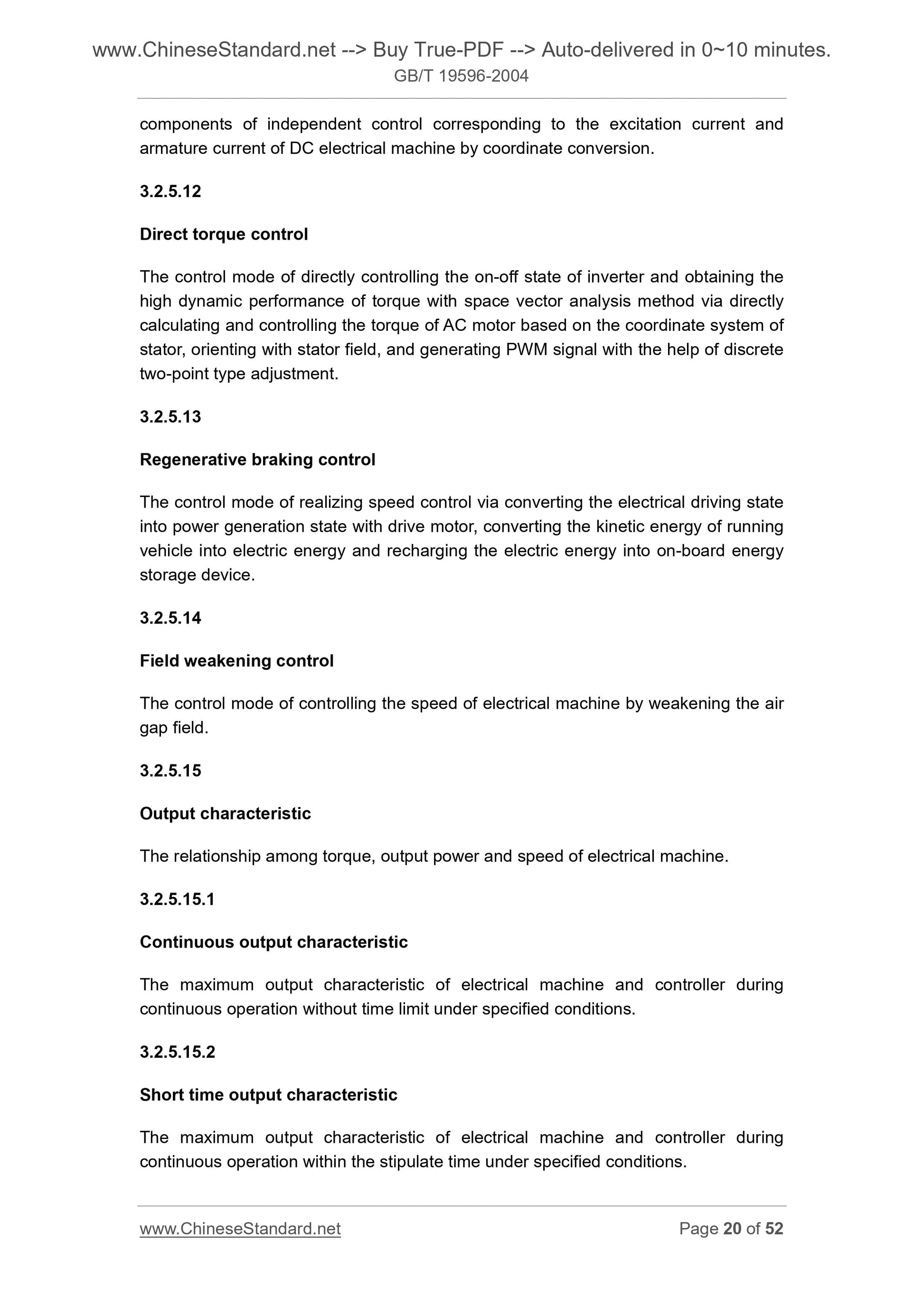

3.2 The electrical machine and controller part is formulated by making reference to the Japanese Standard JIS D0113 ?€?Terminology of Electric Vehicles - Motor and Control Device?€?. JIS D0113 is applicable to the motors and controllers of battery electric vehicles, and the generator-related terminologies are added in consideration of the current development status of electric vehicles and hybrid electric vehicles to make this Standard be applicable to the electrical machines and controllers, several common terminologies such as peak torque are added, while the terminologies such as IGBT inverter are deleted; the definitions of terminologies are expressed by making reference to JIS D0113, and most of the terminologies are modified and redefined, and parts of the terminologies are consistent with such relevant standards as GB/T 2900.25 ?€?Electrotechnical Terminology - Rotating Electrical Machines?€?, GB/T 2900.26 ?€?Electrotechnical Terminology - Electrical Machine for Automatic Control System?€? and GB/T 18488.1-2001 ?€?General Specification of the Electrical Machines and Controllers for Electric Vehicles?€?. The structure of this Part adopts the format of JIS D0113. 3.3 The battery part mainly refers to the content about the battery of electric vehicles in the three standards, i.e., ISO 8713.2002 ?€?Electric Road Vehicles - Vocabulary?€? (English edition), SAE J1715.1994 ?€?Electric Vehicle Terminology?€? and JIS D0114.2000 ?€?Electric Vehicle Terminology (Battery)?€? (the former JEVS Z807.1998). The definitions of terminologies are adopted by making reference to the expression method of ISO 8713 and SAE J1715, the terminologies not included in ISO 8713 and SAE J1715 are adopted by making reference to the definitions in JIS D0114, and the definitions of parts of terminologies adopt the expression method in GB/T 2900.11-1988. The structure adopts the format of JIS D0114, including the terminologies and definitions of three parts, i.e., types, structure and components, and specification and performance of the battery of electric vehicles.
3.4 The charger part is formulated by mainly making reference to JIS D0115.2000 ?€?Electric Vehicle Terminology (Battery)?€? (English edition), and the definitions of parts of terminologies refer to the relevant IEC standards. The structure of this Part adopts the format of JIS D0115, mainly including the terminologies and definitions of four parts, i.e., overview, charge mode, structure and components, and specification and performance of the charger of electric vehicles.
This Standard was proposed by China Association of Automobile Manufacturers. This Standard is under the jurisdiction of National Technical Committee on Automobiles of Standardization Administration of China.
Drafting organization of this Standard. China Automotive Technology and Research Center.
Main drafter of 3.1 ?€?Complete Vehicle Part?€? in this Standard. Zhao Jingwei; Terminology of electric vehicles

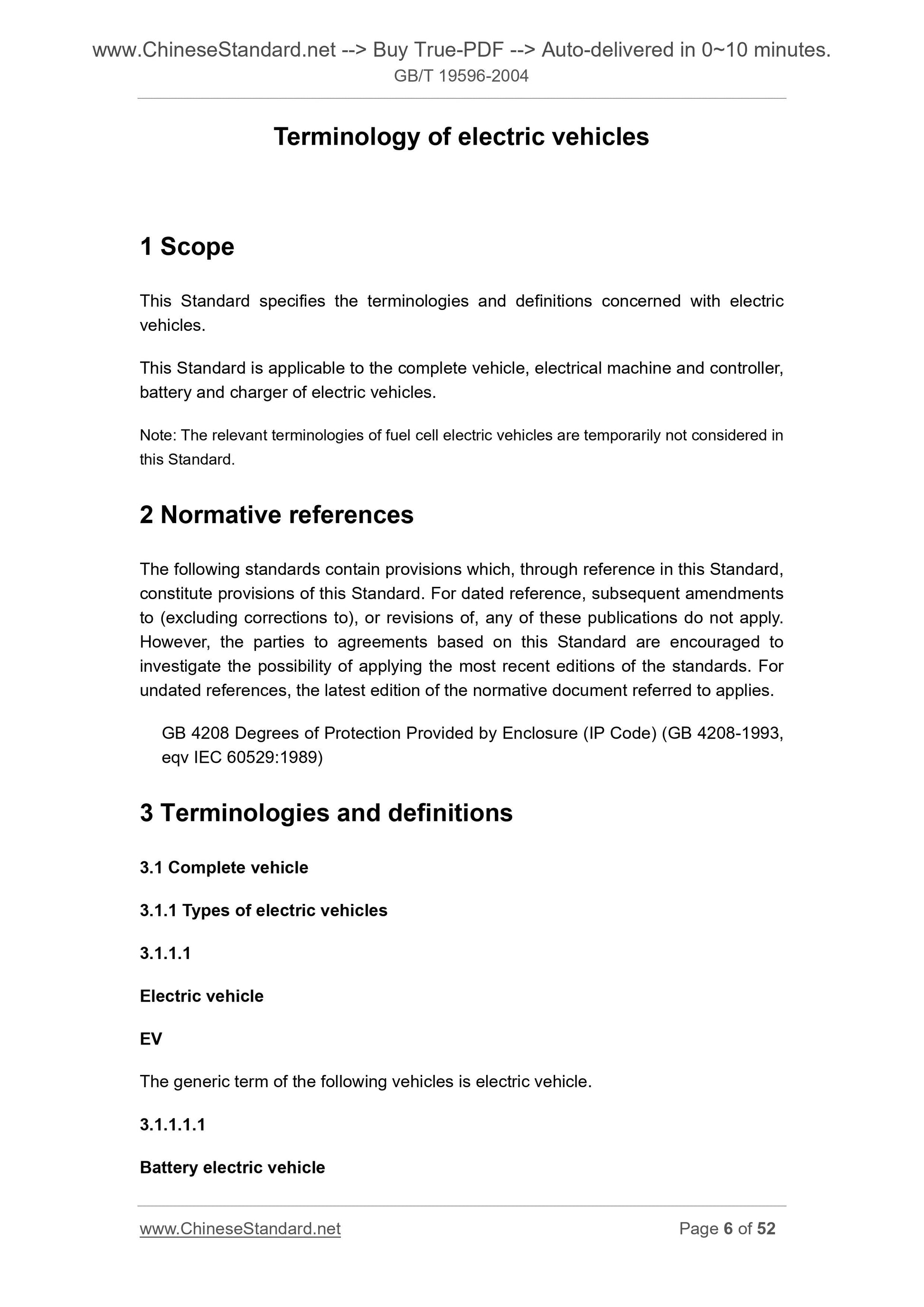

1 Scope
This Standard specifies the terminologies and definitions concerned with electric vehicles.
This Standard is applicable to the complete vehicle, electrical machine and controller, battery and charger of electric vehicles.
Note. The relevant terminologies of fuel cell electric vehicles are temporarily not considered in this Standard.
2 Normative references
The following standards contain provisions which, through reference in this Standard, constitute provisions of this Standard. For dated reference, subsequent amendments to (excluding corrections to), or revisions of, any of these publications do not apply. However, the parties to agreements based on this Standard are encouraged to investigate the possibility of applying the most recent editions of the standards. For undated references, the latest edition of the normative document referred to applies. GB 4208 Degrees of Protection Provided by Enclosure (IP Code) (GB 4208-1993, eqv IEC 60529.1989)
3 Terminologies and definitions
3.1 Complete vehicle
3.1.1 Types of electric vehicles
3.1.1.1
Electric vehicle
EV
The generic term of the following vehicles is electric vehicle.
3.1.1.1.1
Battery electric vehicle

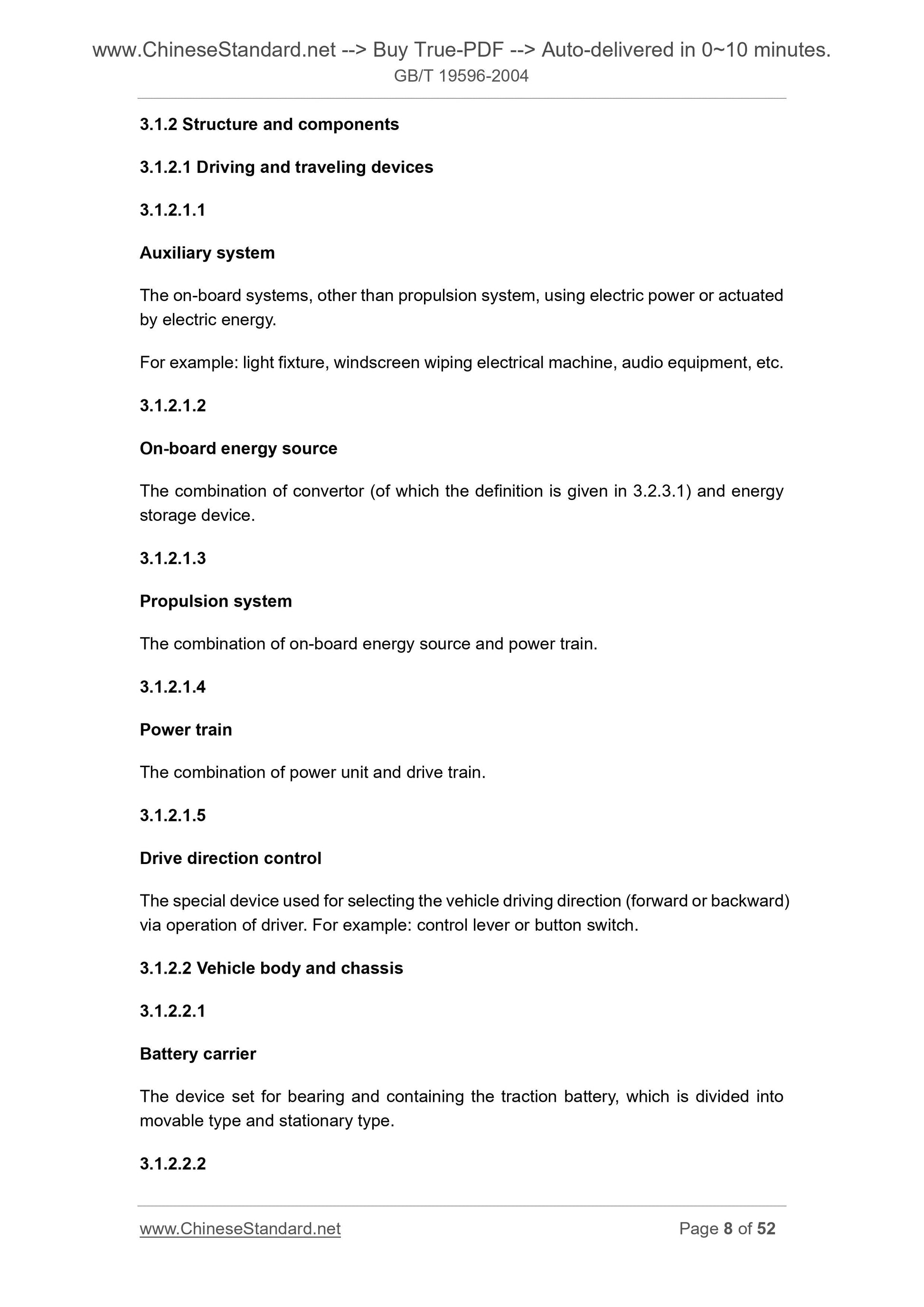

3.1.2 Structure and components
3.1.2.1 Driving and traveling devices
3.1.2.1.1
Auxiliary system
The on-board systems, other than propulsion system, using electric power or actuated by electric energy.
For example. light fixture, windscreen wiping electrical machine, audio equipment, etc. 3.1.2.1.2
On-board energy source
The combination of convertor (of which the definition is given in 3.2.3.1) and energy storage device.
3.1.2.1.3
Propulsion system
The combination of on-board energy source and power train.
3.1.2.1.4
Power train
The combination of power unit and drive train.
3.1.2.1.5
Drive direction control
The special device used for selecting the vehicle driving direction (forward or backward) via operation of driver. For example. control lever or button switch.
3.1.2.2 Vehicle body and chassis
3.1.2.2.1
Battery carrier
The device set for bearing and containing the traction battery, which is divided into movable type and stationary type.
3.1.2.2.2

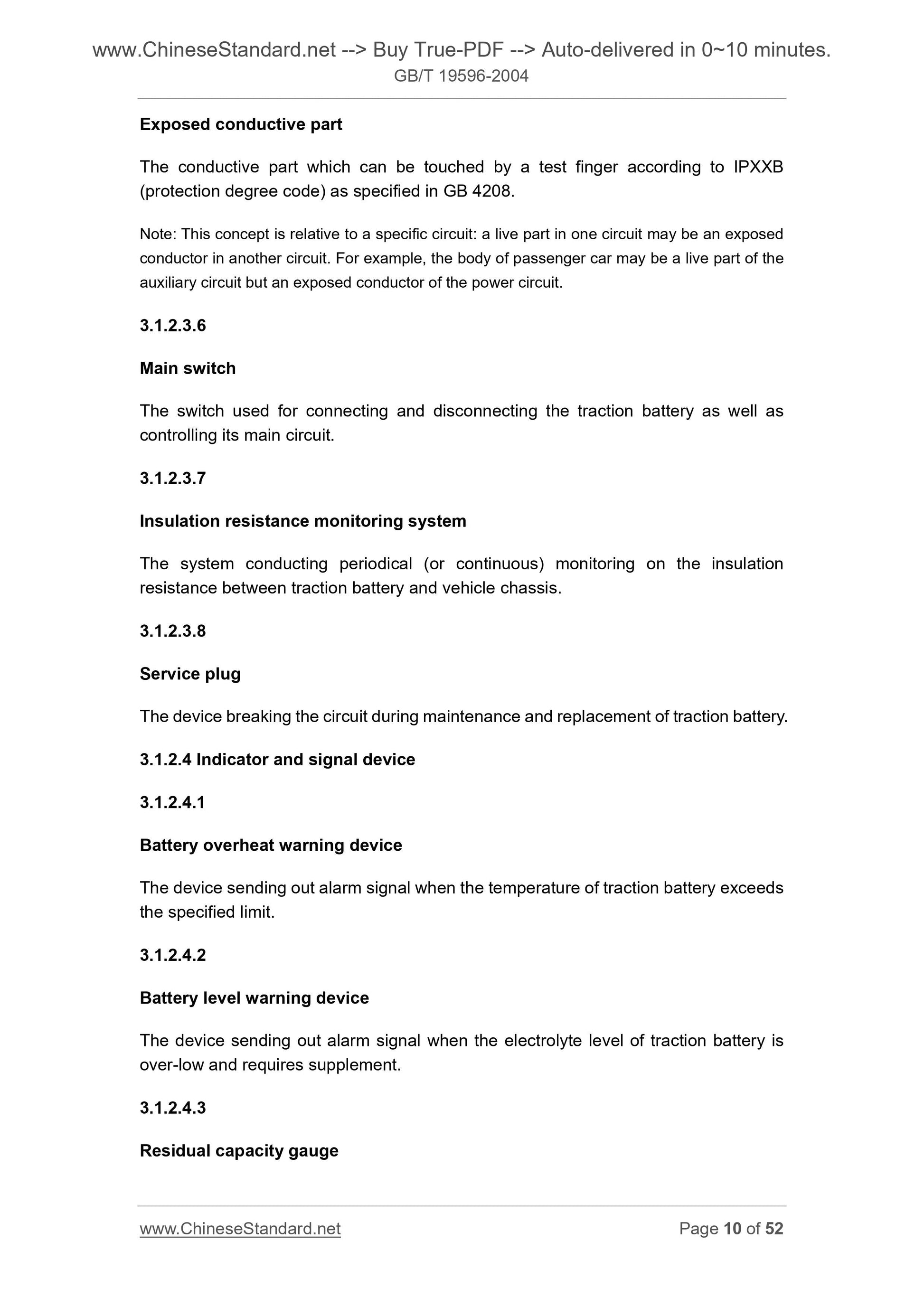

Exposed conductive part
The conductive part which can be touched by a test finger according to IPXXB (protection degree code) as specified in GB 4208.
Note. This concept is relative to a specific circuit. a live part in one circuit may be an exposed conductor in another circuit. For example, the body of passenger car may be a live part of the auxiliary circuit but an exposed conductor of the power circuit.
3.1.2.3.6
Main switch
The switch used for connecting and disconnecting the traction battery as well as controlling its main circuit.
3.1.2.3.7
Insulation resistance monitoring system
The system conducting periodical (or continuous) monitoring on the insulation resistance between traction battery and vehicle chassis.
3.1.2.3.8
Service plug
The device breaking the circuit during maintenance and replacement of traction battery. 3.1.2.4 Indicator and signal device
3.1.2.4.1
Battery overheat warning device
The device sending out alarm signal when the temperature of traction battery exceeds the specified limit.
3.1.2.4.2
Battery level warning device
The device sending out alarm signal when the electrolyte level of traction battery is over-low and requires supplement.
3.1.2.4.3
Residual capacity gauge

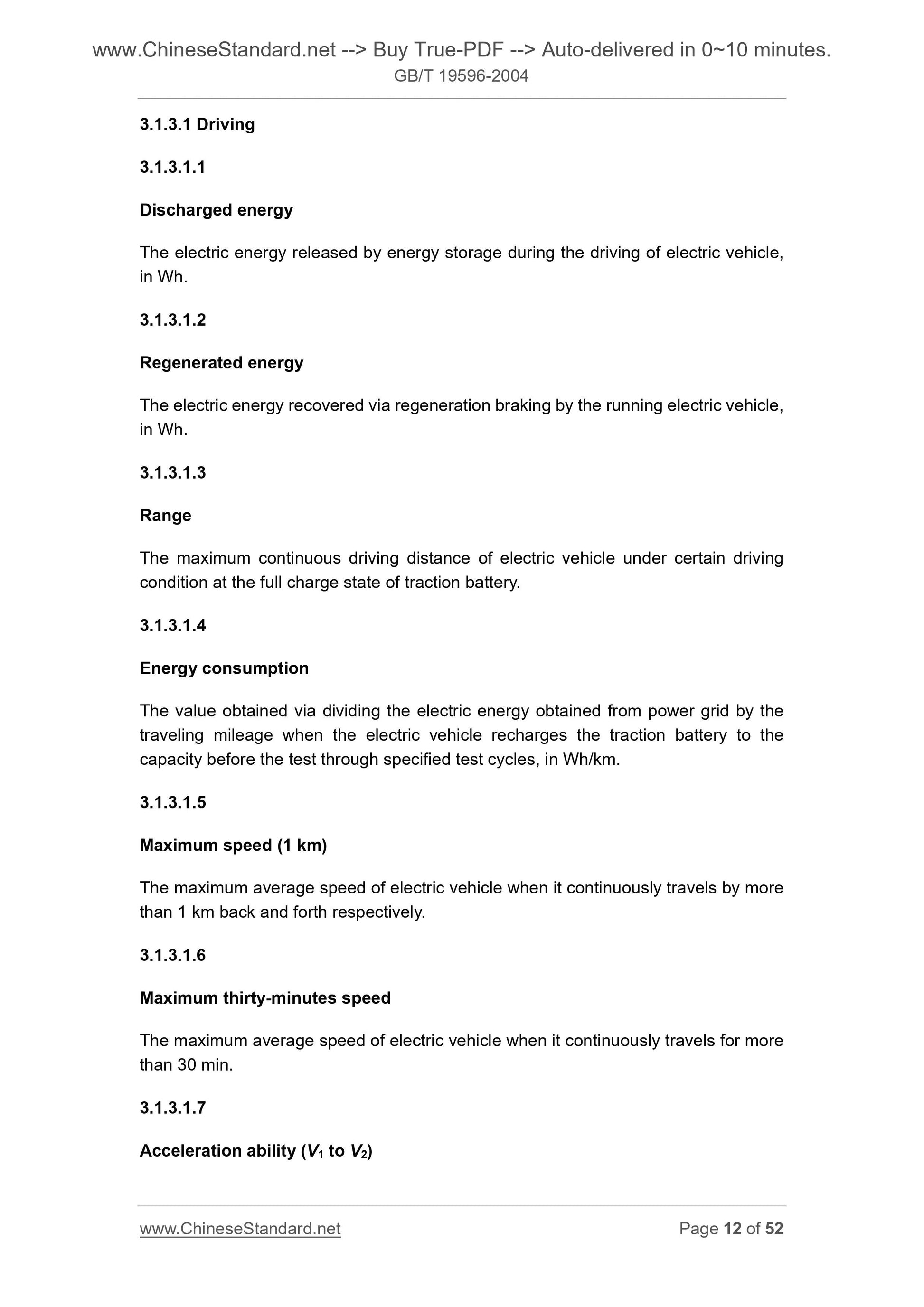

3.1.3.1 Driving
3.1.3.1.1

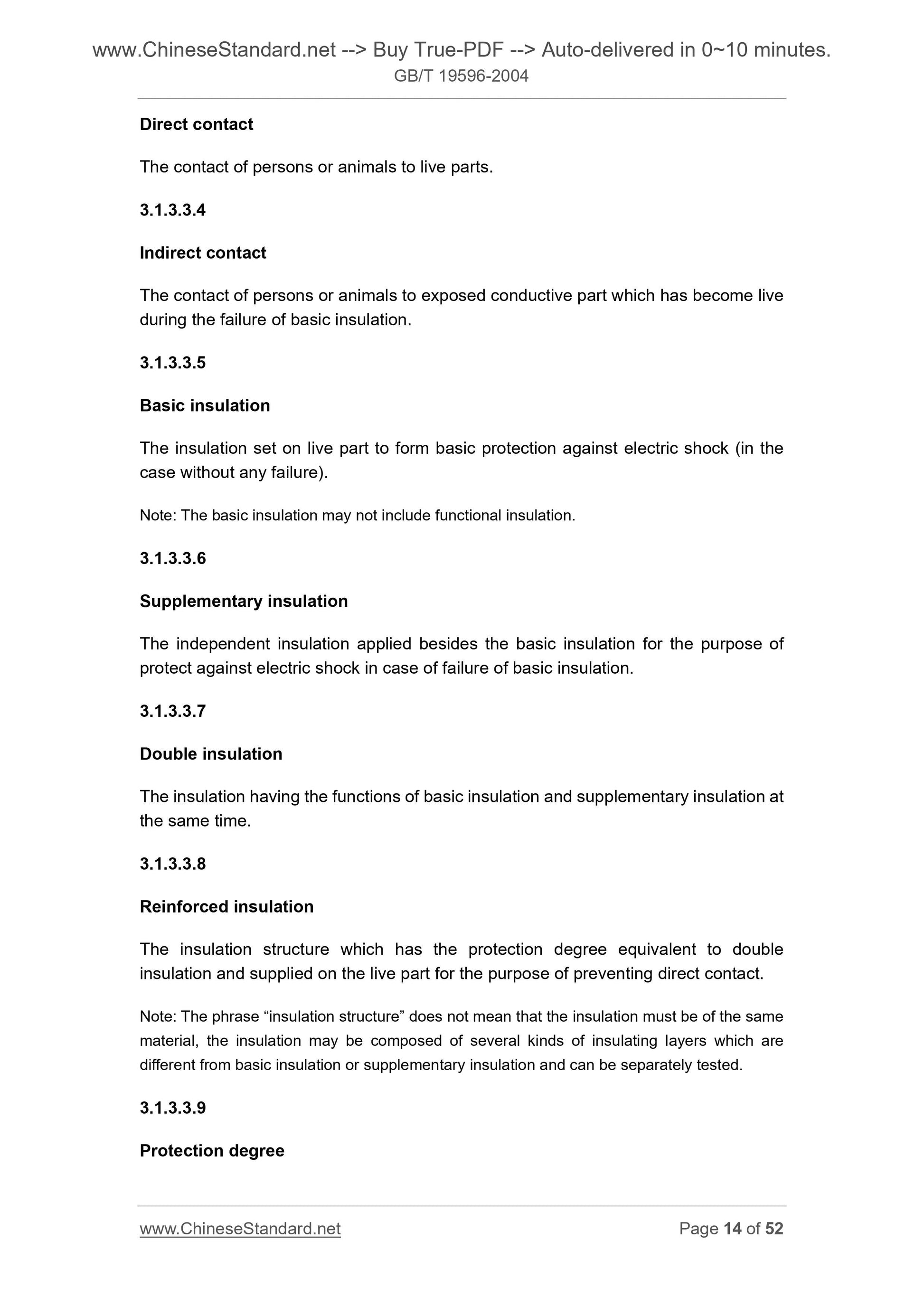

Discharged energy...
