GB/T 19409-2013: Water-source (ground-source) heat pumps

This standard specifies the terms and definitions, types and basic parameters, requirements, test methods, inspection rules, marking, packaging, transport and storage of water source (ground-source) heat pumps.

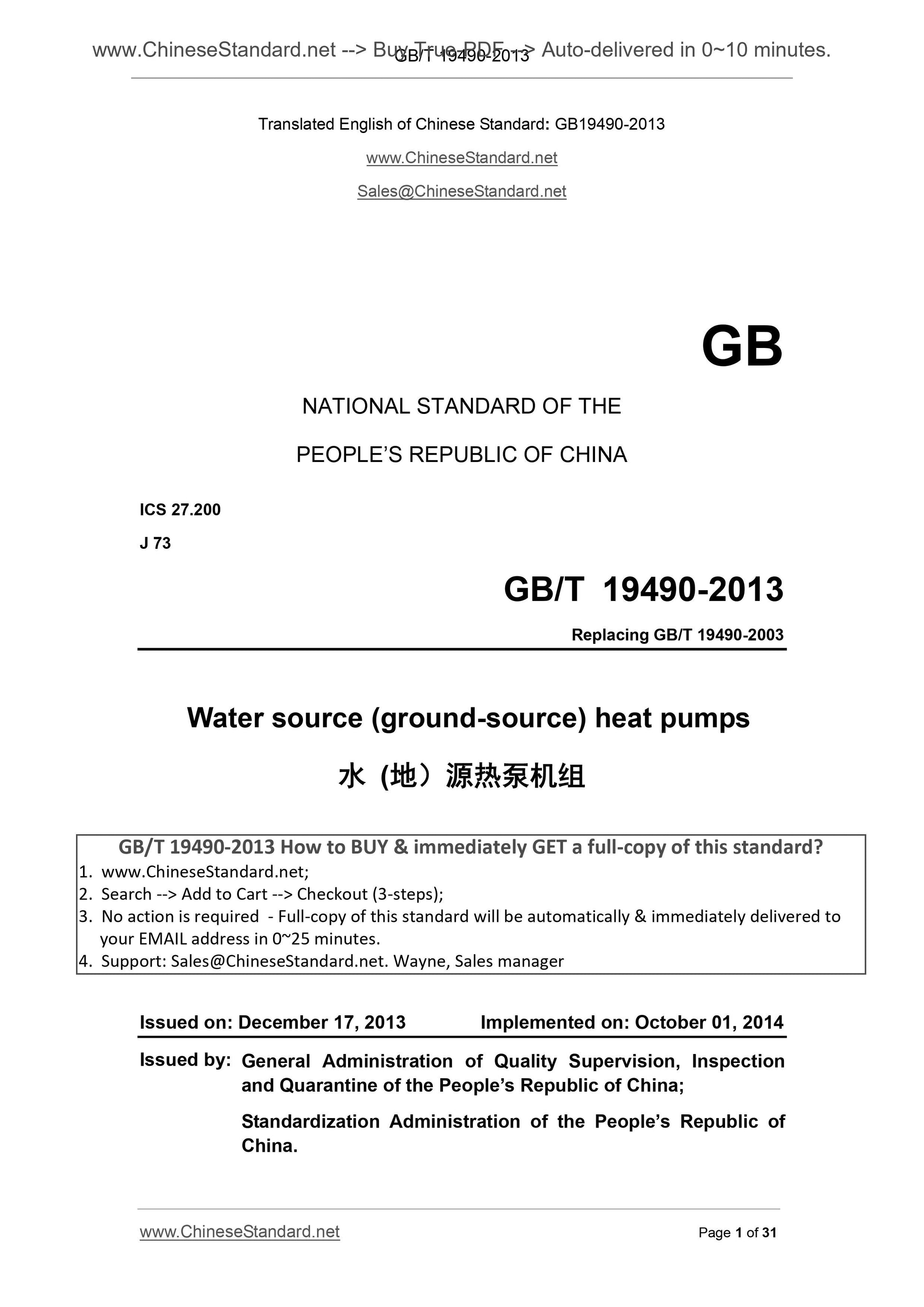

GB/T 19490-2013
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 27.200
J 73
Replacing GB/T 19490-2003
Water source (ground-source) heat pumps
ISSUED ON. DECEMBER 17, 2013
IMPLEMENTED ON. OCTOBER 01, 2014
Issued by. General Administration of Quality Supervision, Inspection
and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

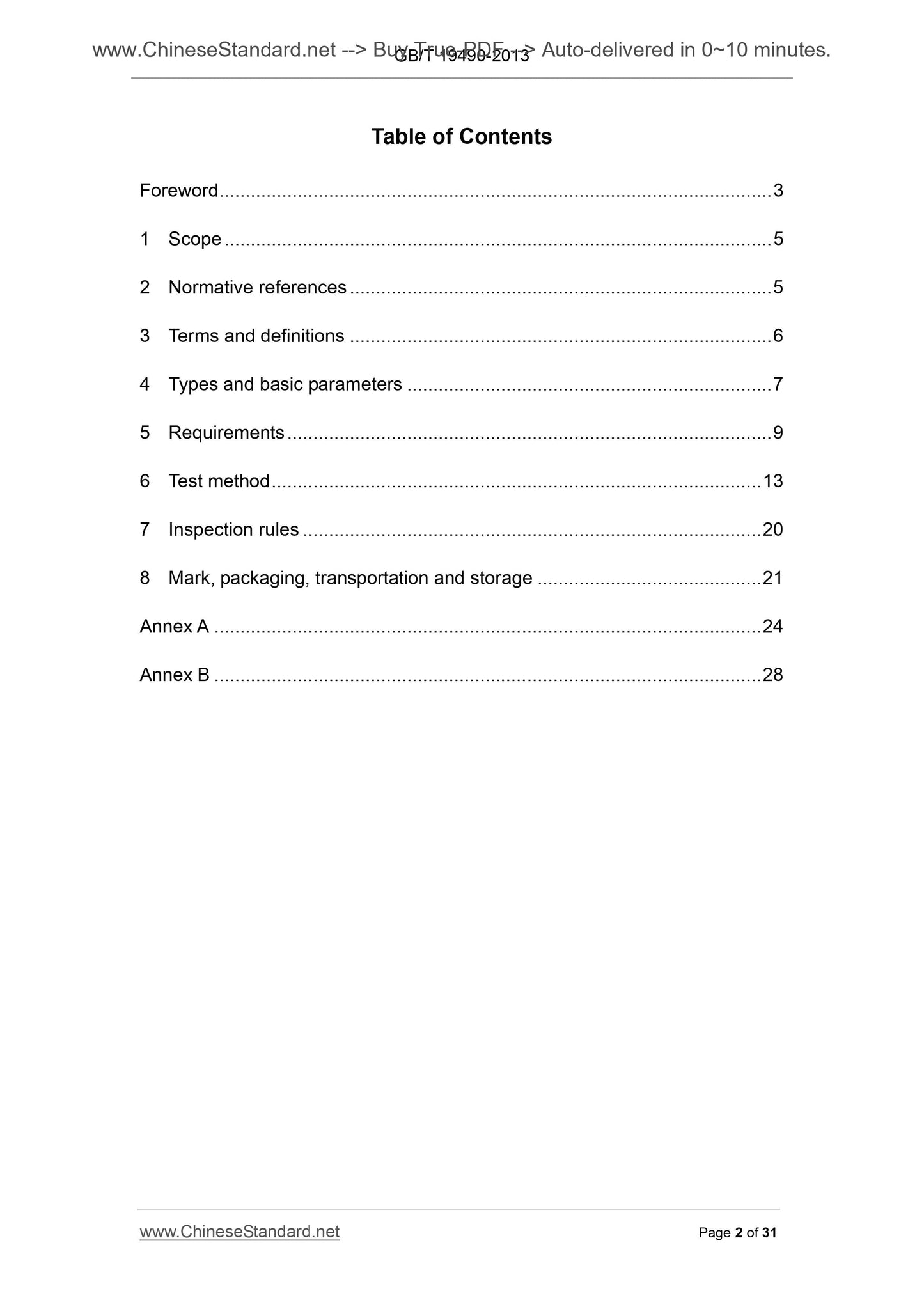

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Types and basic parameters ... 7
5 Requirements ... 9
6 Test method ... 13
7 Inspection rules ... 20
8 Mark, packaging, transportation and storage ... 21
Annex A ... 24
Annex B ... 28

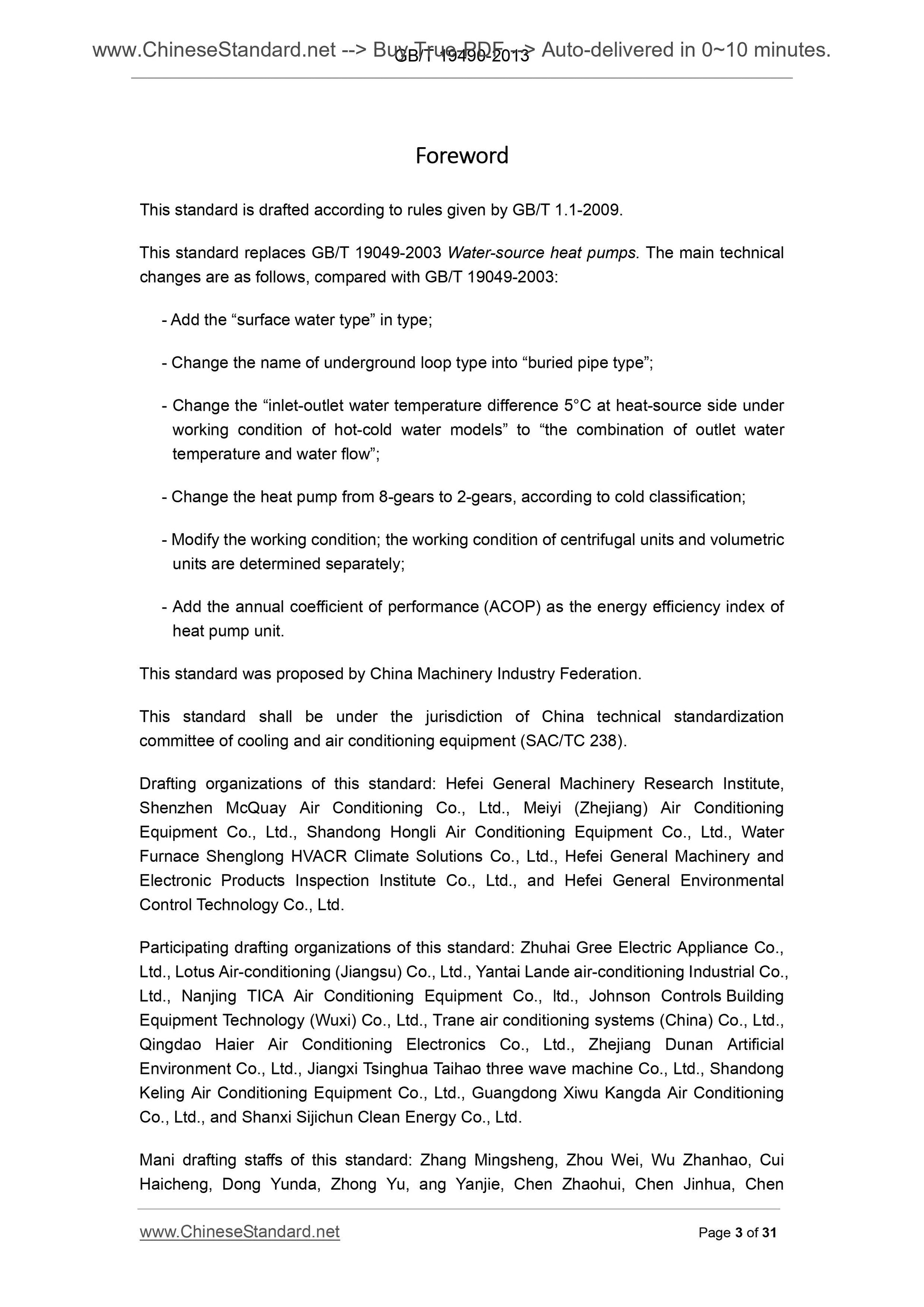

Foreword
This standard is drafted according to rules given by GB/T 1.1-2009.
This standard replaces GB/T 19049-2003 Water-source heat pumps. The main technical changes are as follows, compared with GB/T 19049-2003.
- Add the ?€?surface water type?€? in type;
- Change the name of underground loop type into ?€?buried pipe type?€?;
- Change the ?€?inlet-outlet water temperature difference 5??C at heat-source side under working condition of hot-cold water models?€? to ?€?the combination of outlet water temperature and water flow?€?;
- Change the heat pump from 8-gears to 2-gears, according to cold classification; - Modify the working condition; the working condition of centrifugal units and volumetric units are determined separately;
- Add the annual coefficient of performance (ACOP) as the energy efficiency index of heat pump unit.
This standard was proposed by China Machinery Industry Federation.
This standard shall be under the jurisdiction of China technical standardization committee of cooling and air conditioning equipment (SAC/TC 238).
Drafting organizations of this standard. Hefei General Machinery Research Institute, Shenzhen McQuay Air Conditioning Co., Ltd., Meiyi (Zhejiang) Air Conditioning Equipment Co., Ltd., Shandong Hongli Air Conditioning Equipment Co., Ltd., Water Furnace Shenglong HVACR Climate Solutions Co., Ltd., Hefei General Machinery and Electronic Products Inspection Institute Co., Ltd., and Hefei General Environmental Control Technology Co., Ltd.
Participating drafting organizations of this standard. Zhuhai Gree Electric Appliance Co., Ltd., Lotus Air-conditioning (Jiangsu) Co., Ltd., Yantai Lande air-conditioning Industrial Co., Ltd., Nanjing TICA Air Conditioning Equipment Co., ltd., Johnson Controls Building Equipment Technology (Wuxi) Co., Ltd., Trane air conditioning systems (China) Co., Ltd., Qingdao Haier Air Conditioning Electronics Co., Ltd., Zhejiang Dunan Artificial Environment Co., Ltd., Jiangxi Tsinghua Taihao three wave machine Co., Ltd., Shandong Keling Air Conditioning Equipment Co., Ltd., Guangdong Xiwu Kangda Air Conditioning Co., Ltd., and Shanxi Sijichun Clean Energy Co., Ltd.
Mani drafting staffs of this standard. Zhang Mingsheng, Zhou Wei, Wu Zhanhao, Cui Haicheng, Dong Yunda, Zhong Yu, ang Yanjie, Chen Zhaohui, Chen Jinhua, Chen Water source (ground-source) heat pumps

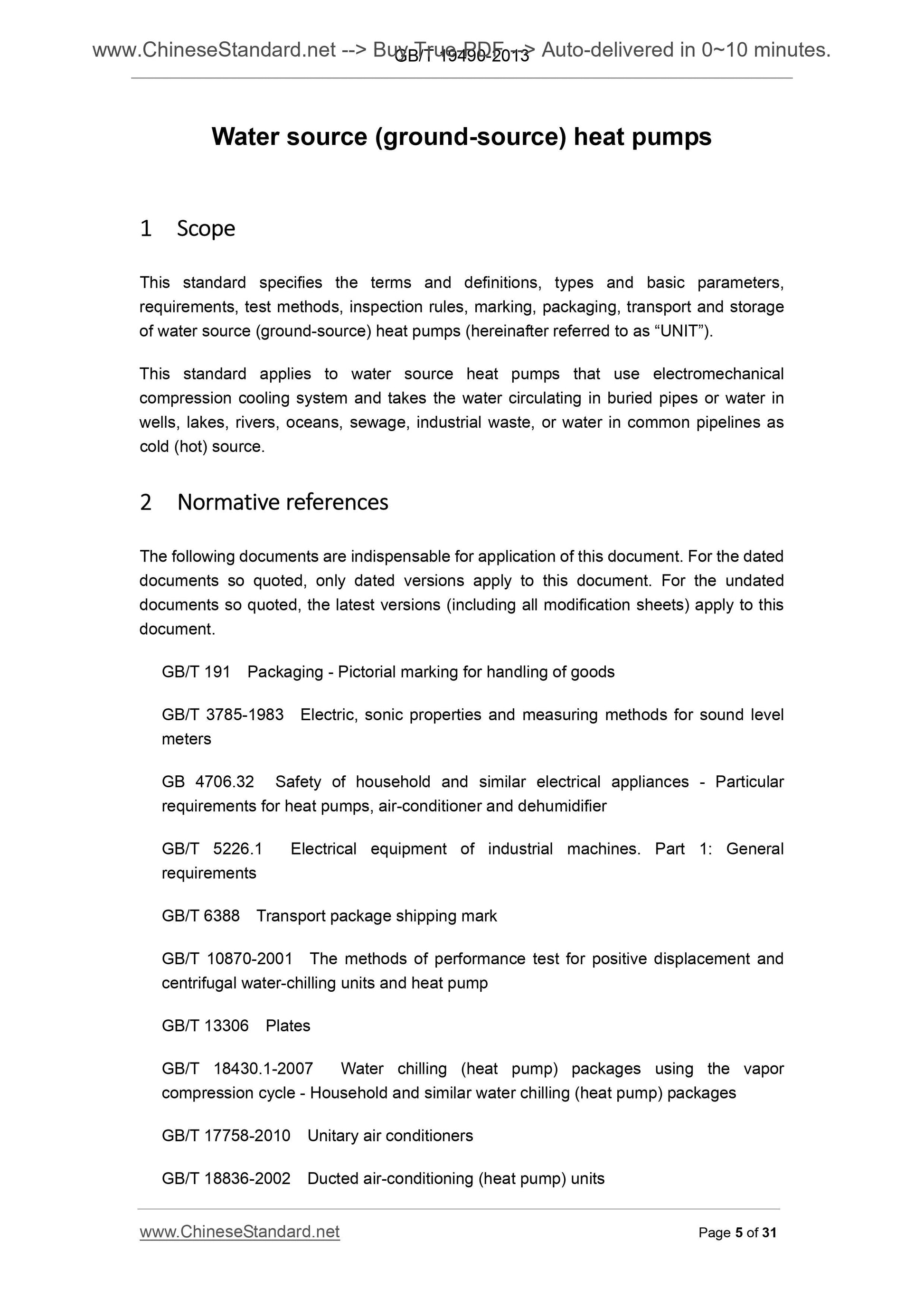

1 Scope
This standard specifies the terms and definitions, types and basic parameters, requirements, test methods, inspection rules, marking, packaging, transport and storage of water source (ground-source) heat pumps (hereinafter referred to as ?€?UNIT?€?). This standard applies to water source heat pumps that use electromechanical compression cooling system and takes the water circulating in buried pipes or water in wells, lakes, rivers, oceans, sewage, industrial waste, or water in common pipelines as cold (hot) source.
2 Normative??references
The following documents are indispensable for application of this document. For the dated documents so quoted, only dated versions apply to this document. For the undated documents so quoted, the latest versions (including all modification sheets) apply to this document.
GB/T 191 Packaging - Pictorial marking for handling of goods
GB/T 3785-1983 Electric, sonic properties and measuring methods for sound level meters
GB 4706.32 Safety of household and similar electrical appliances - Particular requirements for heat pumps, air-conditioner and dehumidifier
GB/T 5226.1 Electrical equipment of industrial machines. Part 1. General requirements
GB/T 6388 Transport package shipping mark
GB/T 10870-2001 The methods of performance test for positive displacement and centrifugal water-chilling units and heat pump
GB/T 13306 Plates
GB/T 18430.1-2007 Water chilling (heat pump) packages using the vapor
compression cycle - Household and similar water chilling (heat pump) packages GB/T 17758-2010 Unitary air conditioners
GB/T 18836-2002 Ducted air-conditioning (heat pump) units

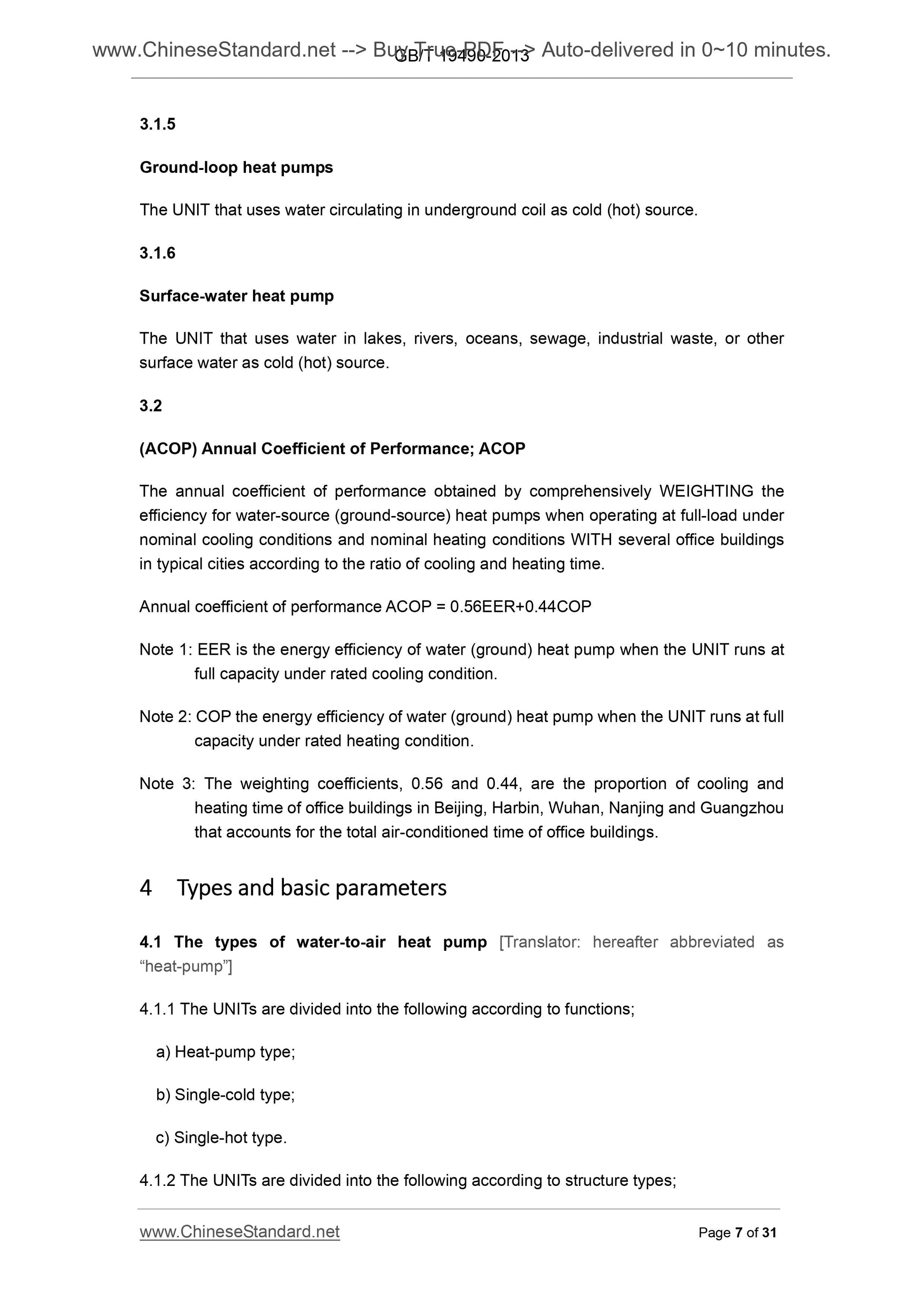

3.1.5
Ground-loop heat pumps
The UNIT that uses water circulating in underground coil as cold (hot) source. 3.1.6
Surface-water heat pump
The UNIT that uses water in lakes, rivers, oceans, sewage, industrial waste, or other surface water as cold (hot) source.
3.2
(ACOP) Annual Coefficient of Performance; ACOP
The annual coefficient of performance obtained by comprehensively WEIGHTING the efficiency for water-source (ground-source) heat pumps when operating at full-load under nominal cooling conditions and nominal heating conditions WITH several office buildings in typical cities according to the ratio of cooling and heating time.
Annual coefficient of performance ACOP = 0.56EER+0.44COP
Note 1. EER is the energy efficiency of water (ground) heat pump when the UNIT runs at full capacity under rated cooling condition.
Note 2. COP the energy efficiency of water (ground) heat pump when the UNIT runs at full capacity under rated heating condition.
Note 3. The weighting coefficients, 0.56 and 0.44, are the proportion of cooling and heating time of office buildings in Beijing, Harbin, Wuhan, Nanjing and Guangzhou that accounts for the total air-conditioned time of office buildings.
4 Types??and??basic??parameters
4.1 The types of water-to-air heat pump [Translator. hereafter abbreviated as ?€?heat-pump?€?]
4.1.1 The UNITs are divided into the following according to functions;
a) Heat-pump type;
b) Single-cold type;
c) Single-hot type.

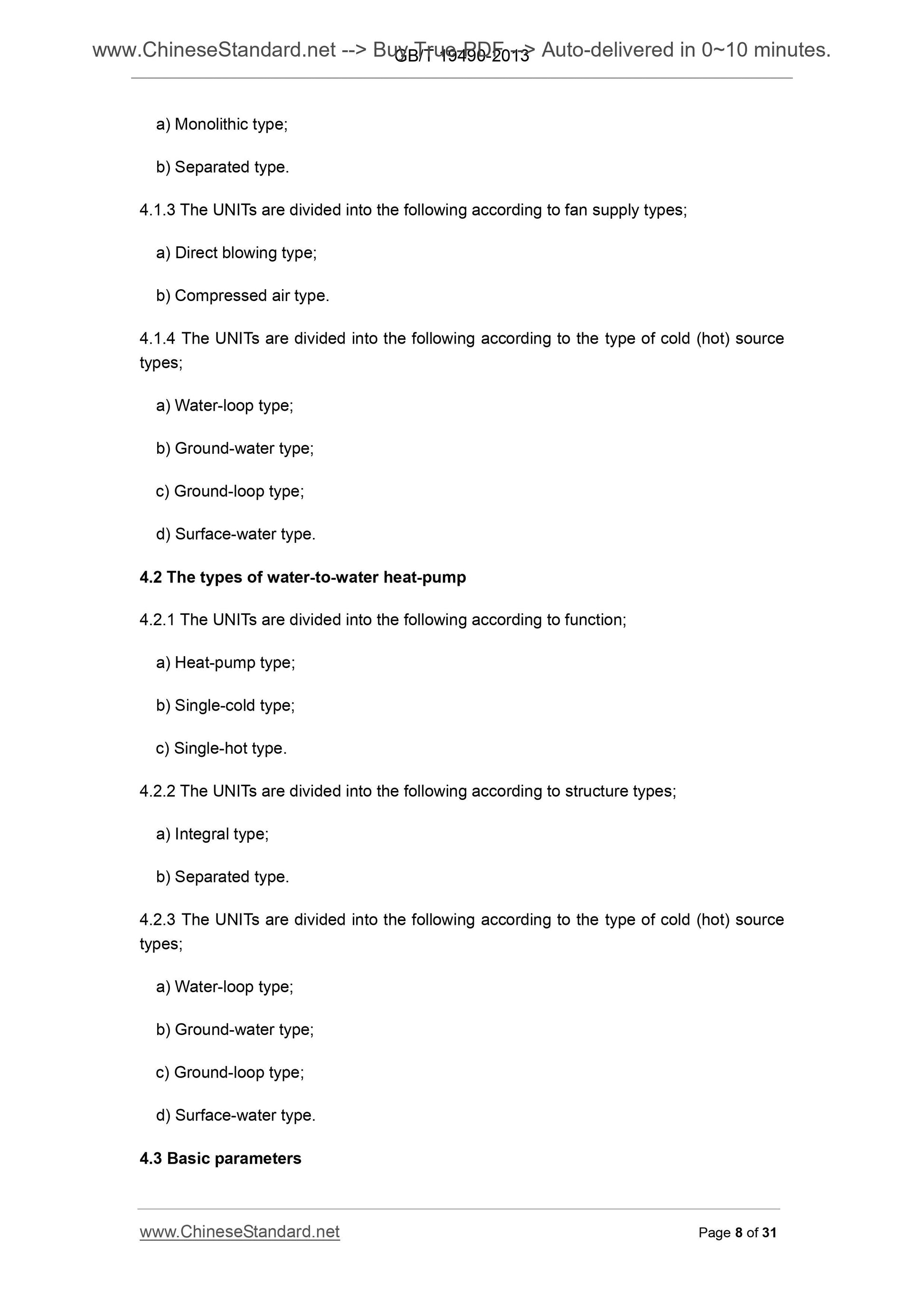

4.1.2 The UNITs are divided into the following according to structure types; a) Monolithic type;
b) Separated type.
4.1.3 The UNITs are divided into the following according to fan supply types; a) Direct blowing type;
b) Compressed air type.
4.1.4 The UNITs are divided into the following according to the type of cold (hot) source types;
a) Water-loop type;
b) Ground-water type;
c) Ground-loop type;
d) Surface-water type.
4.2 The types of water-to-water heat-pump
4.2.1 The UNITs are divided into the following according to function;
a) Heat-pump type;
b) Single-cold type;
c) Single-hot type.
4.2.2 The UNITs are divided into the following according to structure types; a) Integral type;
b) Separated type.
4.2.3 The UNITs are divided into the following according to the type of cold (hot) source types;
a) Water-loop type;
b) Ground-water type;
c) Ground-loop type;
d) Surface-water type.
4.3 Basic parameters

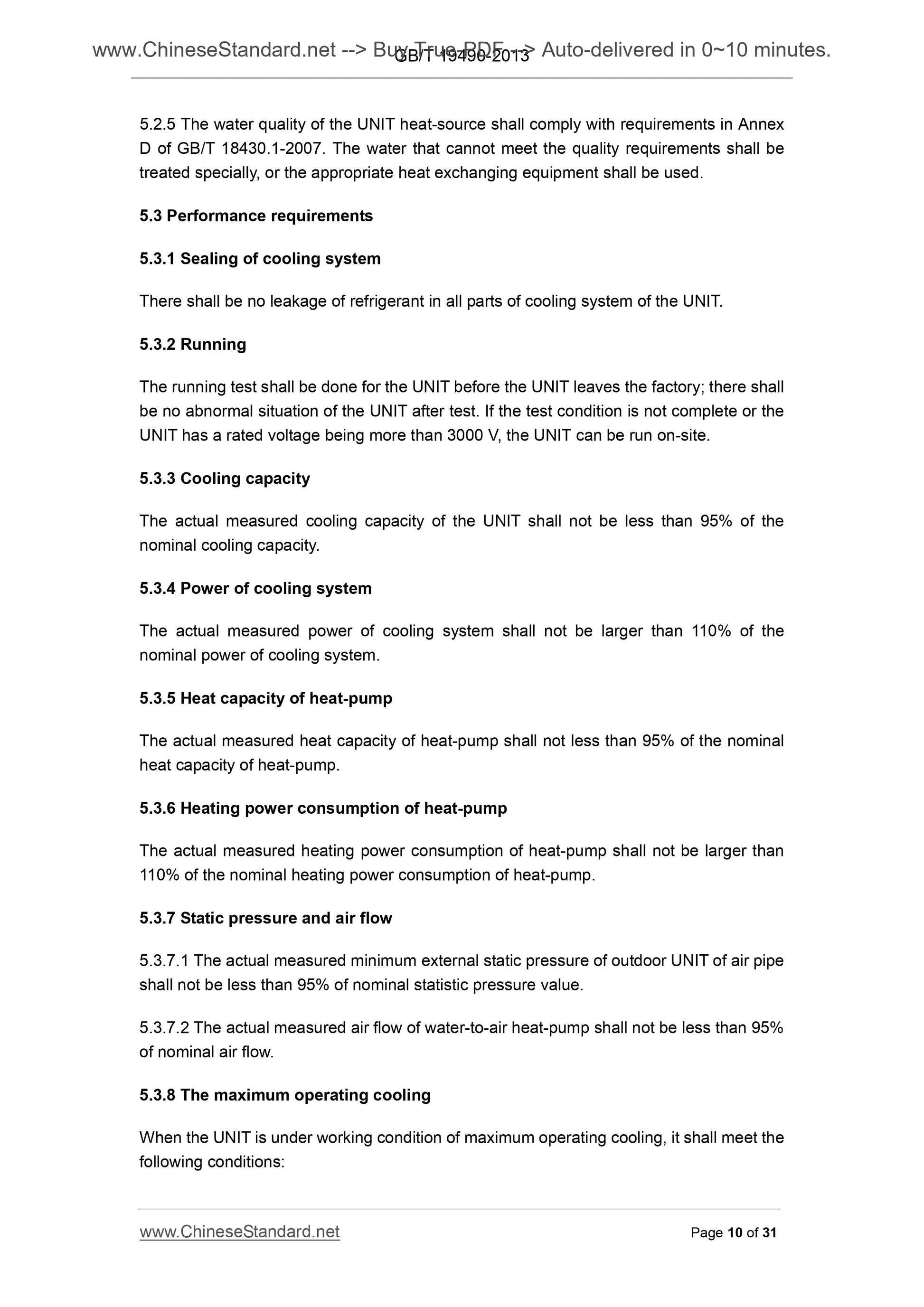

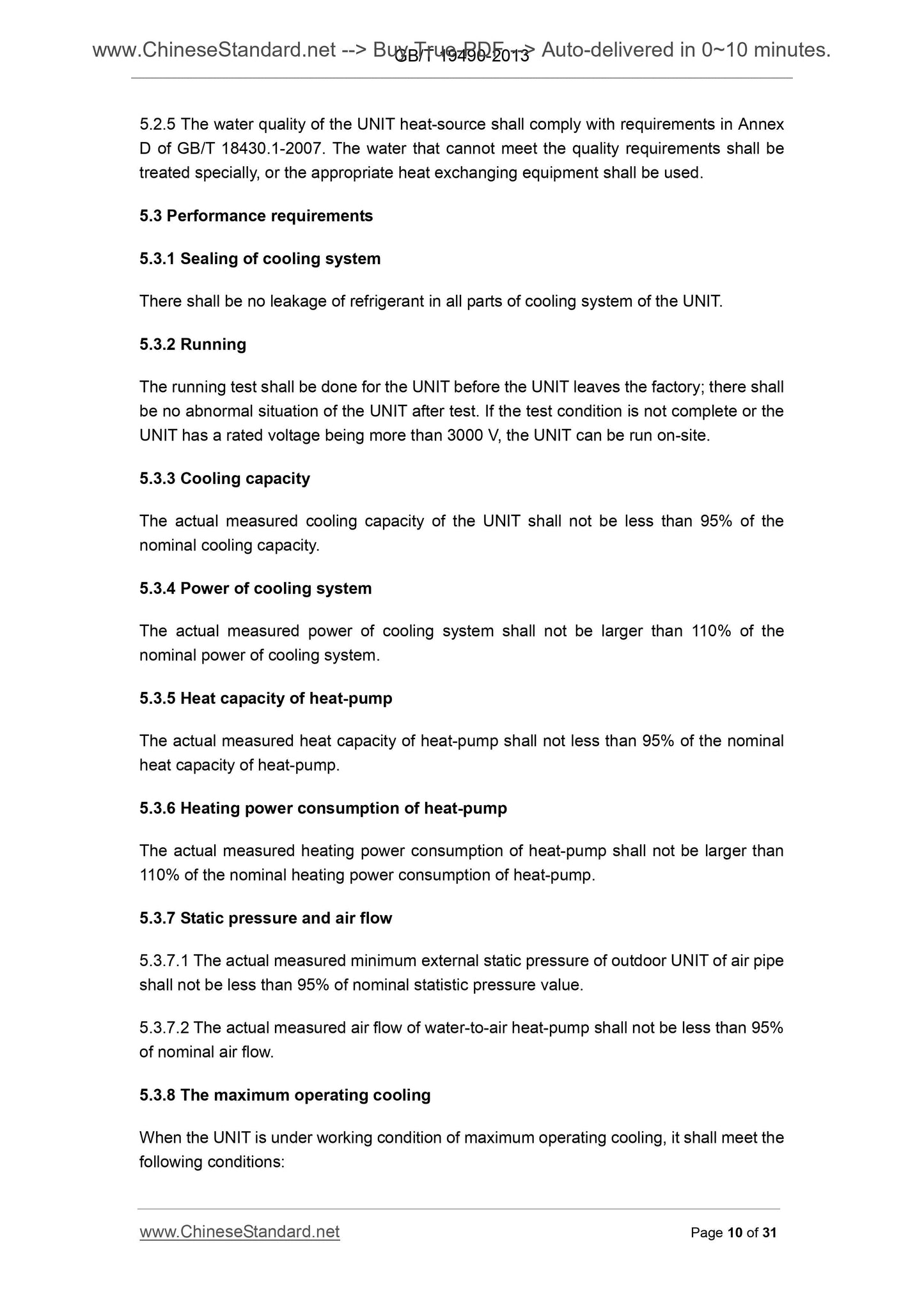

5.2.5 The water quality of the UNIT heat-source shall comply with requirements in Annex D of GB/T 18430.1-2007. The water that cannot meet the quality requirements shall be treated specially, or the appropriate heat exchanging equipment shall be used. 5.3 Performance requirements
5.3.1 Sealing of cooling system
There shall be no leakage of refrigerant in all parts of cooling system of the UNIT. 5.3.2 Running
The running test shall be done for the UNIT before the UNIT leaves the factory; there shall be no abnormal situation of the UNIT after test. If the test condition is not complete or the UNIT has a rated voltage being more than 3000 V, the UNIT can be run on-site. 5.3.3 Cooling capacity
The actual measured cooling capacity of the UNIT shall not be less than 95% of the nominal cooling capacity.
5.3.4 Power of cooling system
The actual measured power of cooling system shall not be larger than 110% of the nominal power of cooling system.
5.3.5 Heat capacity of heat-pump
The actual measured heat capacity of heat-pump shall not less than 95% of the nominal heat capacity of heat-pump.
5.3.6 Heating power consumption of heat-pump
The actual measured heating power consumption of heat-pump shall not be larger than 110% of the nominal heating power consumption of heat-pump.
5.3.7 Static pressure and air flow
5.3.7.1 The actual measured minimum external static pressure of outdoor UNIT of air pipe shall not be less than 95% of nominal statistic pressure value.
5.3.7.2 The actual measured air flow of water-to-air heat-pump shall not be less than 95% of nominal air flow.
5.3.8 The maximum operating cooling
When the UNIT is under working cond...
