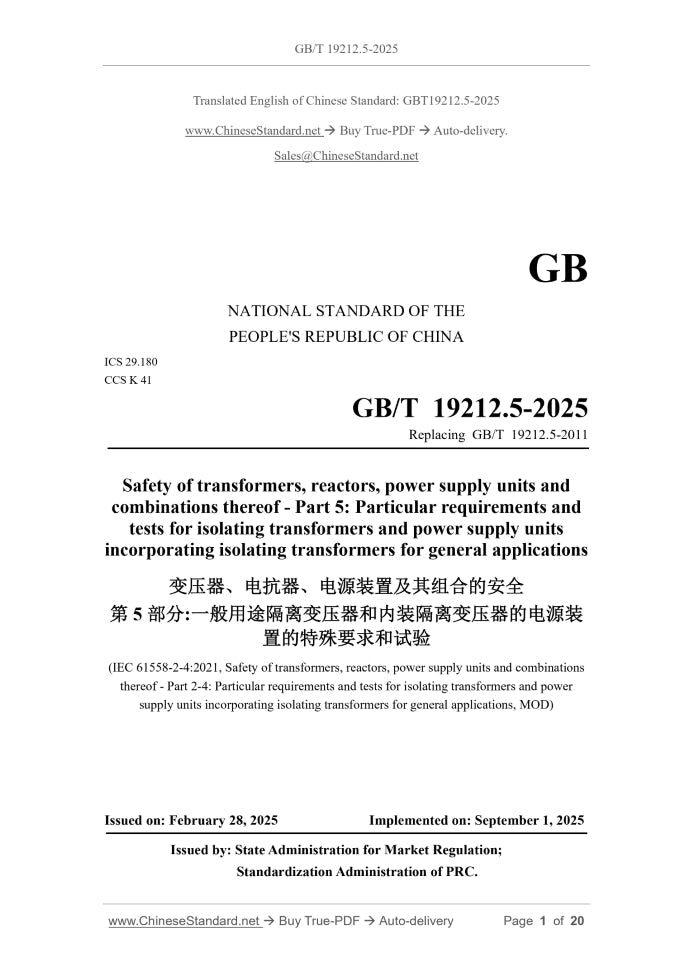

GB/T 19212.5-2025: Safety of transformers, reactors, power supply units and combinations thereof - Part 5: Particular requirements and tests for isolating transformers and power supply units incorporating isolating transformers for general applications

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 19212.5-2025 (Self-service in 1-minute)
Newer / historical versions: GB/T 19212.5-2025

Preview True-PDF

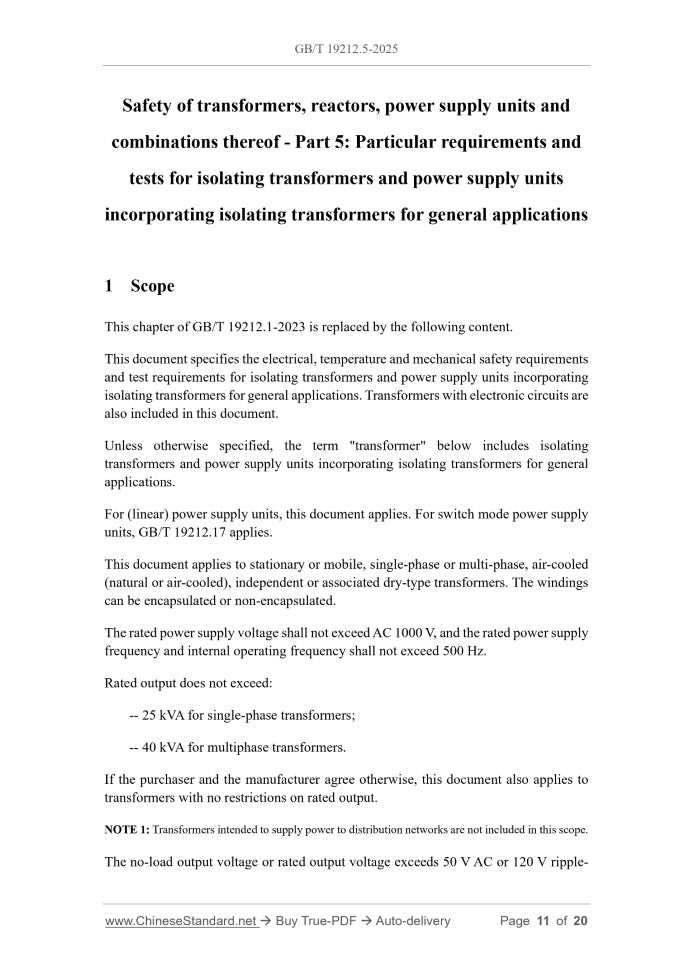

Scope

This chapter of GB/T 19212.1-2023 is replaced by the following content.
This document specifies the electrical, temperature and mechanical safety requirements
and test requirements for isolating transformers and power supply units incorporating
isolating transformers for general applications. Transformers with electronic circuits are
also included in this document.
Unless otherwise specified, the term "transformer" below includes isolating
transformers and power supply units incorporating isolating transformers for general
applications.
For (linear) power supply units, this document applies. For switch mode power supply
units, GB/T 19212.17 applies.
This document applies to stationary or mobile, single-phase or multi-phase, air-cooled
(natural or air-cooled), independent or associated dry-type transformers. The windings
can be encapsulated or non-encapsulated.
The rated power supply voltage shall not exceed AC 1000 V, and the rated power supply
frequency and internal operating frequency shall not exceed 500 Hz.
Rated output does not exceed.
-- 25 kVA for single-phase transformers;
-- 40 kVA for multiphase transformers.
If the purchaser and the manufacturer agree otherwise, this document also applies to
transformers with no restrictions on rated output.
NOTE 1.Transformers intended to supply power to distribution networks are not included in this scope.
The no-load output voltage or rated output voltage exceeds 50 V AC or 120 V ripple-

Basic Data

Standard ID	GB/T 19212.5-2025 (GB/T19212.5-2025)
Description (Translated English)	Safety of transformers, reactors, power supply units and combinations thereof - Part 5: Particular requirements and tests for isolating transformers and power supply units incorporating isolating transformers for general applications
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K41
Classification of International Standard	29.180
Word Count Estimation	14,181
Date of Issue	2025-02-28
Date of Implementation	2025-09-01
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
