GB/T 18938-2008: Electric toasters for household and similar purposes -- Methods for measuring performance

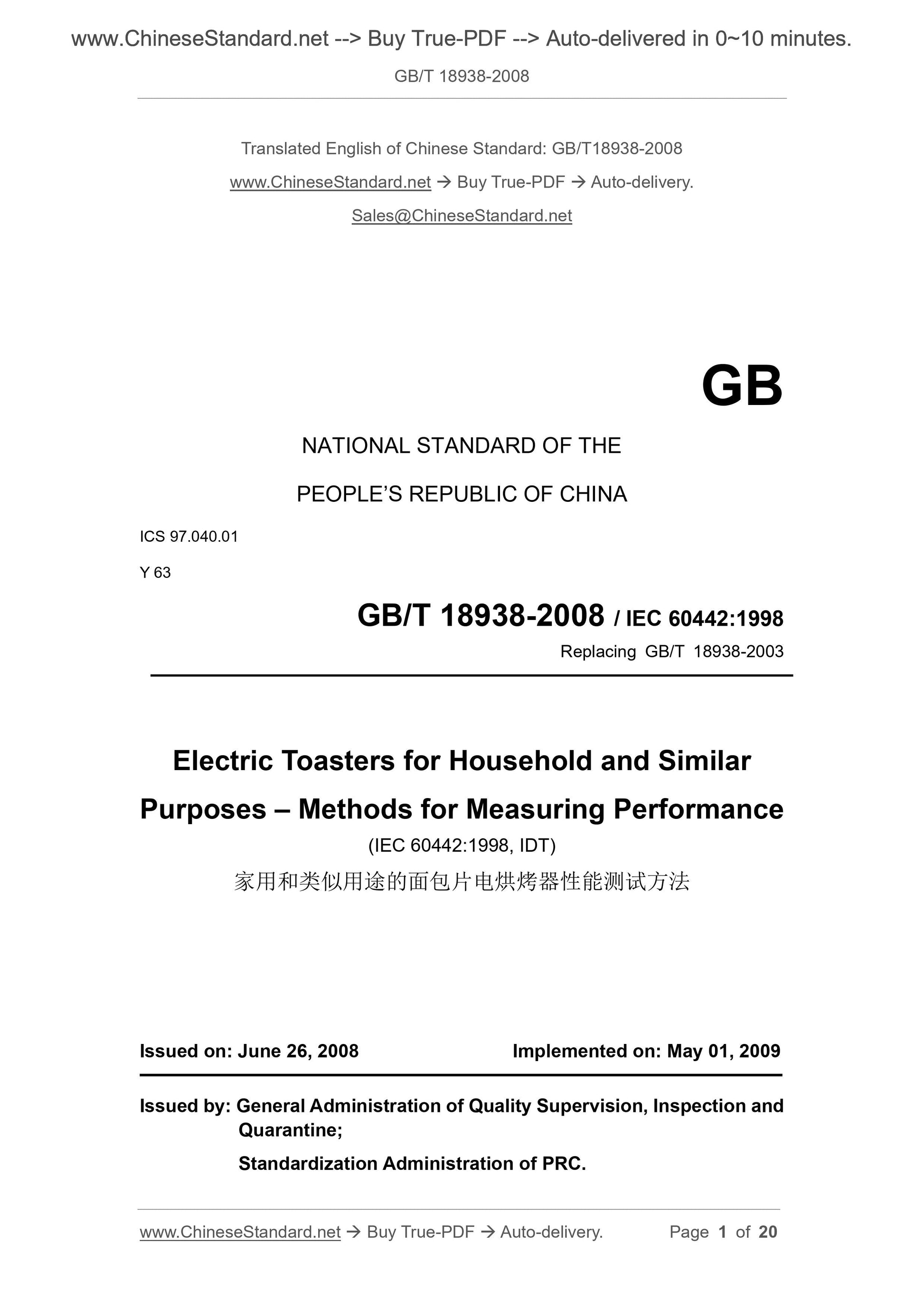

GB/T 18938-2008
Electric toasters for household and similar purposes.Methods for measuring performance
ICS 97.040.01
Y63
National Standards of People's Republic of China
GB/T 18938-2008/IEC 60442.1998
Replace GB/T 18938-2003
Household and similar bread slice electric roaster
Performance test method
(IEC 60442.1998, IDT)
Released on.2008-06-26
2009-05-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China
China National Standardization Administration issued

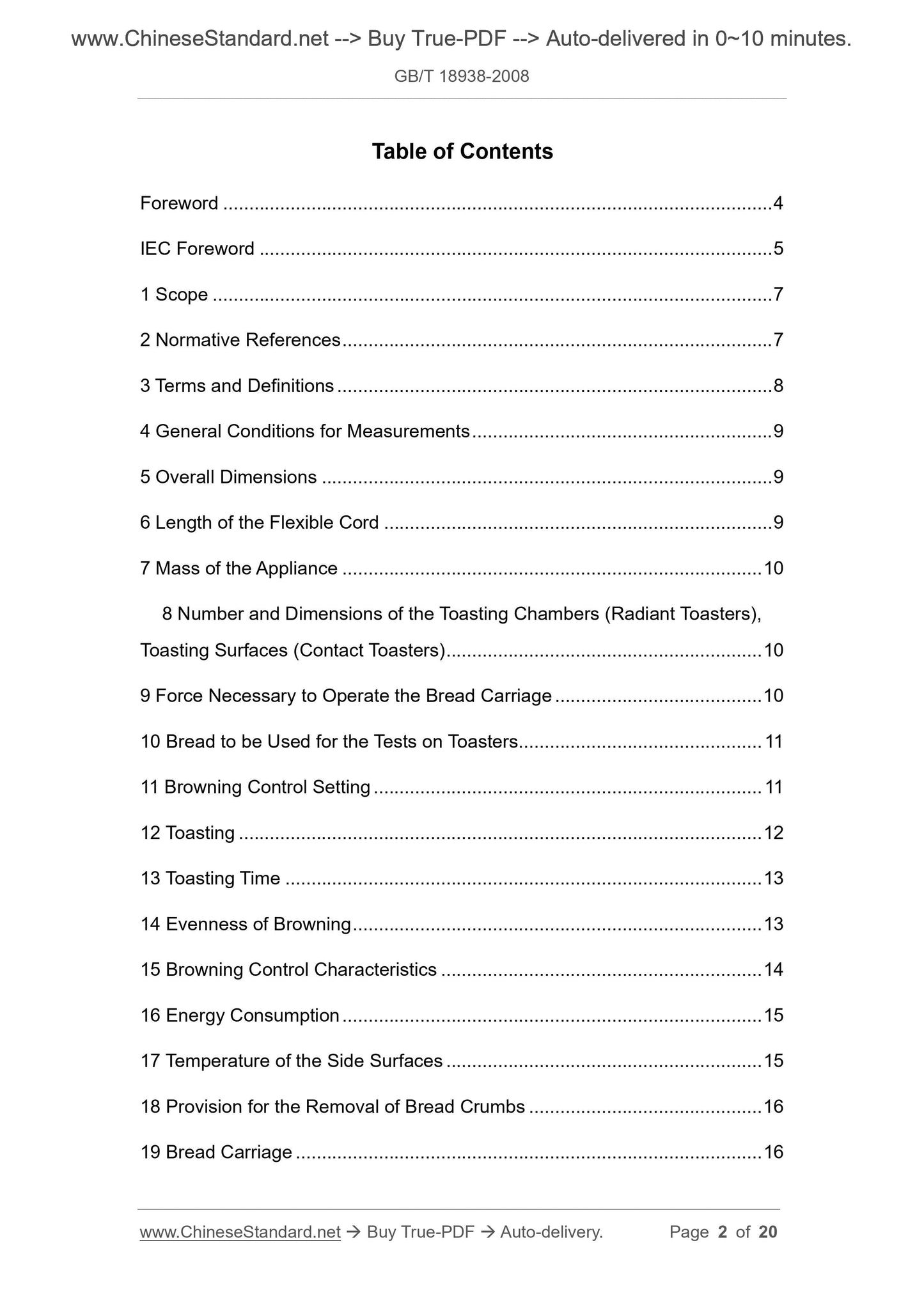

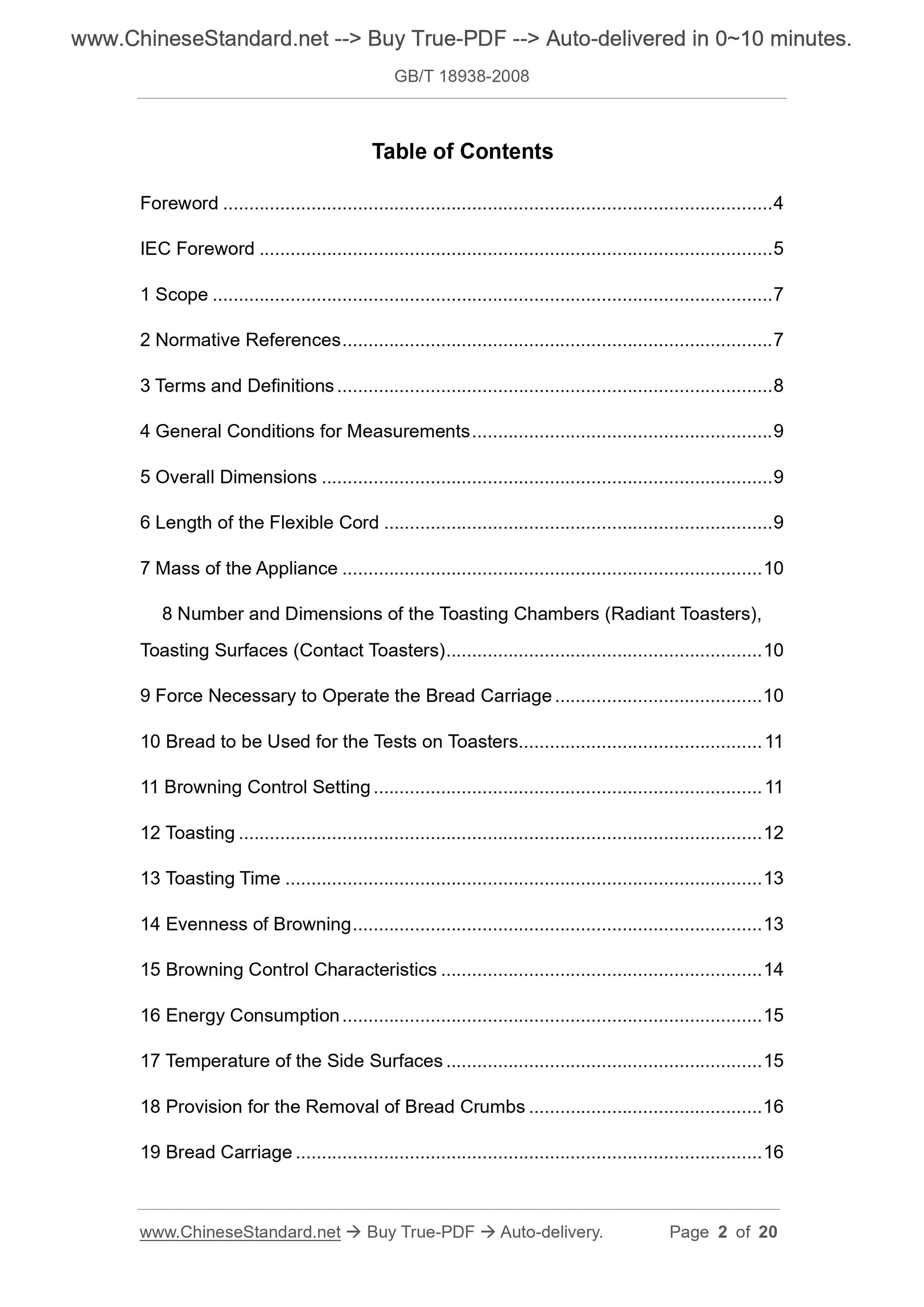

Content
Foreword I
IEC Preface II
1 range 1
2 Normative references 1
3 Terms and Definitions 1
4 General conditions of measurement 2
5 Appearance size 2
6 cord length 2
7 Quality of the appliance 2
8 number and size of baking rooms (radiation type bread roaster), baking surface (contact type bread roaster) 2
9 The force required to start the bread rack 3
10 bread used for testing on a bread toaster 3
11 brown control settings 3
12 baking 3
13 baking time 4
14 browning uniformity 4
15 brown control characteristics 5
16 energy consumption 5
17 side surface temperature 5
18 Measures to remove breadcrumbs 6
19 bread rack 6

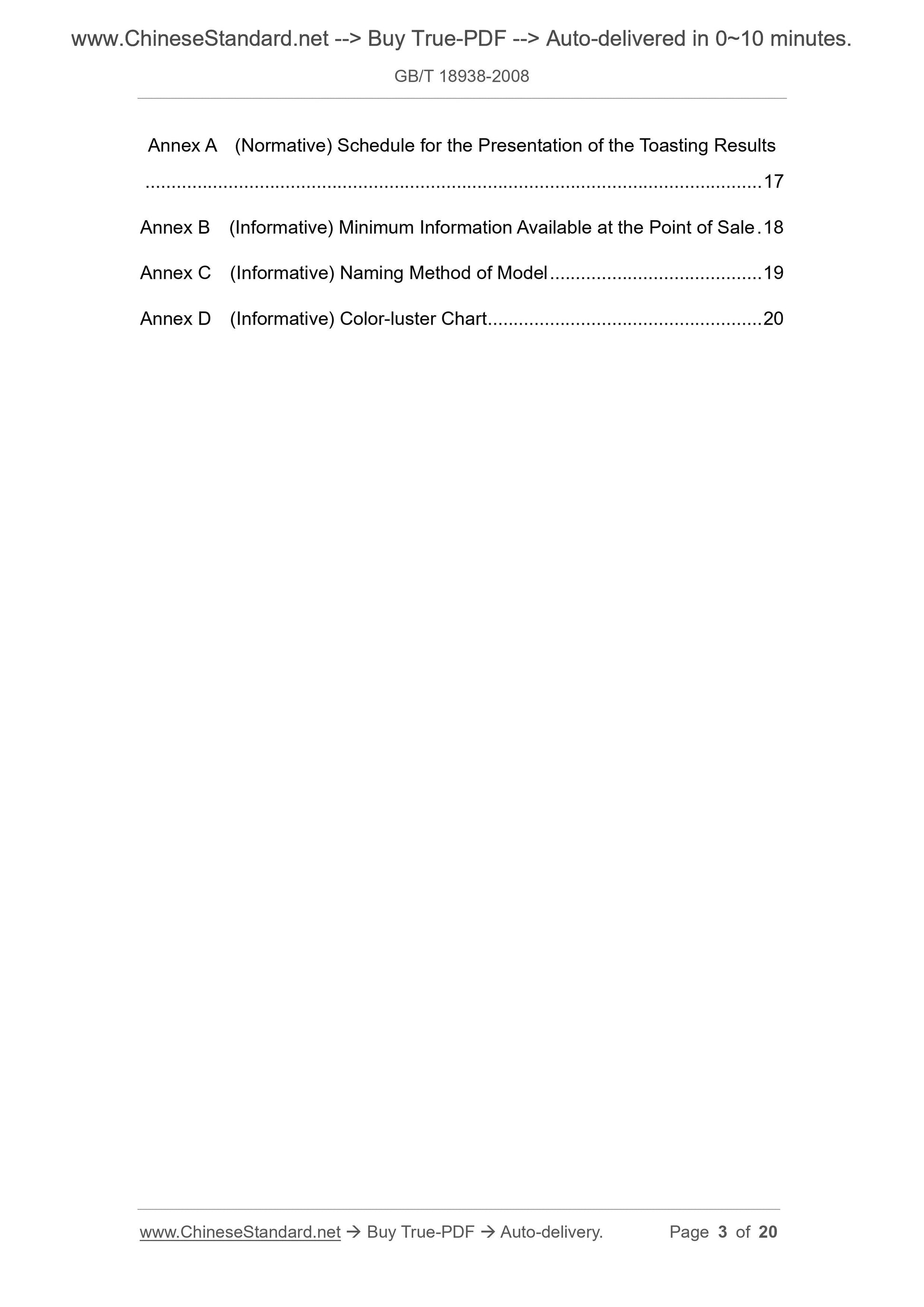

Appendix A (Normative Appendix) Baking Effect Display Table 7
Appendix B (informative) Information to be included in sales at least 8
Appendix C (informative) Model Nomenclature 9
Appendix D (informative appendix)
GB/T 18938-2008/IEC 60442.1998
Foreword
This standard is equivalent to the use of IEC 60442.1998+A1 (2003) "Household and similar use of bread slice electric roaster performance test
method".
This standard replaces GB/T 18938-2003 "Test method for performance of bread and electric roaster for household and similar purposes".
The main difference between this standard and GB/T 18938-2003 is the addition of informative Appendix B.
This standard was proposed by the China Light Industry Association.
This standard is under the jurisdiction of the National Household Appliance Standardization Technical Committee.
This standard is mainly drafted by. China Household Electrical Appliances Research Institute, Guangdong Xinbao Electric Co., Ltd., Zhejiang Supor Co., Ltd.
the company.
The main drafters of this standard. Ma Dejun, Yang Bin, Zhang Jinzhou, Zhang Wenhao.
The previous versions of the standards replaced by this standard are.
GB/T 18938-2003 was first released, this is the first revision.
GB/T 18938-2008/IEC 60442.1998
IEC Preface
1) The International Electrotechnical Commission (IEC ) is an international standardization organization composed of all IEC National Committees (IEC NC).
Its purpose is to promote international cooperation on standardization issues in the electrical and electronic fields. To this end, the IEC carries out related activities,
And publish international standards. The development of these standards is entrusted to the technical committees. Any interested in technical issues in this area
The IEC National Committee can participate in standard setting work. International organizations, governments and NGOs that are in contact with the IEC may also
To participate in the development of standards. The IEC is closely related to the International Organization for Standardization (ISO ) agreement between the two organizations.
Cooperation.
2) The IEC 's formal resolution or agreement on technology is the technical committee system of all national committees of interest to it.
Fixed. Therefore, these resolutions or agreements represent, as far as possible, the international consensus on the relevant issues involved.
3) These formal resolutions or agreements are published in the form of standards, technical reports or guidelines, and in this sense by national committees
accept.
4) In order to achieve international consensus, the IEC National Committee agrees to use the widest possible use of its national and regional standards.
IEC international standard. The difference between the IEC standard and the corresponding national regional standard should be clearly marked in the latter.
5) The IEC does not have a procedure for accreditation marks. The IEC is not responsible for a device claiming that it meets one of the IEC standards.
Any responsibility.
6) Some of the contents of this standard may involve some patent rights issues, which attract attention. The IEC organization is not responsible for identifying any
Such a patent issue.
The international IEC 60442 standard is carefully prepared by the Subcommittee 59G. Small Kitchen Appliances, IEC Technical Committee 59. Household Appliances
Performance standards.
This standard is based on the second edition of IEC 60442 (1998) [documents 59G/85/FDIS and 59G/89/RVD], addendum 1 (2003)
[Documents 59G/127/FIDS and 59G/129/RVD] were developed.
This standard constitutes version 2.1.
The portion of the margin with a vertical line indicates that the portion of the second edition is modified by the addition 1.
Appendix A of this standard is a normative appendix.
Appendix B of this standard is an informative annex.
The basic publications and modifications identified by the committee will be maintained until.2008, and after this date, this version will.
● Reconfirm validity;
● invalid;
● replaced by an improved version;
● Modify.
GB/T 18938-2008/IEC 60442.1998
Household and similar bread slice electric roaster
Performance test method

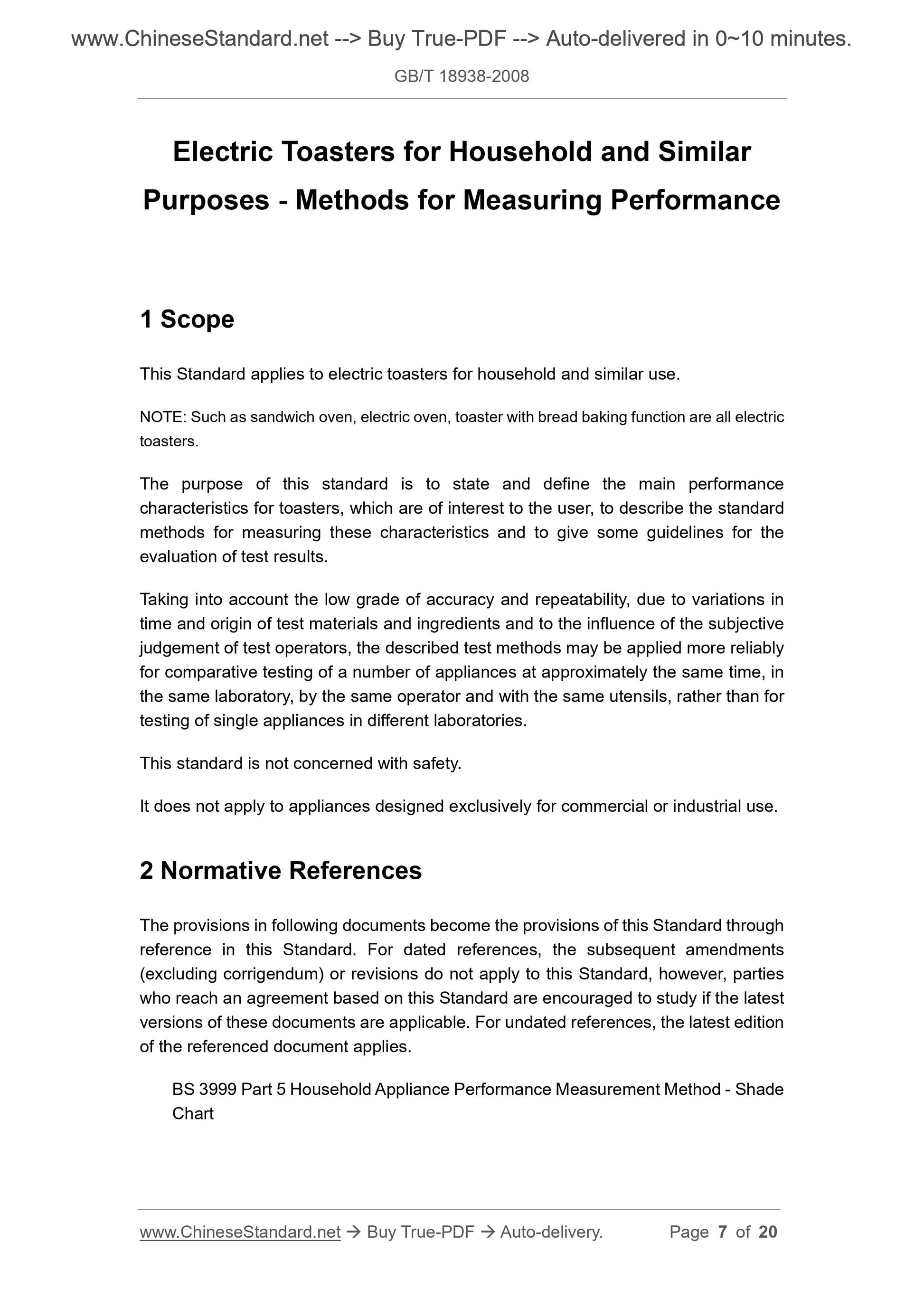

1 range
This standard applies to bread and electric roasters for household and similar purposes.
Note. For example, a sandwich oven with a bread baking function, an electric oven, a toaster, etc. belong to a bread slice electric roaster.
The purpose of this standard is to describe and define the main performance characteristics of the bread toasters of interest to the user, and to describe the criteria for measuring these characteristics.
Quasi-methods and give some guidelines for evaluating test results.
The low level of accuracy and reproducibility is due to differences in time and source of test materials and ingredients, as well as the test operator
The influence of subjective judgments, the test methods described can be more reliably applied to comparative tests of a batch of appliances, in roughly the same time,
In the same laboratory, the same operator uses the same utensils for testing, rather than using the same instrument in different laboratories.
test.
This standard does not address safety.
This standard does not apply to appliances used solely for commercial or industrial design.
2 Normative references
The terms in the following documents become the terms of this standard by reference to this standard. All dated references, followed by all
Modifications (not including errata content) or revisions do not apply to this standard, however, parties to agreements based on this standard are encouraged to study
Is it possible to use the latest version of these files? For undated references, the latest edition applies to this standard.
BS3999 part 5C part household appliance performance measurement method color shade
3 Terms and definitions
The following terms and definitions apply to this standard.
3.1
A roaster for baking bread slices by radiant heating. You can bake one side of the bread or bake both sides at the same time.
Note. Radiant bread toasters can be supplied with accessories for heating bread rolls or baking sandwiches.
3.2
A bread toaster having one or more heated surfaces that can be in direct contact with the bread slice.
Note. The contact type (horizontal) bread slic...
