GB/T 18836-2002: Ducted air -- Conditioning (heat pump) units
Delivery: 9 seconds. Download (& Email) true-PDF + Invoice.
Get Quotation: Click GB/T 18836-2002 (Self-service in 1-minute)
Historical versions (Master-website): GB/T 18836-2002
Preview True-PDF (Reload/Scroll-down if blank)

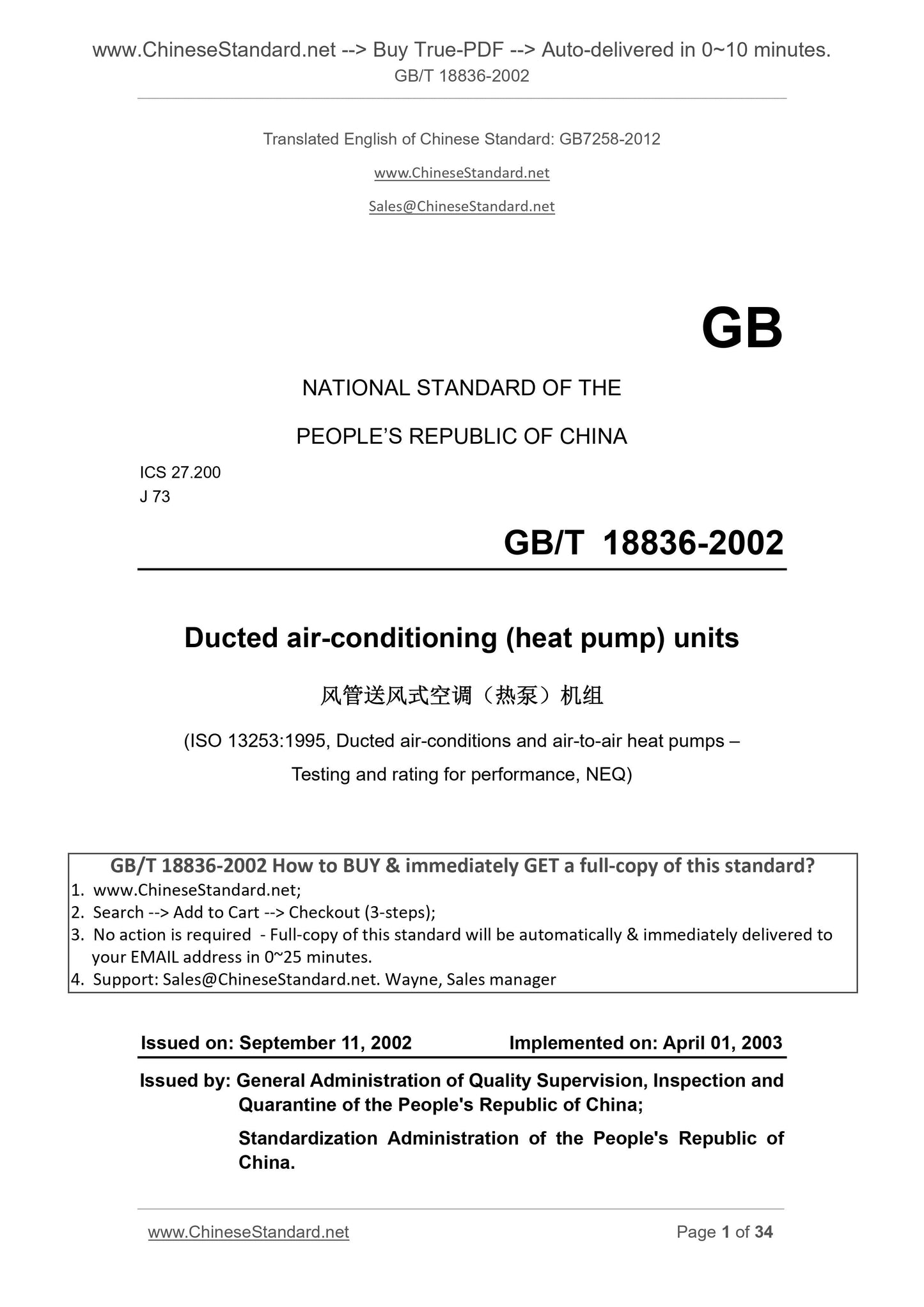

GB/T 18836-2002
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.200
J 73
Ducted air-conditioning (heat pump) units
(ISO 13253.1995, Ducted air-conditions and air-to-air heat pumps –
Testing and rating for performance, NEQ)
ISSUED ON. SEPTEMBER 11, 2002
IMPLEMENTED ON. APRIL 01, 2003
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

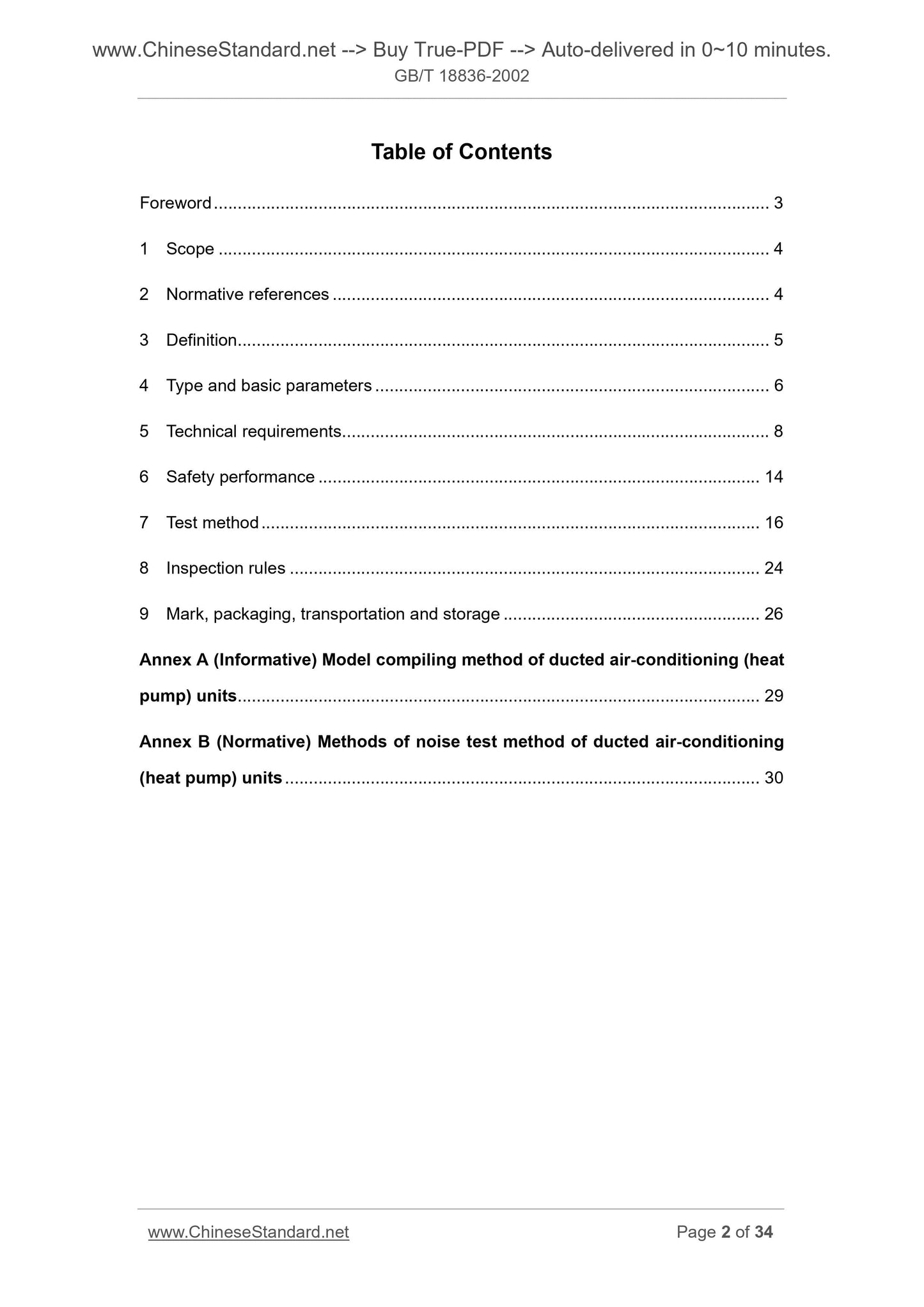

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Definition... 5
4 Type and basic parameters ... 6
5 Technical requirements ... 8

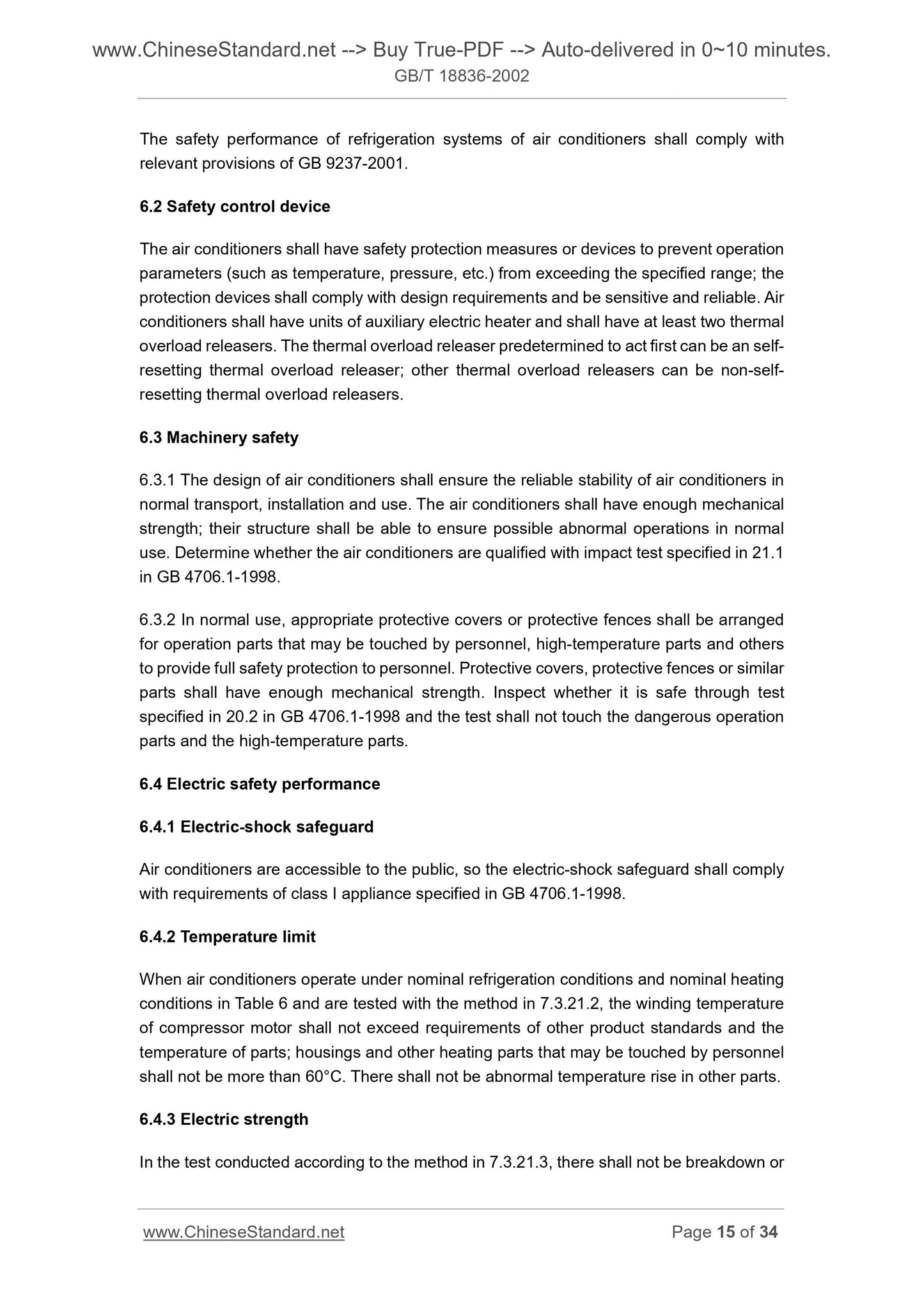

6 Safety performance ... 14

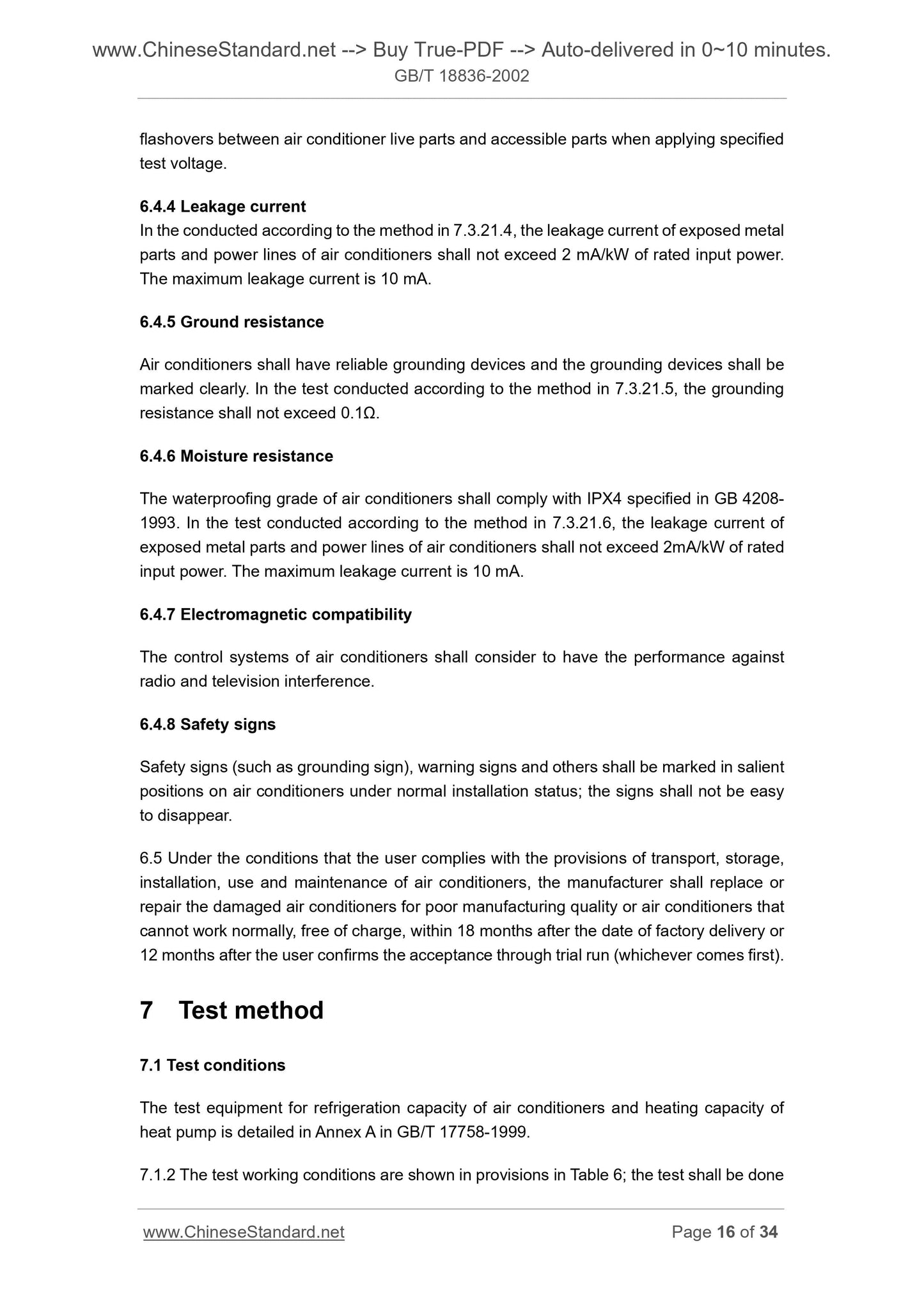

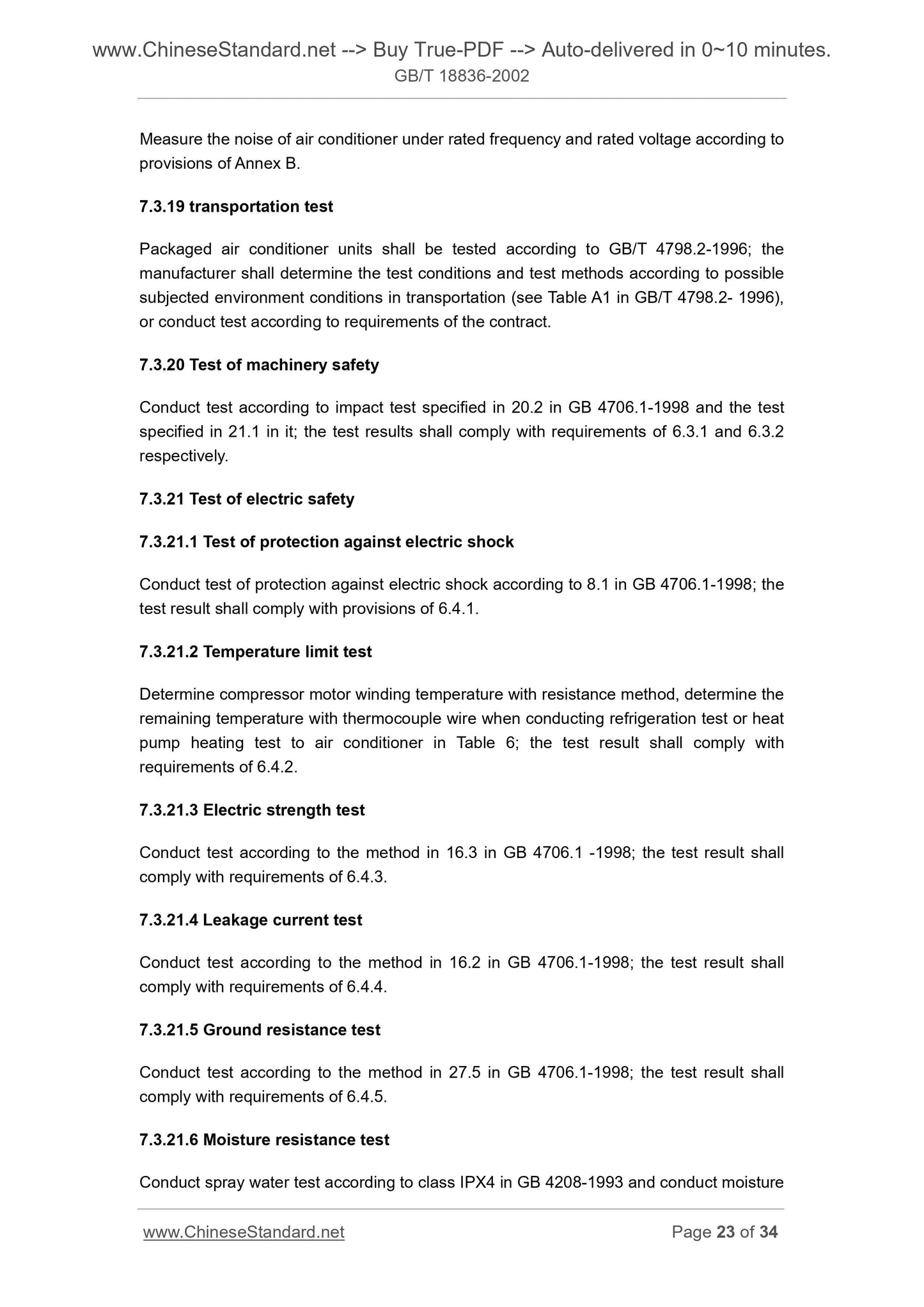

7 Test method ... 16
8 Inspection rules ... 24
9 Mark, packaging, transportation and storage ... 26
Annex A (Informative) Model compiling method of ducted air-conditioning (heat
pump) units ... 29
Annex B (Normative) Methods of noise test method of ducted air-conditioning
(heat pump) units ... 30

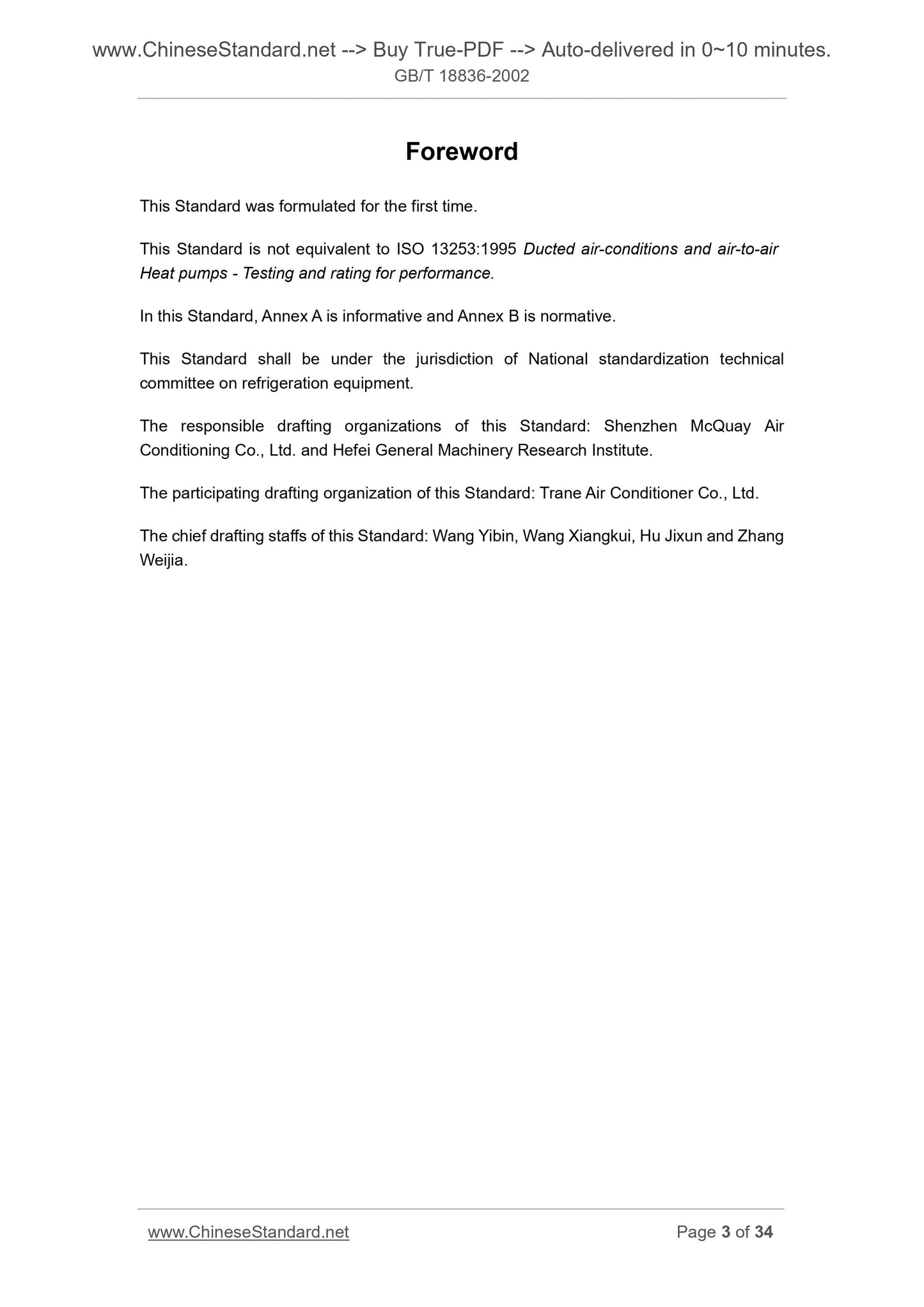

Foreword
This Standard was formulated for the first time.
This Standard is not equivalent to ISO 13253.1995 Ducted air-conditions and air-to-air
Heat pumps - Testing and rating for performance.
In this Standard, Annex A is informative and Annex B is normative.
This Standard shall be under the jurisdiction of National standardization technical
committee on refrigeration equipment.
The responsible drafting organizations of this Standard. Shenzhen McQuay Air
Conditioning Co., Ltd. and Hefei General Machinery Research Institute.
The participating drafting organization of this Standard. Trane Air Conditioner Co., Ltd.
The chief drafting staffs of this Standard. Wang Yibin, Wang Xiangkui, Hu Jixun and Zhang
Weijia.
Ducted air-conditioning (heat pump) units

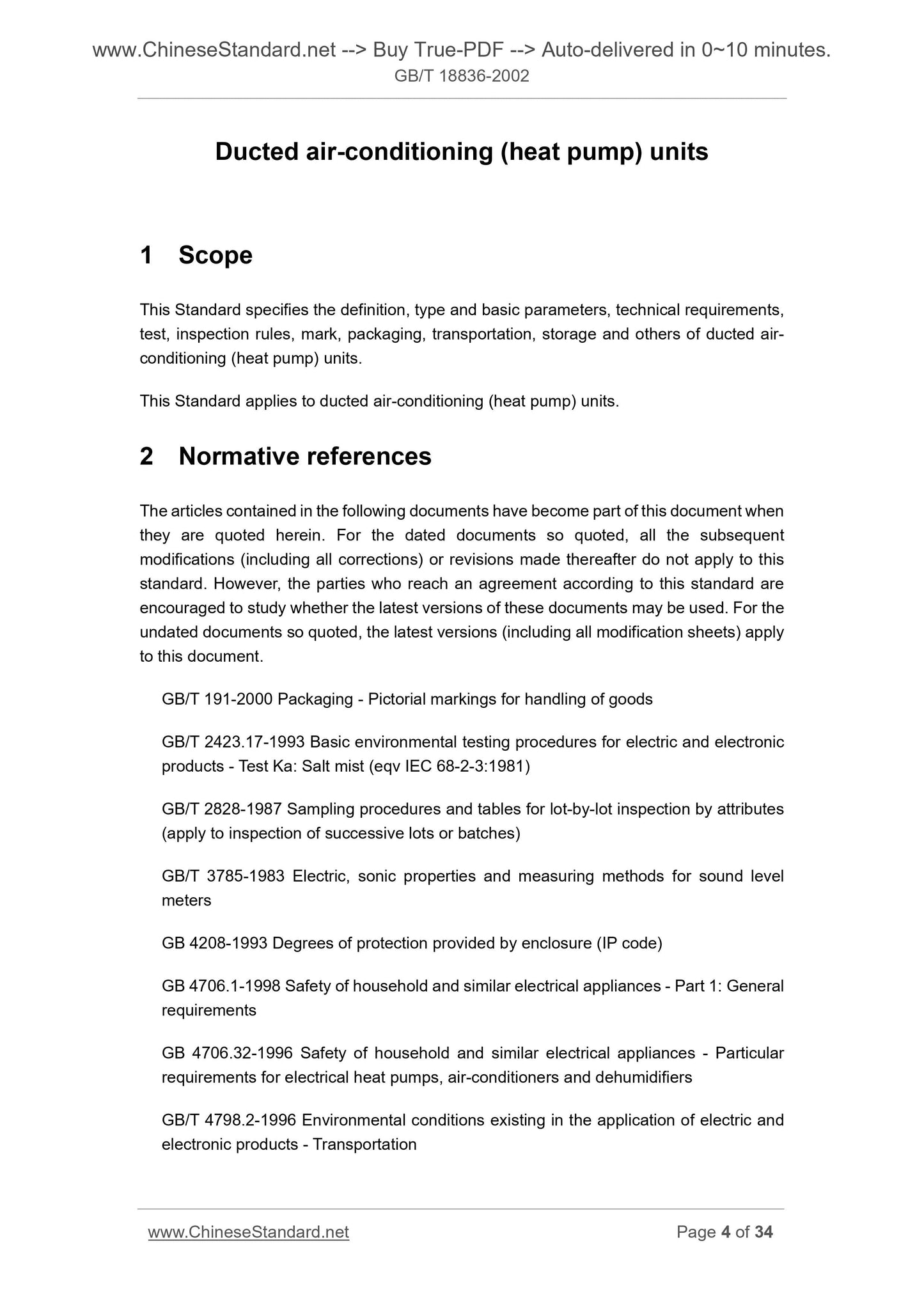

1 Scope
This Standard specifies the definition, type and basic parameters, technical requirements,
test, inspection rules, mark, packaging, transportation, storage and others of ducted air-
conditioning (heat pump) units.
This Standard applies to ducted air-conditioning (heat pump) units.
2 Normative references
The articles contained in the following documents have become part of this document when
they are quoted herein. For the dated documents so quoted, all the subsequent
modifications (including all corrections) or revisions made thereafter do not apply to this
standard. However, the parties who reach an agreement according to this standard are
encouraged to study whether the latest versions of these documents may be used. For the
undated documents so quoted, the latest versions (including all modification sheets) apply
to this document.
GB/T 191-2000 Packaging - Pictorial markings for handling of goods
GB/T 2423.17-1993 Basic environmental testing procedures for electric and electronic
products - Test Ka. Salt mist (eqv IEC 68-2-3.1981)
GB/T 2828-1987 Sampling procedures and tables for lot-by-lot inspection by attributes
(apply to inspection of successive lots or batches)
GB/T 3785-1983 Electric, sonic properties and measuring methods for sound level
meters
GB 4208-1993 Degrees of protection provided by enclosure (IP code)
GB 4706.1-1998 Safety of household and similar electrical appliances - Part 1. General
requirements
GB 4706.32-1996 Safety of household and similar electrical appliances - Particular
requirements for electrical heat pumps, air-conditioners and dehumidifiers
GB/T 4798.2-1996 Environmental conditions existing in the application of electric and
electronic products - Transportation
GB/T 5226.1-1996 Electrical equipment of industrial machines - Part 1. general
requirements
GB/T 6388-1986 Transport package shipping mark
GB 9237-2001 Mechanical refrigerating systems used for cooling and heating - Safety
requirements
GB/T 13306-1991 Plates
GB/T 17758-1999 Unitary air conditioners
JB/T 7249- 1994 Terminology of refrigeration equipment
JB/T 9066-1999 Cabinet type fan coil unit

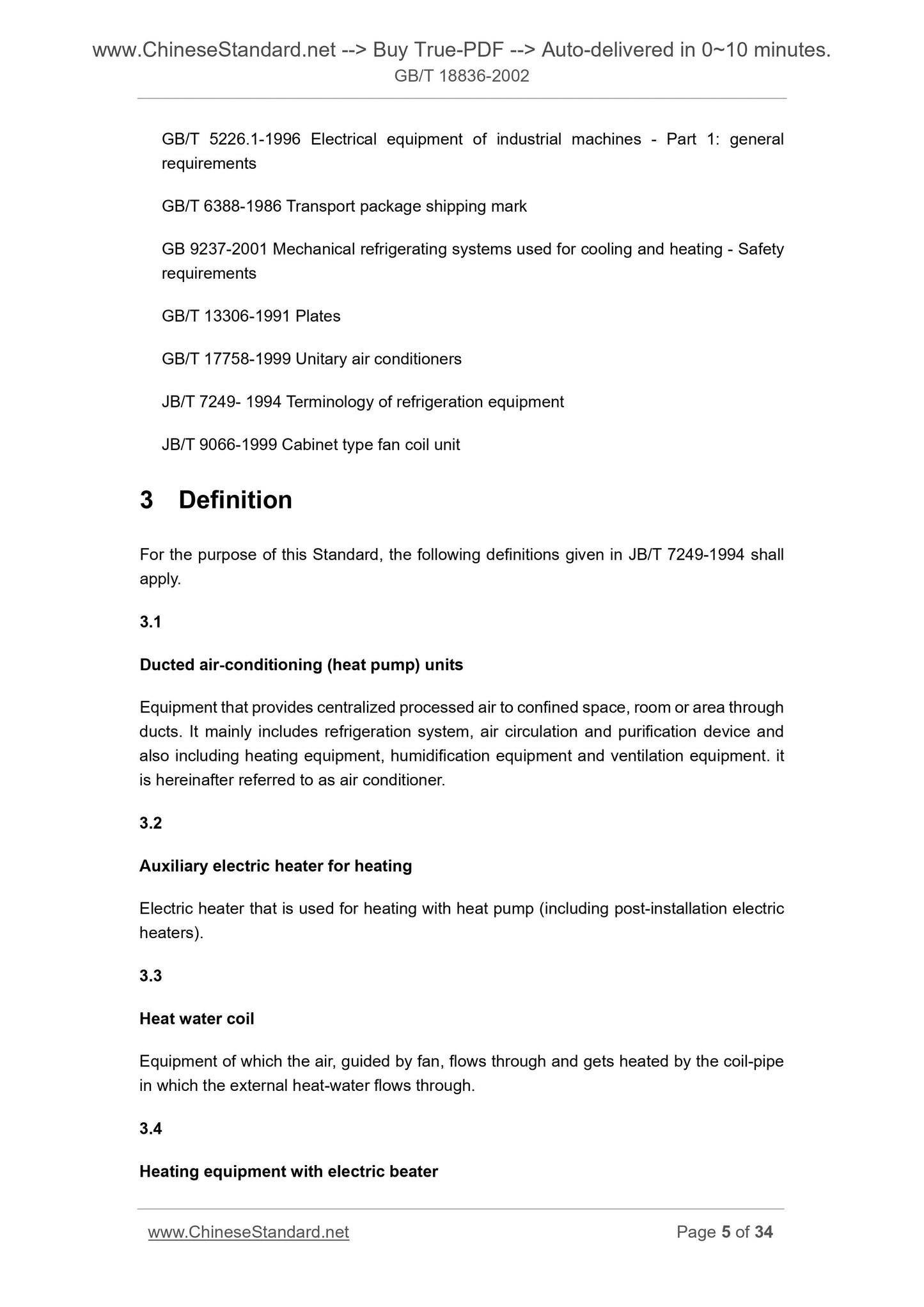

3 Definition
For the purpose of this Standard, the following definitions given in JB/T 7249-1994 shall
apply.
3.1
Ducted air-conditioning (heat pump) units
Equipment that provides centralized processed air to confined space, room or area through
ducts. It mainly includes refrigeration system, air circulation and purification device and
also including heating equipment, humidification equipment and ventilation equipment. it
is hereinafter referred to as air conditioner.
3.2
Auxiliary electric heater for heating
Electric heater that is used for heating with heat pump (including post-installation electric
heaters).
3.3
Heat water coil
Equipment of which the air, guided by fan, flows through and gets heated by the coil-pipe
in which the external heat-water flows through.
3.4
Heating equipment with electric beater
5.1.7 The action of magnetic exchange valves of heat pump air conditioner shall be
sensitive and reliable, and be able to ensure the normal operation of air conditioners.
5.1.8 The thermal-protective coating of air conditioners shall have good heat insulation
performance, and shall be non-toxic, odor-free and has self-extinguishing function. It shall
have no condensation phenomena on the surface in normal operation.
5.1.9 The parts of air conditioner refrigerating system shall be able to ensure the normal
operation of the whole unit without degradation under the affection of refrigerants,
lubricants and their mixture.
5.1.10 The compressor of air conditioners shall be equipped with measures against
vibration or be equipped with anti-vibration spring washers when being fixed.

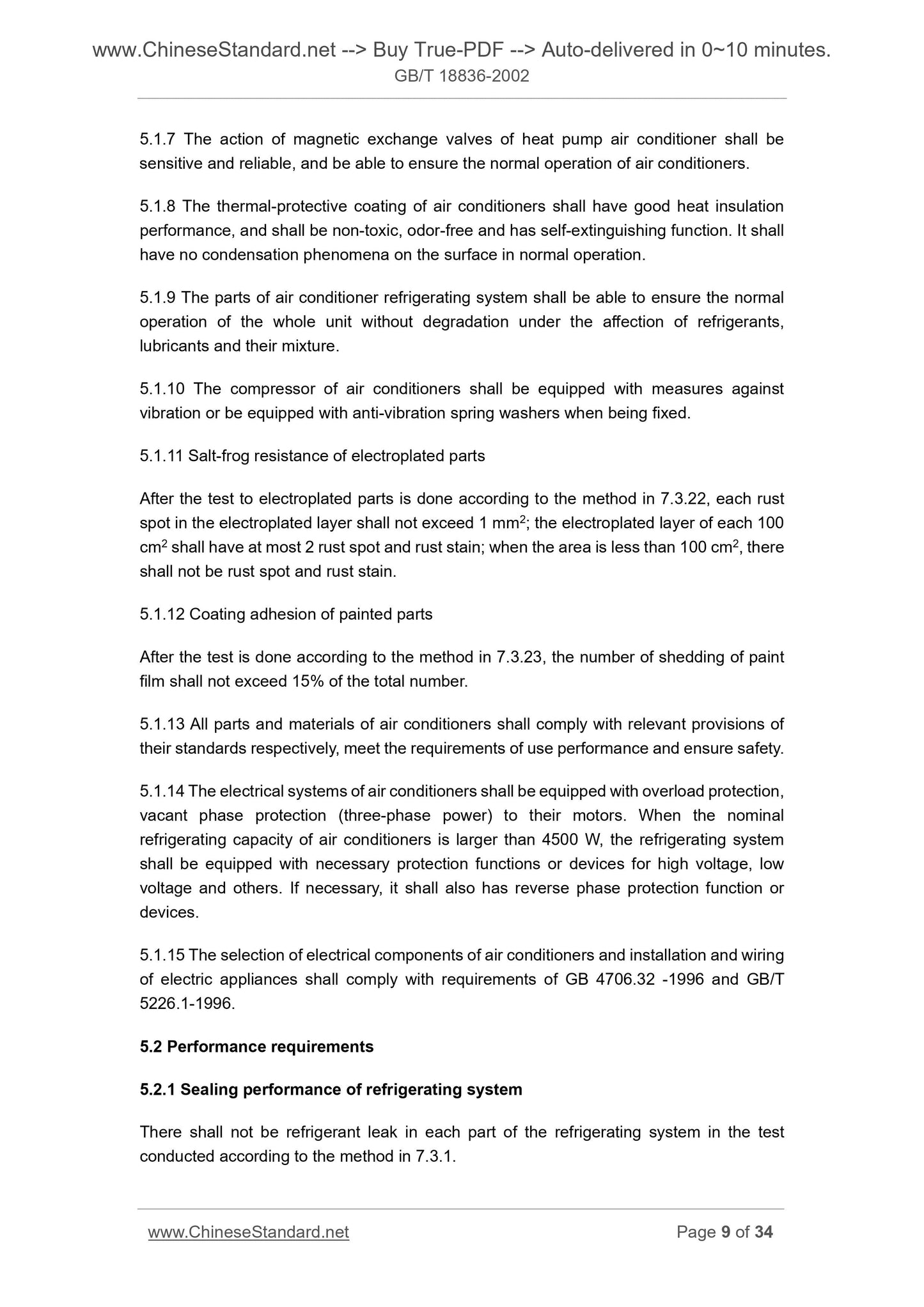

5.1.11 Salt-frog resistance of electroplated parts
After the test to electroplated parts is done according to the method in 7.3.22, each rust
spot in the electroplated layer shall not exceed 1 mm2; the electroplated layer of each 100
cm2 shall have at most 2 rust spot and rust stain; when the area is less than 100 cm2, there
shall not be rust spot and rust stain.
5.1.12 Coating adhesion of painted parts
After the test is done according to the method in 7.3.23, the number of shedding of paint
film shall not exceed 15% of the total number.
5.1.13 All parts and materials of air conditioners shall comply with relevant provisions of
their standards respectively, meet the requirements of use performance and ensure safety.
5.1.14 The electrical systems of air conditioners shall be equipped with overload protection,
vacant phase protection (three-phase power) to their motors. When the nominal
refrigerating capacity of air conditioners is larger than 4500 W, the refrigerating system
shall be equipped with necessary protection functions or devices for high voltage, low
voltage and others. If necessary, it shall also has reverse phase protection function or
devices.
5.1.15 The selection of electrical components of air conditioners and installation and wiring
of electric appliances shall comply with requirements of GB 4706.32 -1996 and GB/T
5226.1-1996.
5.2 Performance requirements

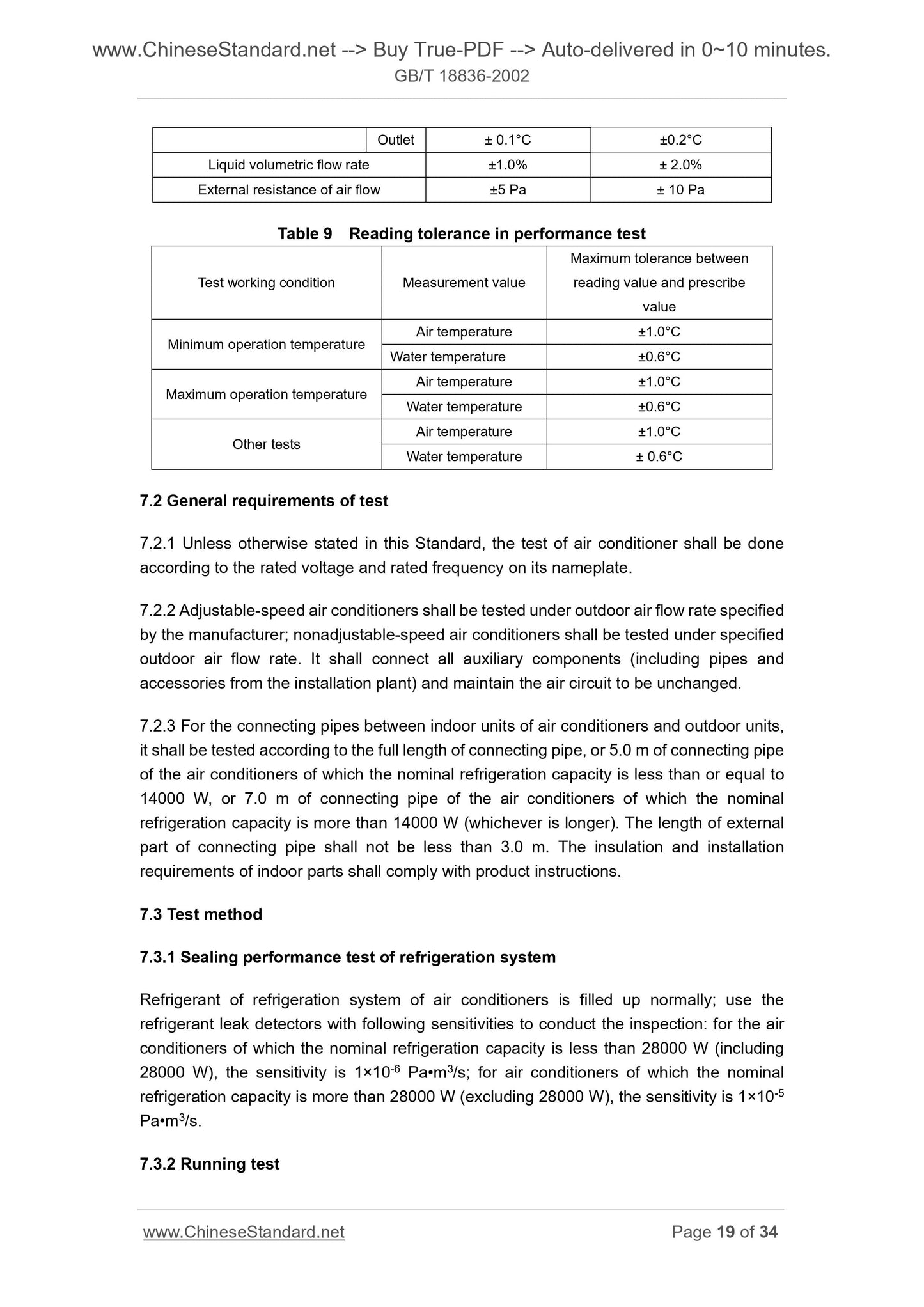

5.2.1 Sealing performance of refrigerating system
There shall not be refrigerant leak in each part of the refrigerating system in the test
conducted according to the method in 7.3.1.

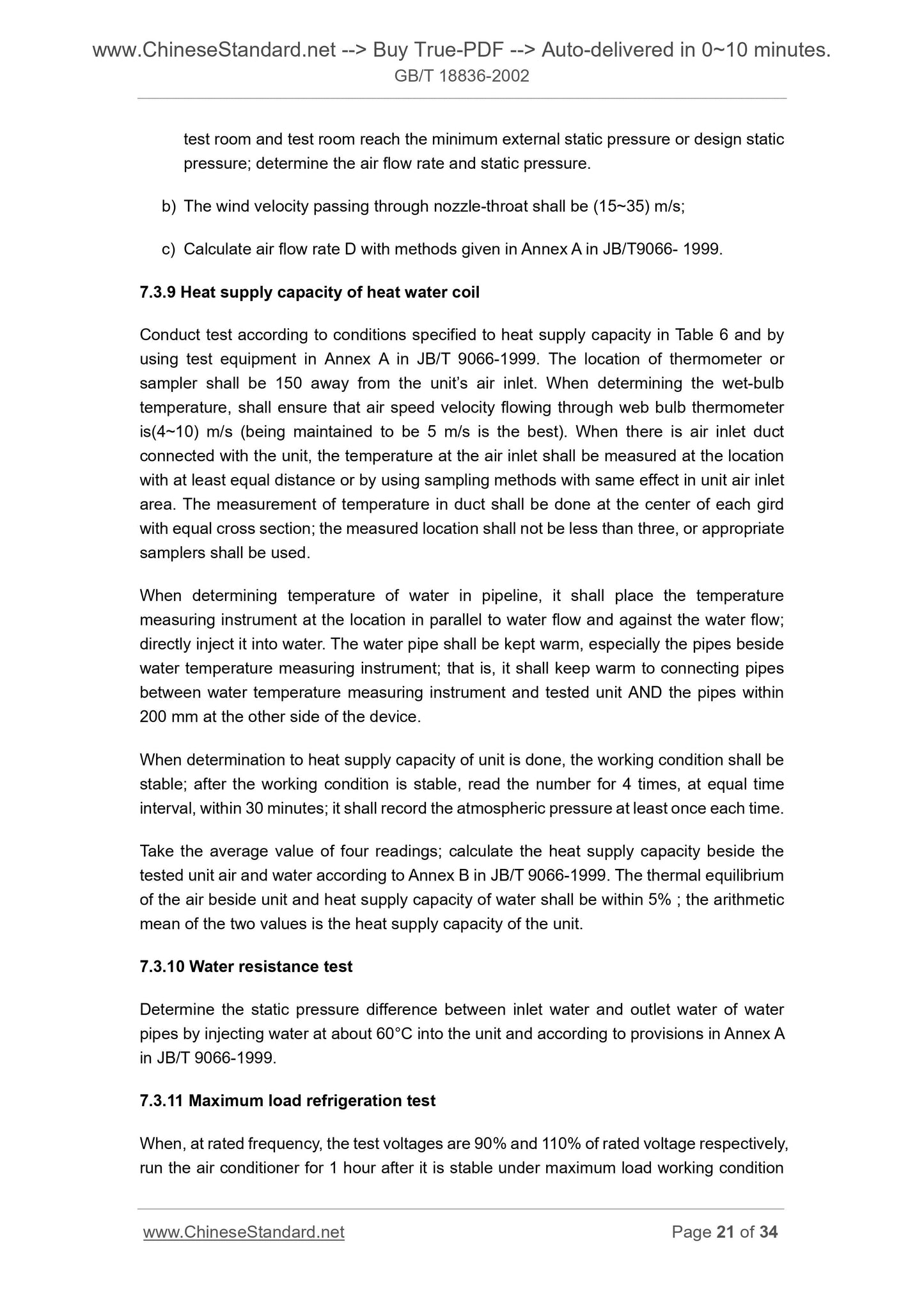

In the test conducted according to the method in 7.3.10, the water resistance of heat water
coil shall not be more than 110% of its nominal water resistance.

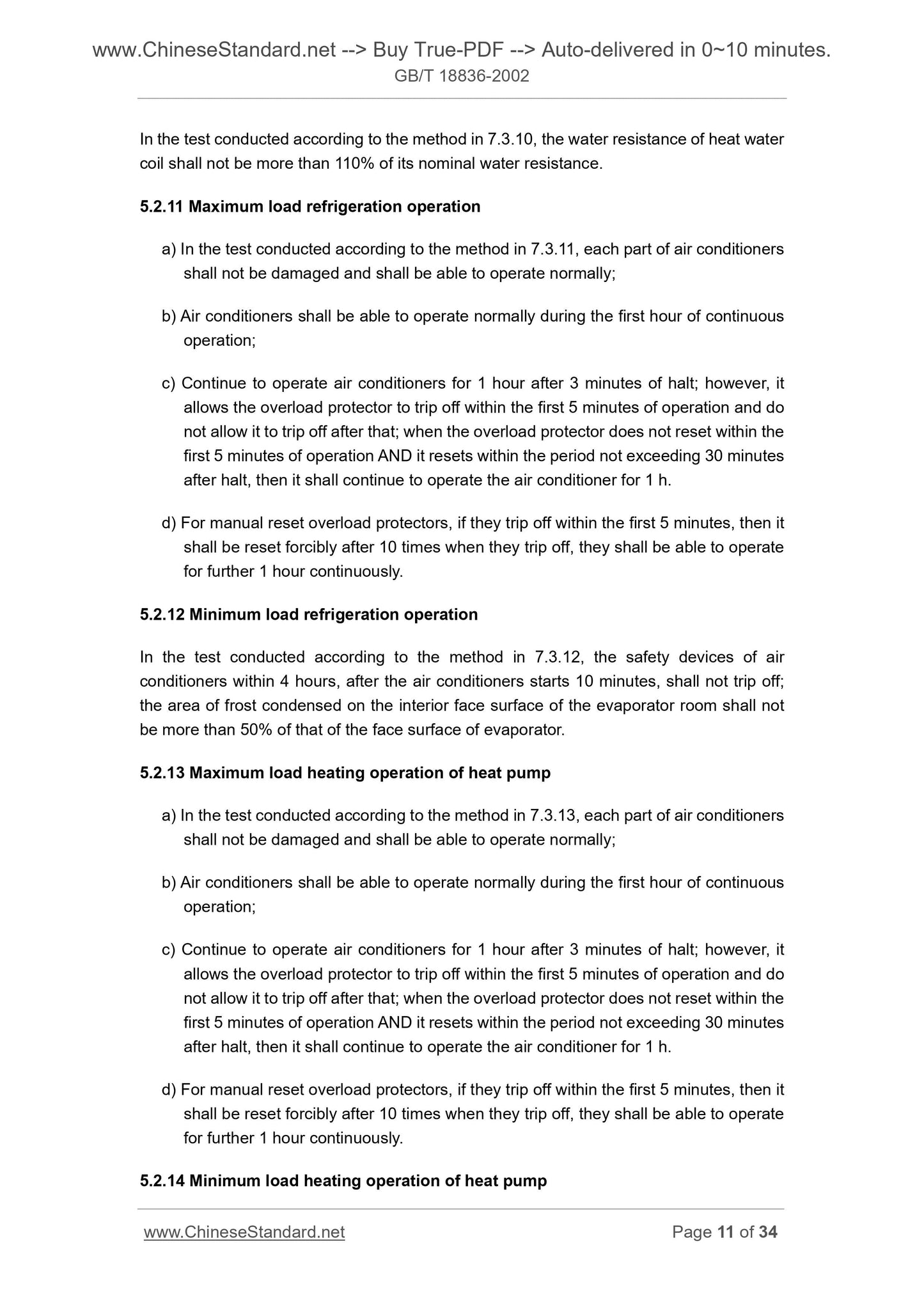

5.2.11 Maximum load refrigeration operation
a) In the test conducted according to the method in 7.3.11, each part of air conditioners
shall not be damaged and shall be able to operate normally;
b) Air conditioners shall be able to operate normally during the first hour of continuous
operation;
c) Continue to operate air conditioners for 1 hour after 3 minutes of halt; however, it
allows the overload protector to trip off within the first 5 minutes of operation and do
not allow it to trip off after that; when the overload protector does not reset within the
first 5 minutes of operation AND it resets within the period not exceeding 30 minutes
after halt, then it shall continue to operate the air conditioner for 1 h.
d) For manual reset overload protectors, if they trip off within the first 5 minutes, then it
shall be reset forcibly after 10 times when they trip off, they shall be able to operate
for further 1 hour continuously.
5.2.12 Minimum load refrigeration operation
In the test conducted according to the method in 7.3.12, the safety devices of air
conditioners within 4 hours, after the air conditioners starts 10 minutes, shall not trip off;
the area of frost condensed on the interior face surface of the evaporator room shall not
be more than 50% of that of the face surface of evaporator.
5.2.13 Maximum load heating oper...

GB/T 18836-2002
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.200
J 73
Ducted air-conditioning (heat pump) units
(ISO 13253.1995, Ducted air-conditions and air-to-air heat pumps –
Testing and rating for performance, NEQ)
ISSUED ON. SEPTEMBER 11, 2002
IMPLEMENTED ON. APRIL 01, 2003
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Definition... 5
4 Type and basic parameters ... 6
5 Technical requirements ... 8
6 Safety performance ... 14
7 Test method ... 16
8 Inspection rules ... 24
9 Mark, packaging, transportation and storage ... 26
Annex A (Informative) Model compiling method of ducted air-conditioning (heat
pump) units ... 29
Annex B (Normative) Methods of noise test method of ducted air-conditioning
(heat pump) units ... 30
Foreword
This Standard was formulated for the first time.
This Standard is not equivalent to ISO 13253.1995 Ducted air-conditions and air-to-air
Heat pumps - Testing and rating for performance.
In this Standard, Annex A is informative and Annex B is normative.
This Standard shall be under the jurisdiction of National standardization technical
committee on refrigeration equipment.
The responsible drafting organizations of this Standard. Shenzhen McQuay Air
Conditioning Co., Ltd. and Hefei General Machinery Research Institute.
The participating drafting organization of this Standard. Trane Air Conditioner Co., Ltd.
The chief drafting staffs of this Standard. Wang Yibin, Wang Xiangkui, Hu Jixun and Zhang
Weijia.
Ducted air-conditioning (heat pump) units
1 Scope
This Standard specifies the definition, type and basic parameters, technical requirements,
test, inspection rules, mark, packaging, transportation, storage and others of ducted air-
conditioning (heat pump) units.
This Standard applies to ducted air-conditioning (heat pump) units.
2 Normative references
The articles contained in the following documents have become part of this document when
they are quoted herein. For the dated documents so quoted, all the subsequent
modifications (including all corrections) or revisions made thereafter do not apply to this
standard. However, the parties who reach an agreement according to this standard are
encouraged to study whether the latest versions of these documents may be used. For the
undated documents so quoted, the latest versions (including all modification sheets) apply
to this document.
GB/T 191-2000 Packaging - Pictorial markings for handling of goods
GB/T 2423.17-1993 Basic environmental testing procedures for electric and electronic
products - Test Ka. Salt mist (eqv IEC 68-2-3.1981)
GB/T 2828-1987 Sampling procedures and tables for lot-by-lot inspection by attributes
(apply to inspection of successive lots or batches)
GB/T 3785-1983 Electric, sonic properties and measuring methods for sound level
meters
GB 4208-1993 Degrees of protection provided by enclosure (IP code)
GB 4706.1-1998 Safety of household and similar electrical appliances - Part 1. General
requirements
GB 4706.32-1996 Safety of household and similar electrical appliances - Particular
requirements for electrical heat pumps, air-conditioners and dehumidifiers
GB/T 4798.2-1996 Environmental conditions existing in the application of electric and
electronic products - Transportation
GB/T 5226.1-1996 Electrical equipment of industrial machines - Part 1. general
requirements
GB/T 6388-1986 Transport package shipping mark
GB 9237-2001 Mechanical refrigerating systems used for cooling and heating - Safety
requirements
GB/T 13306-1991 Plates
GB/T 17758-1999 Unitary air conditioners
JB/T 7249- 1994 Terminology of refrigeration equipment
JB/T 9066-1999 Cabinet type fan coil unit
3 Definition
For the purpose of this Standard, the following definitions given in JB/T 7249-1994 shall
apply.
3.1
Ducted air-conditioning (heat pump) units
Equipment that provides centralized processed air to confined space, room or area through
ducts. It mainly includes refrigeration system, air circulation and purification device and
also including heating equipment, humidification equipment and ventilation equipment. it
is hereinafter referred to as air conditioner.
3.2
Auxiliary electric heater for heating
Electric heater that is used for heating with heat pump (including post-installation electric
heaters).
3.3
Heat water coil
Equipment of which the air, guided by fan, flows through and gets heated by the coil-pipe
in which the external heat-water flows through.
3.4
Heating equipment with electric beater
5.1.7 The action of magnetic exchange valves of heat pump air conditioner shall be
sensitive and reliable, and be able to ensure the normal operation of air conditioners.
5.1.8 The thermal-protective coating of air conditioners shall have good heat insulation
performance, and shall be non-toxic, odor-free and has self-extinguishing function. It shall
have no condensation phenomena on the surface in normal operation.
5.1.9 The parts of air conditioner refrigerating system s...
