GB/T 18696.1-2004: Acoustics -- Determination of sound absorption coefficient and impedance in impedance tubes -- Part 1: Method using standing wave ratio

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 18696.1-2004 (Self-service in 1-minute)
Newer / historical versions: GB/T 18696.1-2004

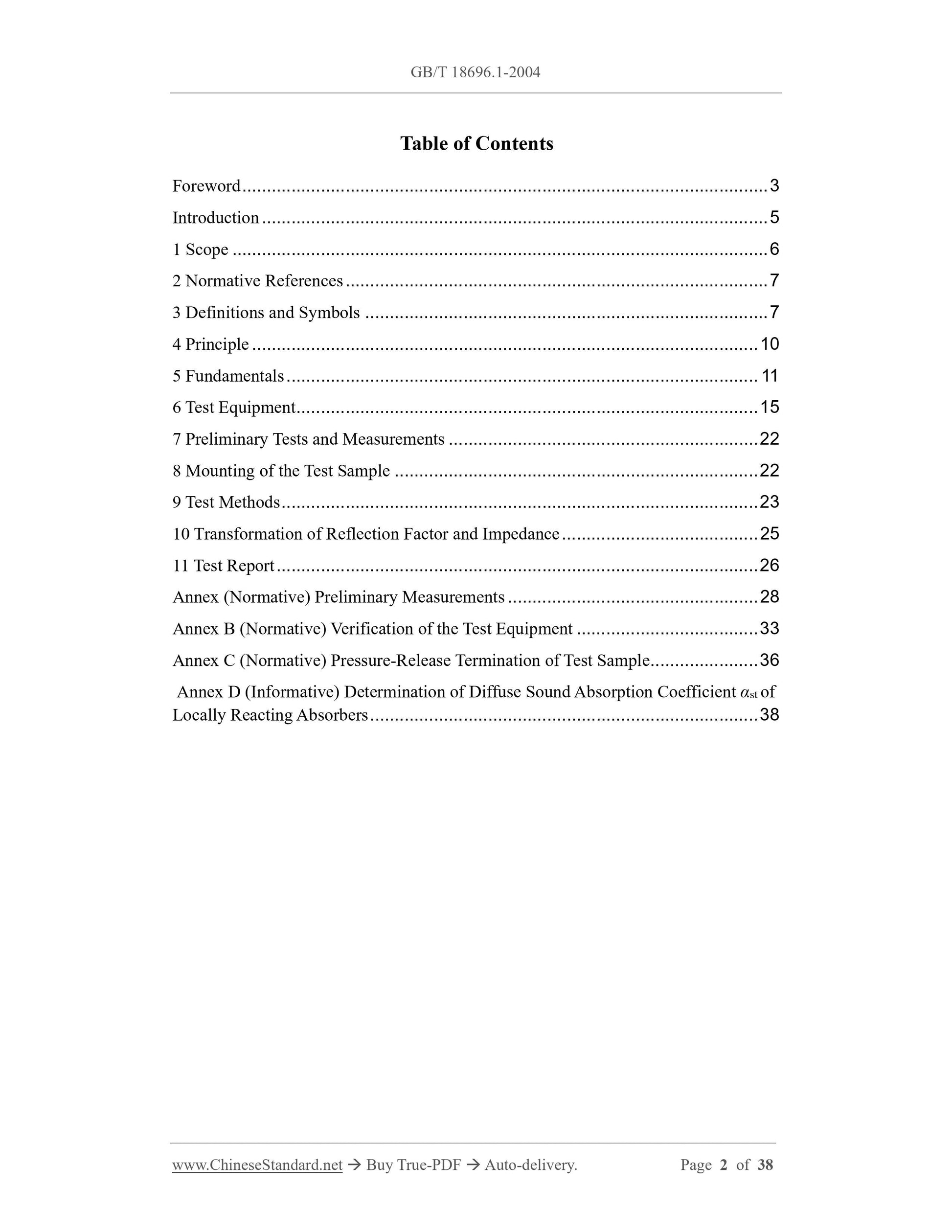

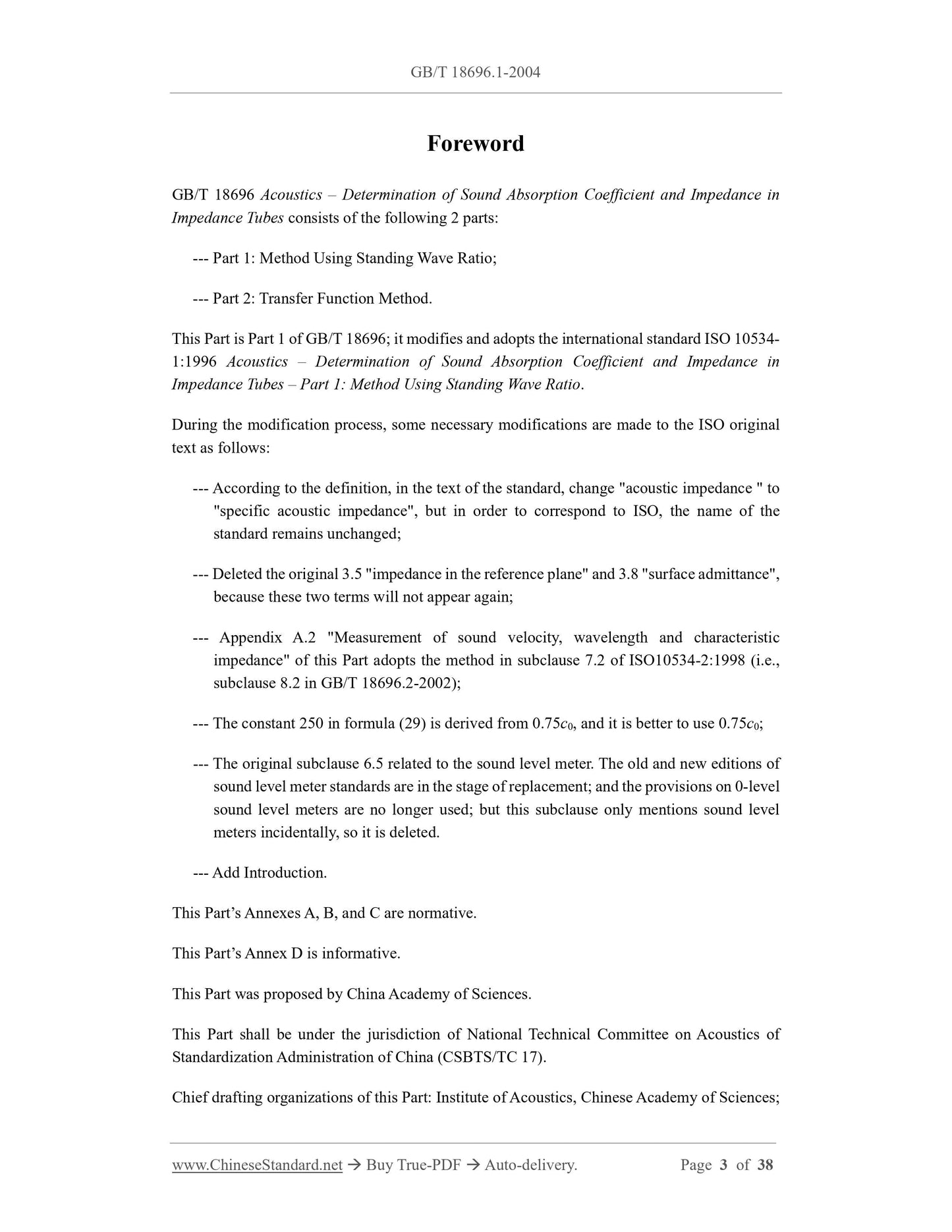

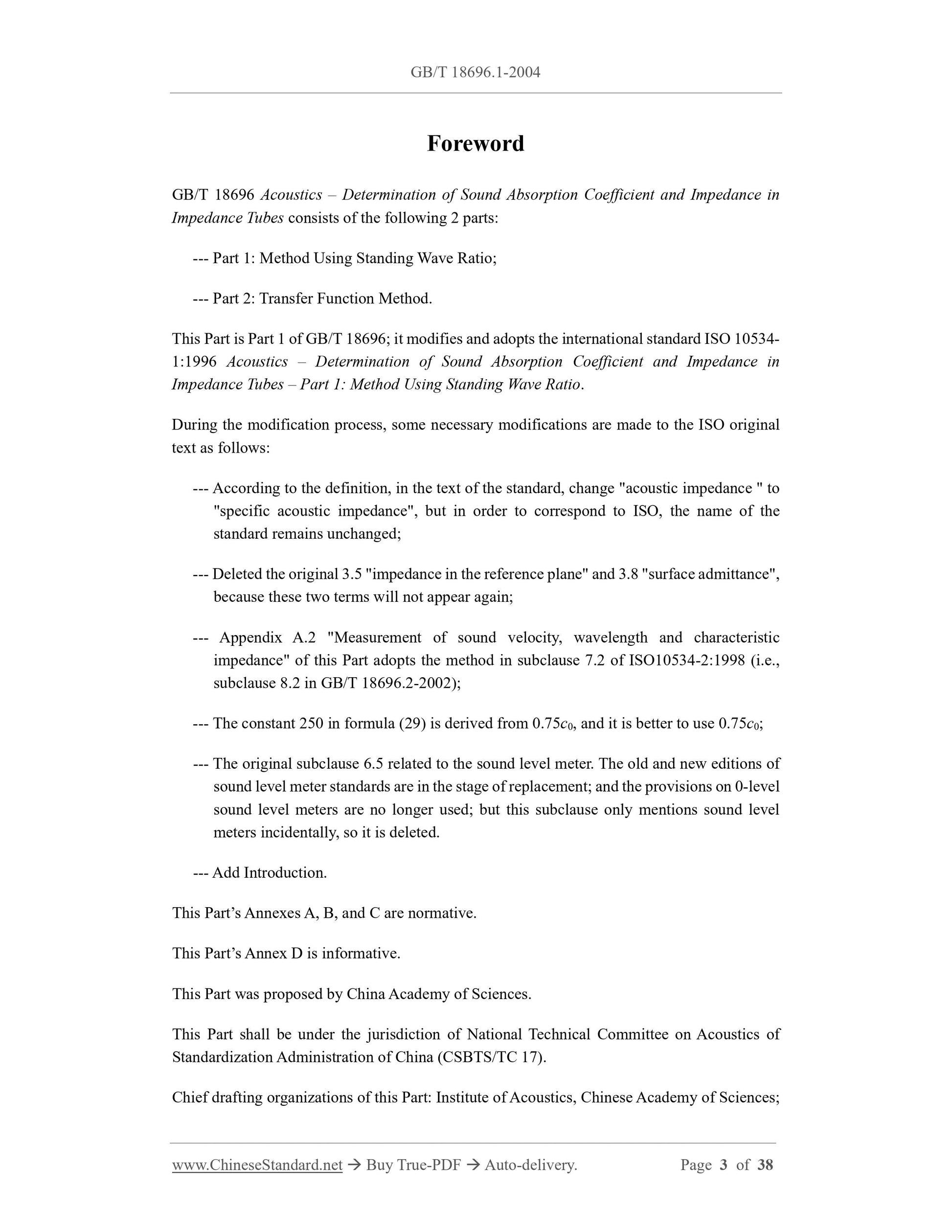

Preview True-PDF

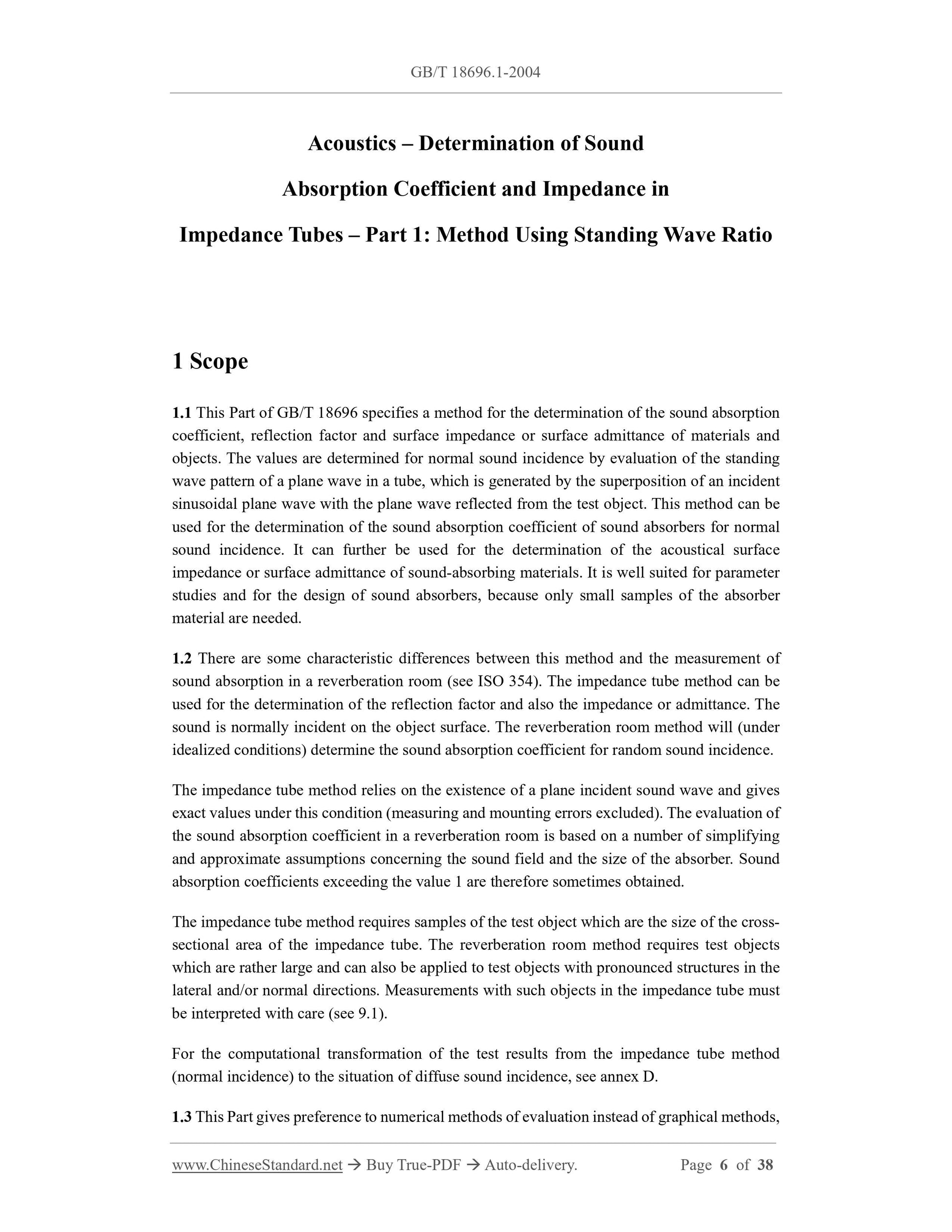

Scope

1.1 This Part of GB/T 18696 specifies a method for the determination of the sound absorption
coefficient, reflection factor and surface impedance or surface admittance of materials and
objects. The values are determined for normal sound incidence by evaluation of the standing
wave pattern of a plane wave in a tube, which is generated by the superposition of an incident
sinusoidal plane wave with the plane wave reflected from the test object. This method can be
used for the determination of the sound absorption coefficient of sound absorbers for normal
sound incidence. It can further be used for the determination of the acoustical surface
impedance or surface admittance of sound-absorbing materials. It is well suited for parameter
studies and for the design of sound absorbers, because only small samples of the absorber
material are needed.
1.2 There are some characteristic differences between this method and the measurement of
sound absorption in a reverberation room (see ISO 354). The impedance tube method can be
used for the determination of the reflection factor and also the impedance or admittance. The
sound is normally incident on the object surface. The reverberation room method will (under
idealized conditions) determine the sound absorption coefficient for random sound incidence.
The impedance tube method relies on the existence of a plane incident sound wave and gives
exact values under this condition (measuring and mounting errors excluded). The evaluation of
the sound absorption coefficient in a reverberation room is based on a number of simplifying
and approximate assumptions concerning the sound field and the size of the absorber. Sound
absorption coefficients exceeding the value 1 are therefore sometimes obtained.
The impedance tube method requires samples of the test object which are the size of the cross-
sectional area of the impedance tube. The reverberation room method requires test objects
which are rather large and can also be applied to test objects with pronounced structures in the
lateral and/or normal directions. Measurements with such objects in the impedance tube must
be interpreted with care (see 9.1).
For the computational transformation of the test results from the impedance tube method
(normal incidence) to the situation of diffuse sound incidence, see annex D.
1.3 This Part gives preference to numerical methods of evaluation instead of graphical methods,

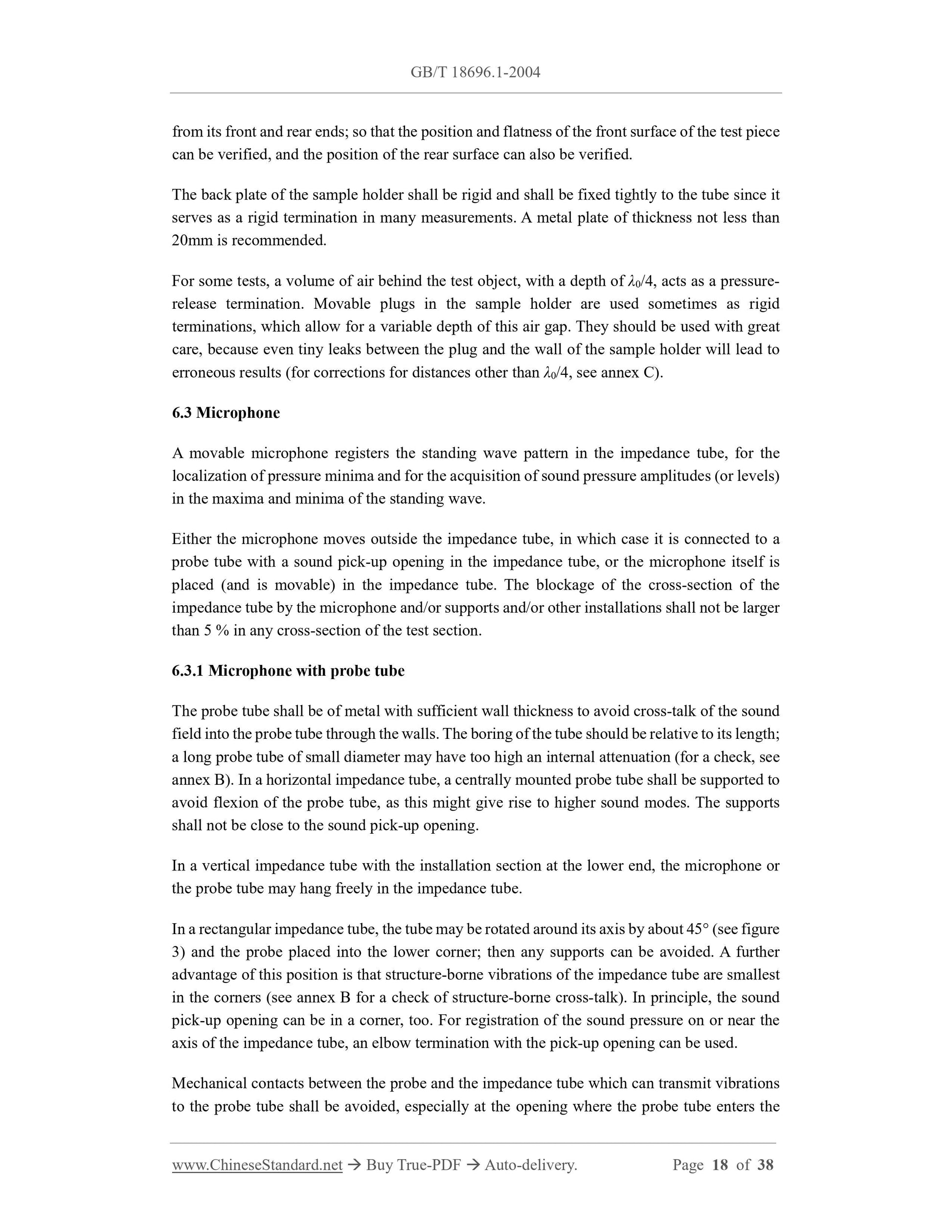

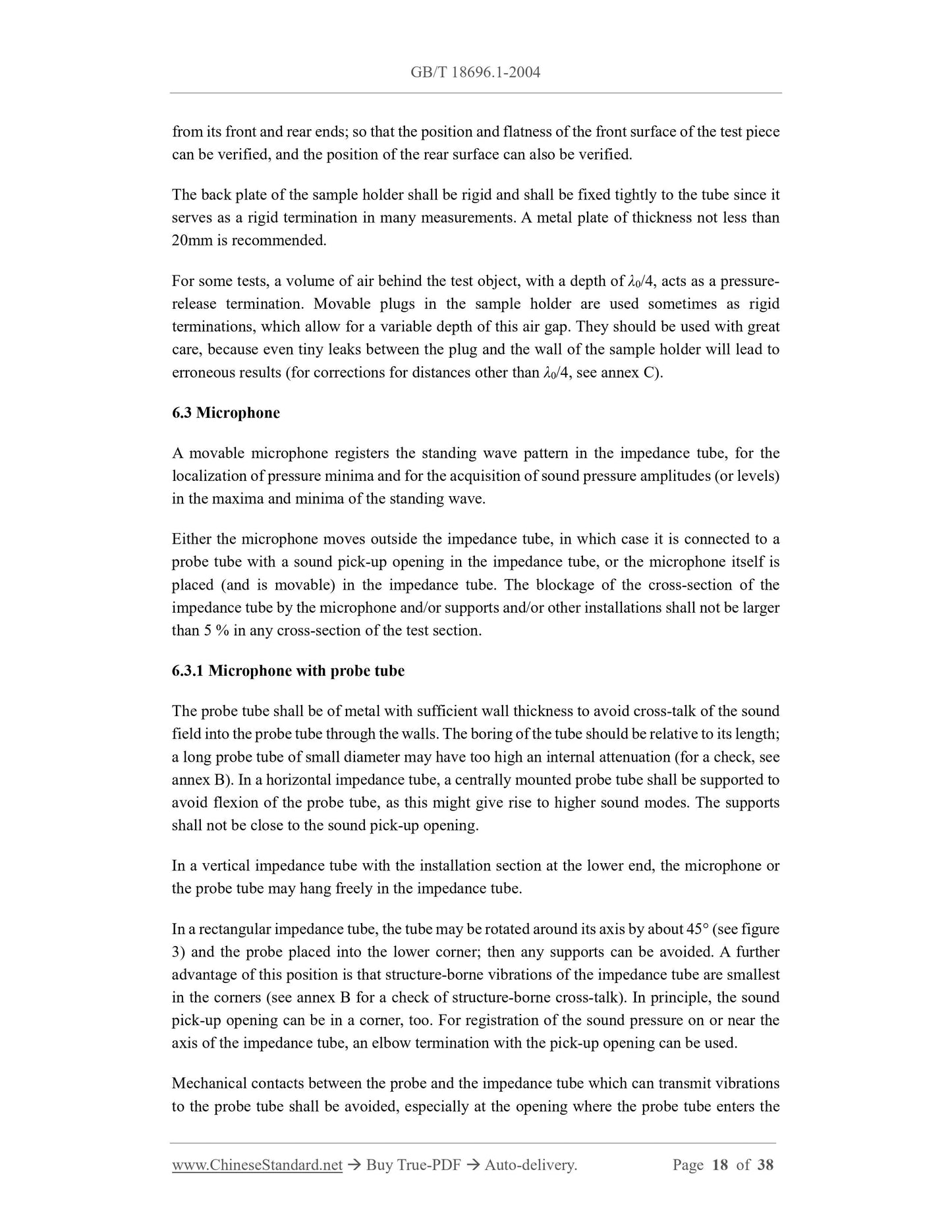

from its front and rear ends; so that the position and flatness of the front surface of the test piece
can be verified, and the position of the rear surface can also be verified.
The back plate of the sample holder shall be rigid and shall be fixed tightly to the tube since it
serves as a rigid termination in many measurements. A metal plate of thickness not less than
20mm is recommended.
For some tests, a volume of air behind the test object, with a depth of λ0/4, acts as a pressure-
release termination. Movable plugs in the sample holder are used sometimes as rigid
terminations, which allow for a variable depth of this air gap. They should be used with great
care, because even tiny leaks between the plug and the wall of the sample holder will lead to
erroneous results (for corrections for distances other than λ0/4, see annex C).
6.3 Microphone
A movable microphone registers the standing wave pattern in the impedance tube, for the
localization of pressure minima and for the acquisition of sound pressure amplitudes (or levels)
in the maxima and minima of the standing wave.
Either the microphone moves outside the impedance tube, in which case it is connected to a
probe tube with a sound pick-up opening in the impedance tube, or the microphone itself is
placed (and is movable) in the impedance tube. The blockage of the cross-section of the
impedance tube by the microphone and/or supports and/or other installations shall not be larger
than 5 % in any cross-section of the test section.
6.3.1 Microphone with probe tube
The probe tube shall be of metal with sufficient wall thickness to avoid cross-talk of the sound
field into the probe tube through the walls. The boring of the tube should be relative to its length;
a long probe tube of small diameter may have too high an internal attenuation (for a check, see
annex B). In a horizontal impedance tube, a centrally mounted probe tube shall be supported to
avoid flexion of the probe tube, as this might give rise to higher sound modes. The supports
shall not be close to the sound pick-up opening.
In a vertical impedance tube with the installation section at the lower end, the microphone or
the probe tube may hang freely in the impedance tube.
In a rectangular impedance tube, the tube may be rotated around its axis by about 45° (see figure
3) and the probe placed into the lower corner; then any supports can be avoided. A further
advantage of this position is that structure-borne vibrations of the impedance tube are smallest
in the corners (see annex B for a check of structure-borne cross-talk). In principle, the sound
pick-up opening can be in a corner, too. For registration of the sound pressure on or near the
axis of the impedance tube, an elbow termination with the pick-up opening can be used.
Mechanical contacts between the probe and the impedance tube which can transmit vibrations
to the probe tube shall be avoided, especially at the opening where the probe tube enters the

Basic Data

Standard ID GB/T 18696.1-2004 (GB/T18696.1-2004)
Description (Translated English) Acoustics. Determination of sound absorption coefficient and impedance in impedance tubes. Part 1: Method using standing wave ratio
Sector / Industry National Standard (Recommended)
Classification of Chinese Standard A59
Classification of International Standard 17.140.01
Word Count Estimation 26,213
Date of Issue 2004-05-13
Date of Implementation 2004-12-01
Quoted Standard GB/T 3240-1982; ISO 354
Adopted Standard ISO 10534-1-1996, MOD
Regulation (derived from) Announcement of Newly Approved National Standards No. 6, 2004 (No. 68 overall)
Issuing agency(ies) State Administration of Quality Supervision, Inspection and Quarantine of the People Republic of China China National Standardization Administration Committee
Summary This standard specifies the side of the titration to the incident when the sound-absorbing material and structure of the absorption coefficient, reflection factor and surface acoustic obstruction rate or bereavement surface acoustic admittance rate method. These data are based on French resistance Enforcement conditions to the incident plane wave and sine servant shot from the specimen plane wave reflected back plus Sheng Sheng generated after Porto side given. Because only the sound-absorbing material for at least 2 specimens, so it lift parameters for sound-absorbing material research and design is particularly suitable.
