GB/T 18442.1-2011: Static vacuum insulated cryogenic pressure vessel -- Part 1: General requirements

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 18442.1-2011 (Self-service in 1-minute)
Newer / historical versions: GB/T 18442.1-2011

Preview True-PDF

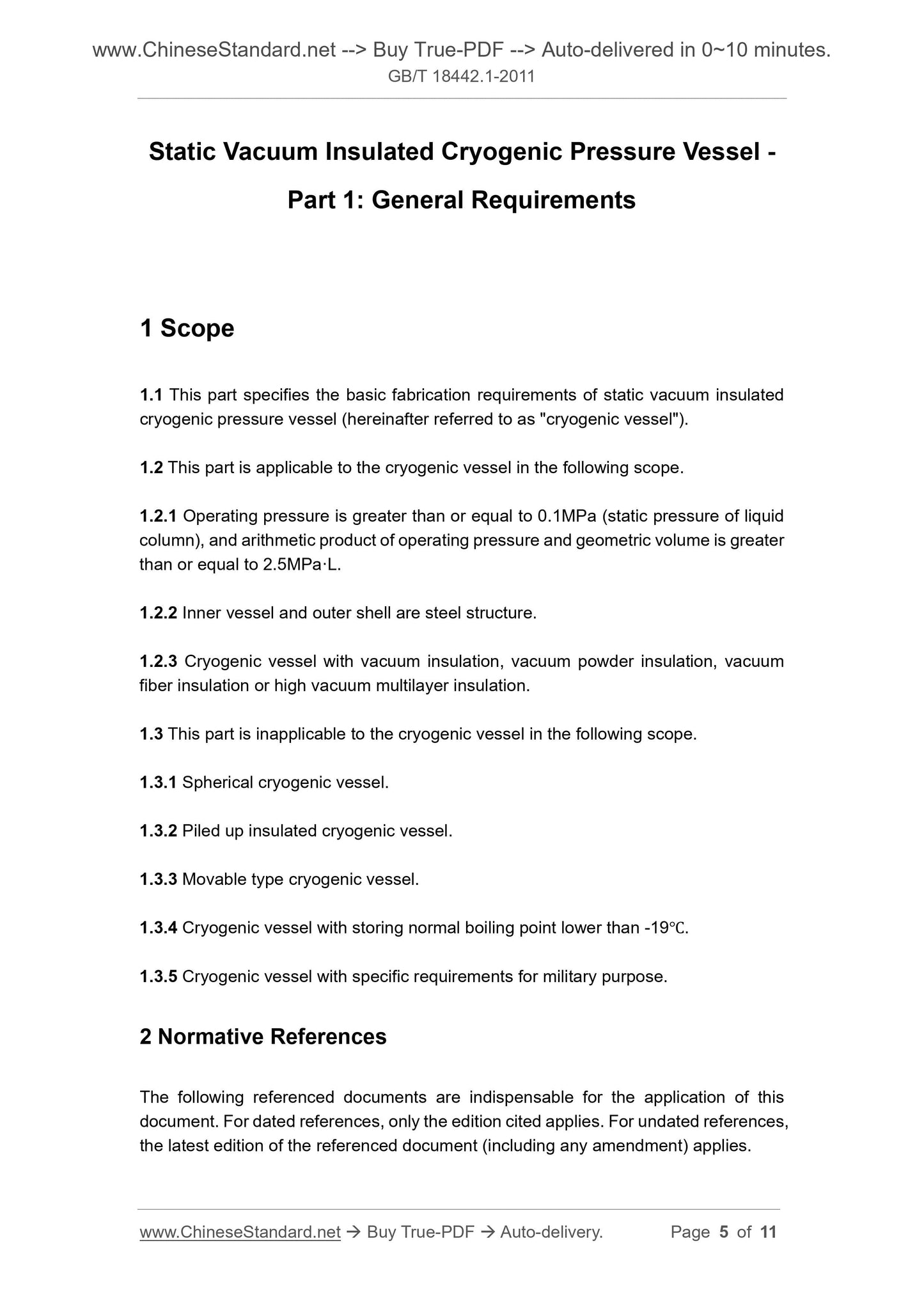

Scope

1.1 This part specifies the basic fabrication requirements of static vacuum insulated
cryogenic pressure vessel (hereinafter referred to as "cryogenic vessel").
1.2 This part is applicable to the cryogenic vessel in the following scope.
1.2.1 Operating pressure is greater than or equal to 0.1MPa (static pressure of liquid
column), and arithmetic product of operating pressure and geometric volume is greater
than or equal to 2.5MPa·L.
1.2.2 Inner vessel and outer shell are steel structure.
1.2.3 Cryogenic vessel with vacuum insulation, vacuum powder insulation, vacuum
fiber insulation or high vacuum multilayer insulation.
1.3 This part is inapplicable to the cryogenic vessel in the following scope.
1.3.1 Spherical cryogenic vessel.
1.3.2 Piled up insulated cryogenic vessel.
1.3.3 Movable type cryogenic vessel.
1.3.4 Cryogenic vessel with storing normal boiling point lower than -19℃.
1.3.5 Cryogenic vessel with specific requirements for military purpose.

Basic Data

Standard ID	GB/T 18442.1-2011 (GB/T18442.1-2011)
Description (Translated English)	Static vacuum insulated cryogenic pressure vessel -- Part 1: General requirements
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J76
Classification of International Standard	23.020.40
Word Count Estimation	7,763
Date of Issue	2011-11-21
Date of Implementation	2012-05-01
Older Standard (superseded by this standard)	GB 18442-2001
Quoted Standard	GB 150, GB/T 18442.2, GB/T 18442.3, GB/T 18442.4, GB/T 18442.5, GB/T 18442.6, TSG R1001, TSG R0004
Regulation (derived from)	National Standards Bulletin 2011 No. 18
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the fixed vacuum insulated cryogenic pressure vessels basic requirements. For the following range of cryogenic containers: working pressure not less than 0. 1MPa (excluding liquid column static pressure), and the working pressure and the product of the geometric volume of not less than 2. 5MPa �� L, inner and outer casing of steel structure, adiabatically vacuum insulation, vacuum powder insulation, fiber insulation or high vacuum multilayer insulation cryogenic vacuum container. This section does not apply the following range of cryogenic containers: spherical cryogenic containers, accumulation insulation cryogenic containers, mobile cryogenic vessels, storage standard boiling point below -196��C cryogenic liquid cryogenic containers, used for military purposes has special requests cryogenic containers.
