GB/T 18411-2018 English PDF (GBT18411-2018)

GB/T 18411-2018 English PDF (GBT18411-2018)

Regular price $135.00 USD
Regular price Sale price $135.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 18411-2018 to get it for Purchase Approval, Bank TT...

GB/T 18411-2018: Power-driven vehicles manufacturer plate

This standard specifies the type, marking content, marking position and marking requirements of power-driven vehicles manufacturer plate. This standard applies to automobiles and non-complete vehicles, trailers, motorcycles and mopeds, tractors that constitute tractor transport units, wheeltype special machinery vehicles, special-type vehicles, and other vehicles can make reference to it.

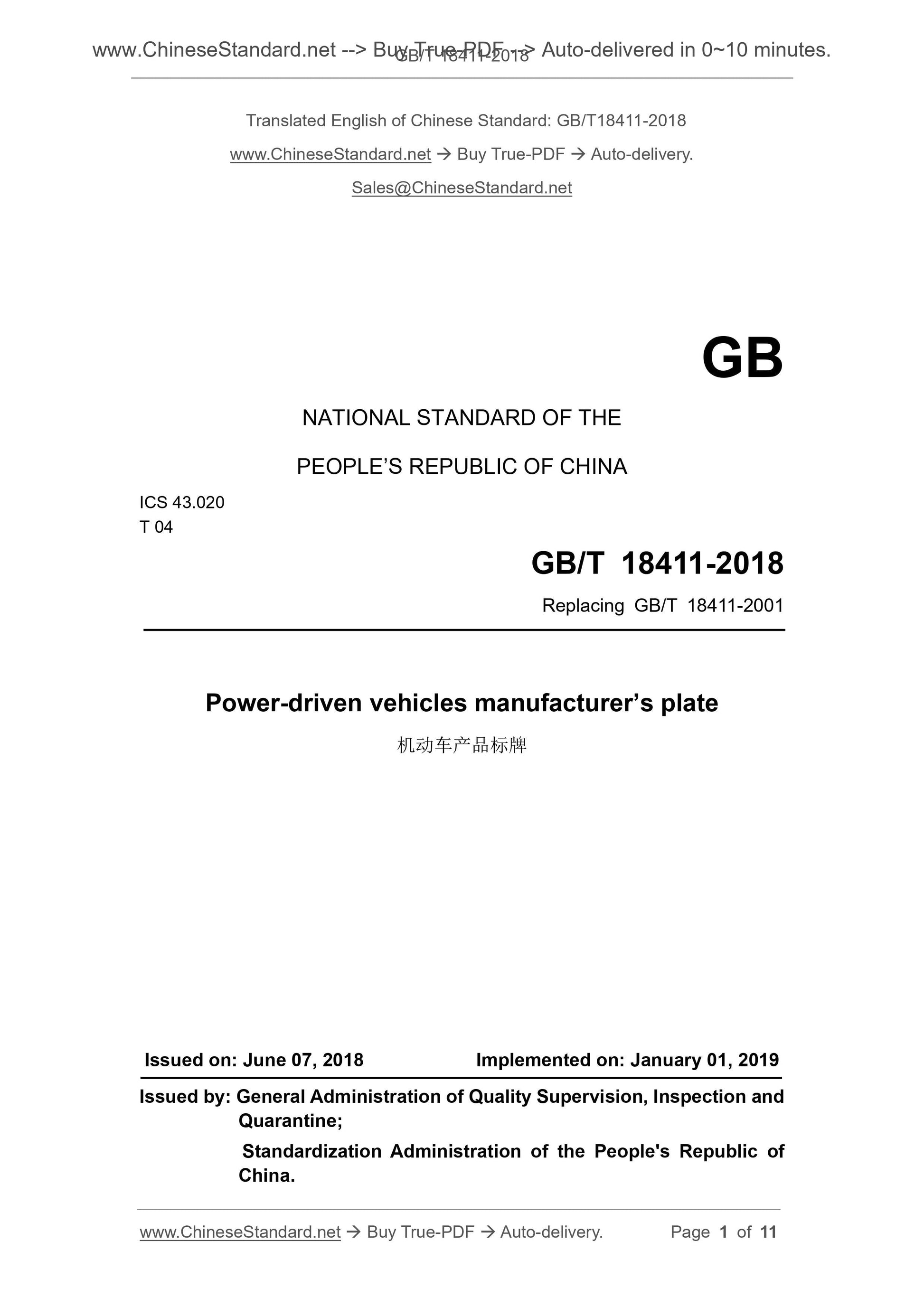

GB/T 18411-2018
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 04
Replacing GB/T 18411-2001
Power-driven vehicles manufacturer?€?s plate
ISSUED ON. JUNE 07, 2018
IMPLEMENTED ON. JANUARY 01, 2019
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People's Republic of
China.

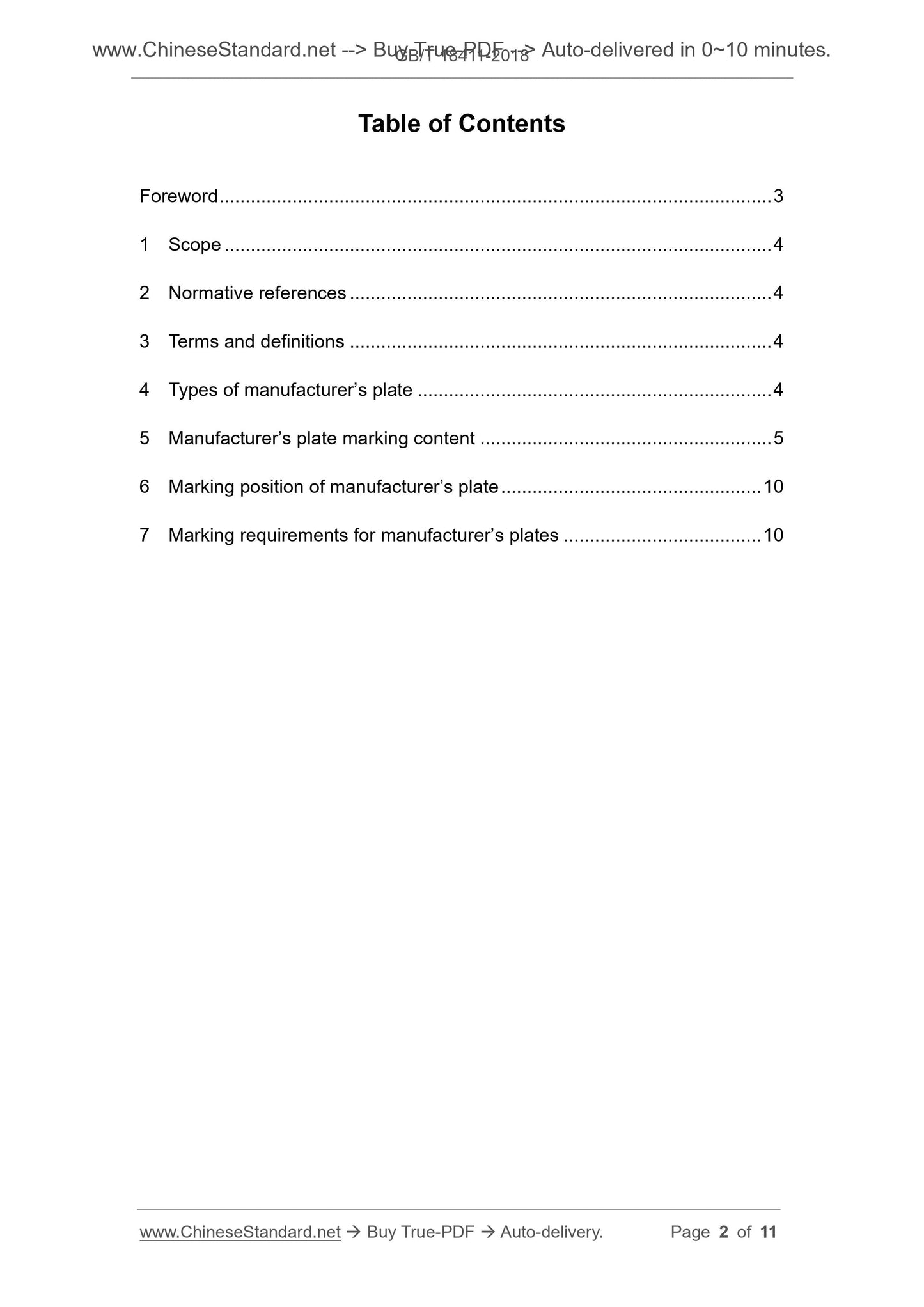

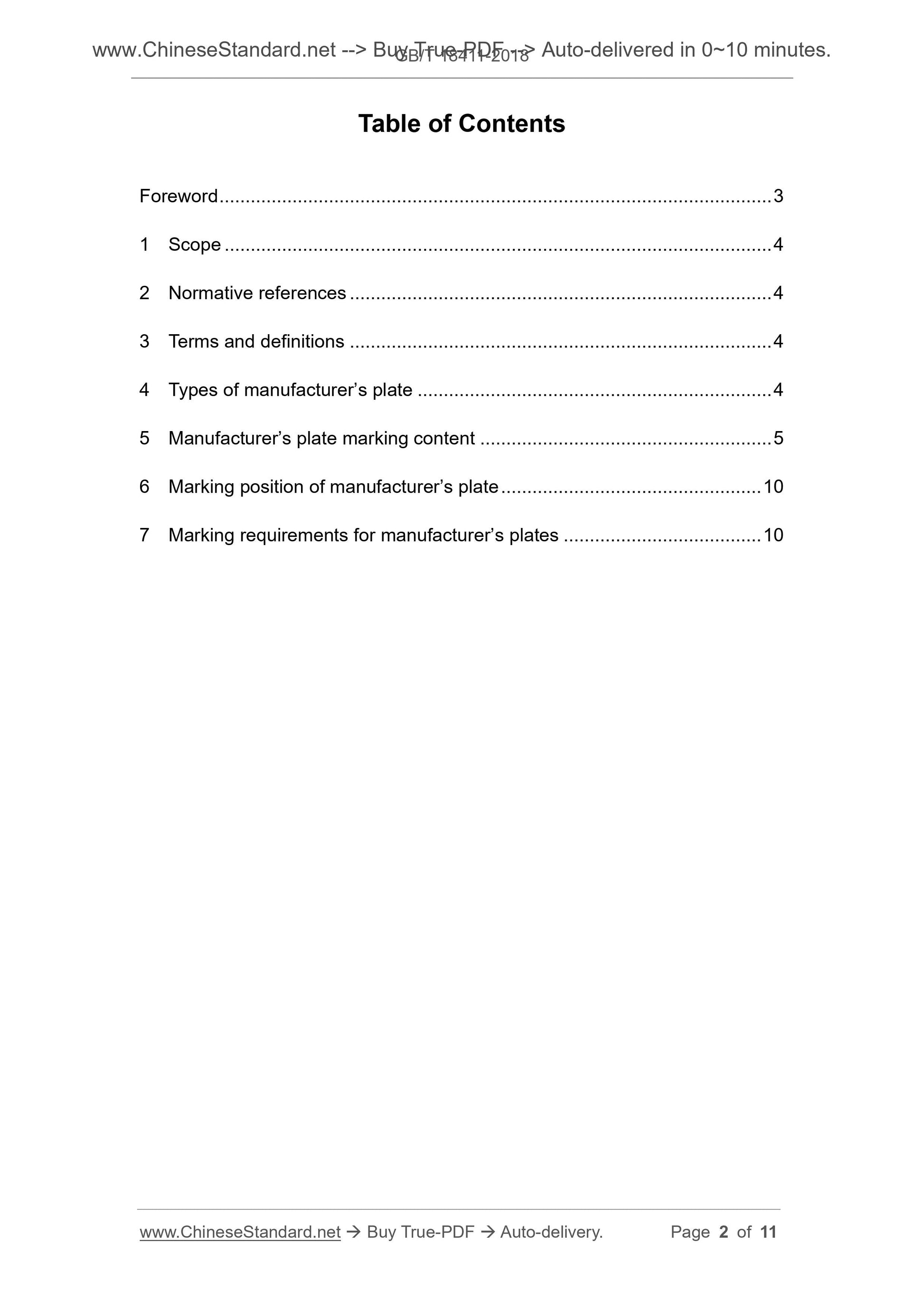

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Types of manufacturer?€?s plate ... 4
5 Manufacturer?€?s plate marking content ... 5
6 Marking position of manufacturer?€?s plate ... 10
7 Marking requirements for manufacturer?€?s plates ... 10

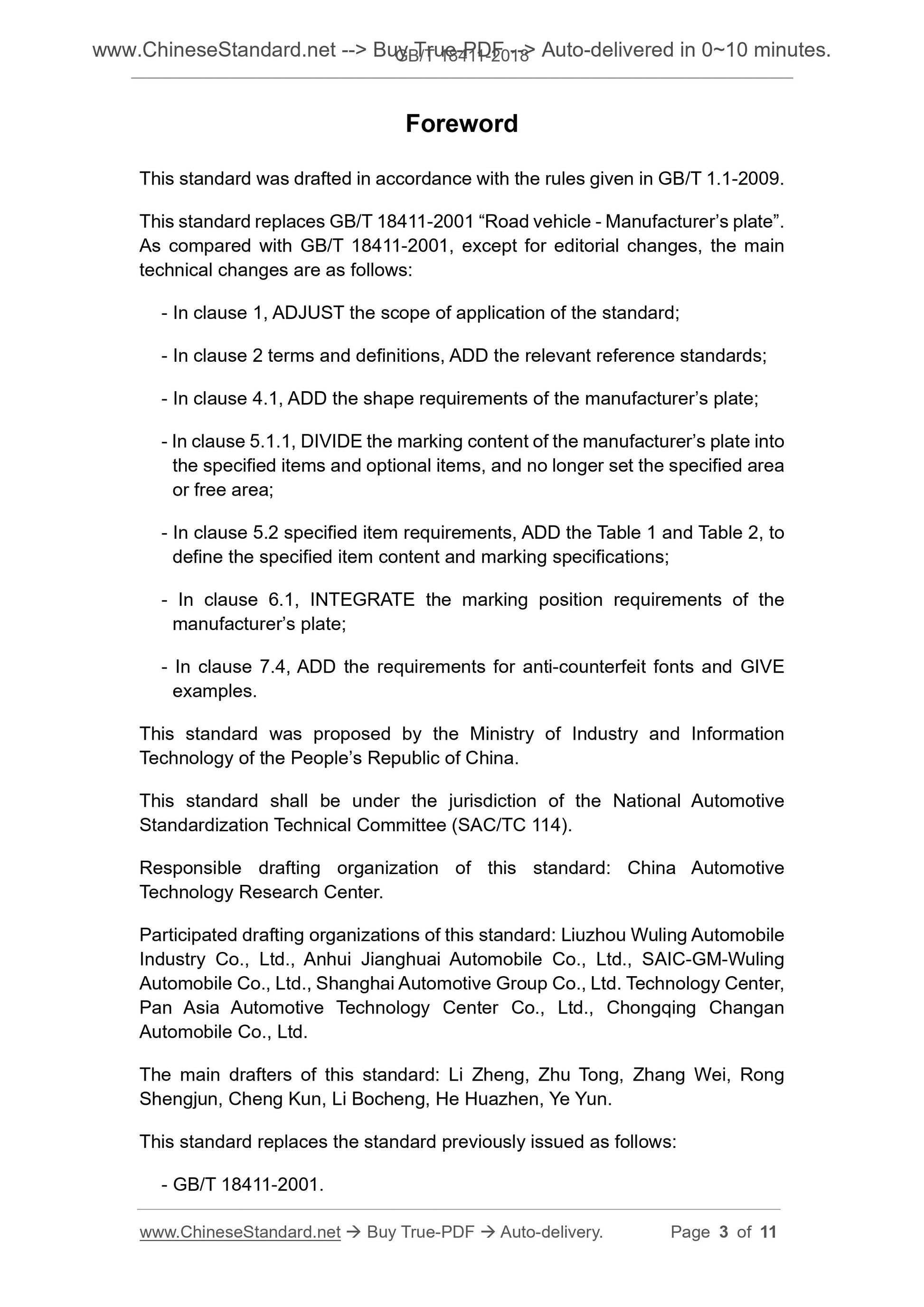

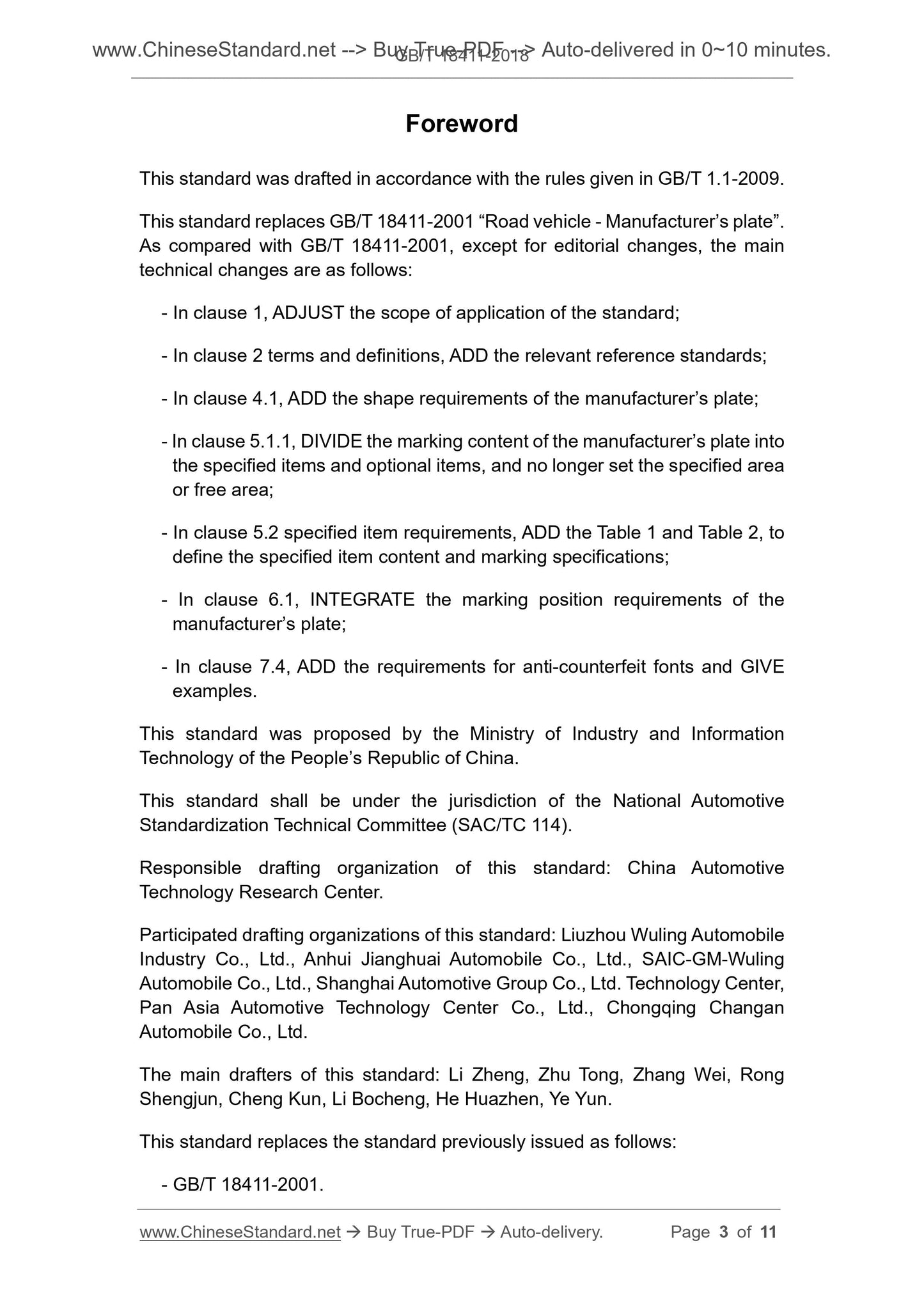

Foreword
This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 18411-2001 ?€?Road vehicle - Manufacturer?€?s plate?€?. As compared with GB/T 18411-2001, except for editorial changes, the main technical changes are as follows.
- In clause 1, ADJUST the scope of application of the standard;
- In clause 2 terms and definitions, ADD the relevant reference standards; - In clause 4.1, ADD the shape requirements of the manufacturer?€?s plate; - In clause 5.1.1, DIVIDE the marking content of the manufacturer?€?s plate into the specified items and optional items, and no longer set the specified area or free area;
- In clause 5.2 specified item requirements, ADD the Table 1 and Table 2, to define the specified item content and marking specifications;
- In clause 6.1, INTEGRATE the marking position requirements of the
manufacturer?€?s plate;
- In clause 7.4, ADD the requirements for anti-counterfeit fonts and GIVE examples.
This standard was proposed by the Ministry of Industry and Information
Technology of the PEOPLE Republic of China.
This standard shall be under the jurisdiction of the National Automotive Standardization Technical Committee (SAC/TC 114).
Responsible drafting organization of this standard. China Automotive
Technology Research Center.
Participated drafting organizations of this standard. Liuzhou Wuling Automobile Industry Co., Ltd., Anhui Jianghuai Automobile Co., Ltd., SAIC-GM-Wuling Automobile Co., Ltd., Shanghai Automotive Group Co., Ltd. Technology Center, Pan Asia Automotive Technology Center Co., Ltd., Chongqing Changan
Automobile Co., Ltd.
The main drafters of this standard. Li Zheng, Zhu Tong, Zhang Wei, Rong Shengjun, Cheng Kun, Li Bocheng, He Huazhen, Ye Yun.
This standard replaces the standard previously issued as follows.
- GB/T 18411-2001.

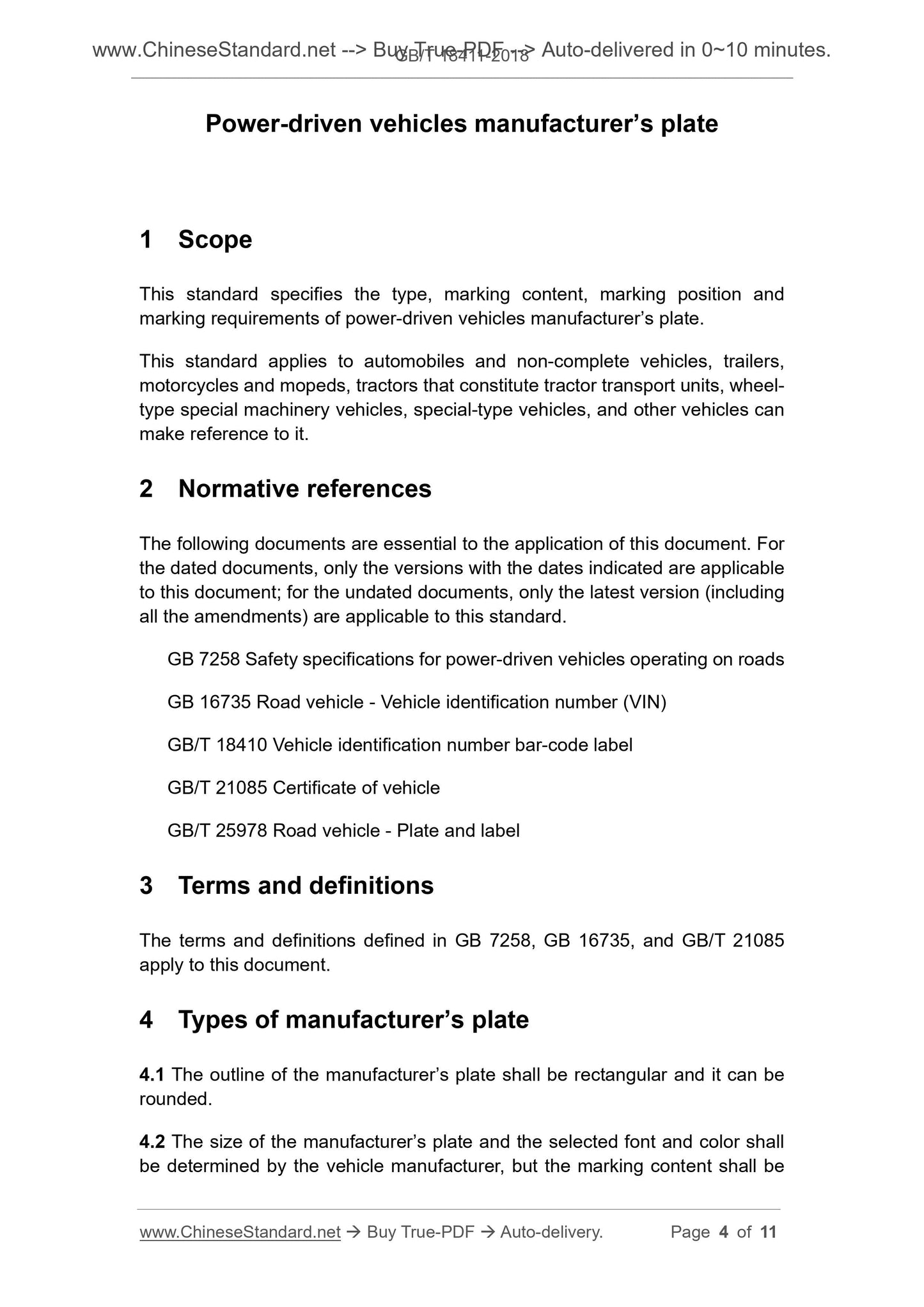

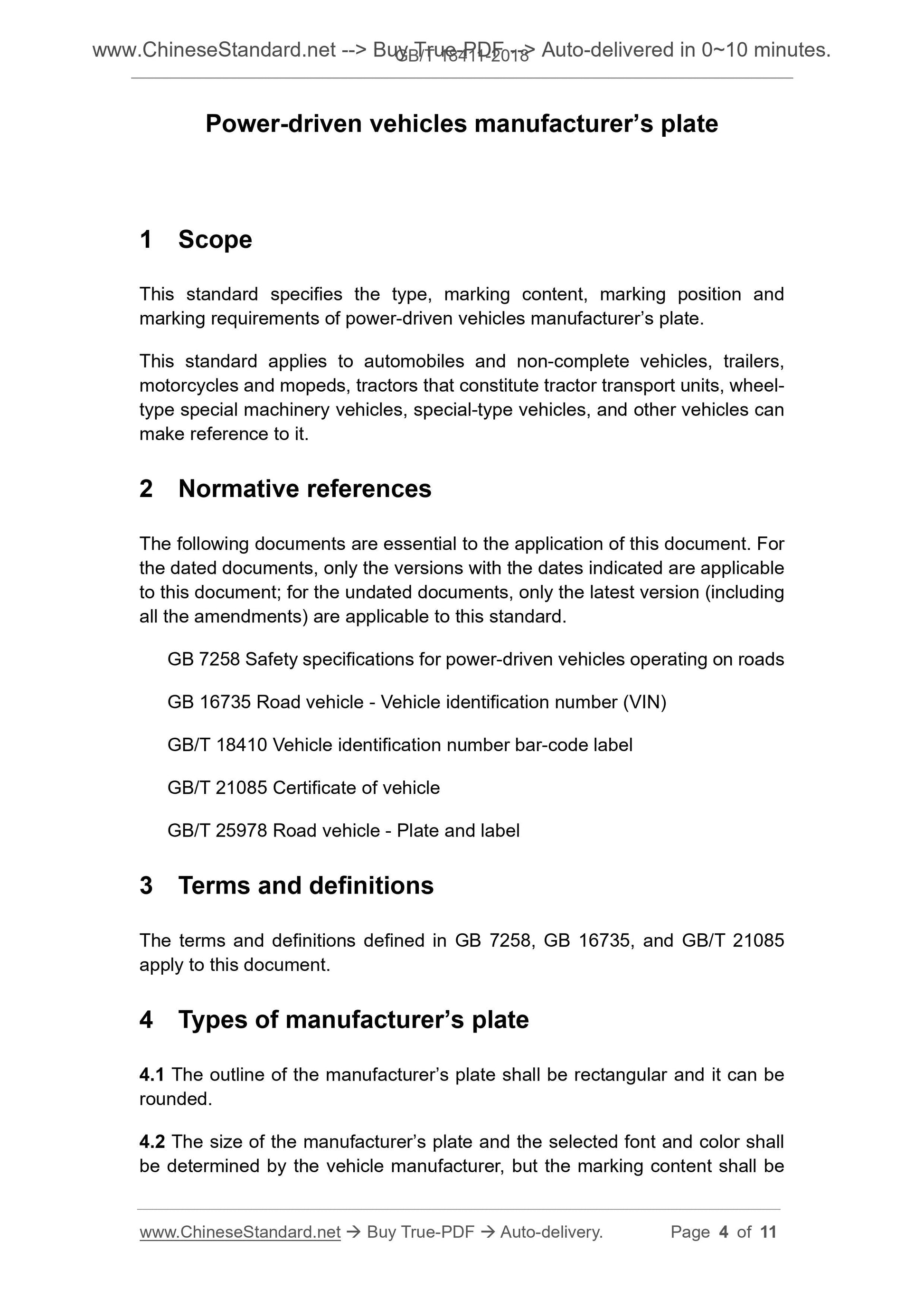

Power-driven vehicles manufacturer?€?s plate
1 Scope
This standard specifies the type, marking content, marking position and marking requirements of power-driven vehicles manufacturer?€?s plate.
This standard applies to automobiles and non-complete vehicles, trailers, motorcycles and mopeds, tractors that constitute tractor transport units, wheel- type special machinery vehicles, special-type vehicles, and other vehicles can make reference to it.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard.
GB 7258 Safety specifications for power-driven vehicles operating on roads GB 16735 Road vehicle - Vehicle identification number (VIN)
GB/T 18410 Vehicle identification number bar-code label
GB/T 21085 Certificate of vehicle
GB/T 25978 Road vehicle - Plate and label
3 Terms and definitions
The terms and definitions defined in GB 7258, GB 16735, and GB/T 21085
apply to this document.
4 Types of manufacturer?€?s plate
4.1 The outline of the manufacturer?€?s plate shall be rectangular and it can be rounded.

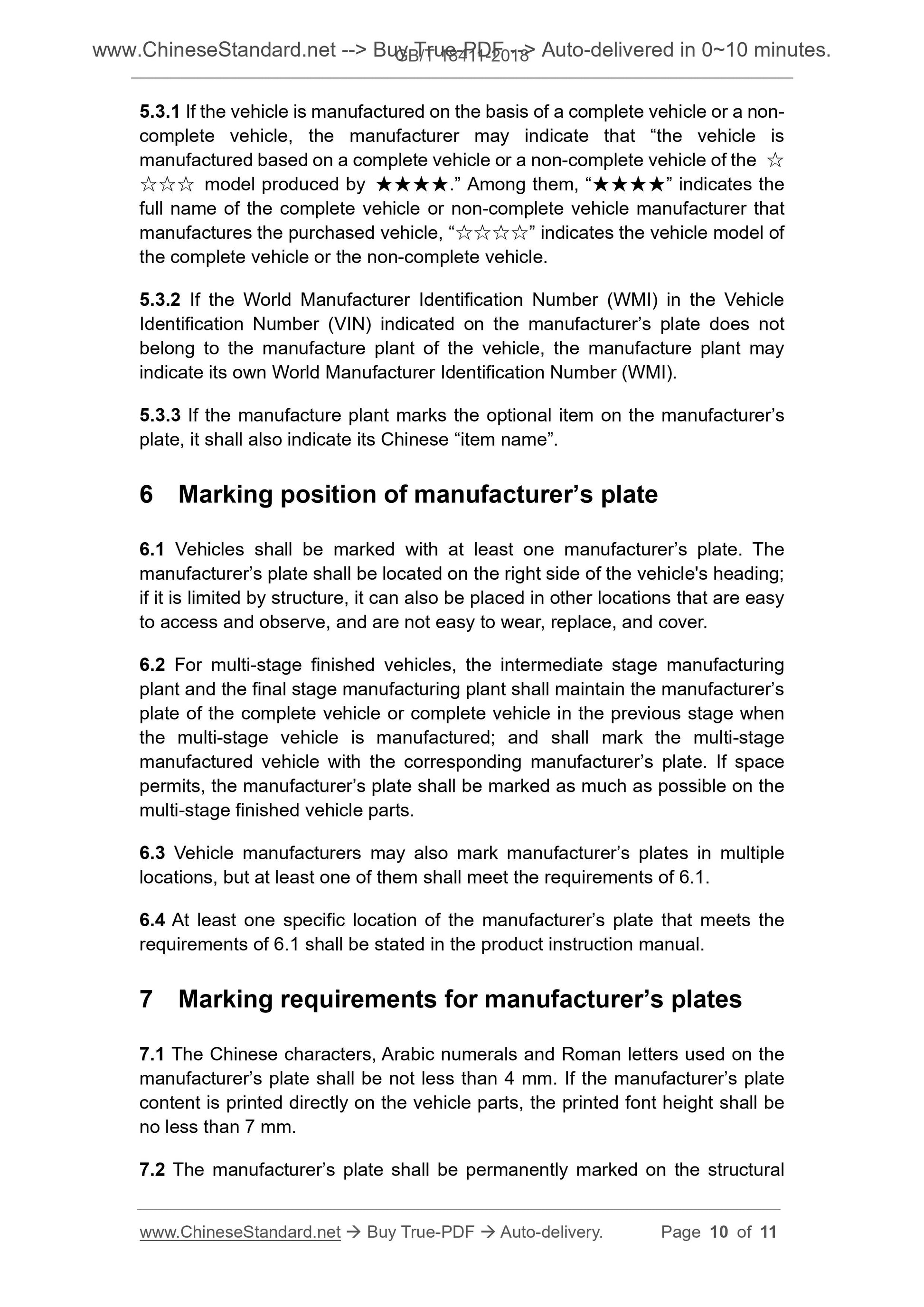

4.2 The size of the manufacturer?€?s plate and the selected font and color shall be determined by the vehicle manufacturer, but the marking content shall be 5.3.1 If the vehicle is manufactured on the basis of a complete vehicle or a non- complete vehicle, the manufacturer may indicate that ?€?the vehicle is
manufactured based on a complete vehicle or a non-complete vehicle of the ??? ????????? model produced by ????????????.?€? Among them, ?€??????????????€? indicates the
full name of the complete vehicle or non-complete vehicle manufacturer that manufactures the purchased vehicle, ?€??????????????€? indicates the vehicle model of the complete vehicle or the non-complete vehicle.
5.3.2 If the World Manufacturer Identification Number (WMI) in the Vehicle Identification Number (VIN) indicated on the manufacturer?€?s plate does not belong to the manufacture plant of the vehicle, the manufacture plant may indicate its own World Manufacturer Identification Number (WMI).
5.3.3 If the manufacture plant marks the optional item on the manufacturer?€?s plate, it shall also indicate its Chinese ?€?item name?€?.
6 Marking position of manufacturer?€?s plate
6.1 Vehicles shall be marked with at least one manufacturer?€?s plate. The manufacturer?€?s plate shall be located on the right side of the vehicle's heading; if it is limited by structure, it can also be placed in other locations that are easy to access and observe, and are not easy to wear, replace, and cover.
6.2 For multi-stage finished vehicles, the intermediate stage manufacturing plant and the final stage manufacturing plant shall maintain the manufacturer?€?s plate of the complete vehicle or complete vehicle in the previous stage when the multi-stage vehicle is manufactured; and shall mark the multi-stage manufactured vehicle with the corresponding manufacturer?€?s plate. If space permits, the manufacturer?€?s plate shall be marked as much as possible on the multi-stage finished vehicle parts.
6.3 Vehicle manufacturers may also mark manufacturer?€?s plates in multiple locations, but at least one of them shall meet the requirements of 6.1. 6.4 At least one specific location of the manufacturer?€?s plate that meets the requirements of 6.1 shall be stated in the product instruction manual.
7 Marking requirements for manufacturer?€?s plates
7.1 The Chinese characters, Arabic numerals and Roman letters used on the manufacturer?€?s plate shall be not less than 4 mm. If the manufacturer?€?s plate content is printed directly on the vehicle parts, the printed font height shall be no less than 7 mm.
7.2 The manufacturer?€?s plate shall be permanently marked on the structural
