GB/T 18165-2008: Specifications of amusement rides fairy train category

This Standard specifies the general specifications and technical requirements for amusement rides fairy train category. This Standard is applicable to the design, manufacture, installation, modification, maintenance, test, inspection, usage and management of the amusement rides fairy train category.

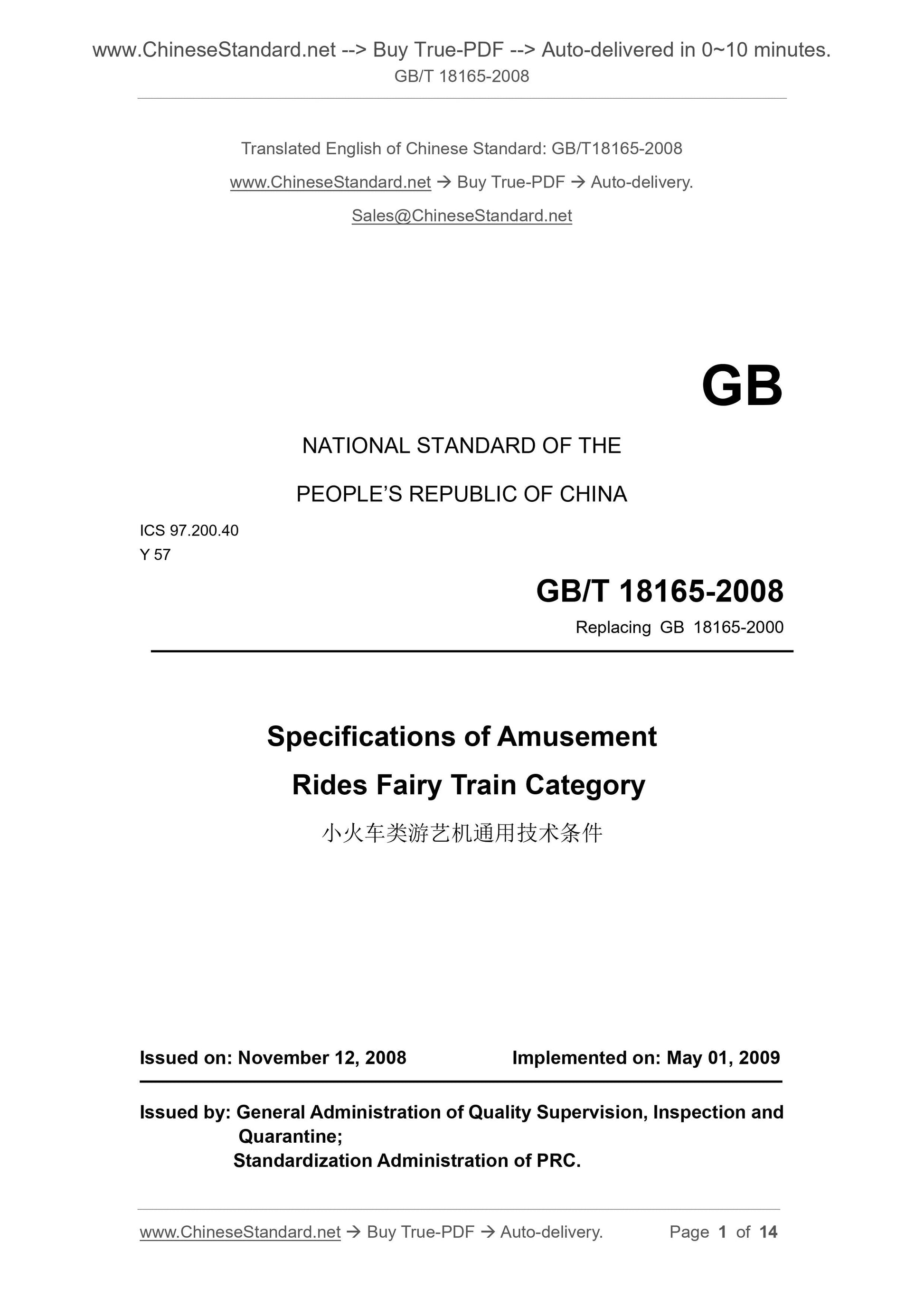

GB/T 18165-2008
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 97.200.40
Y 57
Replacing GB 18165-2000
Specifications of Amusement
Rides Fairy Train Category
ISSUED ON. NOVEMBER 12, 2008
IMPLEMENTED ON. MAY 01, 2009
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

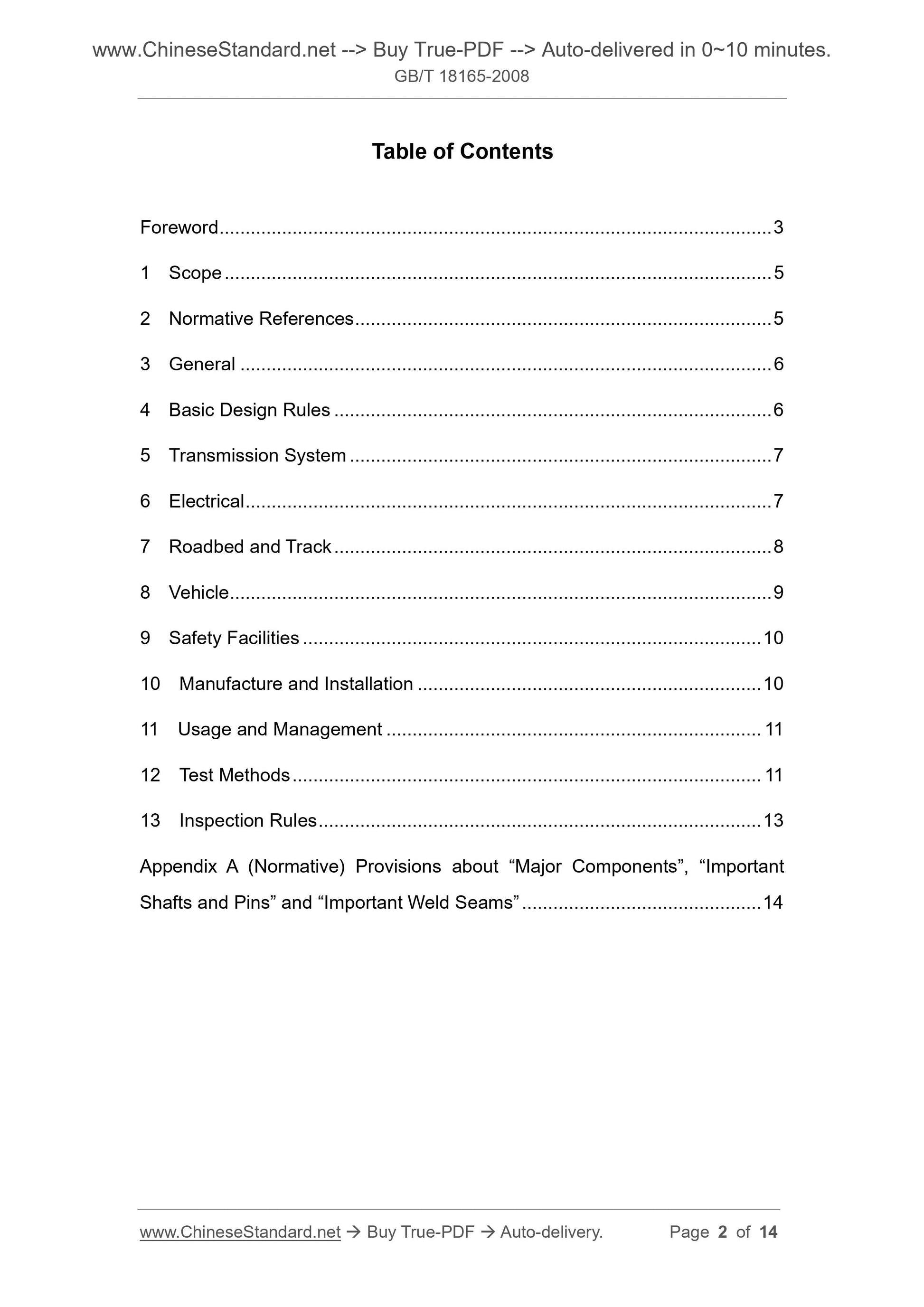

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 General ... 6
4 Basic Design Rules ... 6
5 Transmission System ... 7
6 Electrical ... 7
7 Roadbed and Track ... 8
8 Vehicle ... 9
9 Safety Facilities ... 10
10 Manufacture and Installation ... 10
11 Usage and Management ... 11
12 Test Methods ... 11
13 Inspection Rules ... 13
Appendix A (Normative) Provisions about ?€?Major Components?€?, ?€?Important
Shafts and Pins?€? and ?€?Important Weld Seams?€? ... 14

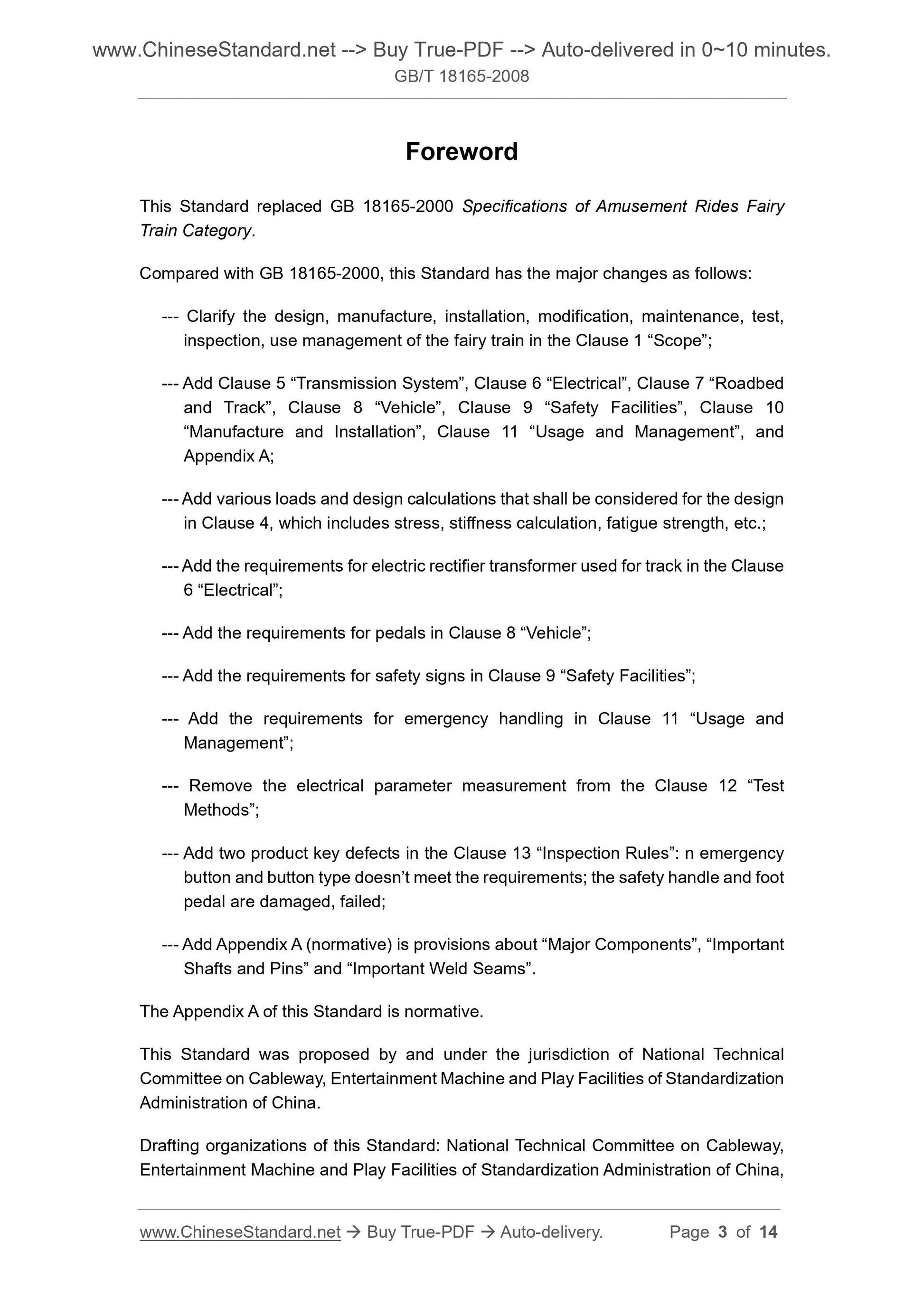

Foreword
This Standard replaced GB 18165-2000 Specifications of Amusement Rides Fairy Train Category.
Compared with GB 18165-2000, this Standard has the major changes as follows. --- Clarify the design, manufacture, installation, modification, maintenance, test, inspection, use management of the fairy train in the Clause 1 ?€?Scope?€?;
--- Add Clause 5 ?€?Transmission System?€?, Clause 6 ?€?Electrical?€?, Clause 7 ?€?Roadbed and Track?€?, Clause 8 ?€?Vehicle?€?, Clause 9 ?€?Safety Facilities?€?, Clause 10 ?€?Manufacture and Installation?€?, Clause 11 ?€?Usage and Management?€?, and
Appendix A;
--- Add various loads and design calculations that shall be considered for the design in Clause 4, which includes stress, stiffness calculation, fatigue strength, etc.; --- Add the requirements for electric rectifier transformer used for track in the Clause 6 ?€?Electrical?€?;
--- Add the requirements for pedals in Clause 8 ?€?Vehicle?€?;
--- Add the requirements for safety signs in Clause 9 ?€?Safety Facilities?€?; --- Add the requirements for emergency handling in Clause 11 ?€?Usage and Management?€?;
--- Remove the electrical parameter measurement from the Clause 12 ?€?Test Methods?€?;
--- Add two product key defects in the Clause 13 ?€?Inspection Rules?€?. n emergency button and button type doesn?€?t meet the requirements; the safety handle and foot pedal are damaged, failed;
--- Add Appendix A (normative) is provisions about ?€?Major Components?€?, ?€?Important Shafts and Pins?€? and ?€?Important Weld Seams?€?.
The Appendix A of this Standard is normative.
This Standard was proposed by and under the jurisdiction of National Technical Committee on Cableway, Entertainment Machine and Play Facilities of Standardization Administration of China.
Drafting organizations of this Standard. National Technical Committee on Cableway, Entertainment Machine and Play Facilities of Standardization Administration of China, Specifications of Amusement
Rides Fairy Train Category

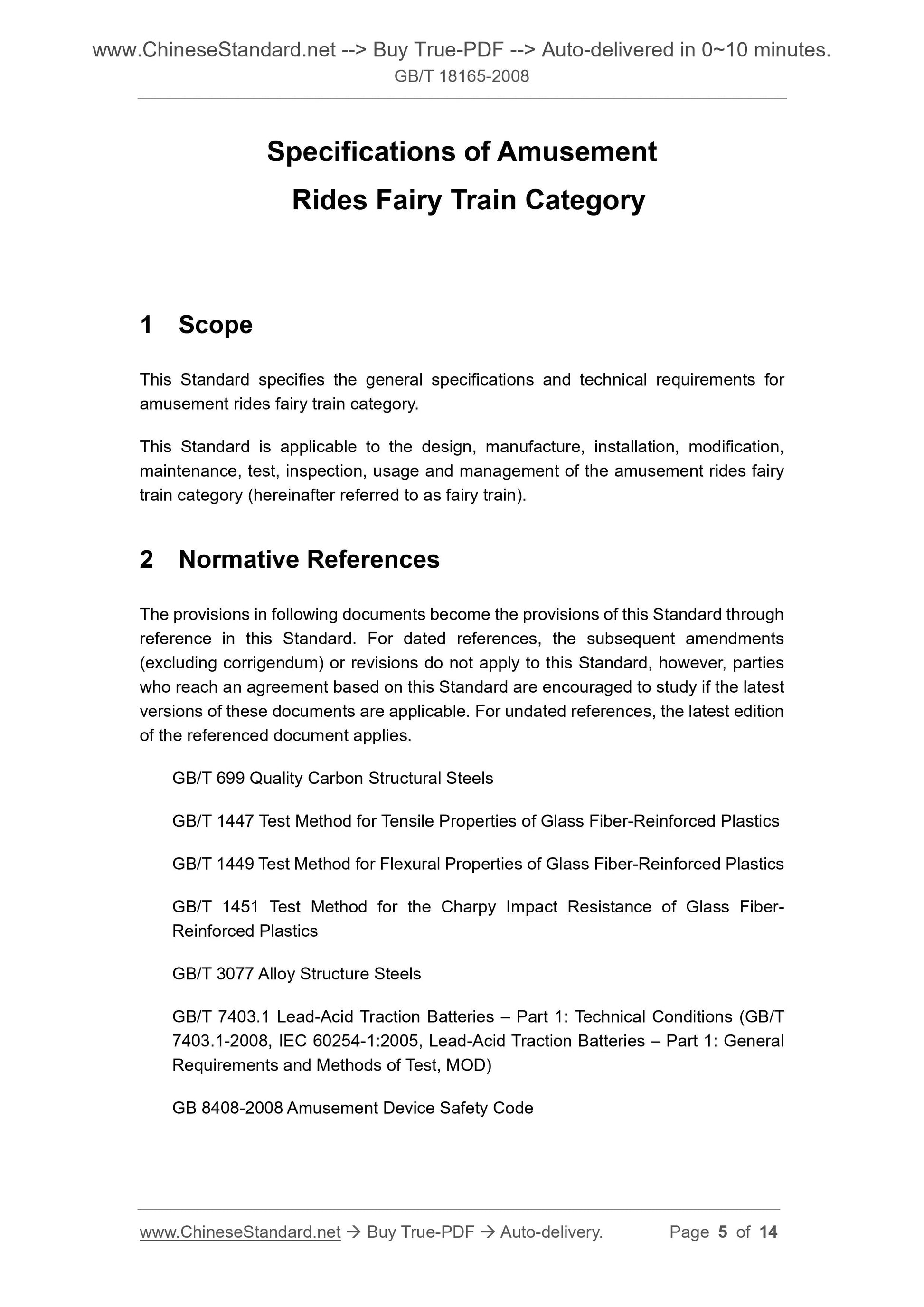

1 Scope
This Standard specifies the general specifications and technical requirements for amusement rides fairy train category.
This Standard is applicable to the design, manufacture, installation, modification, maintenance, test, inspection, usage and management of the amusement rides fairy train category (hereinafter referred to as fairy train).
2 Normative References
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB/T 699 Quality Carbon Structural Steels
GB/T 1447 Test Method for Tensile Properties of Glass Fiber-Reinforced Plastics GB/T 1449 Test Method for Flexural Properties of Glass Fiber-Reinforced Plastics GB/T 1451 Test Method for the Charpy Impact Resistance of Glass Fiber-
Reinforced Plastics
GB/T 3077 Alloy Structure Steels
GB/T 7403.1 Lead-Acid Traction Batteries ?€? Part 1. Technical Conditions (GB/T 7403.1-2008, IEC 60254-1.2005, Lead-Acid Traction Batteries ?€? Part 1. General Requirements and Methods of Test, MOD)
GB 8408-2008 Amusement Device Safety Code

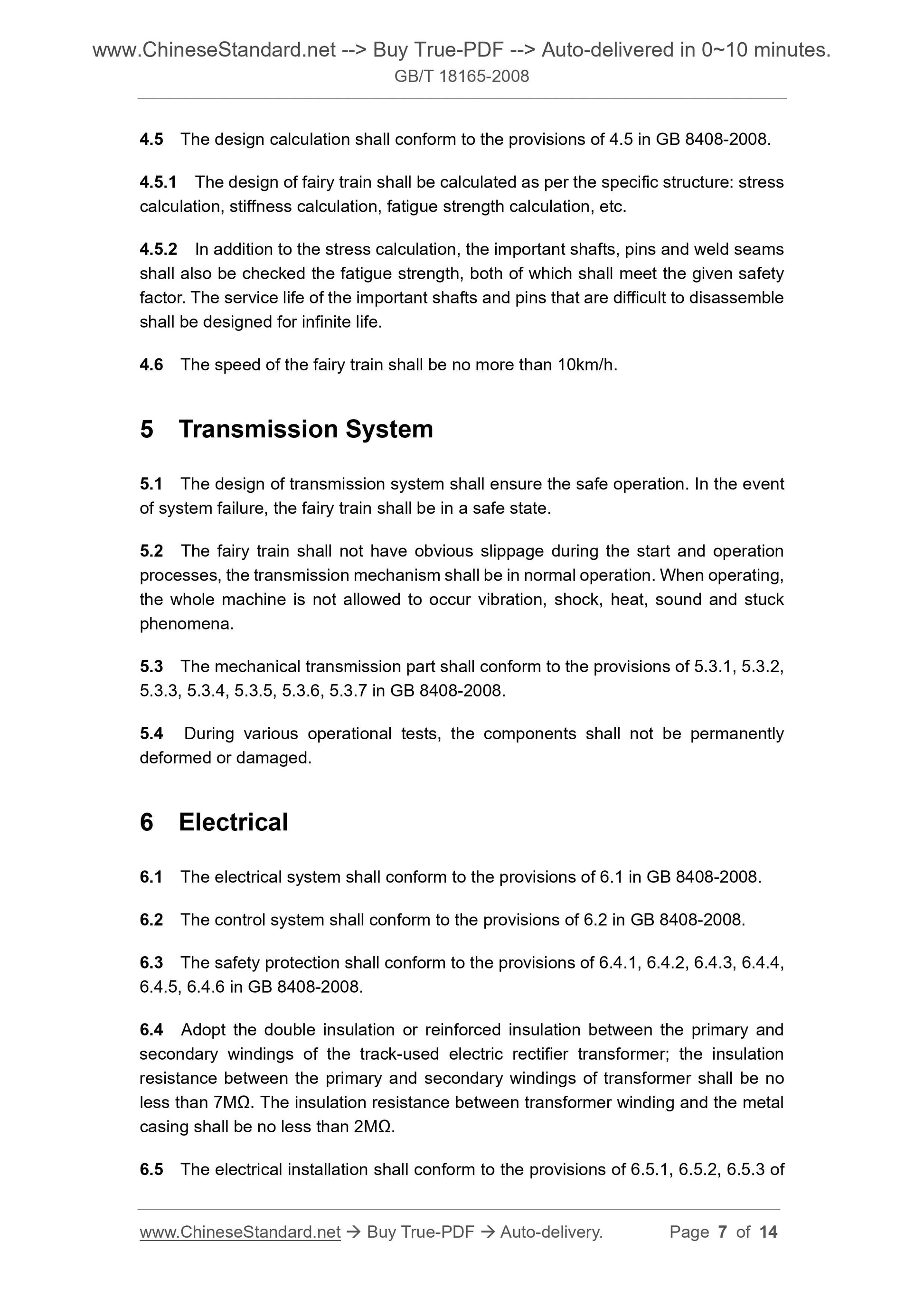

4.5 The design calculation shall conform to the provisions of 4.5 in GB 8408-2008. 4.5.1 The design of fairy train shall be calculated as per the specific structure. stress calculation, stiffness calculation, fatigue strength calculation, etc.
4.5.2 In addition to the stress calculation, the important shafts, pins and weld seams shall also be checked the fatigue strength, both of which shall meet the given safety factor. The service life of the important shafts and pins that are difficult to disassemble shall be designed for infinite life.
4.6 The speed of the fairy train shall be no more than 10km/h.
5 Transmission System
5.1 The design of transmission system shall ensure the safe operation. In the event of system failure, the fairy train shall be in a safe state.
5.2 The fairy train shall not have obvious slippage during the start and operation processes, the transmission mechanism shall be in normal operation. When operating, the whole machine is not allowed to occur vibration, shock, heat, sound and stuck phenomena.
5.3 The mechanical transmission part shall conform to the provisions of 5.3.1, 5.3.2, 5.3.3, 5.3.4, 5.3.5, 5.3.6, 5.3.7 in GB 8408-2008.
5.4 During various operational tests, the components shall not be permanently deformed or damaged.
6 Electrical
6.1 The electrical system shall conform to the provisions of 6.1 in GB 8408-2008. 6.2 The control system shall conform to the provisions of 6.2 in GB 8408-2008. 6.3 The safety protection shall conform to the provisions of 6.4.1, 6.4.2, 6.4.3, 6.4.4, 6.4.5, 6.4.6 in GB 8408-2008.
6.4 Adopt the double insulation or reinforced insulation between the primary and secondary windings of the track-used electric rectifier transformer; the insulation resistance between the primary and secondary windings of transformer shall be no less than 7M???. The insulation resistance between transformer winding and the metal casing shall be no less than 2M???.

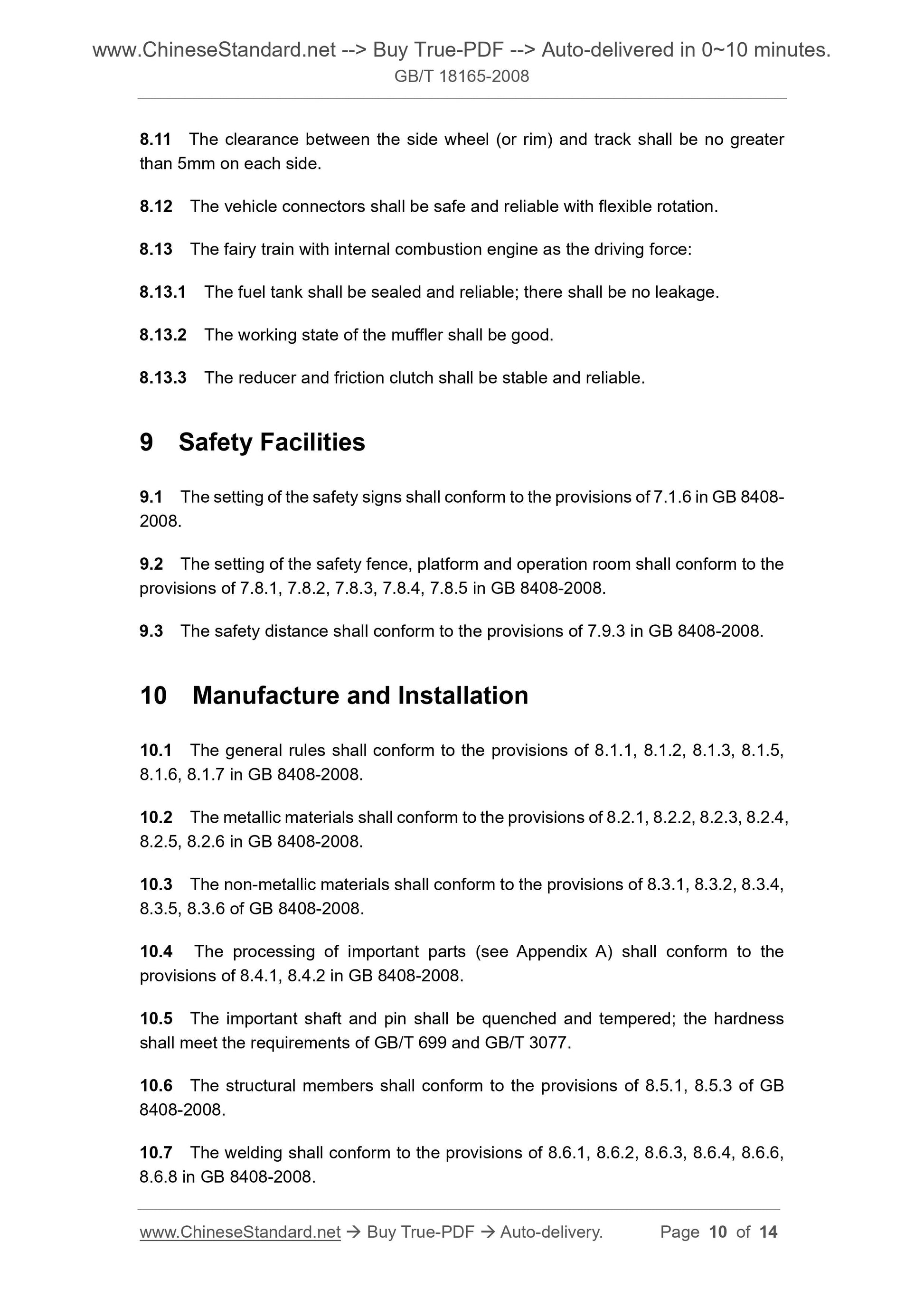

6.5 The electrical installation shall conform to the provisions of 6.5.1, 6.5.2, 6.5.3 of 8.11 The clearance between the side wheel (or rim) and track shall be no greater than 5mm on each side.
8.12 The vehicle connectors shall be safe and reliable with flexible rotation. 8.13 The fairy train with internal combustion engine as the driving force. 8.13.1 The fuel tank shall be sealed and reliable; there shall be no leakage. 8.13.2 The working state of the muffler shall be good.
8.13.3 The reducer and friction clutch shall be stable and reliable.
9 Safety Facilities
9.1 The setting of the safety signs shall conform to the provisions of 7.1.6 in GB 8408- 2008.
9.2 The setting of the safety fence, platform and operation room shall conform to the provisions of 7.8.1, 7.8.2, 7.8.3, 7.8.4, 7.8.5 in GB 8408-2008.
9.3 The safety distance shall conform to the provisions of 7.9.3 in GB 8408-2008. 10 Manufacture and Installation
10.1 The general rules shall conform to the provisions of 8.1.1, 8.1.2, 8.1.3, 8.1.5, 8.1.6, 8.1.7 in GB 8408-2008.
10.2 The metallic materials shall conform to the provisions of 8.2.1, 8.2.2, 8.2.3, 8.2.4, 8.2.5, 8.2.6 in GB 8408-2008.
10.3 The non-metallic materials shall conform to the provisions of 8.3.1, 8.3.2, 8.3.4, 8.3.5, 8.3.6 of GB 8408-2008.
10.4 The processing of important parts (see Appendix A) shall conform to the provisions of 8.4.1, 8.4.2 in GB 8408-2008.
10.5 The important shaft and pin shall be quenched and tempered; the hardness shall meet the requirements of GB/T 699 and GB/T 3077.
10.6 The structural members shall conform to the provisions of 8.5.1, 8.5.3 of GB 8408-2008.
10.7 The welding shall conform to the provisions of 8.6.1, 8.6.2, 8.6.3, 8.6.4, 8.6.6, 8.6.8 in GB 8408-2008.
