GB/T 17819-2017 English PDF (GBT17819-2017)

GB/T 17819-2017 English PDF (GBT17819-2017)

Regular price $145.00 USD
Regular price Sale price $145.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 17819-2017 to get it for Purchase Approval, Bank TT...

GB/T 17819-2017: Determination of vitamin B12 in additive premix -- High performance liquid chromatography

This Standard specifies the method of high performance liquid chromatography in the determination of vitamin B12 in additive premix. This Standard is applicable to the determination of vitamin B12 in compound premix feed and vitamin premix feed. The detection limit of the method in this Standard is 0.1 mg/kg; the quantitative limit is 0.5 mg/kg.

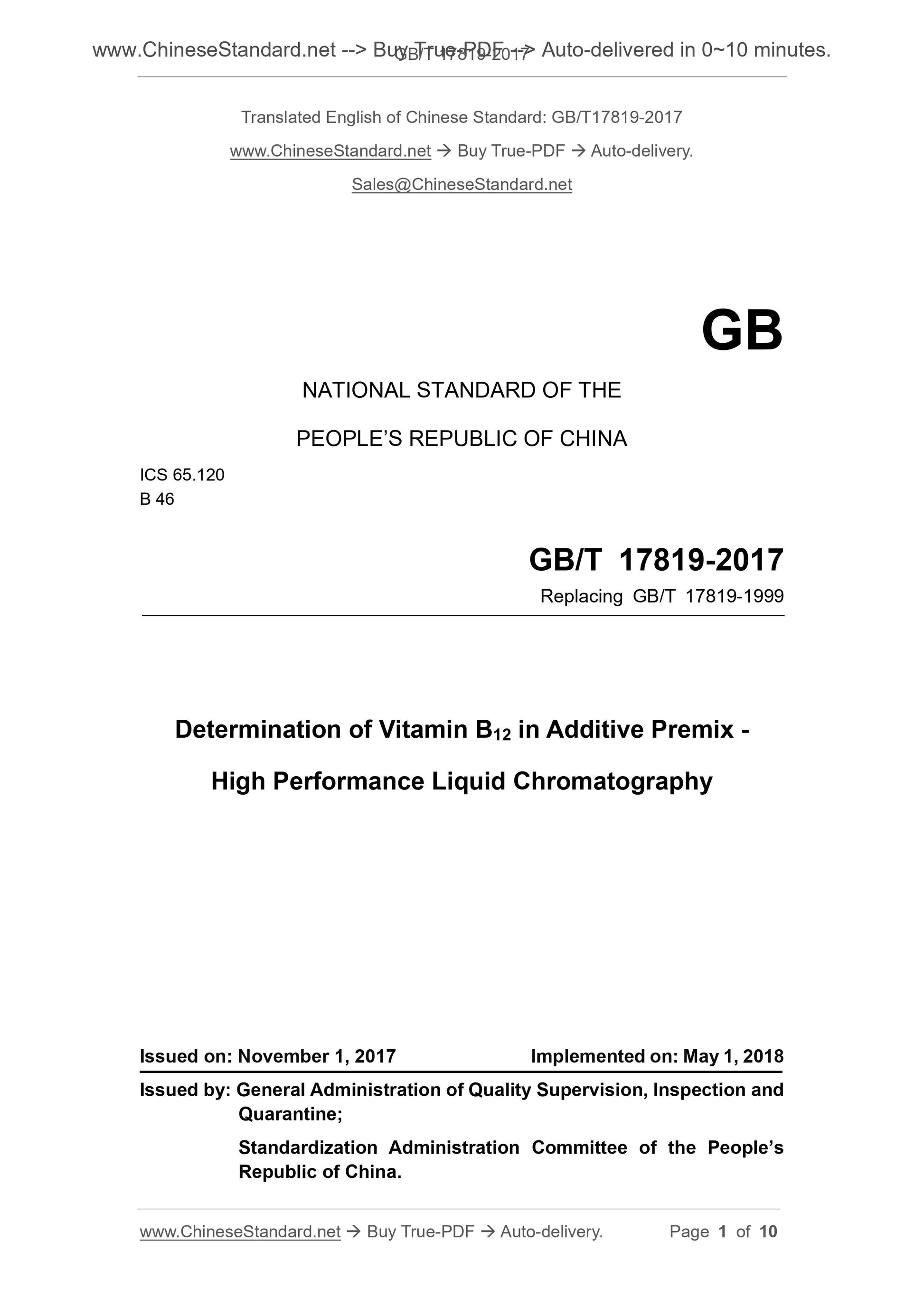

GB/T 17819-2017
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 65.120
B 46
Replacing GB/T 17819-1999
Determination of Vitamin B12 in Additive Premix -
High Performance Liquid Chromatography
ISSUED ON. NOVEMBER 1, 2017
IMPLEMENTED ON. MAY 1, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee of the PEOPLE
Republic of China.

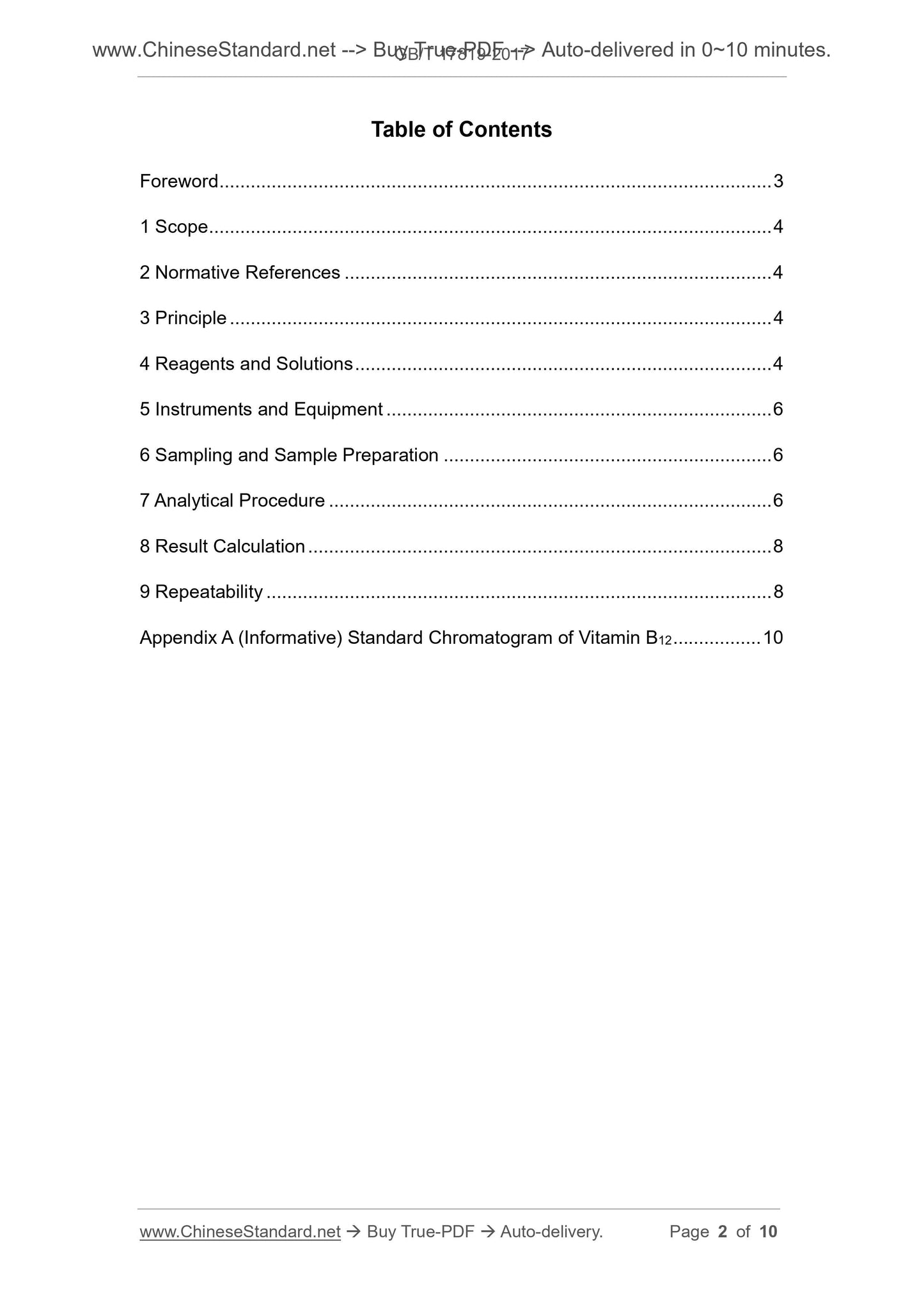

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Principle ... 4
4 Reagents and Solutions ... 4
5 Instruments and Equipment ... 6
6 Sampling and Sample Preparation ... 6
7 Analytical Procedure ... 6
8 Result Calculation ... 8
9 Repeatability ... 8
Appendix A (Informative) Standard Chromatogram of Vitamin B12 ... 10

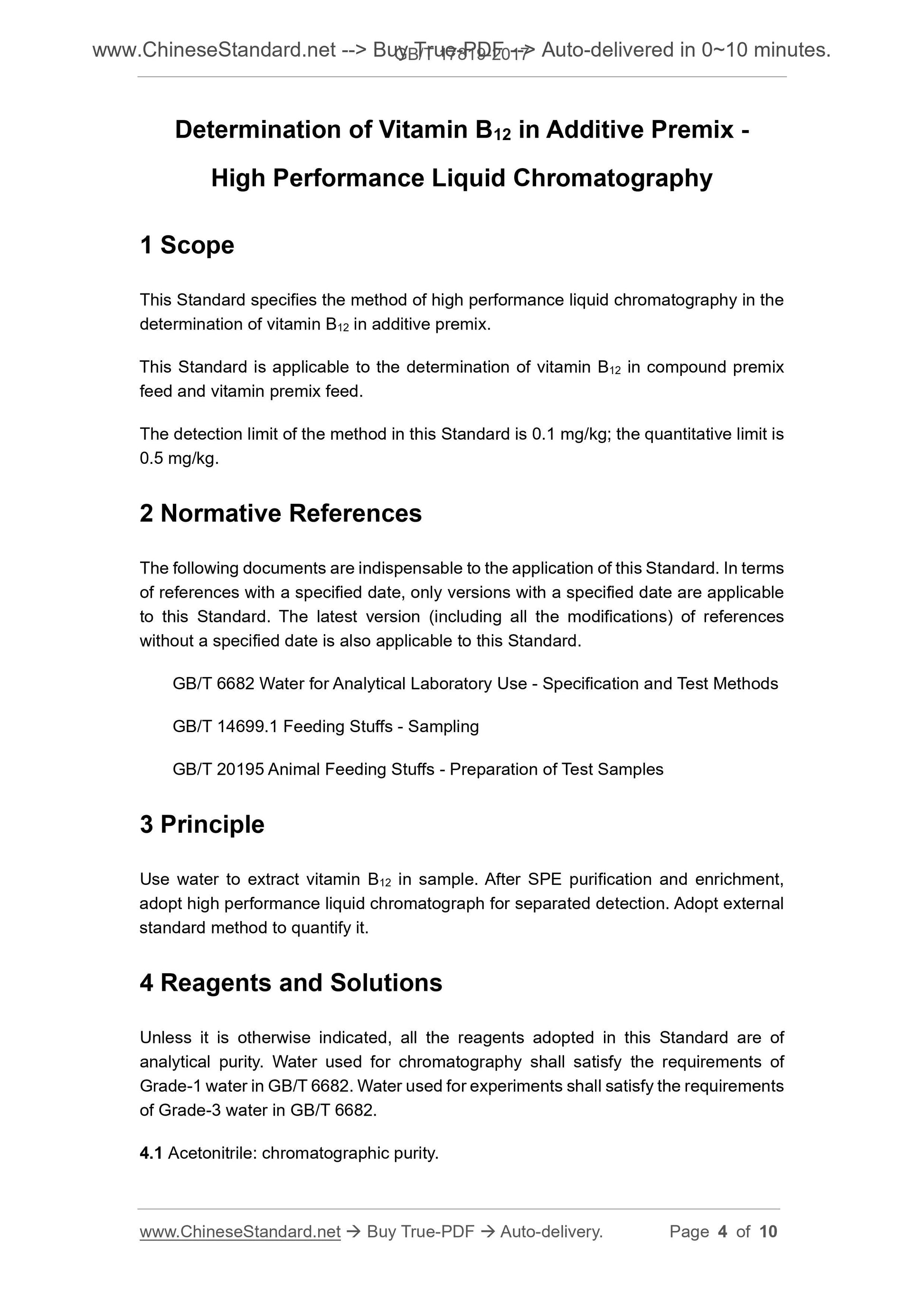

Determination of Vitamin B12 in Additive Premix -
High Performance Liquid Chromatography
1 Scope
This Standard specifies the method of high performance liquid chromatography in the determination of vitamin B12 in additive premix.
This Standard is applicable to the determination of vitamin B12 in compound premix feed and vitamin premix feed.
The detection limit of the method in this Standard is 0.1 mg/kg; the quantitative limit is 0.5 mg/kg.
2 Normative References
The following documents are indispensable to the application of this Standard. In terms of references with a specified date, only versions with a specified date are applicable to this Standard. The latest version (including all the modifications) of references without a specified date is also applicable to this Standard.
GB/T 6682 Water for Analytical Laboratory Use - Specification and Test Methods GB/T 14699.1 Feeding Stuffs - Sampling
GB/T 20195 Animal Feeding Stuffs - Preparation of Test Samples
3 Principle
Use water to extract vitamin B12 in sample. After SPE purification and enrichment, adopt high performance liquid chromatograph for separated detection. Adopt external standard method to quantify it.
4 Reagents and Solutions
Unless it is otherwise indicated, all the reagents adopted in this Standard are of analytical purity. Water used for chromatography shall satisfy the requirements of Grade-1 water in GB/T 6682. Water used for experiments shall satisfy the requirements of Grade-3 water in GB/T 6682.
4.1 Acetonitrile. chromatographic purity.

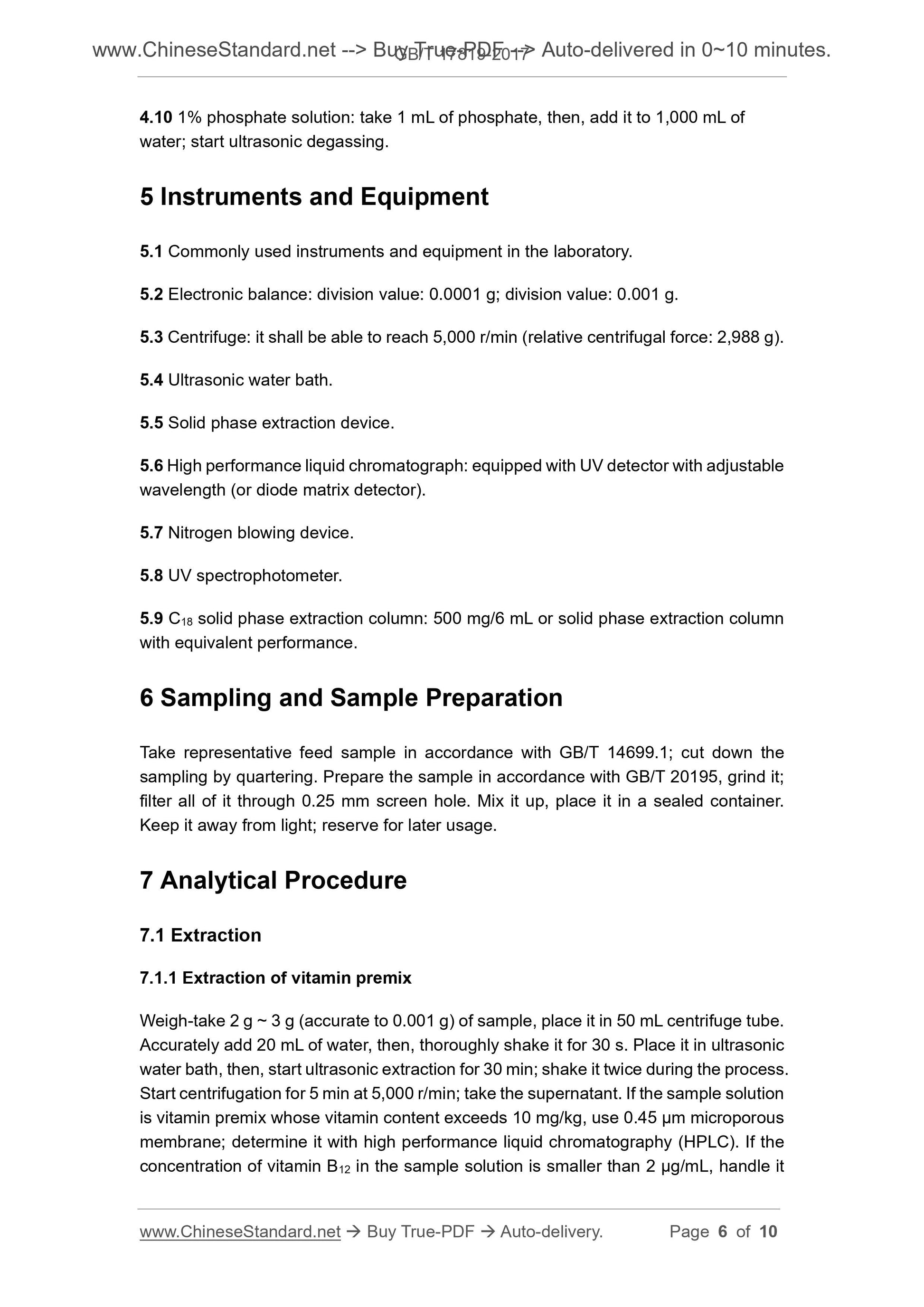

4.10 1% phosphate solution. take 1 mL of phosphate, then, add it to 1,000 mL of water; start ultrasonic degassing.
5 Instruments and Equipment
5.1 Commonly used instruments and equipment in the laboratory.
5.2 Electronic balance. division value. 0.0001 g; division value. 0.001 g. 5.3 Centrifuge. it shall be able to reach 5,000 r/min (relative centrifugal force. 2,988 g). 5.4 Ultrasonic water bath.
5.5 Solid phase extraction device.
5.6 High performance liquid chromatograph. equipped with UV detector with adjustable wavelength (or diode matrix detector).
5.7 Nitrogen blowing device.
5.8 UV spectrophotometer.
5.9 C18 solid phase extraction column. 500 mg/6 mL or solid phase extraction column with equivalent performance.
6 Sampling and Sample Preparation
Take representative feed sample in accordance with GB/T 14699.1; cut down the sampling by quartering. Prepare the sample in accordance with GB/T 20195, grind it; filter all of it through 0.25 mm screen hole. Mix it up, place it in a sealed container. Keep it away from light; reserve for later usage.
7 Analytical Procedure
7.1 Extraction
7.1.1 Extraction of vitamin premix
Weigh-take 2 g ~ 3 g (accurate to 0.001 g) of sample, place it in 50 mL centrifuge tube. Accurately add 20 mL of water, then, thoroughly shake it for 30 s. Place it in ultrasonic water bath, then, start ultrasonic extraction for 30 min; shake it twice during the process. Start centrifugation for 5 min at 5,000 r/min; take the supernatant. If the sample solution is vitamin premix whose vitamin content exceeds 10 mg/kg, use 0.45 ??m microporous membrane; determine it with high performance liquid chromatography (HPLC). If the concentration of vitamin B12 in the sample solution is smaller than 2 ??g/mL, handle it Mobile phase. methanol + sodium hexane sulfonate solution (25 + 75);
Flow rate. 1.0 mL/min;
Temperature. room temperature;
Detection wavelength. 546 nm.
7.3.2 Quantitative determination
Adjust the instrument operating parameters in accordance with the instruction manual of high performance liquid chromatograph. Inject corresponding vitamin B12 standard working fluid (4.8) and sample solution into the chromatographic column, then, obtain the response value of the chromatographic peak area. Adopt external standard method to conduct quantitative determination. Please refer to Appendix A for the standard chromatogram of vitamin B12.
8 Result Calculation
Vitamin B12 content in the sample shall be calculated by the mass fraction X. The numerical value shall be expressed in mg/kg and calculated in accordance with Formula (2).
Where,
P1---peak area value of sample solution;
V---diluted volume, expressed in mL;
C---concentration of vitamin B12 standard working fluid, expressed in ??g/mL; P2---peak area value of vitamin B12 standard working fluid;
m---sample mass, expressed in g.
The determination result shall be expressed in the arithmetic mean value obtained through parallel determination. The result shall retain 3 significant figures. 9 Repeatability
In terms of additive premix feed whose vitamin B12 content is smaller than or equals to 50 mg/kg, the difference between two independent determination results obtained under repeatability conditions and the arithmetic mean value shall be not more than 15% of the arithmetic mean value of the two determined values.
