GB/T 17758-2010: Unitary air conditioners

This standard specifies the terms and definitions, types and basic parameters, requirements, tests, inspection rules, marking, packaging, transportation and storage of unitary air conditioners.
GB/T 17758-2010
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 27.200
J 73
Replacing GB/T 17758-1999
Unitary air conditioners
ISSUED ON. SEPTEMBER 26, 2010
IMPLEMENTED ON. FEBRUARY 01, 2011
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of China.
Table of contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Type, model and basic parameters ... 11

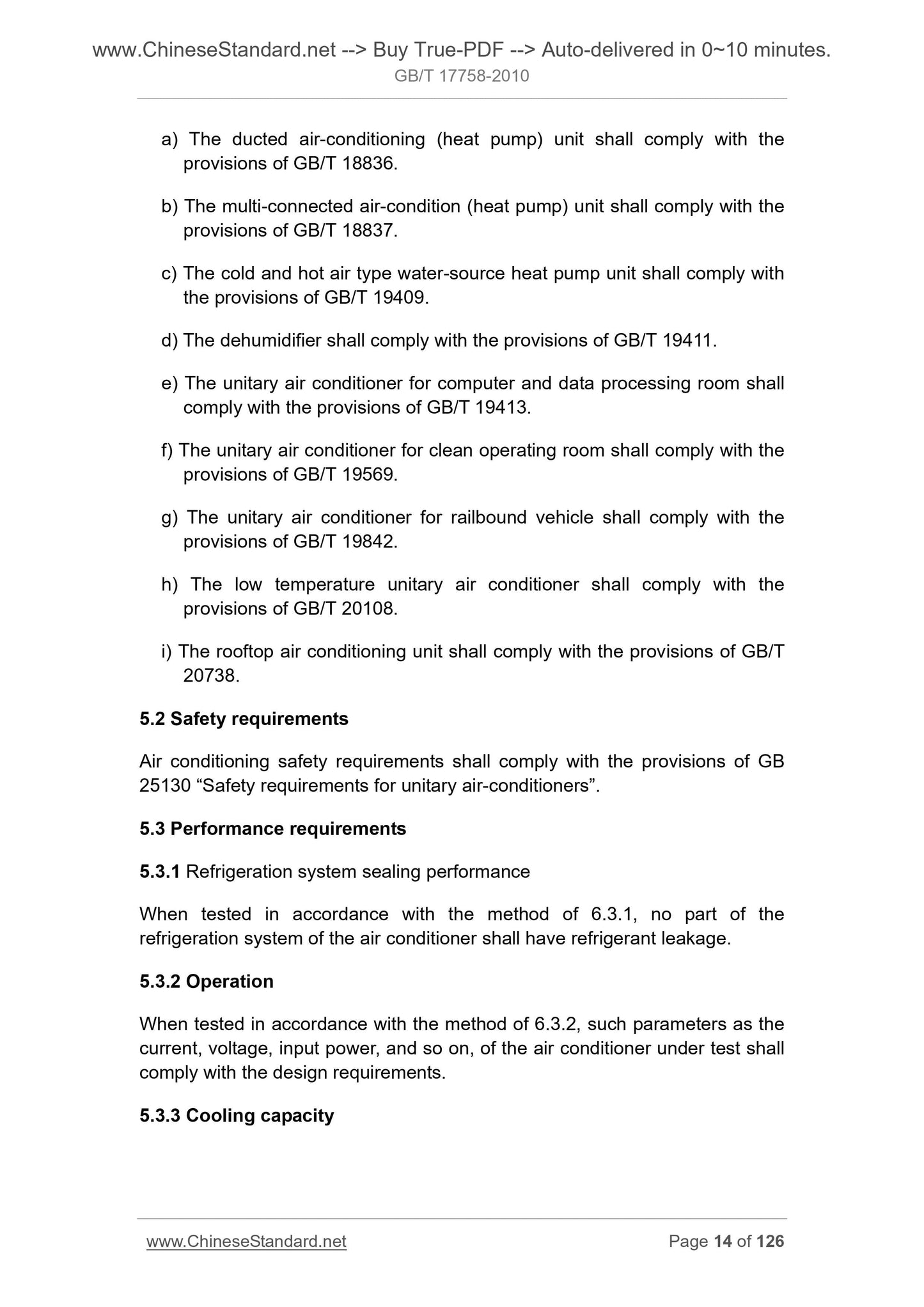

5 Requirements ... 13
6 Test ... 19

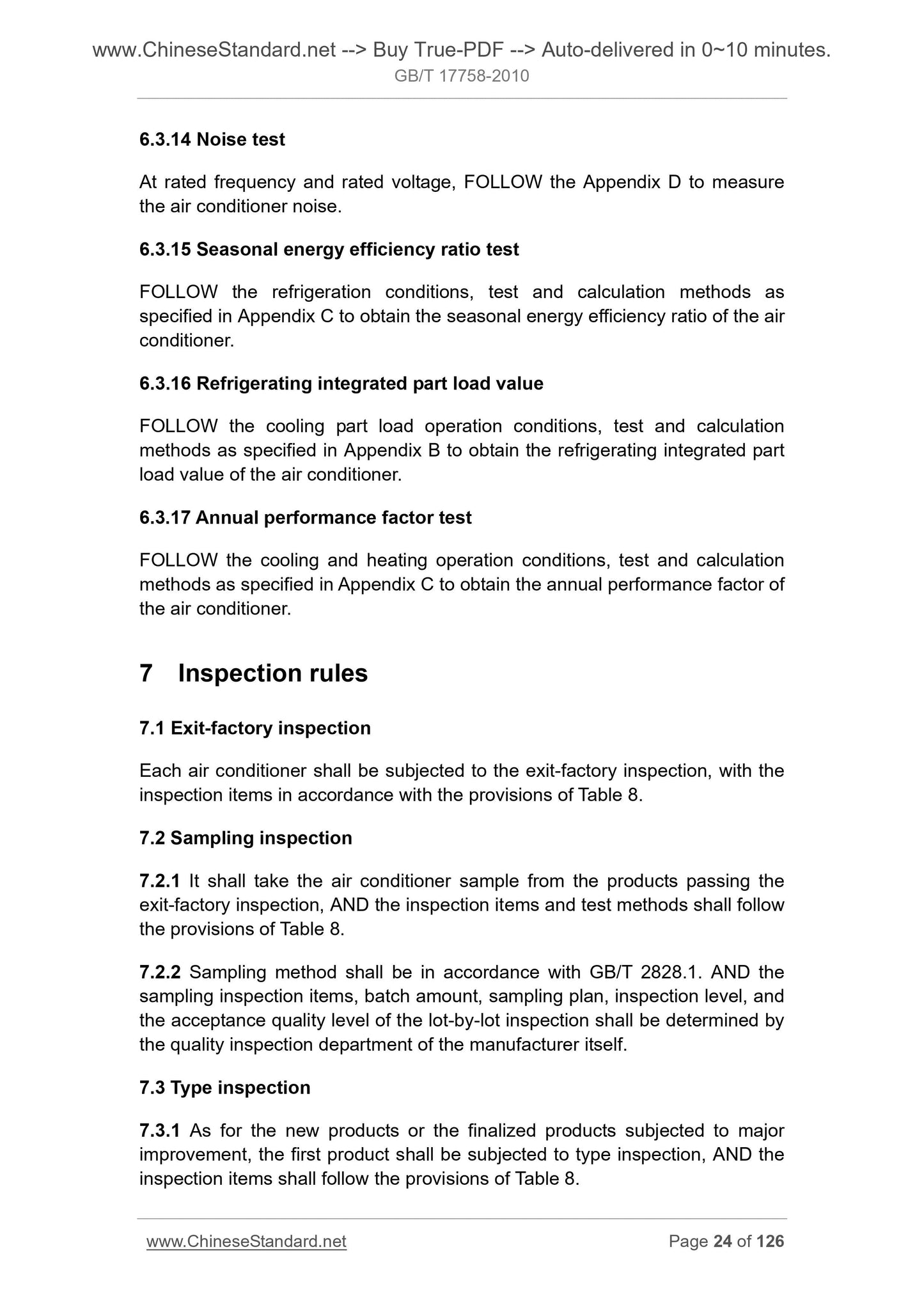

7 Inspection rules ... 24

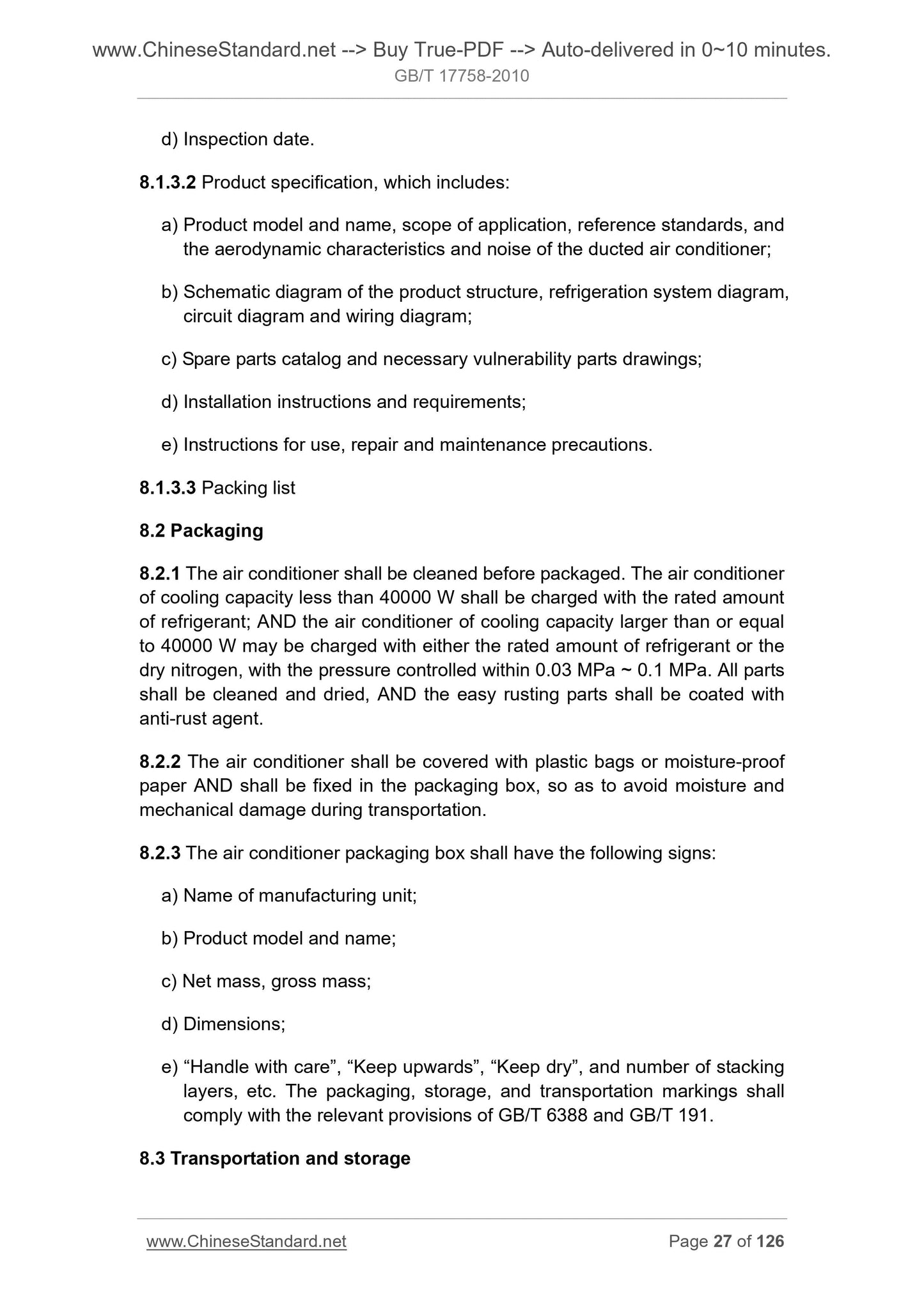

8 Marking, packaging, transportation and storage ... 26
Appendix A (Normative) Test method for unitary air conditioner cooling
(heating) capacity ... 29
Appendix B (Normative) Test and calculation of refrigerating integrated part load value of unitary air conditioner ... 62
Appendix C (Normative) Test and calculation of seasonal energy consumption of unitary air conditioner ... 69
Appendix D (Normative) Unitary air conditioner noise test method ... 37 Foreword
This standard is the revision of GB/T 17758-1999 ?€?Unitary air conditioner?€?. As compared with GB/T 17758-1999, the main changes of this standard are as follows.
- ADD the definitions of the Refrigerating integrated part load value IPLC (C), Seasonal energy efficiency ratio SEER, and Annual performance factor
APF;
- ADD the ultra-low temperature operating conditions to the test conditions (SEE Table C.1);
- ADD the requirements for the minimum limit value of performance factor (SEE Table 3);
- ADD the test and calculation of the refrigerating integrated part load value IPLV (C) of the unitary air conditioner, including the calculation equation and examples for the part load nominal operating conditions, part load
curve, and the part load performance factor;
- ADD the test and calculation of the seasonal energy consumption of the unitary air conditioner (SEE Appendix C).
This standard shall, from the data of implementation, replace GB/T
17758-1999.
Appendix A, Appendix B, Appendix C and Appendix D of this standard are
normative appendixes.
This standard was proposed by the China Machinery Industry Federation.
This standard shall be under the jurisdiction of the National Refrigeration and Air Conditioning Equipment Standardization Technical Committee (SAC/TC
238).
The responsible drafting organizations of this standard. Hefei General
Machinery Research Institute, Tsinghua University, Nanjing Wuzhou
Refrigeration Group Co., Ltd., Zhuhai Gree Electric Co., Ltd., Guangdong Jirong Air-conditioning Equipment Company, Shanghai Mitsubishi Electric ?€? Shangling Electric Co., Ltd., Emerson Environmental Optimization Technology (Suzhou) Co., Ltd., Daikin Air Conditioning (Shanghai) Co., Ltd.
Unitary air conditioners
1 Scope
This standard specifies the terms and definitions, types and basic parameters, requirements, tests, inspection rules, marking, packaging, transportation and storage of unitary air conditioners (hereinafter referred to as ?€?air conditioners?€?). This standard applies to the unitary air conditioner of nominal cooling capacity greater than or equal to 7000 W.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 191 Packaging - Pictorial marking for handling of goods (GB/T
191-2008, ISO 780.1997, MOD)
GB/T 2828.1-2003 Sampling procedures for inspection by attributes - Part 1. Sampling scheme indexed by acceptance quality limit (AQL) for lot-by-lot inspection (ISO 2859-1.1999, IDT)
GB/T 3785-1983 Sound level meter - Electroacoustic performance and test method
GB/T 5773 The method of performance test for positive displacement
refrigerant compressors (GB/T 5773-2004, ISO 917.1989, MOD)
GB/T 6388 Transportation packaging collection and delivery marking
GB/T 13306 Signs
GB/T 18430.1 Water chilling (heat pump) packages using the vapor
compression cycle - Part 1. Water chilling (heat pump) packages for
industrial and commercial and similar application
GB/T 18836 Ducted air-conditioning (heat pump) units (GB/T 18836-2002,
ISO 13253.1995, NEQ)
GB/T 18837 Multi-connected air-condition (heat-pump) unit
GB/T 19409 Water-source heat pumps (GB/T 19409-2003, ISO 13256.1998,
NEQ)
GB/T 19411 Dehumidifier
GB/T 19413 Unitary air conditioner for computer and data processing room GB/T 19569 Air conditioning unit for clean operating room
GB/T 19842 Air-conditioning units for railbound vehicles
GB/T 20108 Low temperature unitary air conditioners
GB/T 20738 Rooftop air conditioning unit
GB 25130 Safety requirements for unitary air-conditioners
JB/T 7249 Terminology of refrigeration equipment
3 Terms and definitions
The terms and definitions as established in JB/T 7249 AND the following terms and definitions apply to this standard.
3.1
Unitary air conditioners
It refers to the equipment directly supplying the conditioned air to a confined space, room, or area. It mainly includes refrigeration systems and air
circulation and purification devices, and it may also include heating,
humidification and ventilation devices.
3.1.1
Ducted air-conditioning (heat pump) units
It refers to the equipment directly supplying the centralized conditioned air through air duct to a confined space, room, or area. It mainly includes refrigeration systems and air circulation and purification devices, and it may also include heating, humidification and ventilation devices.
It refers to the total amount of heat removed from (supplied into) the
confined space, room or area by the air conditioner in the unit time under the specified cooling (heating) capacity test conditions, in the unit of W. 3.4
Cooling (heating) power input
It refers to the total power as consumed by the air conditioner during
operation under the specified cooling (heating) capability test conditions, in the unit of W.
3.5
Energy efficiency ratio (EER)
It refers to the ratio between the cooling capacity of the air conditioner and the cooling power input under the specified refrigeration capacity test conditions, the value of which is expressed in W/W.
3.6
Coefficient of performance (COP)
It refers to the ratio between the heating capacity of the air conditioner and the heating power input under the specified heating capacity test conditions, the value of which is expressed in W/W.
3.7
Electrical heating devices used for heating
It refers to the electric heater which only uses the electric heating method for heating purposes AND the electrical heaters which only uses the conversion heat pump and electrical heaters such as temperature switch, etc., (the switches action due to such factors as indoor and outdoor temperature, etc.) for heating purposes (including post-mounted electric heater).
3.8
Additional electrical heating devices used for heating
It refers to the electrical heater which is used together with the heat pump for heating purposes (including the post-mounted electrical heater).
3.9
It refers to, in the heating season, the ratio of the sum of the heat supplied indoor during the heating operation of the air conditioner and the sum of the consumed electricity, which is tested and calculated using the methods as stated in Appendix C, AND expressed in W/W.
3.15
Annual performance factor (APF)
It refers to, in the cooling season and heating season, the ratio of the sum of the heat removed from (supplied into) indoor during the cooling (heating) operation of the air conditioner and the sum of the electricity consumed at the same period, which is tested and calculated using the methods as stated in Appendix C, AND expressed in W/W.
3.16
Single capacity air conditioner
It refers to the air conditioner free from capacity change except for the changes caused by the compressor motor deviation due to load change.
3.17
Non-single capacity conditioner
It refers to the other air conditioners than those complying with 3.16. 4 Type, model and basic parameters
4.1 Type
4.1.1 It is divided, by the functions, into single cooling type, heat pump type, and constant temperature and humidity type.
4.1.2 It is divided, by the cooling methods of the condenser, into water-cooled type and air-cooled type.
4.1.3 It is divided, by the heating methods, into the electric heating type and heat pump heating type.
4.1.4 It is divided, by structure type,...
