GB/T 17710-2008: Information technology -- Security technique -- Check character systems

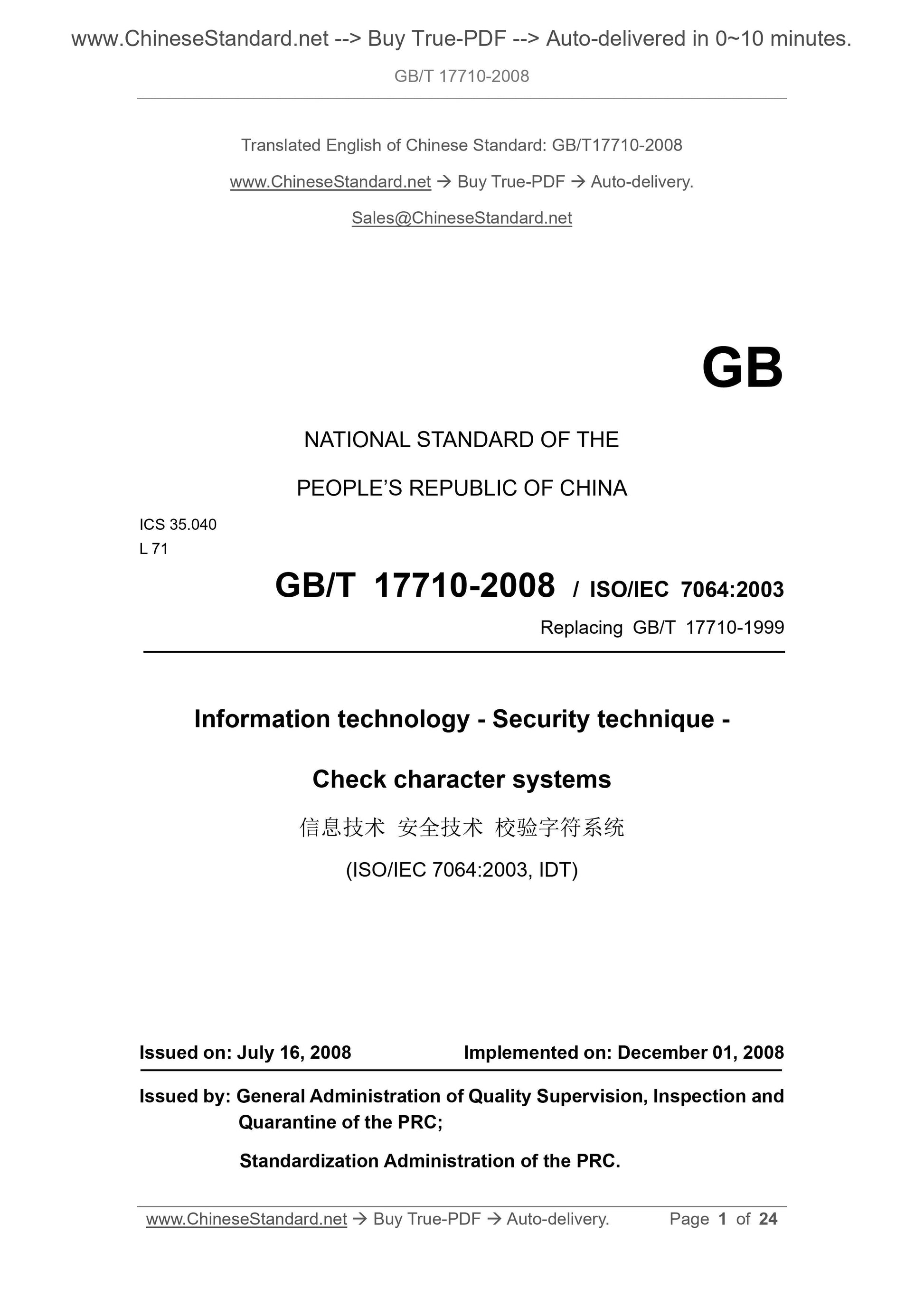

GB/T 17710-2008
Information technology - Security technique - Check character systems
ICS 35.040
National Standards of People's Republic of China
GB/T 17710-2008/ISO /IEC 7064.2003
Replace GB/T 17710-1999
Information technology security technology
Check character system
(ISO /IEC 7064.2003, IDT)
Released on July 17,.2008
2008-12-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration issued

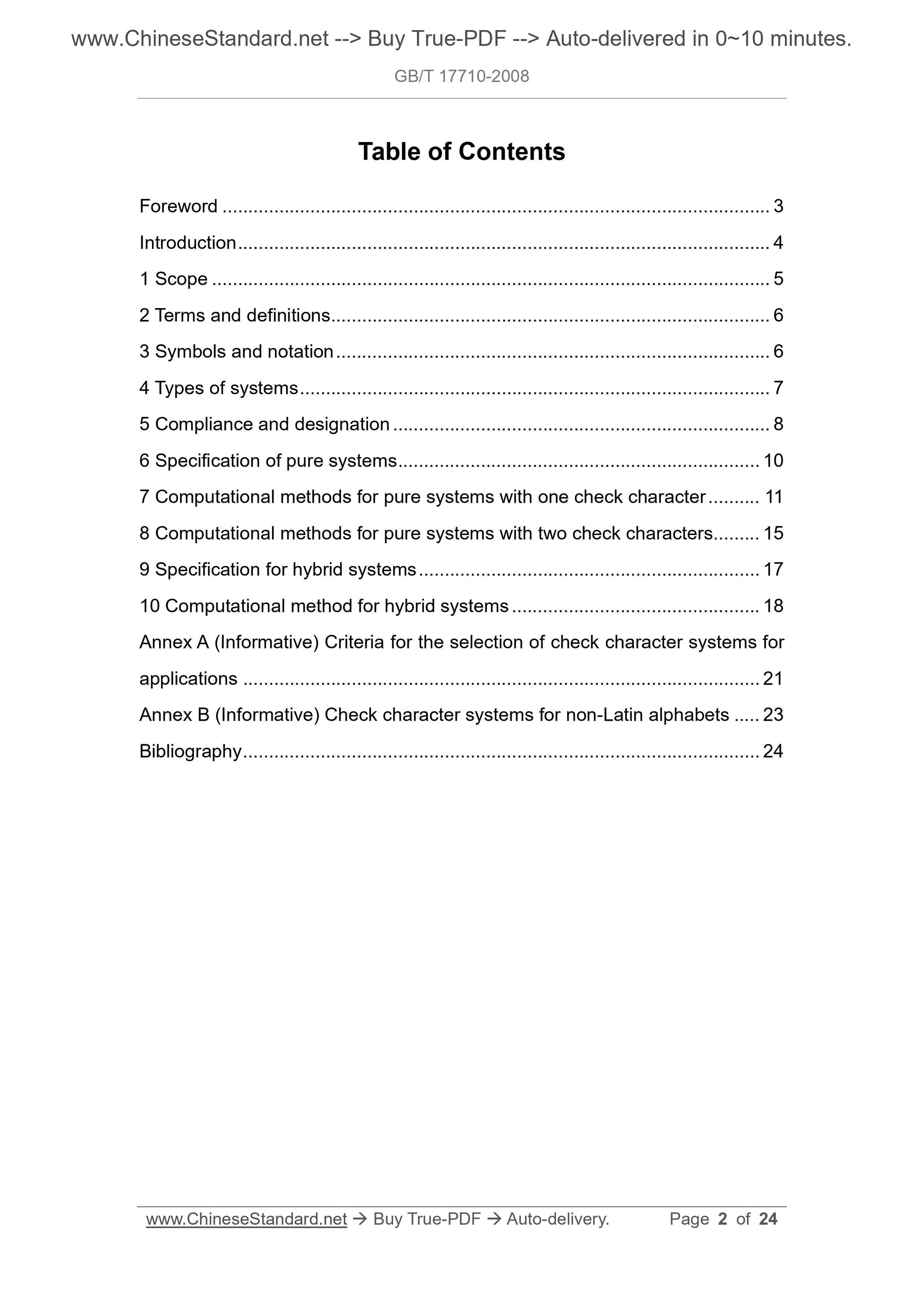

Foreword I
Introduction II
1 range 1
2 Terms and Definitions 1
3 symbols and their notes 2
4 system type 2
5 Compliance and its title 3
6 pure system description 4
7 pure system calculation method with one check character 5
8 Calculation method for pure system with two check characters 7
9 Hybrid System Description 9
10 Calculation method of mixing coefficient 9
Appendix A (informative) Guidelines for selecting a check character system for various applications 11 Appendix B (informative) Non-Latin alphabet check character system 13
Reference 14
GB/T 17710-2008/ISO /IEC 7064.2003

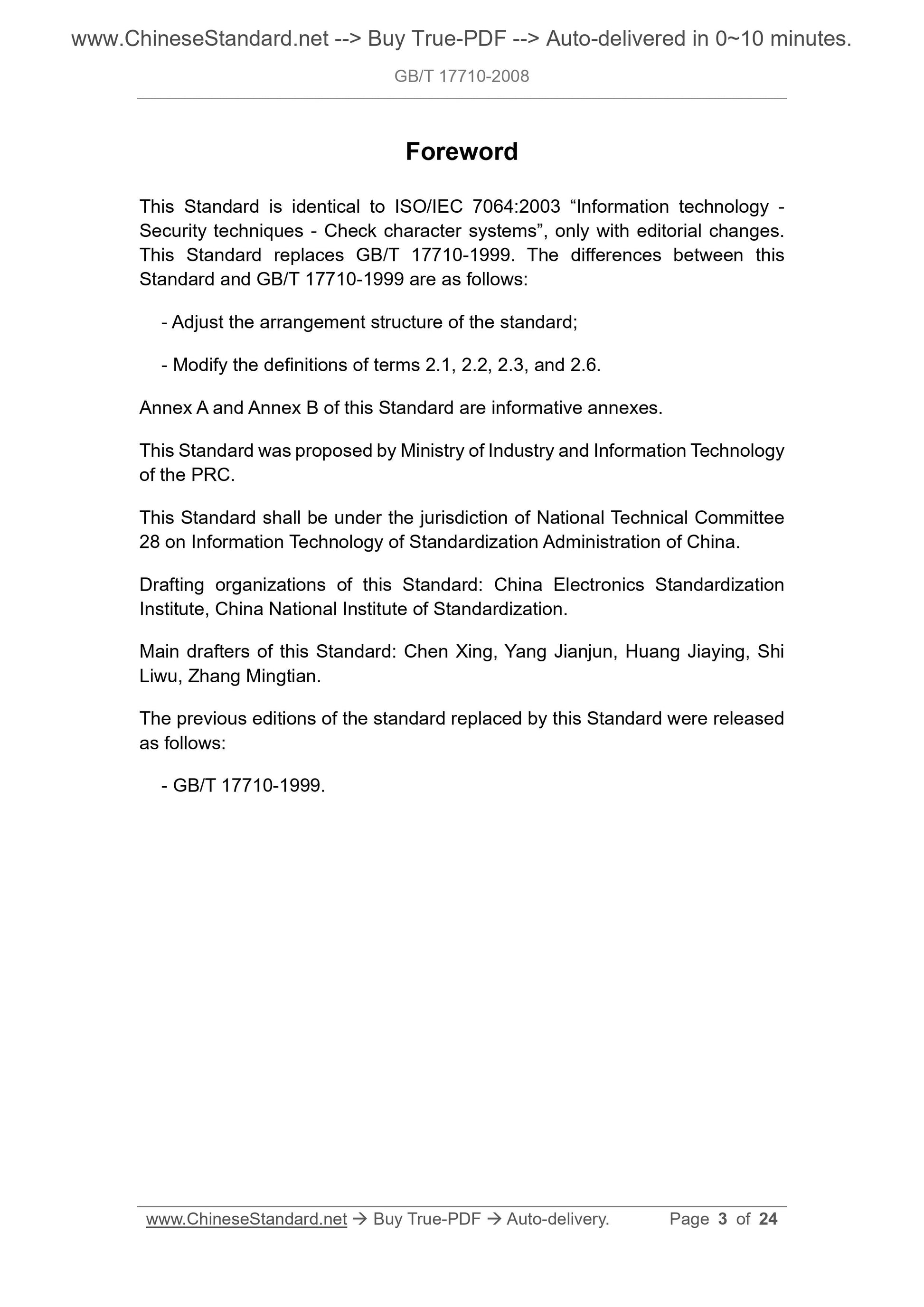

This standard is equivalent to ISO /IEC 7064..2003 "Information Technology Security Technology Check Character System", only editorial changes. This standard replaces GB/T 17710-1999. The difference between this standard and GB/T 17710-1999 is as follows. ---The standard layout structure has been adjusted;
--- The definition of the terms of 2.1, 2.2, 2.3, 2.6 has been modified. Appendix A and Appendix B of this standard are informative annexes.
This standard was proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This standard is under the jurisdiction of the National Information Technology Standardization Technical Committee. This standard was drafted. China Electronics Technology Standardization Institute, China National Institute of Standardization. The main drafters of this standard. Chen Xing, Yang Jianjun, Huang Jiaying, Shi Liwu, Zhang Ming. The previous versions of the standards replaced by this standard are.
---GB/T 17710-1999.
GB/T 17710-2008/ISO /IEC 7064.2003
The need to verify the standardization of character systems is as follows. a) Many systems have similar characteristics due to the large number of systems in use, and many of the changes in features are not effective effect;
b) Existing systems have undergone almost no rigorous mathematical verification, and some have serious flaws; c) The diversity of the system undermines the economic benefits of the check character system and often hampers the verification of exchanged data. Therefore, a small compatibility system should be selected to effectively meet the needs of various applications. The system should be validated in a variety of applications Within the limits of the limit, it effectively prevents typical copying and typing errors. ISO 2180, ISO 2894 (ISO 2894 has been revoked) and ISO 6166 also specify check character systems, but they only apply to special The field, so the existing system can not obtain the error detection rate specified in this standard anyway. Appendix A outlines the criteria to be considered when selecting a check character system as specified in this standard for a particular application. Appendix B illustrates the application of this standard in some countries where the number of alphabets exceeds 26 letters. GB/T 17710-2008/ISO /IEC 7064.2003
Information technology security technology
Check character system

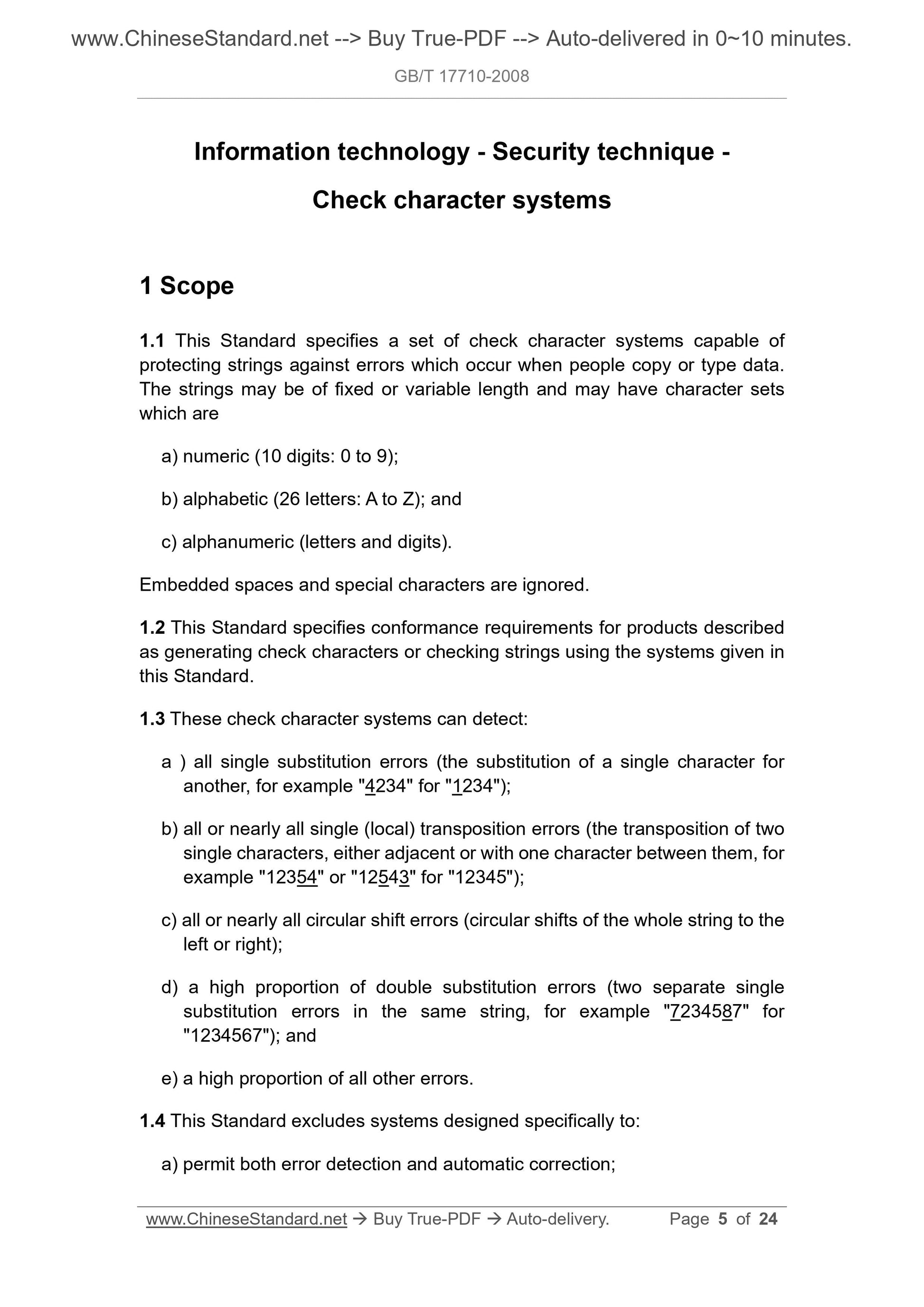

1 range
1.1 This standard specifies a set of check character systems that prevent string errors that occur when copying or typing data. Length of string Can be fixed or variable, including characters in the following character sets. a) number (10 digits. 0 to 9);
b) letters (26 letters. A to Z);
c) Alphanumeric (letters and numbers).
Spaces and special characters embedded in the string are ignored.
1.2 This standard specifies the conformance requirements for the generation of check characters and check string products. These products use the system given in this standard. 1.3 These check character systems can check for the following errors.
a) all single character substitution errors (ie, a single character is replaced by another character, such as 1234 being misrecorded as 4234); b) all or almost all single character swap positions are incorrect (ie two adjacent words or two single words separated by one character) The position of the symbol is interchanged, such as 12345 is mis-recorded as 12354 or 12543); c) all or almost all cyclic shift errors (ie, the entire string is cyclically shifted left or right); d) most double replacement errors (ie, in the same string, two separate single characters are replaced incorrectly, such as 1234567 is misreported as 7234587);
e) Most other errors.
1.4 This standard does not include systems designed for the following purposes. a) allows both error detection and automatic correction;
b) detecting intentional misuse;
c) Verify only the strings exchanged between machines.
1.5 This standard is used for information exchange between organizations and is highly recommended for internal information systems. 2 Terms and definitions

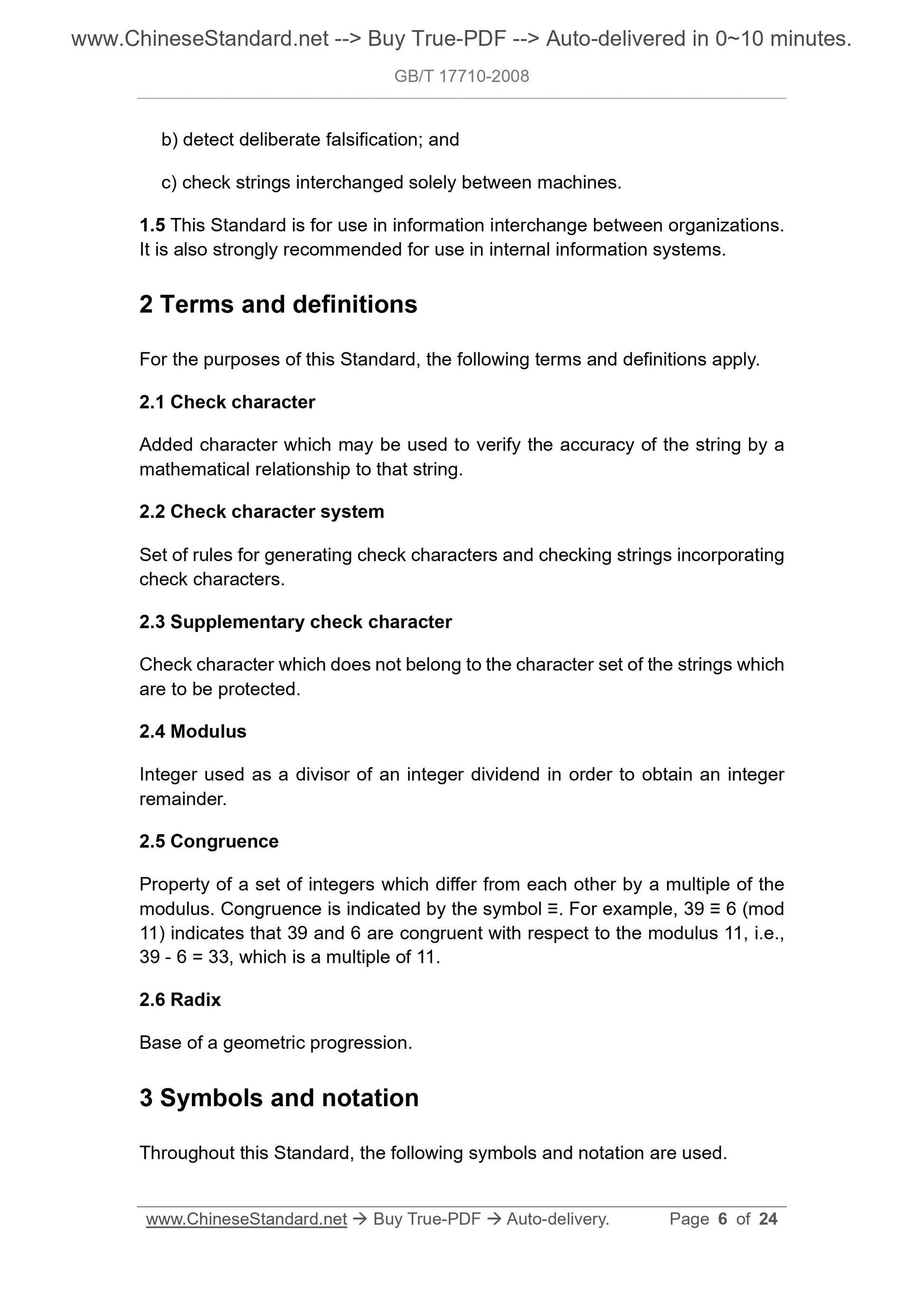

The following terms and definitions apply to this standard.
The additional characters used for the correctness of the string can be verified by the mathematical relationship of the string. 2.2
A set of rules that produce a check character and a string that contains check characters. 2.3
A check character that does not belong to the character set of the protected string. 2.4
An integer that is used to divide the calculated divisor to get an integer remainder. GB/T 17710-2008/ISO /IEC 7064.2003
The property of a set of integers, the difference between each other is a multiple of the modulus. The congruence is indicated by the symbol "≡". For example, 39≡6 (mod11), indicating 39 And 6 is congruent with respect to modulus 11, ie 39-6 = 33, 33 is a multiple of 11. 2.6
The bottom of the geometric progression.
3 symbols and their comments
The following symbols and their comments are used in this standard.
M modulus.
The number of characters in the string, including the check character.
Pj, Sj, 几个 Several integers used to store intermediate results when verifying character calculations. 权 The power of the polynomial method.
X, 补充 Supplement check character.
.= indicates the sign "set equal to" used in the process specification of the check character, the meter The arithmetic symbol indicates that the integer value to the left of the symbol should be equal to the value of the expression to the right of the symbol. ≡ Symbol indicating “congruence” (see 2.5).
‖M denotes the sign of a unique integer between 1 and M, which represents the remainder after dividing by M; The remainder is zero and the value M should be replaced.
—M+1 represents the sign of a unique integer between 0 and M, which represents the remainder after dividing by (M+1); After this calculation, this remainder is by no means zero.
(modM) A symbol representing a unique integer between 0 and M-1, which represents the remainder after division by M. 4 system type
This standard specifies two types of systems.
a) pure systems (see Chapters 6, 7 and 8);
b) Hybrid systems (see Chapter 9, Chapter 10).
4.1 Pure system
Pure systems are listed in Table 1 and are specified in Chapters 6, 7 and 8 for use in all calculation phases of each system. Single modulus.
Table 1 Pure system
Check character system title a Apply check character number and type b
ISO /IEC 7064, MOD11-2 number string 1 digit or supplementary check character X ISO /IEC 7064, MOD37-2 alphanumeric string 1 digit or letter or supplementary check character  ISO /IEC 7064, MOD97-10 number string 2 digits
GB/T 17710-2008/ISO /IEC 7064.2003
Table 1 (continued)
Check character system title a Apply check character number and type b
ISO /IEC 7064, MOD661-26 letter string 2 letters
ISO /IEC 7064, MOD1271-36 alphanumeric string 2 numbers or letters
a In the name, the first digit after "MOD" is the modulus, and the second digit is the cardinality. b The first two systems can generate a supplementary check character, except for the character set of the checked string. (ie, ISO /IEC 7064, MOD11-2 check word The characters are 0 to 9 plus X, ISO /IEC 7064, and the check characters of MOD 37-2 are 0 to 9 and A to Z plus ). If the supplementary check character is not available, then If a single check character is required, it is possible to avoid issuing those strings that generate supplementary check characters; if it cannot tolerate supplementary check characters, it cannot be avoided. To generate a string of check characters, a hybrid system should be used. 4.2 Hybrid system
Hybrid systems are listed in Table 2 and Chapters 9 and 10. The hybrid system uses two moduli in the calculation, one of which is a modulus, etc. The number of characters in the protected character set, the other modulus is one greater than it, and the character set of the protected string always provides the check character. Table 2 Hybrid system
Check character system title a Apply check character number and type
ISO /IEC 7064, MOD11, 10 number string 1 number
ISO /IEC 7064, MOD27, 26 letter string 1 letter
ISO /IEC 7064, MOD37, 36 alphanumeric string 1 number or letter
a In the system name, the two numbers immediately following the MOD are two modulo. 5 Compliance and its title
5.1 string
The strings protected by one of the systems specified for this application in this standard comply with this standard. 5.2 Products that generate check characters
5.2.1 The verification character product (implemented by software or hardware) generated according to this standard shall be capable of generating the standard in this standard if there is no other limitation. Check character for all systems.
5.2.2 Products that do not generate all system check characters in this standard shall indicate those systems covered by these products. For example, ISO /IEC 7064, MOD 11-2 generates check characters".
5.3 Verifying the product
5.3.1 In accordance with this standard (without further restrictions), products that verify the verification characters generated by this standard (implemented by software or hardware) shall be All systems of this standard can be used.
5.3.2 Verification The product descriptions of strings using only some of the systems in this standard shall state the systems covered by the product. For example "check make Use ISO /IEC 7064, string of MOD11-2".
5.4 System Name
5.4.1 The full name of each system given in Tables 1 and 2 should normally be used, such as "ISO /IEC 7064, MOD 11-2". Note. The abbreviation "MOD11" will be confused with a system similar to Modulo 11. 5.4.2 When simplification is required, for example, data element transmission often needs to indicate the system used to protect the data element. The single number name.
GB/T 17710-2008/ISO /IEC 7064.2003
Table 3 Single number name
Check character system name
ISO /IEC 7064, MOD11-2 1
ISO /IEC 7064, MOD37-2 2
ISO /IEC 7064, MOD97-10 3
ISO /IEC 7064, MOD661-26 4
ISO /IEC 7064, MOD1271-36 5
ISO /IEC 7064, MOD11, 10 6
ISO /IEC 7064, MOD27, 26 7
ISO /IEC 7064, MOD37, 36 8
No check character or non-standard system 0
6 Description of pure system
6.1 Formula
When the following formula is true, the string satisfies the check.
In the formula.
Shape---the number of characters including the string of the check character; M---modulus.
Table 4 Values corresponding to characters
The value of an alphanumeric string in the value system of a string of digits in a numeric string value system in a character system Xa
GB/T 17710-2008/ISO /IEC 7064.2003
Table 4 (continued)
The value of an alphanumeric string in the value system of a string of digits in a numeric string value system in a character system b
a is ISO /IEC 7064MOD11-2.
b is ISO /IEC 7064MOD37-2.
6.2 Calculation
Any calculations are made according to the formula.
6.3 Checking the position of characters
The check character should be set at the far right of the string.
7 pure system calculation method with one check character
There are two basic calculation methods for pure systems. pure system recursive method and pure system polynomial method. The results of the two methods are consistent and require phase. The same multiplier and increase. Polynomial systems require more storage space to store the system's weight. 7.1 pure system recursion
7.1.1 Calculation
In the recursive method, the characters of the string are processed one by one from left to right. The calculation rule for generating the check character 犪1 will be described below. With 犼=1,, (like -1) to represent the index. The number is the number of characters in the string including the check character. When 犼=1, P犼=0 is defined. Calculation. S犼.=P犼+犪-犼+1
In the formula.
GB/T 17710-2008/ISO /IEC 7064.2003
When selecting the next 犪1, the following formula should be true.
P shape + 犪 1 ≡ 1 (modM)
Or 犪1.= (1-P-like) (modM)
The algorithm for verifying the check character 犪1 can be described as follows. when the index 犼=1, the shape, where the shape is the number of characters in the string, including the school Characters are checked, and when 犼=1, P犼=0 is defined. Calculation.
If the following formula is true, the string is assumed to be correct,
S-shaped ≡1 (modM)
Alternatively, the process of generating the check character 犪1 can be repeated. If the generated check character is equivalent to the existing character 犪1 Then assume that the string is correct.
7.1.2 Examples
Assuming the use of the check character system ISO /IEC 7064, MOD 11-2 provides a check character for the string "0794". At this time, M=11, Table 5 Pure recursive example
Step product + next character value = middle and middle and x base = product as the next calculated value (See Note 1 of 7.1.2) (see Note 1 of 7.1.2)
1 0 + 0 = 0 0 × 2 = 0
2 0 + 7 = 7 7 × 2 = 14
3 14 + 9 = 23 23 × 2 = 46
4 46 + 4 = 50 50 × 2 = 100
The 5 100+ check character value is congruent to 1 (mod11).
In this example, the final result of the P-like is 100, plus the value of the check character must be the same as 1 (mod11), when 100 itself is When 1 (mod11) congruence, the check character value must be zero. When the check character is added to the far right of the string, the entire protected string is "07940". In order to verify whether the string is correct, as shown above, calculate the above steps 犼=1~5, including the check character value in the calculation. 0. If the result is congruent to 1 (modulo 11), the accepted string is valid. Note 1. If the result of any step in the calculation process is P犼+1 or the middle and S犼 are greater than the modulus M, the multiple of the modulus can be subtracted and the remainder can be used to continue the calculation. In Table 5.
P3=14 can be processed as 14-11=3
S3=23 can be processed as 23-22=1
P4=46 can be processed as 46-44=2
Note 2. The valid check character value in ISO /IEC 7064, MOD11-2 system is 0~10. If the value of the check character is 10, the additional check word is added. The symbol "X" indicates. If the original string is a short string such as "079", the calculated value is 46 at the end of the third step calculation. 46≡2 (modulo 11);
Since 2+10≡1 (modulo 11), the complete string is “079X”.
When the string is verified, the third step is calculated to obtain 46+10=56, which is congruent with 1 (modulo 11) and satisfies the check. 7.2 pure system polynomial method
7.2.1 Calculation
Multiply the character values by their weights and add the results. If the sum of these results is the same as 1 (modulo M), then the check character is included. GB/T 17710-2008/ISO /IEC 7064.2003
The string inside is valid.
Table 6 Right of pure system
Location index 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
ISO /IEC 7064, MOD11-2 5 8 4 2 1 6 3 7 9 10 5 8 4 2 1
ISO /IEC 7064, MOD37-2 30 15 26 13 25 31 34 17 27 32 16 8 4 2 1
ISO /IEC 7064, MOD97-10 53 15 50 5 49 34 81 76 27 90 9 30 3 10 1
ISO /IEC 7064, MOD661-26 129 488 273 341 547.199 389 498 70 562 255 390 15 26 1 ISO /IEC 7064, MOD1271-36 769 904 590 87 532 156 428 718 373 893 625 900 25 36 1 7.2.2 Examples
The calculation process for generating check characters by the polynomial method is as follows, and the string "0794" in 7.1.2 is still taken as an example. Product. 0 56 36 8
The sum of the products. 0 + 56 + 36 + 8 =100
The sum 100 plus check character must be equal to 1 (modulo 11 congruence). Since 100 itself is congruent with 1 (modulo 11), the check character must be Zero, so the whole string is "07940". The check character is set at the right end of the string. To check the string in this way, the weight associated with the position of the character is multiplied by the character value (including the check character), and the results are added, summed Divided by 11, if the remainder is 1, it passes the verification.
Verify that the entire string is calculated as follows.
Product. 0 56 36 8 0
The sum of the products. 0 + 56 + 36 + 8 + 0=100
≡1 (modulo 11)
Meet the verification requirements.
Off, here is 2.
8 pure system calculation method with two check characters
8.1 Calculation
These systems are exactly the same as the system calculation method with one check character, just add another step, except for the system with the base number of 10. Two character values as check characters (for check character system ISO /IEC 7064, MOD97-10, see 8.4), with 犞 for the last one 8.2 Recursive application examples
The following is an example of using the recursive method to calculate two check characters of the string "ISO 79" using the ISO /IEC 7064, MOD1271-36 system. GB/T 17710-2008/ISO /IEC 7064.2003
The word character values are given in Table 4, and steps 1 through 6 are given in Table 7. It has been stated in 1.1 that the spaces embedded in the string are ignored. Table 7 Example of pure recursive method with two check characters
Step 犼
Product + next character value = middle and middle and × base = calculation result As the next calculated value
Product of (mod1271)
P犼+1 (modM)
1 0 + 18 = 18 18 × 36 = 648 648
2 648 + 28 = 676 676 × 36 = 24336 187
3 187 + 24 = 211 211 × 36 = 7596 1241
4 1241 + 7 = 1248 1248 × 36 = 44928 443
5 443 + 9 = 452 452 × 36 = 16272 1020
6 1020 + 0a = 1020 1020 × 36 = 36720 1132
a This position occupied by the first check character is still empty at this step, so its value is zero. The last step (step 7) is to calculate the check character value. subtract (M+1) the last P犼+1 (modM), ie. 1271+1=1272
Then 1272-1132=140
To get a single check character value, divide 犞=140 by the base 36 to get a quotient of 3 and a whole number of 32. 3 and 32 correspond to the character 3 and the character W, respectively, and thus the complete string with the check character is. "ISO 793W". When the string needs to be verified, steps 1 to 5 are as shown above, and step 6 and step 7 are as shown in Table 8. Table 8 Example verification of a pure recursive system with...
