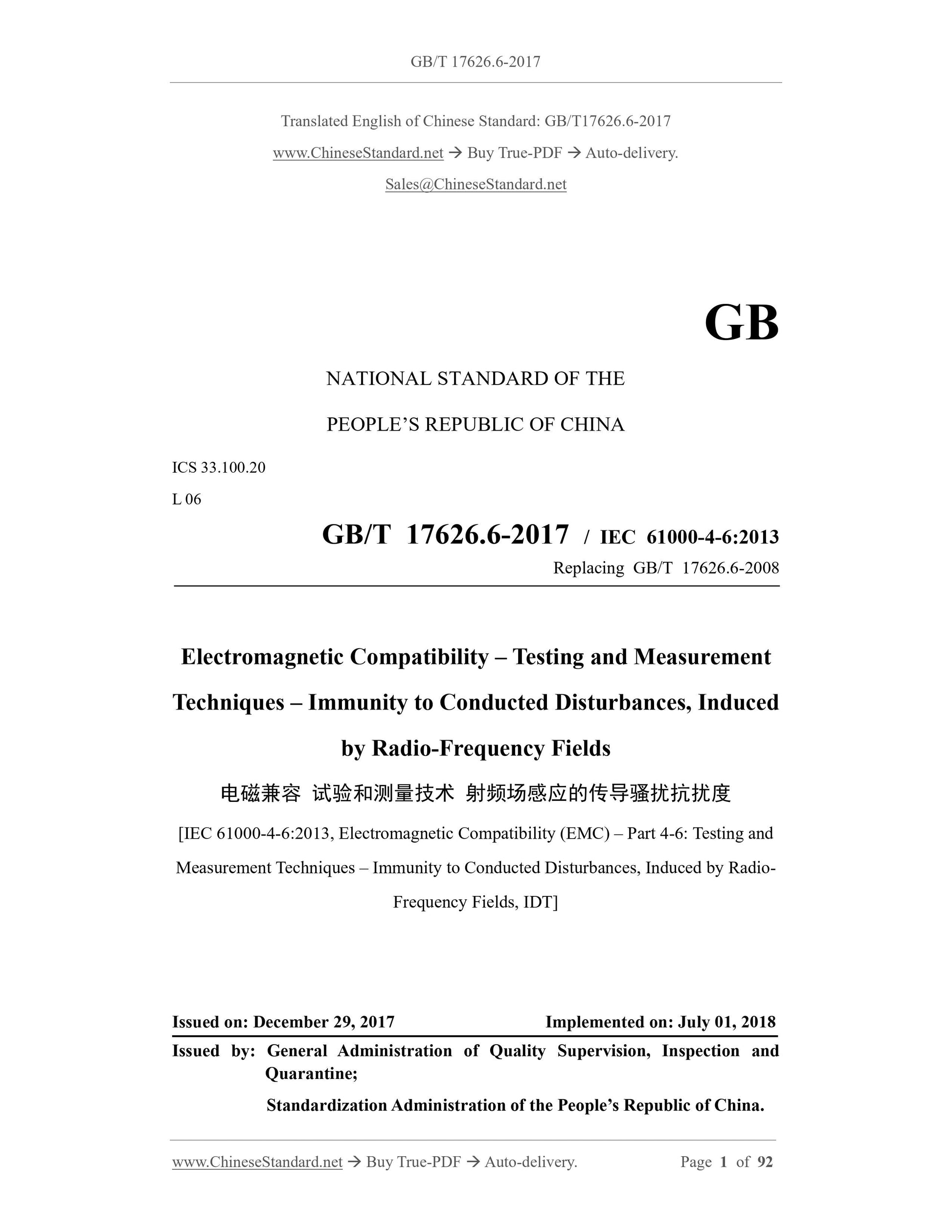

GB/T 17626.6-2017: Electromagnetic compatibility -- Testing and measurement techniques -- Immunity to conducted disturbances, induced by radio-frequency fields

GB/T 17626.6-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 33.100.20
L 06
GB/T 17626.6-2017 / IEC 61000-4-6:2013
Replacing GB/T 17626.6-2008
Electromagnetic Compatibility – Testing and Measurement
Techniques – Immunity to Conducted Disturbances, Induced
by Radio-Frequency Fields
[IEC 61000-4-6:2013, Electromagnetic Compatibility (EMC) – Part 4-6: Testing and Measurement Techniques – Immunity to Conducted Disturbances, Induced by Radio- Frequency Fields, IDT]
ISSUED ON: DECEMBER 29, 2017
IMPLEMENTED ON: JULY 01, 2018
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People’s Republic of China.

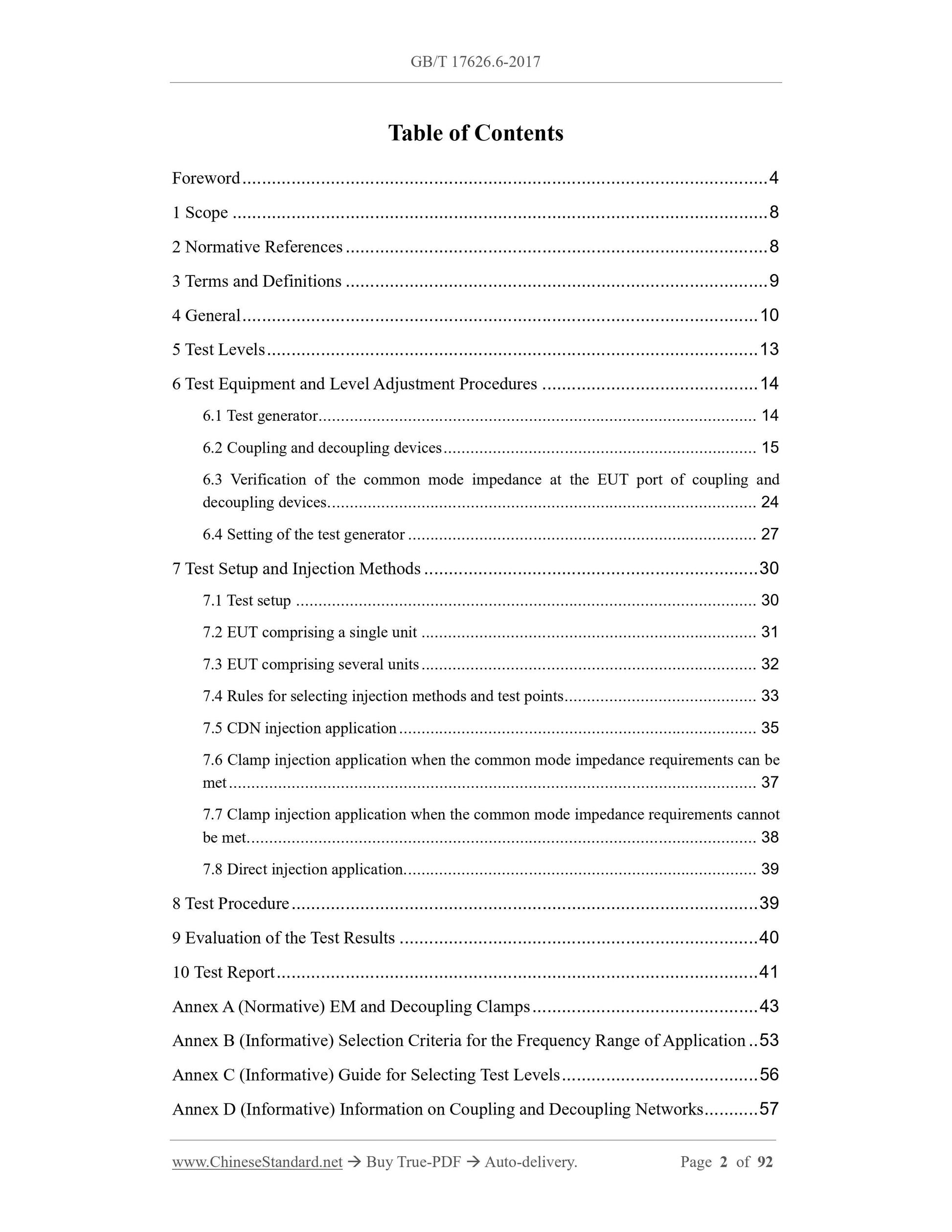

Table of Contents
Foreword ... 4
1 Scope ... 8
2 Normative References ... 8
3 Terms and Definitions ... 9
4 General ... 10
5 Test Levels ... 13
6 Test Equipment and Level Adjustment Procedures ... 14
6.1 Test generator... 14
6.2 Coupling and decoupling devices ... 15
6.3 Verification of the common mode impedance at the EUT port of coupling and decoupling devices ... 24
6.4 Setting of the test generator ... 27
7 Test Setup and Injection Methods ... 30
7.1 Test setup ... 30
7.2 EUT comprising a single unit ... 31
7.3 EUT comprising several units ... 32
7.4 Rules for selecting injection methods and test points ... 33
7.5 CDN injection application ... 35
7.6 Clamp injection application when the common mode impedance requirements can be met ... 37
7.7 Clamp injection application when the common mode impedance requirements cannot be met ... 38
7.8 Direct injection application ... 39
8 Test Procedure ... 39
9 Evaluation of the Test Results ... 40
10 Test Report ... 41
Annex A (Normative) EM and Decoupling Clamps ... 43
Annex B (Informative) Selection Criteria for the Frequency Range of Application .. 53 Annex C (Informative) Guide for Selecting Test Levels ... 56

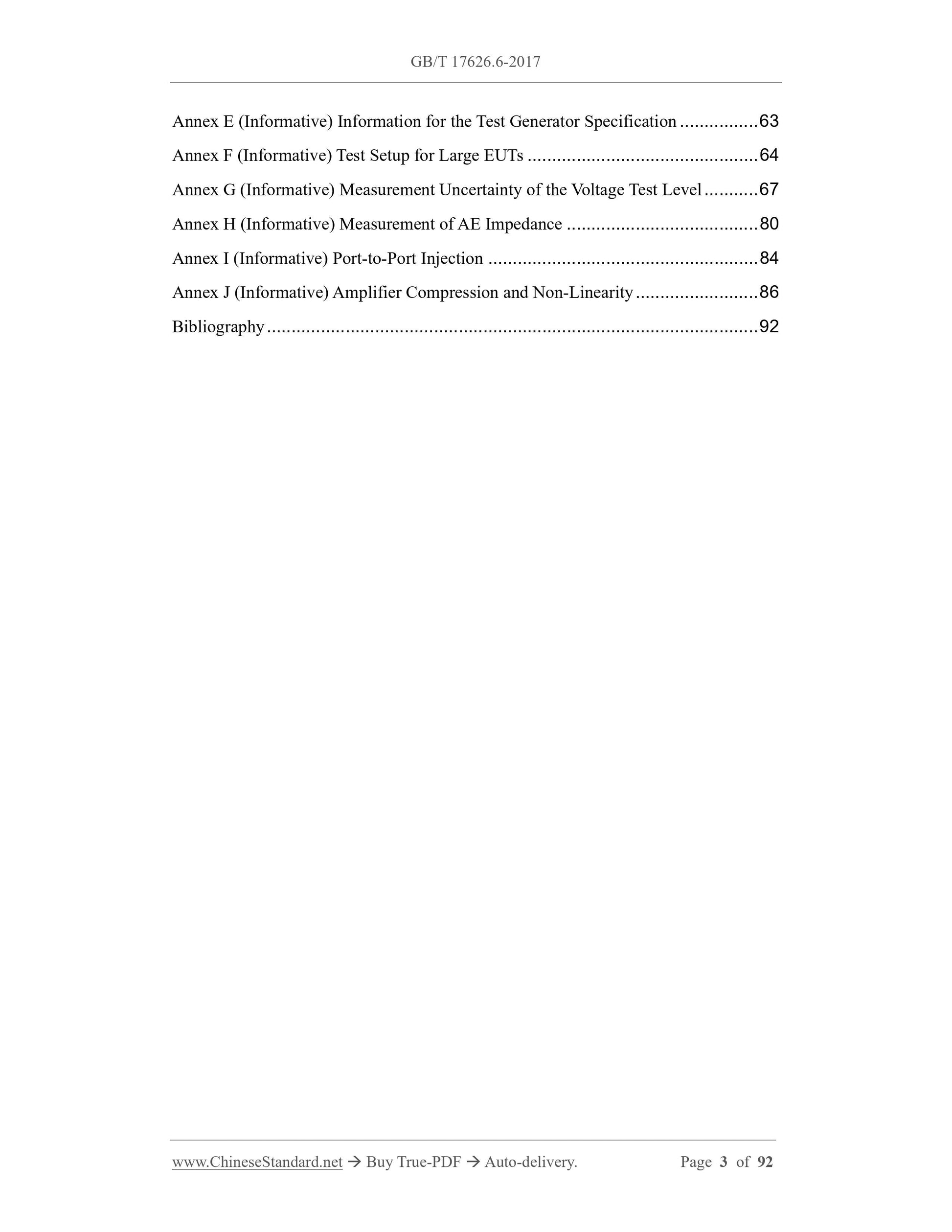

Annex D (Informative) Information on Coupling and Decoupling Networks ... 57 Annex E (Informative) Information for the Test Generator Specification ... 63 Annex F (Informative) Test Setup for Large EUTs ... 64
Annex G (Informative) Measurement Uncertainty of the Voltage Test Level ... 67 Annex H (Informative) Measurement of AE Impedance ... 80
Annex I (Informative) Port-to-Port Injection ... 84
Annex J (Informative) Amplifier Compression and Non-Linearity ... 86
Bibliography ... 92

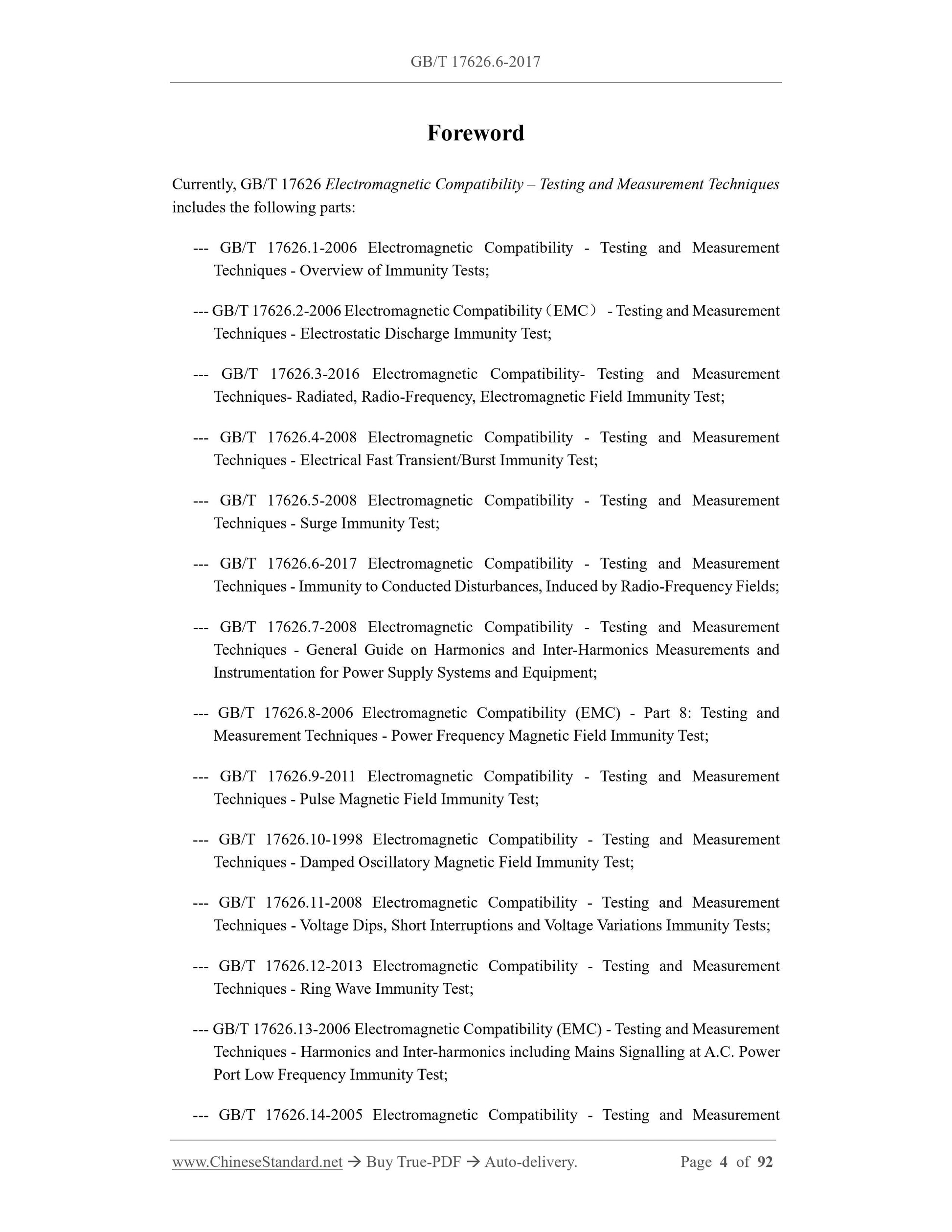

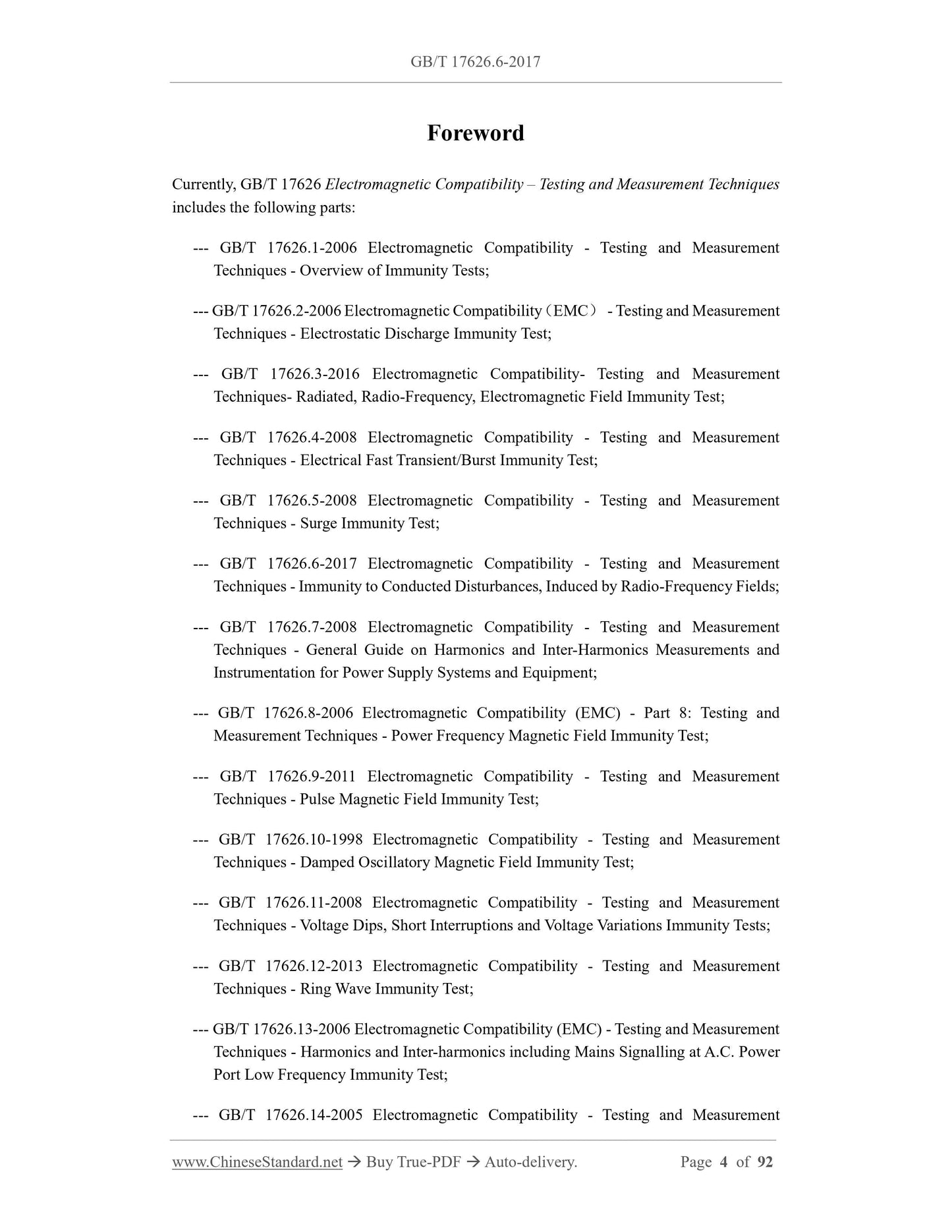

Foreword
Currently, GB/T 17626 Electromagnetic Compatibility – Testing and Measurement Techniques includes the following parts:

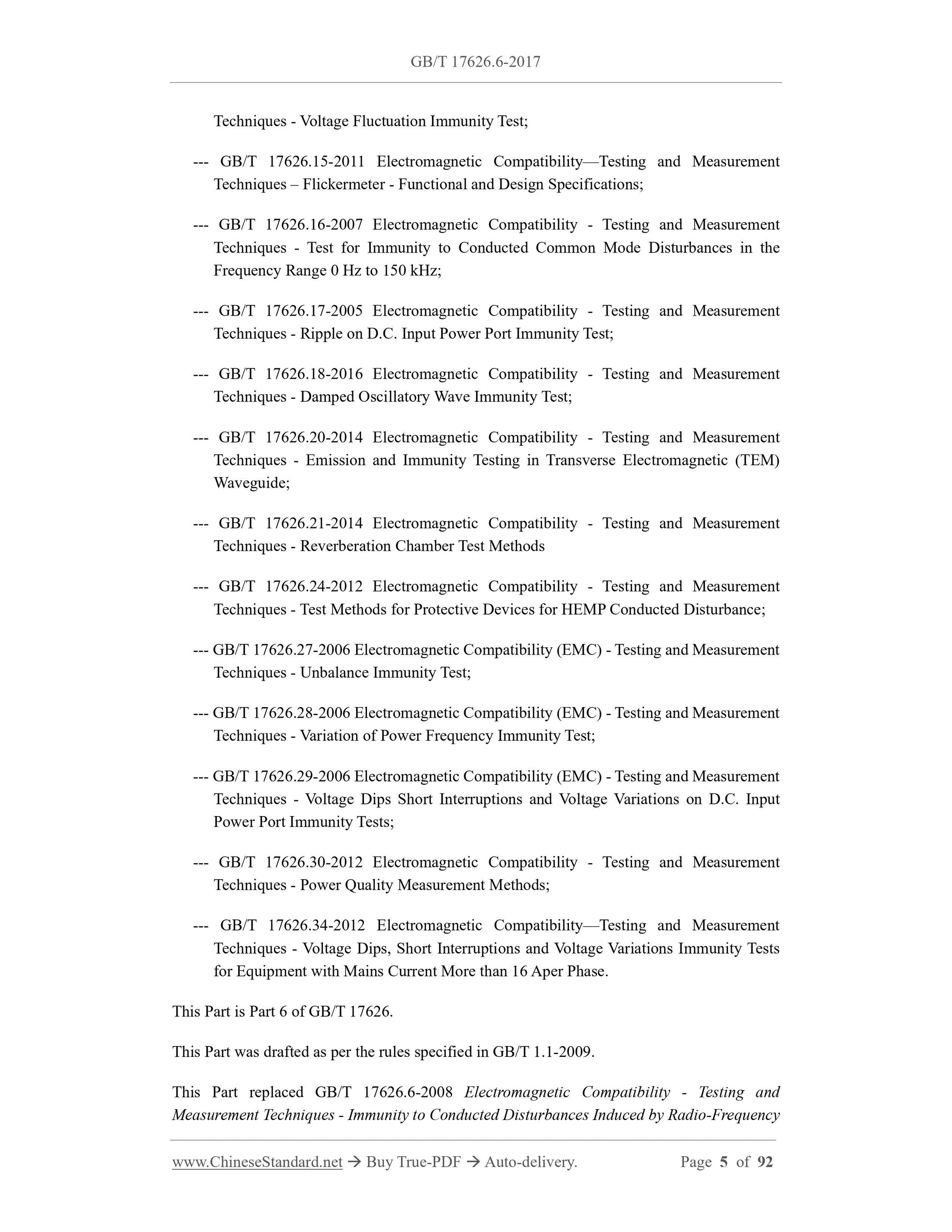

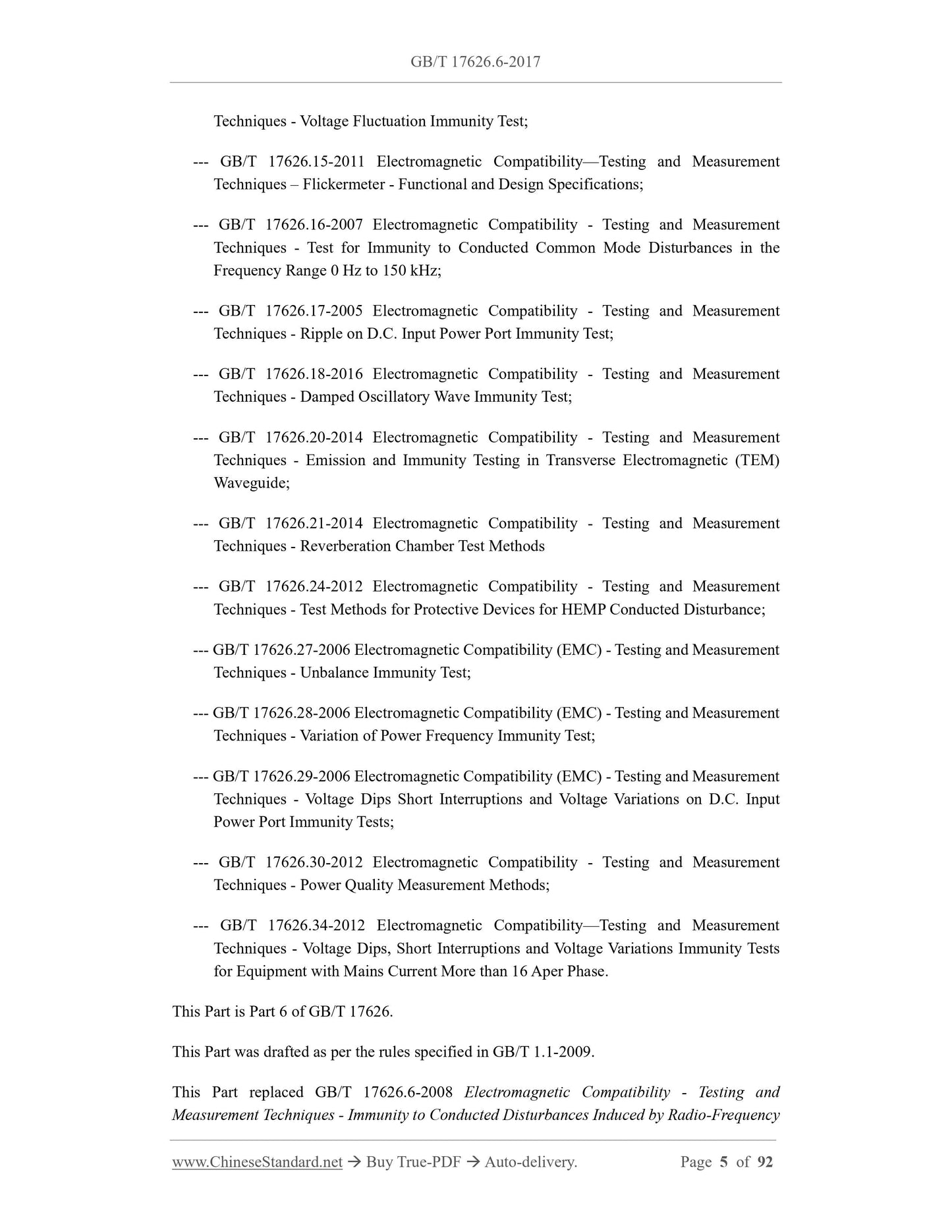

--- GB/T 17626.1-2006 Electromagnetic Compatibility - Testing and Measurement Techniques - Overview of Immunity Tests;
--- GB/T 17626.2-2006 Electromagnetic Compatibility(EMC) - Testing and Measurement Techniques - Electrostatic Discharge Immunity Test;
--- GB/T 17626.3-2016 Electromagnetic Compatibility- Testing and Measurement Techniques- Radiated, Radio-Frequency, Electromagnetic Field Immunity Test; --- GB/T 17626.4-2008 Electromagnetic Compatibility - Testing and Measurement Techniques - Electrical Fast Transient/Burst Immunity Test;
--- GB/T 17626.5-2008 Electromagnetic Compatibility - Testing and Measurement Techniques - Surge Immunity Test;
--- GB/T 17626.6-2017 Electromagnetic Compatibility - Testing and Measurement Techniques - Immunity to Conducted Disturbances, Induced by Radio-Frequency Fields; --- GB/T 17626.7-2008 Electromagnetic Compatibility - Testing and Measurement Techniques - General Guide on Harmonics and Inter-Harmonics Measurements and Instrumentation for Power Supply Systems and Equipment;
--- GB/T 17626.8-2006 Electromagnetic Compatibility (EMC) - Part 8: Testing and Measurement Techniques - Power Frequency Magnetic Field Immunity Test;
--- GB/T 17626.9-2011 Electromagnetic Compatibility - Testing and Measurement Techniques - Pulse Magnetic Field Immunity Test;
--- GB/T 17626.10-1998 Electromagnetic Compatibility - Testing and Measurement Techniques - Damped Oscillatory Magnetic Field Immunity Test;
--- GB/T 17626.11-2008 Electromagnetic Compatibility - Testing and Measurement Techniques - Voltage Dips, Short Interruptions and Voltage Variations Immunity Tests; --- GB/T 17626.12-2013 Electromagnetic Compatibility - Testing and Measurement Techniques - Ring Wave Immunity Test;
--- GB/T 17626.13-2006 Electromagnetic Compatibility (EMC) - Testing and Measurement Techniques - Harmonics and Inter-harmonics including Mains Signalling at A.C. Power Port Low Frequency Immunity Test;
--- GB/T 17626.14-2005 Electromagnetic Compatibility - Testing and Measurement Techniques - Voltage Fluctuation Immunity Test;
--- GB/T 17626.15-2011 Electromagnetic Compatibility—Testing and Measurement Techniques – Flickermeter - Functional and Design Specifications;
--- GB/T 17626.16-2007 Electromagnetic Compatibility - Testing and Measurement Techniques - Test for Immunity to Conducted Common Mode Disturbances in the Frequency Range 0 Hz to 150 kHz;
--- GB/T 17626.17-2005 Electromagnetic Compatibility - Testing and Measurement Techniques - Ripple on D.C. Input Power Port Immunity Test;
--- GB/T 17626.18-2016 Electromagnetic Compatibility - Testing and Measurement Techniques - Damped Oscillatory Wave Immunity Test;
--- GB/T 17626.20-2014 Electromagnetic Compatibility - Testing and Measurement Techniques - Emission and Immunity Testing in Transverse Electromagnetic (TEM) Waveguide;
--- GB/T 17626.21-2014 Electromagnetic Compatibility - Testing and Measurement Techniques - Reverberation Chamber Test Methods
--- GB/T 17626.24-2012 Electromagnetic Compatibility - Testing and Measurement Techniques - Test Methods for Protective Devices for HEMP Conducted Disturbance; --- GB/T 17626.27-2006 Electromagnetic Compatibility (EMC) - Testing and Measurement Techniques - Unbalance Immunity Test;
--- GB/T 17626.28-2006 Electromagnetic Compatibility (EMC) - Testing and Measurement Techniques - Variation of Power Frequency Immunity Test;
--- GB/T 17626.29-2006 Electromagnetic Compatibility (EMC) - Testing and Measurement Techniques - Voltage Dips Short Interruptions and Voltage Variations on D.C. Input Power Port Immunity Tests;
--- GB/T 17626.30-2012 Electromagnetic Compatibility - Testing and Measurement Techniques - Power Quality Measurement Methods;
--- GB/T 17626.34-2012 Electromagnetic Compatibility—Testing and Measurement Techniques - Voltage Dips, Short Interruptions and Voltage Variations Immunity Tests for Equipment with Mains Current More than 16 Aper Phase.
This Part is Part 6 of GB/T 17626.
This Part was drafted as per the rules specified in GB/T 1.1-2009.

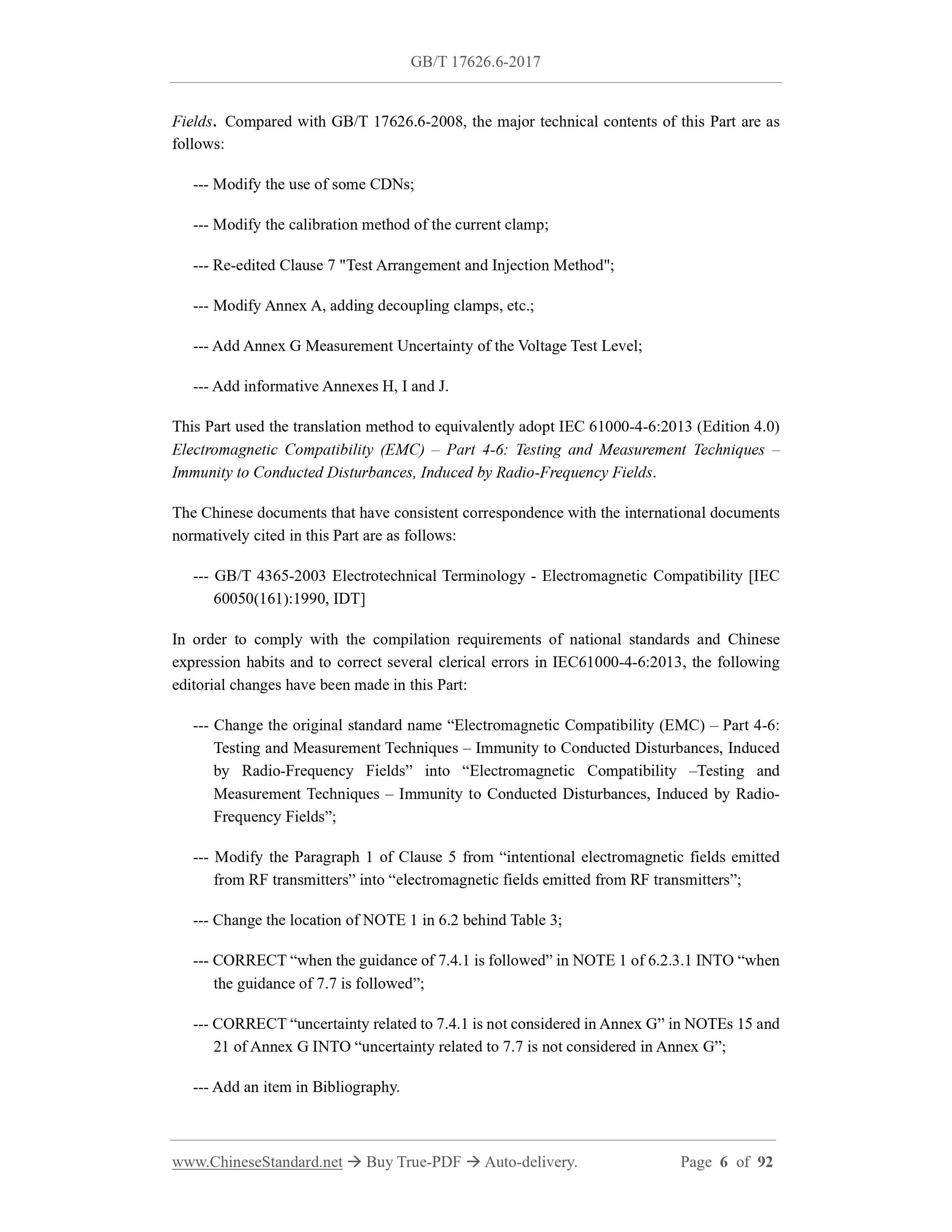

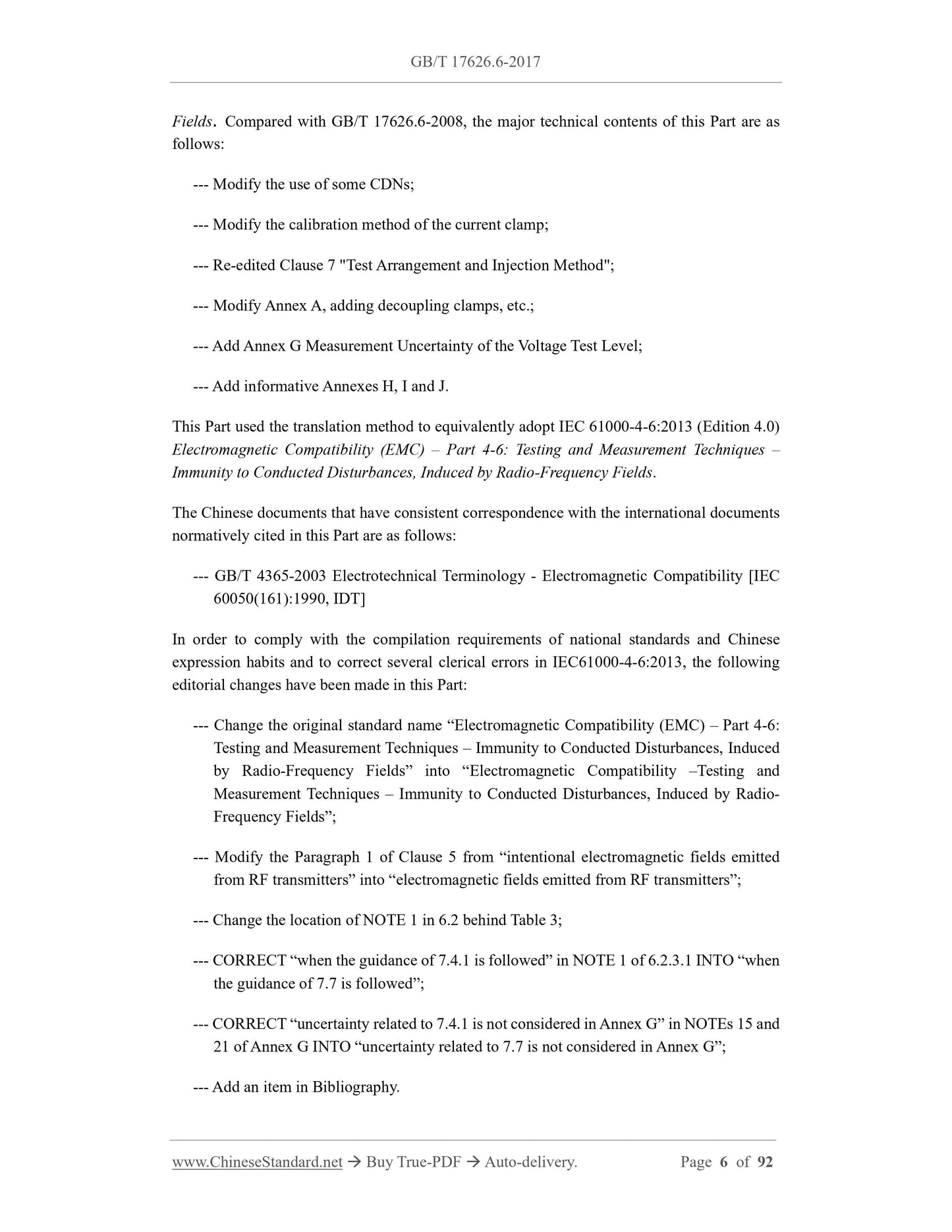

This Part replaced GB/T 17626.6-2008 Electromagnetic Compatibility - Testing and Measurement Techniques - Immunity to Conducted Disturbances Induced by Radio-Frequency Fields. Compared with GB/T 17626.6-2008, the major technical contents of this Part are as follows:
--- Modify the use of some CDNs;
--- Modify the calibration method of the current clamp;
--- Re-edited Clause 7 "Test Arrangement and Injection Method";
--- Modify Annex A, adding decoupling clamps, etc.;
--- Add Annex G Measurement Uncertainty of the Voltage Test Level;
--- Add informative Annexes H, I and J.
This Part used the translation method to equivalently adopt IEC 61000-4-6:2013 (Edition 4.0) Electromagnetic Compatibility (EMC) – Part 4-6: Testing and Measurement Techniques – Immunity to Conducted Disturbances, Induced by Radio-Frequency Fields.
The Chinese documents that have consistent correspondence with the international documents normatively cited in this Part are as follows:
--- GB/T 4365-2003 Electrotechnical Terminology - Electromagnetic Compatibility [IEC 60050(161):1990, IDT]
In order to comply with the compilation requirements of national standards and Chinese expression habits and to correct several clerical errors in IEC61000-4-6:2013, the following editorial changes have been made in this Part:
--- Change the original standard name “Electromagnetic Compatibility (EMC) – Part 4-6: Testing and Measurement Techniques – Immunity to Conducted Disturbances, Induced by Radio-Frequency Fields” into “Electromagnetic Compatibility –Testing and Measurement Techniques – Immunity to Conducted Disturbances, Induced by Radio- Frequency Fields”;
--- Modify the Paragraph 1 of Clause 5 from “intentional electromagnetic fields emitted from RF transmitters” into “electromagnetic fields emitted from RF transmitters”; --- Change the location of NOTE 1 in 6.2 behind Table 3;
--- CORRECT “when the guidance of 7.4.1 is followed” in NOTE 1 of 6.2.3.1 INTO “when the guidance of 7.7 is followed”;
--- CORRECT “uncertainty related to 7.4.1 is not considered in Annex G” in NOTEs 15 and 21 of Annex G INTO “uncertainty related to 7.7 is not considered in Annex G”; --- Add an item in Bibliography.
Electromagnetic Compatibility – Testing and Measurement
Techniques – Immunity to Conducted Disturbances, Induced
by Radio-Frequency Fields

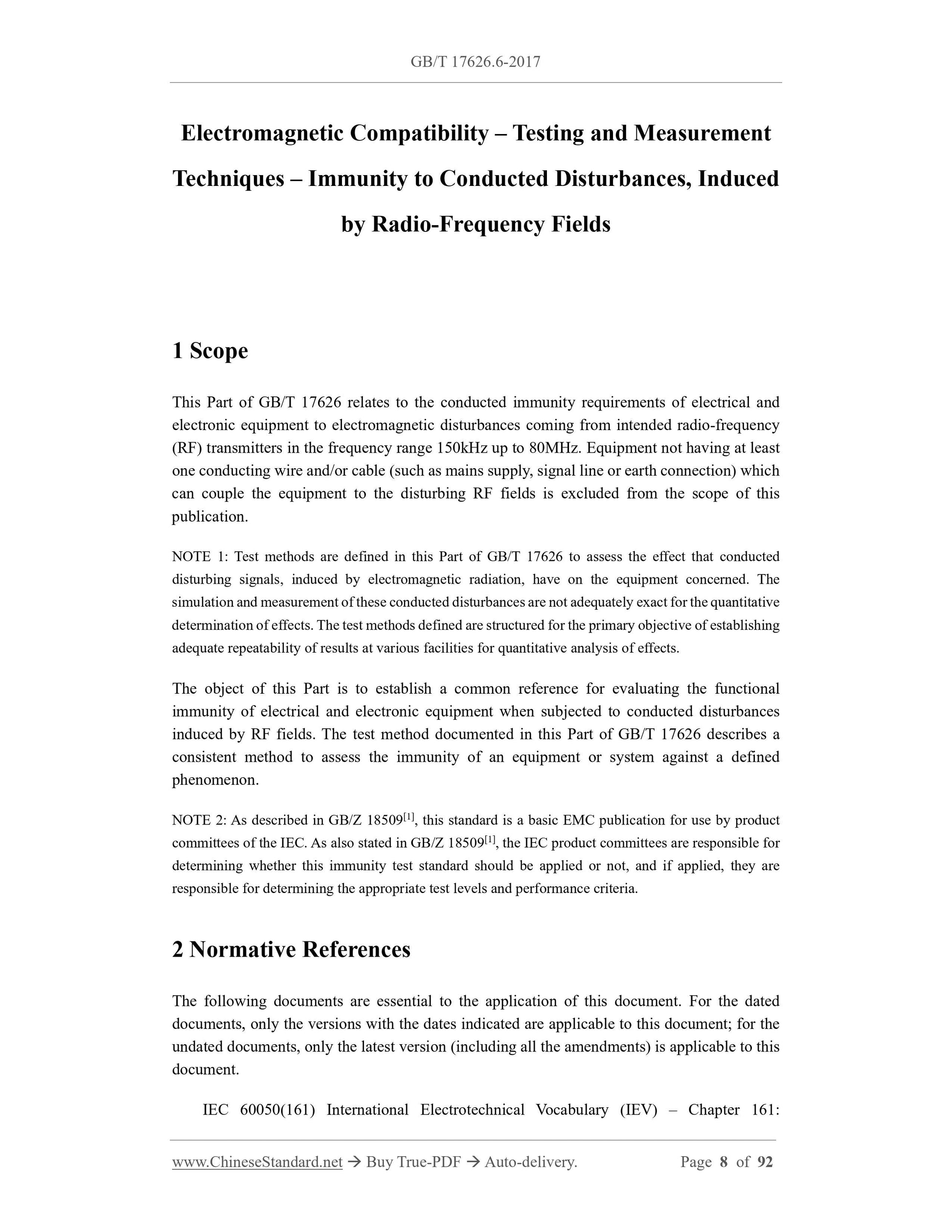

1 Scope
This Part of GB/T 17626 relates to the conducted immunity requirements of electrical and electronic equipment to electromagnetic disturbances coming from intended radio-frequency (RF) transmitters in the frequency range 150kHz up to 80MHz. Equipment not having at least one conducting wire and/or cable (such as mains supply, signal line or earth connection) which can couple the equipment to the disturbing RF fields is excluded from the scope of this publication.
NOTE 1: Test methods are defined in this Part of GB/T 17626 to assess the effect that conducted disturbing signals, induced by electromagnetic radiation, have on the equipment concerned. The simulation and measurement of these conducted disturbances are not adequately exact for the quantitative determination of effects. The test methods defined are structured for the primary objective of establishing adequate repeatability of results at various facilities for quantitative analysis of effects. The object of this Part is to establish a common reference for evaluating the functional immunity of electrical and electronic equipment when subjected to conducted disturbances induced by RF fields. The test method documented in this Part of GB/T 17626 describes a consistent method to assess the immunity of an equipment or system against a defined phenomenon.
NOTE 2: As described in GB/Z 18509[1], this standard is a basic EMC publication for use by product committees of the IEC. As also stated in GB/Z 18509[1], the IEC product committees are responsible for determining whether this immunity test standard should be applied or not, and if applied, they are responsible for determining the appropriate test levels and performance criteria. 2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this document.
IEC 60050(161) International Electrotechnical Vocabulary (IEV) – Chapter 161:
