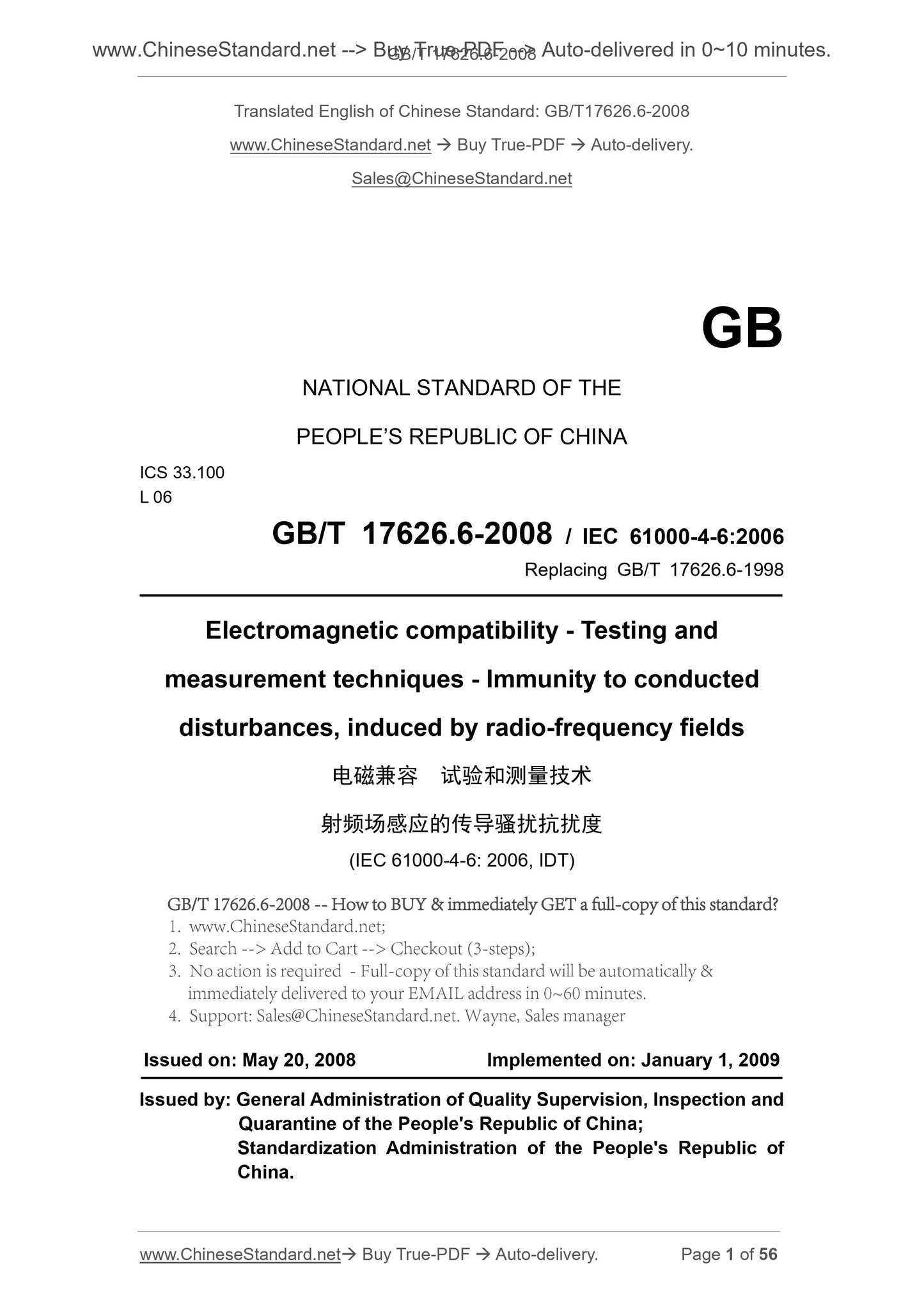

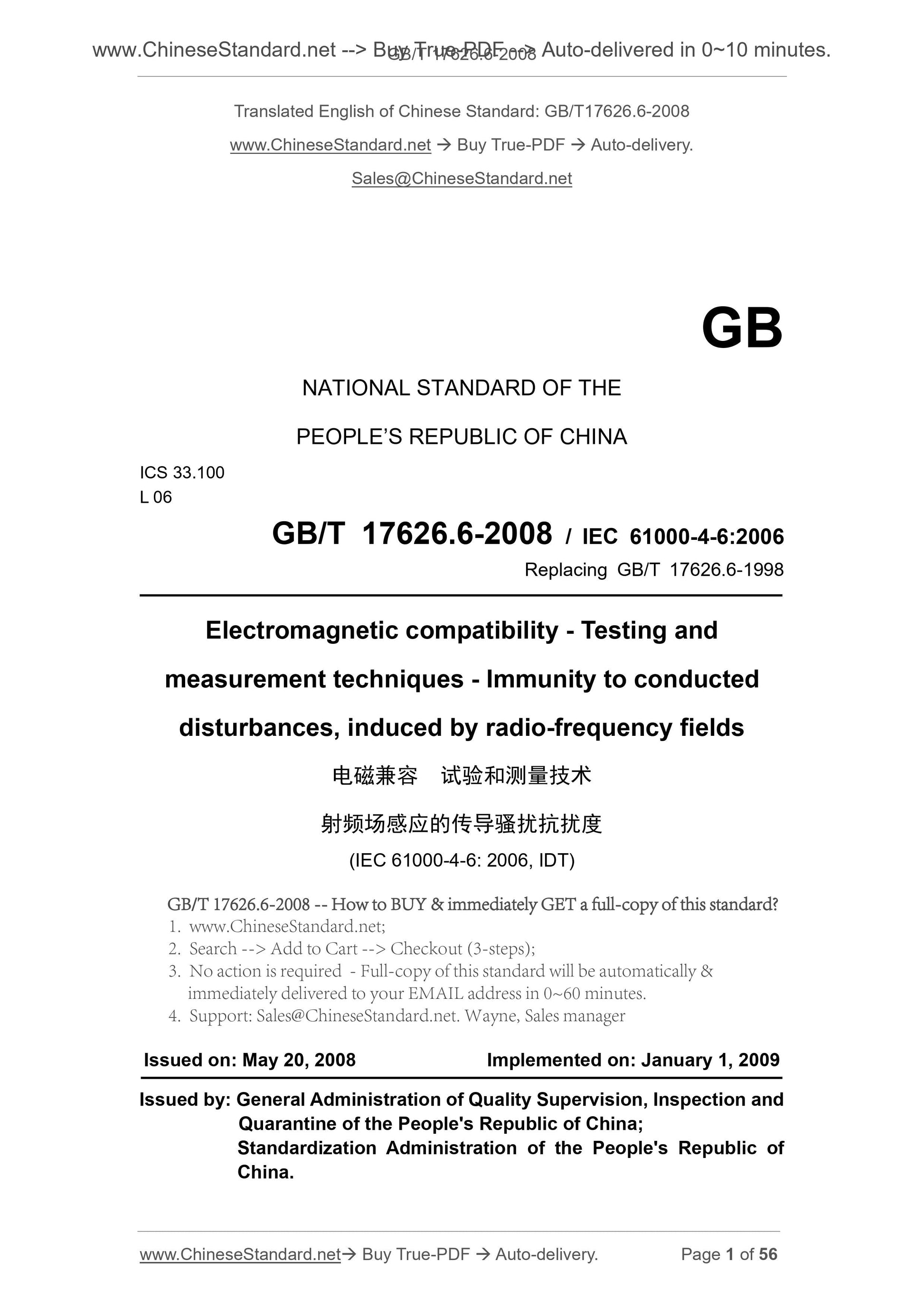

GB/T 17626.6-2008: Electromagnetic compatibility -- Testing and measurement techniques -- Immunity to conducted disturbances, induced by radio-frequency fields

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 17626.6-2008 (Self-service in 1-minute)
Newer / historical versions: GB/T 17626.6-2008

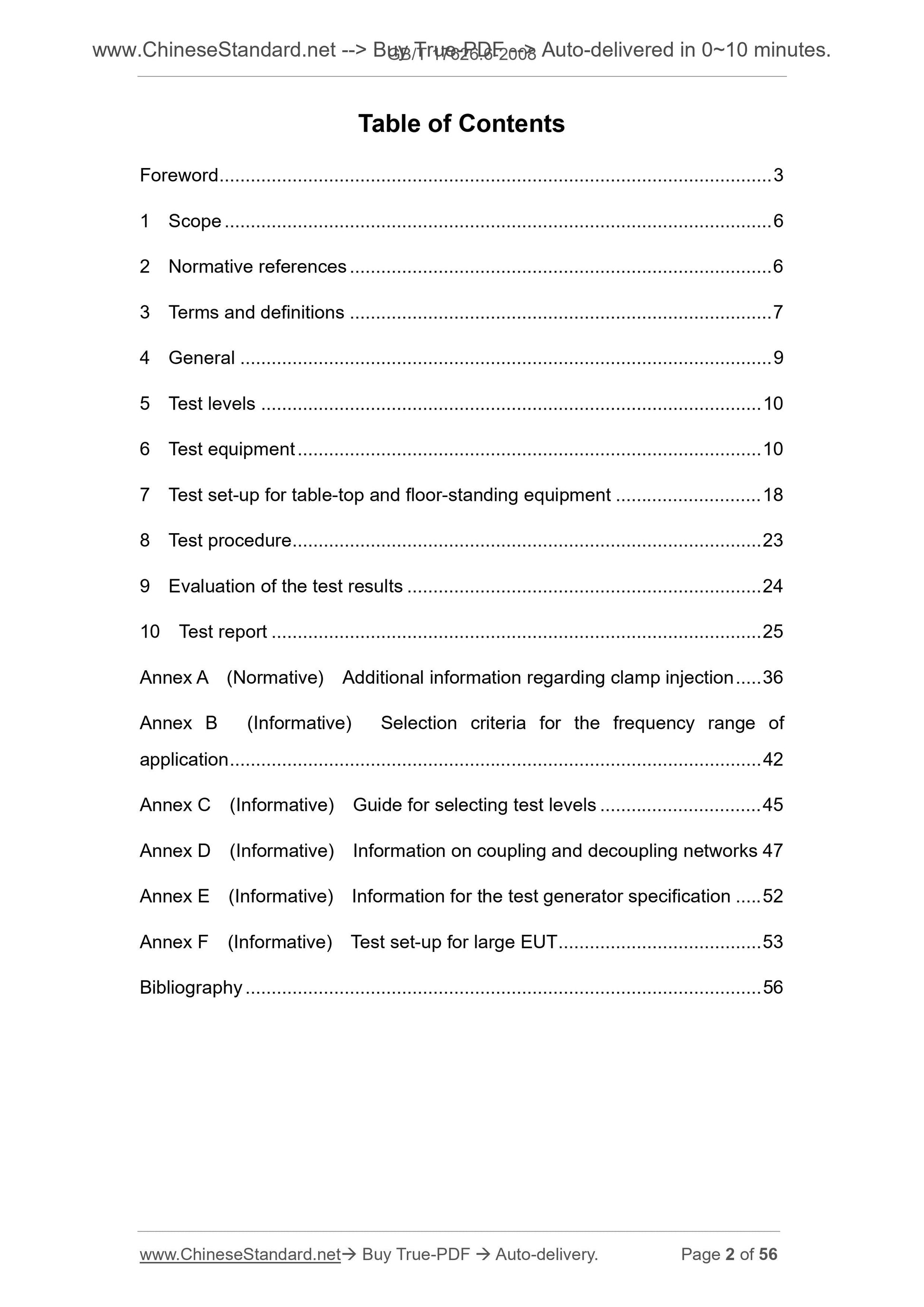

Preview True-PDF

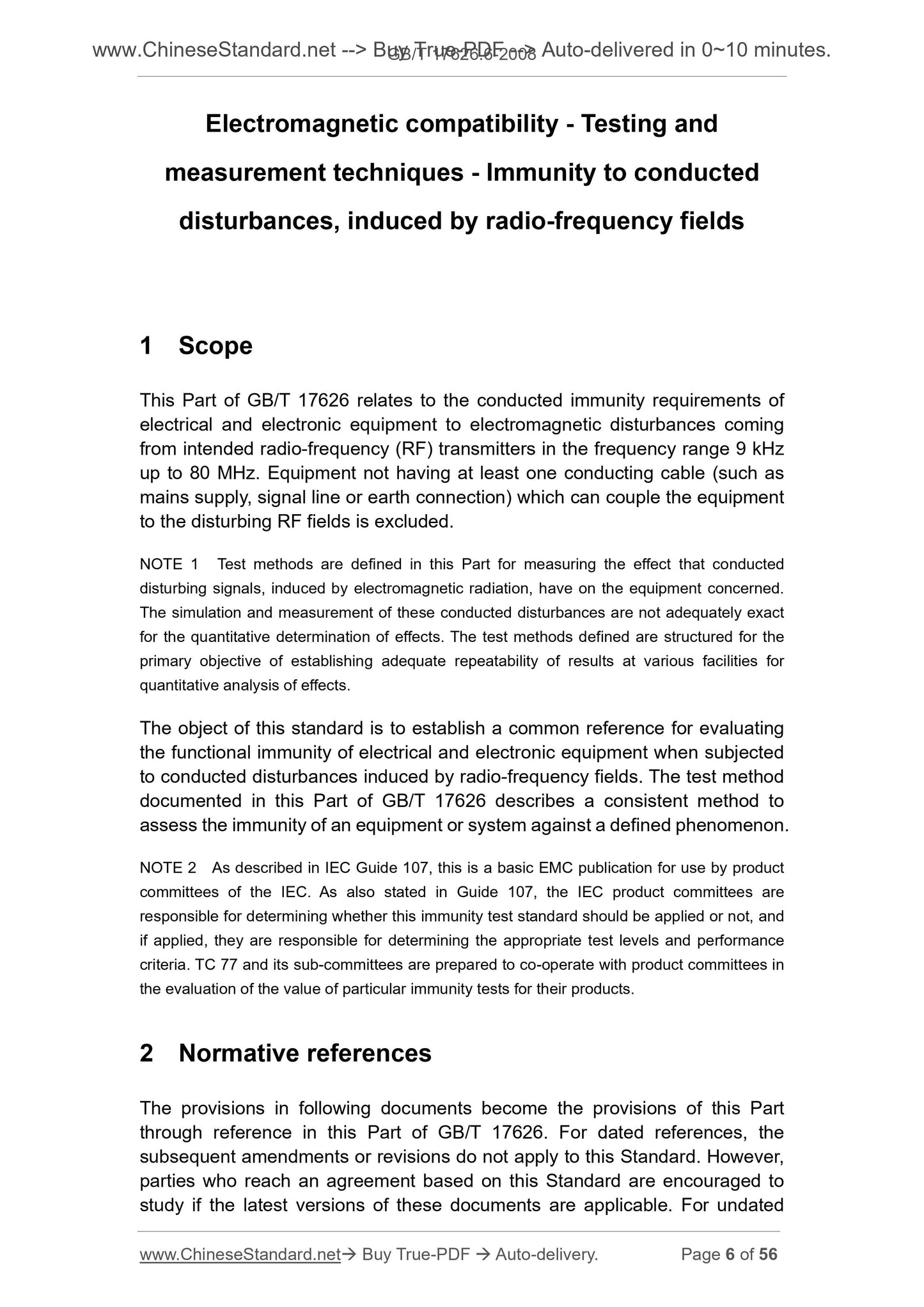

Scope

This part of GB/T 17626 is about electrical and electronic equipment for RF transmitters in the frequency range from 9 kHz to 80 MHz.
Magnetic disturbance immunity requirements. The equipment is connected to the RF field through at least one connection cable (such as power line, signal line, ground line, etc.)
coupling.
Note. The measurement methods specified in this section are used to measure the effects of conducted disturbance signals. The signal is induced by the electromagnetic radiation associated with the device.
Harassment simulations and measurements are not very accurate for quantitatively determining impact. The main purpose of formulating this method is to establish sufficient
Reproducible results in order to qualitatively analyze the impact.
The purpose of this section is to establish an assessment of immunity when electrical and electronic equipment is subjected to conducted disturbances induced by RF fields.
Public reference for energy. The test method specified in this part of ISO 15626 is to evaluate the definition of electromagnetic phenomena in equipment or systems.
Immunity represents a consistent method.
Note. As described in IEC Guide 107, this is an EMC basic publication for the IEC Product Committee. Also as stated in guide 107, IEC
The Product Committee is responsible for determining whether to use this immunity standard, and if so, they are responsible for determining appropriate test levels and performance criteria. TC77 and
Its subcommittee is prepared to work with the product committee to facilitate the evaluation of the value of the specific immunity test for their products.

Basic Data

Standard ID	GB/T 17626.6-2008 (GB/T17626.6-2008)
Description (Translated English)	Electromagnetic compatibility -- Testing and measurement techniques -- Immunity to conducted disturbances, induced by radio-frequency fields
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	L06
Classification of International Standard	33.100
Word Count Estimation	39,383
Date of Issue	2008-05-20
Date of Implementation	2009-01-01
Older Standard (superseded by this standard)	GB/T 17626.6-1998
Quoted Standard	GB/T 4365; GB/T 6113.1
Adopted Standard	IEC 61000-4-6-2006, IDT
Regulation (derived from)	Announcement of Newly Approved National Standards 2008 No. 8 (No. 121 overall)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the electrical and electronic equipment from 9kHz ~ 80MHz frequency range RF transmitters electromagnetic disturbances conducted immunity requirements. Device by at least one connecting cable coupled with the RF field. The purpose of this part is when the electrical and electrical and electronic equipment subject to the conducted disturbances induced by radio frequency fields, the establishment of an assessment of the performance of common reference immunity. In GB/T 17626 as specified in this part of the test method for evaluating equipment or system -defined immunity to electromagnetic phenomena expressed a consistent approach.
