GB/T 17626.11-2008: Electromagnetic compatibility -- Testing and measurement techniques -- Voltage dips, short interruptions and voltage variations immunity tests

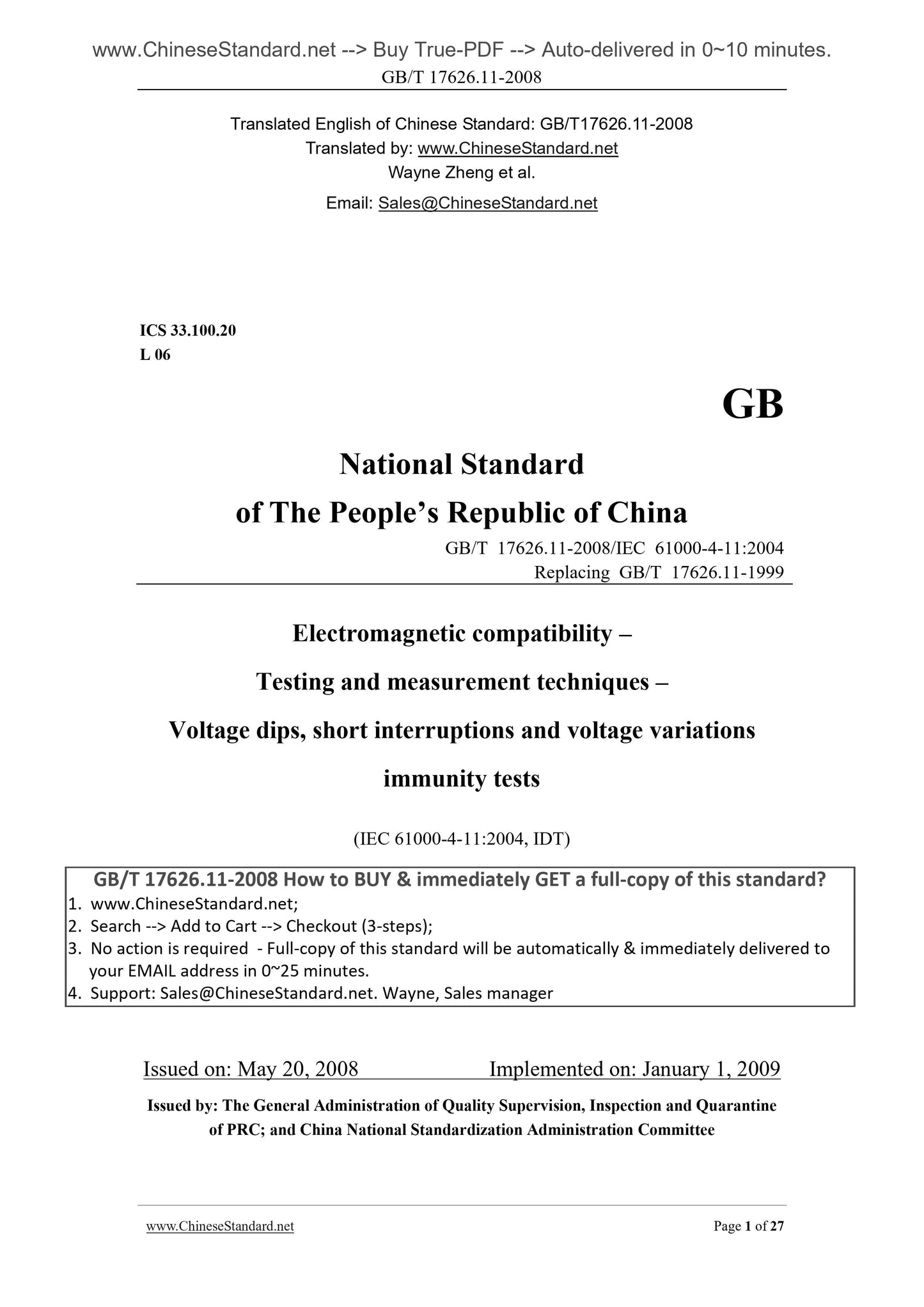

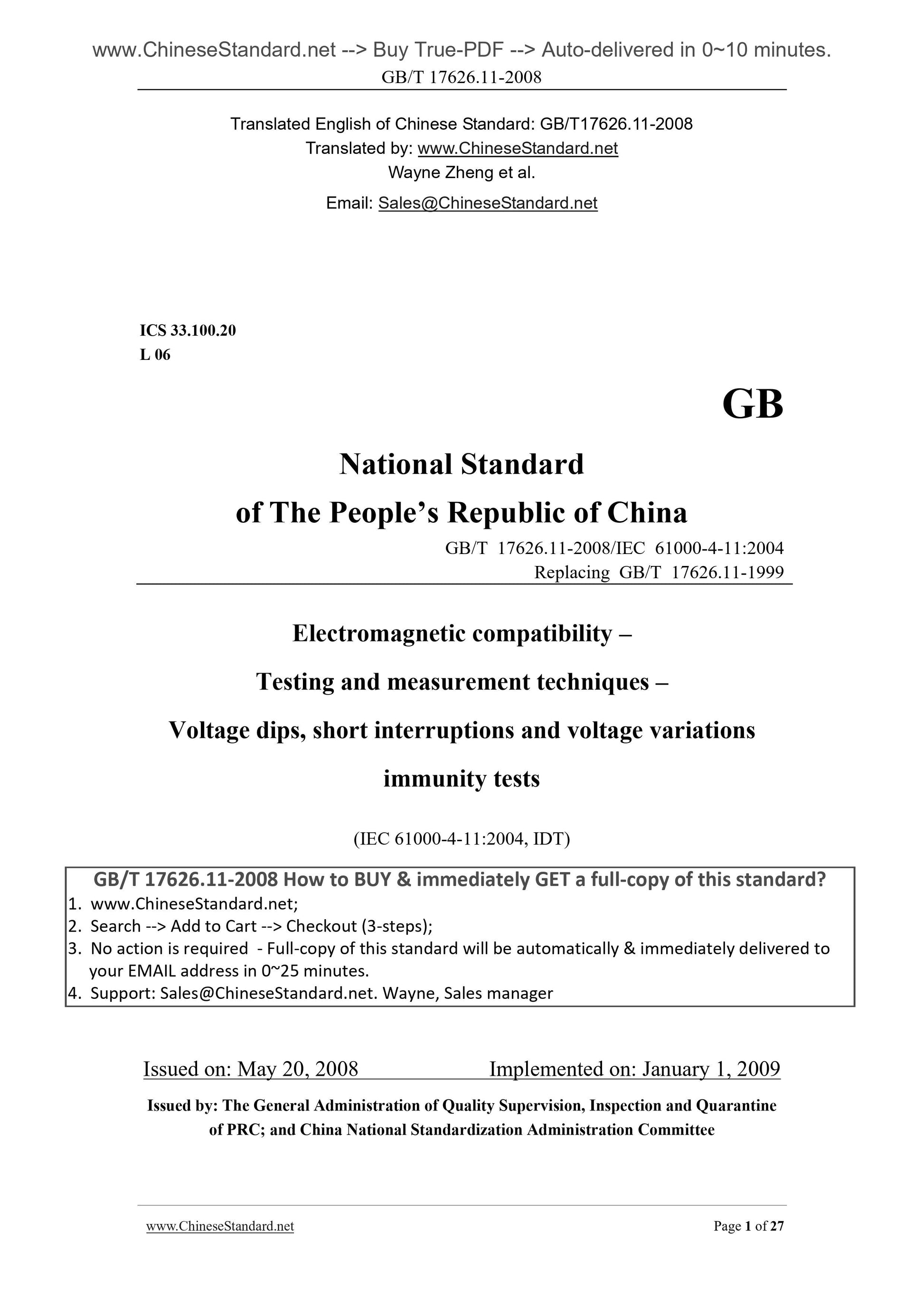

GB/T 17626.11-2008
ICS 33.100.20
L 06
GB
National Standard
of The People’s Republic of China
GB/T 17626.11-2008/IEC 61000-4-11.2004
Replacing GB/T 17626.11-1999
Electromagnetic compatibility –
Testing and measurement techniques –
Voltage dips, short interruptions and voltage variations
immunity tests
(IEC 61000-4-11.2004, IDT)
ISSUED ON. MAY 20, 2008
IMPLEMENTED ON. JANUARY 1, 2009
Issued by. The General Administration of Quality Supervision, Inspection and Quarantine of PRC; and China National Standardization Administration Committee

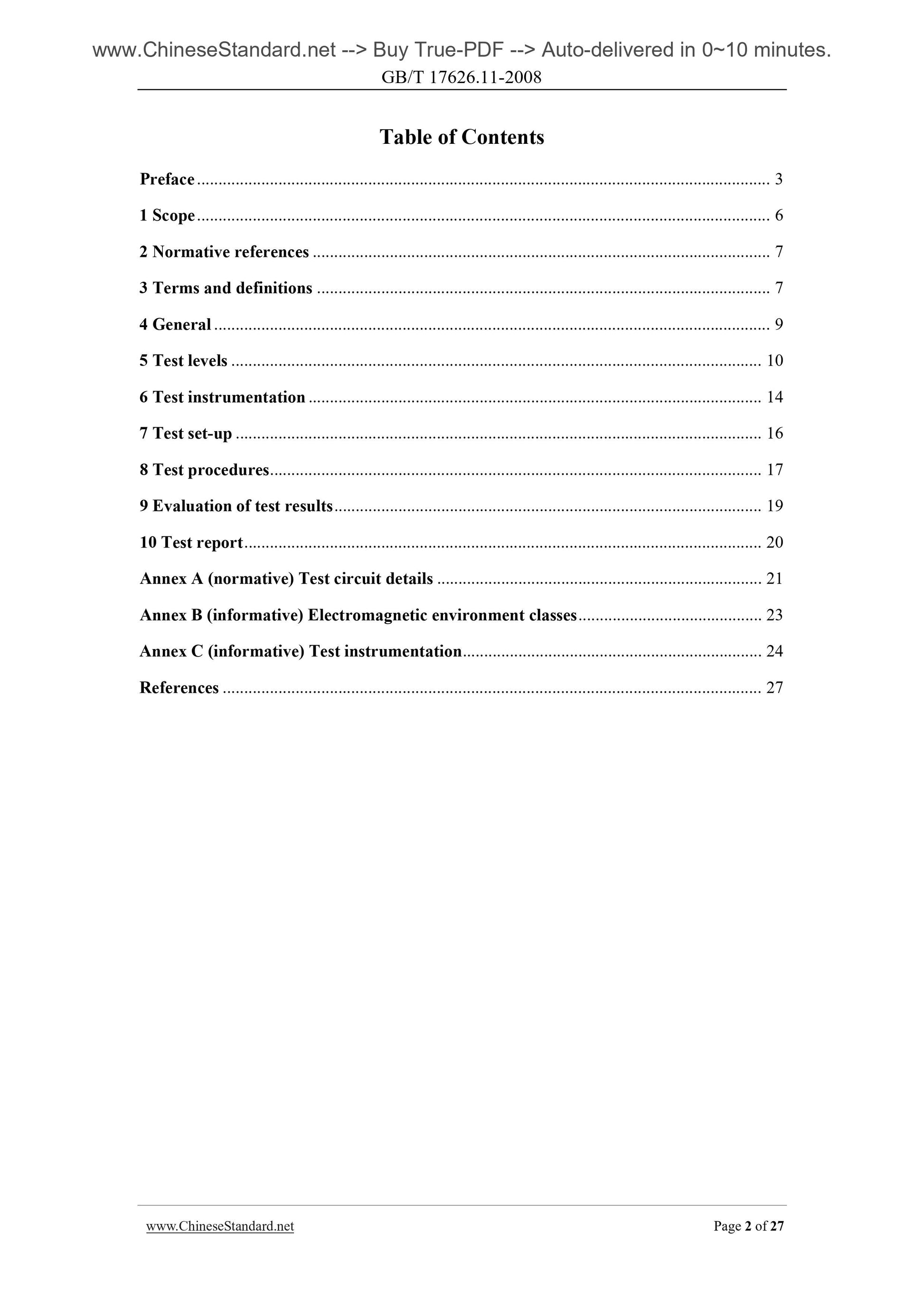

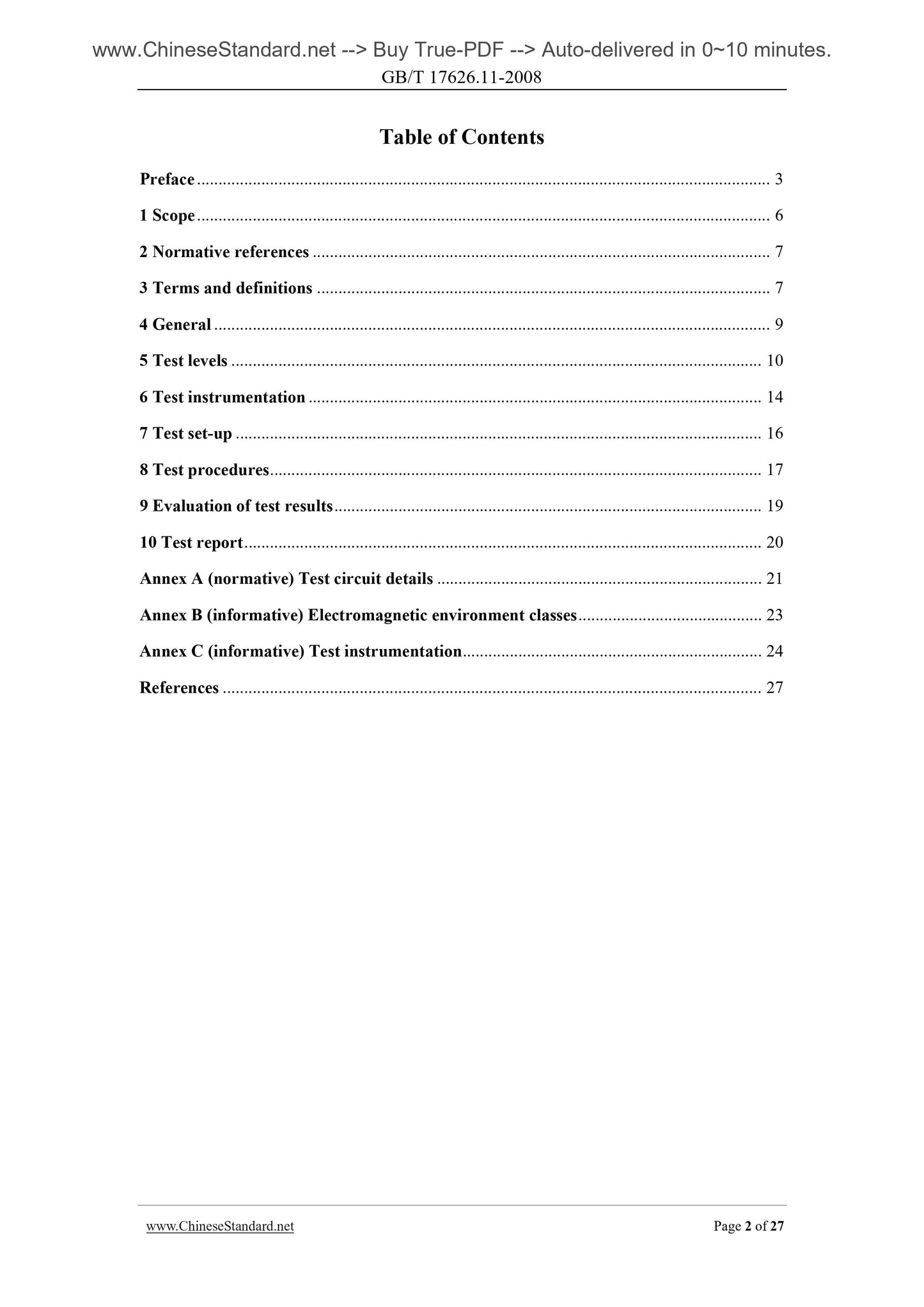

Table of Contents
Preface ... 3
1 Scope ... 6
2 Normative references ... 7
3 Terms and definitions ... 7
4 General ... 9
5 Test levels ... 10
6 Test instrumentation ... 14
7 Test set-up ... 16
8 Test procedures ... 17
9 Evaluation of test results ... 19
10 Test report ... 20
Annex A (normative) Test circuit details ... 21
Annex B (informative) Electromagnetic environment classes ... 23
Annex C (informative) Test instrumentation ... 24
References ... 27

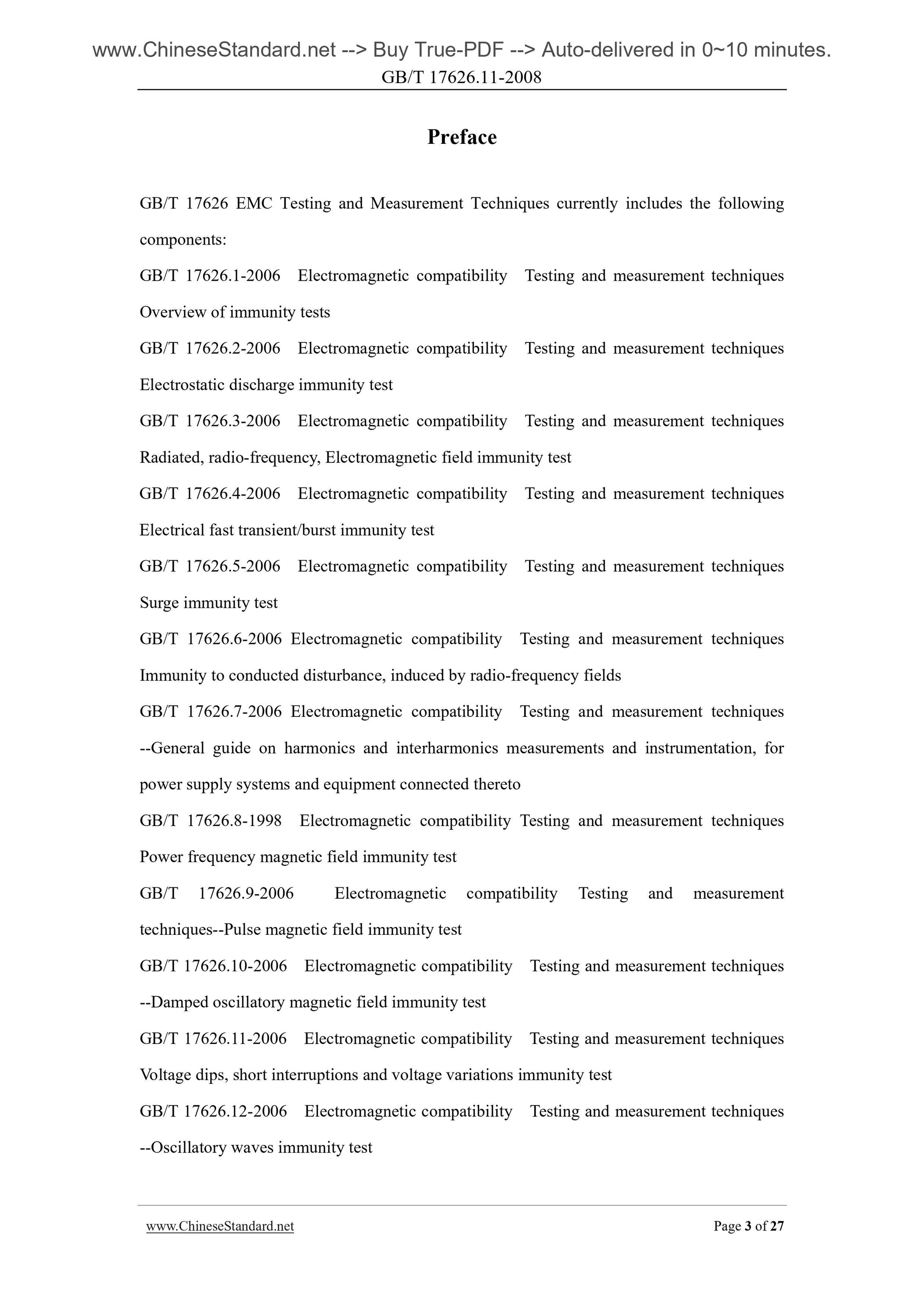

Preface
GB/T 17626 EMC Testing and Measurement Techniques currently includes the following components.
GB/T 17626.1-2006 Electromagnetic compatibility Testing and measurement techniques Overview of immunity tests
GB/T 17626.2-2006 Electromagnetic compatibility Testing and measurement techniques Electrostatic discharge immunity test
GB/T 17626.3-2006 Electromagnetic compatibility Testing and measurement techniques Radiated, radio-frequency, Electromagnetic field immunity test
GB/T 17626.4-2006 Electromagnetic compatibility Testing and measurement techniques Electrical fast transient/burst immunity test
GB/T 17626.5-2006 Electromagnetic compatibility Testing and measurement techniques Surge immunity test
GB/T 17626.6-2006 Electromagnetic compatibility Testing and measurement techniques Immunity to conducted disturbance, induced by radio-frequency fields
GB/T 17626.7-2006 Electromagnetic compatibility Testing and measurement techniques --General guide on harmonics and interharmonics measurements and instrumentation, for power supply systems and equipment connected thereto
GB/T 17626.8-1998 Electromagnetic compatibility Testing and measurement techniques Power frequency magnetic field immunity test
GB/T 17626.9-2006 Electromagnetic compatibility Testing and measurement techniques--Pulse magnetic field immunity test
GB/T 17626.10-2006 Electromagnetic compatibility Testing and measurement techniques --Damped oscillatory magnetic field immunity test
GB/T 17626.11-2006 Electromagnetic compatibility Testing and measurement techniques Voltage dips, short interruptions and voltage variations immunity test
GB/T 17626.12-2006 Electromagnetic compatibility Testing and measurement techniques --Oscillatory waves immunity test

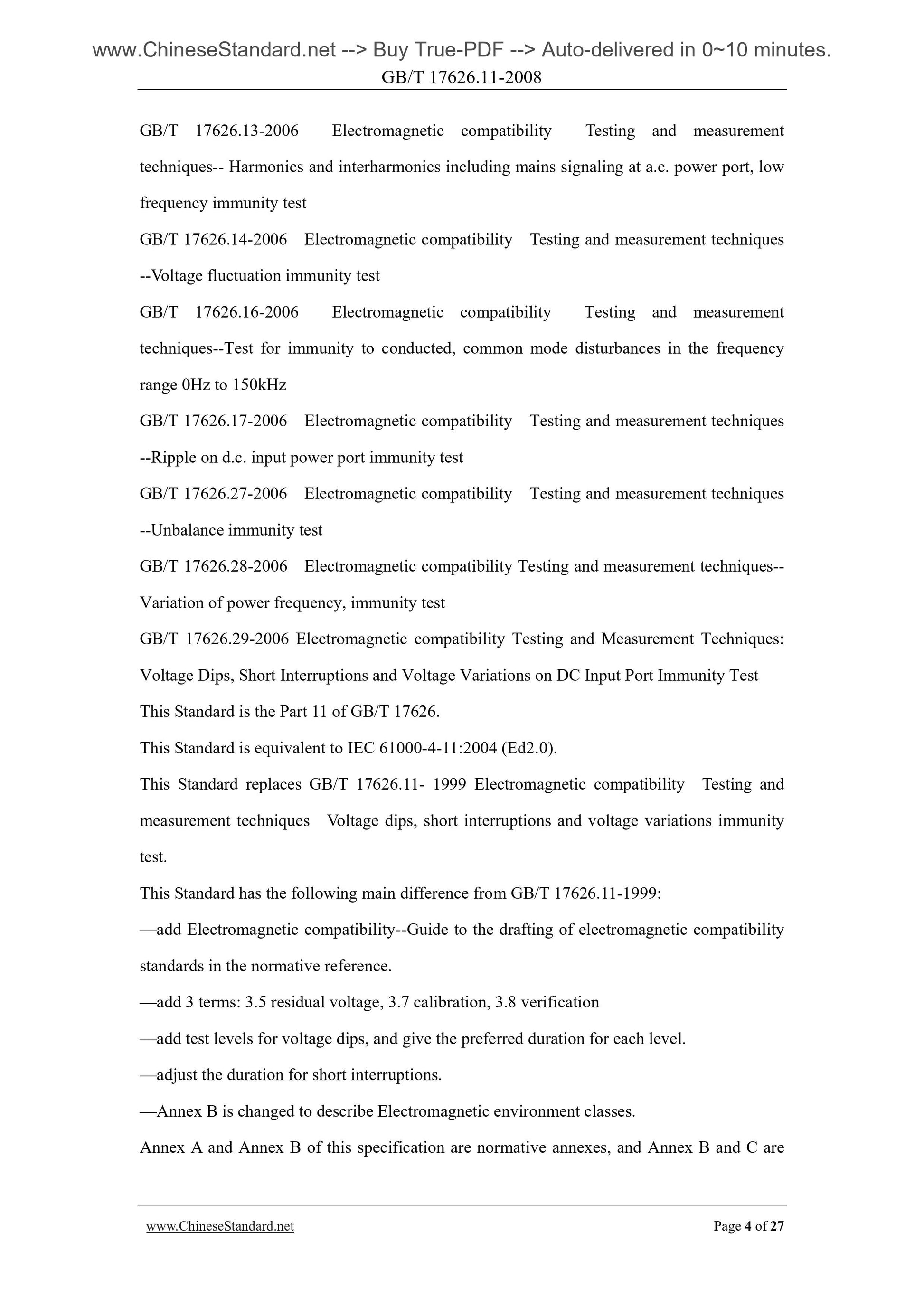

GB/T 17626.13-2006 Electromagnetic compatibility Testing and measurement techniques-- Harmonics and interharmonics including mains signaling at a.c. power port, low frequency immunity test
GB/T 17626.14-2006 Electromagnetic compatibility Testing and measurement techniques --Voltage fluctuation immunity test
GB/T 17626.16-2006 Electromagnetic compatibility Testing and measurement techniques--Test for immunity to conducted, common mode disturbances in the frequency range 0Hz to 150kHz
GB/T 17626.17-2006 Electromagnetic compatibility Testing and measurement techniques --Ripple on d.c. input power port immunity test
GB/T 17626.27-2006 Electromagnetic compatibility Testing and measurement techniques --Unbalance immunity test
GB/T 17626.28-2006 Electromagnetic compatibility Testing and measurement techniques-- Variation of power frequency, immunity test
GB/T 17626.29-2006 Electromagnetic compatibility Testing and Measurement Techniques. Voltage Dips, Short Interruptions and Voltage Variations on DC Input Port Immunity Test This Standard is the Part 11 of GB/T 17626.
This Standard is equivalent to IEC 61000-4-11.2004 (Ed2.0).
This Standard replaces GB/T 17626.11- 1999 Electromagnetic compatibility Testing and measurement techniques Voltage dips, short interruptions and voltage variations immunity test.
This Standard has the following main difference from GB/T 17626.11-1999. —add Electromagnetic compatibility--Guide to the drafting of electromagnetic compatibility standards in the normative reference.
—add 3 terms. 3.5 residual voltage, 3.7 calibration, 3.8 verification
—add test levels for voltage dips, and give the preferred duration for each level. —adjust the duration for short interruptions.
—Annex B is changed to describe Electromagnetic environment classes.
Annex A and Annex B of this specification are normative annexes, and Annex B and C are informative annex.

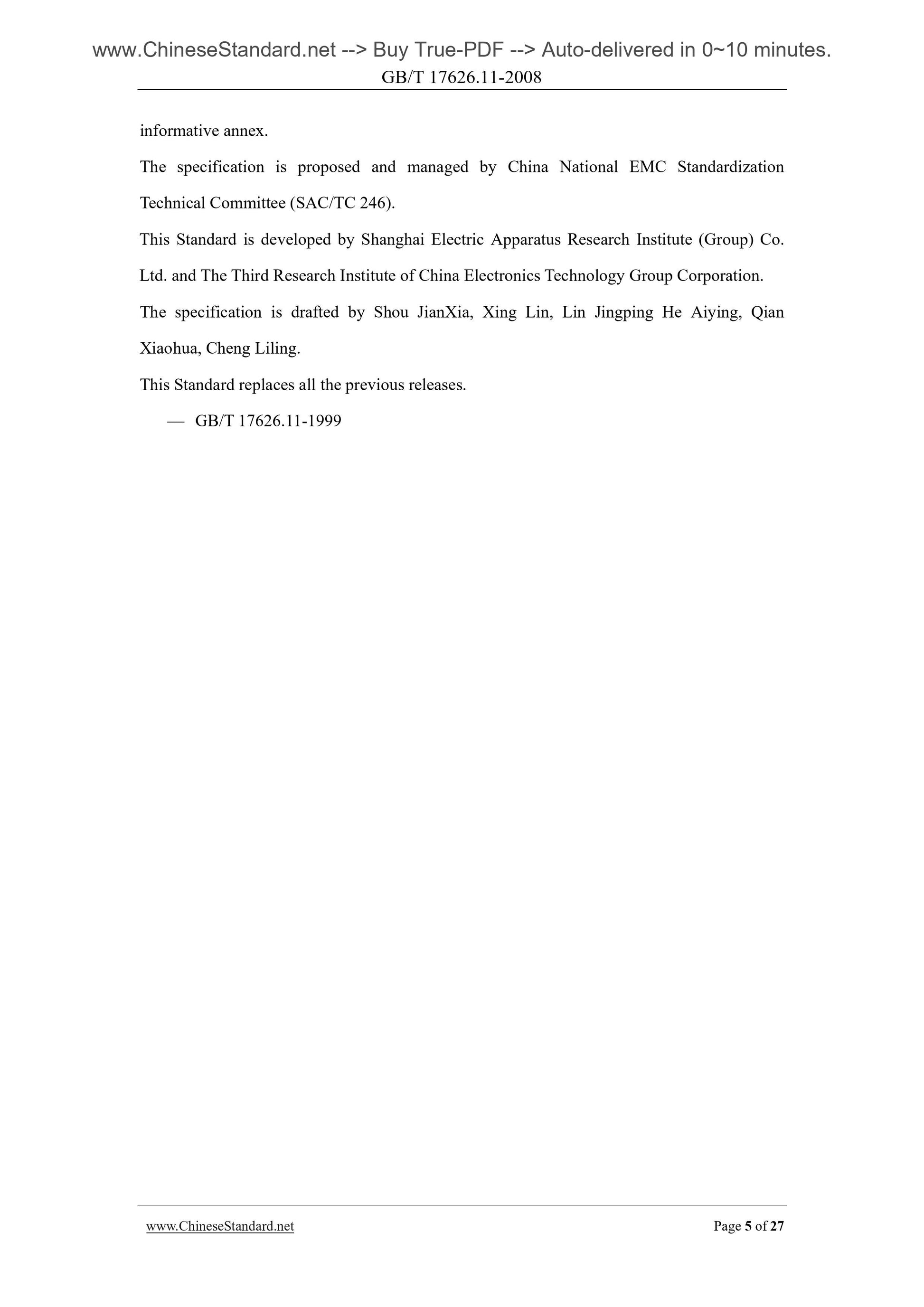

The specification is proposed and managed by China National EMC Standardization Technical Committee (SAC/TC 246).
This Standard is developed by Shanghai Electric Apparatus Research Institute (Group) Co. Ltd. and The Third Research Institute of China Electronics Technology Group Corporation. The specification is drafted by Shou JianXia, Xing Lin, Lin Jingping He Aiying, Qian Xiaohua, Cheng Liling.
This Standard replaces all the previous releases.
— GB/T 17626.11-1999
Electromagnetic compatibility –
Testing and measurement techniques –
Voltage dips, short interruptions and voltage variations
immunity tests

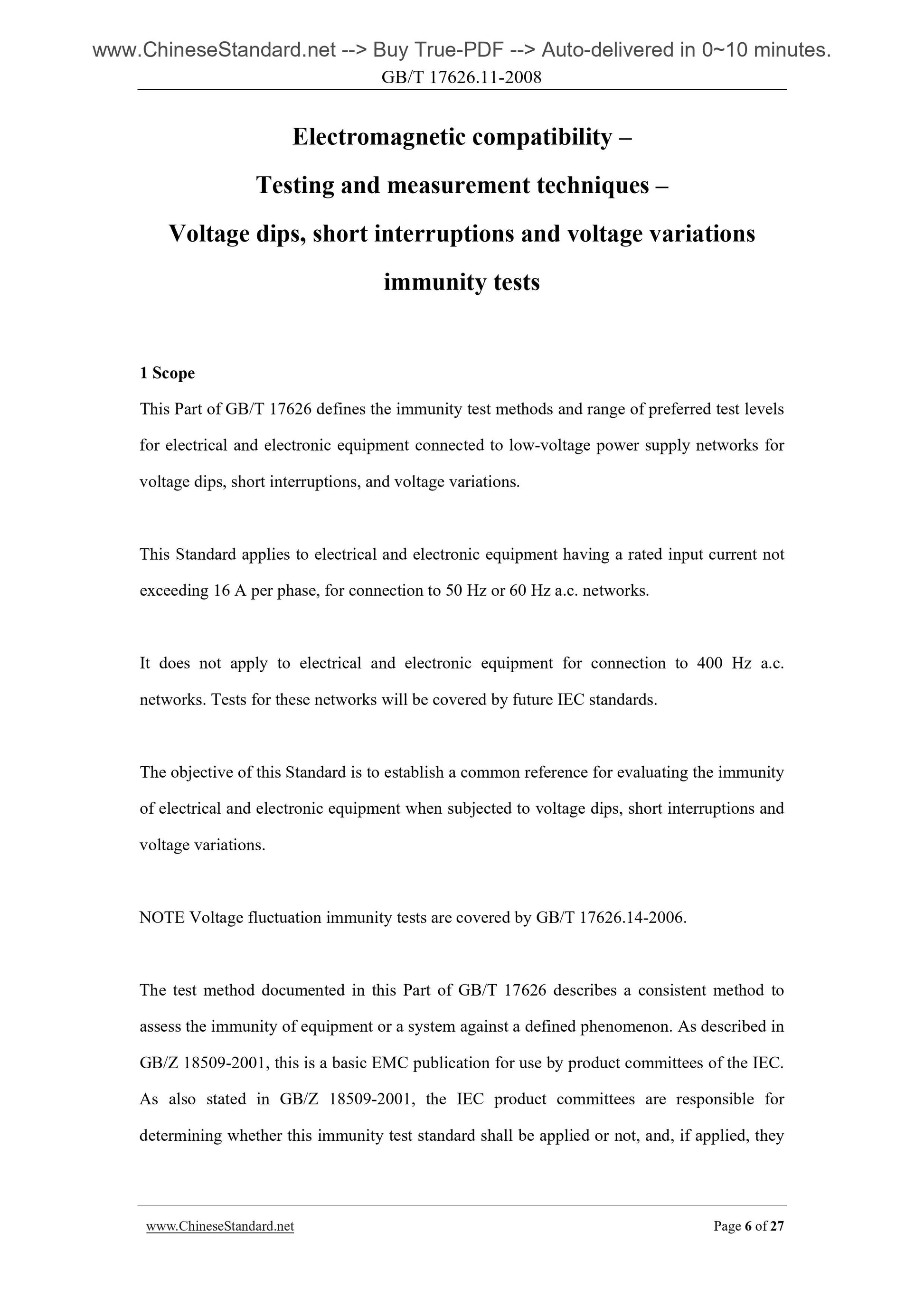

1 Scope
This Part of GB/T 17626 defines the immunity test methods and range of preferred test levels for electrical and electronic equipment connected to low-voltage power supply networks for voltage dips, short interruptions, and voltage variations.
This Standard applies to electrical and electronic equipment having a rated input current not exceeding 16 A per phase, for connection to 50 Hz or 60 Hz a.c. networks. It does not apply to electrical and electronic equipment for connection to 400 Hz a.c. networks. Tests for these networks will be covered by future IEC standards. The objective of this Standard is to establish a common reference for evaluating the immunity of electrical and electronic equipment when subjected to voltage dips, short interruptions and voltage variations.
NOTE Voltage fluctuation immunity tests are covered by GB/T 17626.14-2006. The test method documented in this Part of GB/T 17626 describes a consistent method to assess the immunity of equipment or a system against a defined phenomenon. As described in GB/Z 18509-2001, this is a basic EMC publication for use by product committees of the IEC. As also stated in GB/Z 18509-2001, the IEC product committees are responsible for determining whether this immunity test standard shall be applied or not, and, if applied, they are responsible for defining the appropriate test levels. The EMC Standardization Technical committee and its sub-committees are prepared to co-operate with product committees in the evaluation of the value of particular immunity tests for their products. 2 Normative references

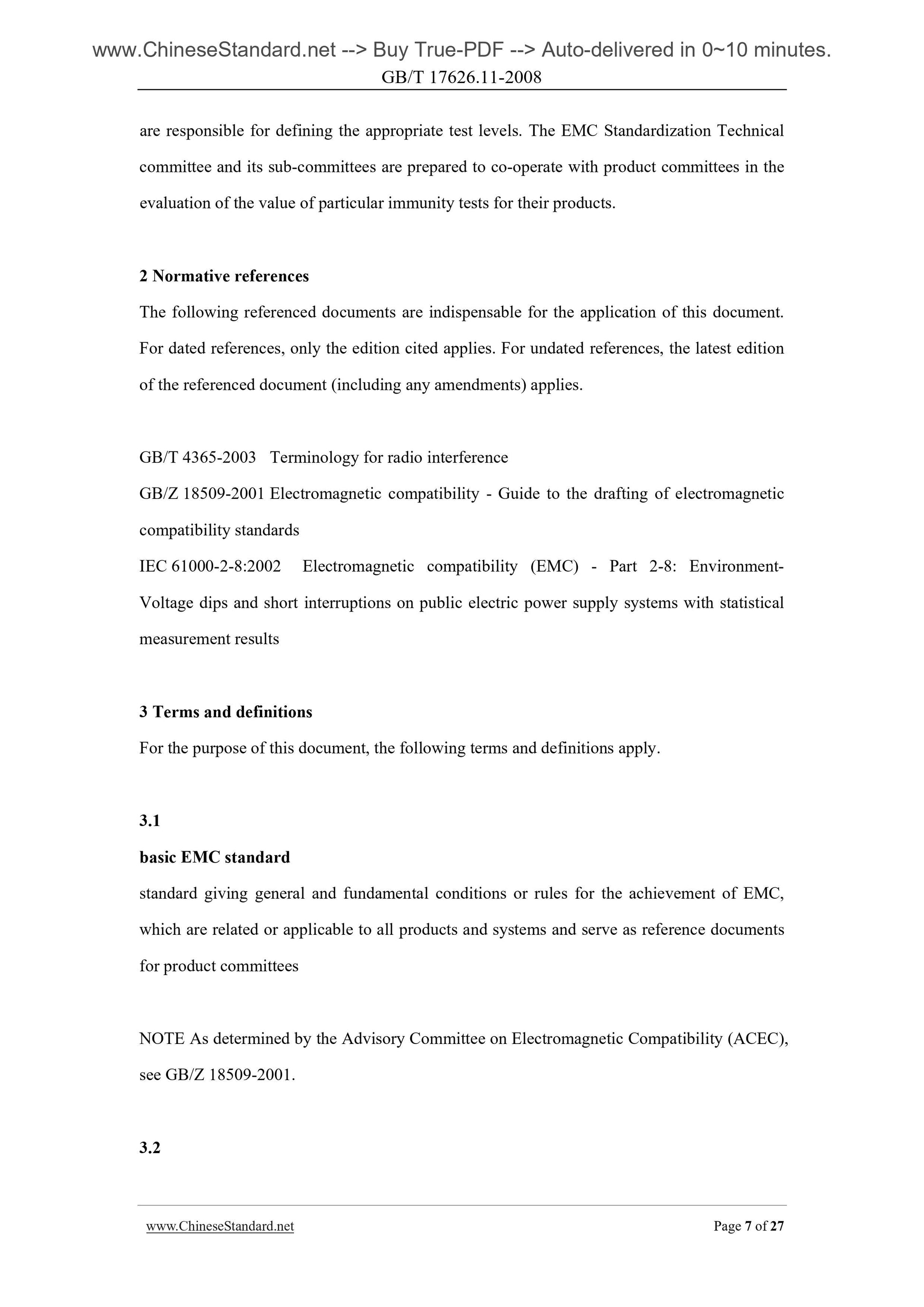

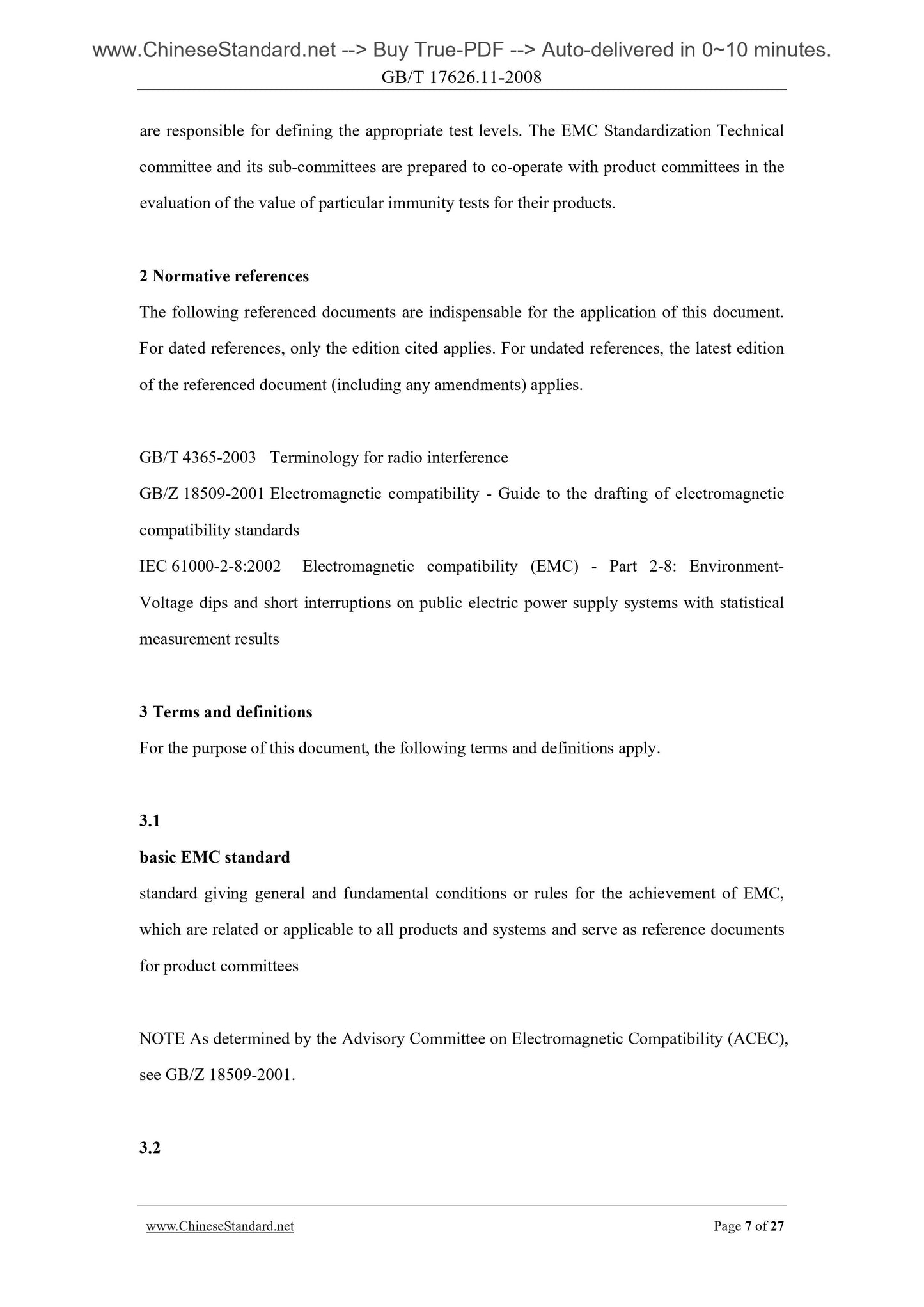

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 4365-2003 Terminology for radio interference
GB/Z 18509-2001 Electromagnetic compatibility - Guide to the drafting of electromagnetic compatibility standards
IEC 61000-2-8.2002 Electromagnetic compatibility (EMC) - Part 2-8. Environment- Voltage dips and short interruptions on public electric power supply systems with statistical measurement results
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply. 3.1
basic EMC standard
standard giving general and fundamental conditions or rules for the achievement of EMC, which are related or applicable to all products and systems and serve as reference documents for product committees
NOTE As determined by the Advisory Committee on Electromagnetic Compatibility (ACEC), see GB/Z 18509-2001.
3.2

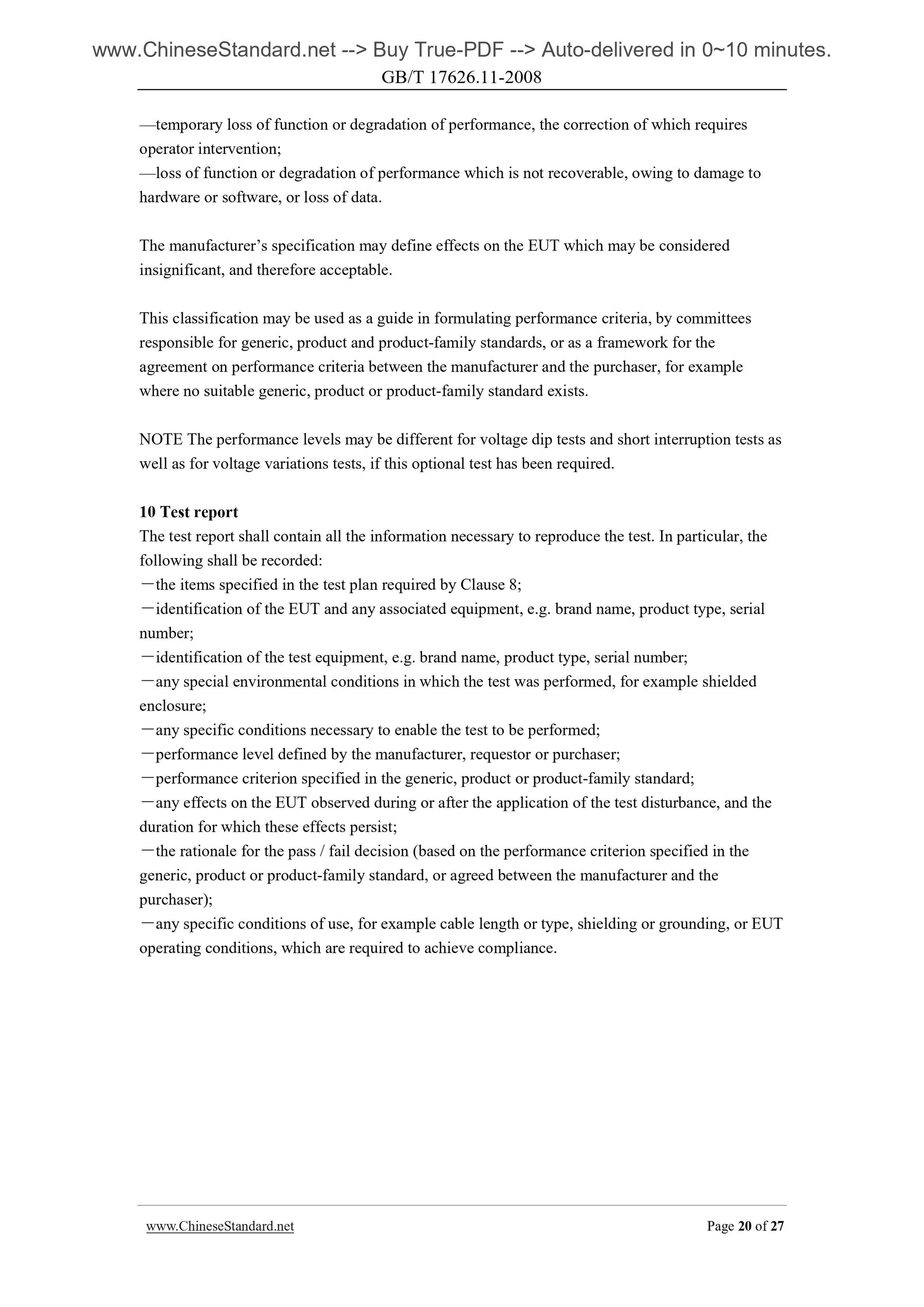

—temporary loss of function or degradation of performance, the correction of which requires operator intervention;
—loss of function or degradation of performance which is not recoverable, owing to damage to hardware or software, or loss of data.
T...
