GB/T 17625.8-2015: Electromagnetic compatibility -- Limits -- Limits for harmonic currents produced by equipment connected to public low-voltage systems with input current 16 A and 75 A per phase

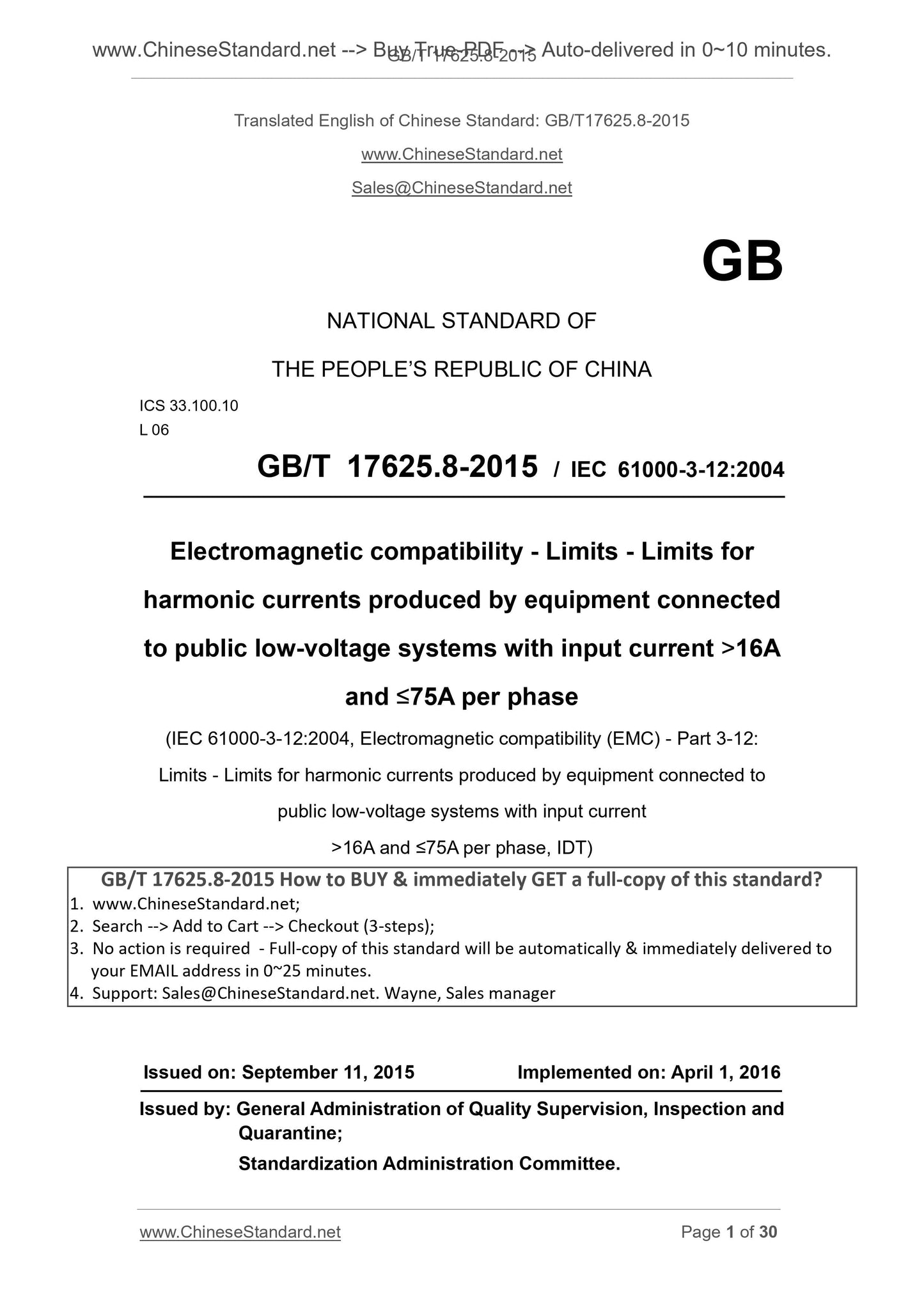

GB/T 17625.8-2015
Electromagnetic compatibility - Limits - Limits for harmonic currents produced by equipment connected to public low-voltage systems with input current> 16 A and ≤75 A per phase ICS 33.100.10
L06
National Standards of People's Republic of China
Electromagnetic compatibility limits input current is greater than each 16A 75A or less connected to the public low
System equipment generates harmonic current limits
inputcurrent> 16Aand≤75Aperphase
(IEC 61000-3-12.2004, Electromagneticcompatibility (EMC) -
Part 3-12. Limits-Limitsforharmoniccurrentsproducedbyequipment
> 16Aand≤75Aperphase, IDT)
Issued on. 2016-04-01 2015-09-11 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

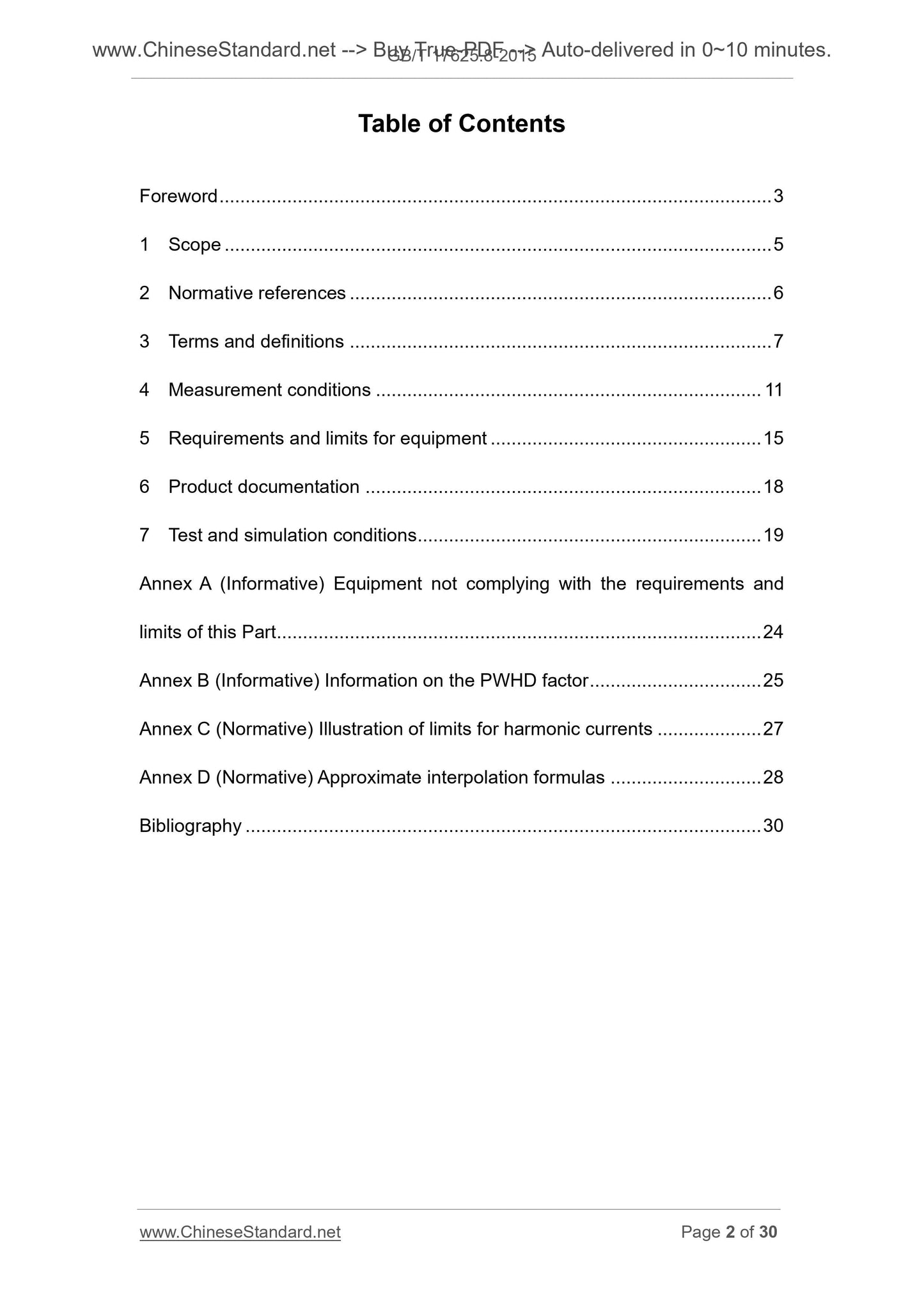

Table of Contents
Introduction Ⅲ
1 Scope 1
2 Normative references 1
3 Terms and definitions 2
4 Measurement Condition 5
4.1 fundamental reference current 5
Harmonic current measuring 4.2 5
4.3 equipment consists of several components composed of 7
5 equipment requirements and limits 7
7 5.1 Control Method
5.2 emission limits 7
6 product documentation 9
7 10 test and simulation conditions
7.1 Overview 10
7.2 Direct measurement requirements 10
7.3 simulation requirements 11
7.4 Test and simulation General Conditions 11
Devices Appendix A (informative) This section does not comply with the limits and requirements 12 Annex B (informative) Information about PWHD 13
Annex C (normative) harmonic current limits Notes 14
Annex D (normative) approximate interpolation formula 15
References 17
Foreword

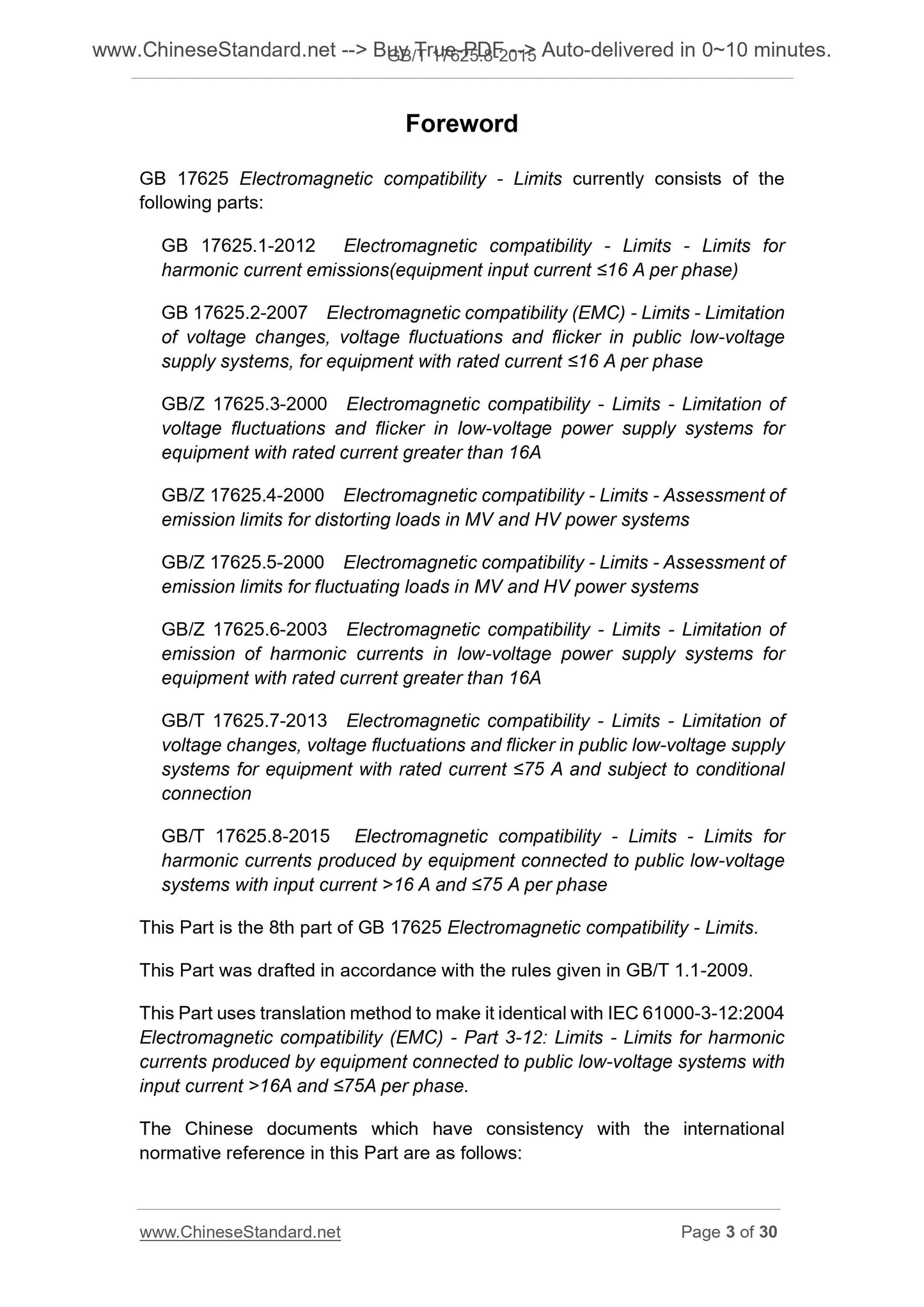

GB 17625 "EMC limits" currently includes the following components.
GB 17625.1-2012 Electromagnetic compatibility - Limits for harmonic current emissions (equipment input current ≤16A) GB 17625.2-2007 Electromagnetic compatibility limits of the rated current per phase ≤16A and unconditional access to public low-voltage equipment Limit voltage generated in the power supply system, voltage fluctuations and flicker GB /Z17625.3-2000 electromagnetic compatibility limits rated current greater than 16A for equipment in low-voltage power supply system Limiting the voltage fluctuations and flicker
GB /Z17625.4-2000 Electromagnetic compatibility Limits high voltage power system to assess load emission limits for distorting GB /Z17625.5-2000 Electromagnetic compatibility Limits high voltage power system to assess load fluctuation of emission limits GB /Z17625.6-2003 electromagnetic compatibility limits rated current greater than 16A for equipment in low-voltage power supply system Harmonic current limitation
Equipment GB/T 17625.7-2013 Electromagnetic compatibility limits of the rated current ≤75A and conditional access in public low-voltage supply Limit voltage electricity generated in the system, voltage fluctuations and flicker Pressure system equipment with harmonic current limits
This section GB 17625 "Electromagnetic Compatibility Limits" in Section 8. This section drafted in accordance with GB/T 1.1-2009 given rules.
This section uses the translation method identical with IEC 61000-3-12.2004 "Electromagnetic compatibility (EMC) - Part 3-12. Limits of each phase output The current is greater than 16A 75A or less connected to the public low-voltage device system harmonics generated by current limit. " Consistency correspondence between this part of international documents and normative references of our files are as follows. --- GB/T 156-2007 standard voltage (IEC 60038.2002, MOD)

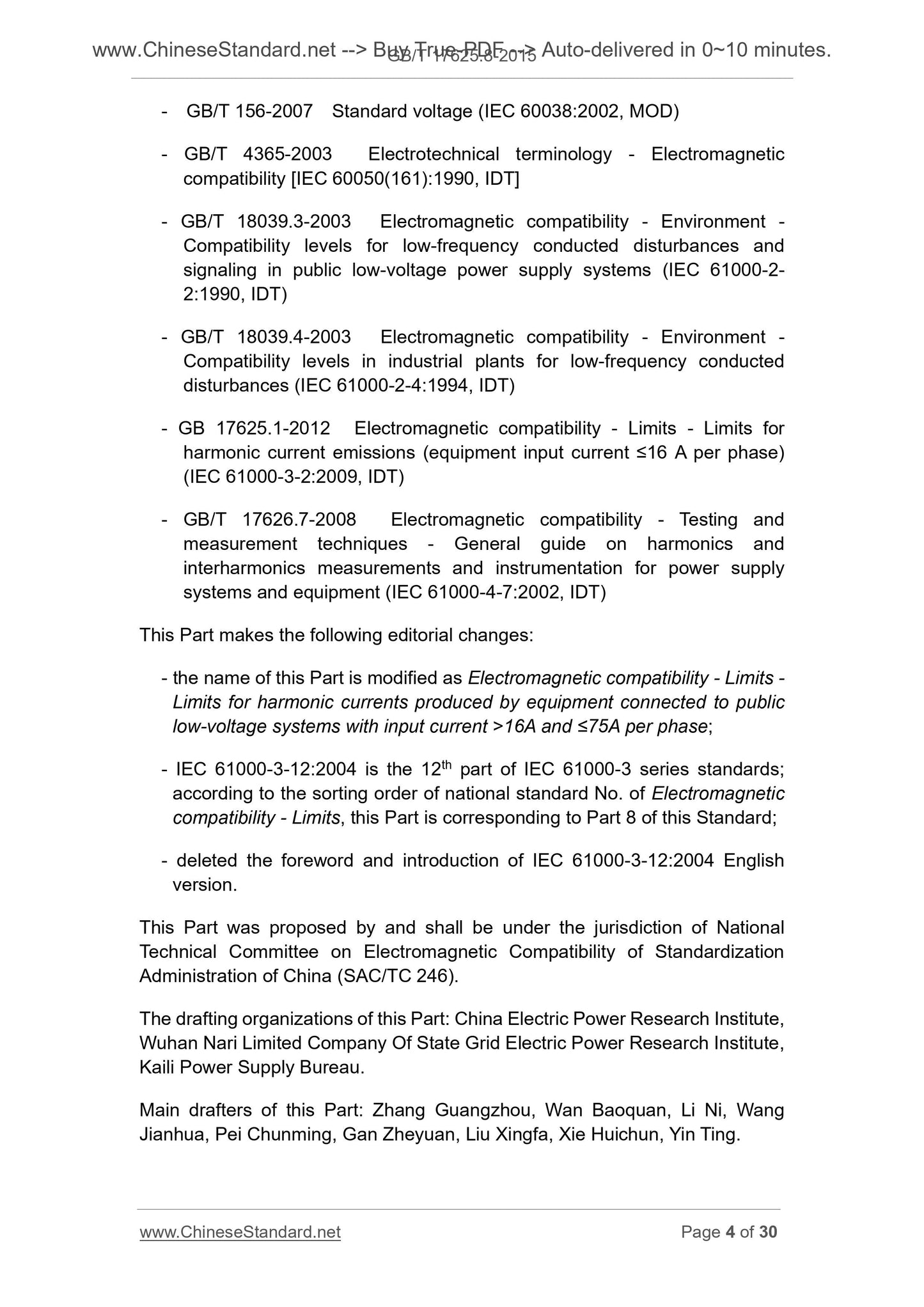

--- GB/T 4365-2003 Electrotechnical terminology Electromagnetic compatibility [IEC 60050 (161).1990, IDT] --- GB/T 18039.3-2003 electromagnetic compatibility environment utility voltage power supply system frequency conducted disturbances and signaling and Tolerance level (IEC 61000-2-2.1990, IDT)
--- GB/T 18039.4-2003 electromagnetic compatibility environment facility frequency conducted disturbances compatibility level (IEC 61000-2-4. 1994, IDT)
--- GB 17625.1-2012 Electromagnetic compatibility - Limits for harmonic current emissions (equipment input current ≤16A) (IEC 61000-3-2.2009, IDT)
--- Test GB/T 17626.7-2008 Electromagnetic compatibility - Testing and measurement techniques - power supply systems and equipment connected harmonics, interharmonics Quantity measuring instruments and guidelines (IEC 61000-4-7.2002, IDT) This section makes the following editorial changes.
The standard name --- this section be changed to "Electromagnetic compatibility limits the input current is greater than 16A per phase 75A or less connected to the public Equipment produced by a low pressure system harmonic current limits ";
--- IEC 61000-3-12.2004 IEC 61000-3 series of standards to Part 12, according to an "EMC limits" Country Number of sort criteria, this part of the standard Part 8 pairs should be; --- Deleted IEC 61000-3-12.2004 English original foreword and introduction. Electromagnetic Compatibility This part of the National Standardization Technical Committee (SAC/TC246) and focal points. This section drafted by. China Electric Power Research Institute, State Grid Electric Power Research Institute, Wuhan NARI limited liability company, Carey Power Supply Bureau. The main drafters of this section. Zhang Guangzhou, Wan Baoquan, Li Ni, Wang Jianhua, Pei Chunming, dry Zhe Yuan, Xing hair, Xiehui Chun, Yin-ting. Electromagnetic compatibility limits input current is greater than each 16A 75A or less connected to the public low
System equipment generates harmonic current limits

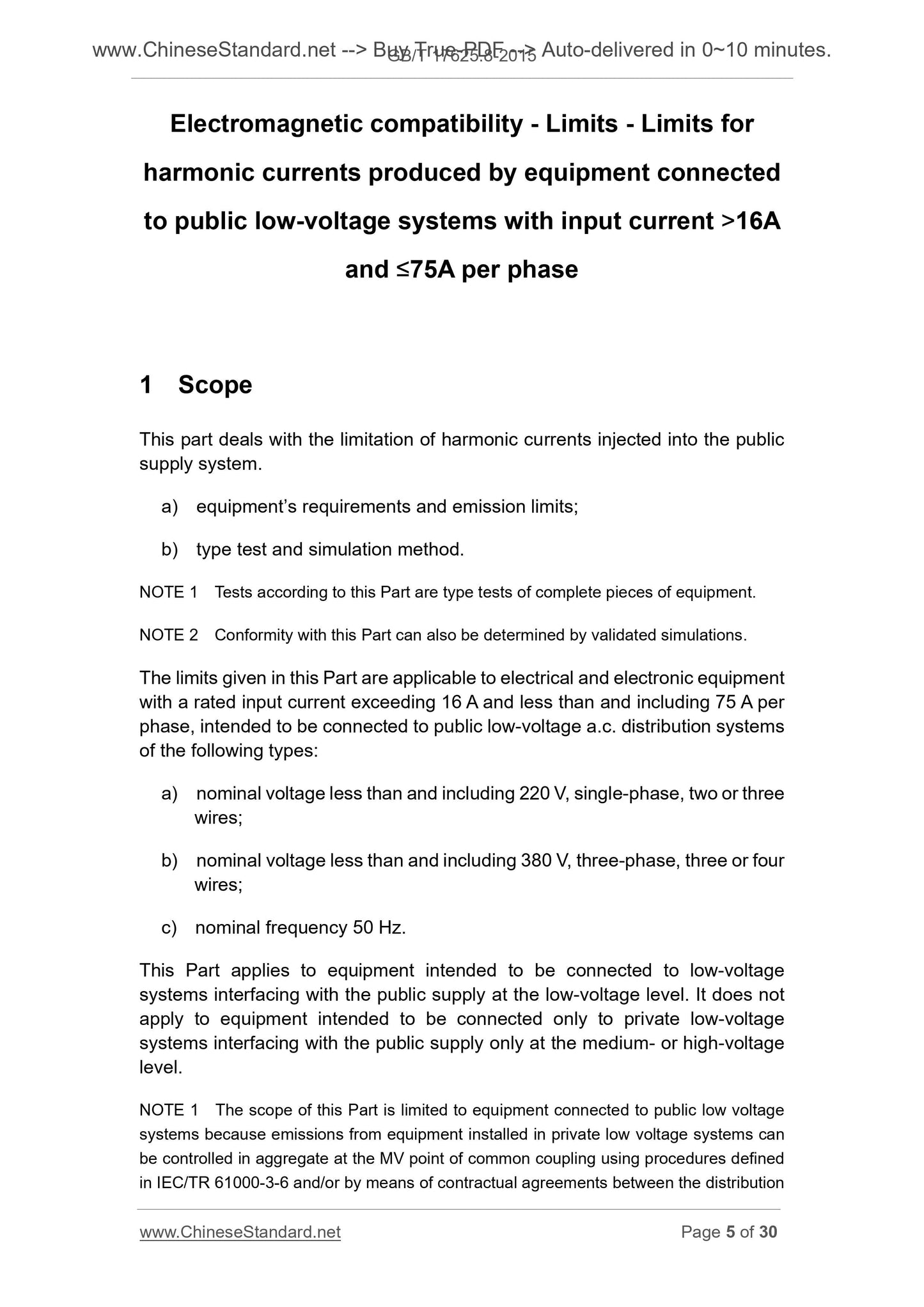

1 Scope
This section refers to the injection of public power supply system harmonic current limits. A) requirements and emission limits for equipment.
b) type testing and simulation methods.
Note 1. According to the test in this section is a complete one-piece type test equipment. Note 2. This section Compliance may also be verified simulation methods to determine. This section applies to every phase rated current greater than 16A, less electrical and electronic equipment 75A of these devices intended to access the following classes Type of public low-voltage AC power distribution network.
a) The nominal voltage of 220V and below, single-phase, two-wire or three-wire system. b) The nominal voltage of 380V and below, three-phase, three-wire or four-wire system. c) the nominal frequency of 50Hz.
This section applies to the low-pressure access device intended public system. Does not apply to the proposed access only to medium or high voltage power supply system connected to the public Devices on its own low-voltage systems.
Note 1. The scope of this section is defined in the device and connected to public low-voltage systems, since launching its own low-voltage systems installed in the device, can be pressed in the common coupling Point with the program IEC /T R61000-3-6 regulations, and/or controlled by the overall agreement between the user and the electricity sector. It expects its own system Operators in ensuring EMC management environment meet the requirements of IEC /T R61000-3-6 and/or contractual agreements manner. Note 2. If the device only access to its own system, the manufacturer should be indicated in the product documentation. Note 3. The input current of less than 16A per IEC 61000-3-2, but does not meet the standards set forth in the limits and requirements of professional equipment, every input current This section requires more than 16A and the equipment does not meet the limits, may allow connection to a particular type of low-voltage power supply system, see Appendix A. Note 4. This section limits do not apply to independent harmonic filters. Limits given in this section (see Chapter 5) adapted to be connected to a 220/380V, 50Hz system equipment connected to other distribution systems The device is not included in this range.
NOTE. The limits applicable to other systems will increase in this part of the other editions in the future. 2 Normative references
The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. IEC 60038 IEC standard voltage (IEC standardvoltages)
IEC 60050-161 International Electrotechnical Vocabulary (IEV) Chapter 161. Electromagnetic compatibility [InternationalElectrotechnicalVocab- ulary (IEV) -Chapter161. Electromagneticcompatibility]
IEC 61000-2-2 Electromagnetic compatibility (EMC) - Part 2-2. Environmental Public voltage power supply system frequency conducted disturbances and signaling Level compatible lose [Electromagneticcompatibility (EMC) -Part 2-2. Environment-Compatibilitylevels forlow-frequencyconducteddisturbancesandsignalinginpubliclow-voltagepowersupplysystems] IEC 61000-2-4 Electromagnetic compatibility (EMC) - Part 2-4. Environmental plant frequency conducted disturbances compatibility level [Electro- magneticcompatibility (EMC) -Part 2-4. Environment-Compatibilitylevelsinindustrialplantsfor low-frequencyconducteddisturbances]
IEC 61000-3-2 Electromagnetic compatibility (EMC) Part 3-2. Limits for harmonic current emissions (equipment input current ≤16A) [Electromagneticcompatibility (EMC) -Part 3-2. Limits-Limitsforharmoniccurrentemis- sions (equipmentinputcurrent≤16Aperphase]
IEC 61000-4-7 Electromagnetic compatibility (EMC) - Part 4-7. Testing and measurement techniques power supply systems and equipment connected harmonics, harmonic Measurements and instrumentation, wave guide between the [Electromagneticcompatibility (EMC) -Part 4-7. Testingand measurementtechniques-Generalguideonharmonicsandinterharmonicsmeasurementsandinstru- mentation, forpowersupplysystemsandequipmentconnectedthereto]
3 Terms and Definitions
IEC 60050 (161) defined by the following terms and definitions apply to this document. 3.1
THD totalharmonicdistortion
THD
Harmonic rms (In the n-th harmonic current) and its square ratio of the rms fundamental rms. THD = Σ
n = 2
In
I1
Note. According to IEC 61000-2-2 to select the definition.
3.2
Part weighted harmonic distortion partialweightedharmonicdistortion
PWHD
A set of valid values higher harmonics selected (from the beginning of the 14th harmonic) ratio of the fundamental RMS, weighted with the harmonic number n. PWHD = Σ
n = 14
nInI1
Using some weighted harmonic distortion, it is to ensure that reduce the impact of higher harmonic currents on the measurement results, and does not require every Harmonic prescribed limits.
3.3
Point of common coupling pointofcommoncoupling; PCC
Closest to the user, and other users can access or connection points on the public power supply system has access. 3.4
Single-phase equipment single-phaseequipment
A device connected to the phase and neutral line.
Note. Single-phase devices include those containing equipment connected to a single or multi-phase conductors and a neutral line between the load thereof. 3.5
White equipment interphaseequipment
Two-phase equipment connected between the lines.
Under normal operation, the neutral line is not as current carriers.
3.6
Three-phase equipment three-phaseequipment
And three-phase line connected devices.
Under normal operation, the neutral line is not as current carriers.
Note. all three phases to be connected with the phase and neutral, and the neutral line as a current carrier equipment, believed to be three separate single-phase equipment. 3.6.1
Three phase equipment balancedthree-phaseequipment
Device is connected to the three-phase three-phase power lines, and a three-wire (three phase) the same current amplitude and waveforms may be composed of any one of the other two phases are A relative phase shift of the fundamental period of 1/3 obtained.
3.6.2
Unbalanced equipment unbalancedthree-phaseequipment
Device is connected to the three-phase three-phase power lines, and a three-wire (three-phase) current amplitude and waveform are not the same, or that between any two phases A phase difference is not equal to the fundamental period of 1/3.
3.7
Mixing equipment hybridequipment
Device between phase and neutral or phase consisting of a balanced three-phase load and one or more load connection. 3.8
Short circuit capacity short-circuitpower
Ssc
Three-phase short-circuit capacity of the system by the nominal voltage at the PCC Unominal and line impedance Z is calculated. Ssc = U2nominal/Z
Where.
Z --- frequency under the system impedance.
3.9
The rated apparent power ratedapparentpoweroftheequipment
Sequ
Rated current rms Iequ equipment with rated voltage specified by the manufacturer's Up (single-phase) or Ui (phase) value calculated. a) Sequ = UpIequ (single-phase and single-phase equipment part mixing equipment). b) Sequ = UiIequ (white device).
c) Sequ = 3UiIequ (part of a three-phase three phase equipment and mixing equipment). d) Sequ = 3UpIequmax (Unbalanced equipment, Iequmax flowing through the three phases of any one phase current RMS maximum). On voltage, Up or Ui is based on IEC 60038 nominal system voltage value (such as single-phase equipment for 220V, three-phase equipment to 380V). 3.10
Short circuit than short-circuitratio
Rsce
Eigenvalues define a single device as follows.
a) Rsce = Ssc/(3Sequ) (single-phase and single-phase equipment part mixing equipment). b) Rsce = Ssc/(2Sequ) (white device).
c) Rsce = Ssc/Sequ (three-phase and three-phase equipment part of all mixing equipment). Note 1. Rsce by the following formula directly with the known basic amount associated with. Rsce = U/(3 × Z × Iequ) (single-phase and single-phase equipment part mixing equipment). Rsce = U/(2 × Z × Iequ) (white devices).
Rsce = U/(3 × Z × Iequ) (part of a three-phase three phase equipment and mixing equipment). Rsce = U/(3 × Z × Iequmax) (Unbalanced equipment).
Where.
U = Unominal, assumed to be equal Ui or 3 × Up, both available.
Note 2. As defined Rsce and Rsc shown in IEC /T R61000-2-6 defined differently. Note 3. For a mixing device, method of calculating individual Rsce values given in 5.2. 3.11
Fundamental reference current referencefundamentalcurrent
I1
Rms fundamental component of the rated line current Iequ (see 4.1).
3.12
Total harmonic current totalharmoniccurrent
THC
Party 2 to 40 times harmonic current component rms values.
THC = Σ
n = 2
I2n
3.13
Standby mode stand-bymode
Sustainable indefinite period of time a non-running, low-power consumption mode (usually in some form is displayed on the device). Note. Sometimes referred to as sleep mode.
3.14
Associated with the fundamental phase voltage Up1 5th harmonic current (I5) phase angle phaseangleofI5relatedtothefundamental phasevoltageUp1
Figure 1 and Figure 2 to determine the phase angle of the 5th harmonic current. Definition 1 5th harmonic current phase angle diagram (I5 leading Up1, α5> 0) 2 5th harmonic current phase angle definition Figure (I5 lag Up1, α5 < 0) 3.15
Professional equipment professionalequipment
Specially designed by the manufacturer for trade, occupation or industry and is not ready for sale to the general public of the device. 4 Measurement Conditions
4.1 fundamental reference current
Defined as 3.11, the fundamental reference currents I1, can be measured or calculated by the following method. a) If you get the fundamental reference current by measuring the average of the measurements shall be in accordance with the provisions of 4.2.2 Methods of measurement of harmonic currents Processing. During the measurement of the fundamental reference current, the device shall be equal to the line current rms rated the maker Ming radio Flow Iequ.
b) If you get the fundamental reference current calculated using the following formula use Iequ rated line current is calculated. I1 =
Iequ
1 THD2
This fundamental reference current value shall be determined by the manufacturer and indicated in the test report, this value will be used in Tables 2 and 4, for determining Given harmonic current emission limits.
In accordance with provisions of this chapter, by transmitting the test, rather than the fundamental reference current value of the original manufacturer's conformity assessment test measured, not low 90% determined by the manufacturer in the test report the fundamental reference current value or higher than 110%. In the measured value exceeds the allowable range specified value Under the circumstances, it should be measured with reference to the fundamental current set limit. 4.2 Measurement of harmonic currents
The specified device harmonic current limit applies to all types of power connections and load line current. Ignore less than 1% of the fundamental reference current single harmonic currents. 4.2.1 Overview
The specified device harmonic current limit applies to all types of power connections and load line current. Less than 1% of the fundamental reference Ignore Current single harmonic currents.
4.2.2 measuring program
Measurement of harmonic currents shall be in accordance with the following steps. --- For each harmonic, measurement 1.5s smoothed harmonic currents valid for each discrete Fourier transform (DFT) time window Value, as stipulated in IEC 61000-4-7;
--- For each harmonic in the entire observation period specified in 4.2.7, calculate the arithmetic mean of the DFT time window measured values. Chapter 7 gives the measured or calculated harmonic current test conditions. 4.2.3 Repeatability
This is a measurement system verification test requirements, rather than the requirements for each product tested. Repeatability of the measurement should be better than.
--- ± 5% (applies to the fundamental and harmonic 7 and below);
--- ± 10% (applies to more than 7 times harmonic) or ± 1% of the fundamental reference current, whichever is greater, Need to meet the following conditions.
--- The same test equipment (EUT) (not the same type of another, even though they are similar); --- The same test conditions;
--- The same test system;
--- The same weather conditions (if relevant).
4.2.4 Start and Stop
When a device manually or automatically put into or out of operation, since switching from the original 10s or until fully invested since switching Or decommissioning process, no matter what situation a long time, not to consider harmonic currents. Time test device is in standby mode (see 3.13) should not exceed 10% in any one observation period. 4.2.5 Application limits
The entire test observation period, the average value of a single harmonic current should be less than or equal to Tables 2 to 4, the applicable limits. For each harmonic, harmonic current RMS all 1.5s 4.2.2 defined smoothed, should be less than or equal to the applicable limits 150%.
4.2.6 Test Report
The test report can be provided to the information according to the manufacturer's testing facility or the manufacturer's own test record file details. experiment report It should include all relevant test conditions, the test observation period and meet current standards require fundamental reference current. The test report shall include.
--- Rated line current Iequ;
--- Specify the fundamental reference current value I1;
--- For testing or calculated short circuit ratio;
--- Minimum short circuit ratio requirements;
--- Applicable d...
