GB/T 17213.16-2015: Industrial-process control valves -- Part 8-4: Noise considerations -- Prediction of noise generated by hydrodynamic flow

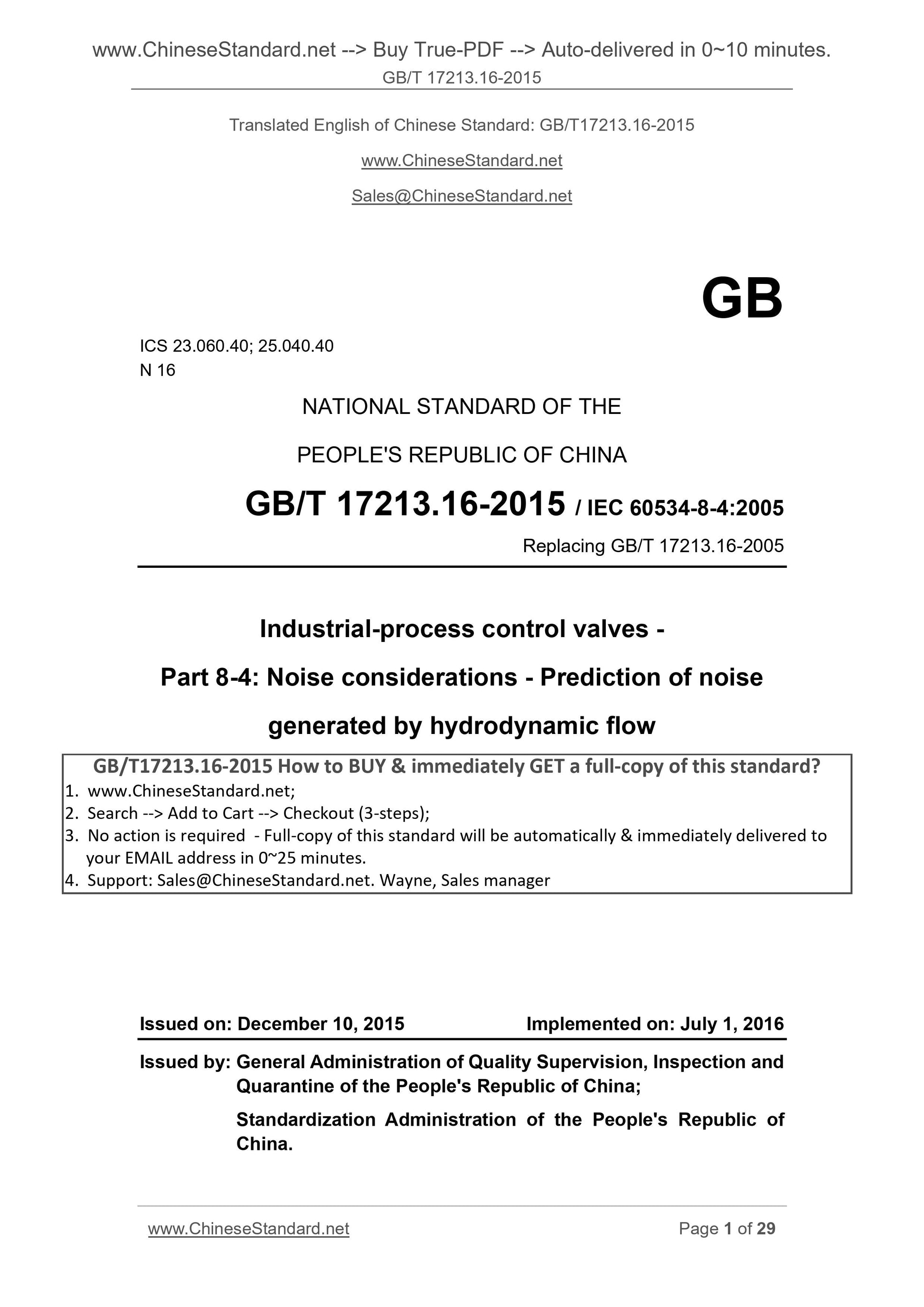

GB/T 17213.16-2015
GB
ICS 23.060.40; 25.040.40
N 16
NATIONAL STANDARD OF THE
PEOPLE'S REPUBLIC OF CHINA
GB/T 17213.16-2015 / IEC 60534-8-4.2005
Replacing GB/T 17213.16-2005
Industrial-process control valves -
Part 8-4. Noise considerations - Prediction of noise
generated by hydrodynamic flow
工业过程控制阀
(IEC 60534-8-4.2005, IDT)
ISSUED ON. DECEMBER 10, 2015
IMPLEMENTED ON. JULY 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

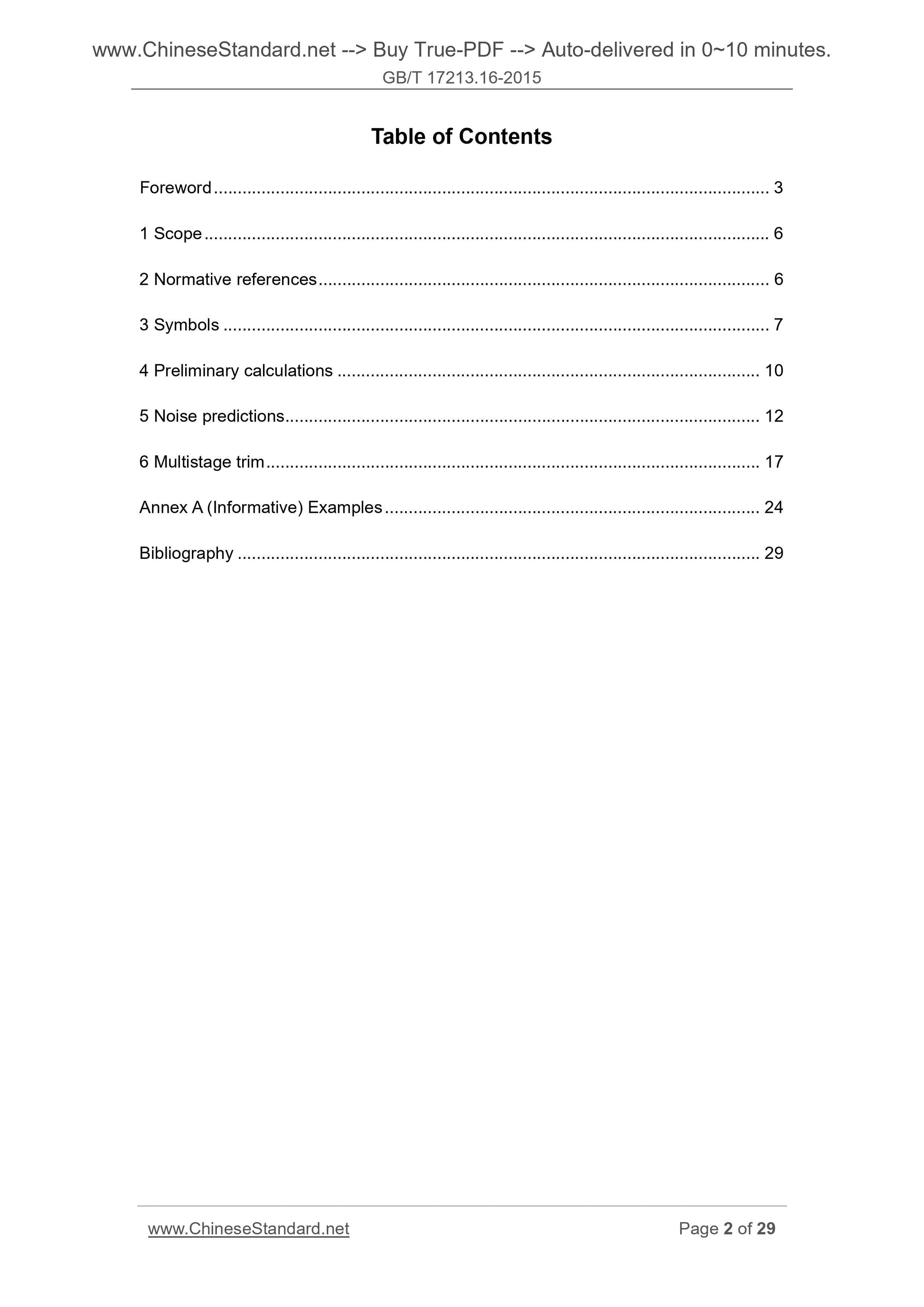

Table of Contents
Foreword ... 3
1 Scope ... 6
2 Normative references ... 6
3 Symbols ... 7
4 Preliminary calculations ... 10
5 Noise predictions ... 12
6 Multistage trim ... 17
Annex A (Informative) Examples ... 24
Bibliography ... 29

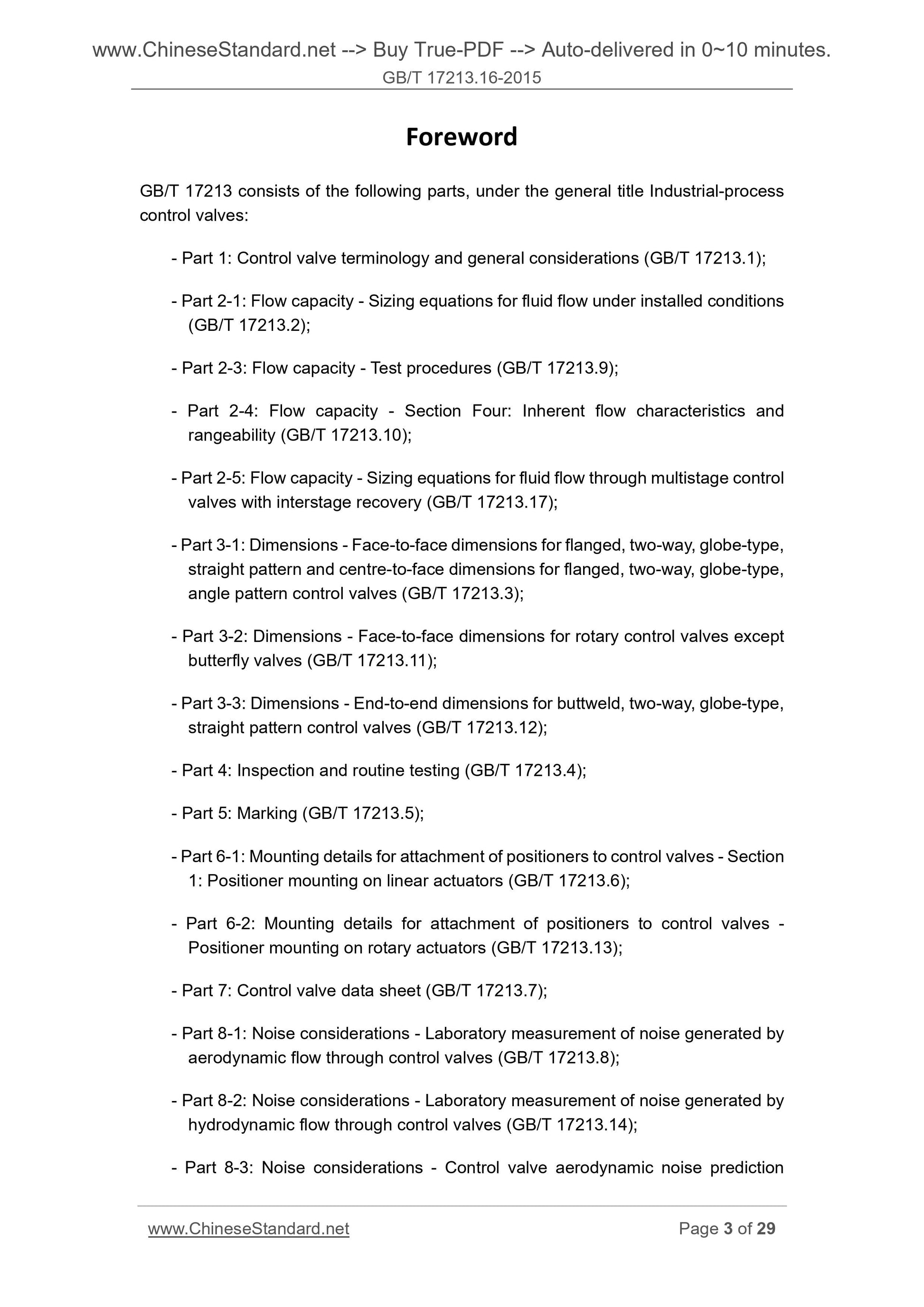

Foreword
GB/T 17213 consists of the following parts, under the general title Industrial-process control valves.
- Part 1. Control valve terminology and general considerations (GB/T 17213.1); - Part 2-1. Flow capacity - Sizing equations for fluid flow under installed conditions (GB/T 17213.2);
- Part 2-3. Flow capacity - Test procedures (GB/T 17213.9);
- Part 2-4. Flow capacity - Section Four. Inherent flow characteristics and rangeability (GB/T 17213.10);
- Part 2-5. Flow capacity - Sizing equations for fluid flow through multistage control valves with interstage recovery (GB/T 17213.17);
- Part 3-1. Dimensions - Face-to-face dimensions for flanged, two-way, globe-type, straight pattern and centre-to-face dimensions for flanged, two-way, globe-type, angle pattern control valves (GB/T 17213.3);
- Part 3-2. Dimensions - Face-to-face dimensions for rotary control valves except butterfly valves (GB/T 17213.11);
- Part 3-3. Dimensions - End-to-end dimensions for buttweld, two-way, globe-type, straight pattern control valves (GB/T 17213.12);
- Part 4. Inspection and routine testing (GB/T 17213.4);
- Part 5. Marking (GB/T 17213.5);
- Part 6-1. Mounting details for attachment of positioners to control valves - Section 1. Positioner mounting on linear actuators (GB/T 17213.6);
- Part 6-2. Mounting details for attachment of positioners to control valves - Positioner mounting on rotary actuators (GB/T 17213.13);
- Part 7. Control valve data sheet (GB/T 17213.7);
- Part 8-1. Noise considerations - Laboratory measurement of noise generated by aerodynamic flow through control valves (GB/T 17213.8);
- Part 8-2. Noise considerations - Laboratory measurement of noise generated by hydrodynamic flow through control valves (GB/T 17213.14);
- Part 8-3. Noise considerations - Control valve aerodynamic noise prediction terminology and general considerations (IEC 60534-1.2005, IDT)
- GB/T 17213.14-2005 Industrial-process control valves - Part 8-2. Noise considerations - Laboratory measurement of noise generated by hydrodynamic flow through control valves (IEC 60534-8-2.1991, IDT)
- GB/T 17213.15-2005 Industrial-process control valves - Part 8-3. Noise considerations - Control valve aerodynamic noise prediction method (IEC 60534-8-3.2000, IDT)

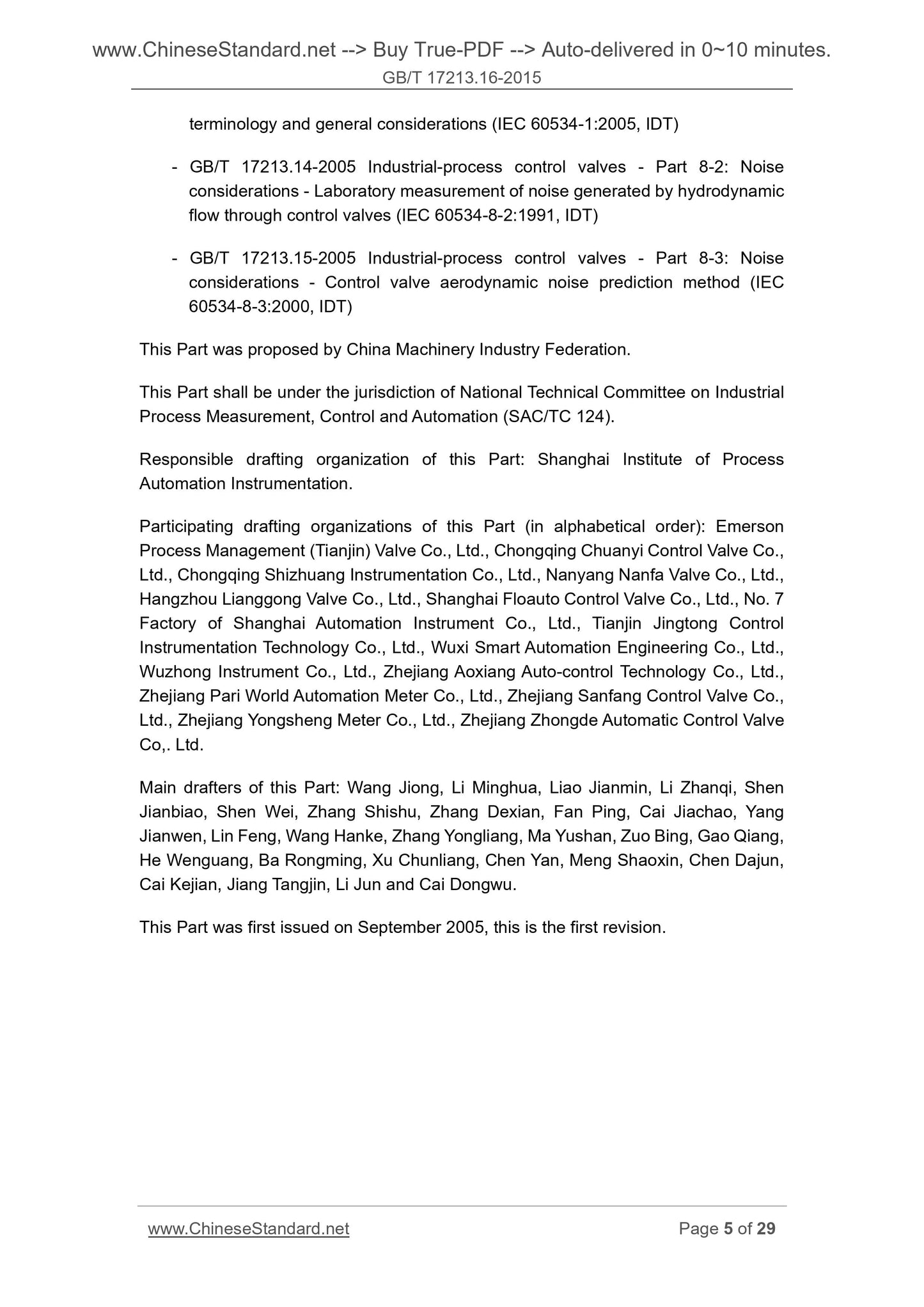

This Part was proposed by China Machinery Industry Federation.
This Part shall be under the jurisdiction of National Technical Committee on Industrial Process Measurement, Control and Automation (SAC/TC 124).
Responsible drafting organization of this Part. Shanghai Institute of Process Automation Instrumentation.
Participating drafting organizations of this Part (in alphabetical order). Emerson Process Management (Tianjin) Valve Co., Ltd., Chongqing Chuanyi Control Valve Co., Ltd., Chongqing Shizhuang Instrumentation Co., Ltd., Nanyang Nanfa Valve Co., Ltd., Hangzhou Lianggong Valve Co., Ltd., Shanghai Floauto Control Valve Co., Ltd., No. 7 Factory of Shanghai Automation Instrument Co., Ltd., Tianjin Jingtong Control Instrumentation Technology Co., Ltd., Wuxi Smart Automation Engineering Co., Ltd., Wuzhong Instrument Co., Ltd., Zhejiang Aoxiang Auto-control Technology Co., Ltd., Zhejiang Pari World Automation Meter Co., Ltd., Zhejiang Sanfang Control Valve Co., Ltd., Zhejiang Yongsheng Meter Co., Ltd., Zhejiang Zhongde Automatic Control Valve Co,. Ltd.
Main drafters of this Part. Wang Jiong, Li Minghua, Liao Jianmin, Li Zhanqi, Shen Jianbiao, Shen Wei, Zhang Shishu, Zhang Dexian, Fan Ping, Cai Jiachao, Yang Jianwen, Lin Feng, Wang Hanke, Zhang Yongliang, Ma Yushan, Zuo Bing, Gao Qiang, He Wenguang, Ba Rongming, Xu Chunliang, Chen Yan, Meng Shaoxin, Chen Dajun, Cai Kejian, Jiang Tangjin, Li Jun and Cai Dongwu.
This Part was first issued on September 2005, this is the first revision. Industrial-process control valves - Part 8-4. Noise
considerations - Prediction of noise generated by
hydrodynamic flow

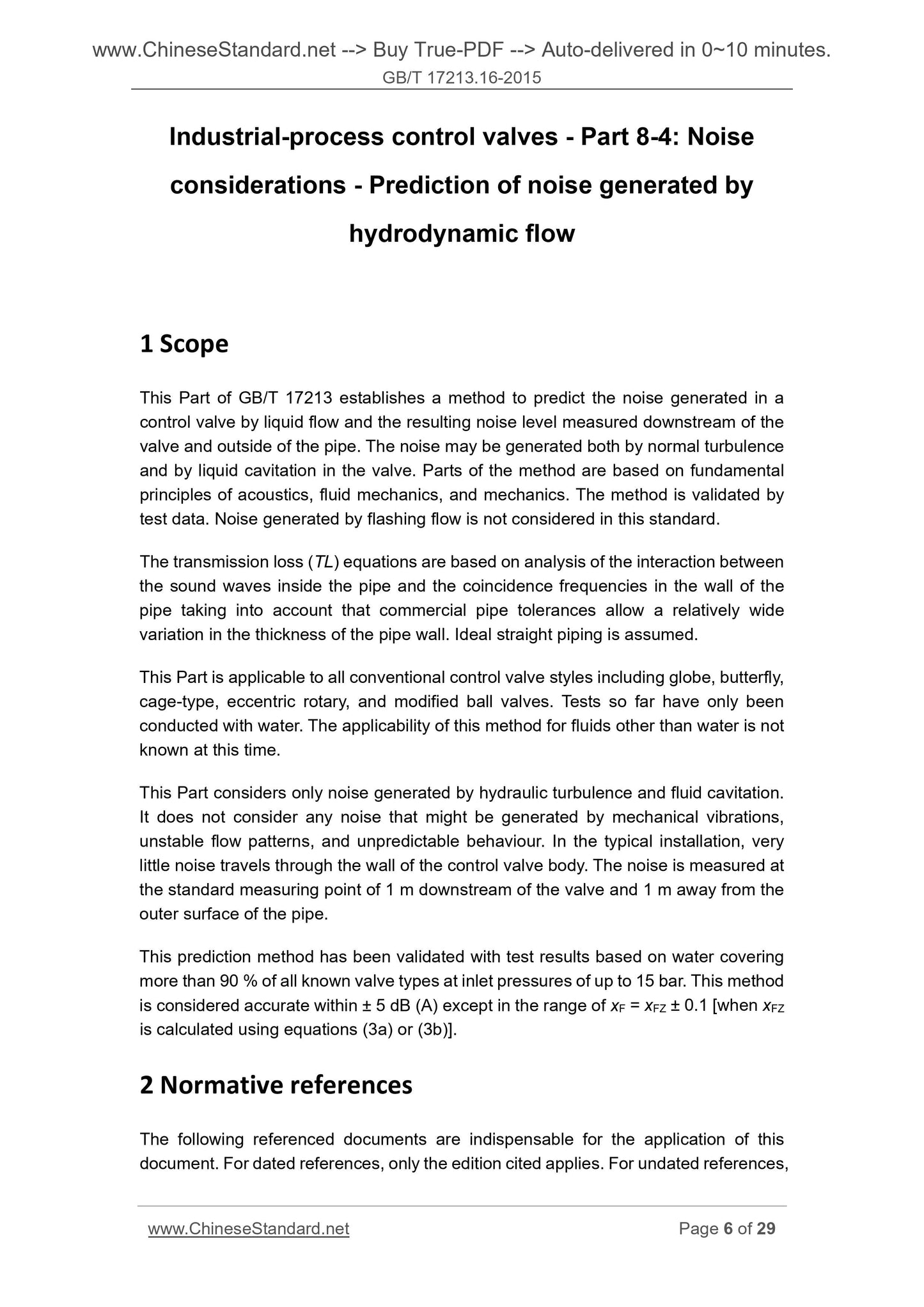

1 Scope
This Part of GB/T 17213 establishes a method to predict the noise generated in a control valve by liquid flow and the resulting noise level measured downstream of the valve and outside of the pipe. The noise may be generated both by normal turbulence and by liquid cavitation in the valve. Parts of the method are based on fundamental principles of acoustics, fluid mechanics, and mechanics. The method is validated by test data. Noise generated by flashing flow is not considered in this standard. The transmission loss (TL) equations are based on analysis of the interaction between the sound waves inside the pipe and the coincidence frequencies in the wall of the pipe taking into account that commercial pipe tolerances allow a relatively wide variation in the thickness of the pipe wall. Ideal straight piping is assumed. This Part is applicable to all conventional control valve styles including globe, butterfly, cage-type, eccentric rotary, and modified ball valves. Tests so far have only been conducted with water. The applicability of this method for fluids other than water is not known at this time.
This Part considers only noise generated by hydraulic turbulence and fluid cavitation. It does not consider any noise that might be generated by mechanical vibrations, unstable flow patterns, and unpredictable behaviour. In the typical installation, very little noise travels through the wall of the control valve body. The noise is measured at the standard measuring point of 1 m downstream of the valve and 1 m away from the outer surface of the pipe.
This prediction method has been validated with test results based on water covering more than 90 % of all known valve types at inlet pressures of up to 15 bar. This method is considered accurate within ± 5 dB (A) except in the range of xF = xFZ ± 0.1 [when xFZ is calculated using equations (3a) or (3b)].
