GB/T 17143.4-1997: Information technology. Open Systems Interconnection. Systems Management. Part 4: Alarm reporting function

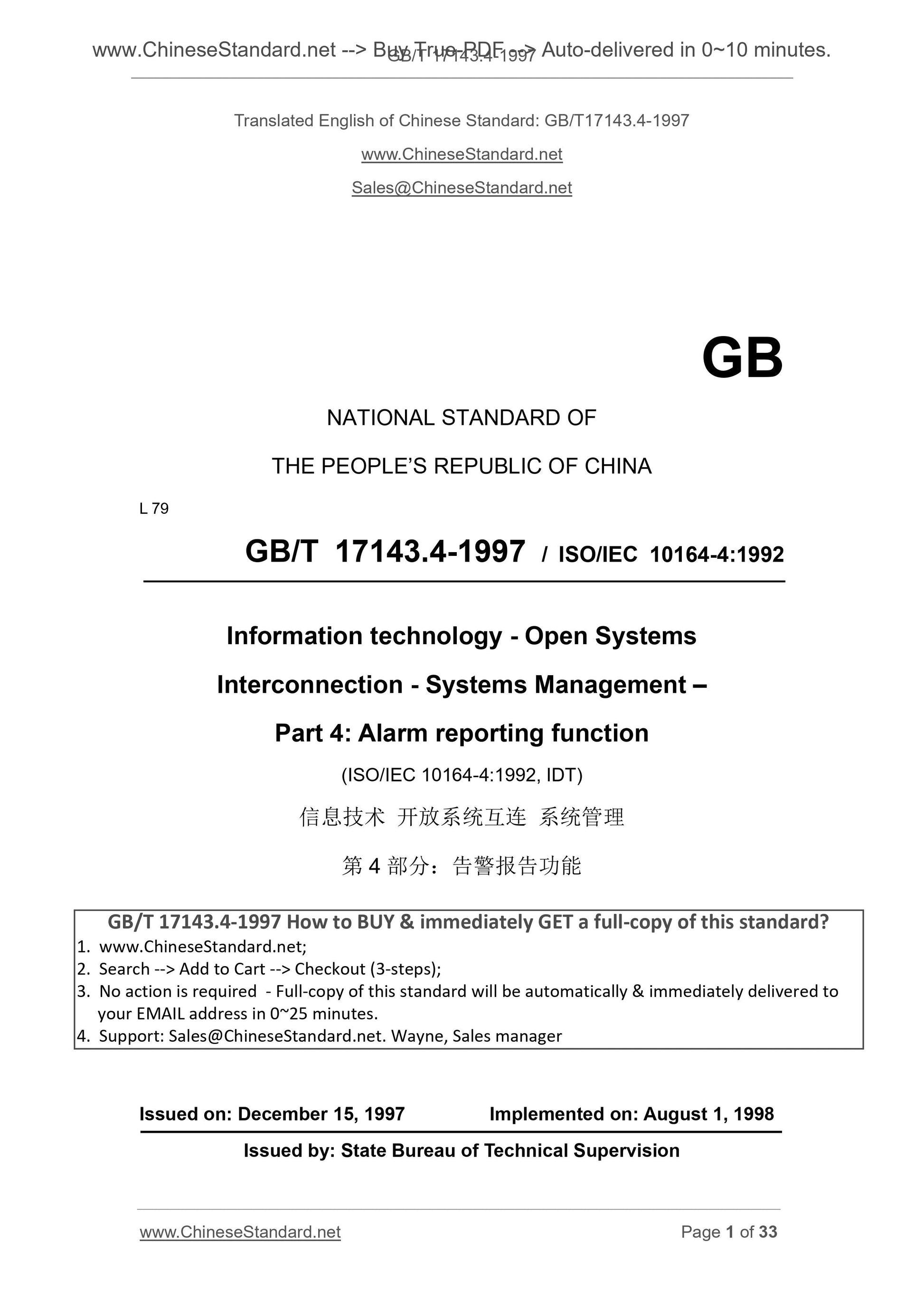

GB/T 17143.4-1997
GB
NATIONAL STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
L 79
GB/T 17143.4-1997 / ISO/IEC 10164-4.1992
Information technology - Open Systems
Interconnection - Systems Management –
Part 4. Alarm reporting function
(ISO/IEC 10164-4.1992, IDT)
ISSUED ON. DECEMBER 15, 1997
IMPLEMENTED ON. AUGUST 1, 1998
Issued by. State Bureau of Technical Supervision

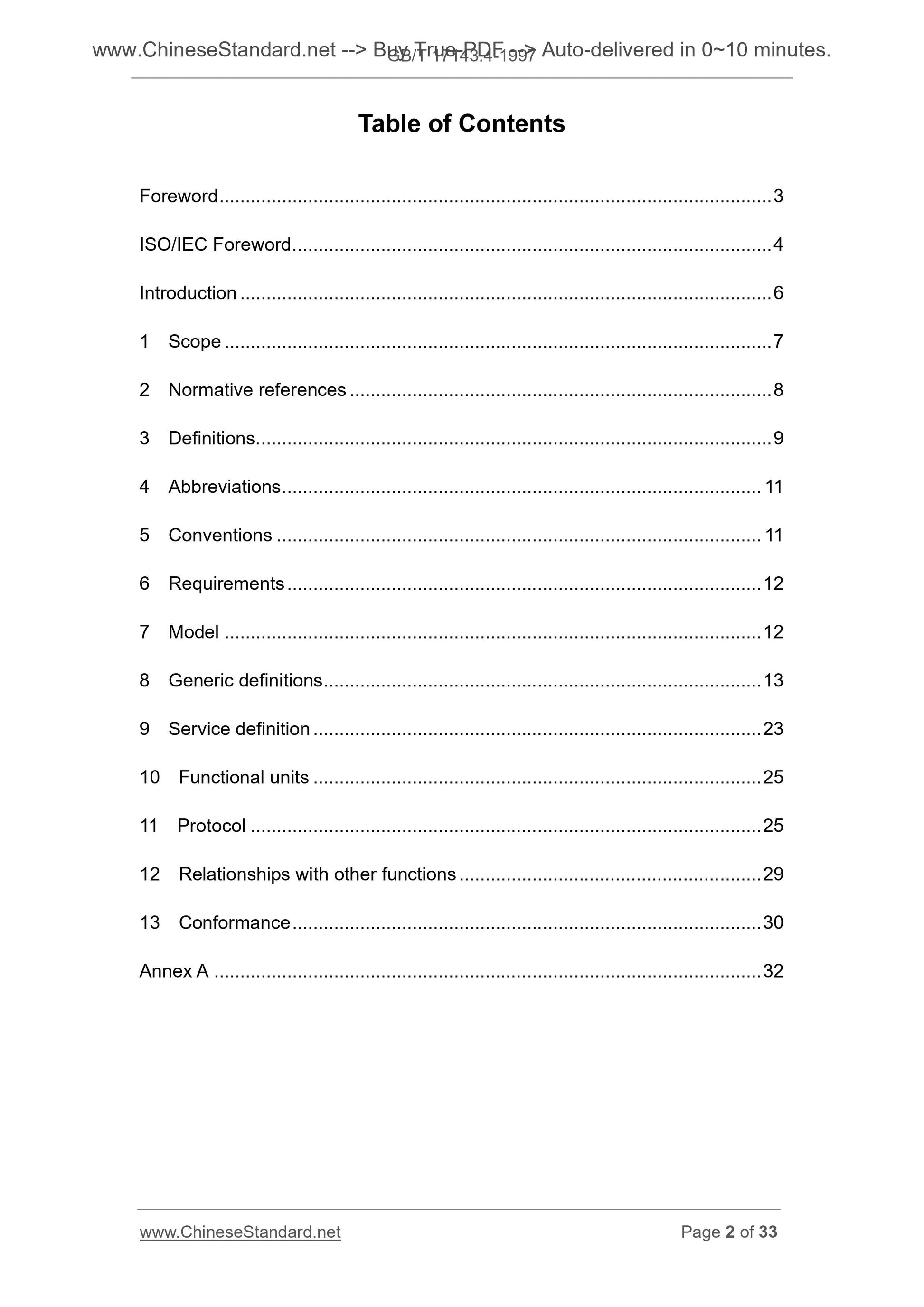

Table of Contents
Foreword ... 3
ISO/IEC Foreword ... 4
Introduction ... 6
1 Scope ... 7
2 Normative references ... 8
3 Definitions ... 9
4 Abbreviations ... 11
5 Conventions ... 11
6 Requirements ... 12
7 Model ... 12
8 Generic definitions ... 13
9 Service definition ... 23
10 Functional units ... 25
11 Protocol ... 25
12 Relationships with other functions ... 29
13 Conformance ... 30
Annex A ... 32

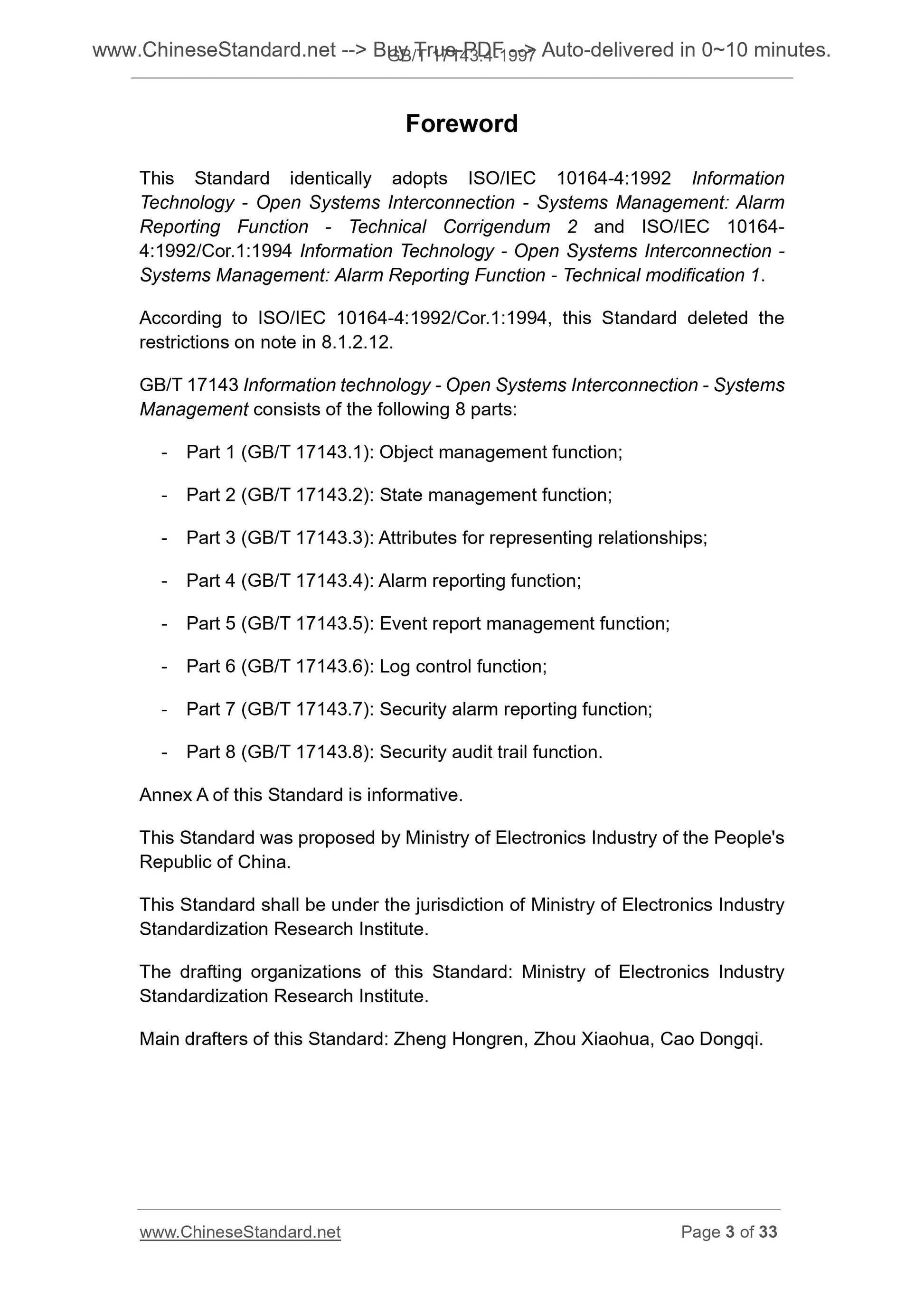

Foreword
This Standard identically adopts ISO/IEC 10164-4.1992 Information
Technology - Open Systems Interconnection - Systems Management. Alarm
Reporting Function - Technical Corrigendum 2 and ISO/IEC 10164-
4.1992/Cor.1.1994 Information Technology - Open Systems Interconnection -
Systems Management. Alarm Reporting Function - Technical modification 1.
According to ISO/IEC 10164-4.1992/Cor.1.1994, this Standard deleted the
restrictions on note in 8.1.2.12.
GB/T 17143 Information technology - Open Systems Interconnection - Systems
Management consists of the following 8 parts.
- Part 1 (GB/T 17143.1). Object management function;
- Part 2 (GB/T 17143.2). State management function;
- Part 3 (GB/T 17143.3). Attributes for representing relationships;
- Part 4 (GB/T 17143.4). Alarm reporting function;
- Part 5 (GB/T 17143.5). Event report management function;
- Part 6 (GB/T 17143.6). Log control function;
- Part 7 (GB/T 17143.7). Security alarm reporting function;
- Part 8 (GB/T 17143.8). Security audit trail function.
Annex A of this Standard is informative.
This Standard was proposed by Ministry of Electronics Industry of the People's
Republic of China.
This Standard shall be under the jurisdiction of Ministry of Electronics Industry
Standardization Research Institute.
The drafting organizations of this Standard. Ministry of Electronics Industry
Standardization Research Institute.
Main drafters of this Standard. Zheng Hongren, Zhou Xiaohua, Cao Dongqi.

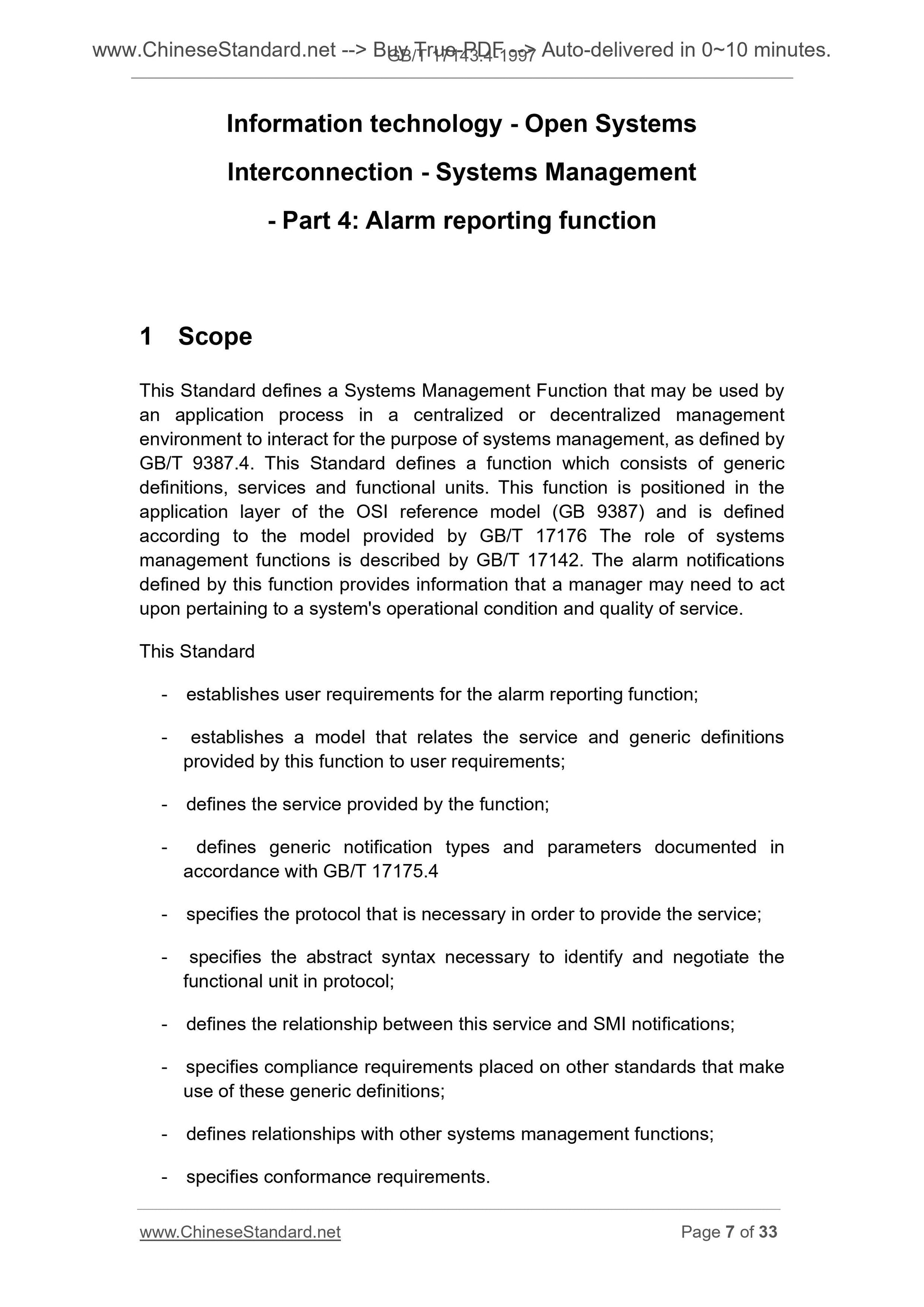

Information technology - Open Systems
Interconnection - Systems Management
- Part 4. Alarm reporting function
1 Scope
This Standard defines a Systems Management Function that may be used by
an application process in a centralized or decentralized management
environment to interact for the purpose of systems management, as defined by
GB/T 9387.4. This Standard defines a function which consists of generic
definitions, services and functional units. This function is positioned in the
application layer of the OSI reference model (GB 9387) and is defined
according to the model provided by GB/T 17176 The role of systems
management functions is described by GB/T 17142. The alarm notifications
defined by this function provides information that a manager may need to act
upon pertaining to a system's operational condition and quality of service.
This Standard
- establishes user requirements for the alarm reporting function;
- establishes a model that relates the service and generic definitions
provided by this function to user requirements;
- defines the service provided by the function;
- defines generic notification types and parameters documented in
accordance with GB/T 17175.4
- specifies the protocol that is necessary in order to provide the service;
- specifies the abstract syntax necessary to identify and negotiate the
functional unit in protocol;
- defines the relationship between this service and SMI notifications;
- specifies compliance requirements placed on other standards that make
use of these generic definitions;
- defines relationships with other systems management functions;
- specifies conformance requirements.

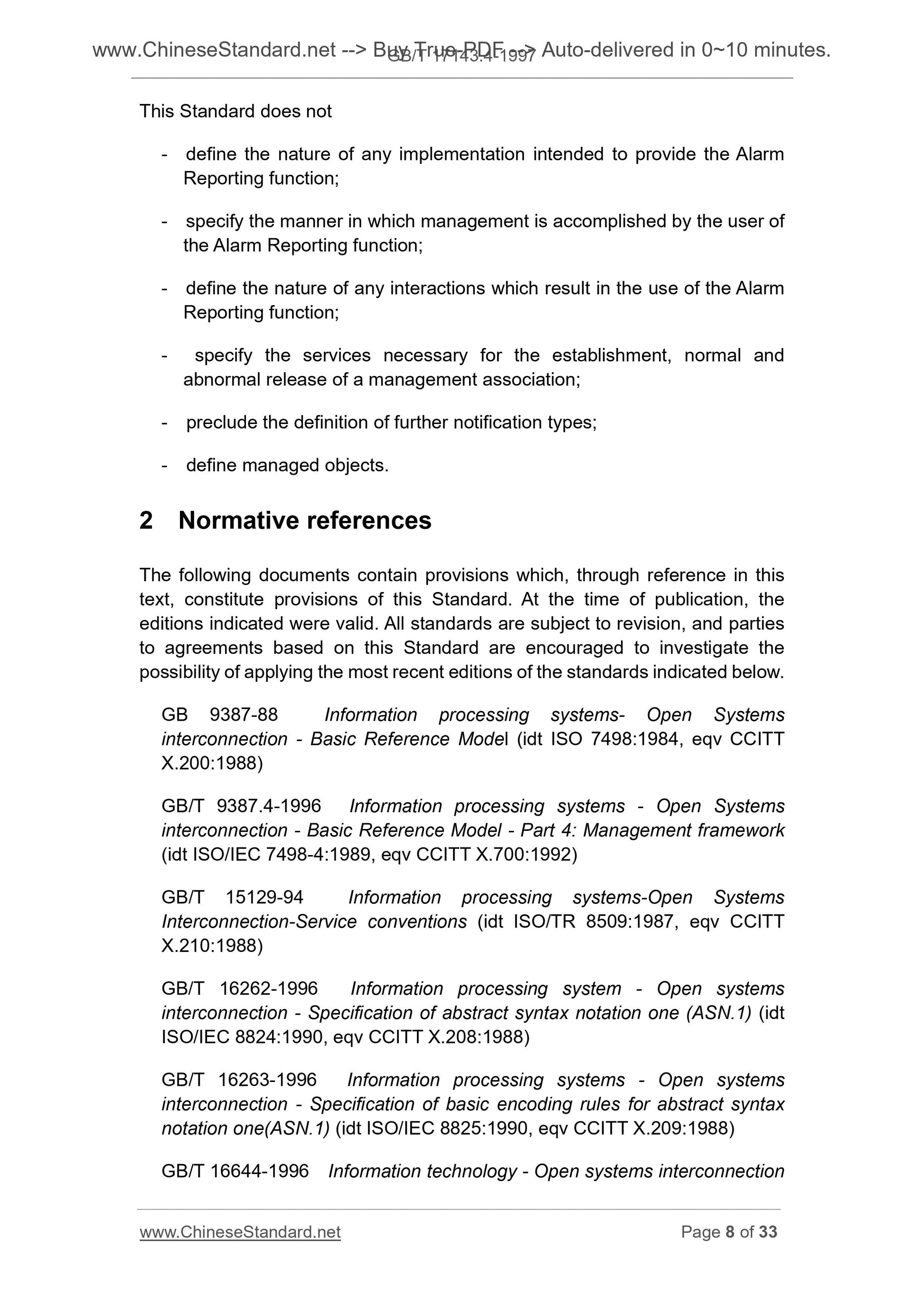

This Standard does not
- define the nature of any implementation intended to provide the Alarm
Reporting function;
- specify the manner in which management is accomplished by the user of
the Alarm Reporting function;
- define the nature of any interactions which result in the use of the Alarm
Reporting function;
- specify the services necessary for the establishment, normal and
abnormal release of a management association;
- preclude the definition of further notification types;
- define managed objects.
2 Normative references
The following documents contain provisions which, through reference in this
text, constitute provisions of this Standard. At the time of publication, the
editions indicated were valid. All standards are subject to revision, and parties
to agreements based on this Standard are encouraged to investigate the
possibility of applying the most recent editions of the standards indicated below.
GB 9387-88 Information processing systems- Open Systems
interconnection - Basic Reference Model (idt ISO 7498.1984, eqv CCITT
X.200.1988)
GB/T 9387.4-1996 Information processing systems - Open Systems
interconnection - Basic Reference Model - Part 4. Management framework
(idt ISO/IEC 7498-4.1989, eqv CCITT X.700.1992)
GB/T 15129-94 Information processing systems-Open Systems
Interconnection-Service conventions (idt ISO/TR 8509.1987, eqv CCITT
X.210.1988)
GB/T 16262-1996 Information processing system - Open systems
interconnection - Specification of abstract syntax notation one (ASN.1) (idt
ISO/IEC 8824.1990, eqv CCITT X.208.1988)
GB/T 16263-1996 Information processing systems - Open systems
interconnection - Specification of basic encoding rules for abstract syntax
notation one(ASN.1) (idt ISO/IEC 8825.1990, eqv CCITT X.209.1988)

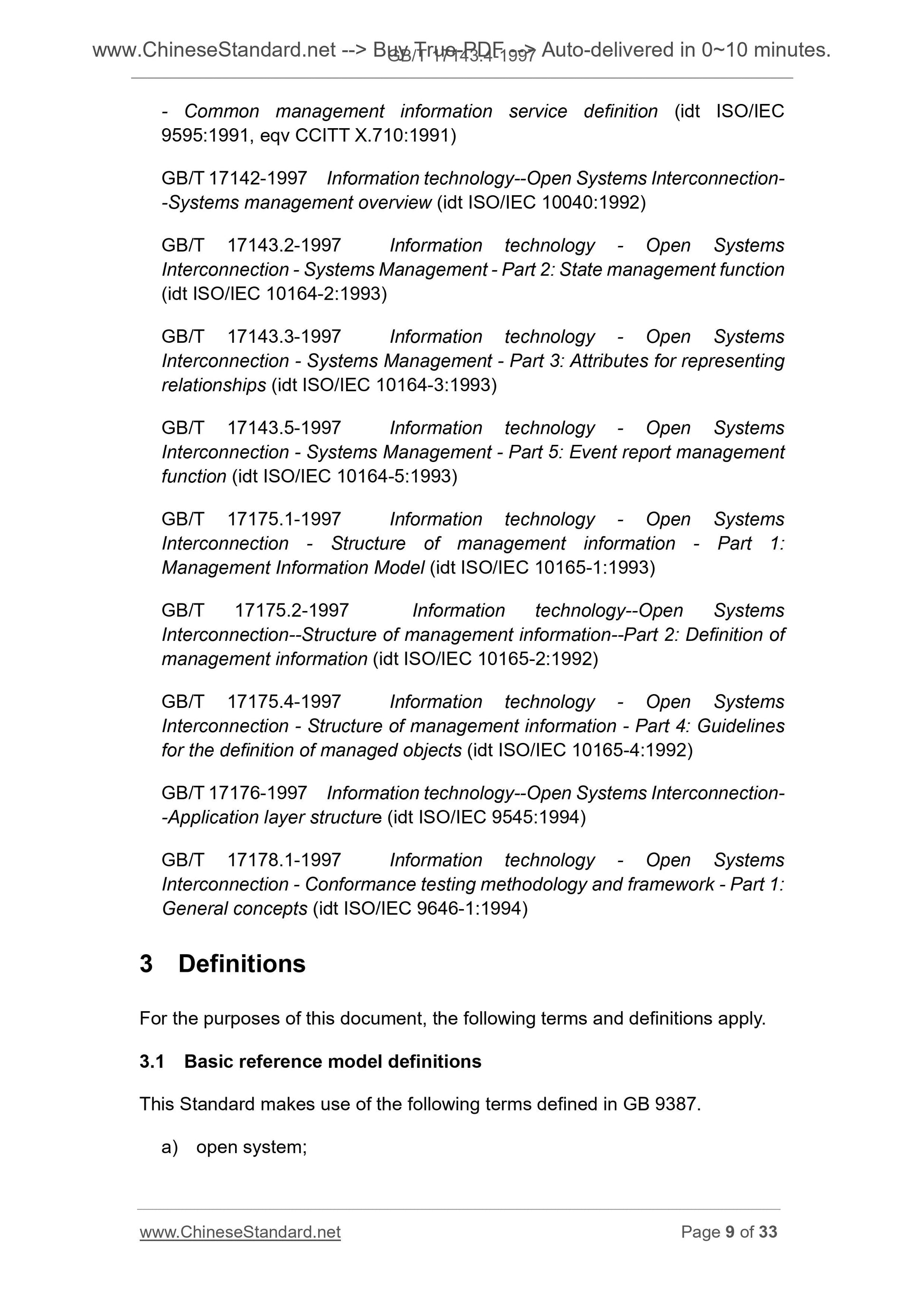

GB/T 16644-1996 Information technology - Open systems interconnection
- Common management information service definition (idt ISO/IEC
9595.1991, eqv CCITT X.710.1991)
GB/T 17142-1997 Information technology--Open Systems Interconnection-
-Systems management overview (idt ISO/IEC 10040.1992)
GB/T 17143.2-1997 Information technology - Open Systems
Interconnection - Systems Management - Part 2. State management function
(idt ISO/IEC 10164-2.1993)
GB/T 17143.3-1997 Information technology - Open Systems
Interconnection - Systems Management - Part 3. Attributes for representing
relationships (idt ISO/IEC 10164-3.1993)
GB/T 17143.5-1997 Information technology - Open Systems
Interconnection - Systems Management - Part 5. Event report management
function (idt ISO/IEC 10164-5.1993)
GB/T 17175.1-1997 Information technology - Open Systems
Interconnection - Structure of management information - Part 1.
Management Information Model (idt ISO/IEC 10165-1.1993)
GB/T 17175.2-1997 Information technology--Open Systems
Interconnection--Structure of management information--Part 2. Definition of
management information (idt ISO/IEC 10165-2.1992)
GB/T 17175.4-1997 Information technology - Open Systems
Interconnection - Structure of management information - Part 4. Guidelines
for the definition of managed objects (idt ISO/IEC 10165-4.1992)
GB/T 17176-1997 Information technology--Open Systems Interconnection-
-Application layer structure (idt ISO/IEC 9545.1994)
GB/T 17178.1-1997 Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 1.
General concept...
