GB/T 16895.19-2017: Low-voltage electrical installations -- Part 7-702: Requirements for special installations or locations -- Swimming pools and fountains

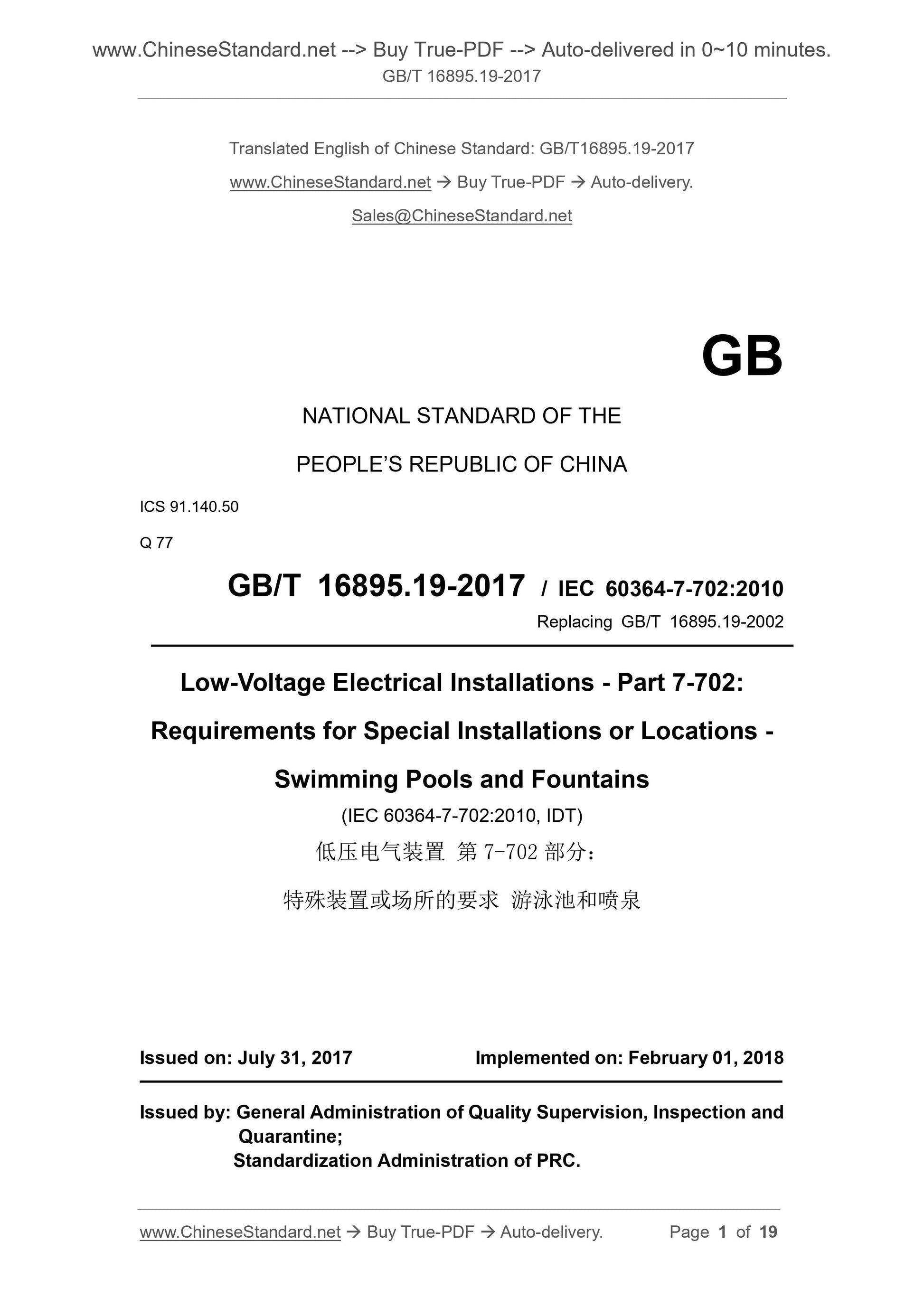

GB/T 16895.19-2017
Low-voltage electrical installations. Part 7-702. Requirements for special installations or locations. Swimming pools and fountains ICS 91.140.50
Q77
National Standards of People's Republic of China
Replace GB/T 16895.19-2002
Low voltage electrical installation
Section 7-702. Requirements for special installations or locations
Swimming pool and fountain
Part 7-702. Requirementsforspecialinstalationsorlocations-
(IEC 60364-7-702.2010, IDT)
2017-07-31 released.2018-02-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration issued
Content
Foreword III
Introduction IV
702 swimming pool and fountain 1
702.1 Scope 1
702.2 Normative references 1
702.3 Terms and Definitions 1
702.30 Assessment of general characteristics 2
702.30.101 General 2
702.30.102 Description of Zone 0 2
702.30.103 Description of Zone 1 2
702.30.104 Description of Zone 2
702.4 Security 3
702.41 Electric shock protection 3
702.410.3 General requirements 3
702.410.3.101 Special requirements for each zone 3
702.414 Protection mode. Safety Extra Low Voltage (SELV) and Protection Extra Low Voltage (PELV) 4 702.414.4 Requirements for SELV and PELV circuits 4
702.415 Additional protection 4
702.415.2 Additional protection. auxiliary protection equipotential bonding 4 702.5 Selection and installation of electrical equipment 4
702.51 General Rule 4
702.512 Conditions of use and external influences 4
702.512.2 External influence 4
702.52 wiring system 5
702.522 Selection and installation principles related to external influences 5 702.522.8 Other mechanical stresses 5
702.522.8.101 Installation method determined by region category 5
702.522.8.102 Restrictions on the cabling system by region category 5
702.522.8.103 Additional requirements for fountain wiring 5
702.522.8.104 junction box 5
702.53 Switchgear and control equipment 6
702.55 Other equipment 6
702.55.101 Electric equipment for swimming pools 6
702.55.102 Underwater lighting for swimming pools 7
702.55.103 Electrical equipment for fountains 7
702.55.104 Special requirements for installation of low-voltage electrical equipment in Zone 1 of swimming pools 7 702.55.105 Heating systems in the ground and ceiling 7
Appendix A (informative) Regional example Figure 8
Reference 10
Figure A.702.1 Area of the swimming pool and paddling pool (side view) 8 Figure A.702.2 Area of the swimming pool and paddling pool on the ground (side view) 8 Figure A.702.3 Example of an area range with a fixed baffle of at least 2.5 m (top view) 9 Figure A.702.4 Example of determining the fountain area (side view) 9
Table 702.1 Minimum degree of protection (IP) for each zone 5
Foreword

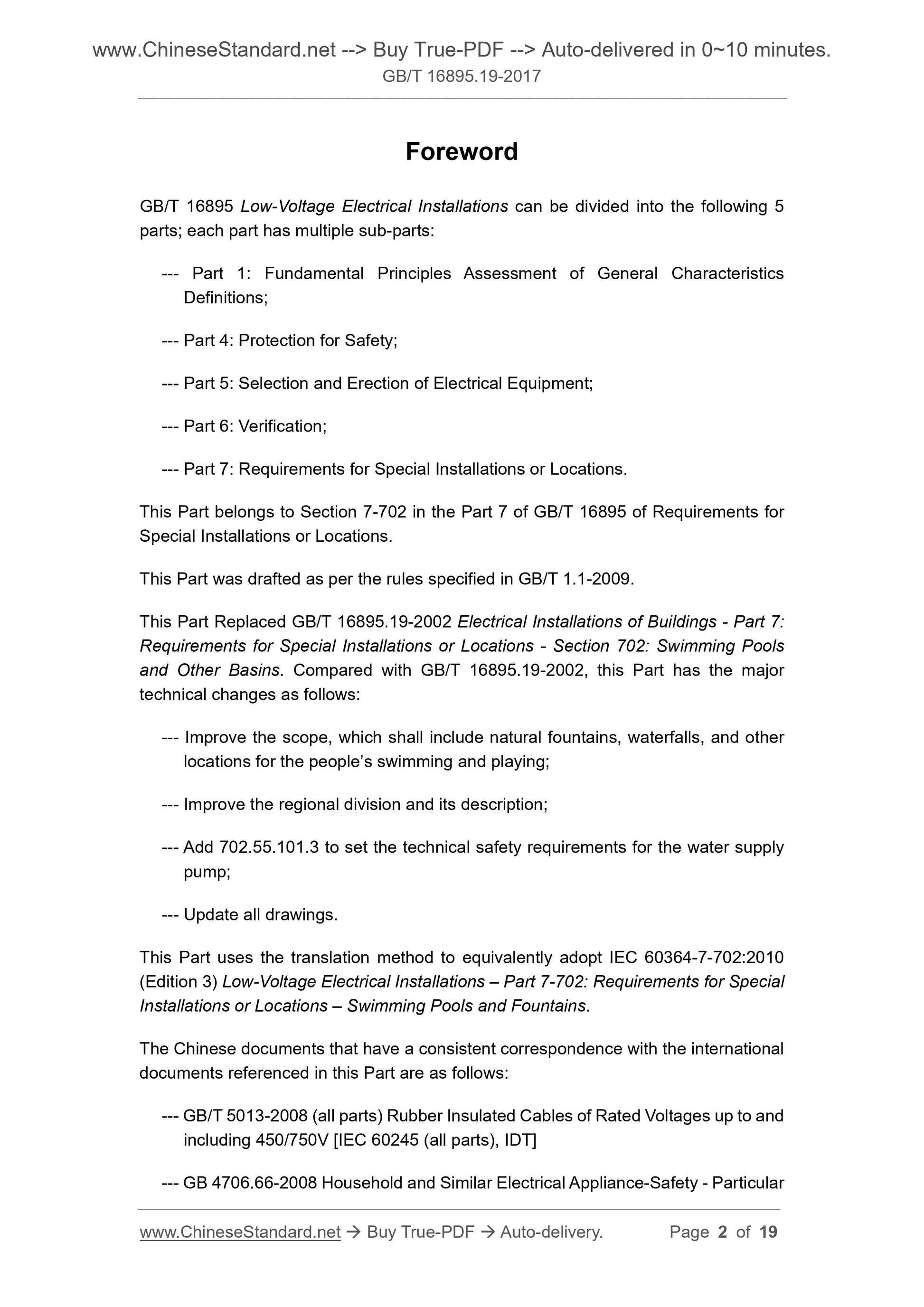

GB/T 16895 "Low-voltage electrical installation" is divided into five parts, each part is divided into several sub-sections. --- Part 1. Basic principles, assessment and definition of general characteristics; --- Part 4. Security protection;
--- Part 5. Selection and installation of electrical equipment;
--- Part 6. Inspection;
--- Part 7. Requirements for special installations or locations.
This part is part 7-702 of the requirements of Part 7 of the special device or place of GB/T 16895. This part is drafted in accordance with the rules given in GB/T 1.1-2009. This part replaces GB/T 16895.19-2002 "Electrical installations of buildings - Part 7. Requirements for special installations or locations - Part 702 Festival. Swimming Pool and Other Pools. Compared with GB/T 16895.19-2002, the main technical changes in this section are as follows. --- Improve the scope of application, including natural fountains, waterfalls and other places where people swim and play in water; ---Improve the division of the area and its description;
--- Added 702.55.1101.3 to set the technical safety requirements of the water supply pump; ---Update all drawings.
This section uses the translation method equivalent to IEC 60364-7-702.2010 (3rd edition) "Low-voltage electrical installations Part 7-702. Special Facilities or places require swimming pools and fountains.
The documents of our country that have a consistent correspondence with the international documents referenced in this part are as follows. ---GB/T 5013-2008 (all parts) Rubber insulated cables with rated voltages of 450/750V and below [IEC 60245 (all) Part), IDT];

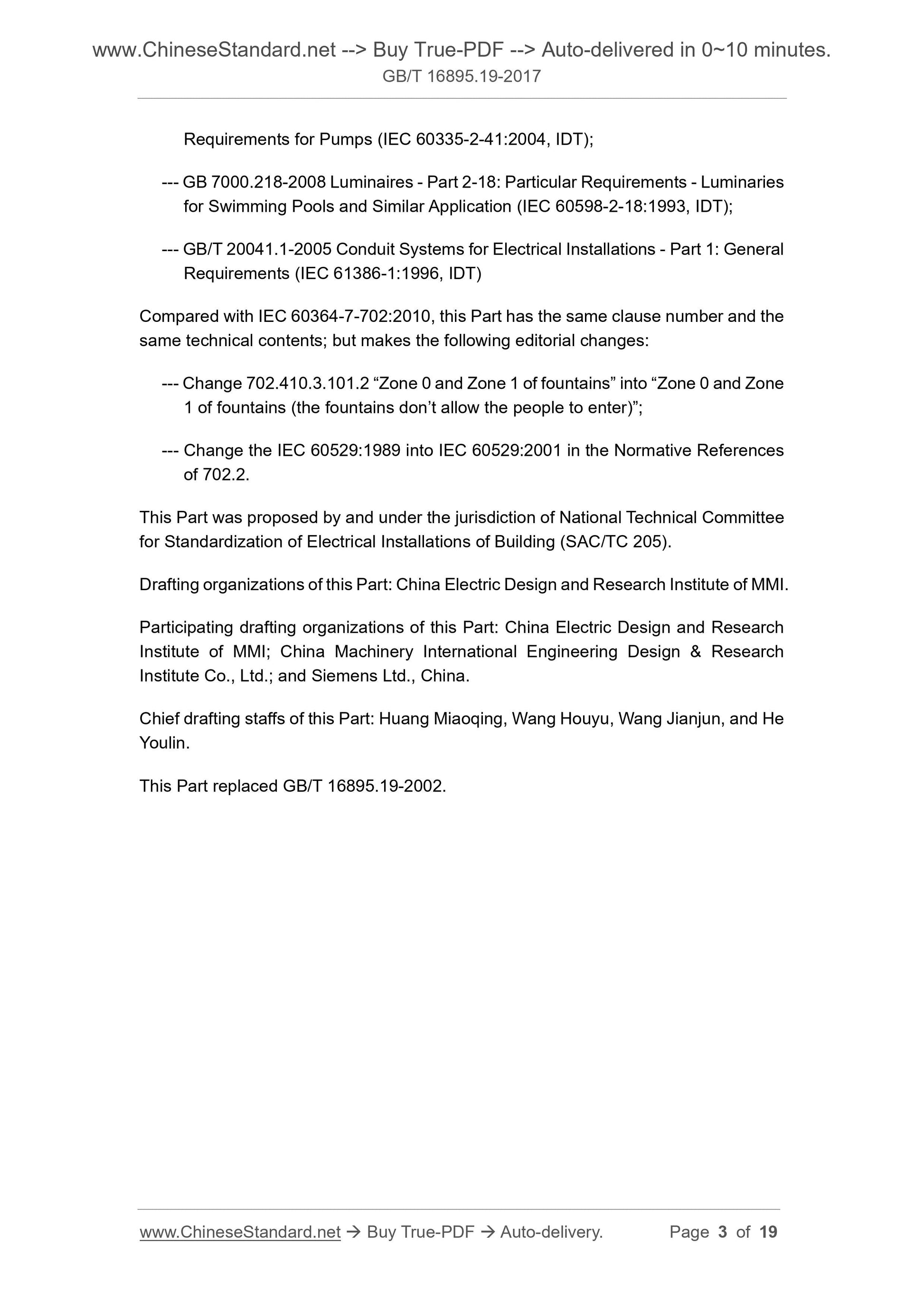

--- GB 4706.66-2008 Particular requirements for safety pumps for household and similar electrical appliances (IEC 60335-2-41.2004, IDT);
--- GB 7000.218-2008 Part 2-18.Special requirements for swimming pools and similar lighting (IEC 60598- 2-18.1993, IDT);
--- GB/T 20041.1-2005 conduit systems for electrical installation - Part 1. General requirements (IEC 61386-1.1996, IDT).
Compared with IEC 60364-7-702.2010, this section has the same chapter number, the technical content is exactly the same, but the following editorial modify.
---702.410.3.101.2 "0 and 1 area of the fountain" was changed to "0 area and 1 area of the fountain (the fountain that does not allow people to enter)"; ---702.2 IEC 60529.1989 in the English version of the Normative Reference Document should be changed to IEC 60529.2001. This part is proposed and managed by the National Building Electrical Equipment Standardization Technical Committee (SAC/TC205). This section is responsible for drafting unit. Zhongji Zhongdian Design and Research Institute Co., Ltd. Participated in the drafting of this section. China Power Engineering Co., Ltd., China International Engineering Design and Research Institute Co., Ltd., Siemens (中 Country) Limited.
The main drafters of this section. Huang Miaoqing, Wang Houyu, Wang Jianjun, He Youlin. This part replaces GB/T 16895.19-2002.
introduction
This part of GB/T 16895 is required to supplement, modify or replace some of the provisions of Parts 1 through 6 of GB/T 16895. The numbers after the 702 in this section are corresponding to the corresponding sections and sections in Parts 1 to 6 of the GB/T 16895 standard. Number 1); therefore, the number of sections and bars does not need to be in order. The number of the added clause is indicated by the form ".101, etc.". this The drawings of the parts and the numbers of the attached tables are arranged in the order of this part. The figures and tables of the appendix are numbered according to the letters, part numbers and sequence numbers of the appendix. Said.
The parts, sections and strips that do not appear in the standard are described in the general requirements of Part 1 to Part 6 of GB/T 16895. This section.
1) According to the previous statement, the numbers of GB/T 16895.1-2008 are as follows. 11 Scope of application, 12 normative references, 20 terms and definitions, etc. Low voltage electrical installation
Section 7-702. Requirements for special installations or locations
Swimming pool and fountain
702 swimming pool and fountain

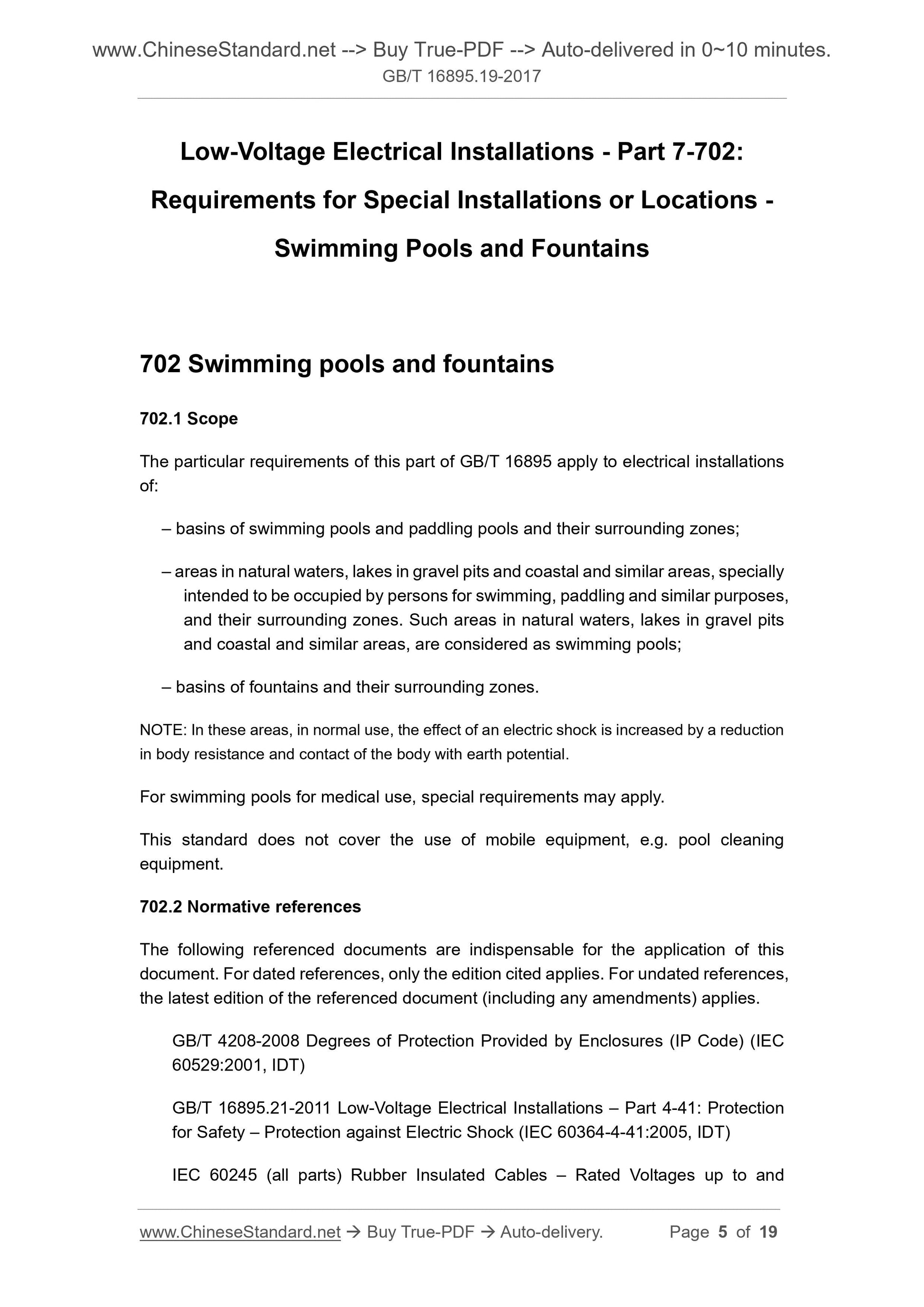

702.1 Scope
The specific requirements of this part of GB/T 16895 apply to electrical installations in the following locations. --- swimming pool, paddling pool and its surrounding area;
--- Natural water areas for people to swim, play in water or other similar activities, gravel pit lakes and the sea and other similar areas and their surrounding areas. These areas are also considered by swimming pool;
--- Fountain and its surrounding area.
Note. These areas increase the risk of electric shock during normal use due to reduced body resistance and contact between the human body and ground potential. Medical swimming pools require special requirements.
This section does not cover the use of mobile devices such as pool cleaning equipment. 702.2 Normative references
The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 4208-2008 Shell protection class (IP code) (IEC 60529.2001, IDT)
GB/T 16895.21-2011 Low-voltage electrical installations - Part 4-41. Protection against electric shock (IEC 60364-4-41. 2005, IDT)
IEC 60245 (all parts) Rubber insulated cables with rated voltages of 450/750V and below (Rubberinsulatedcables- Ratedvoltagesuptoandincluding450/750V)
Safety of household and similar electrical appliances - Part 2-41. Particular requirements for pumps (Household similarelectricalappliances-Safety-Part 2-41.Particularrequirementsforpumps) IEC 60598-2-18 luminaires - Part 2-18. Particular requirements for swimming pools and similar lamps (Luminaires- Part 2-18. Particularrequirements-Luminariesforswimmingpoolsandsimilarapplication) IEC 61386-1 - Conduit systems for electrical installation - Part 1. General requirements (Conduitsystemsforcablemanage- ment-Part 1.Generalrequirement)
702.3 Terms and definitions
The following terms and definitions apply to this document.
702.3.1
Fountain fountain
Injecting water from a source of water into a certain type of pool (or a lower level of water) is a typical configuration of a landscape-decorated fountain. 702.3.2
Fountain pool (or water) basinoffountain
It is used for the water that flows out of the fountain.
Note. See also 702.30.101.
702.3.3
Swimming pool swimmingpool
The purpose of the setting is for people to swim, diving and other sports, not for the pool for people to clean. 702.3.4
Paddling pool paddlingpool
Used in low water pools such as playful or wading.
702.30 Assessment of general characteristics
702.30.101 General
The requirements listed in this section are based on Zone 0, Zone 1 and Zone 2 as described in 702.30.022~702.30.104 (see Figure A.702.1~). Figure A.702.4) The size range of the three zones is specified.
Electrical equipment installed on the wall, floor or ceiling surface of the area divided by 702.30.102~702.30.104 shall also be satisfied. Except for special requirements for the wall, floor or ceiling area (see 702.55). A fixed partition with a minimum height of 2.5 m can be used to reduce the width of Zone 1 or Zone 2. The requirements for the swimming pool also apply to the paddling pool. Pools and stagnant waters that are expected to enter the fountain are subject to the regulations and requirements of Zone 0 and Zone 1 of the pool. Note 1. The fixed partition is a fixed partition wall, including windows and doors. The area divided by it is defined by the slope of the ceiling, ceiling and floor. Below The 2.5m fixed baffle is limited to the slope when it terminates to the ceiling or ceiling. Note 2. The function of the fixed partition installed in a certain area is shown in Figure A.702.3. Note 3. The requirements in this section also apply to factory prefabricated swimming pools. Note 4. Appendix A provides examples of some regional divisions.
702.30.102 Description of Zone 0
Zone 0 includes.
---Pool, including any water on the wall of the pool or on the ground (see Figure A.702.1); and ---The inside of the foot bath; and
--- The space inside the spray column or artificial waterfall and underneath it (see Figure A.702.4). Note. If the area of the spray column or waterfall cannot be accurately determined, it is recommended to use the vertical plane of the edge of the pool (or water) as the horizontal boundary of the area. Limit, and the highest height of the water jet or waterfall as its height limit. 702.30.103 Description of Zone 1
---0 zone boundary line;
--- 2m from the edge of the pool (or water);
---The ground or surface that is expected to be occupied by someone;
--- Higher than expected on the ground or surface of the surface 2.5m.
Note. Equipment installed in the outer guard (housing) that cannot be accessed under the ground, on the wall or under the ceiling, is not considered for equipment within Zone 1 (see 702.55.131.3). When the swimming pool has a platform, springboard, slide or other area that is expected to be accessible, the area bounded by Zone 1 is. --- 1.5m around the platform, springboard, slides or other parts (such as sculpture and decorative pools that may be touched. see Figure A.702.1) Vertical surface
--- Higher than expected to occupy the floor or other horizontal surface of the highest level of 2.5m. 702.30.104 Description of Zone 2
The boundaries of Zone 2.
- the vertical surface of the outer edge of the -1 zone and the parallel plane of 1.5 m from the vertical plane; ---The ground or surface that is expected to be occupied by someone; and --- Higher than expected to occupy the ground or surface level of 2.5m. The fountain has no 2 zones.
Note. Equipment installed in the enclosure that is not accessible under the ground, on the wall or on the ceiling is not considered for equipment in Zone 2 (see 702.55.131.3). 702.4 Security protection
702.41 Protection against electric shock
Add the following.
Note 1. See 702.53 for the selection and installation of power sockets. Note 2. See 702.55 for the selection and installation of other equipment. 702.410.3 General requirements
702.410.3.5 Barriers and protection placed outside the reach of the arm shall not be used in accordance with Annex B of GB/T 16895.21-2011 the way.
702.410.3.6 Non-conducting places and ungrounded local equipotential bonding in accordance with Annex C of GB/T 16895.21-2011 shall not be used. Junction and protection of electrical separation from one or more electrical equipment. 702.410.3.101 Special requirements for each zone
702.410.3.101.1 Zone 0 and Zone 1 of the swimming pool as well as natural water zones, gravel pit lakes, seaside and similar areas Except as described in 702.55.14, Zone 0 and Zone 1 are only allowed to use a nominal voltage not greater than AC 12V or DC 30V. SELV protection method. Its power supply should be installed outside Zone 0 and Zone 1. When the power supply is installed in Zone 2, the provisions of 702.53 are implemented. 702.410.3.101.2 Zone 0 and Zone 1 of the fountain (the fountain that does not allow people to enter) Only the following protective measures can be used in Zone 0 and Zone 1. ---SELV (see 414 of GB/T 16895.21-2011), its power supply is installed outside Zone 0 and Zone 1; or --- Use the residual current protector with rated residual operating current not more than 30mA to automatically cut off the power supply (see GB/T 16895.21- Section 411 of.2011); or
---Electrical separation (see section 413 of GB/T 16895.21-2011), separate power supply to only one device, its power supply Installed outside Zone 0 and Zone 1.
702.410.3.101.3 Zone 2 of the swimming pool and natural water area, gravel pit lake, seaside and similar areas Note. The fountain does not have 2 zones.
Only one or more of the following protection methods should be used.
---SELV (see section 414 of GB/T 16895.21-2011), its power supply should be installed outside Zone 0 and Zone 1. When it is available When the electric power supply is installed in Zone 2, the provisions of 702.53 are implemented; or --- Use the residual current protector with rated residual operating current not more than 30mA to automatically cut off the power supply (see GB/T 16895.21- Section 411 of.2011); or
---Electrical separation (see section 413 of GB/T 16895.21-2011), separate power supply to only one device, its power supply It should be installed outside Zone 0 and Zone 1. When the power supply is installed in Zone 2, the provisions of 702.53 are implemented. 702.414 Protection mode. Safety Extra Low Voltage (SELV) and Protection Extra Low Voltage (PELV) 702.414.4 Requirements for SELV and PELV circuits
Add the following
PELV is not allowed.
702.414.4.5
Add the following
When using SELV, the following basic protection (direct contact protection) measures should be taken regardless of the nominal voltage. --- The degree of protection is at least the obstruction or casing of IP2X or IPXXB specified in GB/T 4208-2008; ---Insulation can withstand a test voltage of 500V for 1min AC.
702.415 Additional protection
702.415.2 Additional protection. auxiliary protection equipotential bonding Conductive parts outside all devices in Zone 0, Zone 1 and Zone 2, shall be connected with protective equipotential bonding conductors and equipment outside these zones The protective conductors of the conductive portion are connected.
Note 1. It can be connected to the protective conductor in close proximity to electrical accessories, switchboards or other equipment. Note 2. See also 702.522.8 and 702.55.11.
The conductive part outside the device is not part of the electrical device, it is possible to introduce a potential including the local ground potential - for the standard For the purposes of this section, it is meant that the potential is introduced into these regions from outside the 0, 1, and 2 regions. Note 3. Examples of these parts are as follows.
---Metal pipe for fresh water, wastewater, gas, heating and temperature control; ---Metal components of the building structure;
---Metal components of the pool structure;
--- Rebar in non-insulated ground;
--- Rebar for concrete pools.
For concrete floor tiles with steel bars, the steel bars are sealed in the concrete floor tiles, and the human body is not damaged by the concrete floor tiles. It does not touch the steel bar, it does not consider the conductive part outside the device, so it is not necessary to incorporate the additional protection equipotential bonding. Reinforced concrete floor tiles and their outer sheaths and topsoil (such as grass) are not considered for the conductive parts outside the device, and do not need to be included Protect the equipotential bonding.
Note 4. The following conductive parts are usually not required to be included in the additional protection equipotential bonding. ---The ladder and shelter of the pool;
---The ladder of the springboard;
---Handles and handrails on the edge of the pool;
--- Grid cover including overflow hose brackets;
---window frame;
---door frame;
---Starting the platform.
702.5 Selection and installation of electrical equipment
702.51 General rules
702.512 Conditions of use and external influences
702.512.2 External influence
Electrical equipment shall have at least the degree of protection specified in Table 702.1 (see GB/T 4208-2008). Table 702.1 Minimum degree of protection (IP) for each zone
The area is sprayed with water for cleaning. The outdoor is not sprayed with water. The indoors are sprayed with water to clean the house without spraying water. 0 IPX5/IPX8 IPX8 IPX5/IPX8 IPX8
1 IPX5 IPX4 IPX5 IPX4
2 IPX5 IPX4 IPX5 IPX2
Note 1. GB/T 4208-2008 indicates that there should be agreement between the user and the manufacturer regarding the test conditions of IPX8 unless there is a relevant product standard. Note 2. When it is expected to use water spray for cleaning, use IPX5 for Zone 0 (to ensure waterproof performance in water spray cleaning) and IPX8 (to ensure water immersion) Water resistance) is required (see. 4.3 in GB/T 4208-2008). Both IPX5 and IPX8 are required because IPX8 does not have Water spray prevention.
702.52 wiring system
702.522 Selection and installation principles related to external influences 702.522.8 Other mechanical stress
702.522.8.101 Installation method determined by region category
Wiring systems in ...
