GB/T 16828-2021: Bar code for commodity - Global location numbering and bar code marking

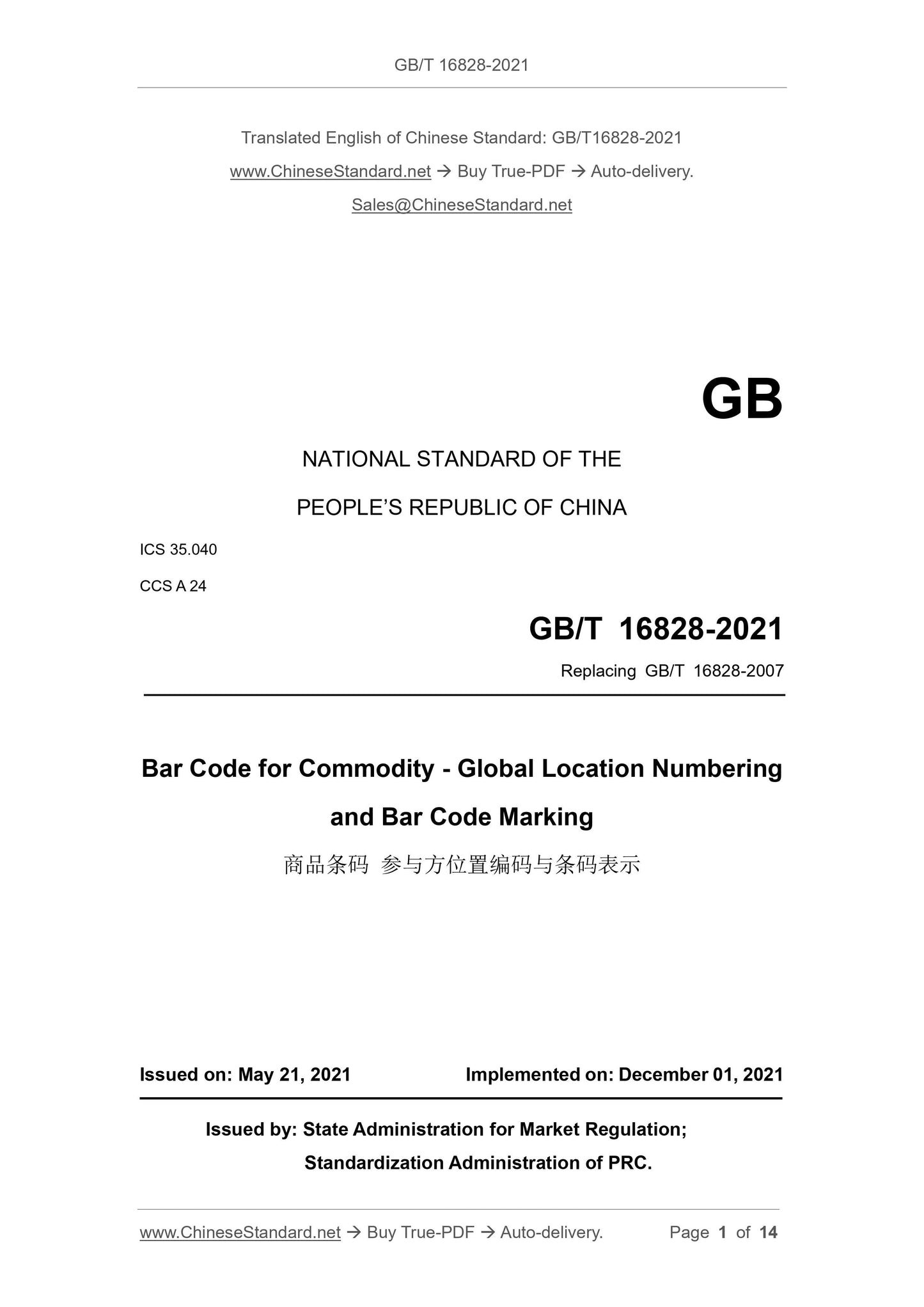

GB/T 16828-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.040
CCS A 24
Replacing GB/T 16828-2007
Bar Code for Commodity - Global Location Numbering
and Bar Code Marking
ISSUED ON: MAY 21, 2021
IMPLEMENTED ON: DECEMBER 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of PRC.

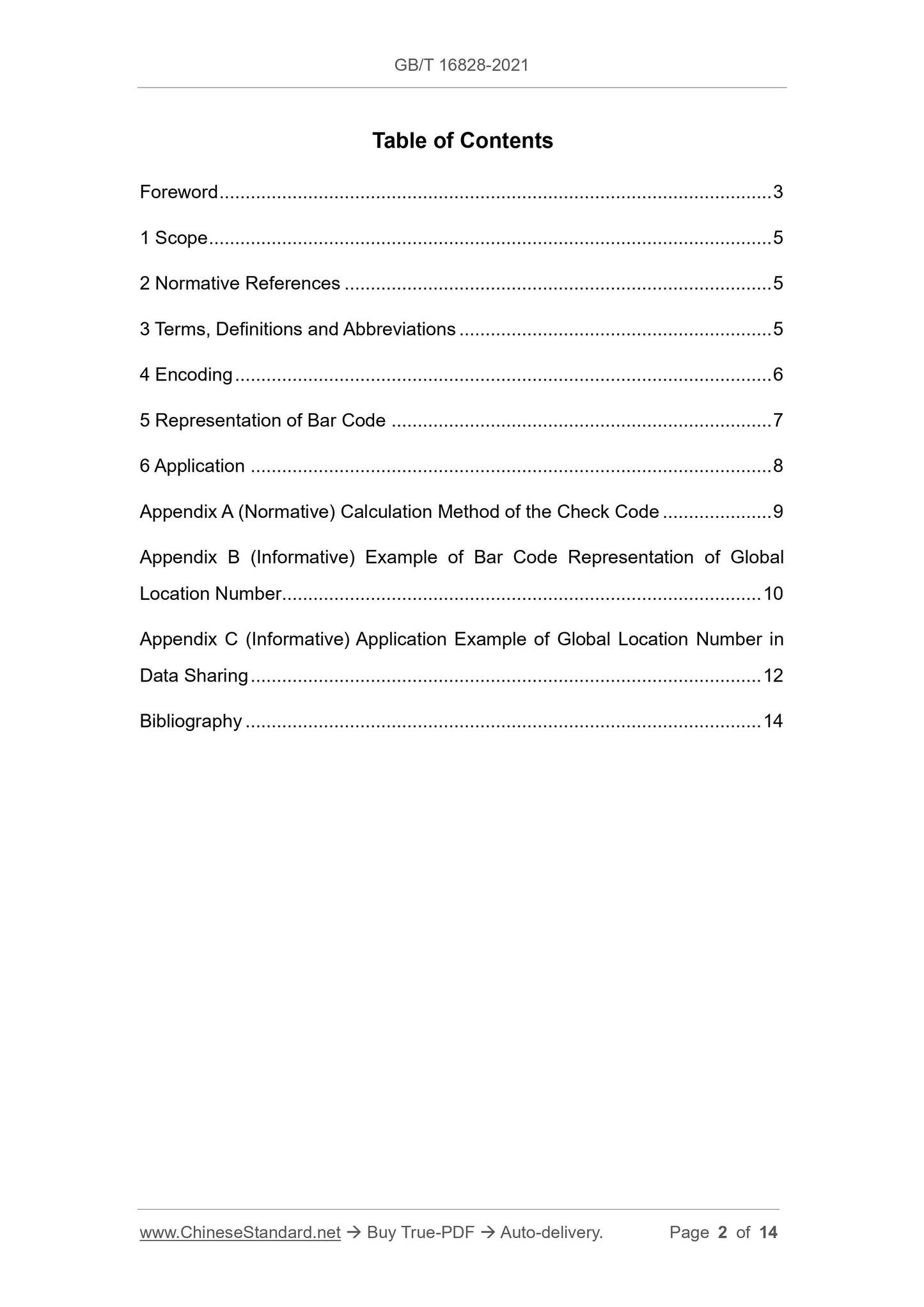

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms, Definitions and Abbreviations ... 5
4 Encoding ... 6
5 Representation of Bar Code ... 7
6 Application ... 8
Appendix A (Normative) Calculation Method of the Check Code ... 9
Appendix B (Informative) Example of Bar Code Representation of Global
Location Number ... 10
Appendix C (Informative) Application Example of Global Location Number in
Data Sharing ... 12
Bibliography ... 14

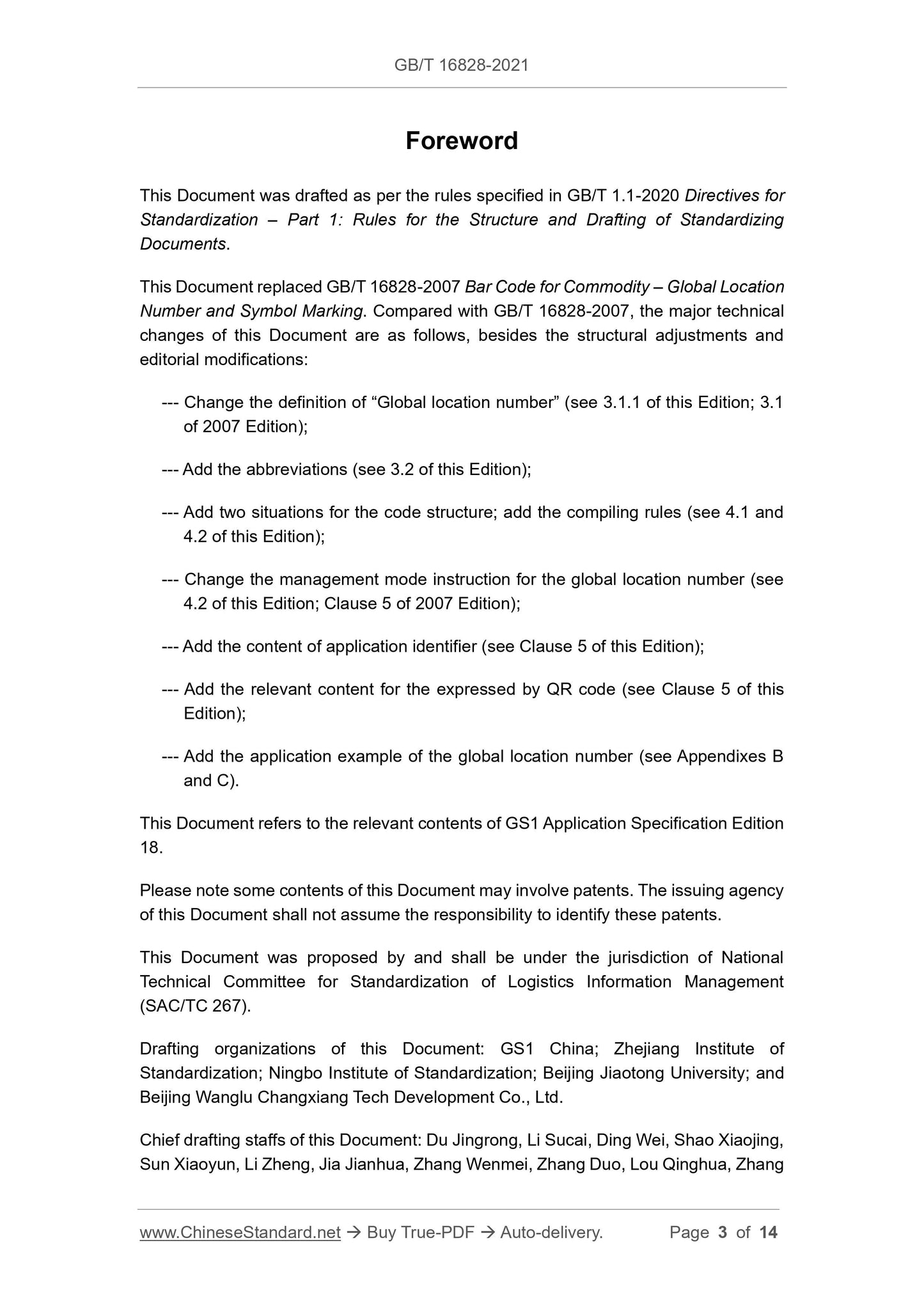

Foreword
This Document was drafted as per the rules specified in GB/T 1.1-2020 Directives for
Standardization – Part 1: Rules for the Structure and Drafting of Standardizing
Documents.
This Document replaced GB/T 16828-2007 Bar Code for Commodity – Global Location
Number and Symbol Marking. Compared with GB/T 16828-2007, the major technical
changes of this Document are as follows, besides the structural adjustments and
editorial modifications:
--- Change the definition of “Global location number” (see 3.1.1 of this Edition; 3.1
of 2007 Edition);
--- Add the abbreviations (see 3.2 of this Edition);
--- Add two situations for the code structure; add the compiling rules (see 4.1 and
4.2 of this Edition);
--- Change the management mode instruction for the global location number (see
4.2 of this Edition; Clause 5 of 2007 Edition);
--- Add the content of application identifier (see Clause 5 of this Edition);
--- Add the relevant content for the expressed by QR code (see Clause 5 of this
Edition);
--- Add the application example of the global location number (see Appendixes B
and C).
This Document refers to the relevant contents of GS1 Application Specification Edition
18.
Please note some contents of this Document may involve patents. The issuing agency
of this Document shall not assume the responsibility to identify these patents.
This Document was proposed by and shall be under the jurisdiction of National
Technical Committee for Standardization of Logistics Information Management
(SAC/TC 267).
Drafting organizations of this Document: GS1 China; Zhejiang Institute of
Standardization; Ningbo Institute of Standardization; Beijing Jiaotong University; and
Beijing Wanglu Changxiang Tech Development Co., Ltd.
Chief drafting staffs of this Document: Du Jingrong, Li Sucai, Ding Wei, Shao Xiaojing,
Sun Xiaoyun, Li Zheng, Jia Jianhua, Zhang Wenmei, Zhang Duo, Lou Qinghua, Zhang

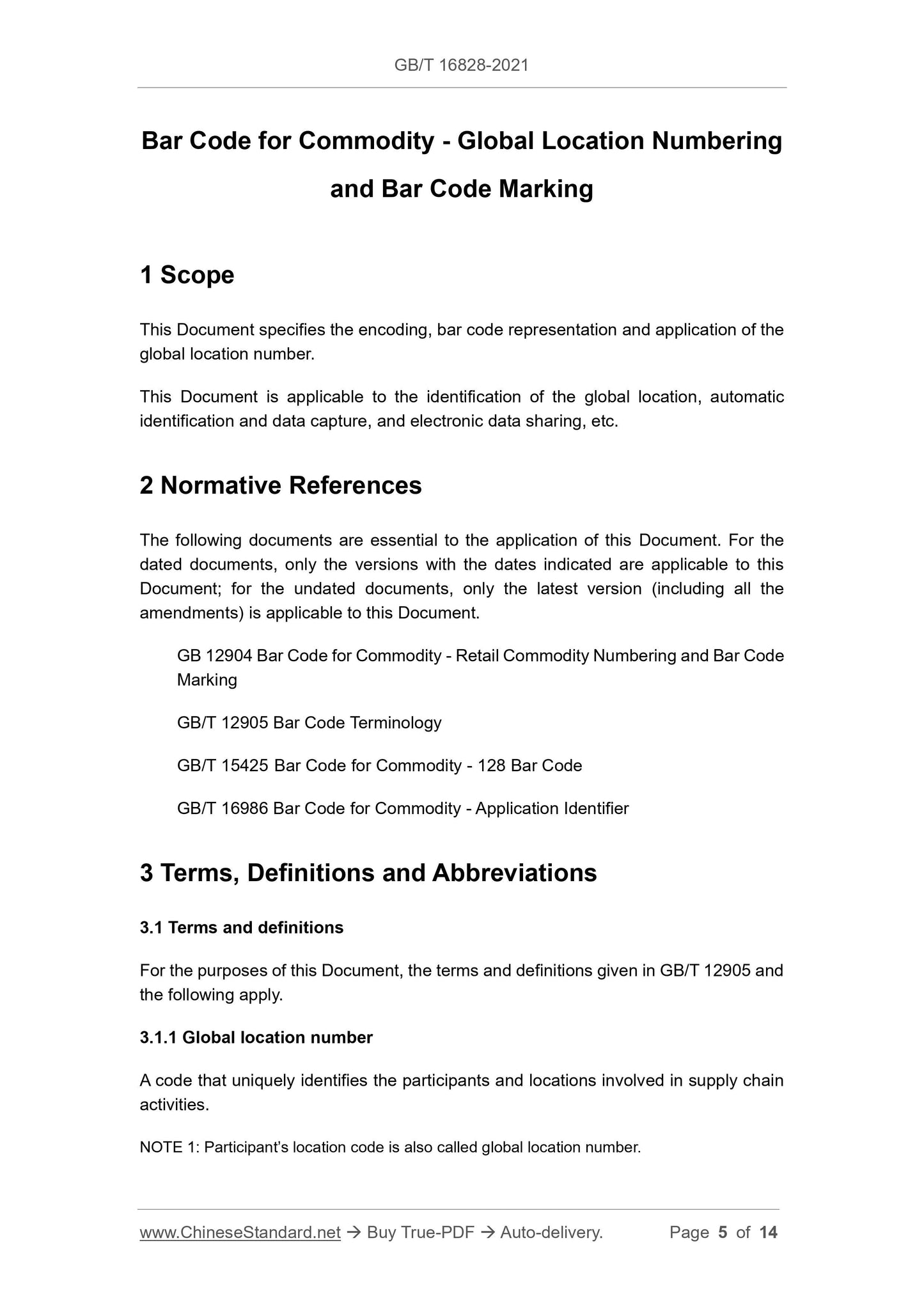

Bar Code for Commodity - Global Location Numbering
and Bar Code Marking
1 Scope
This Document specifies the encoding, bar code representation and application of the
global location number.
This Document is applicable to the identification of the global location, automatic
identification and data capture, and electronic data sharing, etc.
2 Normative References
The following documents are essential to the application of this Document. For the
dated documents, only the versions with the dates indicated are applicable to this
Document; for the undated documents, only the latest version (including all the
amendments) is applicable to this Document.
GB 12904 Bar Code for Commodity - Retail Commodity Numbering and Bar Code
Marking
GB/T 12905 Bar Code Terminology
GB/T 15425 Bar Code for Commodity - 128 Bar Code
GB/T 16986 Bar Code for Commodity - Application Identifier
3 Terms, Definitions and Abbreviations
3.1 Terms and definitions
For the purposes of this Document, the terms and definitions given in GB/T 12905 and
the following apply.
3.1.1 Global location number
A code that uniquely identifies the participants and locations involved in supply chain
activities.
NOTE 1: Participant’s location code is also called global location number.

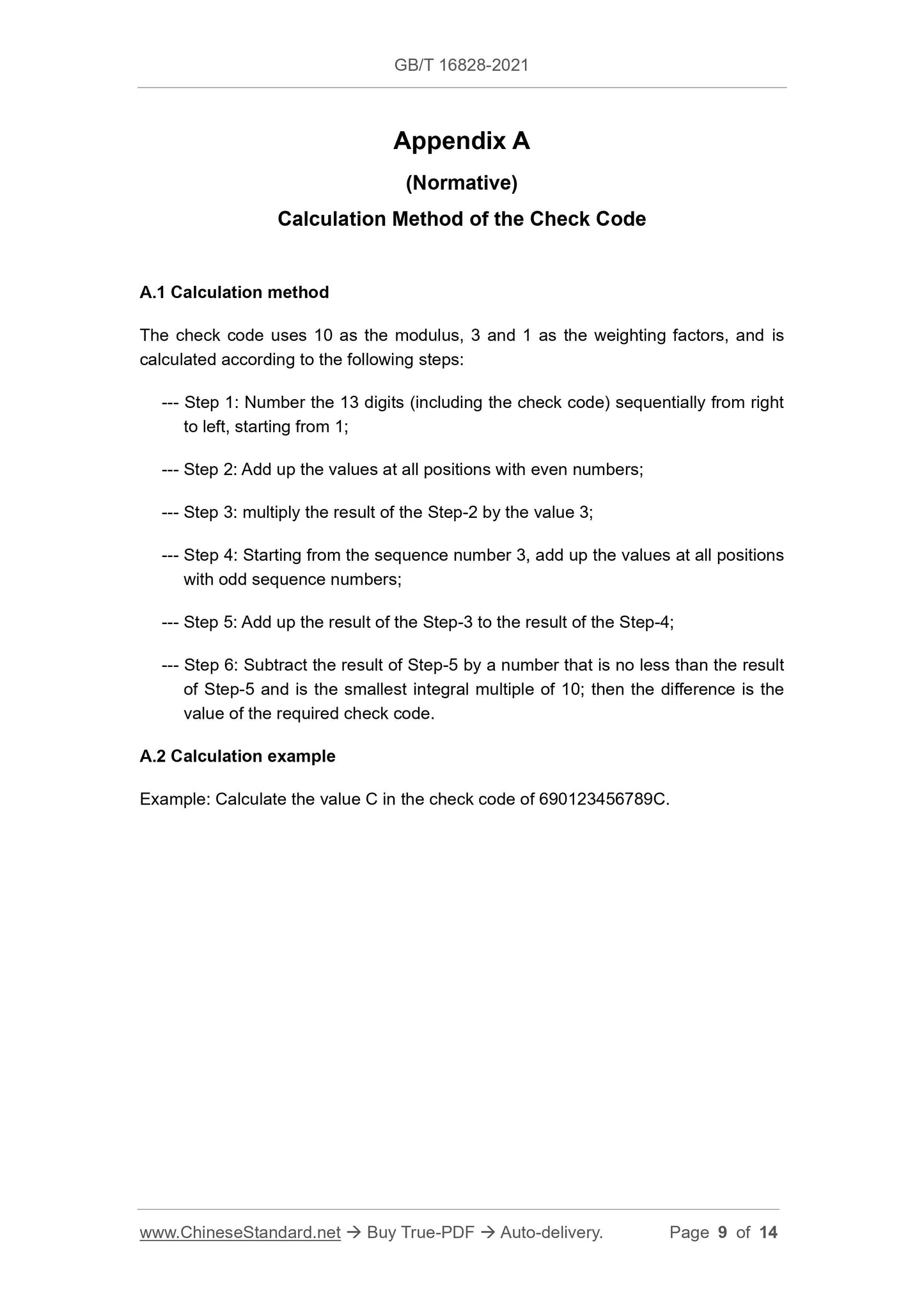

Appendix A
(Normative)
Calculation Method of the Check Code
A.1 Calculation method
The check code uses 10 as the modulus, 3 and 1 as the weighting factors, and is
calculated according to the following steps:
--- Step 1: Number the 13 digits (including the check code) sequentially from right
to left, starting from 1;
--- Step 2: Add up the values at all positions with even numbers;
--- Step 3: multiply the result of the Step-2 by the value 3;
--- Step 4: Starting from the sequence number 3, add up the values at all positions
with odd sequence numbers;
--- Step 5: Add up the result of the Step-3 to the result of the Step-4;
--- Step 6: Subtract the result of Step-5 by a number that is no less than the result
of Step-5 and is the smallest integral multiple of 10; then the difference is the
value of the required check code.
A.2 Calculation example
Example: Calculate the value C in the check code of 690123456789C.
