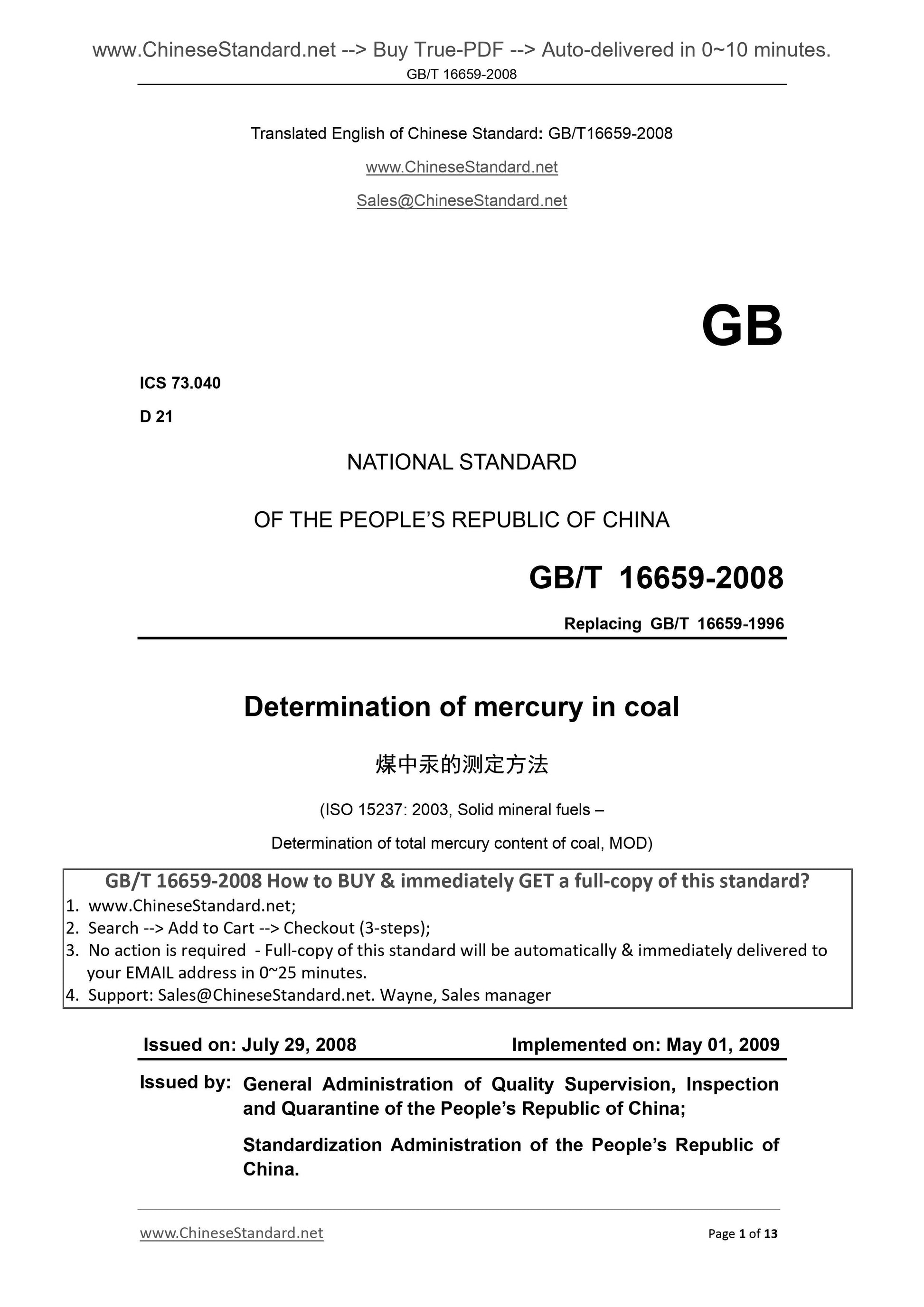

GB/T 16659-2008: Determination of mercury in coal
OF THE PEOPLE REPUBLIC OF CHINA
Replacing GB/T 16659-1996
Determination of mercury in coal
(ISO 15237. 2003, Solid mineral fuels ?€?
Determination of total mercury content of coal, MOD)
ISSUED ON. JULY 29, 2008
IMPLEMENTED ON. MAY 01, 2009
General Administration of Quality Supervision, Inspection
and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of

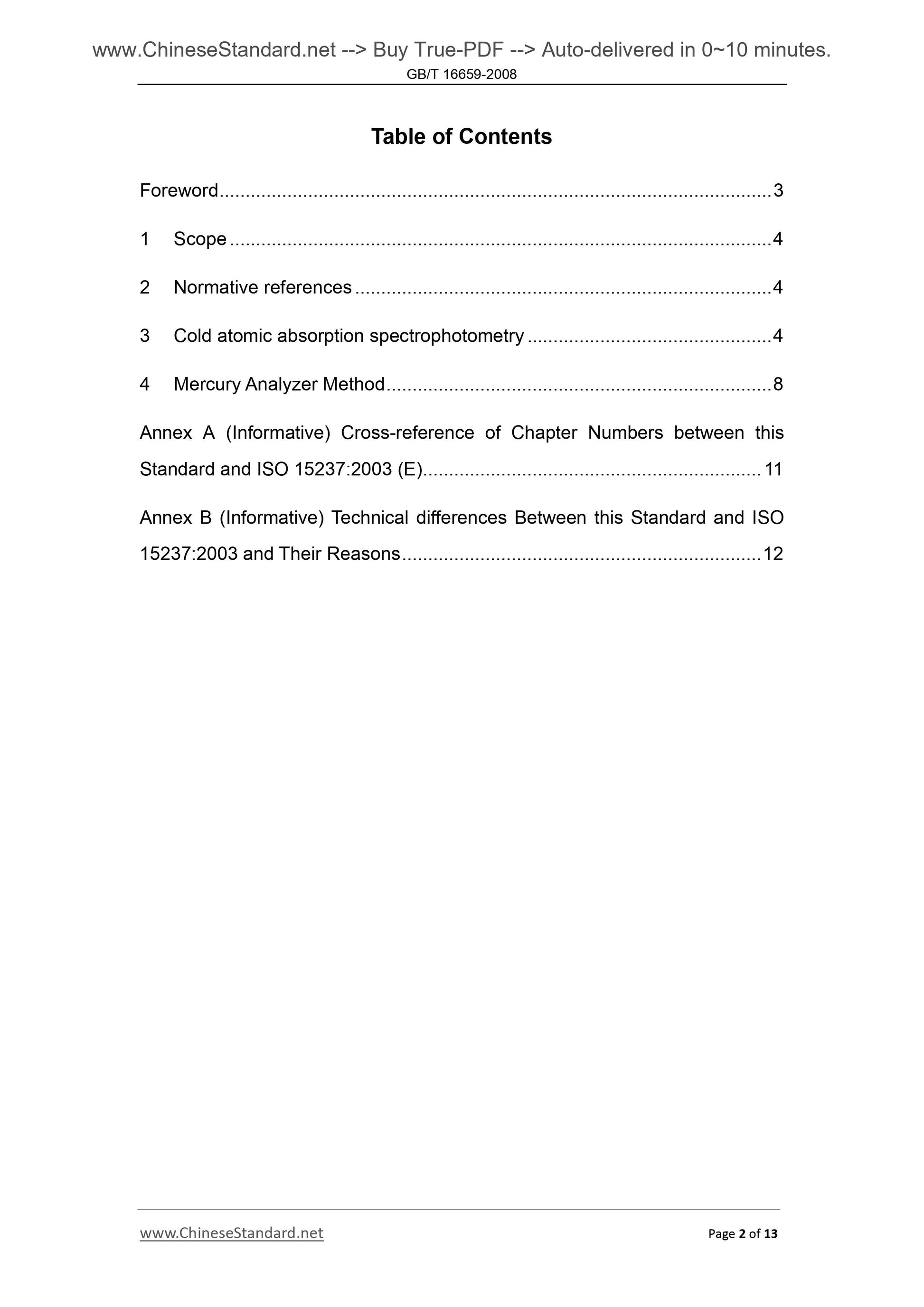

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Cold atomic absorption spectrophotometry ... 4
4 Mercury Analyzer Method ... 8
Annex A (Informative) Cross-reference of Chapter Numbers between this
Standard and ISO 15237.2003 (E) ... 11
Annex B (Informative) Technical differences Between this Standard and ISO 15237.2003 and Their Reasons ... 12

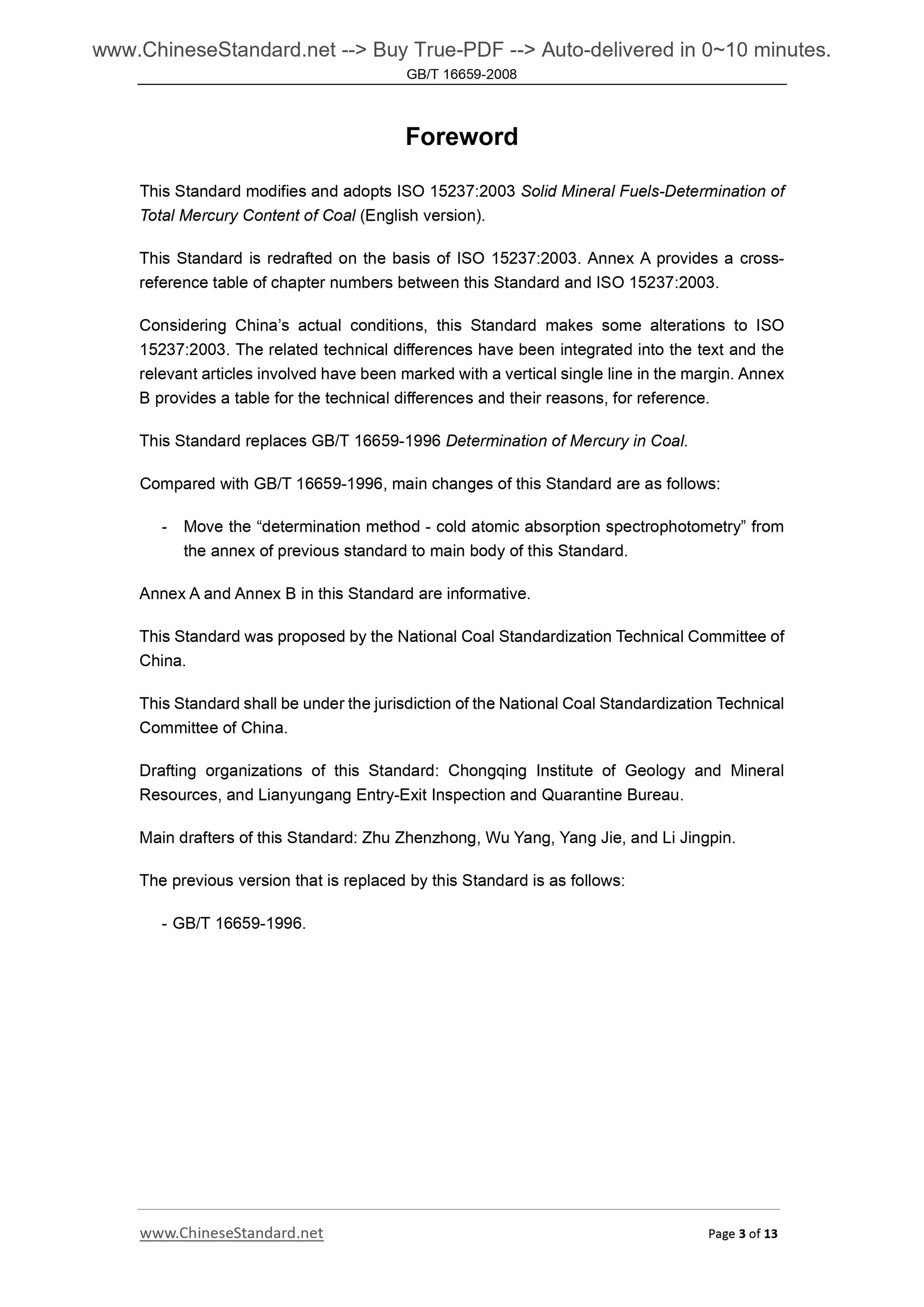

This Standard modifies and adopts ISO 15237.2003 Solid Mineral Fuels-Determination of Total Mercury Content of Coal (English version).
This Standard is redrafted on the basis of ISO 15237.2003. Annex A provides a cross- reference table of chapter numbers between this Standard and ISO 15237.2003. Considering China?€?s actual conditions, this Standard makes some alterations to ISO 15237.2003. The related technical differences have been integrated into the text and the relevant articles involved have been marked with a vertical single line in the margin. Annex B provides a table for the technical differences and their reasons, for reference. This Standard replaces GB/T 16659-1996 Determination of Mercury in Coal. Compared with GB/T 16659-1996, main changes of this Standard are as follows. - Move the ?€?determination method - cold atomic absorption spectrophotometry?€? from the annex of previous standard to main body of this Standard.
Annex A and Annex B in this Standard are informative.
This Standard was proposed by the National Coal Standardization Technical Committee of China.
This Standard shall be under the jurisdiction of the National Coal Standardization Technical Committee of China.
Drafting organizations of this Standard. Chongqing Institute of Geology and Mineral Resources, and Lianyungang Entry-Exit Inspection and Quarantine Bureau. Main drafters of this Standard. Zhu Zhenzhong, Wu Yang, Yang Jie, and Li Jingpin. The previous version that is replaced by this Standard is as follows.
- GB/T 16659-1996.

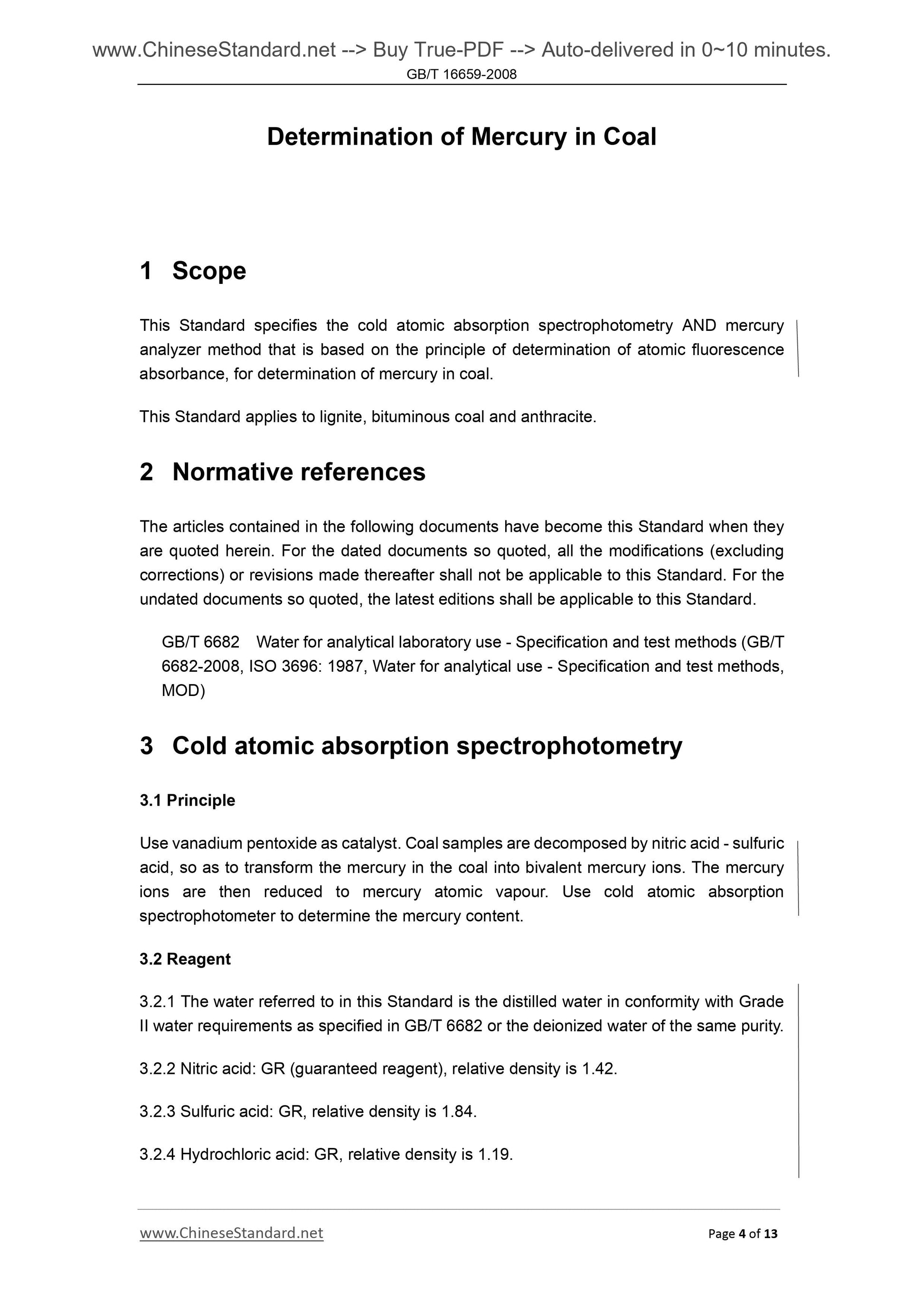

Determination of Mercury in Coal
This Standard specifies the cold atomic absorption spectrophotometry AND mercury analyzer method that is based on the principle of determination of atomic fluorescence absorbance, for determination of mercury in coal.
This Standard applies to lignite, bituminous coal and anthracite.
2 Normative references
The articles contained in the following documents have become this Standard when they are quoted herein. For the dated documents so quoted, all the modifications (excluding corrections) or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard. GB/T 6682 Water for analytical laboratory use - Specification and test methods (GB/T 6682-2008, ISO 3696. 1987, Water for analytical use - Specification and test methods, MOD)
3 Cold atomic absorption spectrophotometry
Use vanadium pentoxide as catalyst. Coal samples are decomposed by nitric acid - sulfuric acid, so as to transform the mercury in the coal into bivalent mercury ions. The mercury ions are then reduced to mercury atomic vapour. Use cold atomic absorption spectrophotometer to determine the mercury content.
3.2.1 The water referred to in this Standard is the distilled water in conformity with Grade II water requirements as specified in GB/T 6682 or the deionized water of the same purity. 3.2.2 Nitric acid. GR (guaranteed reagent), relative density is 1.42.
3.2.3 Sulfuric acid. GR, relative density is 1.84.
3.2.4 Hydrochloric acid. GR, relative density is 1.19.

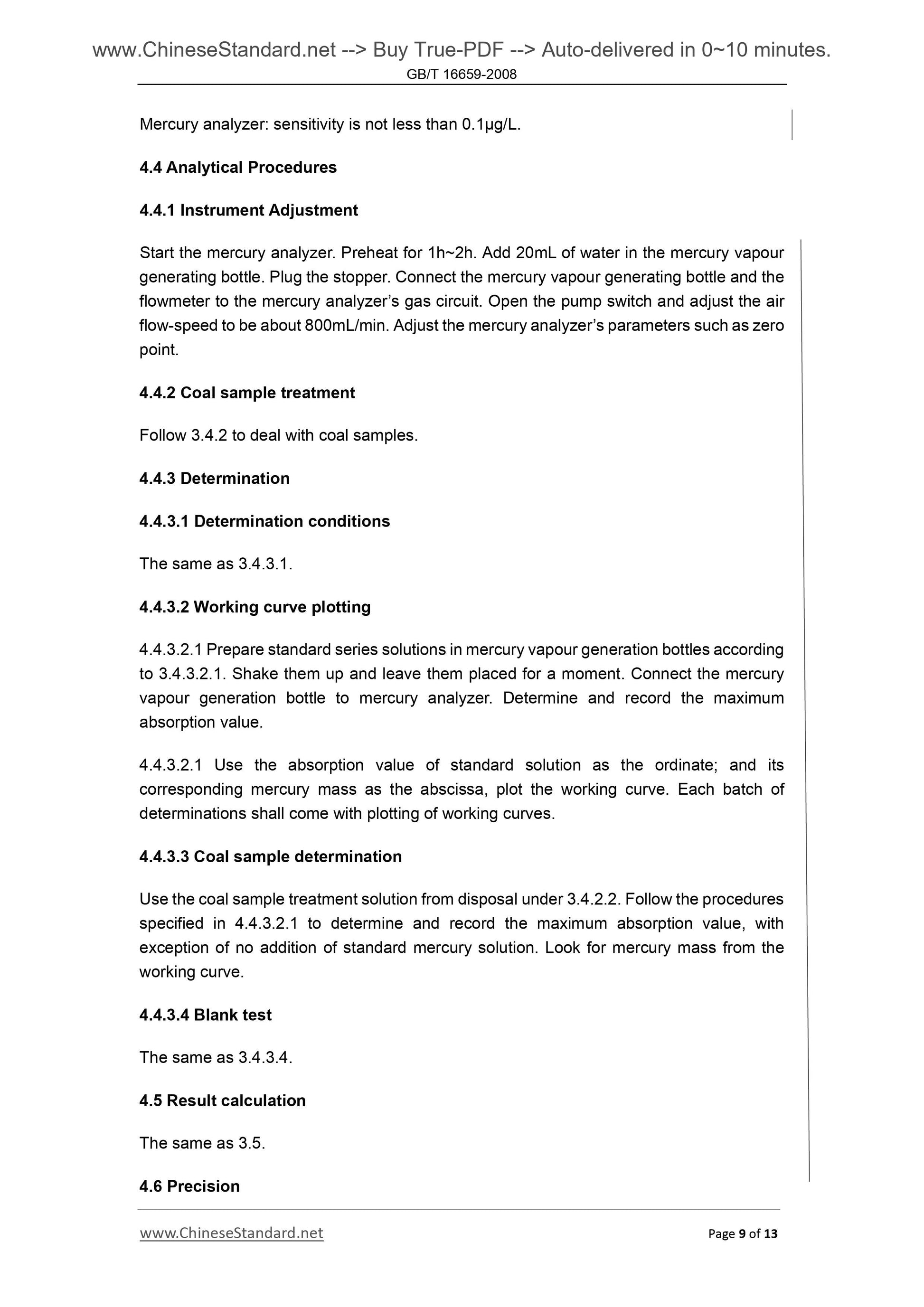

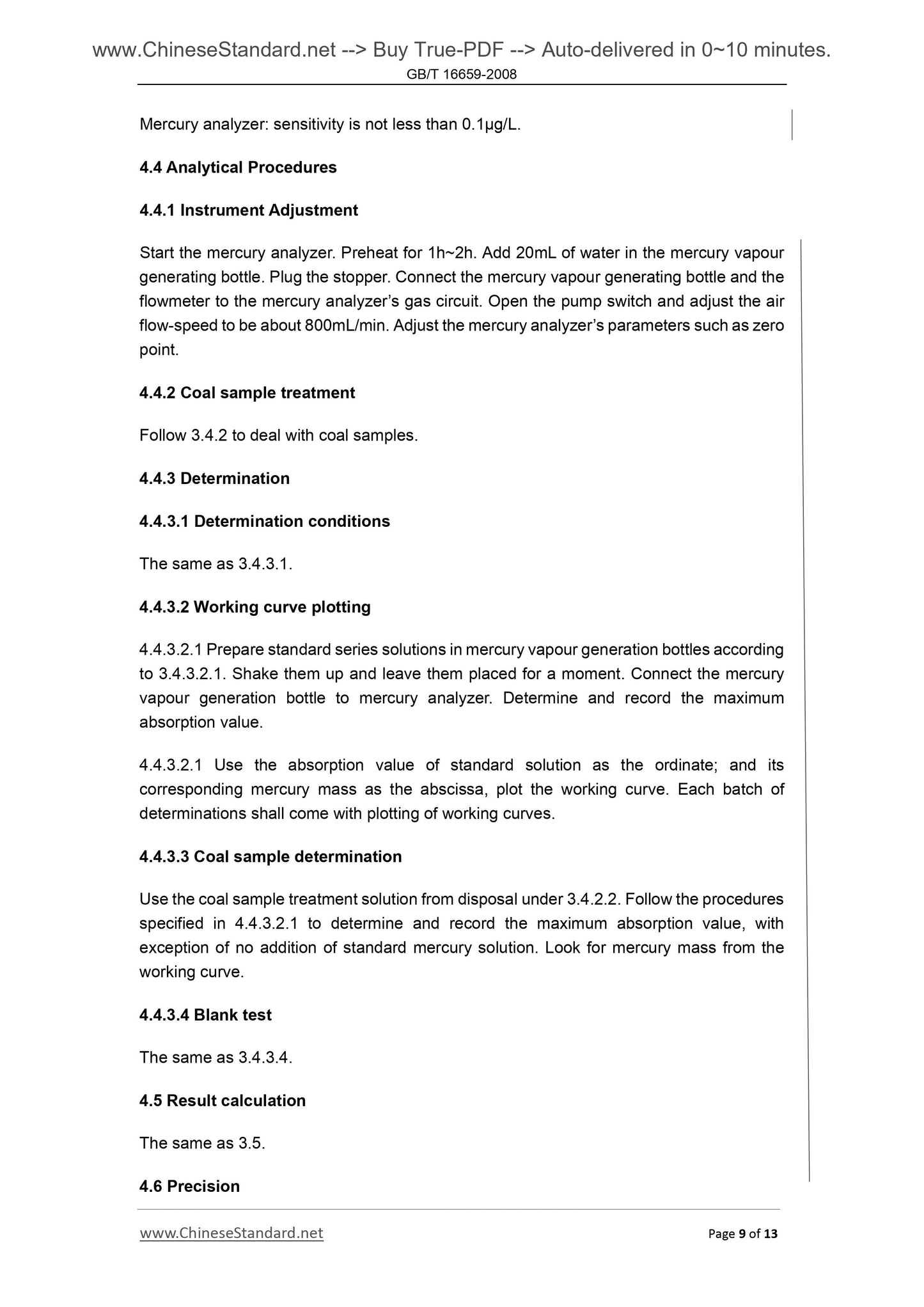

Mercury analyzer. sensitivity is not less than 0.1??g/L.
4.4 Analytical Procedures
4.4.1 Instrument Adjustment
Start the mercury analyzer. Preheat for 1h~2h. Add 20mL of water in the mercury vapour generating bottle. Plug the stopper. Connect the mercury vapour generating bottle and the flowmeter to the mercury analyzer?€?s gas circuit. Open the pump switch and adjust the air flow-speed to be about 800mL/min. Adjust the mercury analyzer?€?s parameters such as zero point.
4.4.2 Coal sample treatment
Follow 3.4.2 to deal with coal samples.
184.108.40.206 Determination conditions
The same as 220.127.116.11.
18.104.22.168 Working curve plotting
22.214.171.124.1 Prepare standard series solutions in mercury vapour generation bottles according to 126.96.36.199.1. Shake them up and leave them placed for a moment. Connect the mercury vapour generation bottle to mercury analyzer. Determine and record the maximum absorption value.
188.8.131.52.1 Use the absorption value of standard solution as the ordinate; and its corresponding mercury mass as the abscissa, plot the working curve. Each batch of determinations shall come with plotting of working curves.
184.108.40.206 Coal sample determination
Use the coal sample treatment solution from disposal under 220.127.116.11. Follow the procedures specified in 18.104.22.168.1 to determine and record the maximum absorption value, with exception of no addition of standard mercury solution. Look for mercury mass from the working curve.
22.214.171.124 Blank test
The same as 126.96.36.199.
4.5 Result calculation
The same as 3.5.

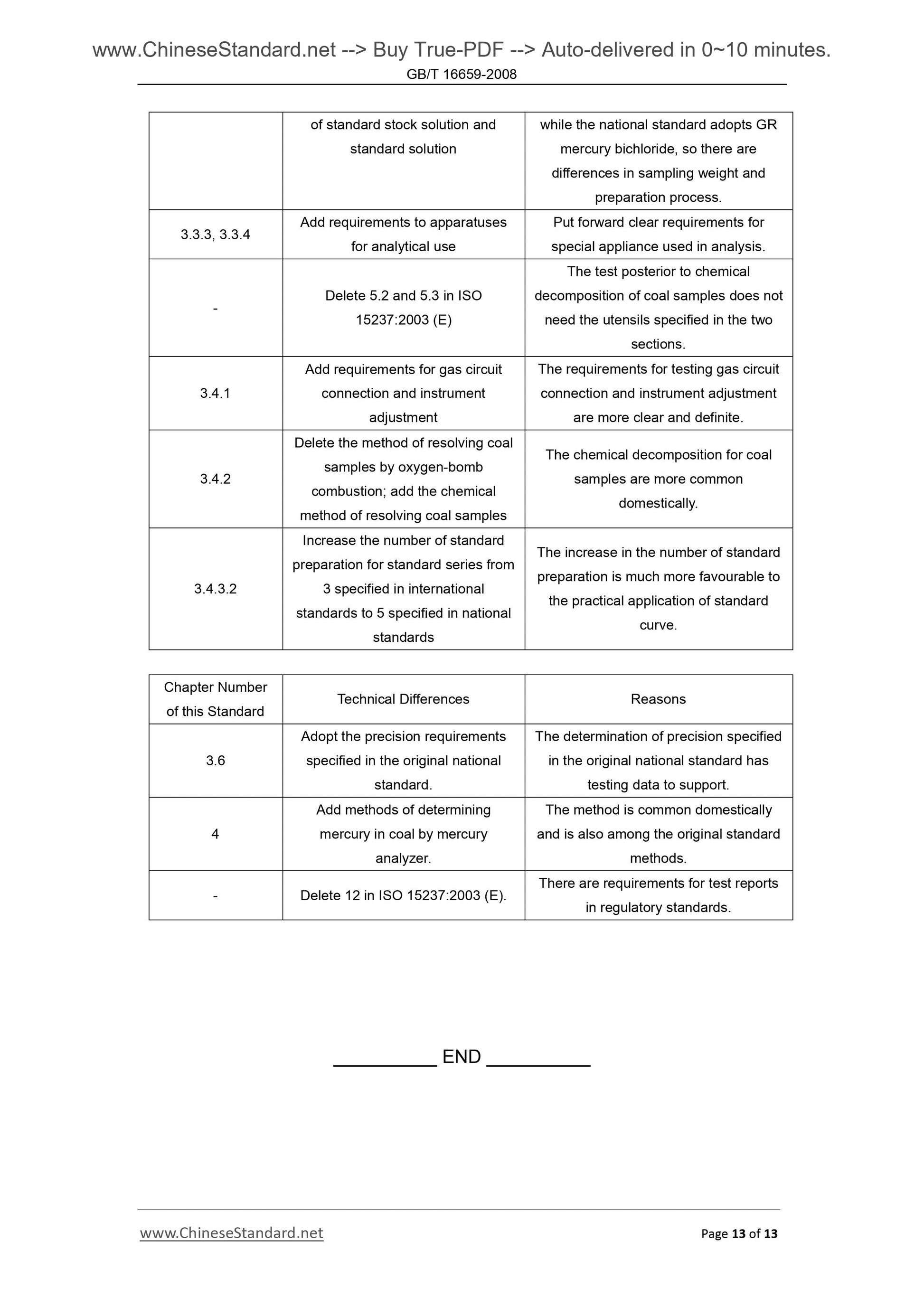

of standard stock solution and
while the national standard adopts GR
mercury bichloride, so there are
differences in sampling weight and
3.3.3, 3.3.4 Add requirements to apparatuses for analytical use
Put forward clear requirements for
special appliance used in analysis.
- Delete 5.2 and 5.3 in ISO 15237.2003 (E)
The test posterior to chemical
decomposition of coal samples does not
need the utensils specified in the two
Add requirements for gas circuit
connection and instrument
The requirements for testing gas circuit
connection and instrument adjustment
are more clear and definite.
Delete the method of resolving coal
samples by oxygen-bomb
combustion; add the chemical
method of resolving coal samples
The chemical decomposition for coal
samples are more common
Increase the number of standard
preparation for standard series from
3 specified in international
standards to 5 specified in national
The increase in the number of standard
preparation is much more favourable to
the practical application of standard
of this Standard Technical Differences Reasons
Adopt the precision requirements
specified in the original national
The determination of precision specified
in the original national standard has
testing data to support.
Add methods of determining
mercury in coal by mercury
The method is common domestically
and is also among the original standard
- Delete 12 in ISO 15237.2003 (E). There are requirements for test reports in regulatory standards.
