PayPal, credit cards. Download editable-PDF and invoice in 1 second!

GB/T 1599-2014 English PDF (GBT1599-2014)

GB/T 1599-2014 English PDF (GBT1599-2014)

Regular price $85.00 USD
Regular price Sale price $85.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 1599-2014 to get it for Purchase Approval, Bank TT...

GB/T 1599-2014: Antimony ingot

This Standard is applicable to the antimony ingot which is produced by the raw materials such as antimony concentrate and lead-antimony concentrate. The antimony-bead standard which is produced by the raw materials such as antimony concentrate and lead antimony concentrate can also be implemented with reference to this Standard.

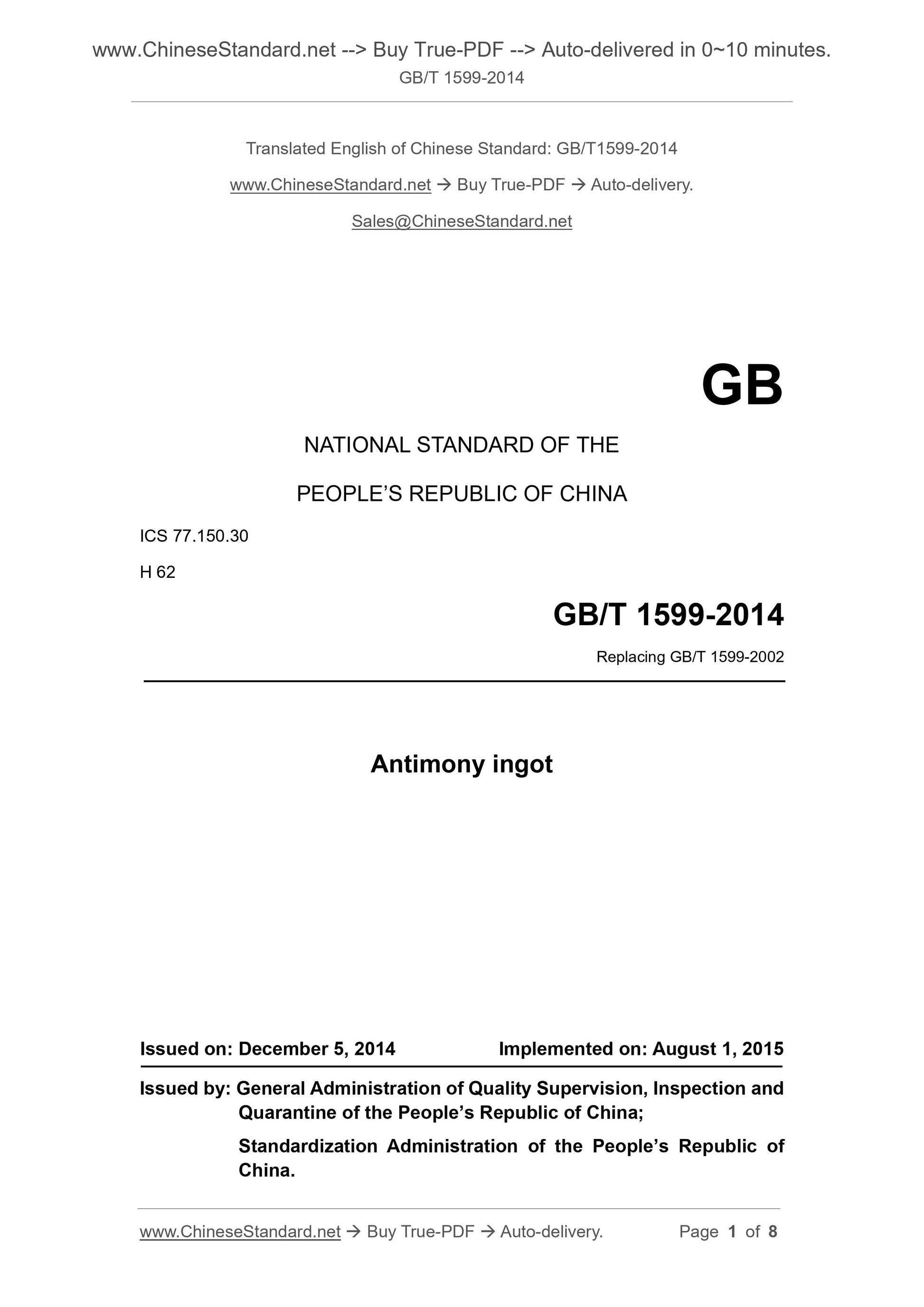

GB/T 1599-2014
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.150.30
H 62
Replacing GB/T 1599-2002
Antimony ingot
??????
ISSUED ON. DECEMBER 5, 2014
IMPLEMENTED ON. AUGUST 1, 2015
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

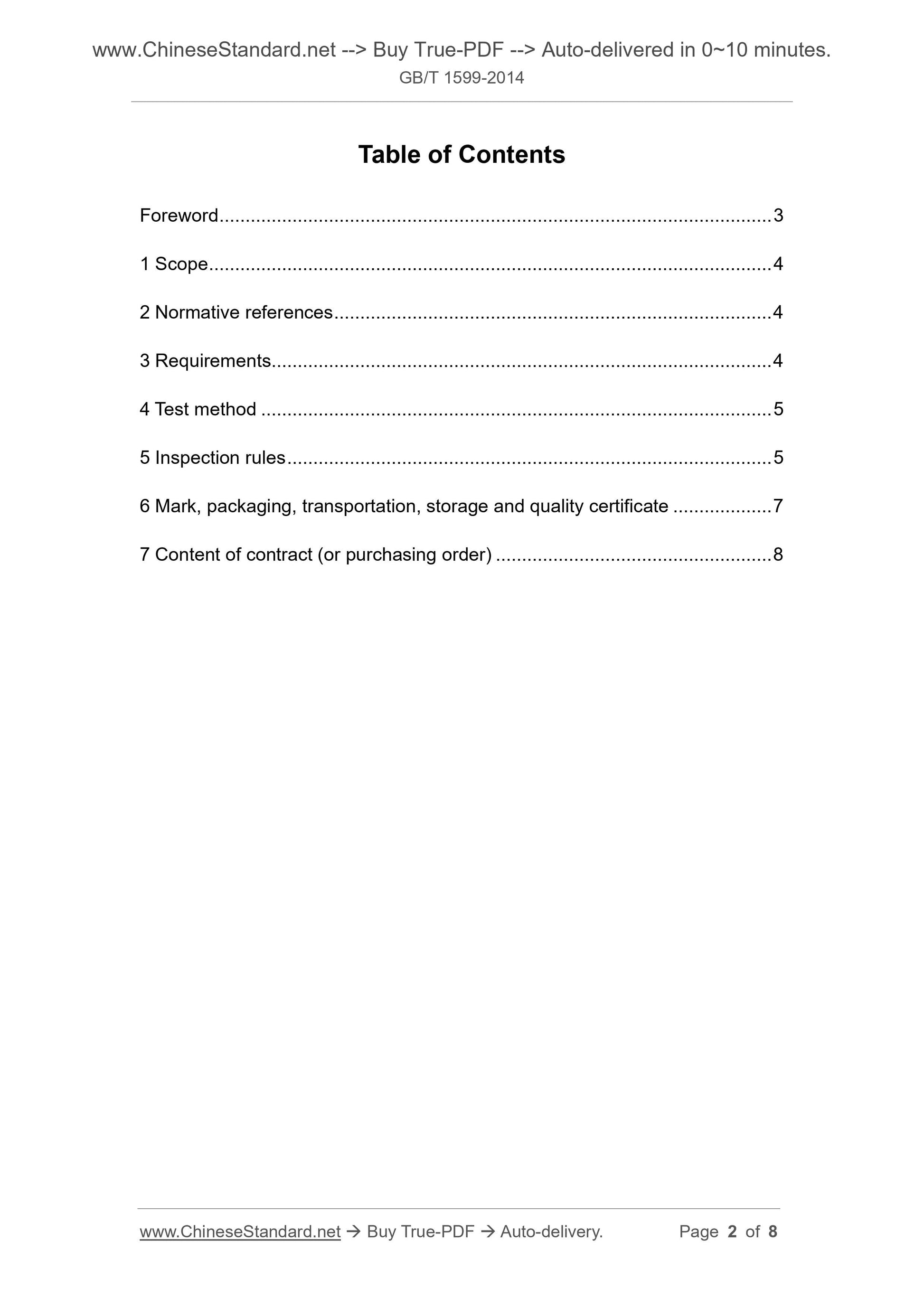

Table of Contents
Foreword . 3
1 Scope .. 4
2 Normative references .. 4
3 Requirements.. 4
4 Test method . 5
5 Inspection rules .. 5
6 Mark, packaging, transportation, storage and quality certificate .. 7 7 Content of contract (or purchasing order) .. 8

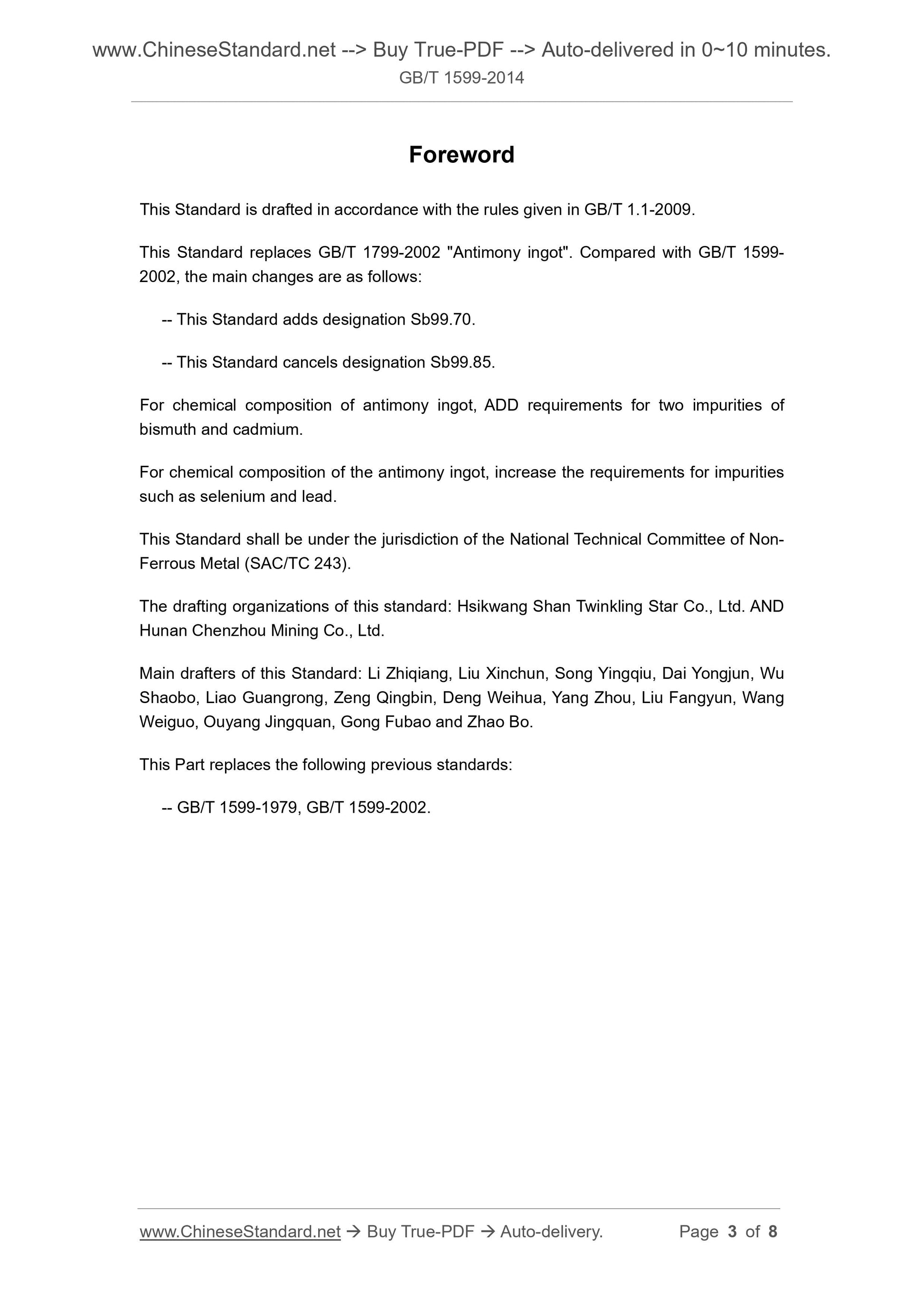

Foreword
This Standard is drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 1799-2002 "Antimony ingot". Compared with GB/T 1599- 2002, the main changes are as follows.
-- This Standard adds designation Sb99.70.
-- This Standard cancels designation Sb99.85.
For chemical composition of antimony ingot, ADD requirements for two impurities of bismuth and cadmium.
For chemical composition of the antimony ingot, increase the requirements for impurities such as selenium and lead.
This Standard shall be under the jurisdiction of the National Technical Committee of Non- Ferrous Metal (SAC/TC 243).
The drafting organizations of this standard. Hsikwang Shan Twinkling Star Co., Ltd. AND Hunan Chenzhou Mining Co., Ltd.
Main drafters of this Standard. Li Zhiqiang, Liu Xinchun, Song Yingqiu, Dai Yongjun, Wu Shaobo, Liao Guangrong, Zeng Qingbin, Deng Weihua, Yang Zhou, Liu Fangyun, Wang Weiguo, Ouyang Jingquan, Gong Fubao and Zhao Bo.
This Part replaces the following previous standards.
-- GB/T 1599-1979, GB/T 1599-2002.

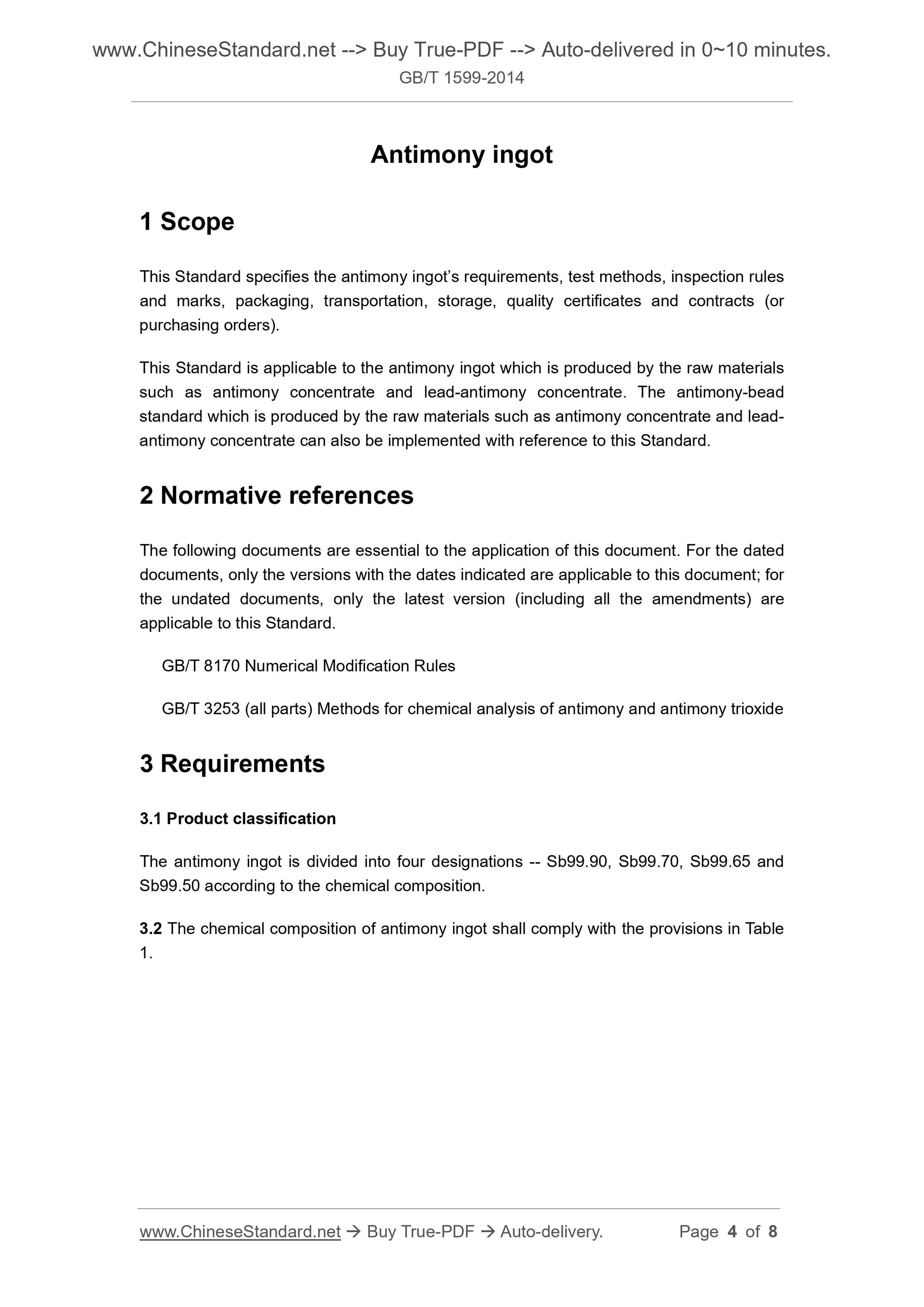

Antimony ingot
1 Scope
This Standard specifies the antimony ingot?€?s requirements, test methods, inspection rules and marks, packaging, transportation, storage, quality certificates and contracts (or purchasing orders).
This Standard is applicable to the antimony ingot which is produced by the raw materials such as antimony concentrate and lead-antimony concentrate. The antimony-bead standard which is produced by the raw materials such as antimony concentrate and lead- antimony concentrate can also be implemented with reference to this Standard. 2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard.
GB/T 8170 Numerical Modification Rules
GB/T 3253 (all parts) Methods for chemical analysis of antimony and antimony trioxide 3 Requirements
3.1 Product classification
The antimony ingot is divided into four designations -- Sb99.90, Sb99.70, Sb99.65 and Sb99.50 according to the chemical composition.
3.2 The chemical composition of antimony ingot shall comply with the provisions in Table 1.

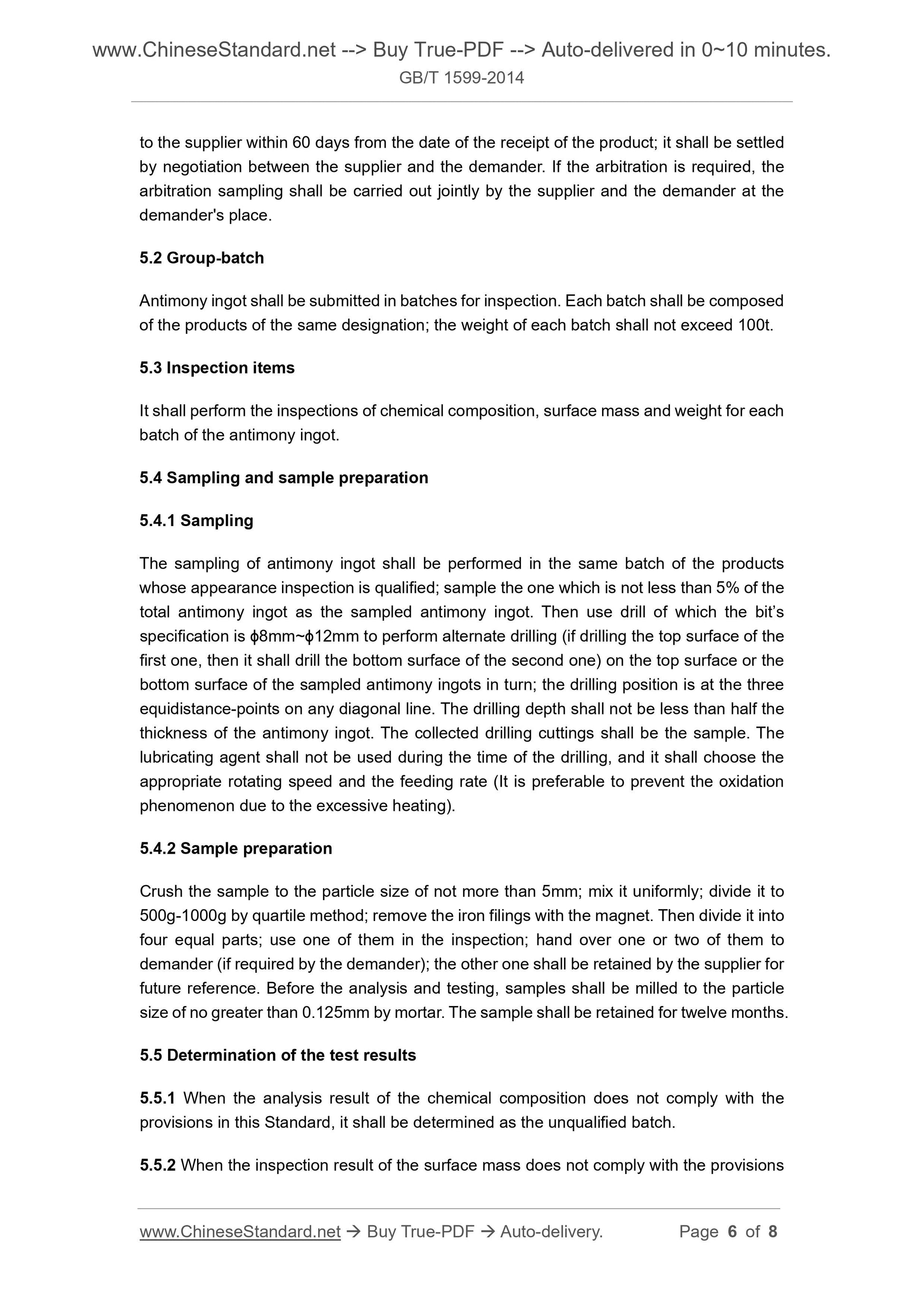

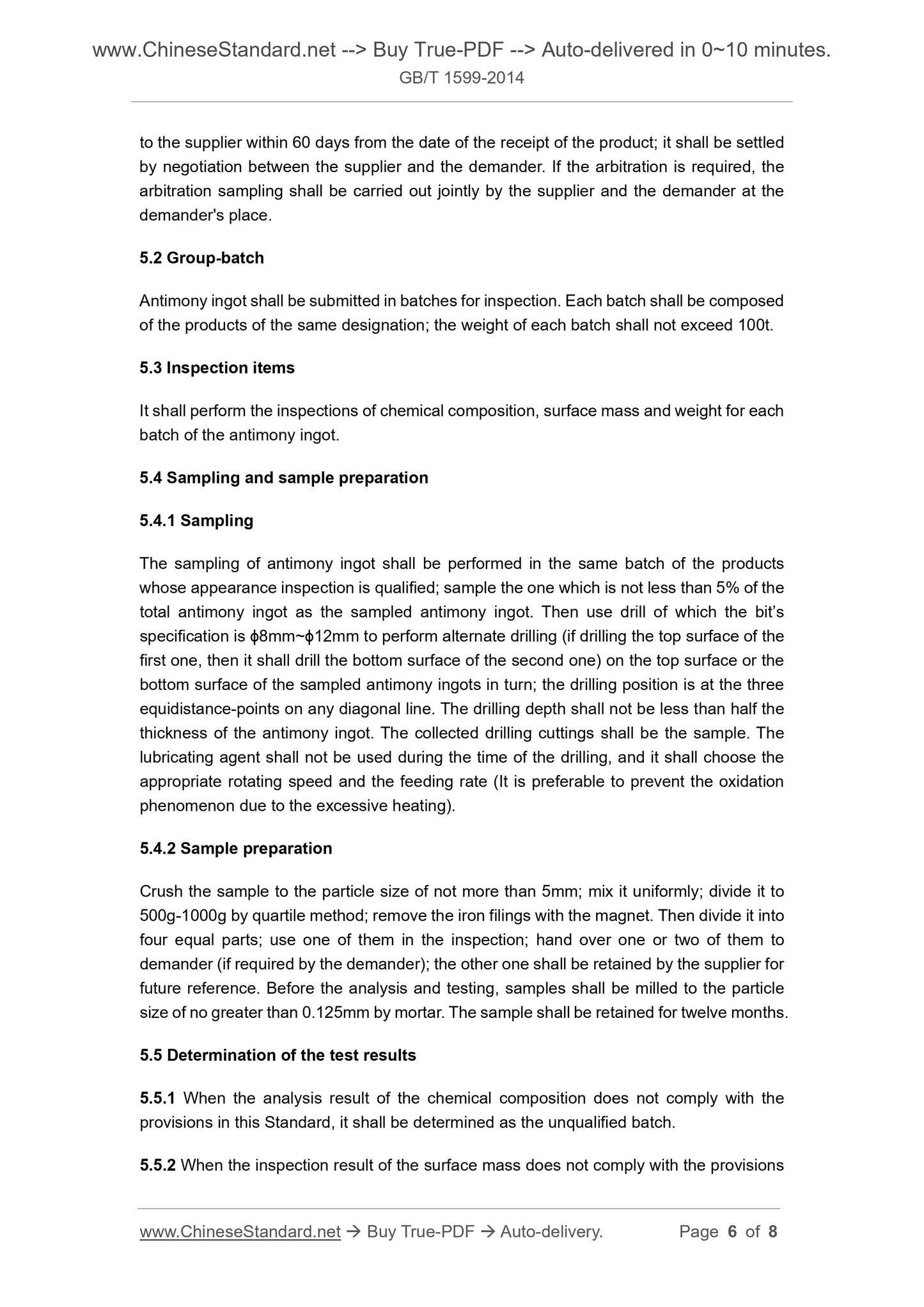

to the supplier within 60 days from the date of the receipt of the product; it shall be settled by negotiation between the supplier and the demander. If the arbitration is required, the arbitration sampling shall be carried out jointly by the supplier and the demander at the demander's place.
5.2 Group-batch
Antimony ingot shall be submitted in batches for inspection. Each batch shall be composed of the products of the same designation; the weight of each batch shall not exceed 100t. 5.3 Inspection items
It shall perform the inspections of chemical composition, surface mass and weight for each batch of the antimony ingot.
5.4 Sampling and sample preparation
5.4.1 Sampling
The sampling of antimony ingot shall be performed in the same batch of the products whose appearance inspection is qualified; sample the one which is not less than 5% of the total antimony ingot as the sampled antimony ingot. Then use drill of which the bit?€?s specification is ??8mm~??12mm to perform alternate drilling (if drilling the top surface of the first one, then it shall drill the bottom surface of the second one) on the top surface or the bottom surface of the sampled antimony ingots in turn; the drilling position is at the three equidistance-points on any diagonal line. The drilling depth shall not be less than half the thickness of the antimony ingot. The collected drilling cuttings shall be the sample. The lubricating agent shall not be used during the time of the drilling, and it shall choose the appropriate rotating speed and the feeding rate (It is preferable to prevent the oxidation phenomenon due to the excessive heating).
5.4.2 Sample preparation
Crush the sample to the particle size of not more than 5mm; mix it uniformly; divide it to 500g-1000g by quartile method; remove the iron filings with the magnet. Then divide it into four equal parts; use one of them in the inspection; hand over one or two of them to demander (if required by the demander); the other one shall be retained by the supplier for future reference. Before the analysis and testing, samples shall be milled to the particle size of no greater than 0.125mm by mortar. The sample shall be retained for twelve months. 5.5 Determination of the test results
5.5.1 When the analysis result of the chemical composition does not comply with the provisions in this Standard, it shall be determined as the unqualified batch. 5.5.2 When the inspection result of the surface mass does not comply with the provisions
