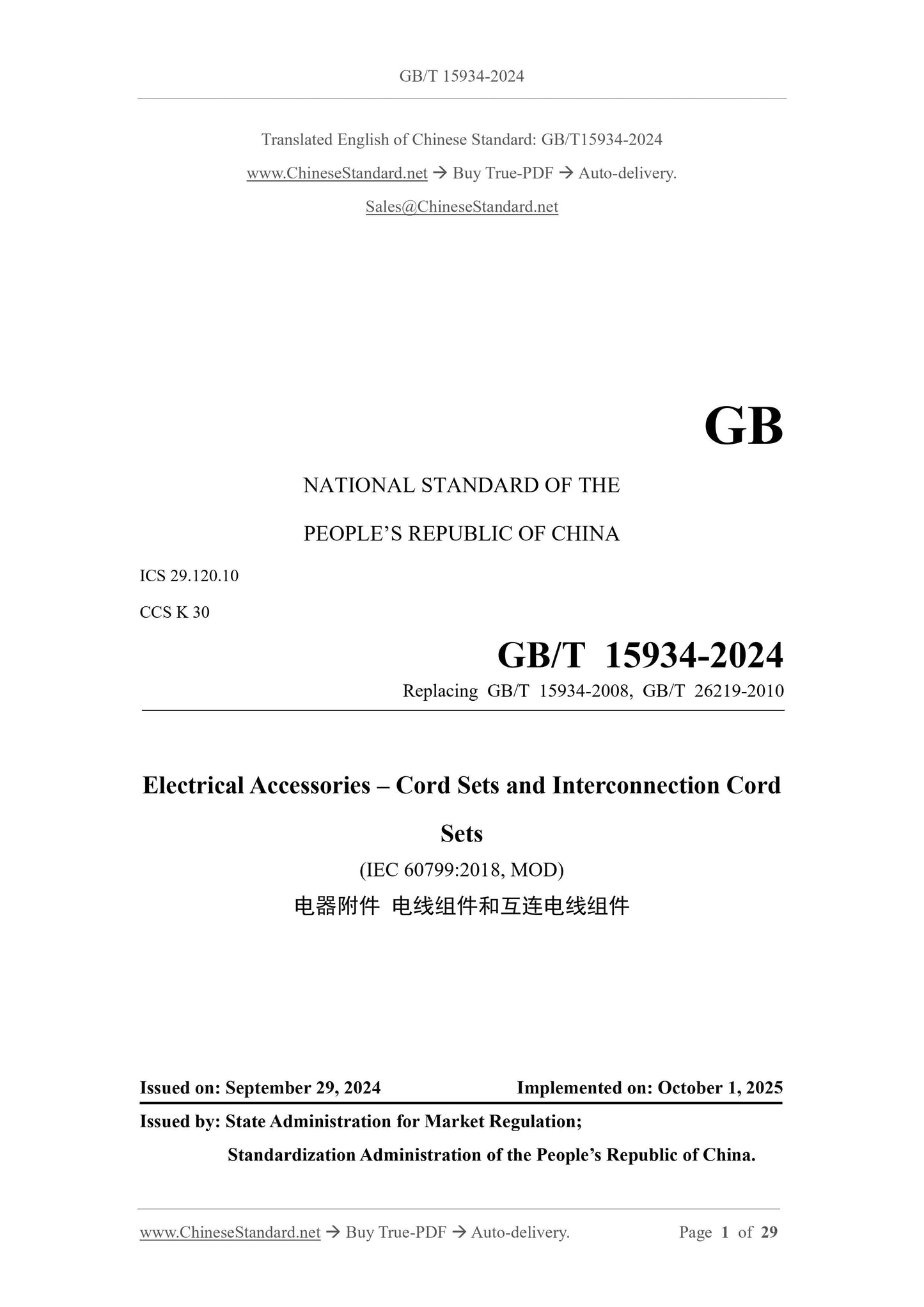

GB/T 15934-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.120.10
CCS K 30
Replacing GB/T 15934-2008, GB/T 26219-2010
Electrical Accessories – Cord Sets and Interconnection Cord
Sets
(IEC 60799.2018, MOD)
ISSUED ON. SEPTEMBER 29, 2024
IMPLEMENTED ON. OCTOBER 1, 2025
Issued by. State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

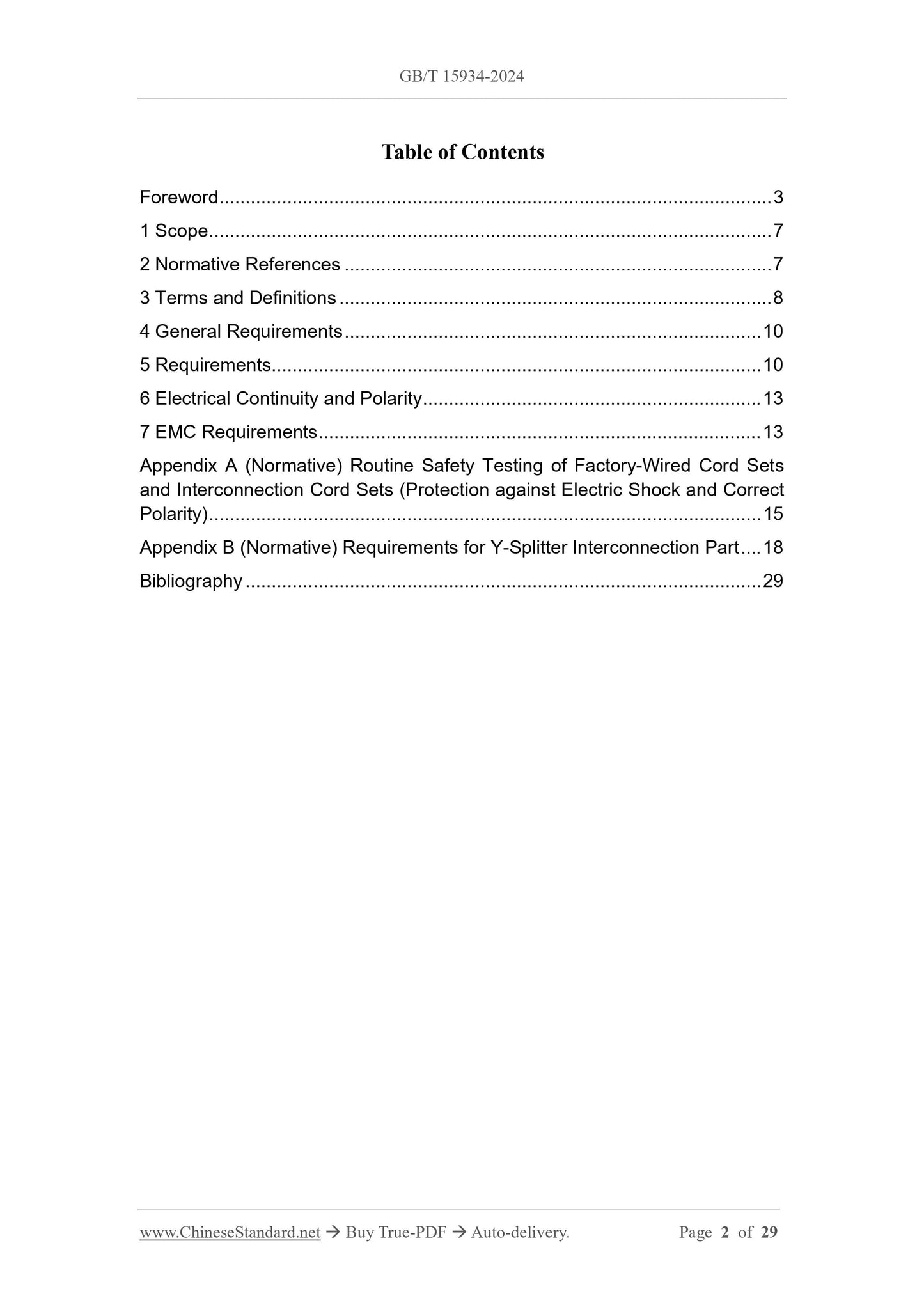

Table of Contents
Foreword... 3
1 Scope... 7
2 Normative References... 7
3 Terms and Definitions... 8
4 General Requirements... 10
5 Requirements... 10
6 Electrical Continuity and Polarity... 13
7 EMC Requirements... 13
Appendix A (Normative) Routine Safety Testing of Factory-Wired Cord Sets
and Interconnection Cord Sets (Protection against Electric Shock and Correct
Polarity)... 15
Appendix B (Normative) Requirements for Y-Splitter Interconnection Part... 18
Bibliography... 29

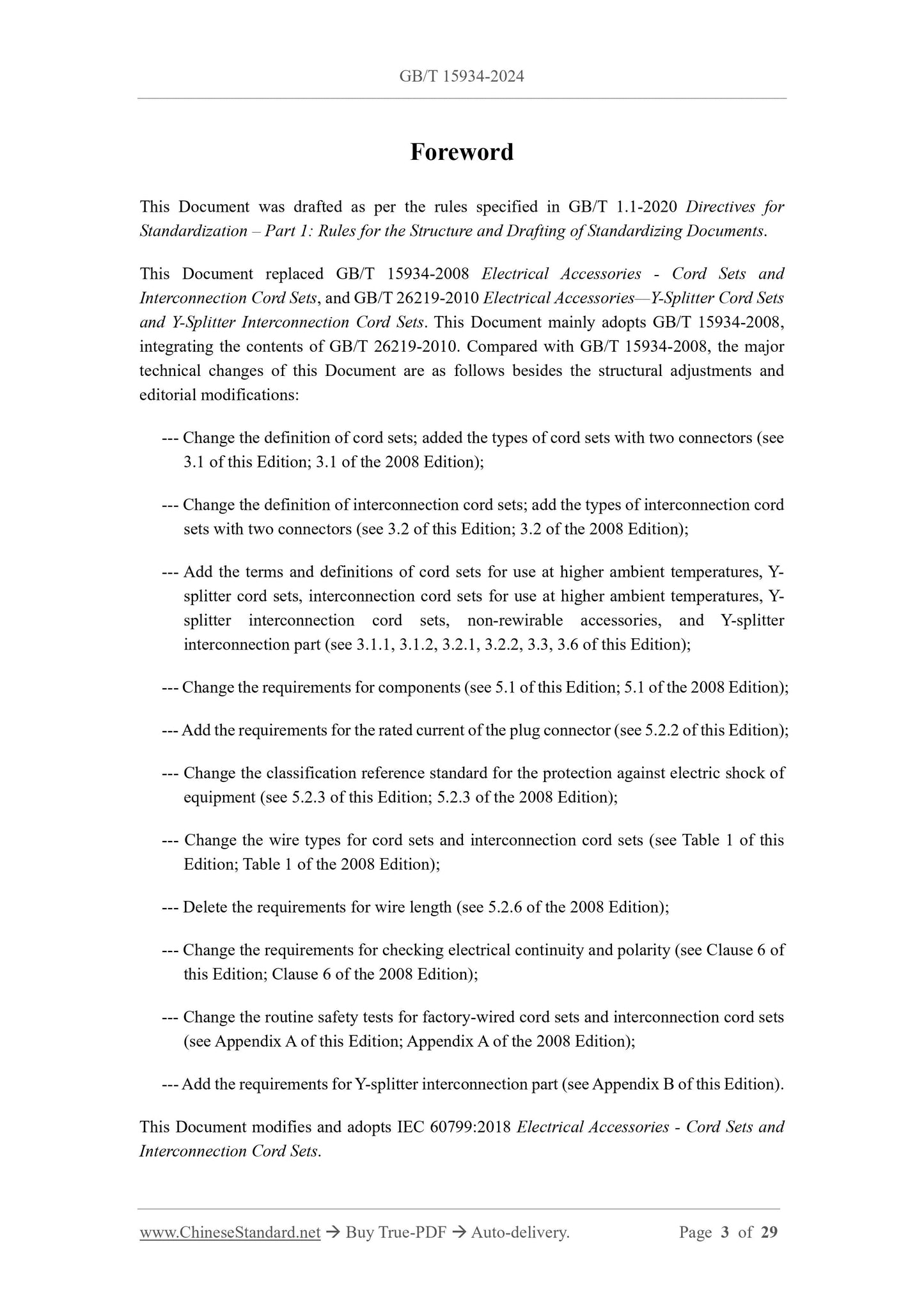

Foreword
This Document was drafted as per the rules specified in GB/T 1.1-2020 Directives for
Standardization – Part 1.Rules for the Structure and Drafting of Standardizing Documents.
This Document replaced GB/T 15934-2008 Electrical Accessories - Cord Sets and
Interconnection Cord Sets, and GB/T 26219-2010 Electrical Accessories—Y-Splitter Cord Sets
and Y-Splitter Interconnection Cord Sets. This Document mainly adopts GB/T 15934-2008,
integrating the contents of GB/T 26219-2010.Compared with GB/T 15934-2008, the major
technical changes of this Document are as follows besides the structural adjustments and
editorial modifications.
--- Change the definition of cord sets; added the types of cord sets with two connectors (see
3.1 of this Edition; 3.1 of the 2008 Edition);
--- Change the definition of interconnection cord sets; add the types of interconnection cord
sets with two connectors (see 3.2 of this Edition; 3.2 of the 2008 Edition);
--- Add the terms and definitions of cord sets for use at higher ambient temperatures, Y-
splitter cord sets, interconnection cord sets for use at higher ambient temperatures, Y-
splitter interconnection cord sets, non-rewirable accessories, and Y-splitter
interconnection part (see 3.1.1, 3.1.2, 3.2.1, 3.2.2, 3.3, 3.6 of this Edition);
--- Change the requirements for components (see 5.1 of this Edition; 5.1 of the 2008 Edition);
--- Add the requirements for the rated current of the plug connector (see 5.2.2 of this Edition);
--- Change the classification reference standard for the protection against electric shock of
equipment (see 5.2.3 of this Edition; 5.2.3 of the 2008 Edition);
--- Change the wire types for cord sets and interconnection cord sets (see Table 1 of this
Edition; Table 1 of the 2008 Edition);
--- Delete the requirements for wire length (see 5.2.6 of the 2008 Edition);
--- Change the requirements for checking electrical continuity and polarity (see Clause 6 of
this Edition; Clause 6 of the 2008 Edition);
--- Change the routine safety tests for factory-wired cord sets and interconnection cord sets
(see Appendix A of this Edition; Appendix A of the 2008 Edition);
--- Add the requirements for Y-splitter interconnection part (see Appendix B of this Edition).
This Document modifies and adopts IEC 60799.2018 Electrical Accessories - Cord Sets and
Interconnection Cord Sets.
Electrical Accessories – Cord Sets and Interconnection Cord
Sets

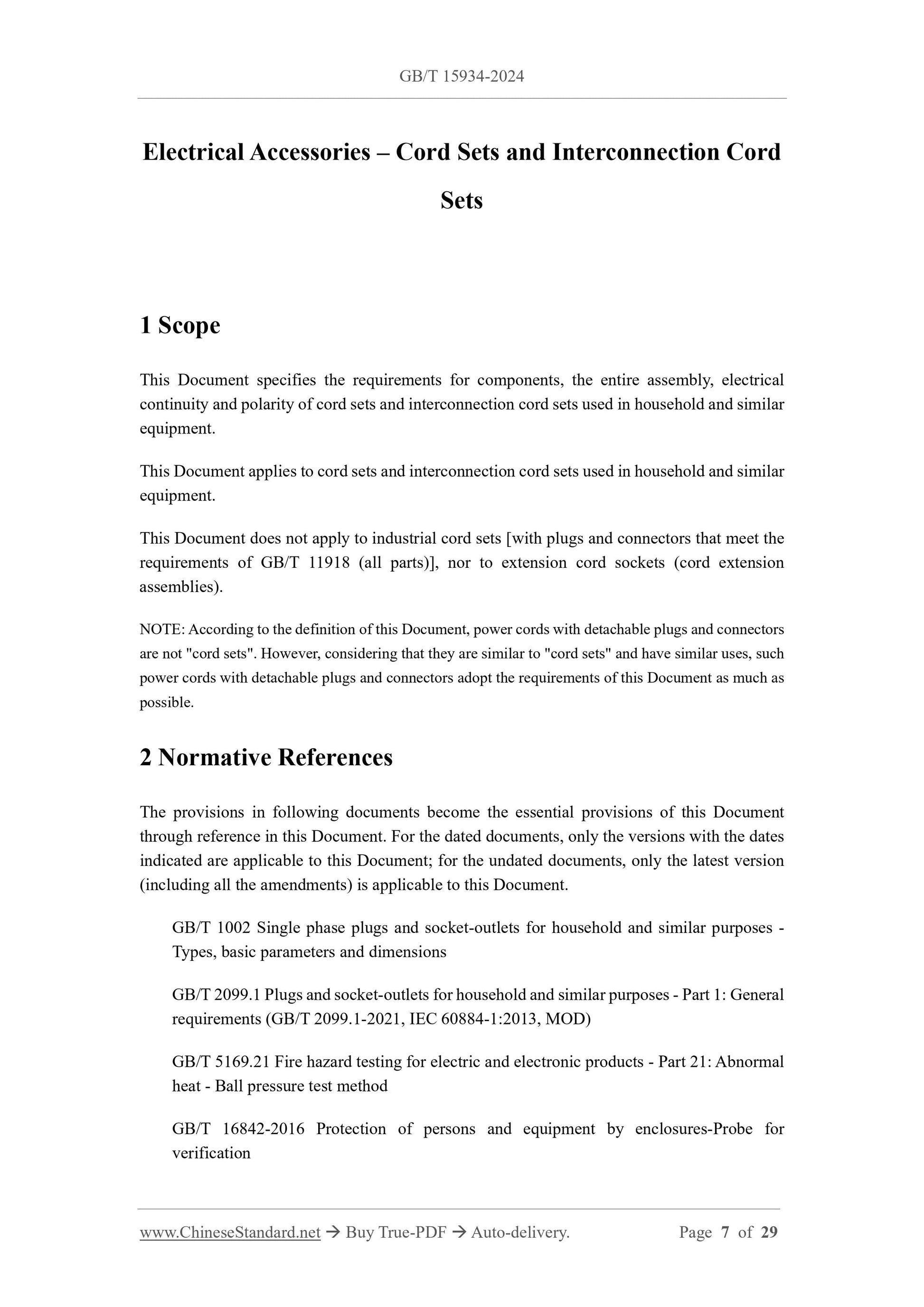

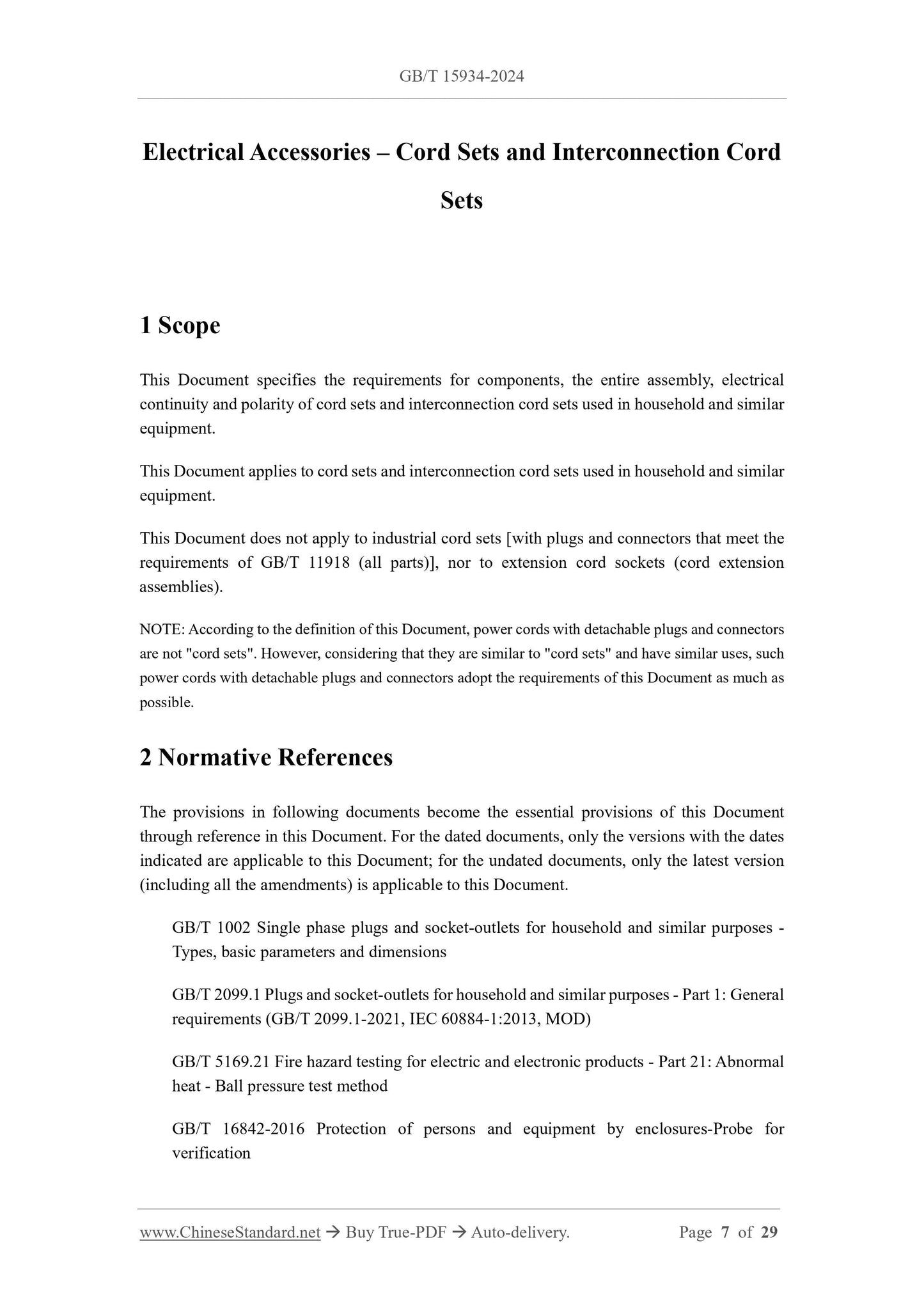

1 Scope
This Document specifies the requirements for components, the entire assembly, electrical
continuity and polarity of cord sets and interconnection cord sets used in household and similar
equipment.
This Document applies to cord sets and interconnection cord sets used in household and similar
equipment.
This Document does not apply to industrial cord sets [with plugs and connectors that meet the
requirements of GB/T 11918 (all parts)], nor to extension cord sockets (cord extension
assemblies).
NOTE. According to the definition of this Document, power cords with detachable plugs and connectors
are not "cord sets". However, considering that they are similar to "cord sets" and have similar uses, such
power cords with detachable plugs and connectors adopt the requirements of this Document as much as
possible.
2 Normative References
The provisions in following documents become the essential provisions of this Document
through reference in this Document. For the dated documents, only the versions with the dates
indicated are applicable to this Document; for the undated documents, only the latest version
(including all the amendments) is applicable to this Document.
GB/T 1002 Single phase plugs and socket-outlets for household and similar purposes -
Types, basic parameters and dimensions
GB/T 2099.1 Plugs and socket-outlets for household and similar purposes - Part 1.General
requirements (GB/T 2099.1-2021, IEC 60884-1.2013, MOD)
GB/T 5169.21 Fire hazard testing for electric and electronic products - Part 21.Abnormal
heat - Ball pressure test method
GB/T 16842-2016 Protection of persons and equipment by enclosures-Probe for
verification
