GB/T 1592.2-2016: Agricultural tractors -- Rear-mounted power take-off types 1, 2, 3 and 4 -- Part 2: Narrow-track tractors, dimensions for master shield and clearance zone

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 1592.2-2016 (Self-service in 1-minute)
Newer / historical versions: GB/T 1592.2-2016

Preview True-PDF

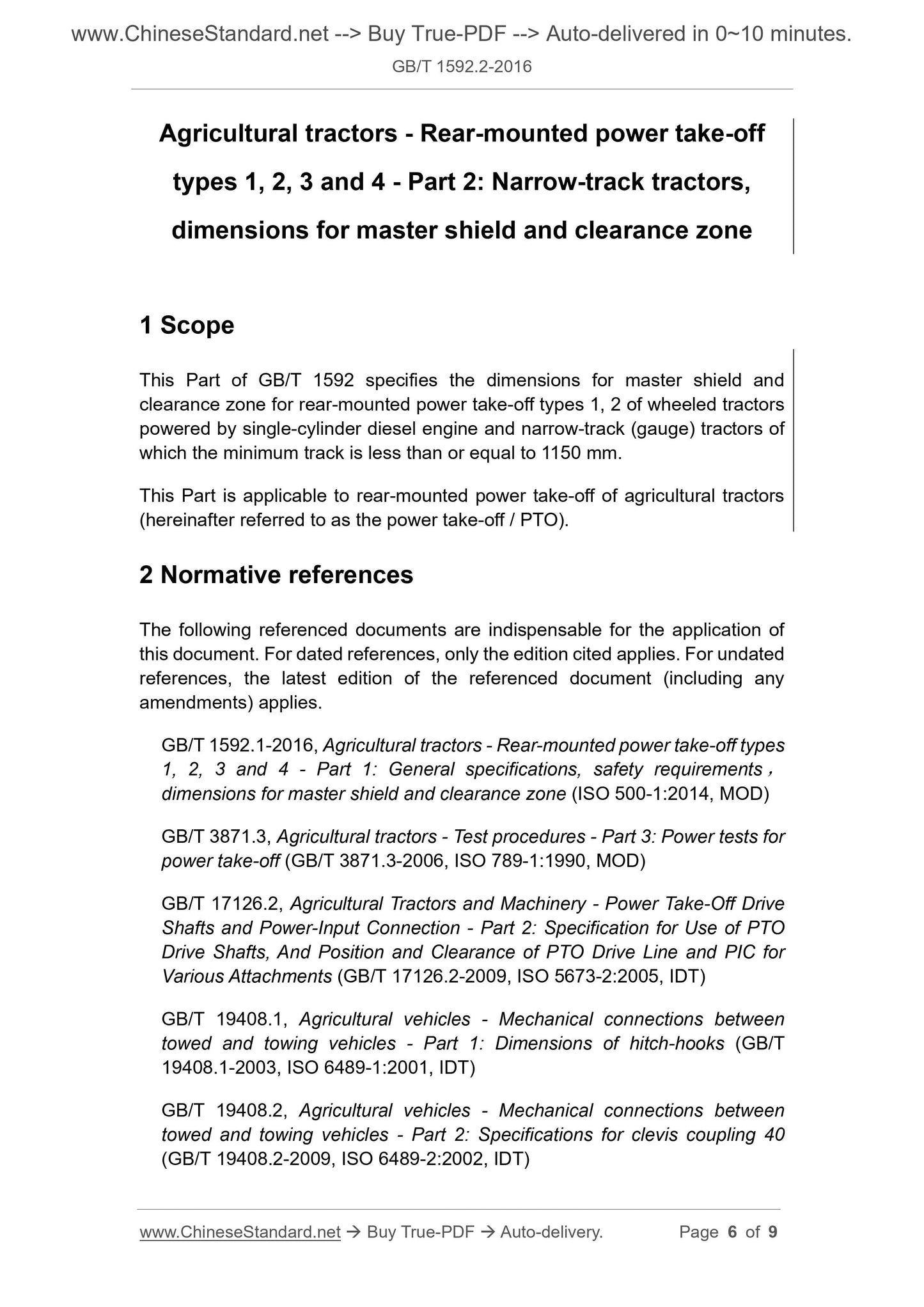

Scope

This Part of GB/T 1592 specifies the dimensions for master shield and
clearance zone for rear-mounted power take-off types 1, 2 of wheeled tractors
powered by single-cylinder diesel engine and narrow-track (gauge) tractors of
which the minimum track is less than or equal to 1150 mm.
This Part is applicable to rear-mounted power take-off of agricultural tractors
(hereinafter referred to as the power take-off / PTO).

Basic Data

Standard ID	GB/T 1592.2-2016 (GB/T1592.2-2016)
Description (Translated English)	Agricultural tractors -- Rear-mounted power take-off types 1, 2, 3 and 4 -- Part 2: Narrow-track tractors, dimensions for master shield and clearance zone
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	T67
Classification of International Standard	65.060.10
Word Count Estimation	7,711
Date of Issue	2016-02-24
Date of Implementation	2016-09-01
Older Standard (superseded by this standard)	GB/T 1592.2-2008
Quoted Standard	GB/T 1592.1-2016; GB/T 3871.3; GB/T 17126.2; GB/T 19408.1; GB/T 19408.2; GB/T 19408.3; GB/T 19408.4; GB/T 19408.5; ISO 6489-5-2011
Adopted Standard	ISO 500-2-2004, MOD
Regulation (derived from)	National Standard Announcement No
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the size and clearance range of a wheeled tractor driven by a single cylinder diesel engine and a narrow wheel (rail) with a minimum track distance of 1150 mm or less from the power output shaft 1 and 2 of the tractor. This standard applies to agricultural tractor rear power output shaft (hereinafter referred to as power output shaft).
