GB/T 15478-2015: Test methods of the performances for pressure transducer/sensor

This standard specifies the test conditions, the general provisions of the test, the test items and the test methods, AND data calculation and processing for the performance of the pressure sensor.

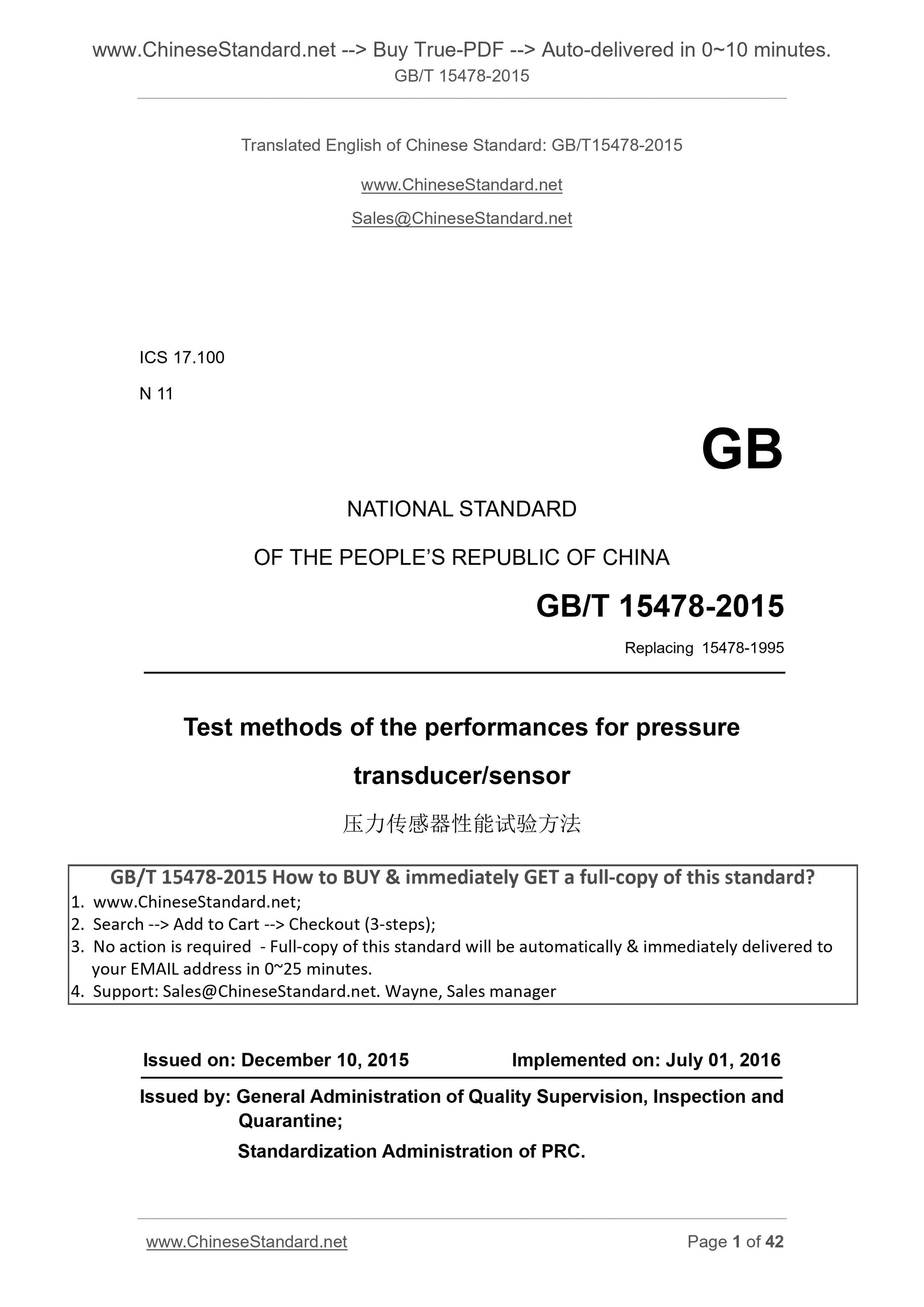

GB/T 15478-2015
ICS 17.100
N 11
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Replacing 15478-1995
Test methods of the performances for pressure
transducer/sensor
ISSUED ON. DECEMBER 10, 2015
IMPLEMENTED ON. JULY 01, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

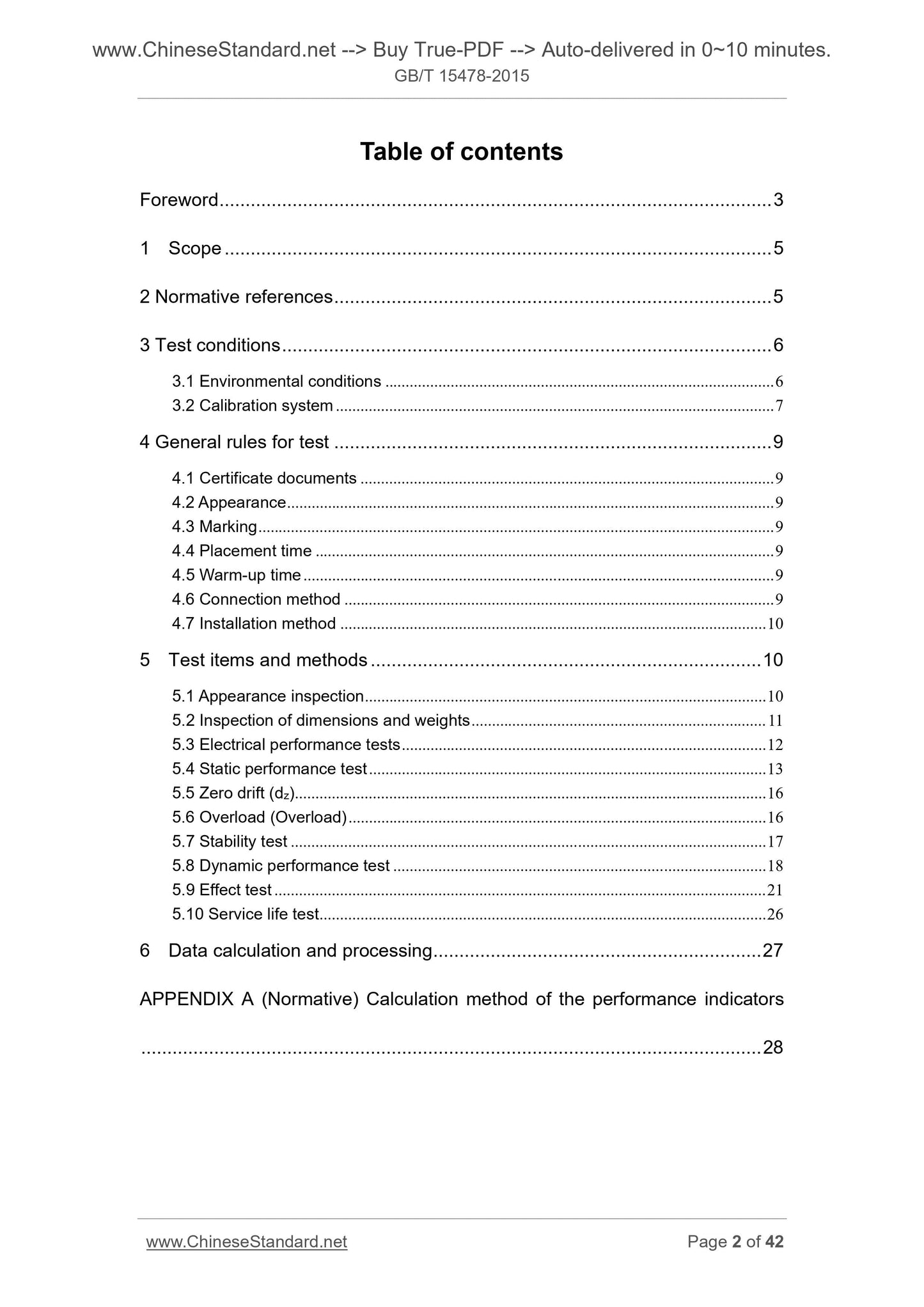

Table of contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Test conditions ... 6
3.1 Environmental conditions ... 6
3.2 Calibration system ... 7
4 General rules for test ... 9
4.1 Certificate documents ... 9
4.2 Appearance ... 9
4.3 Marking ... 9
4.4 Placement time ... 9
4.5 Warm-up time ... 9
4.6 Connection method ... 9
4.7 Installation method ... 10
5 Test items and methods ... 10
5.1 Appearance inspection ... 10
5.2 Inspection of dimensions and weights ... 11
5.3 Electrical performance tests ... 12
5.4 Static performance test ... 13
5.5 Zero drift (dz) ... 16
5.6 Overload (Overload) ... 16
5.7 Stability test ... 17
5.8 Dynamic performance test ... 18
5.9 Effect test ... 21
5.10 Service life test ... 26
6 Data calculation and processing ... 27
APPENDIX A (Normative) Calculation method of the performance indicators ... 28

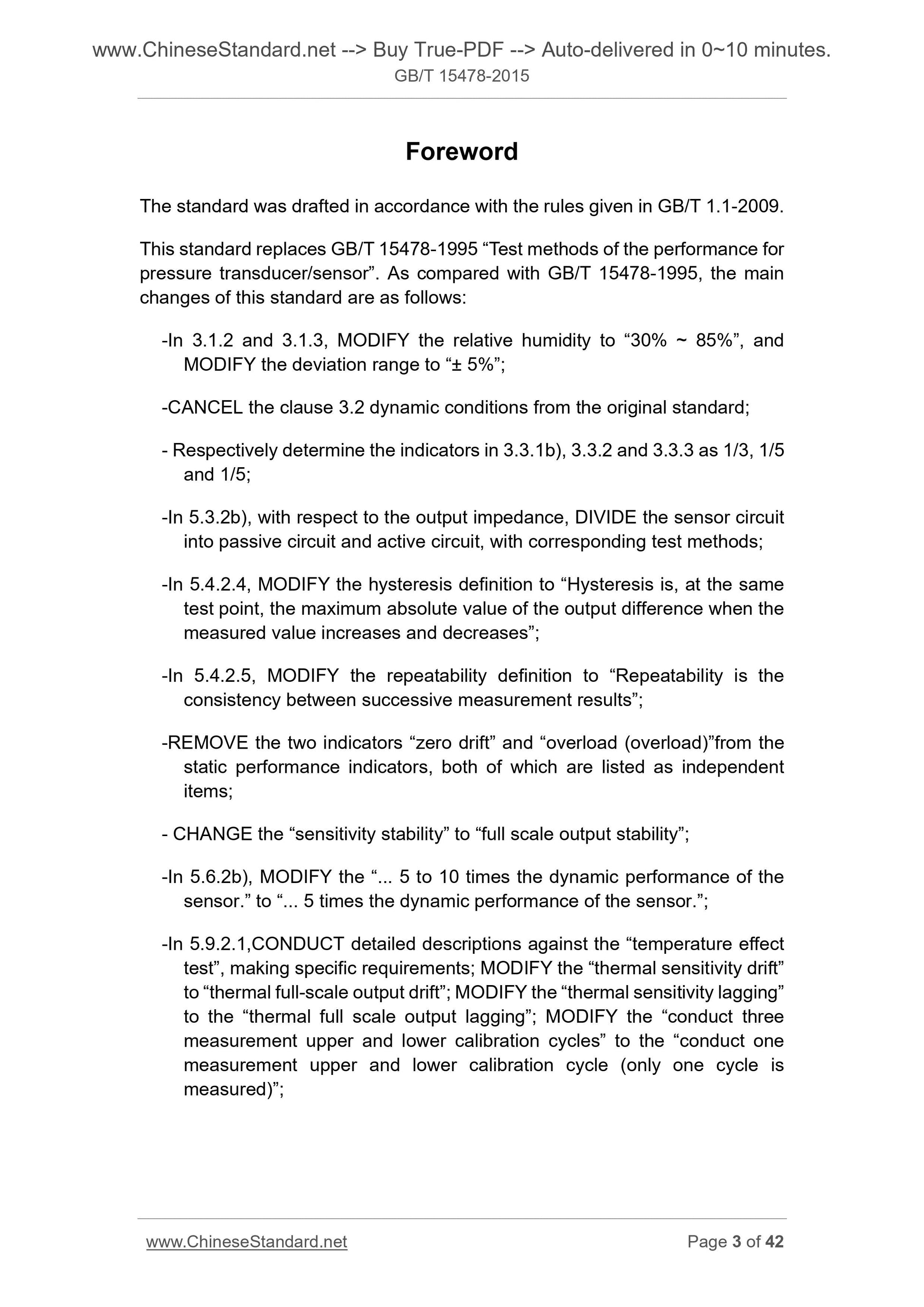

Foreword
The standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 15478-1995 ?€?Test methods of the performance for pressure transducer/sensor?€?. As compared with GB/T 15478-1995, the main changes of this standard are as follows.
-In 3.1.2 and 3.1.3, MODIFY the relative humidity to ?€?30% ~ 85%?€?, and
MODIFY the deviation range to ?€??? 5%?€?;
-CANCEL the clause 3.2 dynamic conditions from the original standard;
- Respectively determine the indicators in 3.3.1b), 3.3.2 and 3.3.3 as 1/3, 1/5 and 1/5;
-In 5.3.2b), with respect to the output impedance, DIVIDE the sensor circuit into passive circuit and active circuit, with corresponding test methods; -In 5.4.2.4, MODIFY the hysteresis definition to ?€?Hysteresis is, at the same test point, the maximum absolute value of the output difference when the measured value increases and decreases?€?;
-In 5.4.2.5, MODIFY the repeatability definition to ?€?Repeatability is the consistency between successive measurement results?€?;
-REMOVE the two indicators ?€?zero drift?€? and ?€?overload (overload)?€?from the static performance indicators, both of which are listed as independent
items;
- CHANGE the ?€?sensitivity stability?€? to ?€?full scale output stability?€?;
-In 5.6.2b), MODIFY the ?€?... 5 to 10 times the dynamic performance of the sensor.?€? to ?€?... 5 times the dynamic performance of the sensor.?€?;
-In 5.9.2.1,CONDUCT detailed descriptions against the ?€?temperature effect test?€?, making specific requirements; MODIFY the ?€?thermal sensitivity drift?€? to ?€?thermal full-scale output drift?€?; MODIFY the ?€?thermal sensitivity lagging?€? to the ?€?thermal full scale output lagging?€?; MODIFY the ?€?conduct three
measurement upper and lower calibration cycles?€? to the ?€?conduct one
measurement upper and lower calibration cycle (only one cycle is
measured)?€?;
Test methods of the performances for pressure
transducer/sensor

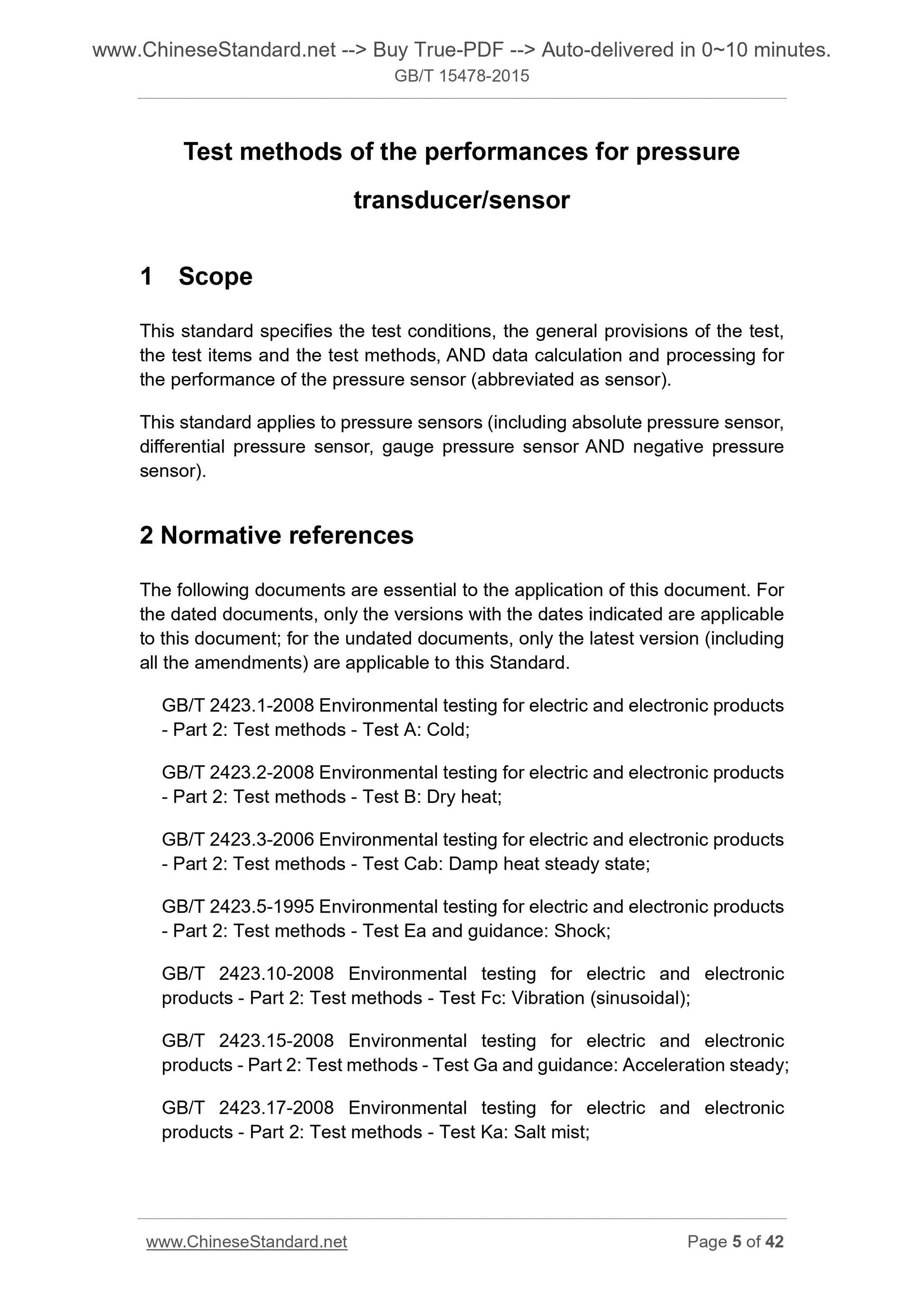

1 Scope
This standard specifies the test conditions, the general provisions of the test, the test items and the test methods, AND data calculation and processing for the performance of the pressure sensor (abbreviated as sensor).
This standard applies to pressure sensors (including absolute pressure sensor, differential pressure sensor, gauge pressure sensor AND negative pressure sensor).
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard.
GB/T 2423.1-2008 Environmental testing for electric and electronic products - Part 2. Test methods - Test A. Cold;
GB/T 2423.2-2008 Environmental testing for electric and electronic products - Part 2. Test methods - Test B. Dry heat;
GB/T 2423.3-2006 Environmental testing for electric and electronic products - Part 2. Test methods - Test Cab. Damp heat steady state;
GB/T 2423.5-1995 Environmental testing for electric and electronic products - Part 2. Test methods - Test Ea and guidance. Shock;
GB/T 2423.10-2008 Environmental testing for electric and electronic
products - Part 2. Test methods - Test Fc. Vibration (sinusoidal);
GB/T 2423.15-2008 Environmental testing for electric and electronic
products - Part 2. Test methods - Test Ga and guidance. Acceleration steady; GB/T 2423.17-2008 Environmental testing for electric and electronic
products - Part 2. Test methods - Test Ka. Salt mist;
GB/T 2423.21-2008 Environmental testing for electric and electronic

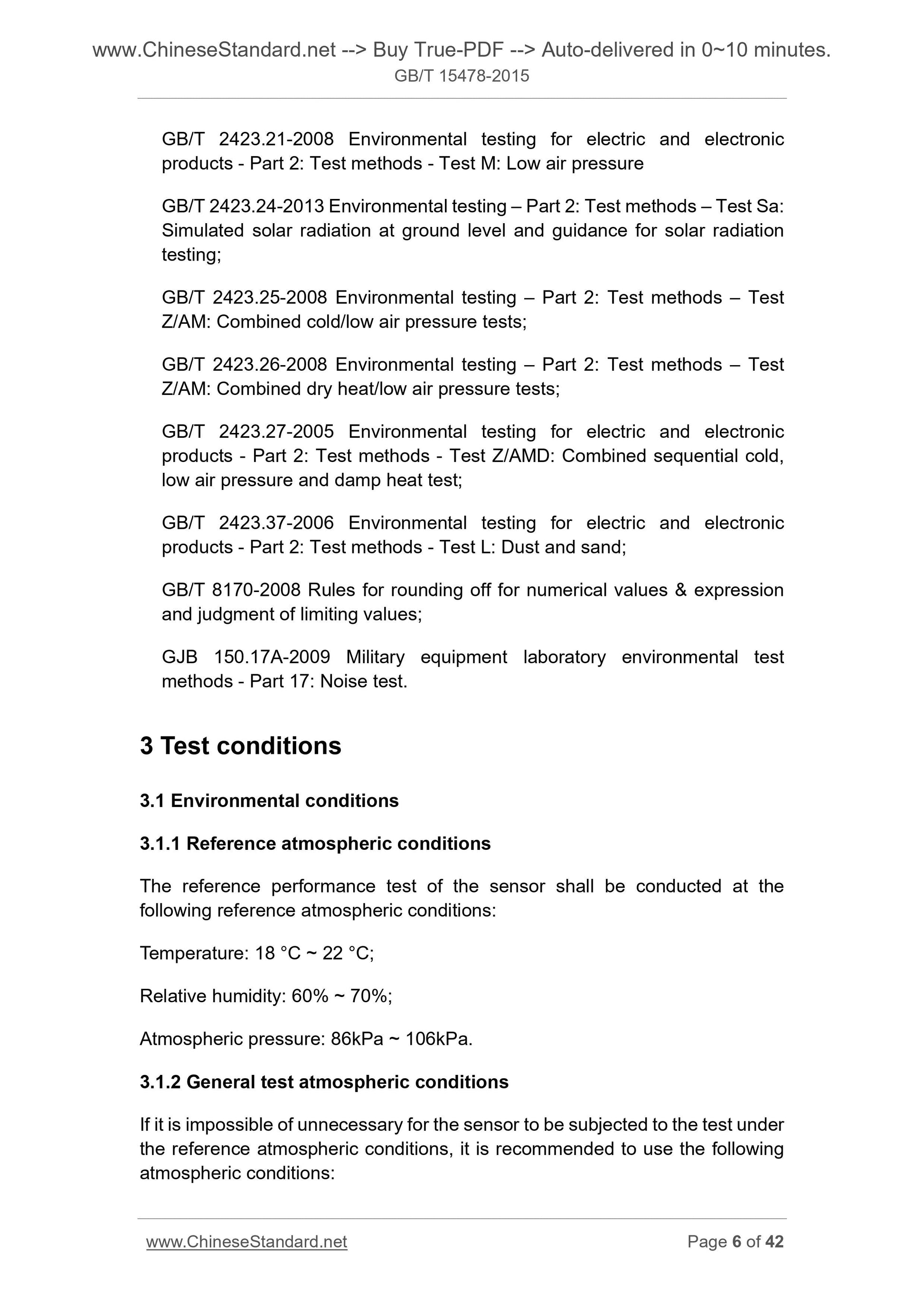

products - Part 2. Test methods - Test M. Low air pressure
GB/T 2423.24-2013 Environmental testing ?€? Part 2. Test methods ?€? Test Sa. Simulated solar radiation at ground level and guidance for solar radiation testing;
GB/T 2423.25-2008 Environmental testing ?€? Part 2. Test methods ?€? Test
Z/AM. Combined cold/low air pressure tests;
GB/T 2423.26-2008 Environmental testing ?€? Part 2. Test methods ?€? Test
Z/AM. Combined dry heat/low air pressure tests;
GB/T 2423.27-2005 Environmental testing for electric and electronic
products - Part 2. Test methods - Test Z/AMD. Combined sequential cold, low air pressure and damp heat test;
GB/T 2423.37-2006 Environmental testing for electric and electronic
products - Part 2. Test methods - Test L. Dust and sand;
GB/T 8170-2008 Rules for rounding off for numerical values and expression and judgment of limiting values;
GJB 150.17A-2009 Military equipment laboratory environmental test
methods - Part 17. Noise test.
3 Test conditions
3.1 Environmental conditions
3.1.1 Reference atmospheric conditions
The reference performance test of the sensor shall be conducted at the
following reference atmospheric conditions.
Temperature. 18 ??C ~ 22 ??C;
Relative humidity. 60% ~ 70%;
Atmospheric pressure. 86kPa ~ 106kPa.
3.1.2 General test atmospheric conditions
If it is impossible of unnecessary for the sensor to be subjected to the test under the reference atmospheric conditions, it is recommended to use the following atmospheric conditions.

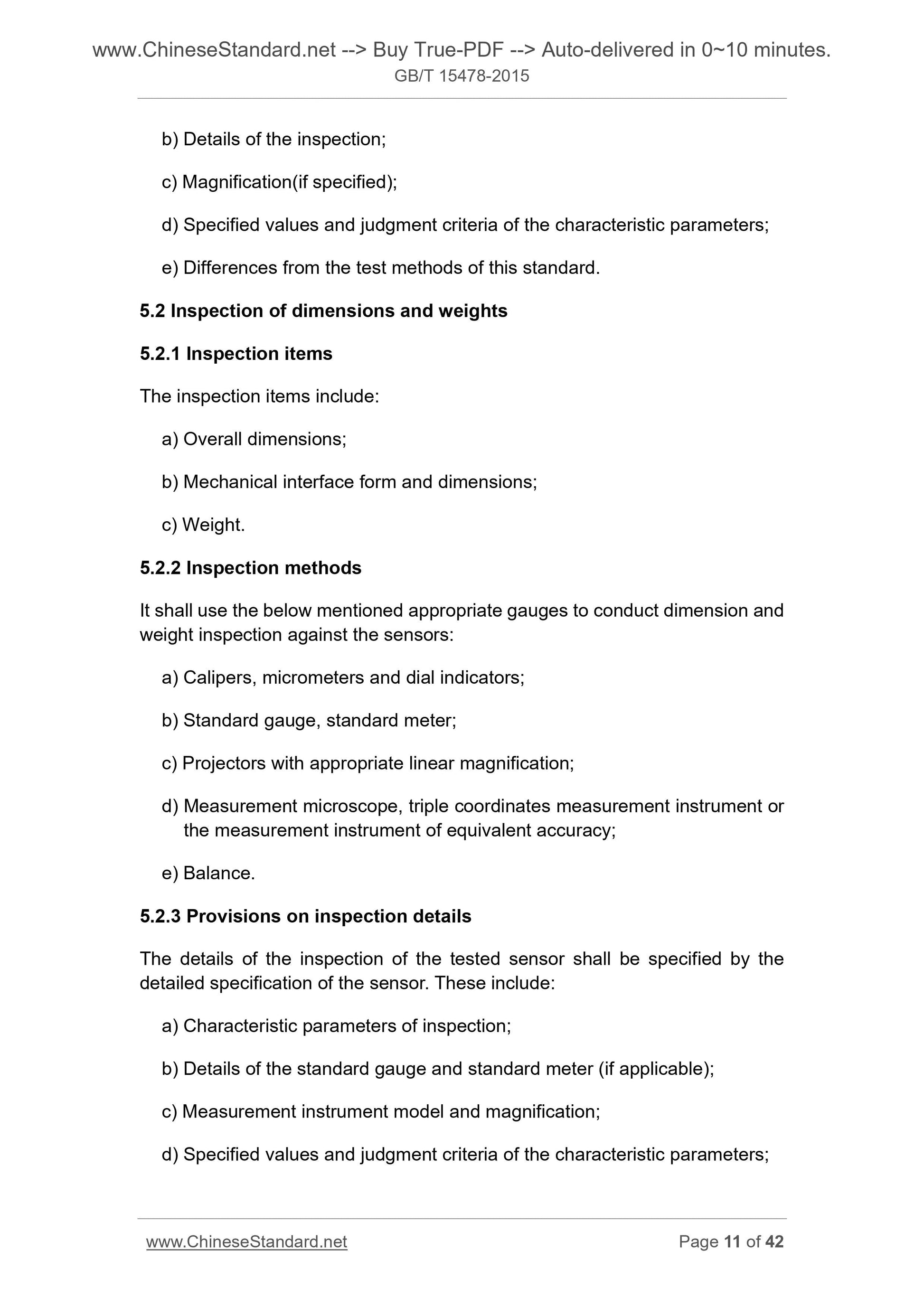

b) Details of the inspection;
c) Magnification(if specified);
d) Specified values and judgment criteria of the characteristic parameters; e) Differences from the test methods of this standard.
5.2 Inspection of dimensions and weights
5.2.1 Inspection items
The inspection items include.
a) Overall dimensions;
b) Mechanical interface form and dimensions;
c) Weight.
5.2.2 Inspection methods
It shall use the below mentioned appropriate gauges to conduct dimension and weight inspection against the sensors.
a) Calipers, micrometers and dial indicators;
b) Standard gauge, standard meter;
c) Projectors with appropriate linear magnification;
d) Measurement microscope, triple coordinates measurement instrument or the measurement instrument of equivalent accuracy;
e) Balance.
5.2.3 Provisions on...
