GB/T 1540-2002: Paper and board -- Determination of water absorption -- Cobb method

This standard specifies the method of using the Cobb absorption meter to determine the surface water absorption capacity of the paper and board. This standard is applicable to the determination of water absorption of sized paper and board surface.

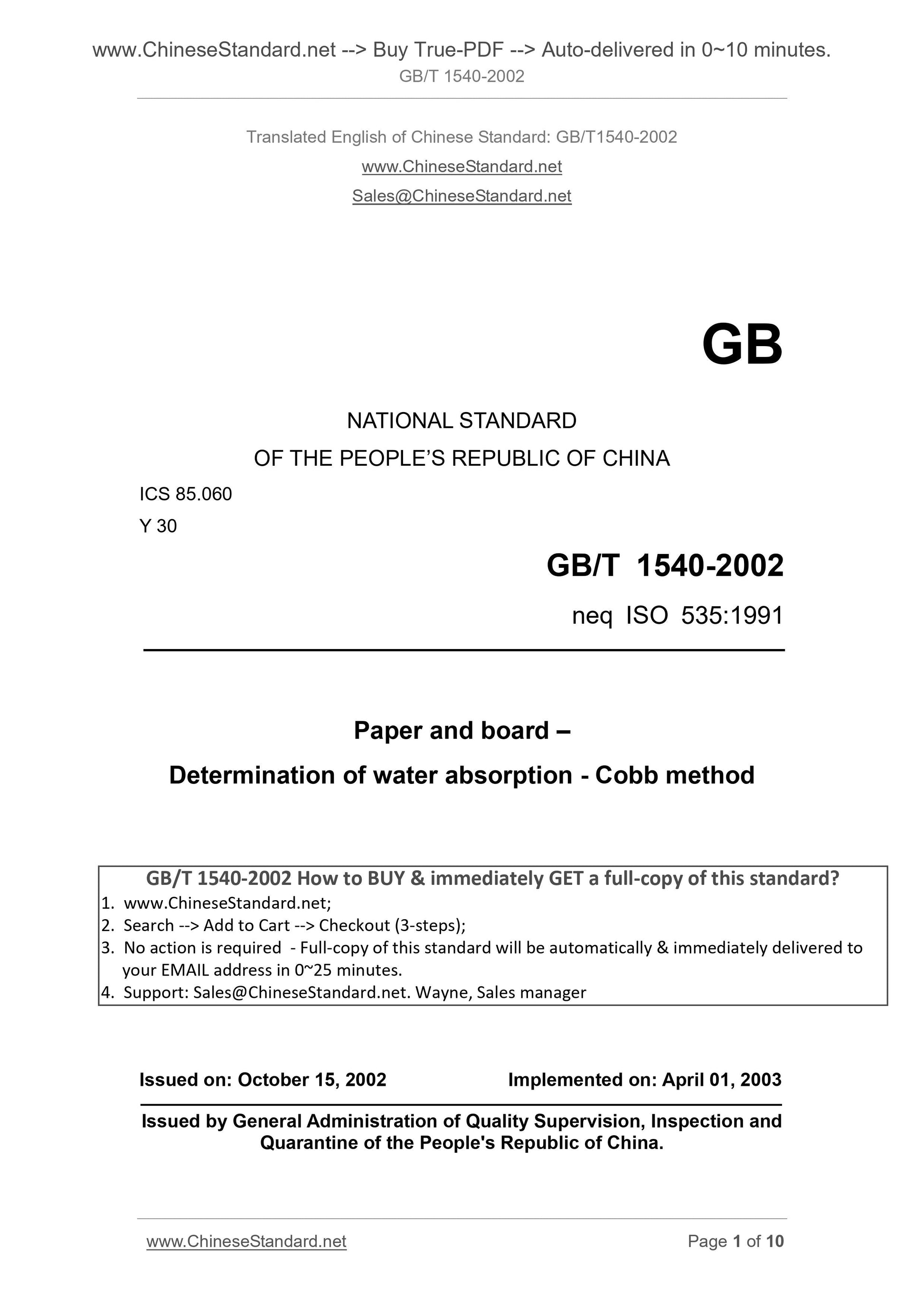

GB/T 1540-2002
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 85.060
Y 30
neq ISO 535.1991
Paper and board ?€?
Determination of water absorption - Cobb method
ISSUED ON. OCTOBER 15, 2002
IMPLEMENTED ON. APRIL 01, 2003
Issued by General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China.

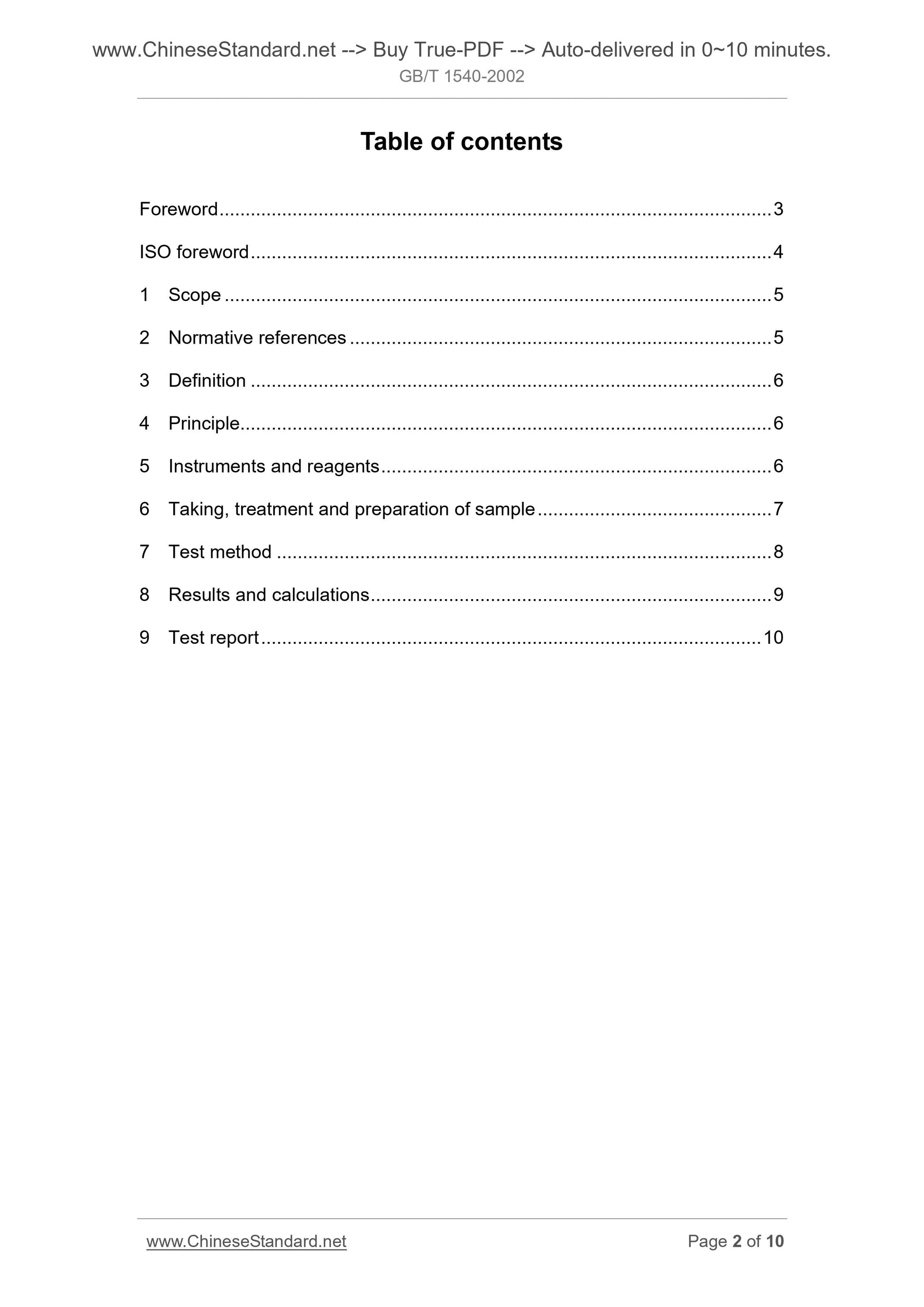

Table of contents
Foreword ... 3
ISO foreword ... 4
1 Scope ... 5
2 Normative references ... 5
3 Definition ... 6
4 Principle... 6
5 Instruments and reagents ... 6
6 Taking, treatment and preparation of sample ... 7
7 Test method ... 8
8 Results and calculations ... 9
9 Test report ... 10

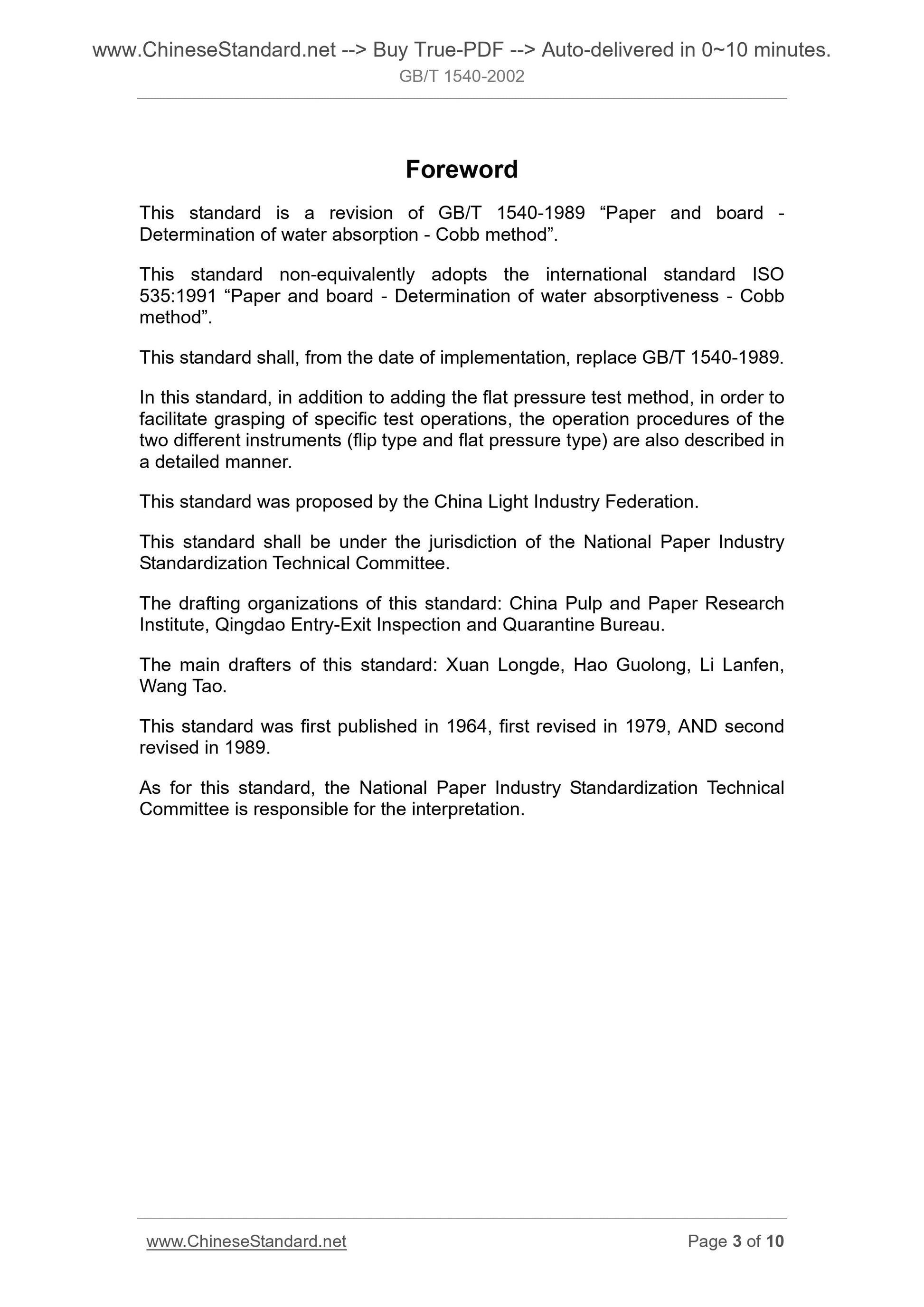

Foreword
This standard is a revision of GB/T 1540-1989 ?€?Paper and board -
Determination of water absorption - Cobb method?€?.
This standard non-equivalently adopts the international standard ISO
535.1991 ?€?Paper and board - Determination of water absorptiveness - Cobb method?€?.
This standard shall, from the date of implementation, replace GB/T 1540-1989. In this standard, in addition to adding the flat pressure test method, in order to facilitate grasping of specific test operations, the operation procedures of the two different instruments (flip type and flat pressure type) are also described in a detailed manner.
This standard was proposed by the China Light Industry Federation.
This standard shall be under the jurisdiction of the National Paper Industry Standardization Technical Committee.
The drafting organizations of this standard. China Pulp and Paper Research Institute, Qingdao Entry-Exit Inspection and Quarantine Bureau.
The main drafters of this standard. Xuan Longde, Hao Guolong, Li Lanfen, Wang Tao.
This standard was first published in 1964, first revised in 1979, AND second revised in 1989.
As for this standard, the National Paper Industry Standardization Technical Committee is responsible for the interpretation.
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Paper and board ?€?
Determination of water absorption - Cobb method
neq ISO 535.1991
Replacing GB/T 1540-1989

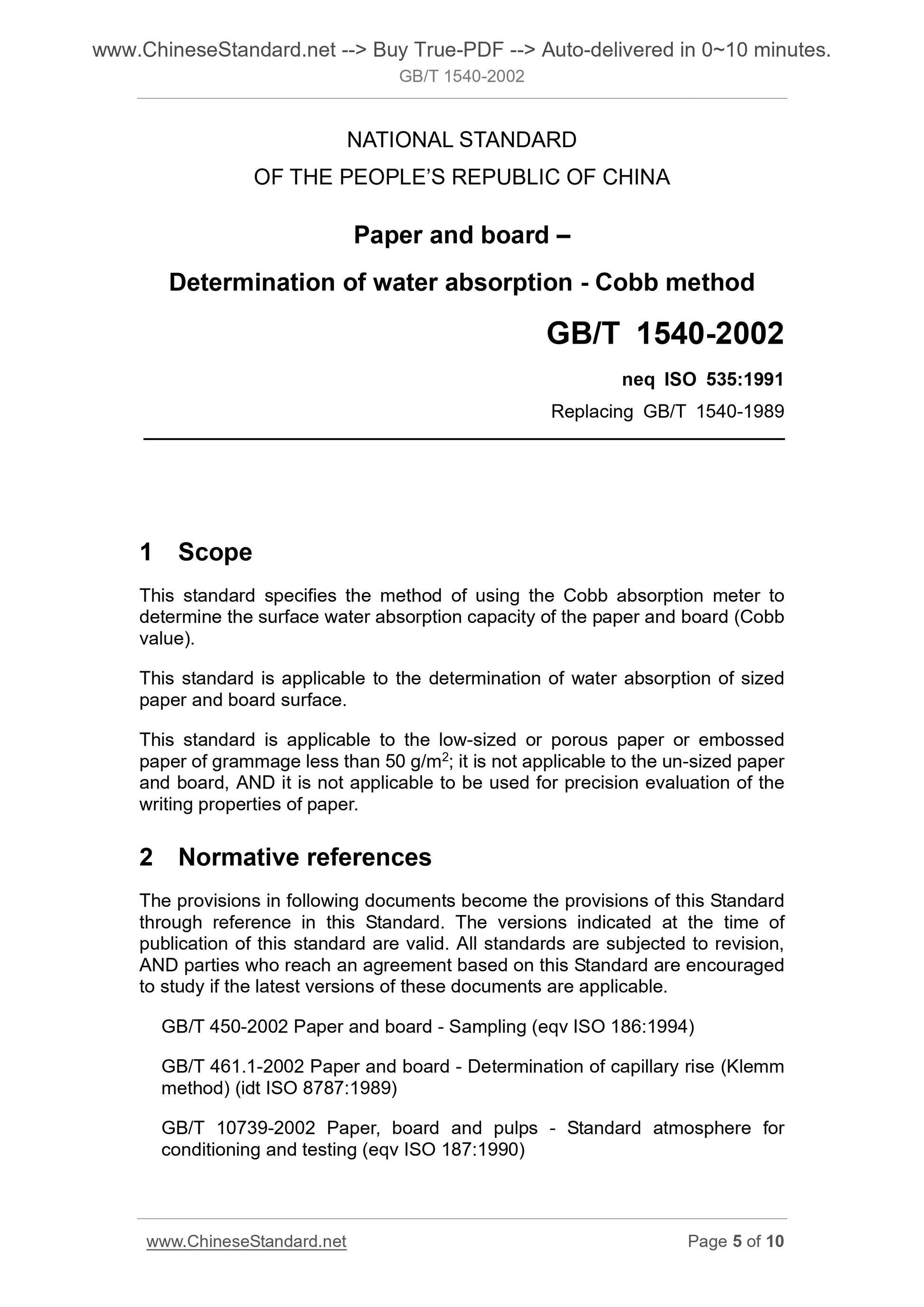

1 Scope
This standard specifies the method of using the Cobb absorption meter to determine the surface water absorption capacity of the paper and board (Cobb value).
This standard is applicable to the determination of water absorption of sized paper and board surface.
This standard is applicable to the low-sized or porous paper or embossed paper of grammage less than 50 g/m2; it is not applicable to the un-sized paper and board, AND it is not applicable to be used for precision evaluation of the writing properties of paper.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. The versions indicated at the time of publication of this standard are valid. All standards are subjected to revision, AND parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable.
GB/T 450-2002 Paper and board - Sampling (eqv ISO 186.1994)
GB/T 461.1-2002 Paper and board - Determination of capillary rise (Klemm method) (idt ISO 8787.1989)
GB/T 10739-2002 Paper, board and pulps - Standard atmosphere for
conditioning and testing (eqv ISO 187.1990)

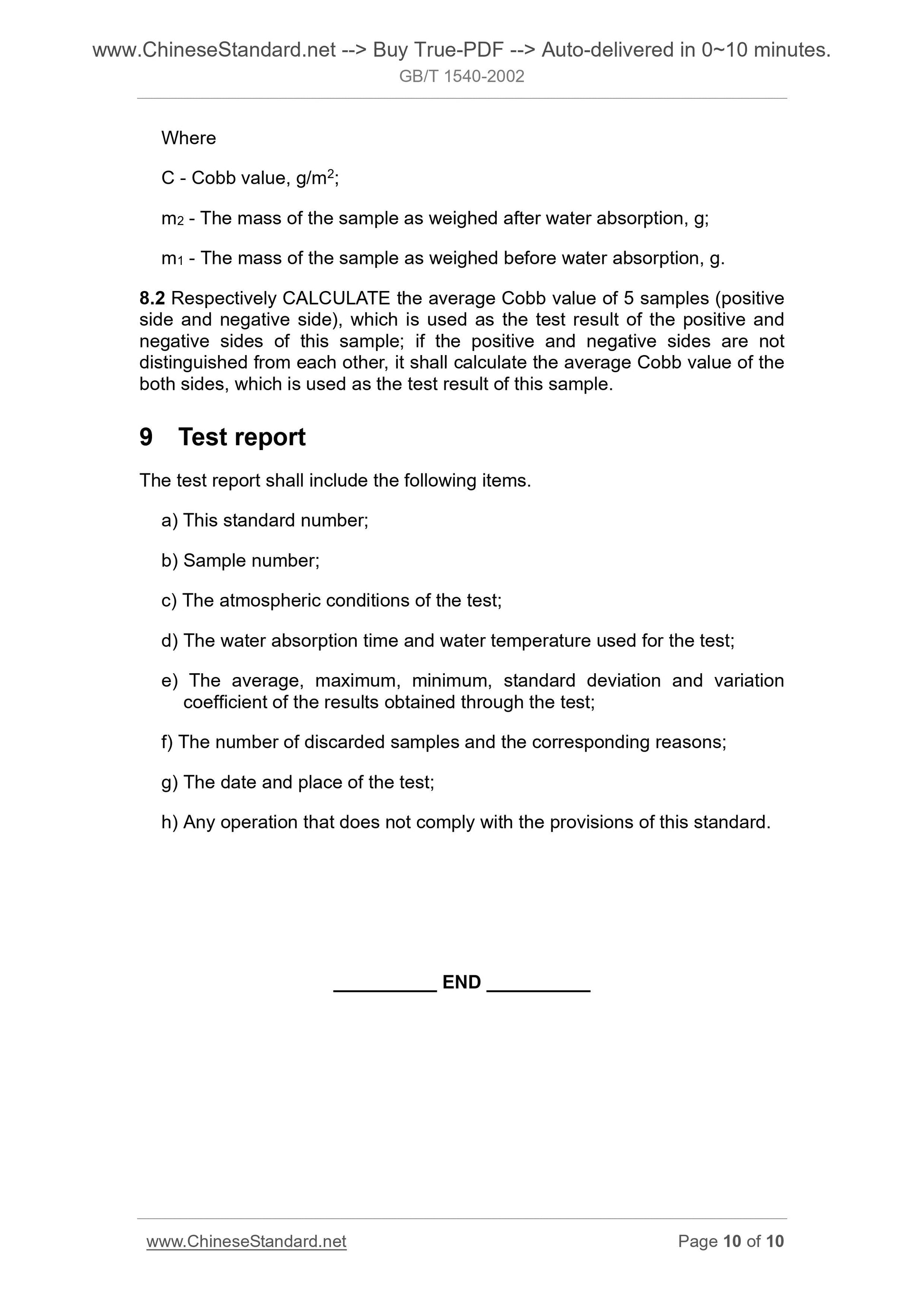

Where
C - Cobb value, g/m2;
m2 - The mass of the sample as weighed after water absorption, g;
m1 - The mass of the sample as weighed before water absorption, g.
8.2 Respectively CALCULATE the average Cobb value of 5 samples (positive side and negative side), which is used as the test result of the positive and negative sides of this sample; if the positive and negative sides are not distinguished from each other, it shall calculate the average Cobb value of the both sides, which is used as the test result of this sample.
9 Test report
The test report shall include the following items.
a) This standard number;
b) Sample number;
c) The atmospheric conditions of the test;
d) The water absorption time and water temperature used for the test;
e) The average, maximum, minimum, standard deviation and variation
coefficient of the results obtained through the test;
f) The number of discarded samples and the corresponding reasons;
g) The date and place of the test;
h) Any operation that does not comply with the provisions of this standard.
