GB/T 15102-2006: Surface decorated wood-based panels with paper impregnated thermosetting resins [including Modification List 1]

This Standard specifies the classification, requirements, test methods, inspection rules as well as marks, packaging, transport and storage of surface decorated wood-based panels with paper impregnated thermosetting resins. This Standard applies to the decorative plate of impregnated amino resin film, paved on the particleboard, fiberboard and other substrates plywood surface, formed by thermal pressure.

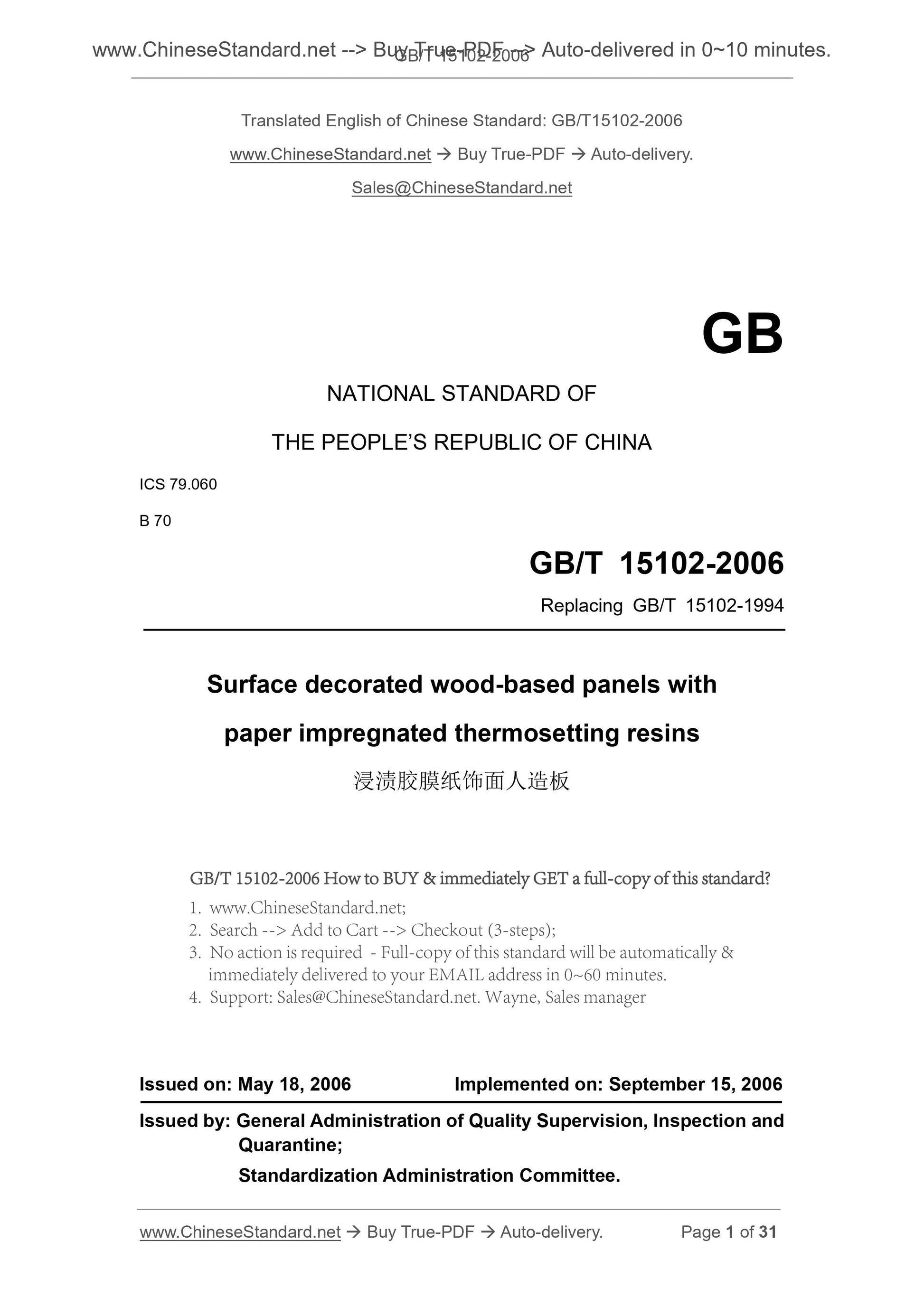

GB/T 15102-2006
GB
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 79.060
B 70
Replacing GB/T 15102-1994
Surface decorated wood-based panels with
paper impregnated thermosetting resins
?????????????????????????€????
ISSUED ON. MAY 18, 2006
IMPLEMENTED ON. SEPTEMBER 15, 2006
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

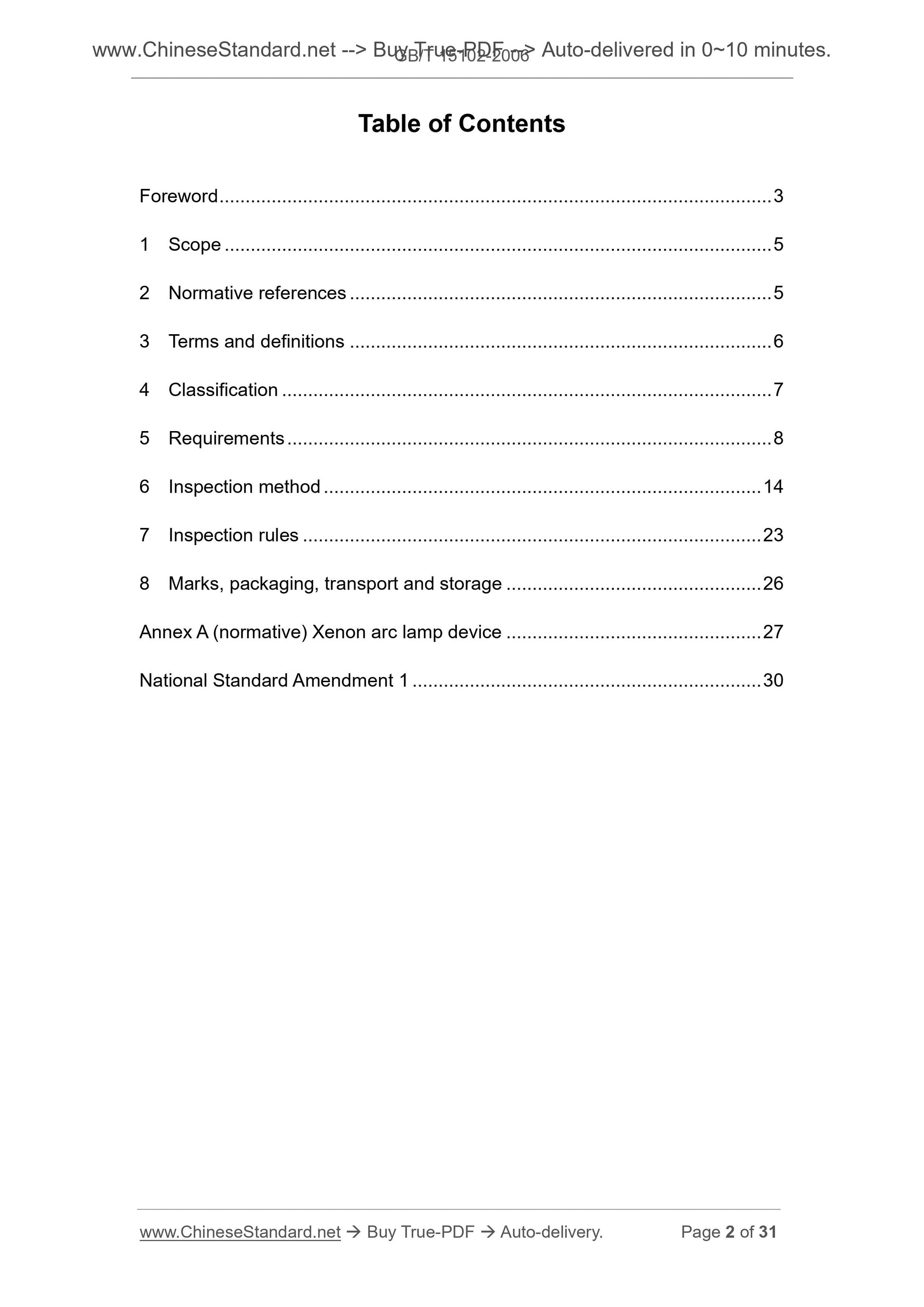

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Classification ... 7
5 Requirements ... 8
6 Inspection method ... 14
7 Inspection rules ... 23
8 Marks, packaging, transport and storage ... 26
Annex A (normative) Xenon arc lamp device ... 27
National Standard Amendment 1 ... 30

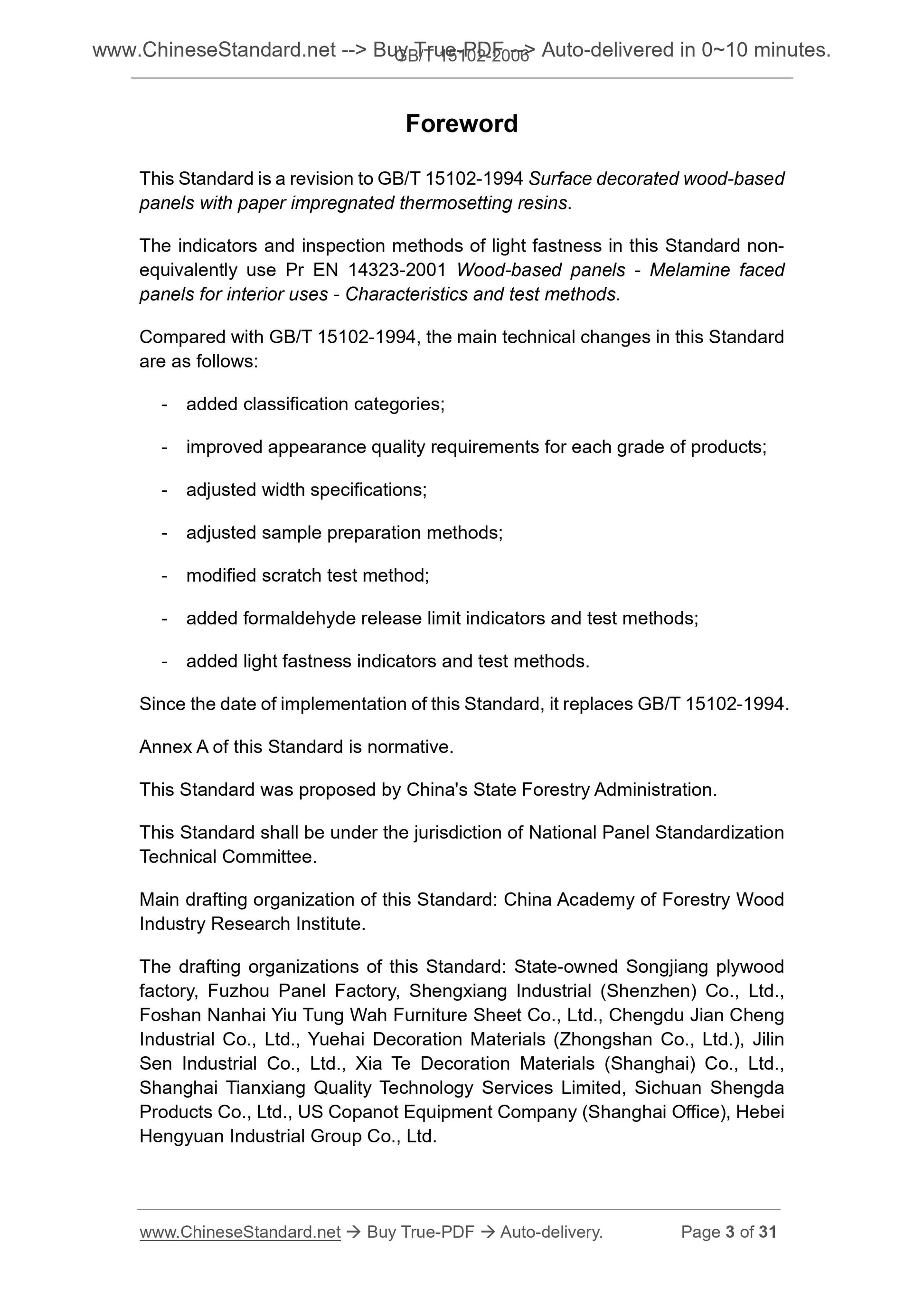

Foreword
This Standard is a revision to GB/T 15102-1994 Surface decorated wood-based panels with paper impregnated thermosetting resins.
The indicators and inspection methods of light fastness in this Standard non- equivalently use Pr EN 14323-2001 Wood-based panels - Melamine faced
panels for interior uses - Characteristics and test methods.
Compared with GB/T 15102-1994, the main technical changes in this Standard are as follows.
- added classification categories;
- improved appearance quality requirements for each grade of products;
- adjusted width specifications;
- adjusted sample preparation methods;
- modified scratch test method;
- added formaldehyde release limit indicators and test methods;
- added light fastness indicators and test methods.
Since the date of implementation of this Standard, it replaces GB/T 15102-1994. Annex A of this Standard is normative.
This Standard was proposed by China's State Forestry Administration.
This Standard shall be under the jurisdiction of National Panel Standardization Technical Committee.
Main drafting organization of this Standard. China Academy of Forestry Wood Industry Research Institute.
The drafting organizations of this Standard. State-owned Songjiang plywood factory, Fuzhou Panel Factory, Shengxiang Industrial (Shenzhen) Co., Ltd., Foshan Nanhai Yiu Tung Wah Furniture Sheet Co., Ltd., Chengdu Jian Cheng Industrial Co., Ltd., Yuehai Decoration Materials (Zhongshan Co., Ltd.), Jilin Sen Industrial Co., Ltd., Xia Te Decoration Materials (Shanghai) Co., Ltd., Shanghai Tianxiang Quality Technology Services Limited, Sichuan Shengda Products Co., Ltd., US Copanot Equipment Company (Shanghai Office), Hebei Hengyuan Industrial Group Co., Ltd.
Surface decorated wood-based panels with
paper impregnated thermosetting resins

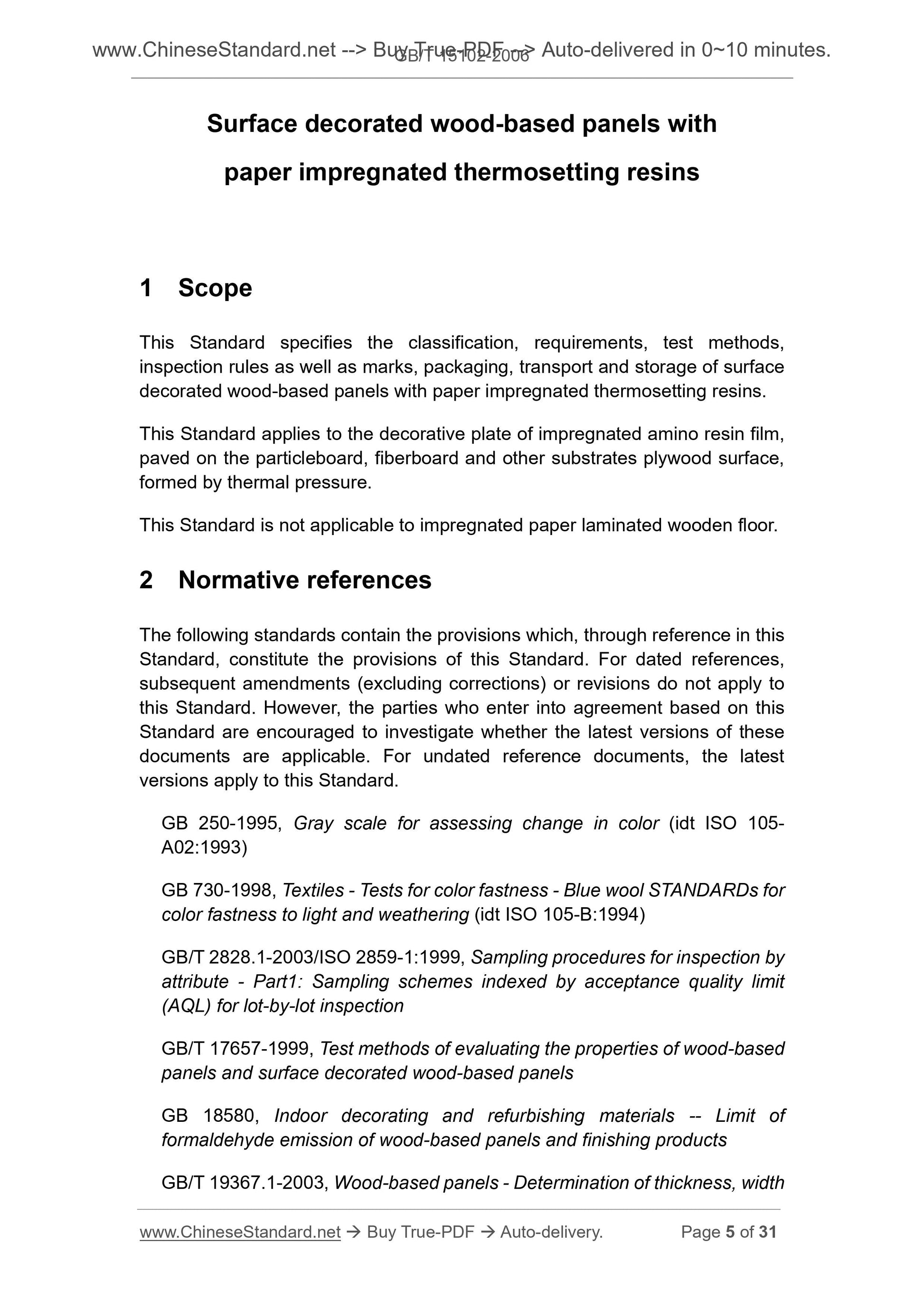

1 Scope
This Standard specifies the classification, requirements, test methods, inspection rules as well as marks, packaging, transport and storage of surface decorated wood-based panels with paper impregnated thermosetting resins. This Standard applies to the decorative plate of impregnated amino resin film, paved on the particleboard, fiberboard and other substrates plywood surface, formed by thermal pressure.
This Standard is not applicable to impregnated paper laminated wooden floor. 2 Normative references
The following standards contain the provisions which, through reference in this Standard, constitute the provisions of this Standard. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest
versions apply to this Standard.
GB 250-1995, Gray scale for assessing change in color (idt ISO 105-
A02.1993)
GB 730-1998, Textiles - Tests for color fastness - Blue wool STANDARDs for color fastness to light and weathering (idt ISO 105-B.1994)
GB/T 2828.1-2003/ISO 2859-1.1999, Sampling procedures for inspection by attribute - Part 1. Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection
GB/T 17657-1999, Test methods of evaluating the properties of wood-based panels and surface decorated wood-based panels
GB 18580, Indoor decorating and refurbishing materials -- Limit of
formaldehyde emission of wood-based panels and finishing products
GB/T 19367.1-2003, Wood-based panels - Determination of thickness, width and length of panels
GB/T 19367.2-2003, Wood-based panels - Determination of squareness and
straightness of panels

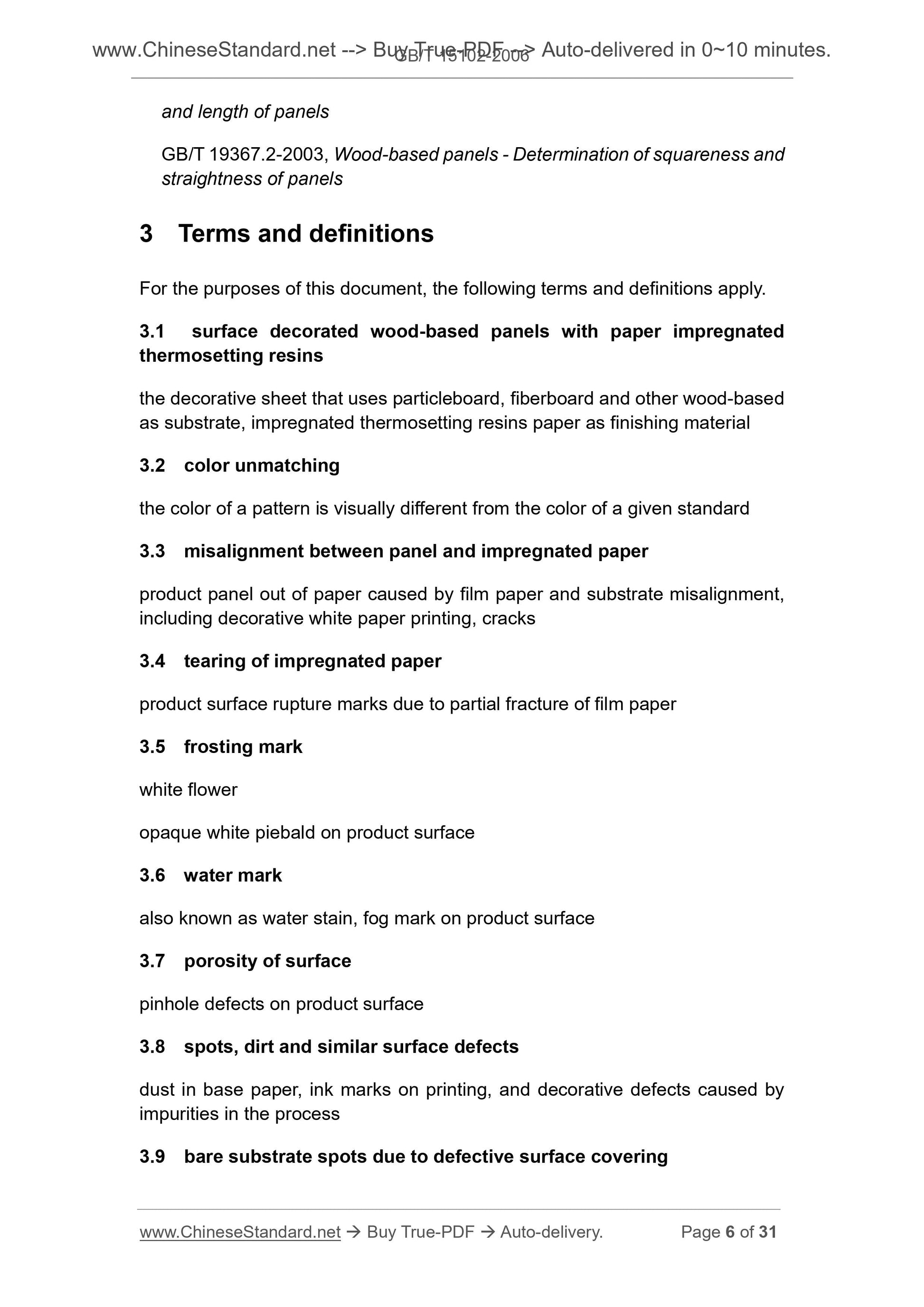

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply. 3.1 surface decorated wood-based panels with paper impregnated
thermosetting resins
the decorative sheet that uses particleboard, fiberboard and other wood-based as substrate, impregnated thermosetting resins paper as finishing material 3.2 color unmatching
the color of a pattern is visually different from the color of a given standard 3.3 misalignment between panel and impregnated paper
product panel out of paper caused by film paper and substrate misalignment, including decorative white paper printing, cracks
3.4 tearing of impregnated paper
product surface rupture marks due to partial fracture of film paper
3.5 frosting mark
white flower
opaque white piebald on product surface
3.6 water mark
also known as water stain, fog mark on product surface
3.7 porosity of surface
pinhole defects on product surface
3.8 spots, dirt and similar surface defects
dust in base paper, ink marks on printing, and decorative defects caused by impurities in the process
3.9 bare substrate spots due to defective surface covering

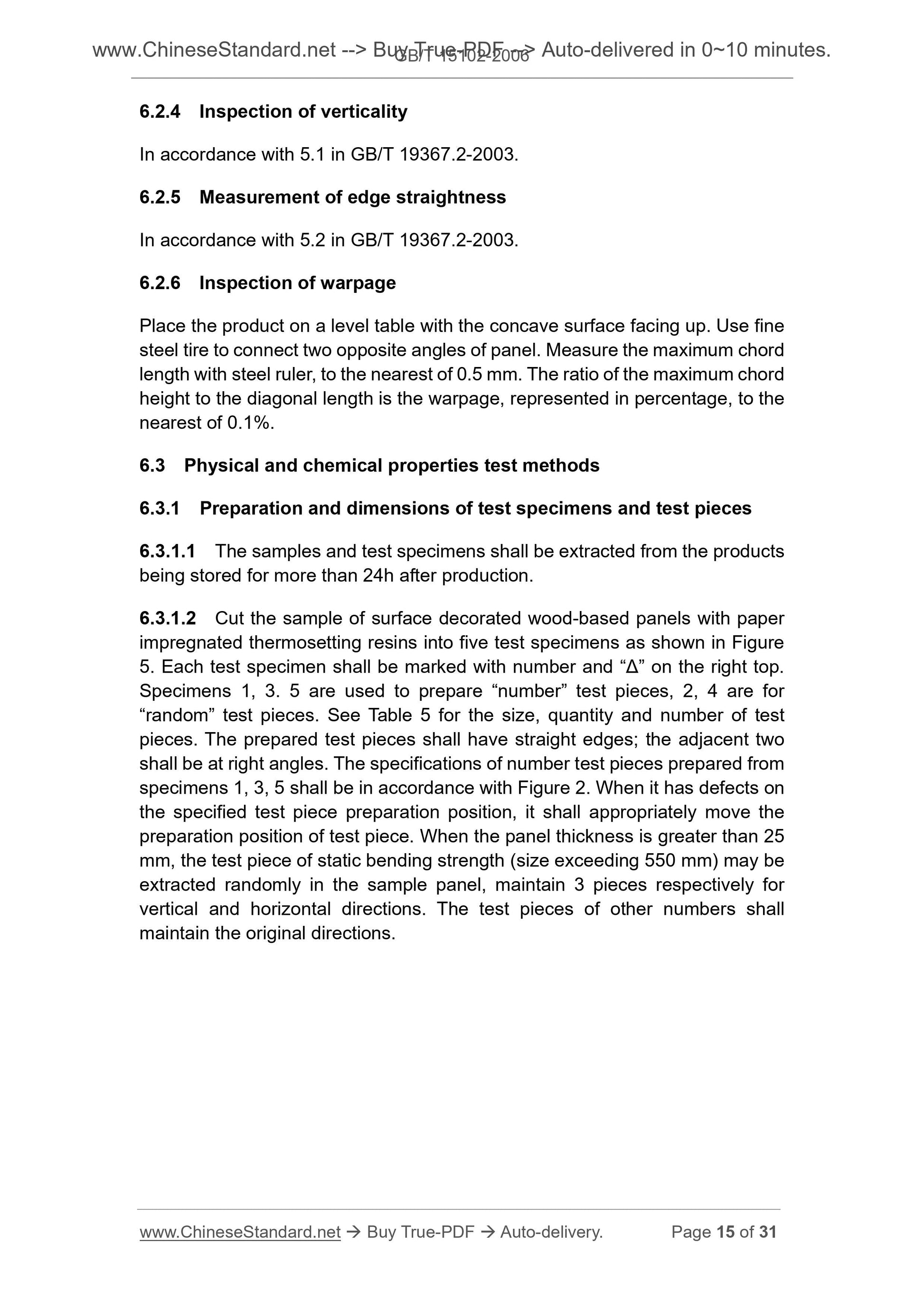

6.2.4 Inspection of verticality
In accordance with 5.1 in GB/T 19367.2-2003.
6.2.5 Measurement of edge straightness
In accordance with 5.2 in GB/T 19367.2-2003.
6.2.6 Inspection of warpage
Place the product on a level table with the concave surface facing up. Use fine steel tire to connect two opposite angles of panel. Measure the maximum chord length with steel ruler, to the nearest of 0.5 mm. The ratio of the maximum chord height to the diagonal length is the warpage, represented in percentage, to the nearest of 0.1%.
6.3 Physical and chemical properties test methods
6.3.1 Preparation and dimensions of test specimens and test pieces
6.3.1.1 The samples and test specimens shall be extracted from the products being stored for more than 24h after production.
6.3.1.2 Cut the sample of surface decorated wood-based panels with paper impregnated thermosetting resins into five test specimens as shown in Figure 5. Each test specimen shall be marked with number and ?€????€? on the right top. Specimens 1, 3. 5 are used to prepare ?€?number?€? test pieces, 2, 4 are for ?€?random?€? test pieces. See Table 5 for the size, quantity and number of test pieces. The prepared test pieces shall have straight edges; the adjacent two shall be at right angles. The specifications of number test pieces prepared from specimens 1, 3, 5 shall be in accordance with Figure 2. When it has defects on the specified test piece preparation position, it shall appropriately move the preparation position of test piece. When the panel thickness is greater than 25 mm, the test piece of static bending strength (size exceeding 550 mm) may be extracted randomly in the sample panel, maintain 3 pieces respectively for vertical and horizontal directions. The test pieces of other numbers shall maintain the original directions.

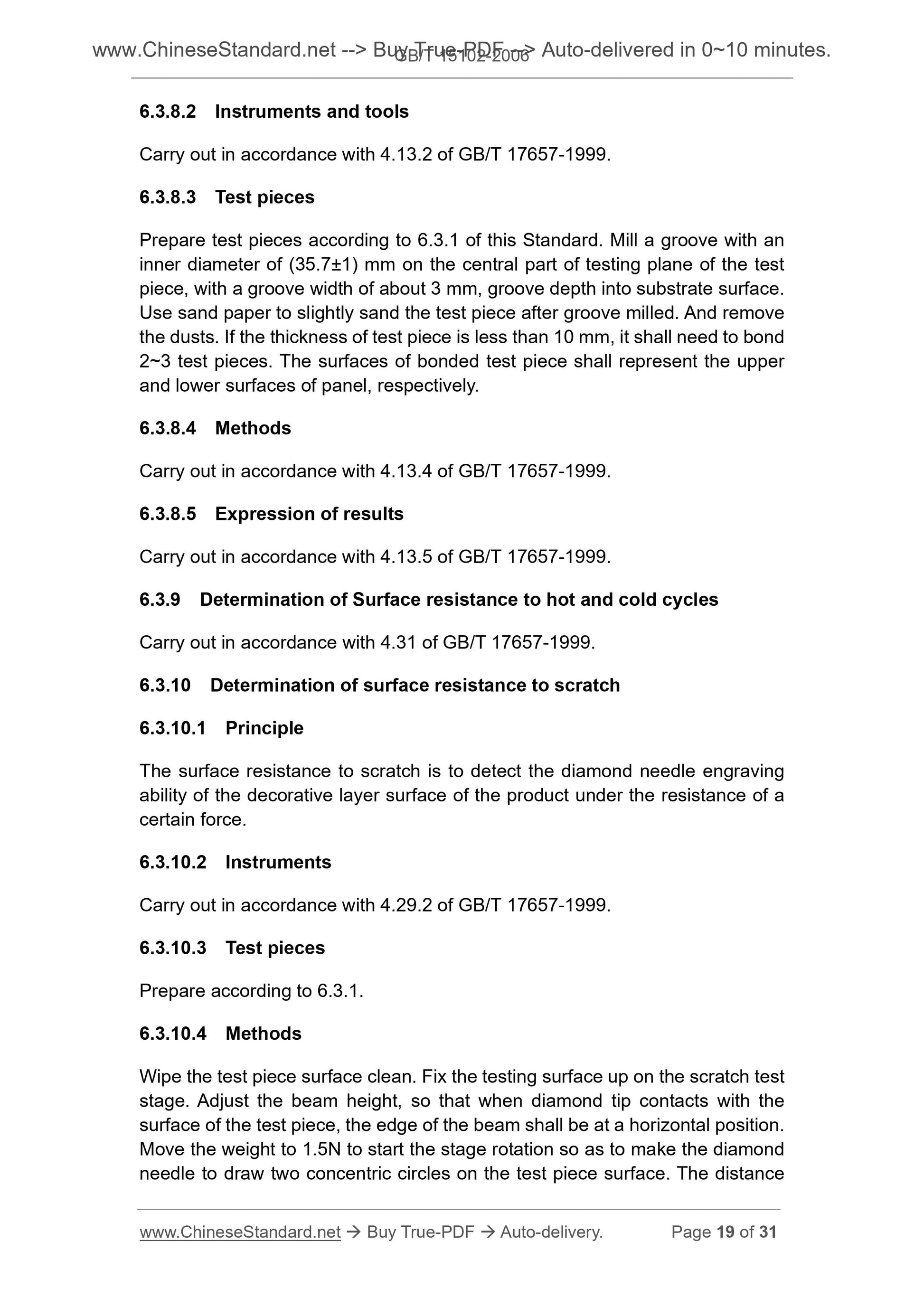

6.3.8.2 Instruments and tools
Carry out in accordance with 4.13.2 of GB/T 17657-1999.
6.3.8.3 Test pieces
Prepare test pieces according to 6.3.1 of this Standard. Mill a groove with an inner diameter of (35.7??1) mm on the central part of testing plane of the test piece, with a groove width of about 3 mm, groove depth into substrate surface. Use sand paper to slightly sand the test piece after groove milled. And ...
