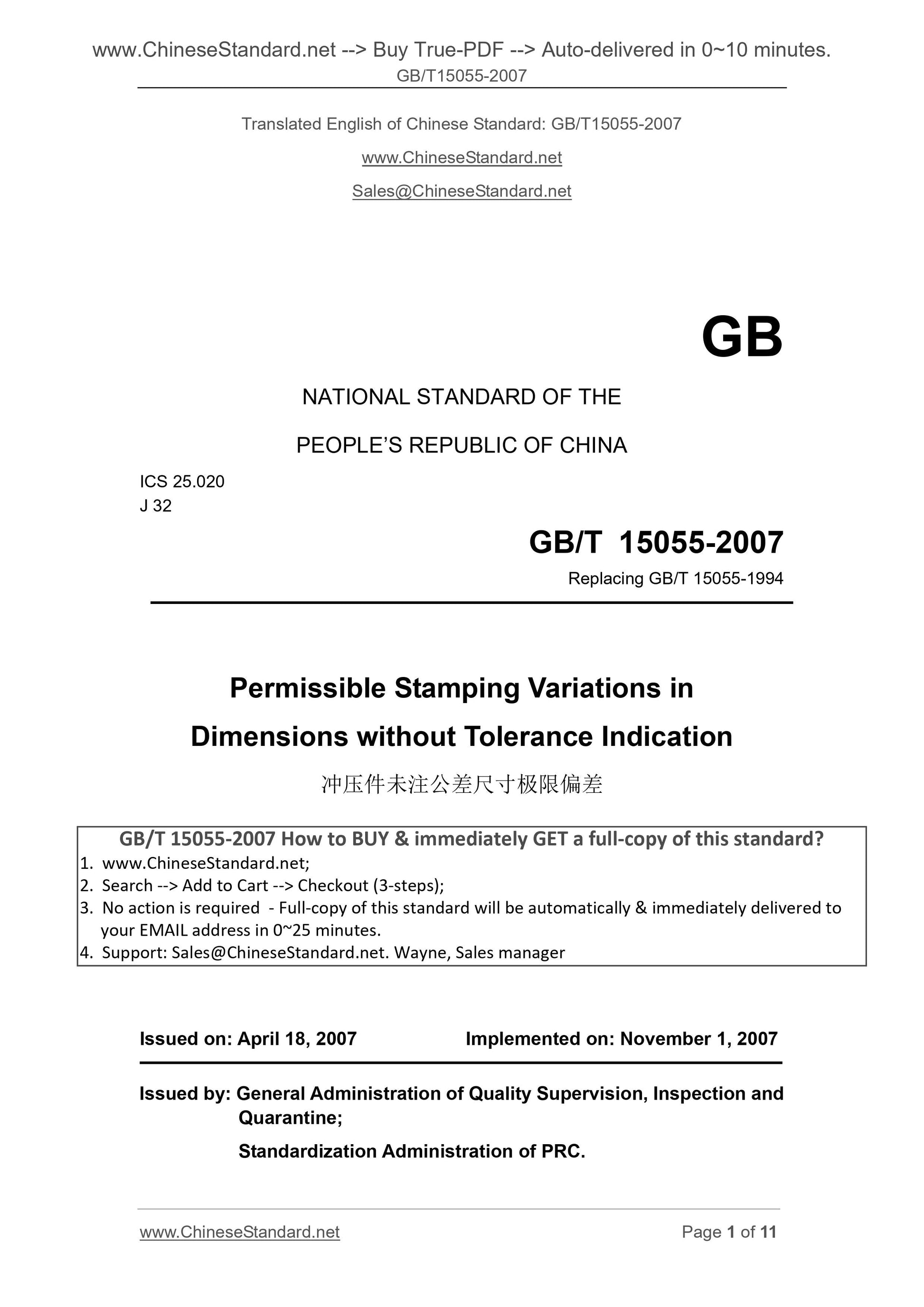

GB/T 15055-2007: Permissible stamping variations in dimensions without tolerance indication

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 15055-2007 (Self-service in 1-minute)
Newer / historical versions: GB/T 15055-2007

Preview True-PDF

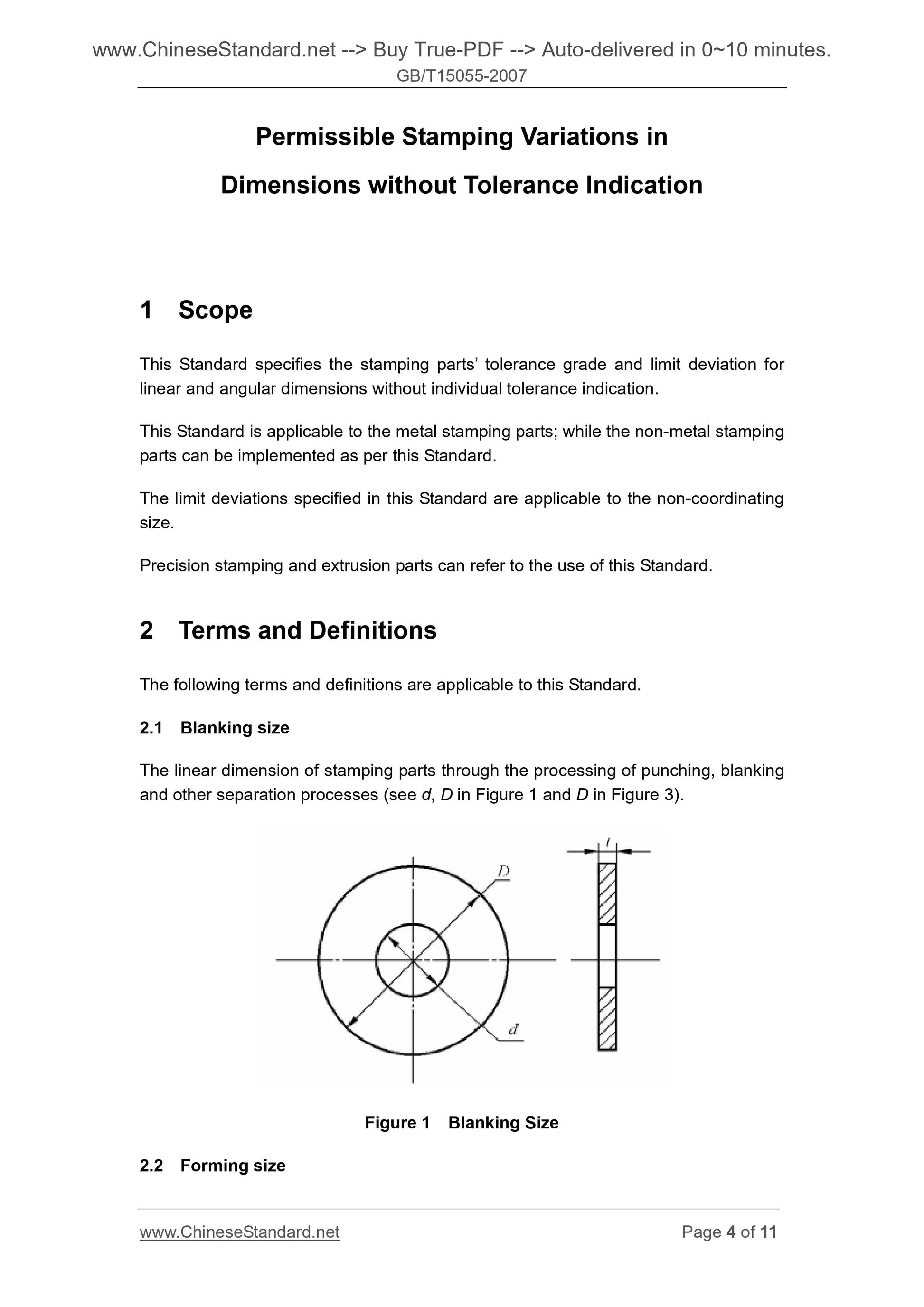

Scope

This Standard specifies the stamping parts’ tolerance grade and limit deviation for
linear and angular dimensions without individual tolerance indication.
This Standard is applicable to the metal stamping parts; while the non-metal stamping
parts can be implemented as per this Standard.
The limit deviations specified in this Standard are applicable to the non-coordinating
size.
Precision stamping and extrusion parts can refer to the use of this Standard.

Basic Data

Standard ID	GB/T 15055-2007 (GB/T15055-2007)
Description (Translated English)	Permissible stamping variations in dimensions without tolerance indication
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J32
Classification of International Standard	25.020
Word Count Estimation	8,820
Date of Issue	2007-04-18
Date of Implementation	2007-11-01
Older Standard (superseded by this standard)	GB/T 15055-1994
Regulation (derived from)	National Standard Announcement 2007 No.4 (Total No.104)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the stamping without individual tolerance of linear and angular dimensions tolerance level and limit deviations. This standard applies to metal stamping parts, non-metallic stampings may refer to this standard. This standard specifies the maximum tolerance for non- fit size. Precision stamping and extrusion parts may refer to the use of this standard.
